Functions and characteristics of device for remote control and operation of fences FENCE GATEWAY GW10

Alarm signalling

Device signals alarms that alert you audibly. Especially for a drop in voltage on the fence below the set level (normally 3 kV), but also a warning of a low battery condition of the device or a signal loss reporting.

Touch control

Easy and clear operation using touch keys on the front panel of the device.

Backup power

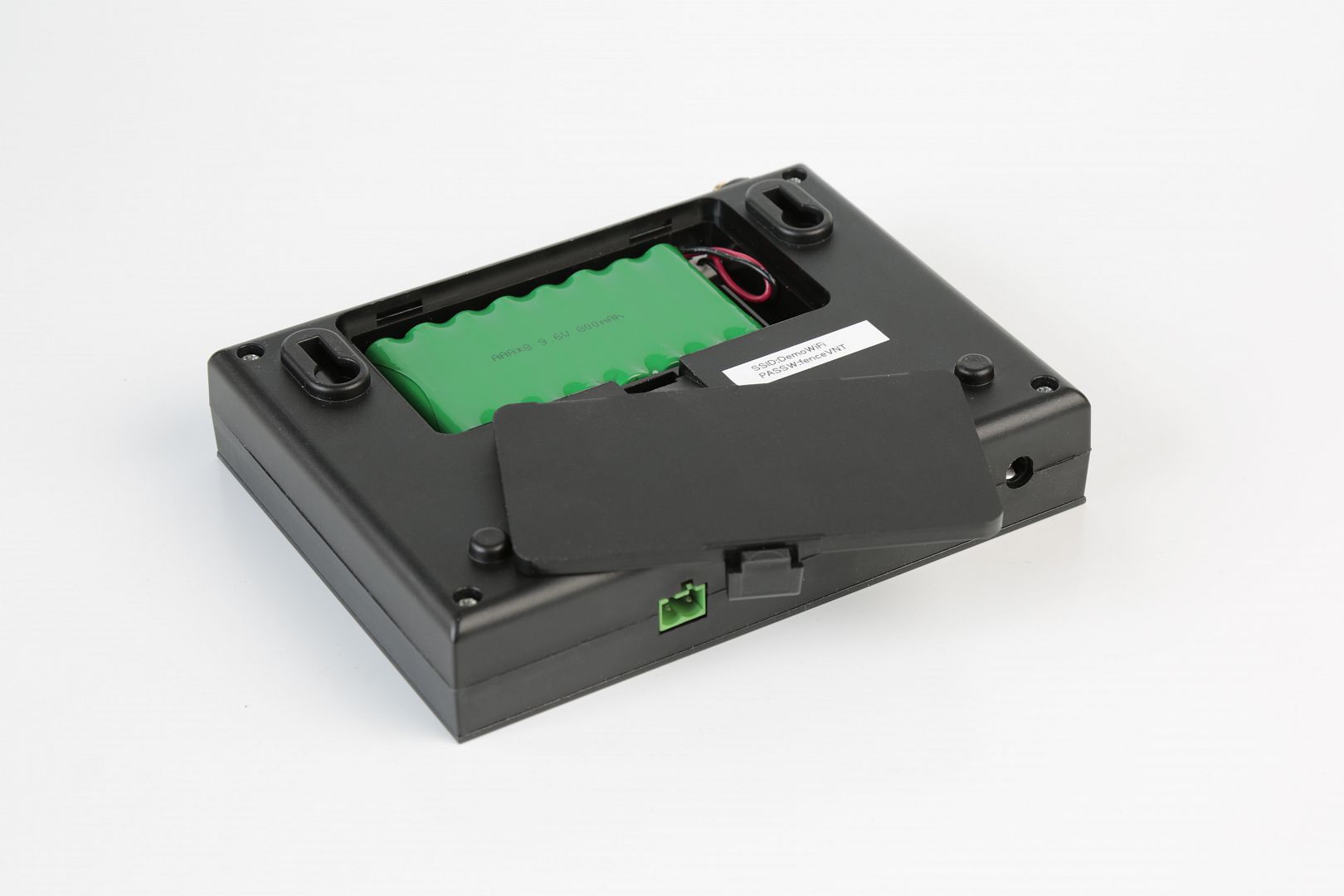

Device contains a backup battery pack. In the event of a mains power failure, the gateway will not be switched off. The backup battery power supply is able to supply voltage to the device for up to one day.

No SIM CARD needed

Devices use free RF radio technology (radio frequency). No SIM CARD is required for operation. There are no additional costs for the operation of the device.

Control up to 6 devices

You can connect up to 6 devices to one gateway. You can control and monitor several fences from one place. You get a complete overview of all connected devices.

Current information

Thanks to RF technologies, smart devices are constantly communicating with each other. You have always current information on all connected devices and status of the fences.

Range up to 10 km

With basic antenna, you can control and monitor the device at a distance up to 10 km.

Range up to 30 km

Use an external antenna to increase the range. You can control and monitor all connected devices at a distance up to 30 km.

RF technology

The device works with wireless and free RF technology. There are no additional operating costs.

External antenna

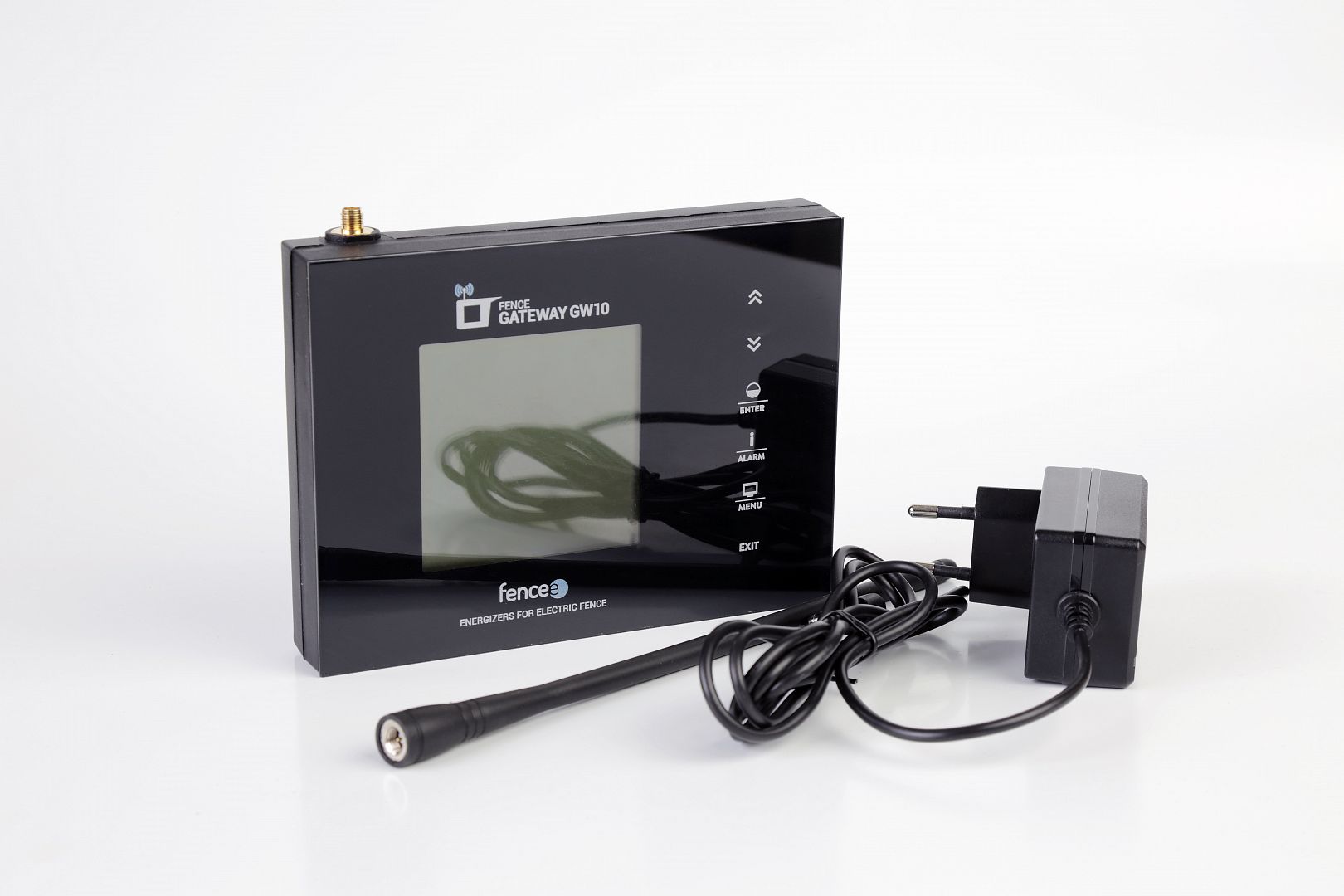

Possibility of connecting an external antenna through SMA connector. An external antenna allows you to increase the range of the device to a distance up to 30km.

Basic specifications of the control and monitoring device FENCE GATEWAY GW10

Device for remote central control and operation of RF energizers fencee energy DUO RF EDX, power DUO RF PDX and MX10 Monitors.

Range with basic antenna up to 10 km, with external antenna up to 30 km. Possibility to connect up to 6 energizers or monitors. Wireless RF connection, without the use of a SIM card. Clear information about all devices on a large graphic LCD display.

General characteristics:

Checking and controlling up to 6 energizers or Monitors - simply pair other energizers of the energy DUO RF EDX, power DUO RF PDX series or MX10 Monitors and you have their main values clearly in one device and you can control, set them

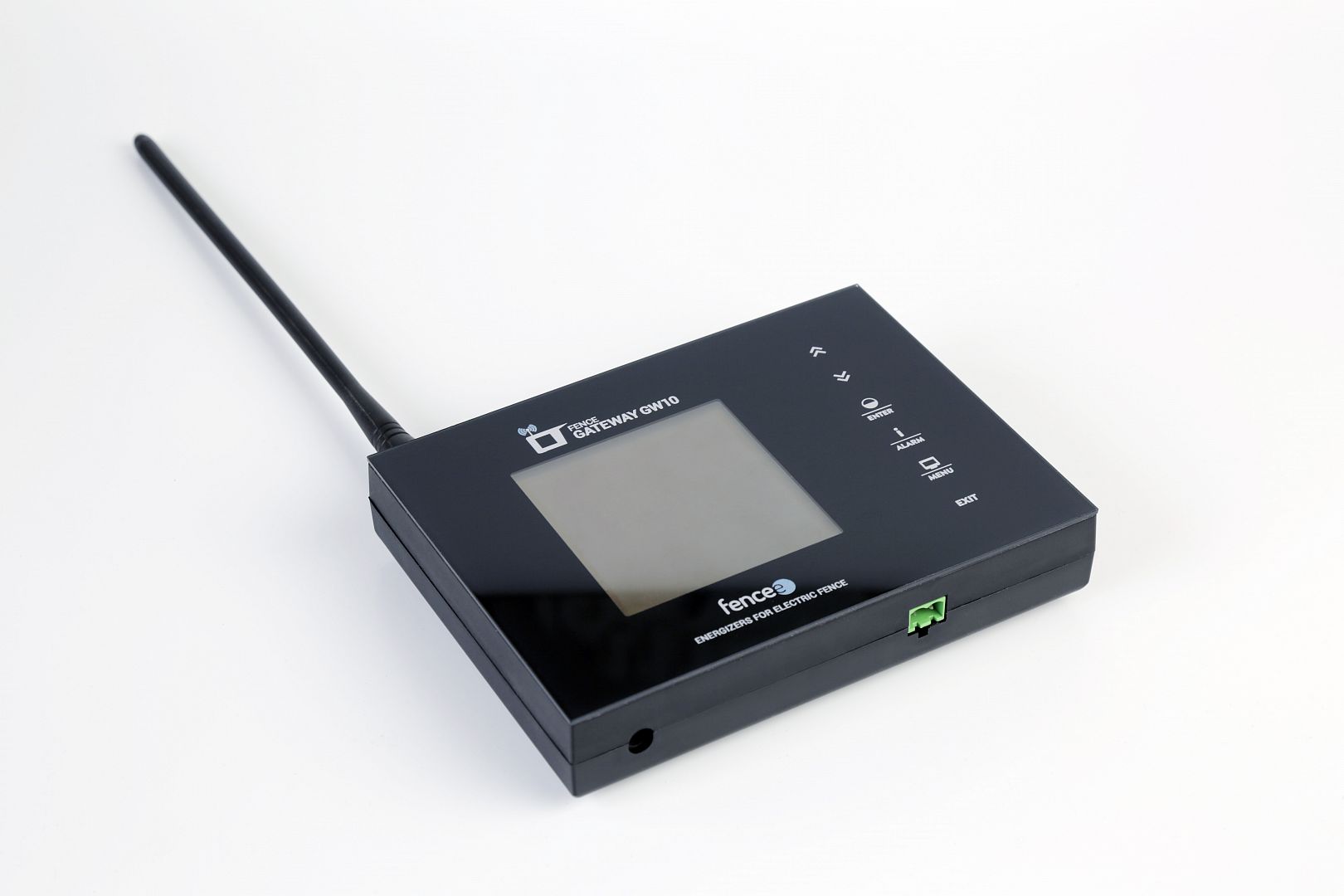

Clear, intuitive, touch control - next to the display there are 6 touch keys that easily control whole device - use the arrow keys to select, Enter key to confirm, Exit key to exit, Alarm and Menu to set
Wireless RF connection to devices - we use wireless radio frequency technology for communication, the signal spreads widely, in normal buildings, fields, forests, reaches up to 10 km. In case of more demanding terrain, we recommend adding an external antenna, with which it is possible to reach up to 30 km
No SIM CARD required (no additional operator costs) - using a radio signal you don't have to pay any provider, no incidental costs, it works reliably even where there is normally no coverage of mobile networks
All necessary information together in one device - the overview screen provides all important information about all fences at first sight
Large, fully graphic LCD display - measures 6,5 x 6,5 cm, is sufficient to display the necessary information and can be adjusted according to your needs (brightness, contrast)
Overview screen with information about all energizers and monitors - you can immediately see what is happening in the fences and where an alarm has been activated

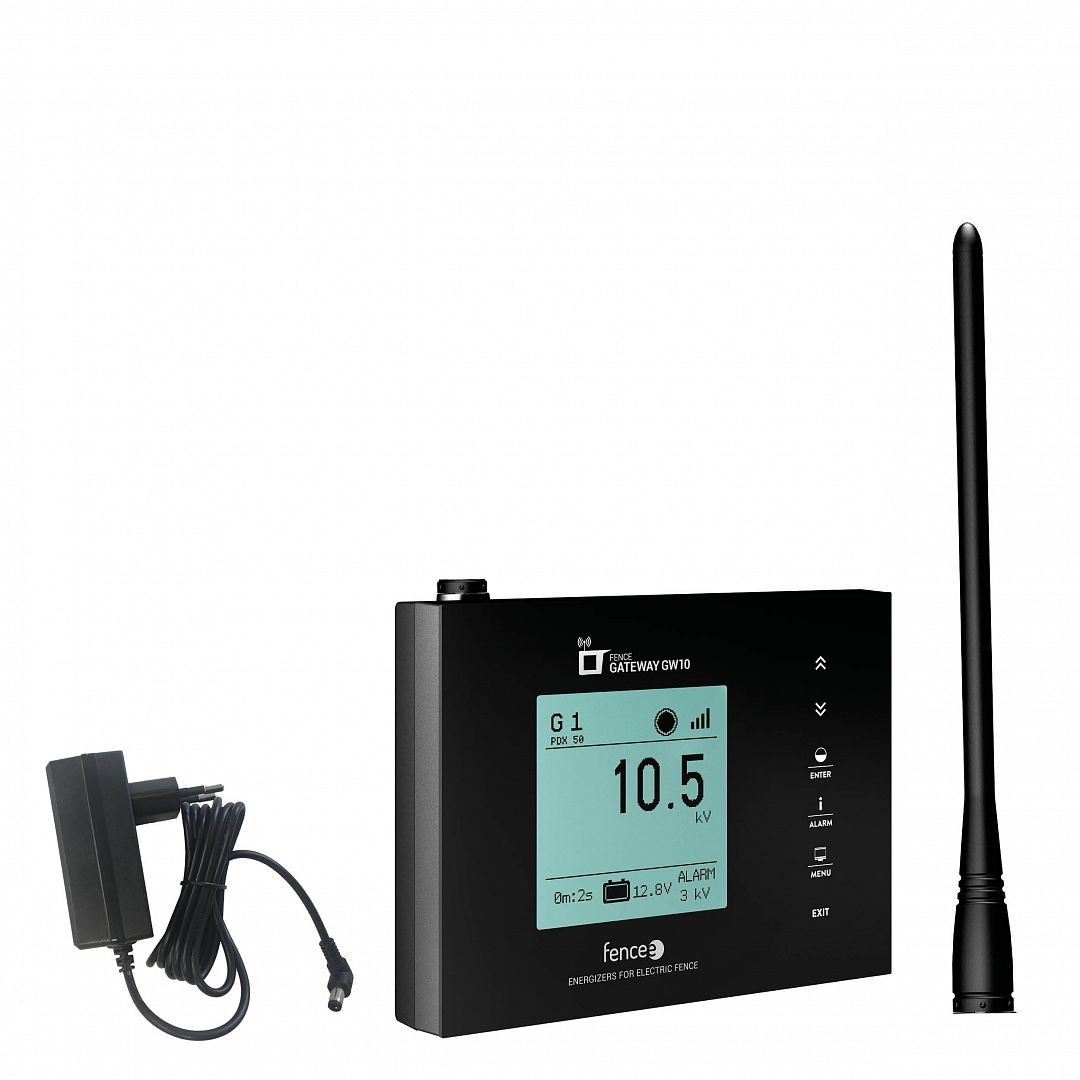

Detailed display of parameters of an individual energizer or monitor - in detailed screen you can see the exact data, in addition, information about the last transmission and the set alarm
Adjustable alarm level for each connected device - you can set a different voltage value for each fence, according to your experience and habits

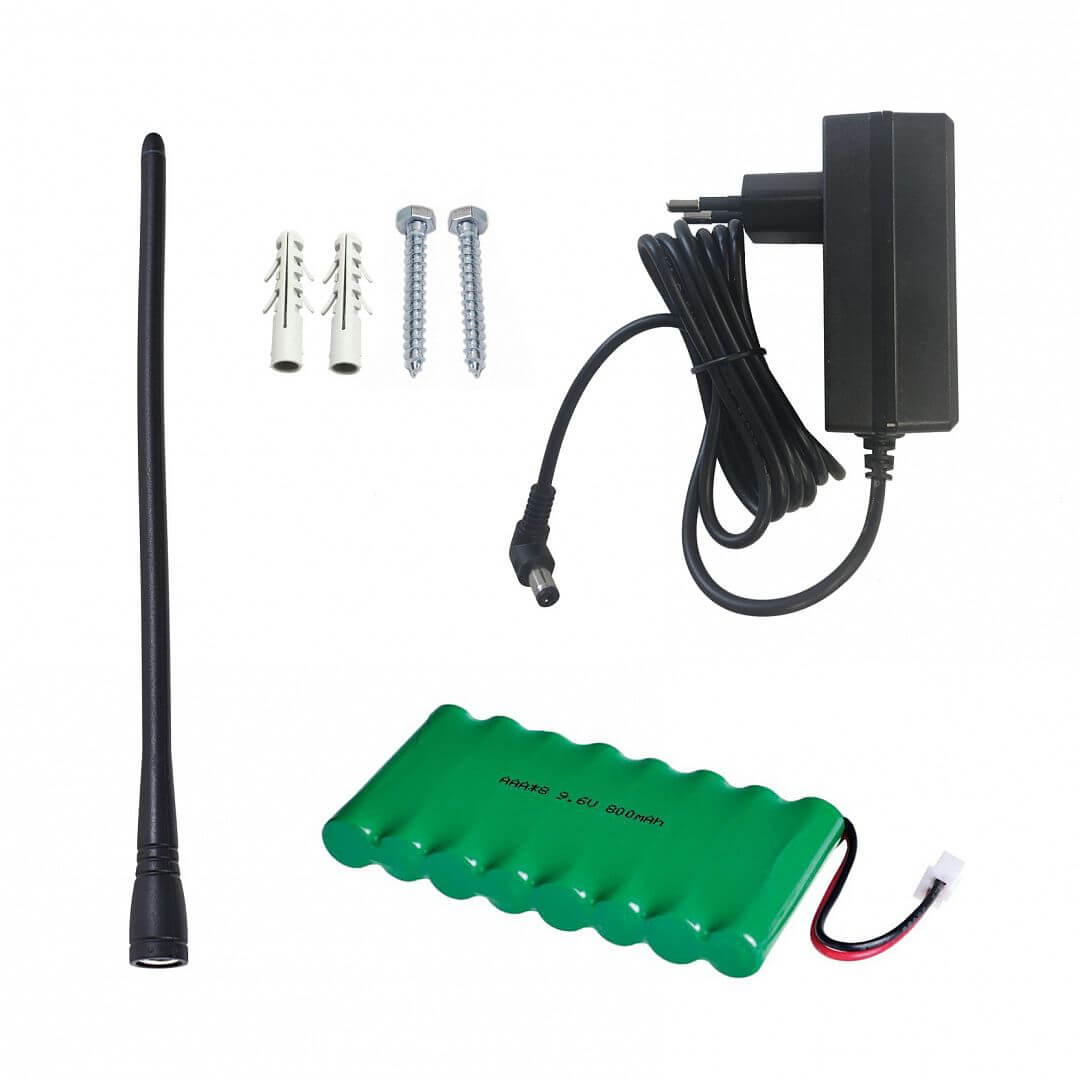

Mains supply + battery backup - we use a 14 V adapter for power supply, but you will also appreciate the possibility to disconnect and use the inserted set of batteries as a backup
Possibility to connect an external warning system (siren, light) - it is possible to connect an external device to the output relay, which will signal problem with fence even better

Overview screen

Displays all connected devices. You have an overview of status and performance of the device, signal quality. You can clearly see the individual battery states of all devices

1. Device type - designation GX or MX

G - indicates a energizer type device

M - indicates a monitor type device

X - indicates an optional name for distinguishing individual energizers 1 – 6 or monitors A - F

2. Energizer state and power

3. Last measured voltage on the fence [kV]

4. Radio signal level between device and gateway

5. Displays battery status, if connected to energizer, or the monitor's battery status

6. Indication of the last response of the device

7. Indication of audible warning activation
