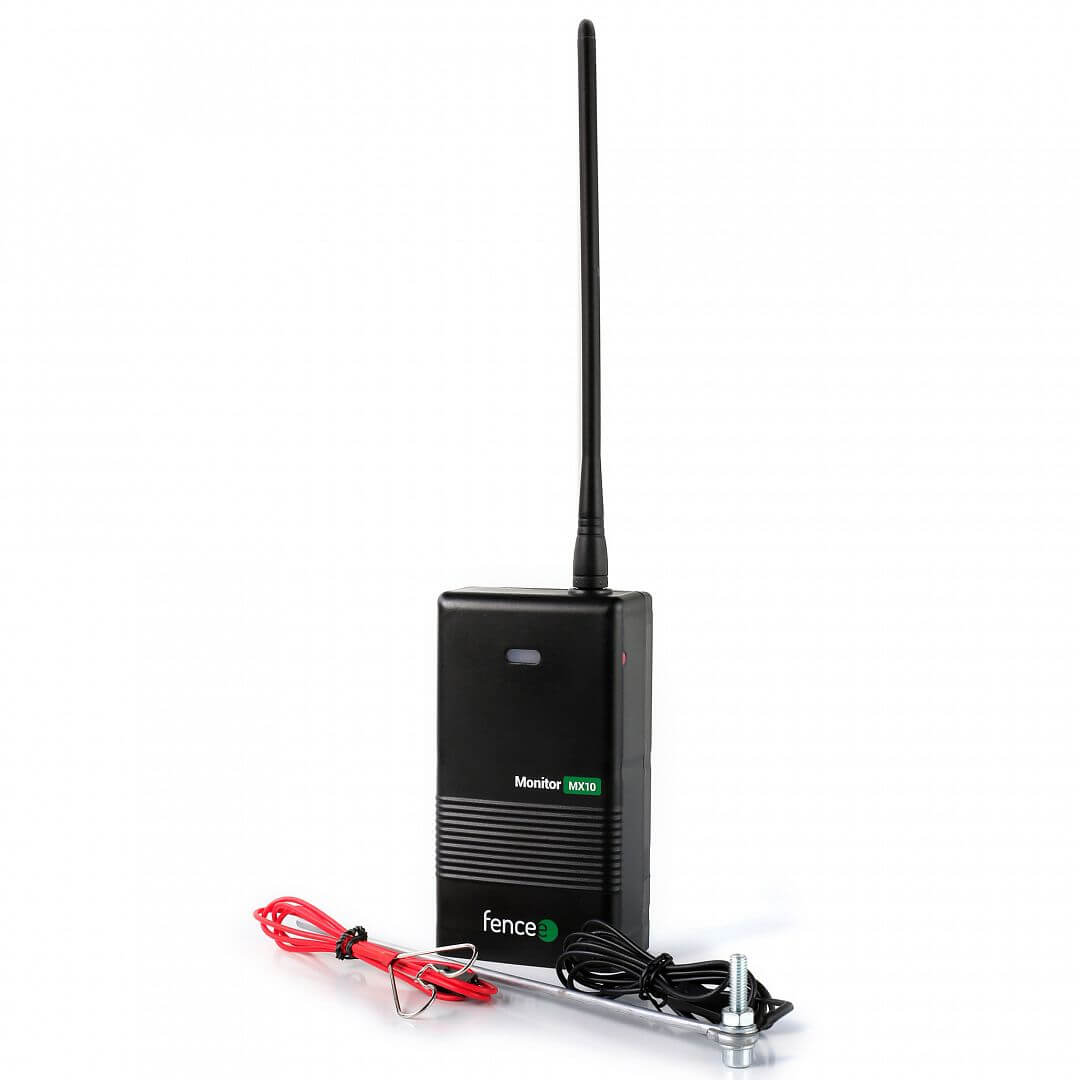

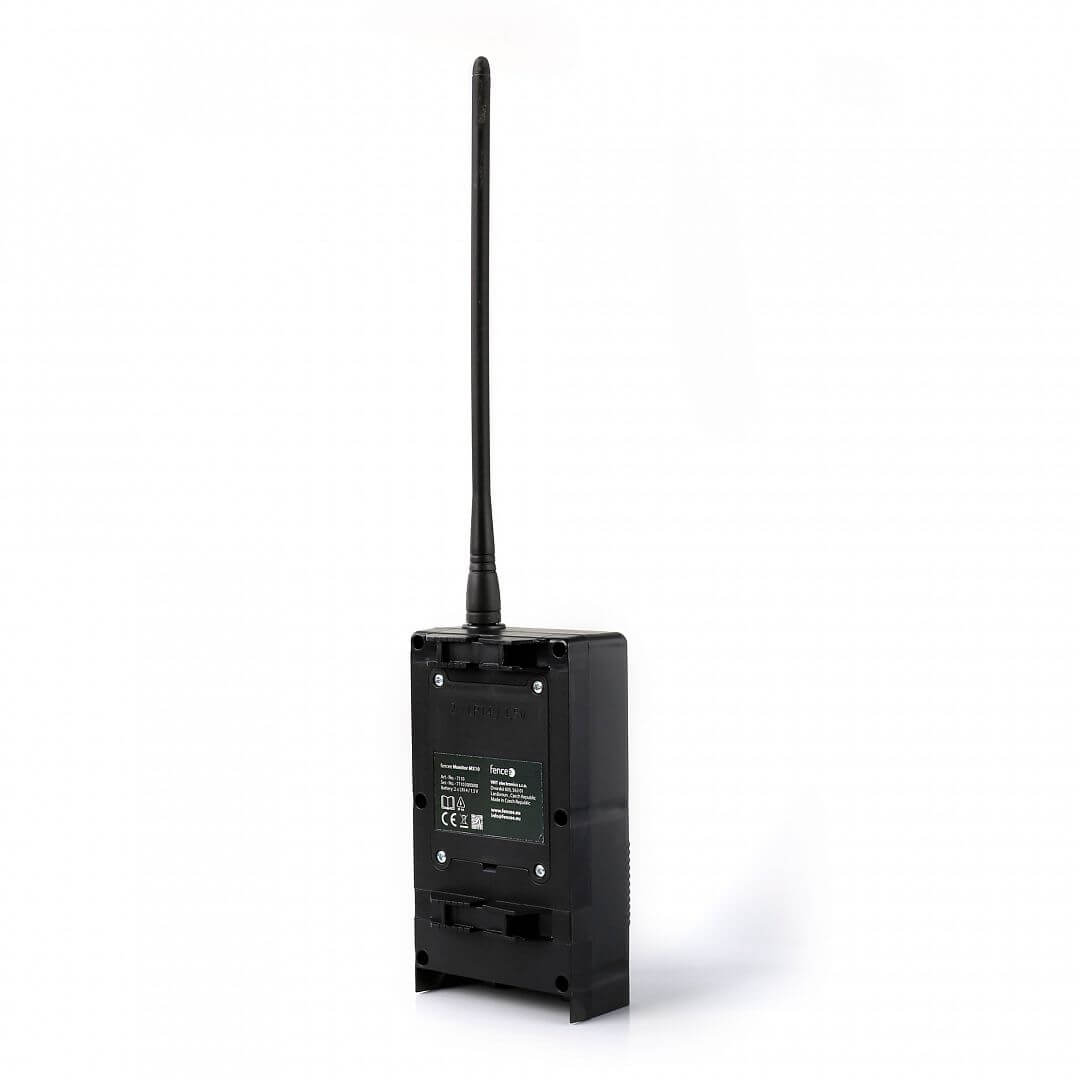

Monitor MX10

Functions of product Monitor MX10

Measurement LED diodes Battery management No SIM CARD needed Range up to 10 km Operation using magnet IP44 protection RF technology External antenna Range up to 30 km

Product´s description Monitor MX10

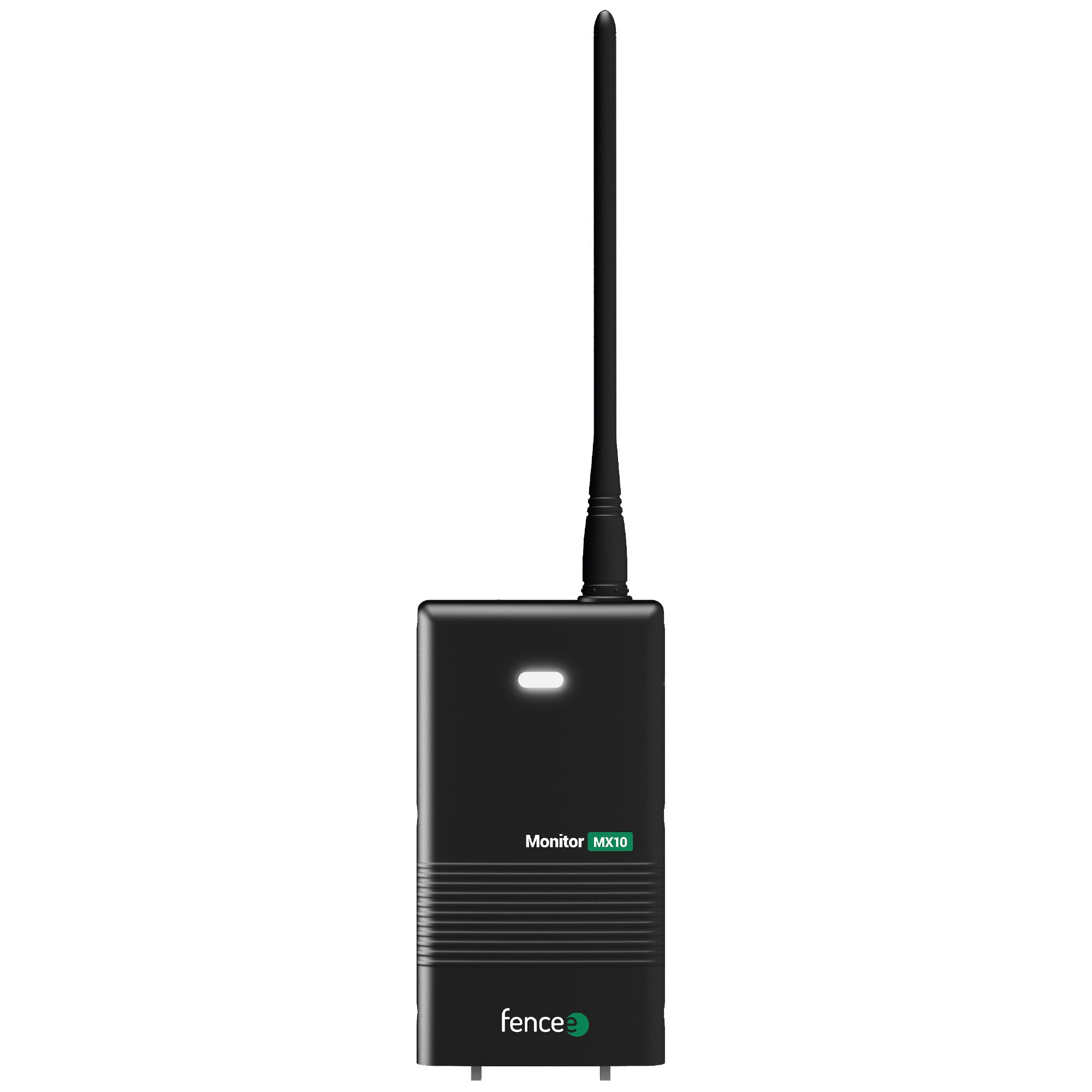

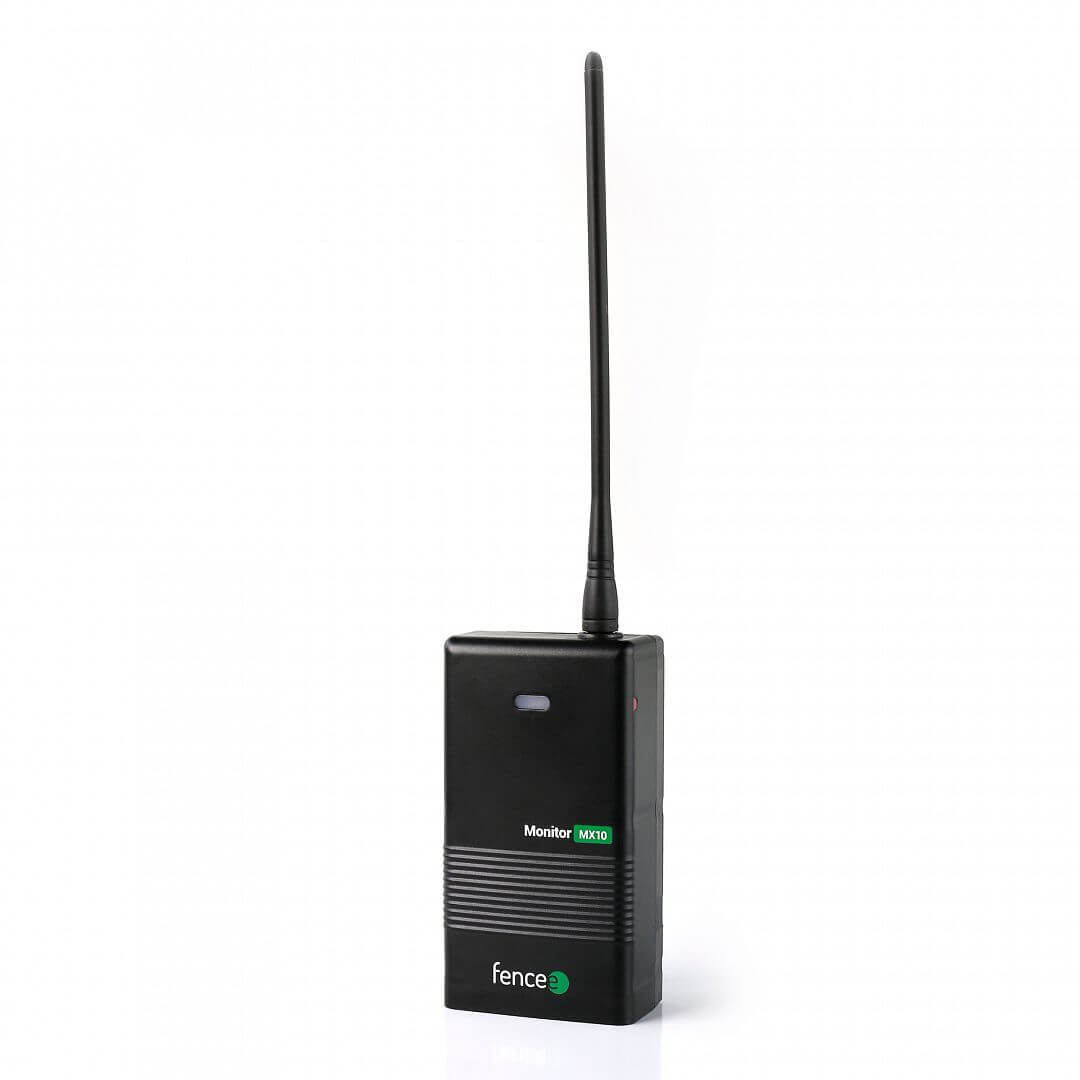

Device for remote monitoring of fence parameters

It monitors critical points and immediately informs about voltage drops. It measures the fence system voltage and sends the data to the central gateway.

In case of a voltage drop at the measured location below the set limit, an alarm alert is sent to the central gateway and the user immediately learns of the fault.

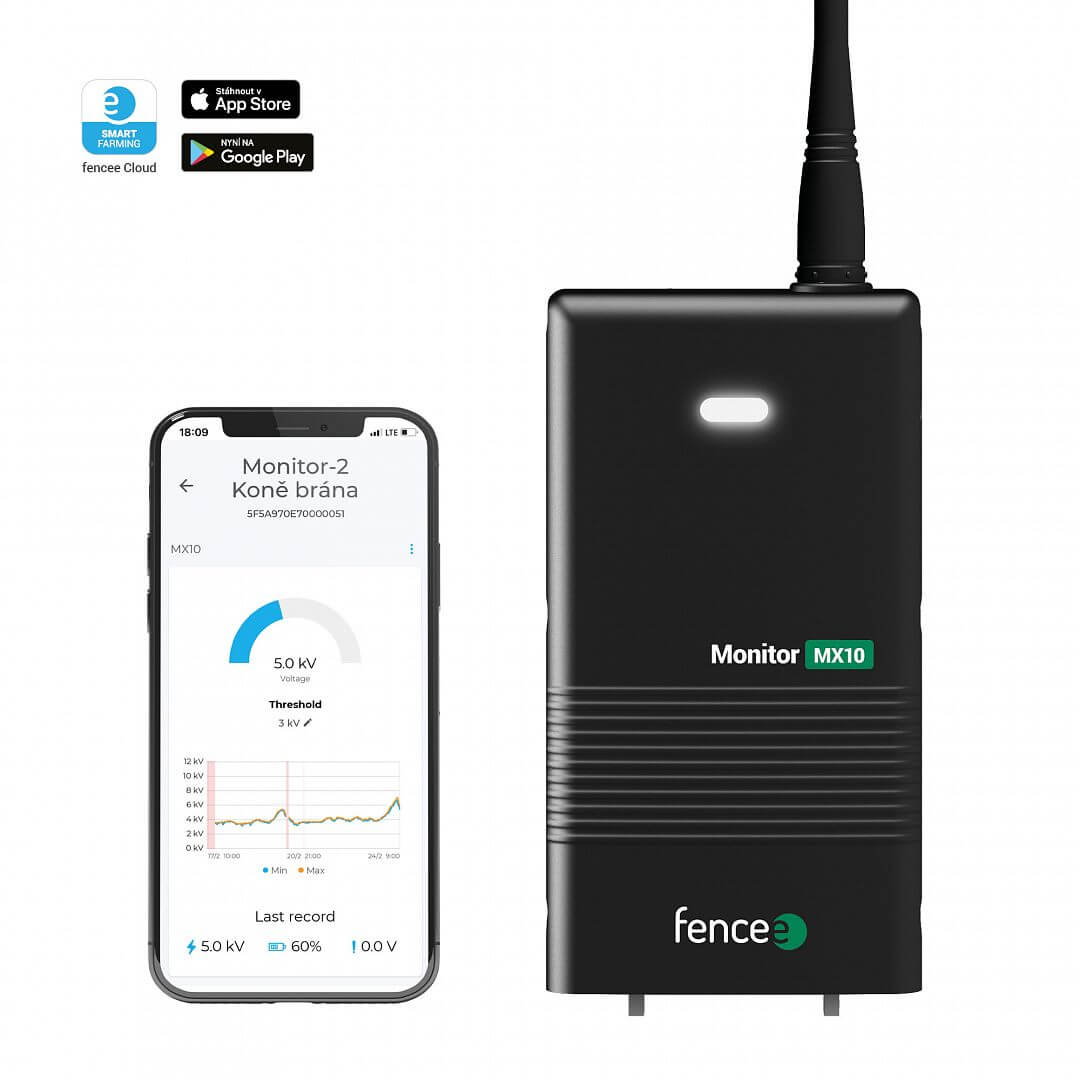

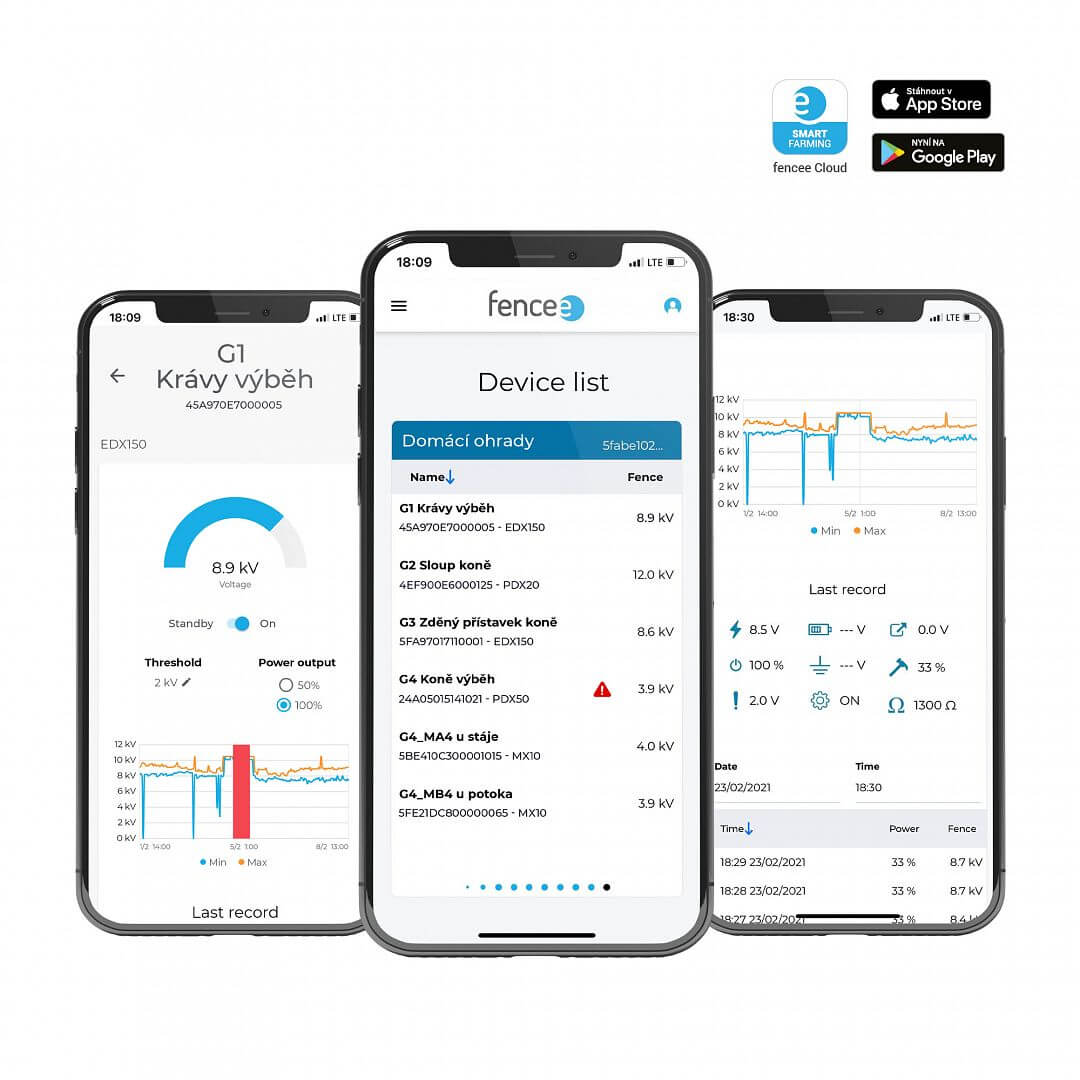

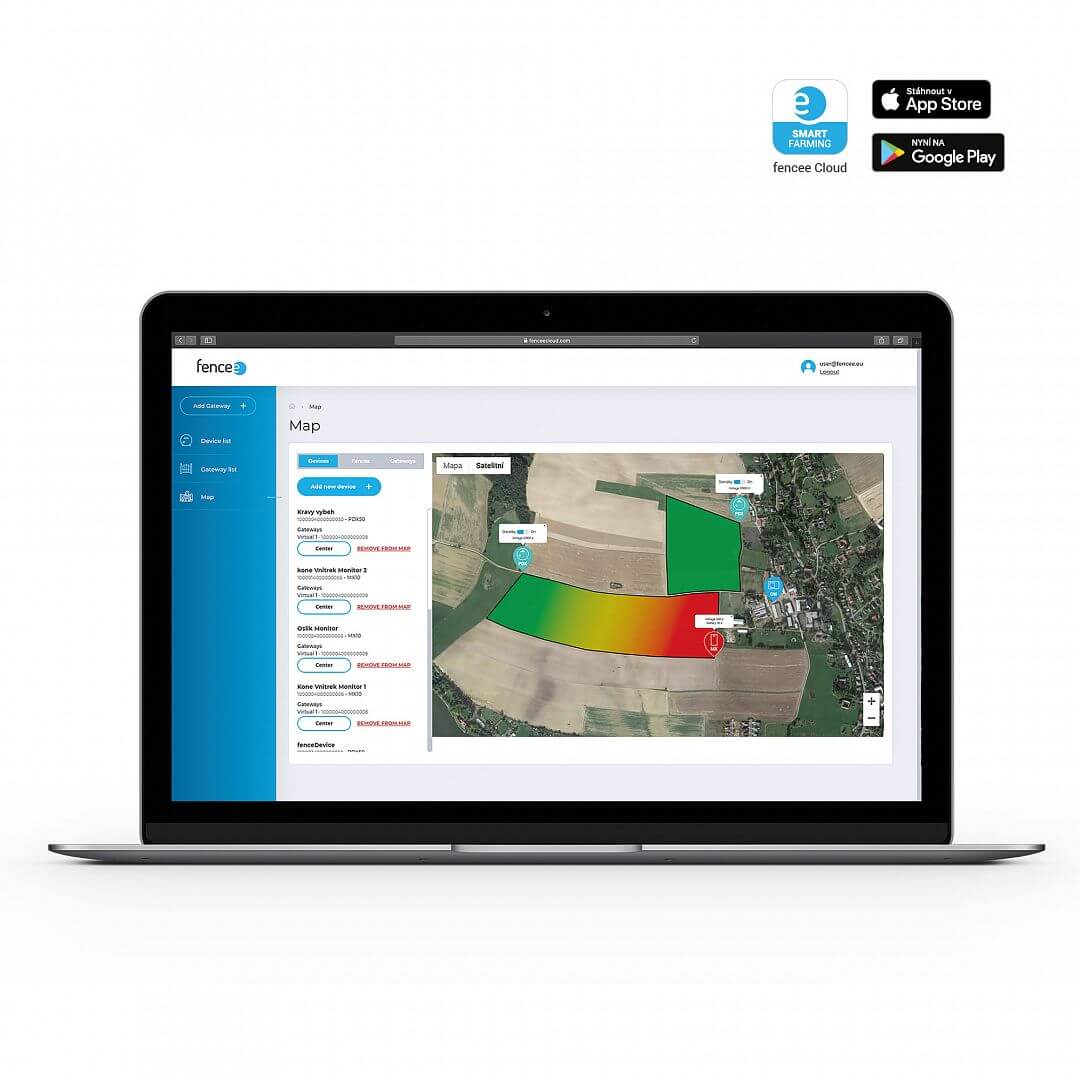

Monitor MX10 can be connected to the fencee Cloud using the FENCE WiFi GATEWAY GW100 and control remotely via application on a mobile phone or PC.

Range with basic antenna up to 10 km (included)
Possibility of connecting an external antenna (extension cable 2 or 10 m) - increasing the range up to 30 km

OVERVIEW OF MAIN BENEFITS

  • Clear, intuitive, touch control
  • Easy operation with a magnet
  • No SIM required
  • LED indication - BrightLight
  • Audible alarm
  • Continuous measurement of fence system parameters
  • RF Technology - wireless connection from Gateway
  • Basic range 10 km
  • With an external antenna range up to 30 km
  • Power supply 2 × batteries type C LR14
  • Possibility to connect an external warning system (siren, light)

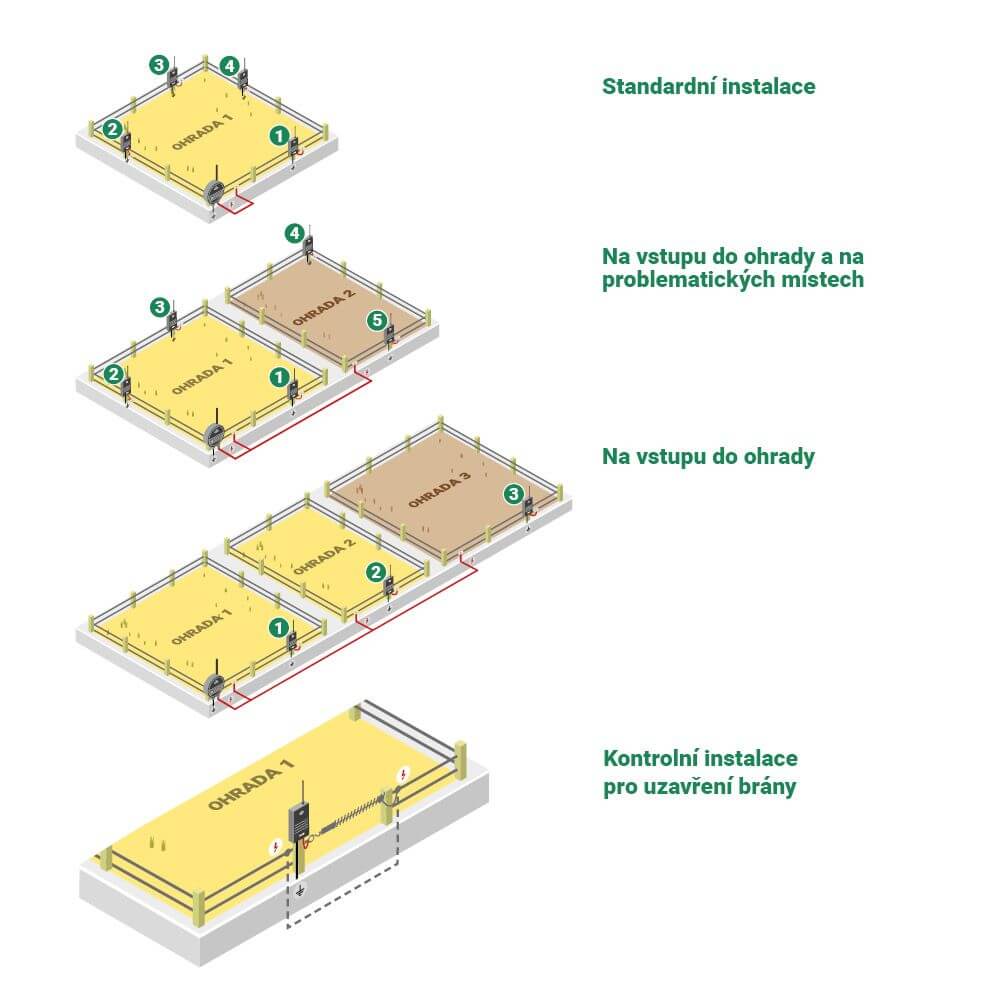

  • It is possible to install more Control Monitors MX10 on one fence and divide it into several zones

Learn more about the installation and wiring options of the MX10 Monitor

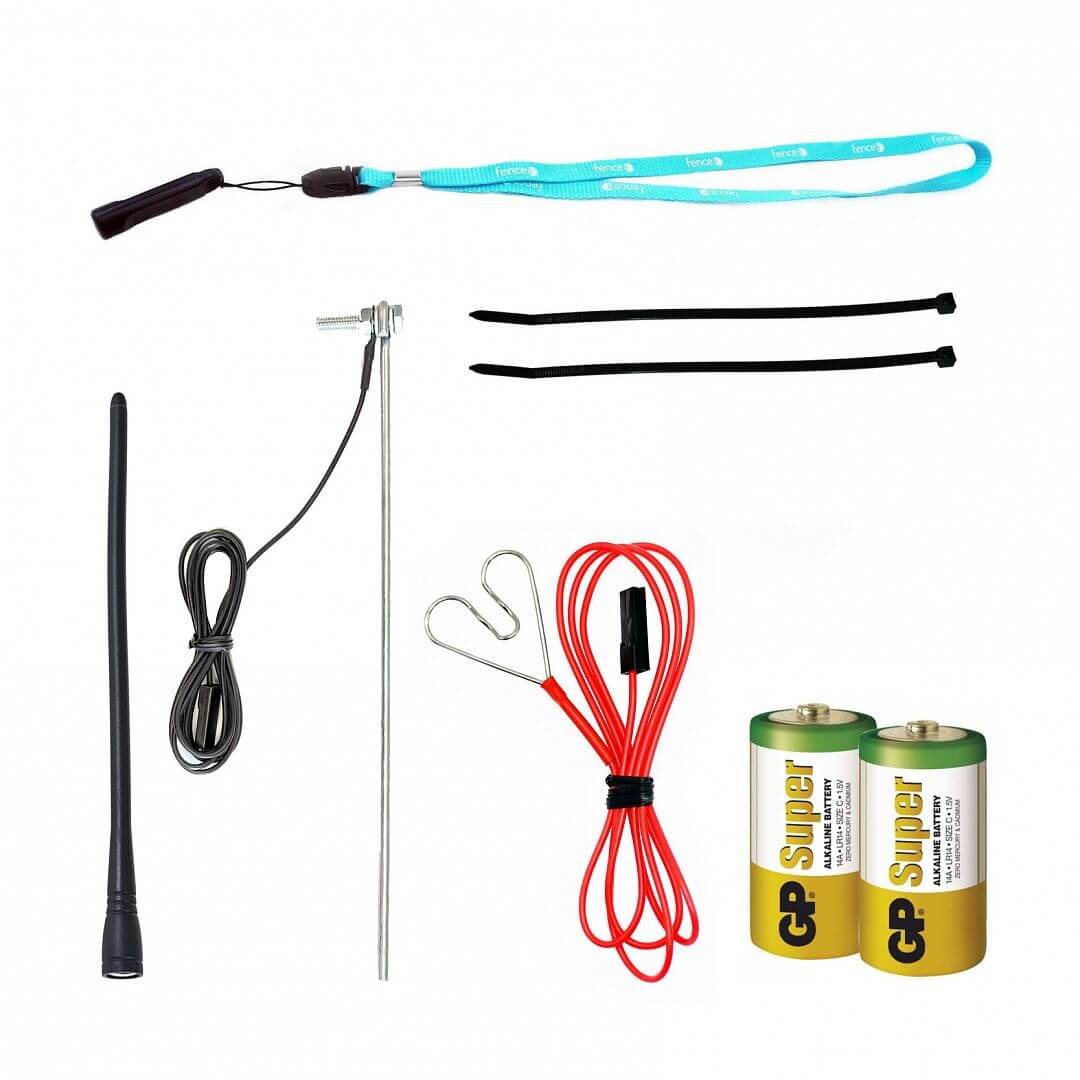

PACKAGE CONTENT:

  • Monitor MX10 with basic antenna
  • 2 × battery type C LR14
  • Connecting cable 100 cm
  • Earthing cable 150 cm
  • 2 × cable ties
  • Magnet with cord for hanging on the neck
  • Operating Instructions
Power source 2 × bateries, type C LR14
fencee Cloud connection
Magnetic controller
LED indication
Sound alarm
External antenna SMA connector
Base antenna range up to 10 km
Range with external antenna up to 30 km
Transmission frequency 869,525 MHz
Transmitting power +22 dBm
Weigth 325 g
Dimension 78 × 144 × 42 mm
