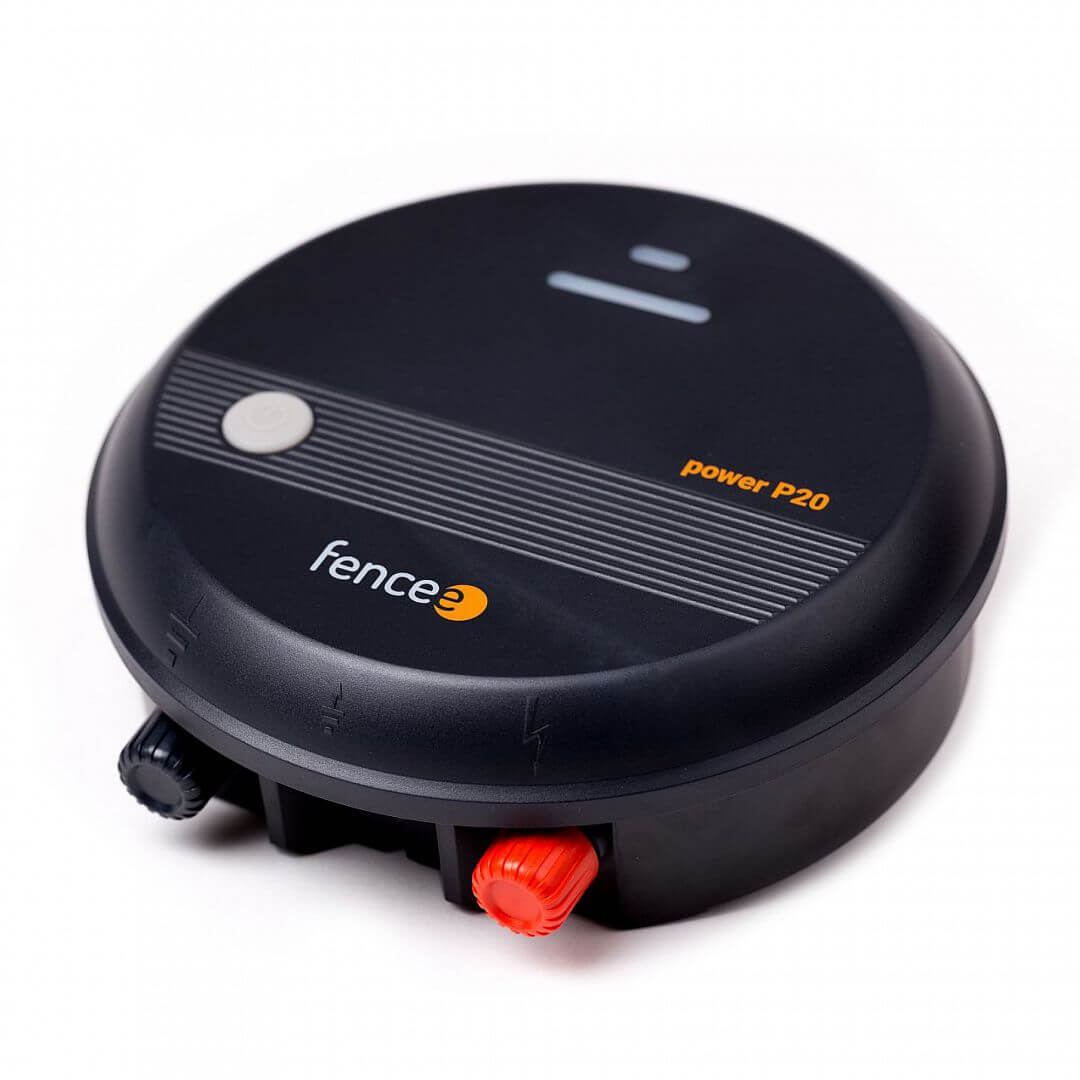

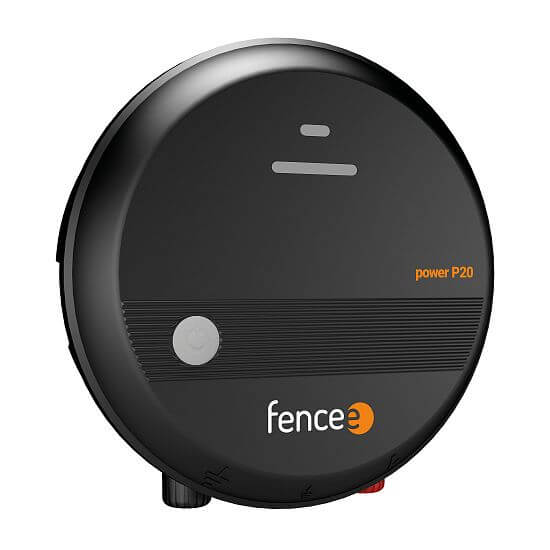

Electric fence energizer fencee power P20

Electric fence energizer fencee power P20
Extended warranty 3 years
2 J

Functions of product Electric fence energizer fencee power P20

ON/OFF button ST transformer LED diodes Safe Shock Low consumption Smart Control DIN rail Resistant

Product´s description Electric fence energizer fencee power P20

The compact modern construction of the fence with a switch and the latest microprocessor technology inside offers a practical solution and allows easy installation. The LEDs on the front indicate the status of the power supply and a possible fault on the fence.

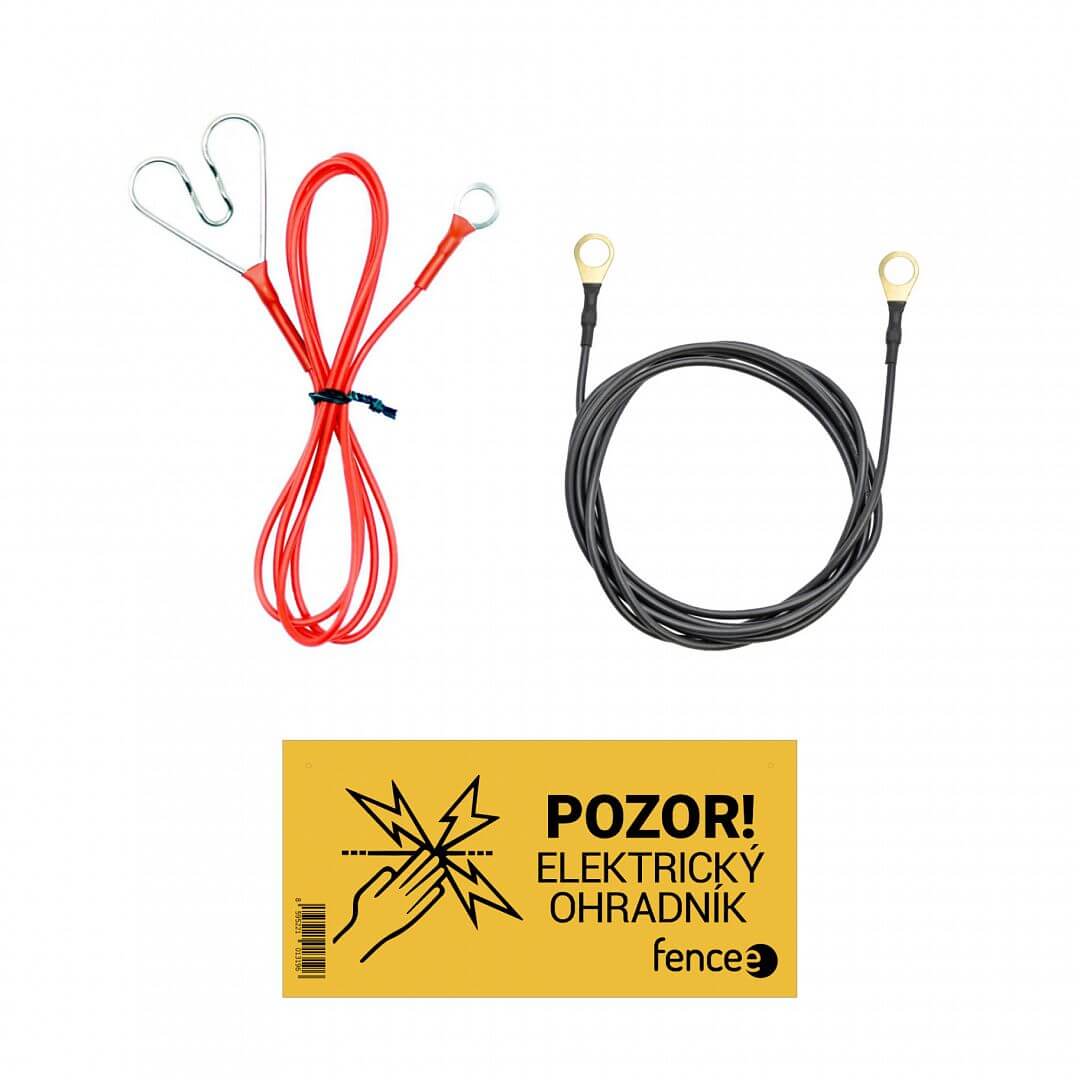

Package contents:

  • energizer fencee power P20
  • earthing cable 150 cm (eyelet-eyelet)
  • connecting cable 100 cm (eye-heart)
  • warning sign fencee
  • operating instructions
Power source 230 V ~
Energizer consumption 230 V 4 W
Input energy 2,6 J
Output energy 2 J
Output voltage 10000 V
Output voltage 500 Ω 5000 V
ON/OFF
LED ON/OFF
LED impulse
LED error check
TEOR. max. CEE 70 km
Low vegetation 19 km
Medium vegetation 8 km
High vegetation 1,5 km
Earthing 1 m 2x
El. fence nets 5x
Diameter 210 mm
Depth 66 mm
Weigth 1382 g

Manuals and files for downloading

Manual fencee power P

FAQ

Go to How-to guide
