Product´s description Electric fence set for dogs, ponies and pests - DUO energizer + polywire250 m
Complete set of electric fence designed for more sensitive animals such as ponies, dogs, cats. It is also great as a protection against pests - marten, otter, heron. With this electric fence set, you will define a safe space for animals or prevent them from accessing selected undesirable places.
Combination fence with a power of 1 J
The energizer for the electric fence is provided by the fencee power DUO PD10 energizer with a power output of 1 J. The combined energizer can be powered via a 230 V mains adapter or from a conventional 12 V car battery. This can also be used as a backup power supply in the event of a power failure. LED lights and a bargraph on the front of the energizer show the operation of the device or any malfunction on the fence. The ability to switch between full or half power, SafeShock technology and very low power consumption are other benefits of the power DUO PD energizers.
Accessories for building a small electric fence

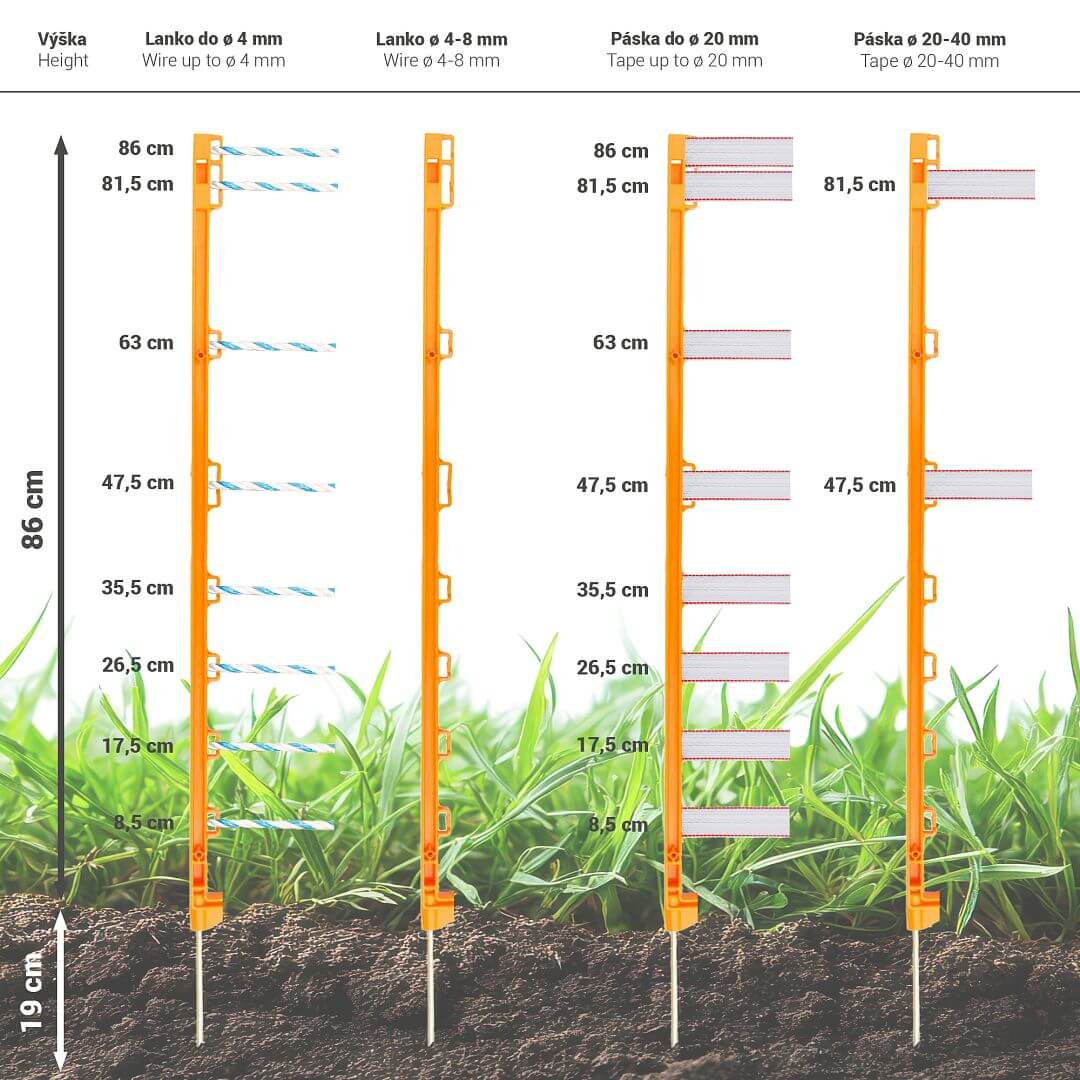

The kit includes a high-quality yellow-orange wire rope with ø 2 mm in a 250 m coil, stainless steel wire 3 × 0,16 mm. Plastic highly visible mobile posts with 9 eyelets and a solid metal spike, allow the wire to be installed up to 86 cm above the ground. A grounding rod is also included.
The complete electric fence set is a practical and mobile solution with easy installation.

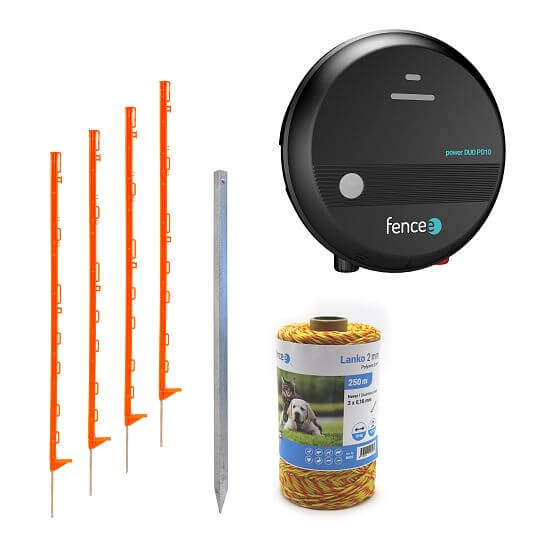

Package contents:
- fencee power DUO PD10 energizer
- 1× yellow-orange polywire 2 mm, 250 m, stainless steel 3 × 0,16 mm
- 15× orange post 105 cm (86 cm above ground), 9 eyelets
- 1× earthing rod profile 100 cm
Included in the energizer package:
- 1× power adapter fencee DUO 14 V 1,5 m
- 1× earthing cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eye-bead)
- 1× fencee DUO battery cable 1,7 m
- 1× warning plate
- 1× operating instructions
Energizer consumption 230 V | 3 W |
Energizer consumption 12 V | 40 - 100 mA |
Output energy | 1 J |
Output voltage | 9000 V |
Output voltage 500 Ω | 5000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 35 km |
Low vegetation | 8 km |
Medium vegetation | 2 km |
High vegetation | 1,5 km |
Earthing 1 m | 1 × |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1512 g |
Manuals and files for downloading
Manual fencee power DUO PDFAQ
- Recommended wire heights
- How to use a grounding quality terminal and terminal with reduced output?
- fencee Cloud application
