Functions and characteristics of fencee power DUO RF PDX energizers

Combined operation

Power supply is possible from a 230 V using an adapter or from a conventional 12 V battery, also usable as a backup supply.

Alarm signalling

Device signals alarms that alert you audibly. Especially for a drop in voltage on the fence below the set level (normally 3 kV), but also a warning of a low battery condition of the device or a signal loss reporting.

Current information

Thanks to RF technologies, smart devices are constantly communicating with each other. You always have up-to-date information on all connected devices and status of the fences.

Cloud connection

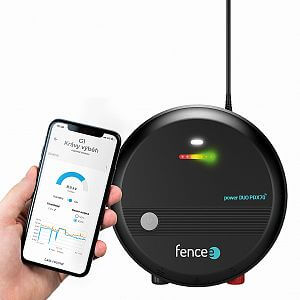

Device can be connected to the Cloud and remotely controlled using a mobile phone via the fencee Cloud application or the web interface.

Power Switching

Manual switching between high and low power. Optional for the user to save battery when needed.

LED Bargraph

Visually gives information about the state of the fence.

Range up to 10 km

With basic antenna, you can control and monitor the device at a distance up to 10 km.

No SIM CARD needed

Devices use free RF radio technology (radio frequency). No SIM CARD is required for operation. There are no additional costs for the operation of the device.

External antenna

Possibility of connecting an external antenna through SMA connector. External antenna allows you to increase the range of device to a distance up to 30km.

Range up to 30 km

Use an external antenna to increase the range. You can control and monitor all connected devices at a distance up to 30 km.

Battery management

Checking and managing the battery status.

Zlatý Klas 2019

The power DUO RF PDX energizers have won the prestigious Zlatý Klas award for their innovative contribution to modern agriculture.

Time delay 50 s

Increase power to maximum power for safety reasons. Only power DUO RF PDX70.

Smart Farming

Power DUO RF PDX energizers have won the prestigious Smart Farming award for using modern technology to increase the quality of agricultural production.

Remote control

With the remote control, you can control and monitor RF energizers. You will see all the important information on the controller display. The controller can also serve as an alarm. You can control up to 6 energizers out of 1 controller. You can pair up to 3 controllers per 1 energizer.

ON/OFF button

Easy use and comfortable switching thanks to the ON/OFF button.

ST transformer

Special ST transformer, extra high voltage with long term protection.

SafeShock

The SafeShock technology ensures maximum safety for your animals. Specially shaped impulse curve.

LED diodes

Modern LED diodes with BrightLight technology offering high luminosity.

Smart Control

Smart Control technology provides microprocessor-controlled operation and optimal performance of the energizer.

RF technology

The device works with wireless and free RF technology. There are no additional operating costs.

CR2 battery

Power is provided by a CR2 battery with an extremely wide operating temperature range.

Mr. Jiří Stolín

Do you need help? Mr. Jiří Stolín

+420 730 893 828 Mo-Fr: 7:00 am - 3:00 pm info@fencee.eu

Basic specifications of fencee power DUO RF PDX energizers

The fencee power DUO RF PDX series with combined power supply for universal use anywhere without electricity.

Energizers are suitable for every situation and for all kinds of animals. Recommended for horses, cattle, sheep, goats and as protection against game or small pests.

General characteristics:

  • Combined energizers with connection to 230 V, or power supply from standard battery 12 V
  • Battery power is suitable in places without electricity or as a backup source.
  • Outputs from 1 J to 7 J.
  • Designed for fences with installation lengths up to 70 km
  • Basic range of the controller up to 10 km
  • Energizers have microprocessor controlled operation with the ability to switch the output energy to 50% / 100%. This function is useful when there is a need to save battery.

Remote signal transmission using RF technology (radio frequency). This means that you NO LONGER NEED a SIM card!

The LEDs and BARGRAPH on the front panel shows the status of the energizer, measure the voltage on the fence and also signal a possible fault on the fence.

Smart electronics with SafeShock technology allows a particularly safe fencing for your animals, with a specially reduced output voltage.

Remote control of energizer can be used up to 10 km (with external antenna up to 30 km) distance in ordinary terrain and buildings. In difficult, eg. hilly terrain, the range is shortened, on the contrary, in open space it can be even longer. An external antenna can be used to improve the signal transmission between the energizer and the controller.

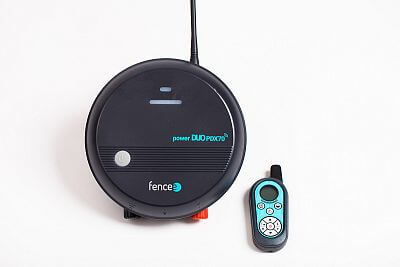

Features of the DUO RF Hand remote control

Energizer will send error messages that will be displayed on your controller.

  • Convenient and safe switching ON/OFF of the fence remotely.
  • Range between controller and energizer up to 10 km (depending on terrain, vegetation and other factors). Use an external antenna to increase the range up to 30 km.
  • One controller control up to six different energizers.
  • One energizer can be controlled by three controllers.
  • Voltage drop warning.
  • Battery voltage status report.
  • Signal loss report.
Features of the DUO RF Hand remote control
Remote control display

Remote control display

You can see clearly on display of the remote control:

  • 1. Signal strength
  • 2. Update mode
  • 3. Measured value
  • 4. Measured unit
  • 5. Energizer battery
  • 6. Energizer number
  • 7. Energizer power
  • 8. Type of device
  • 9. Sound alarm
  • 10. Controller battery

Connection with FENCE GATEWAY

You can connect RF energizers to the central Gateway. This gives you an instant overview of all connected energizers from one place.

With the FENCE WiFi GATEWAY GW100 you can connect energizers to the fencee Cloud and control them remotely from virtually anywhere in the world.

  • Control up to 12 energizers
  • Alarm functions
  • Current information

Get an overview of:

  • Energizer power and condition
  • Signal quality
  • The last measured voltage on the fence
  • Battery status
  • Set alarms



Connection with FENCE GATEWAY
Zlatý Klas Award 2019

Zlatý Klas Award 2019

Energizers power DUO RF PDX with remote control won the prestigious Zlatý Klas 2019 award for their innovative contribution to modern agriculture.

Control LED and Bargraph

The control LED shows the power of the energizer 100% or 50% in case of switching to half power.

  • LED shines - mains supply
  • LED flashes - battery powered

The bargraph shows the voltage on the fence in color. You have an overview of the voltage status immediately.

Control LED and Bargraph
Modern smart farm under control

Modern smart farm under control

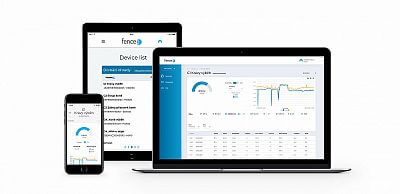

Connect energizer to the Cloud and control the device using a mobile phone via the fencee Cloud application from anywhere in the world.
