Product´s description Electric fence kit for sheep, goat, boars - DUO energizer - electric net 50 m

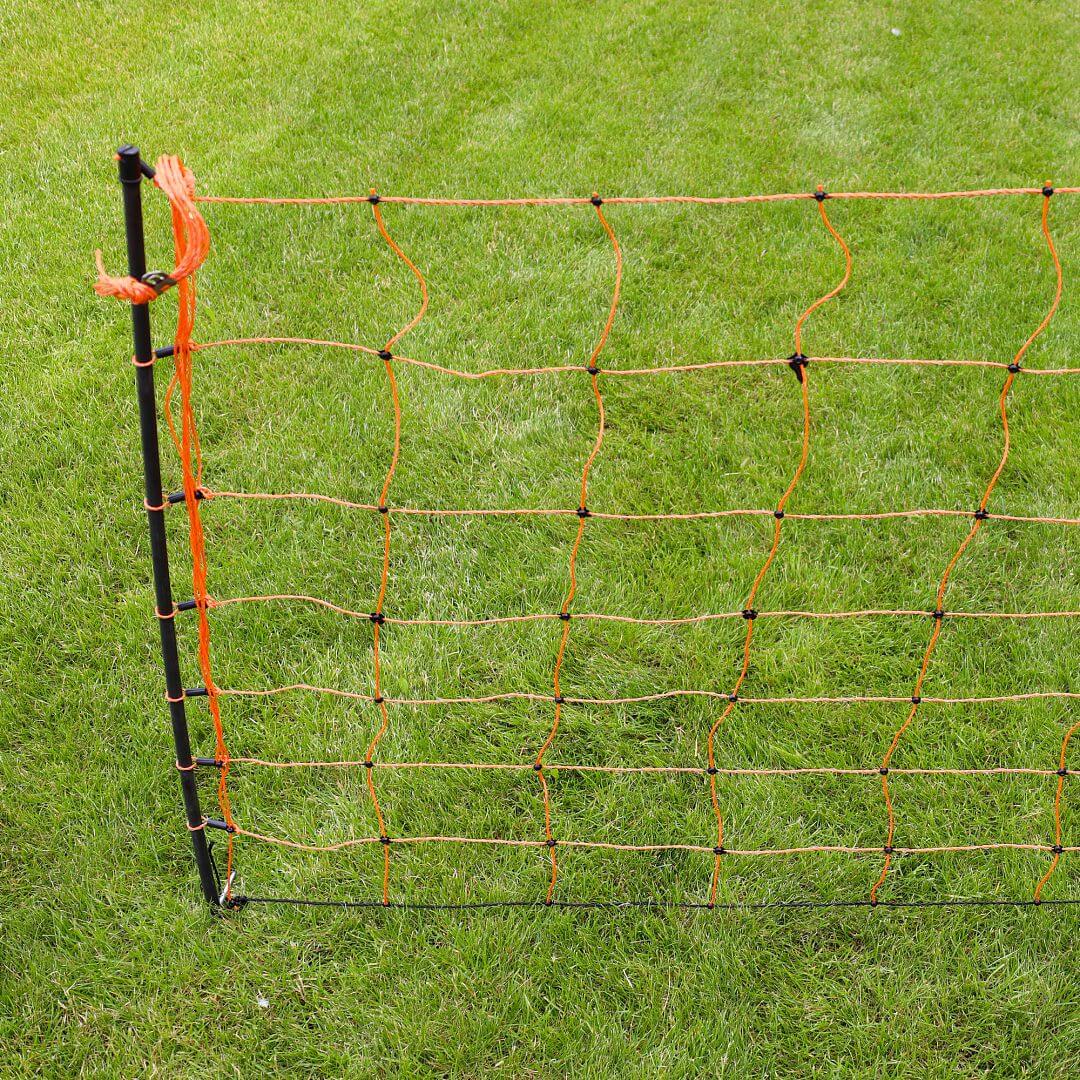

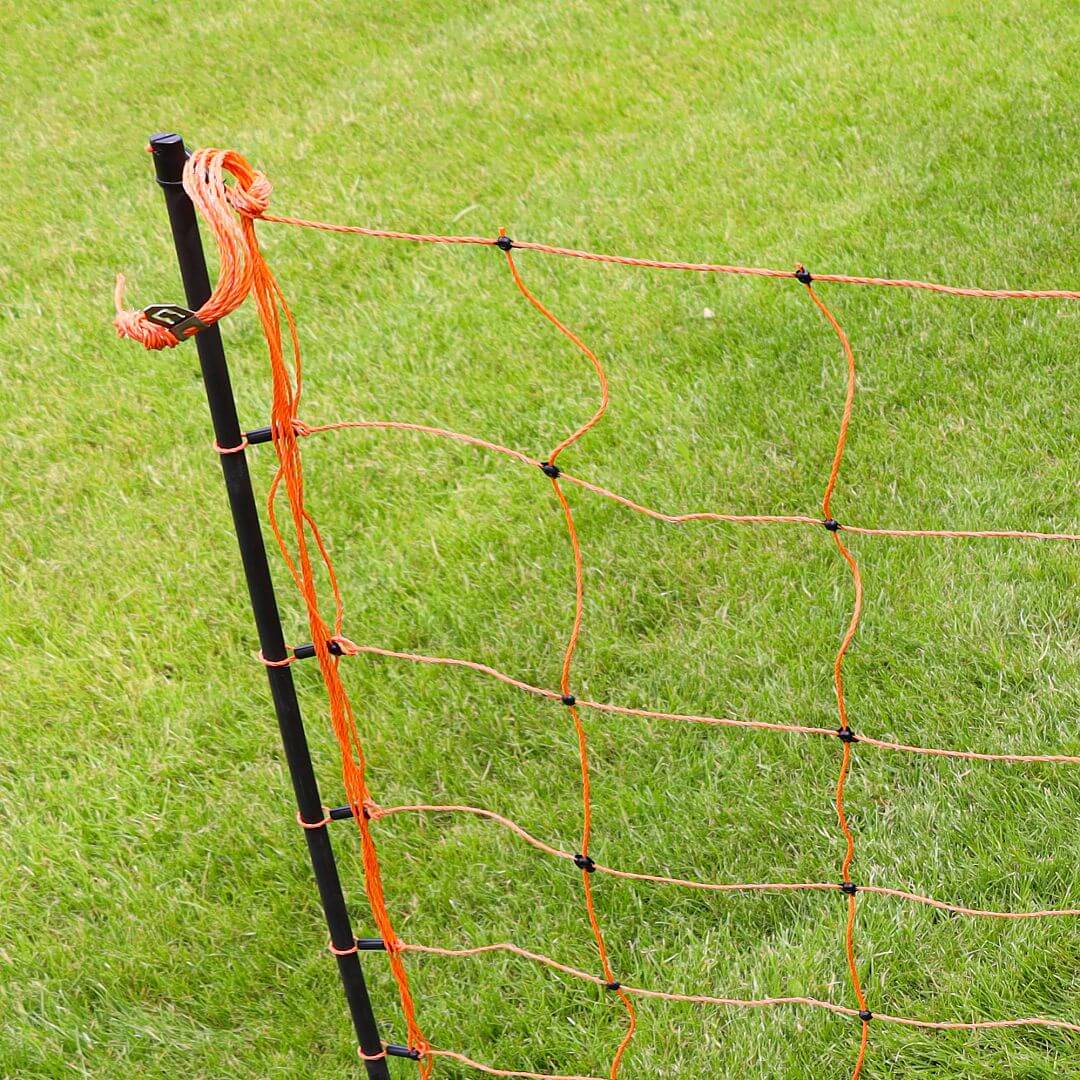

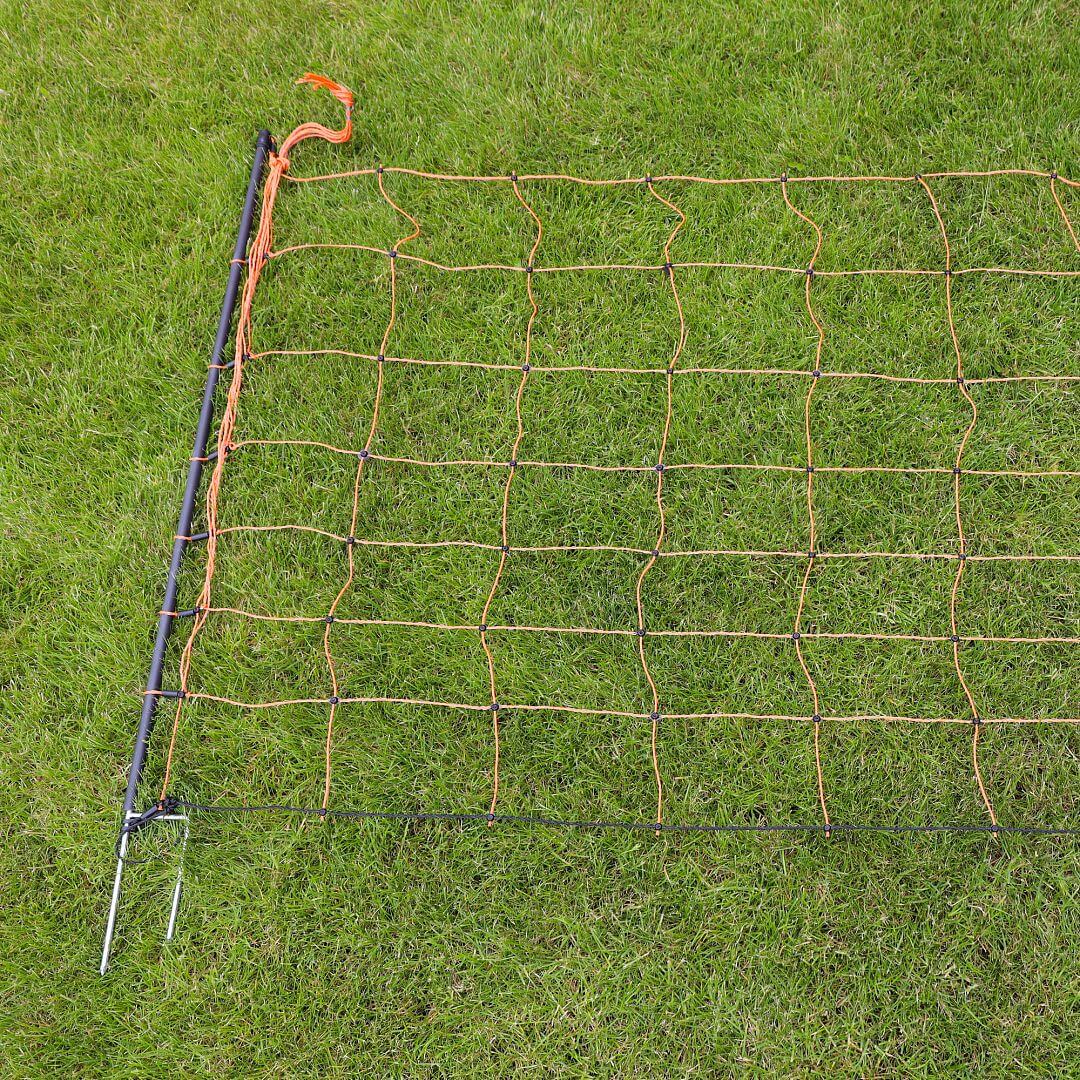

The electric fence net set is designed especially for sheep, goats, domestic pigs or larger dogs. The electric net also serves as a protection for flocks, land or crops against forest animals or wild boars. With the net you can quickly and easily define a safe area for keeping your animals or prevent them from entering selected undesirable areas. The electric fence net for sheep and goats is a very simple and mobile solution. With an installation length of up to 50 metres and a height of 90 cm.

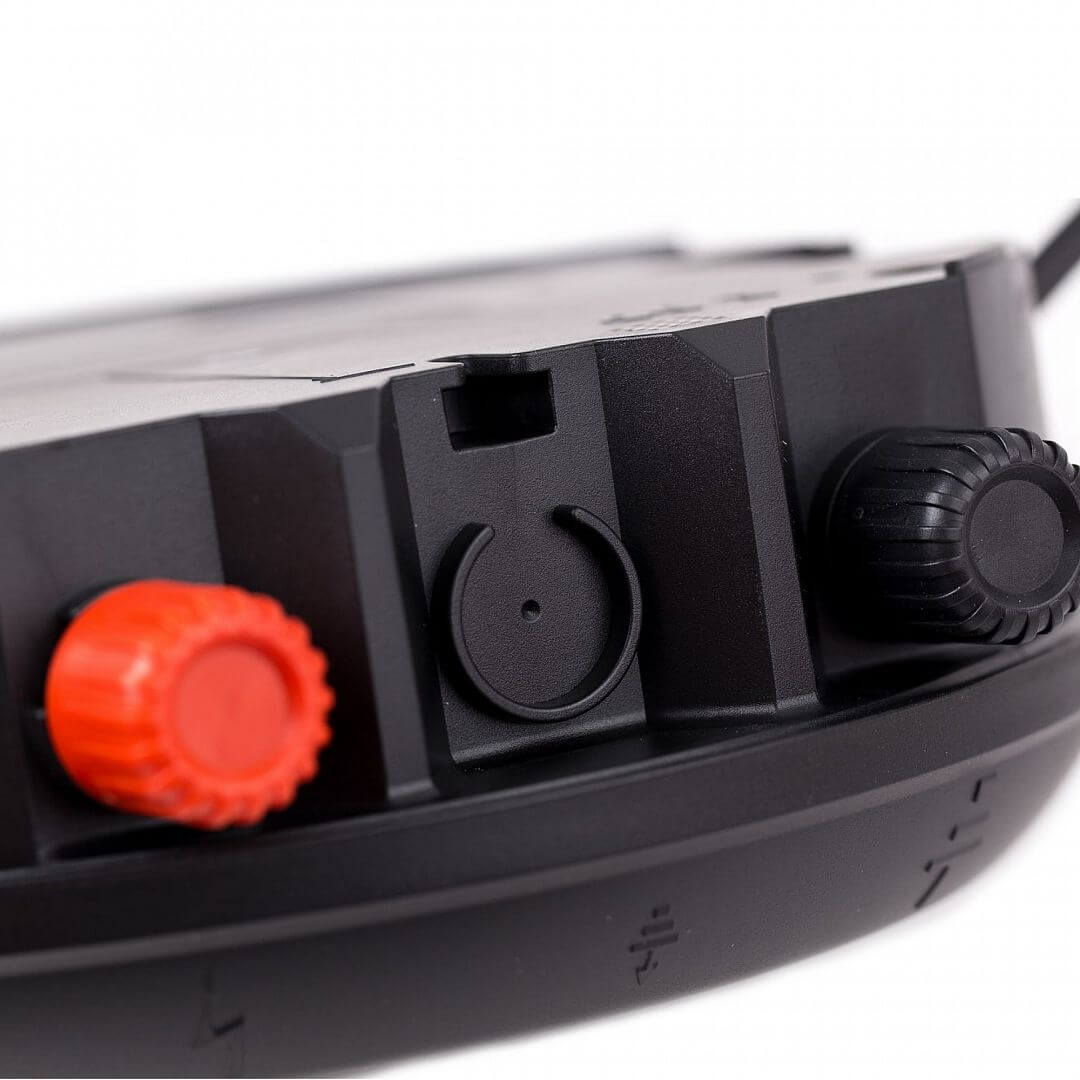

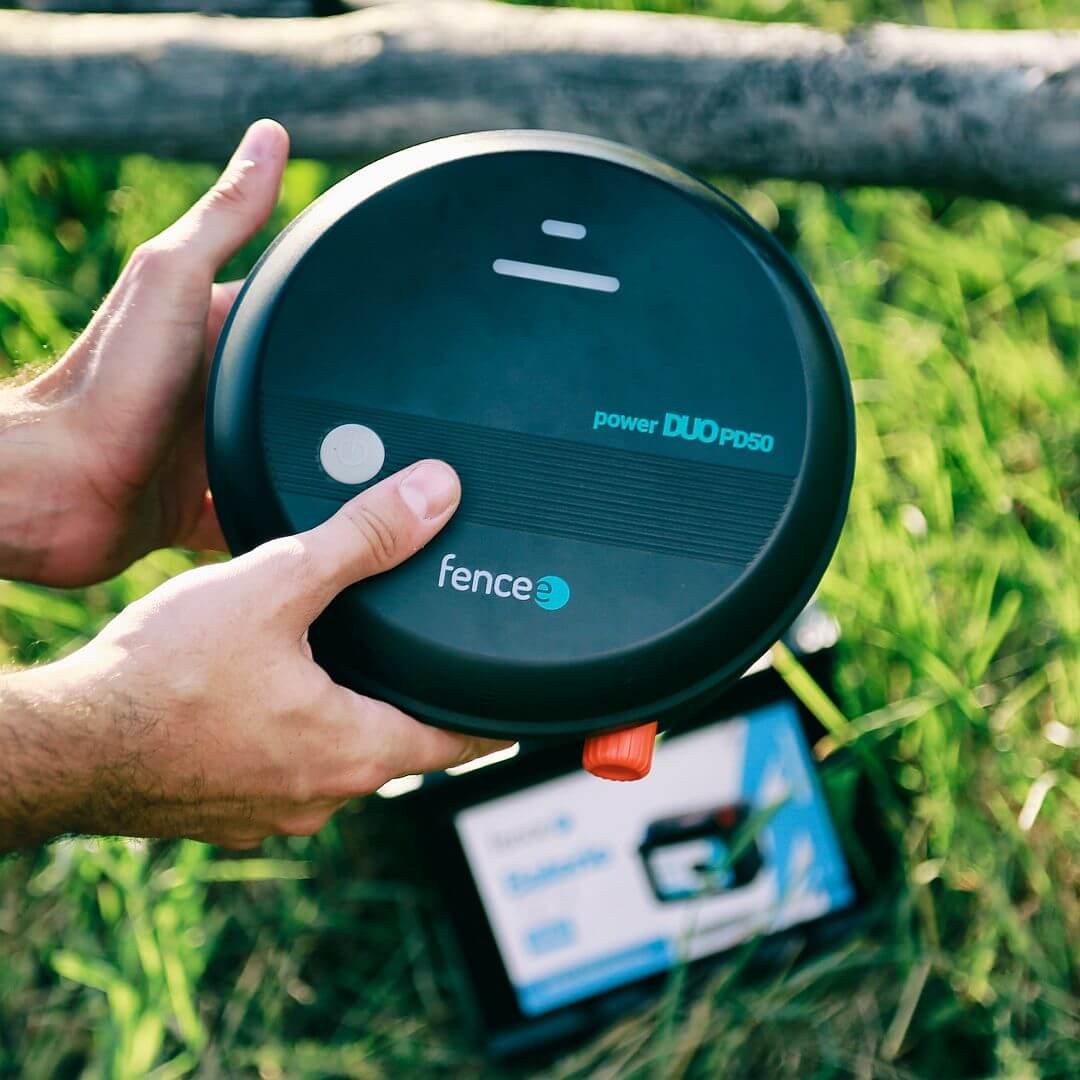

Fencing sheep with dense wool, which insulates very well, requires a generator with adequate power. Thefencee power DUO PD40 combined generator supplied in the set, with a pulse strength of 4 J, is universally applicable for medium to long fences with installation lengths of up to 30 km. The combined generator can be powered by an adapter from a 230 V socket or from a standard 12 V battery. This is also usable as a backup power supply in case of a possible power failure.

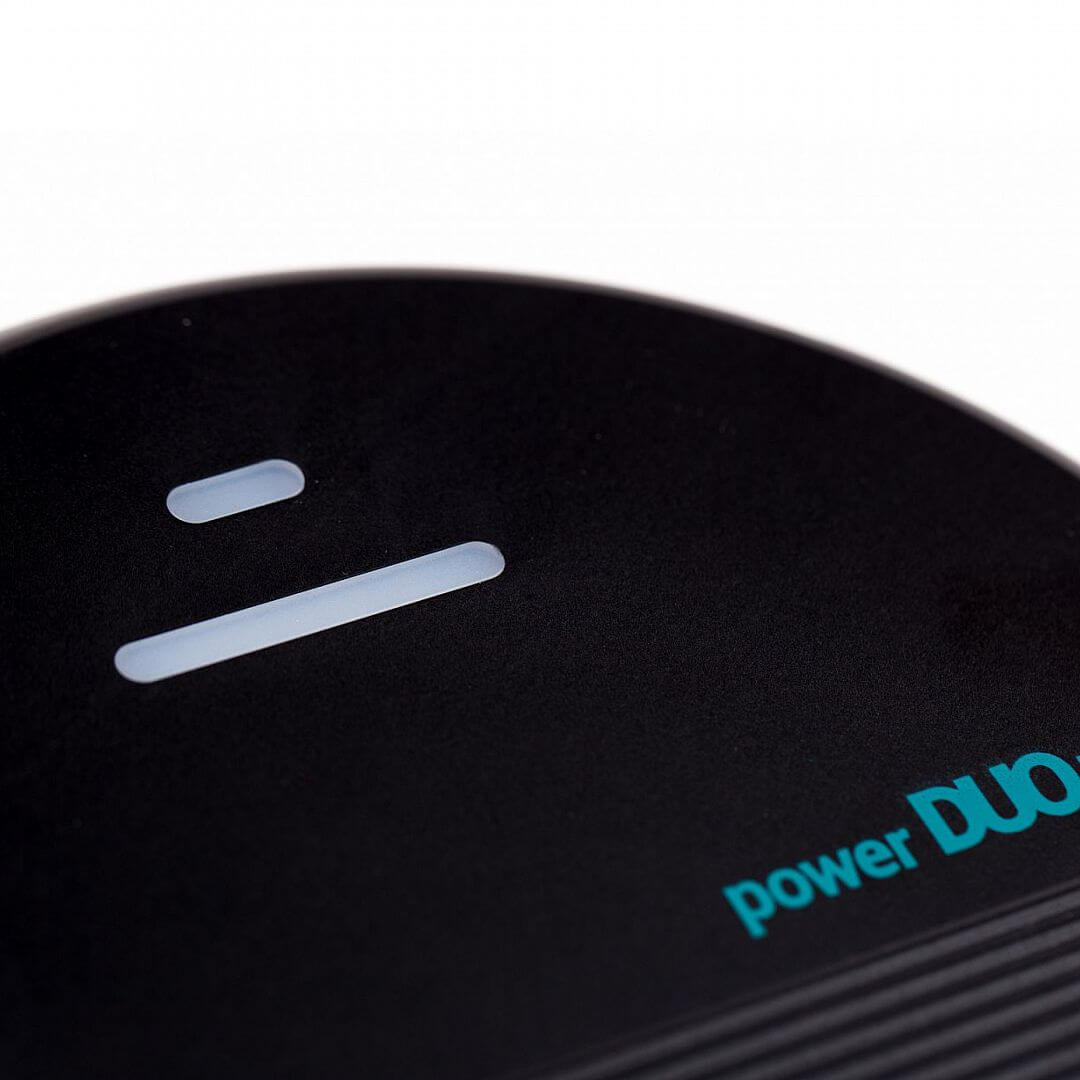

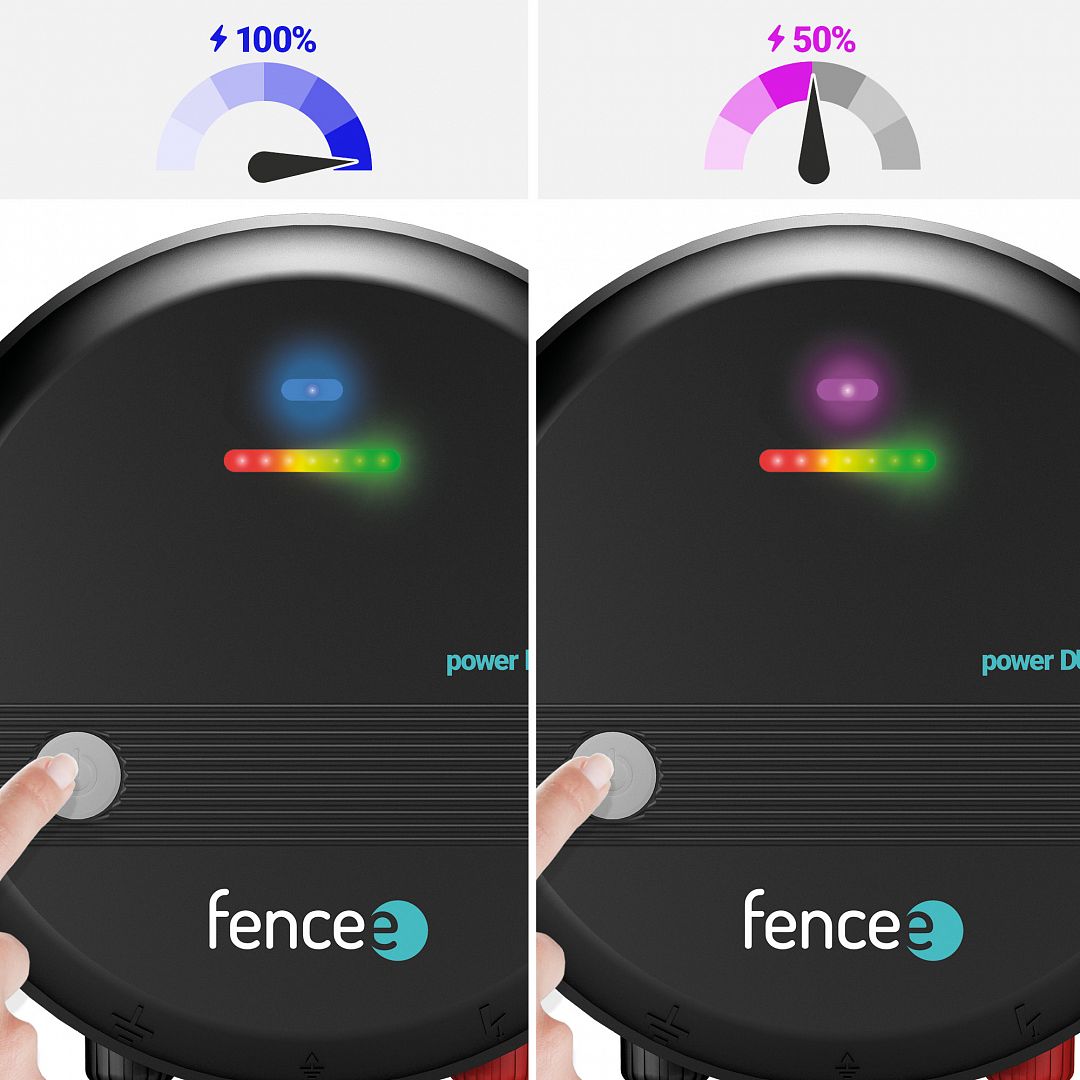

With bargraph and LED lights on the front of the generator to show the operation of the power supply, measure the voltage at the fence and indicate a possible fault.
The kit also includes a ground rod and all the necessary interconnecting cables to get the mobile sheep enclosure up and running in no time.

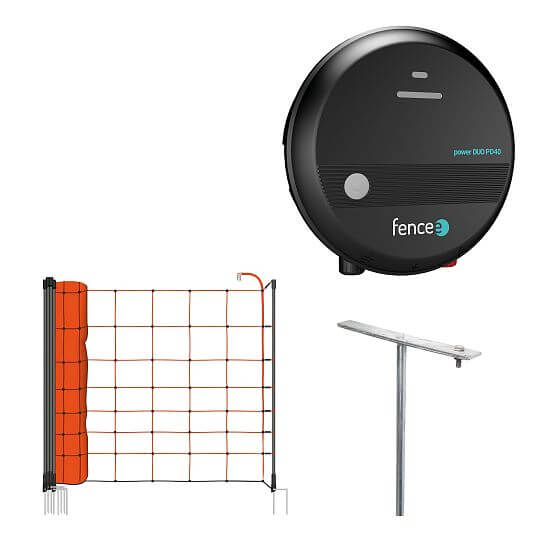

Package contents:

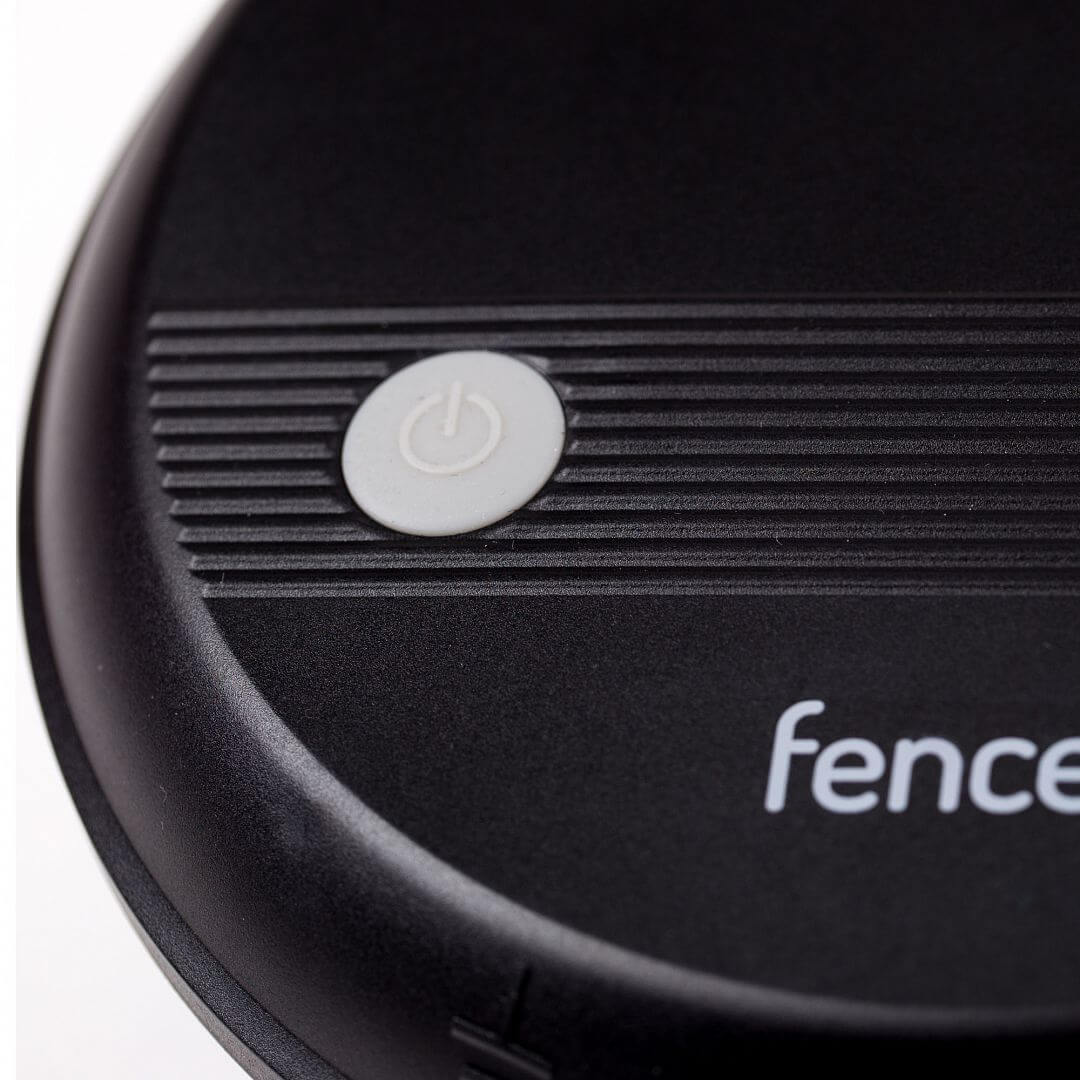

- fencee power DUO PD40 generator

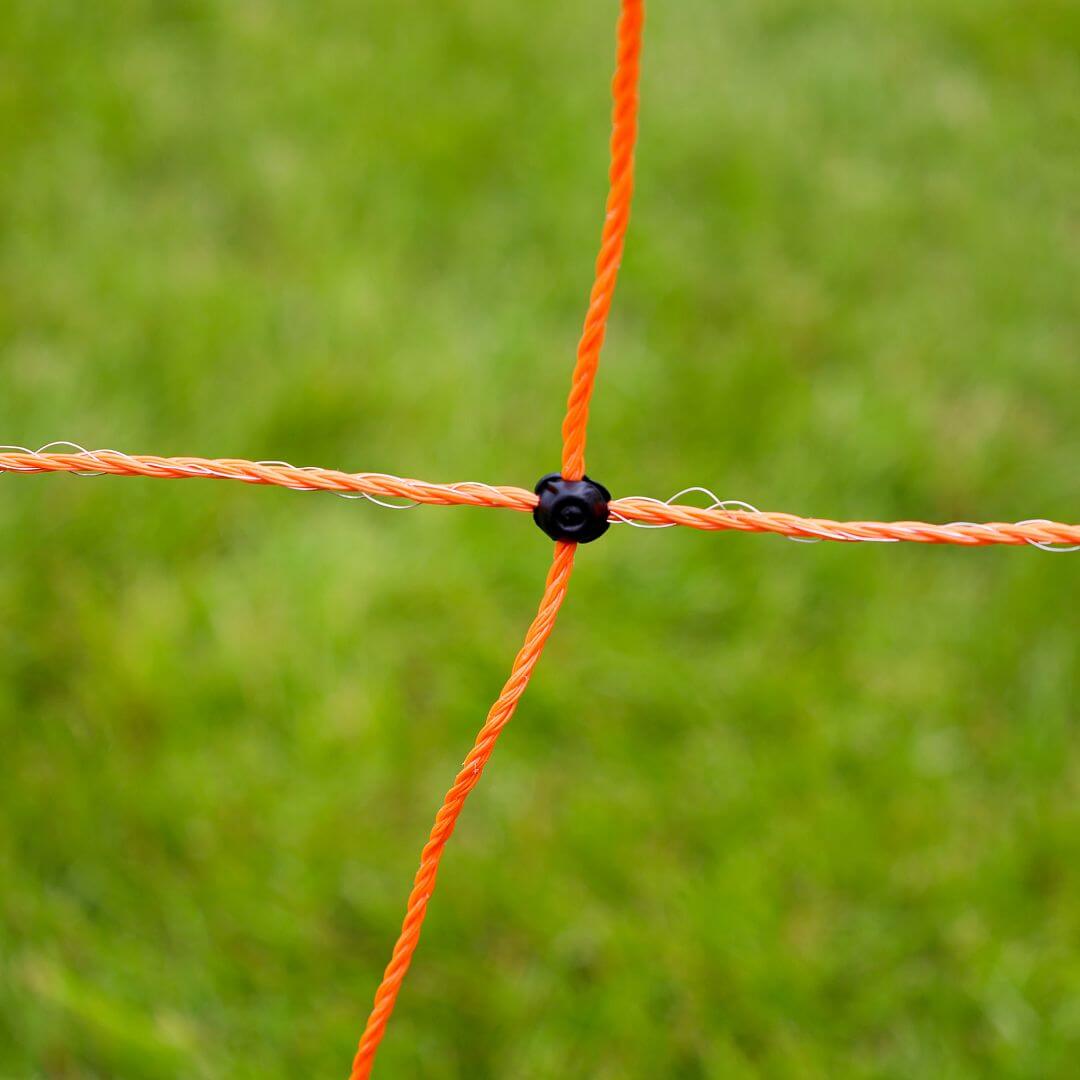

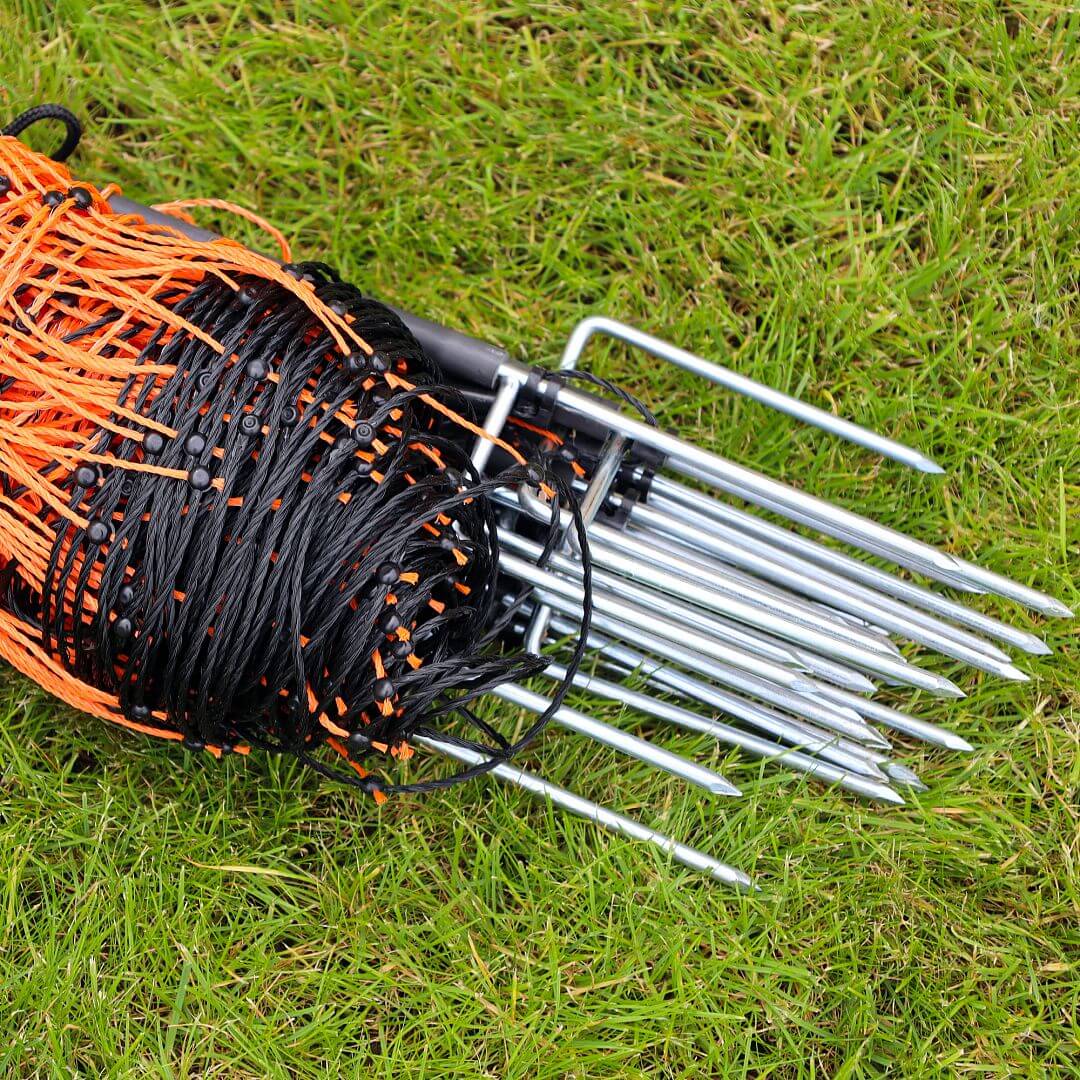

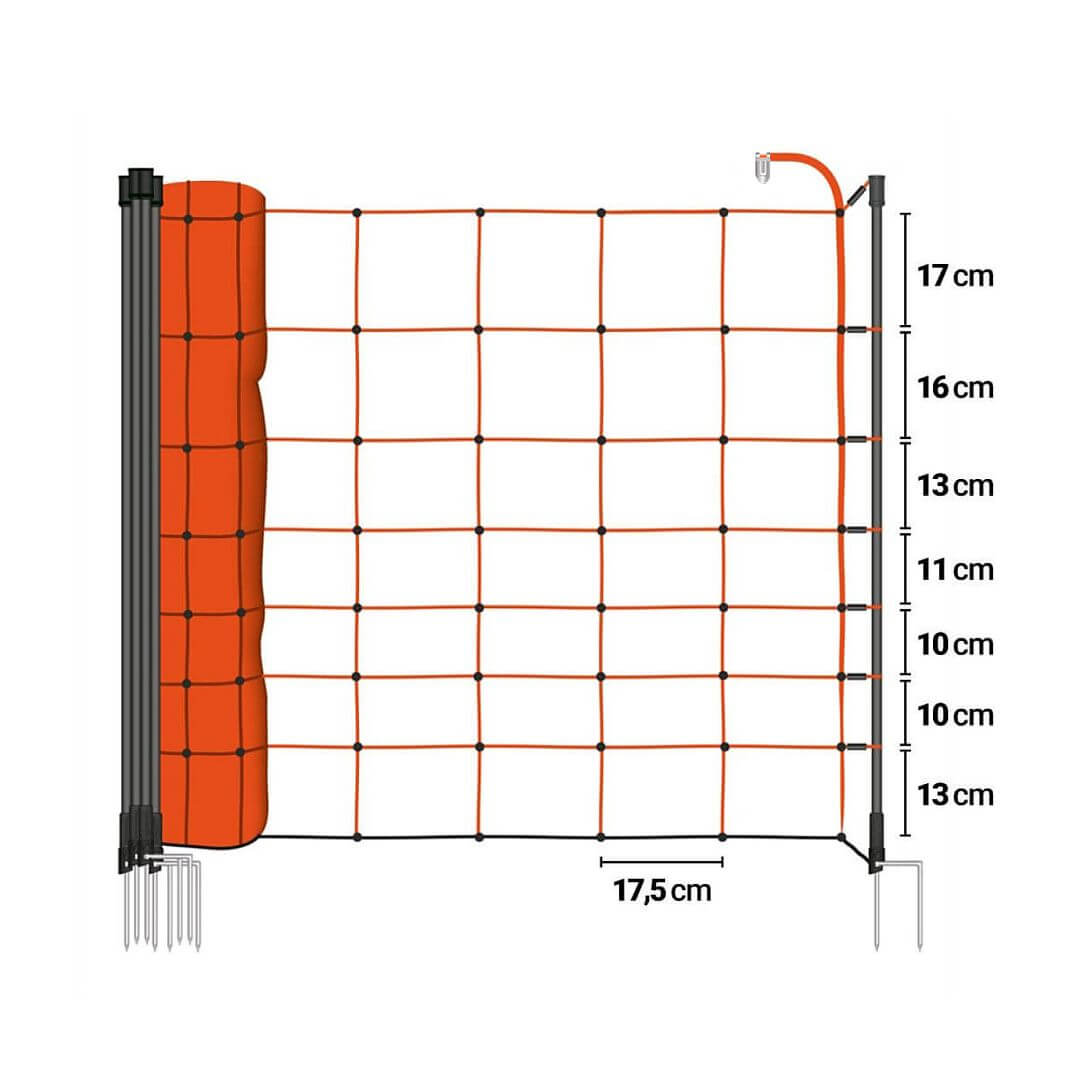

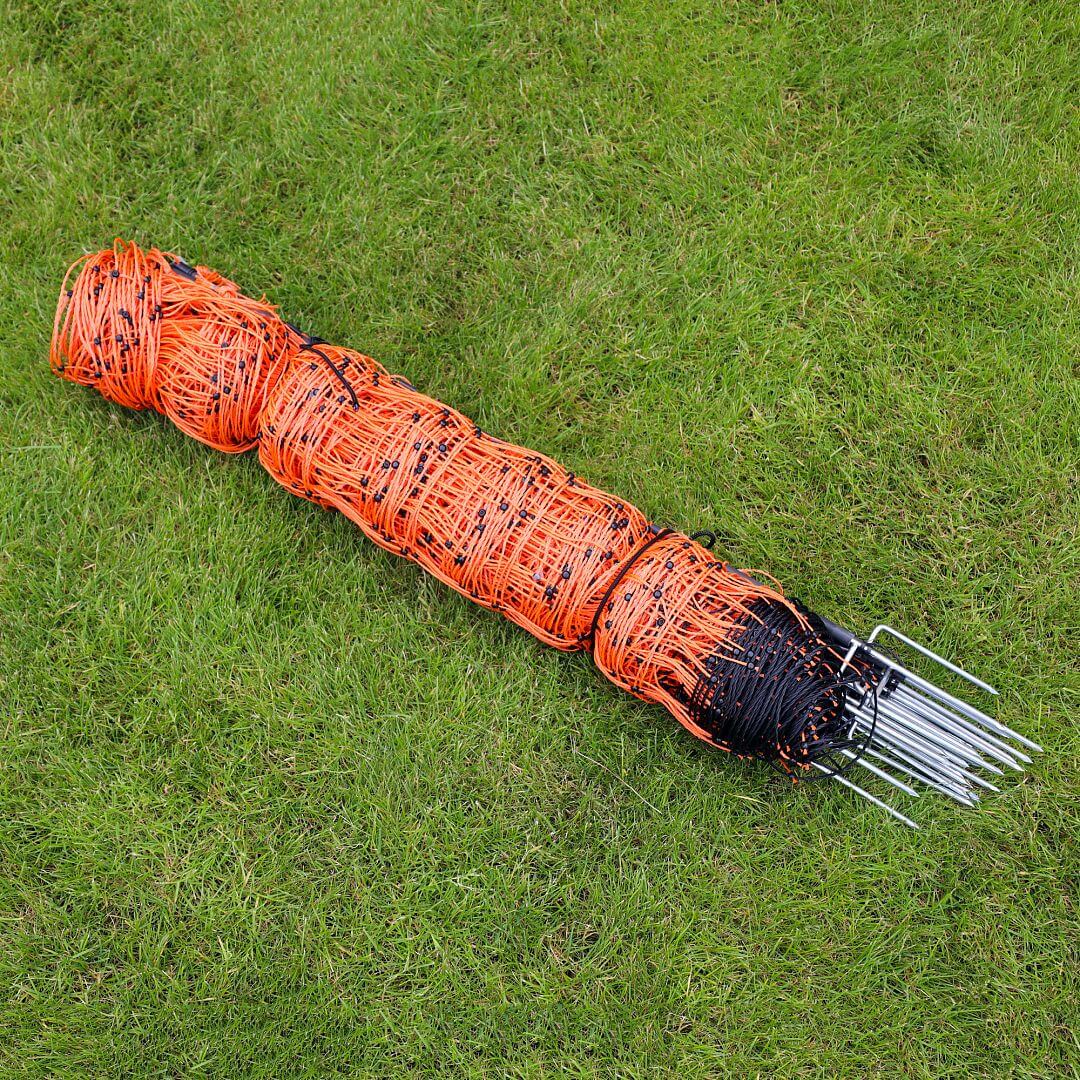

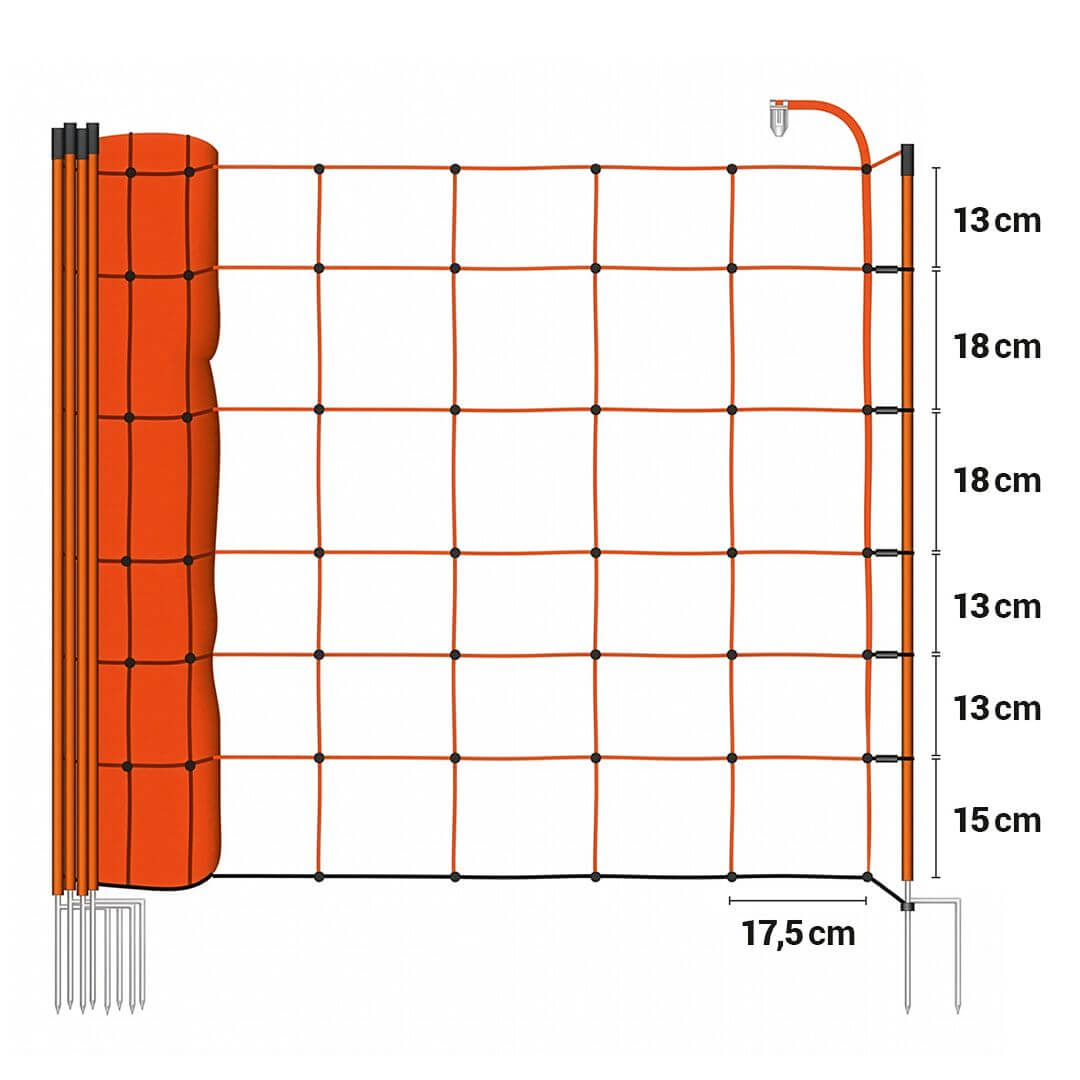

- 1× fencing net STANDARD, height 90 cm, length 50 m, 14 bars, orange
- 1× ground rod 75 cm (galvanized)

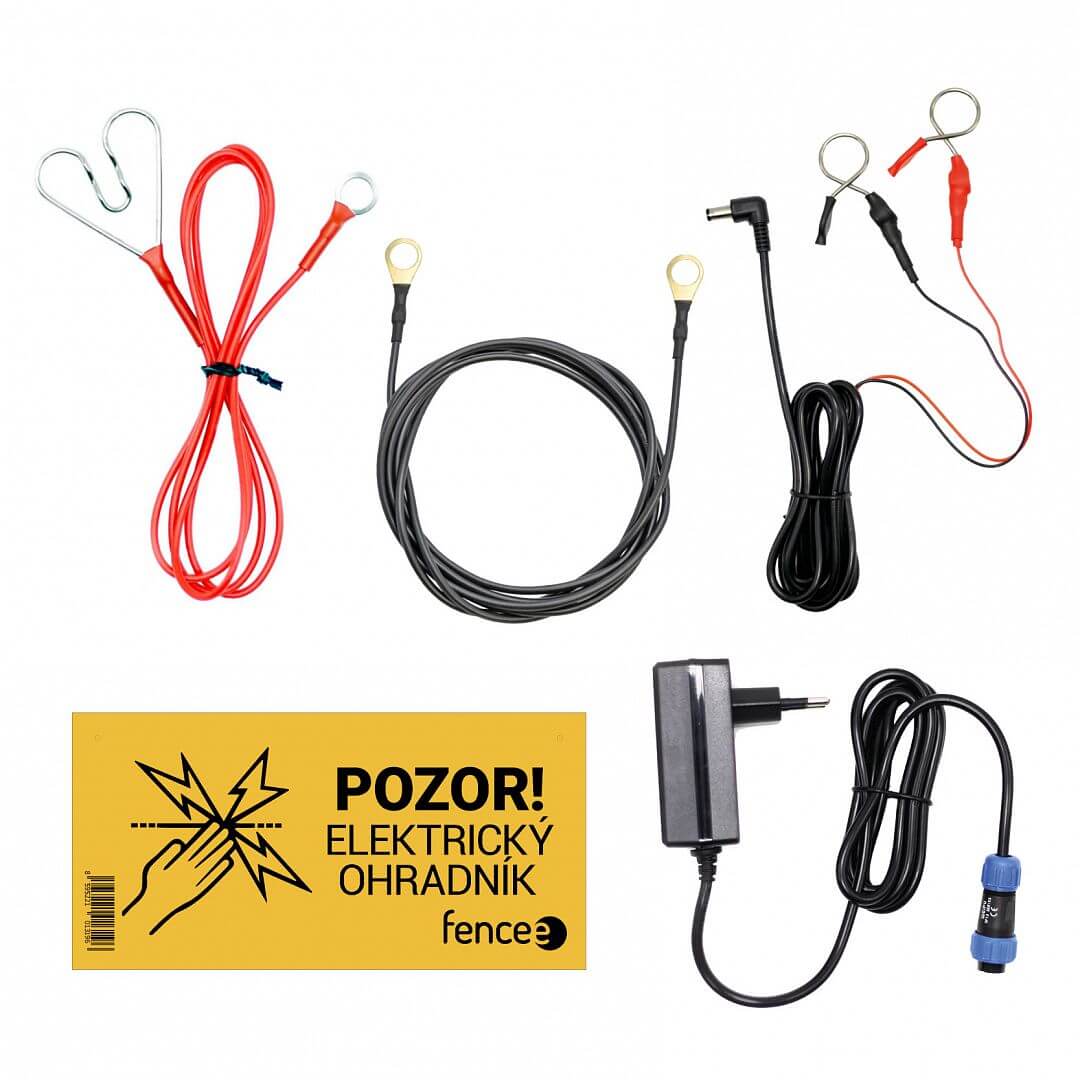

Included in the generator package:
- 1× power adapter fencee DUO 14 V 1A, lead length 1.5 m
- 1× earthing cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× battery cable fencee DUO 1,7 m
- 1× warning plate
- 1× operating instructions
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 80 - 320 mA |
Output energy | 4 J |
Output voltage | 10000 V |
Output voltage 500 Ω | 5500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 120 km |
Low vegetation | 30 km |
Medium vegetation | 8 km |
High vegetation | 3 km |
Earthing 1 m | 1 × |
El. fence nets | 6 × |

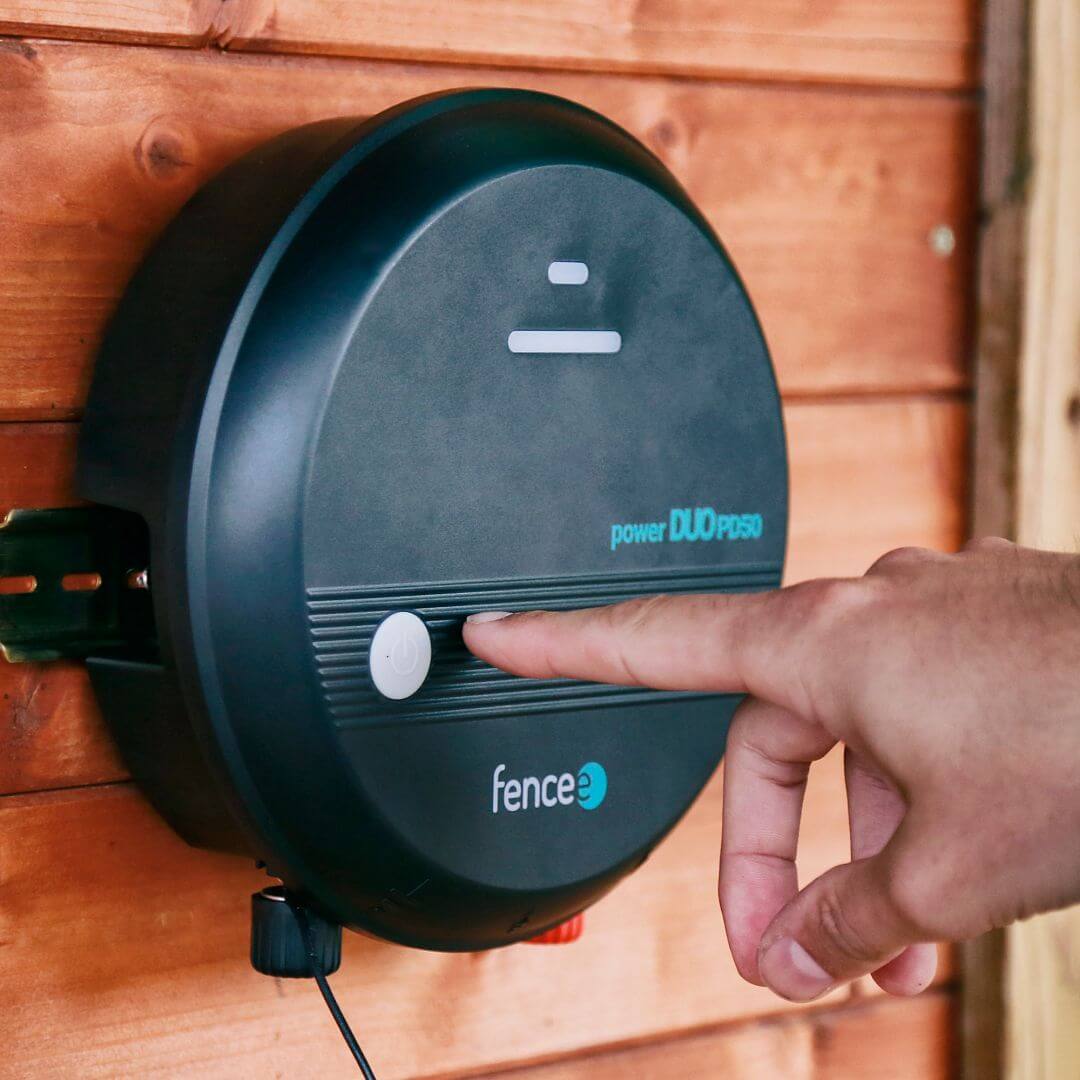

DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1540 g |
