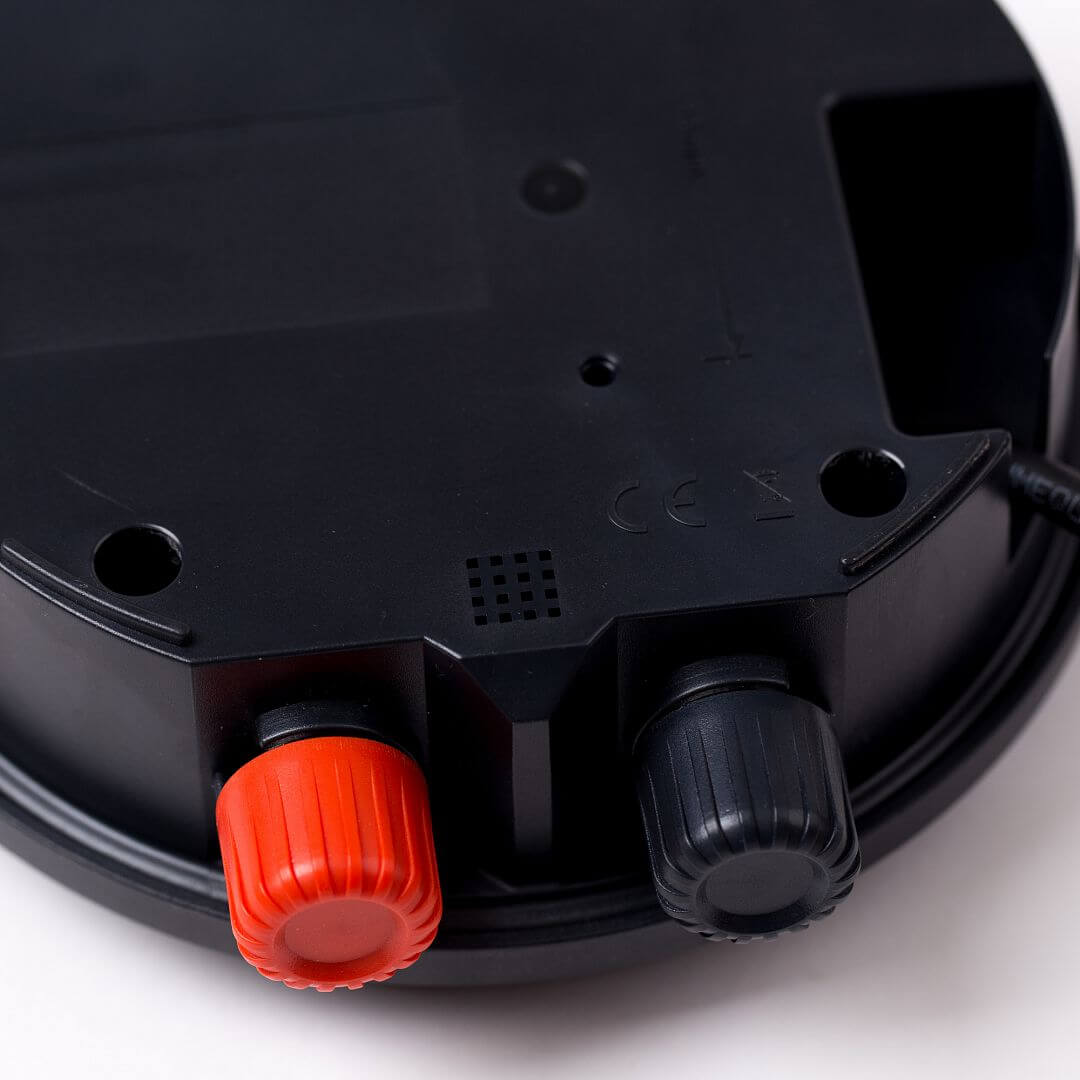

Electric fence energizer fencee mini M02

Functions of product Electric fence energizer fencee mini M02

ON/OFF button LED diodes Safe Shock Low consumption Smart Control DIN rail

Product´s description Electric fence energizer fencee mini M02

The compact modern construction of the fence with a switch and the latest microprocessor technology inside offers a practical solution and allows easy installation. The LED on the front indicates the status of power supply. Intelligent electronics with SafeShock technology enable safe fencing with reduced output voltage. Suitable for use of plus-minus construction, ie. without earthing, when both wires are led in parallels and the impulse occurs when they are connected. This direct path causes the electrical impulse to be particularly intense, but also more sensitive to the animal, because the current flows through only a small part of the body, see the diagram in the appendix to the figures.

Package contents:

  • energizer fencee mini M02
  • earthinging cable 150 cm (eyelet-eyelet)
  • connecting cable 100 cm (eye-heart)
  • warning sign fencee
  • operating instructions
Power source 230 V ~
Energizer consumption 230 V 1 W
Input energy 0,3 J
Output energy 0,2 J
Output voltage 2500 V
Output voltage 500 Ω 750 V
ON/OFF
LED impulse
TEOR. max. CEE 6 km
Low vegetation 2 km
Medium vegetation 0,5 km
High vegetation 0,1 km
Earthing 1 m 1x
Diameter 150 mm
Depth 57 mm
Weigth 768 g
