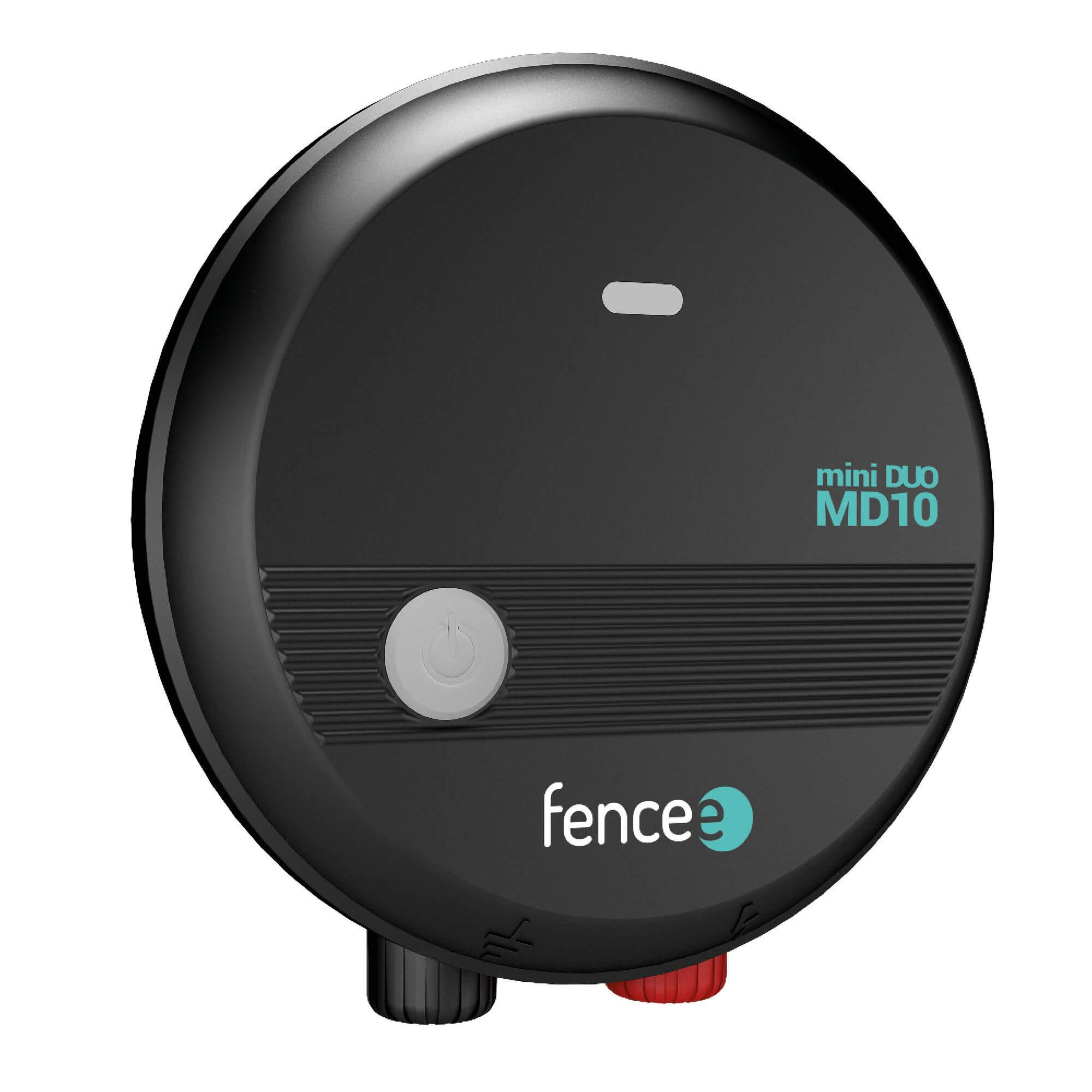

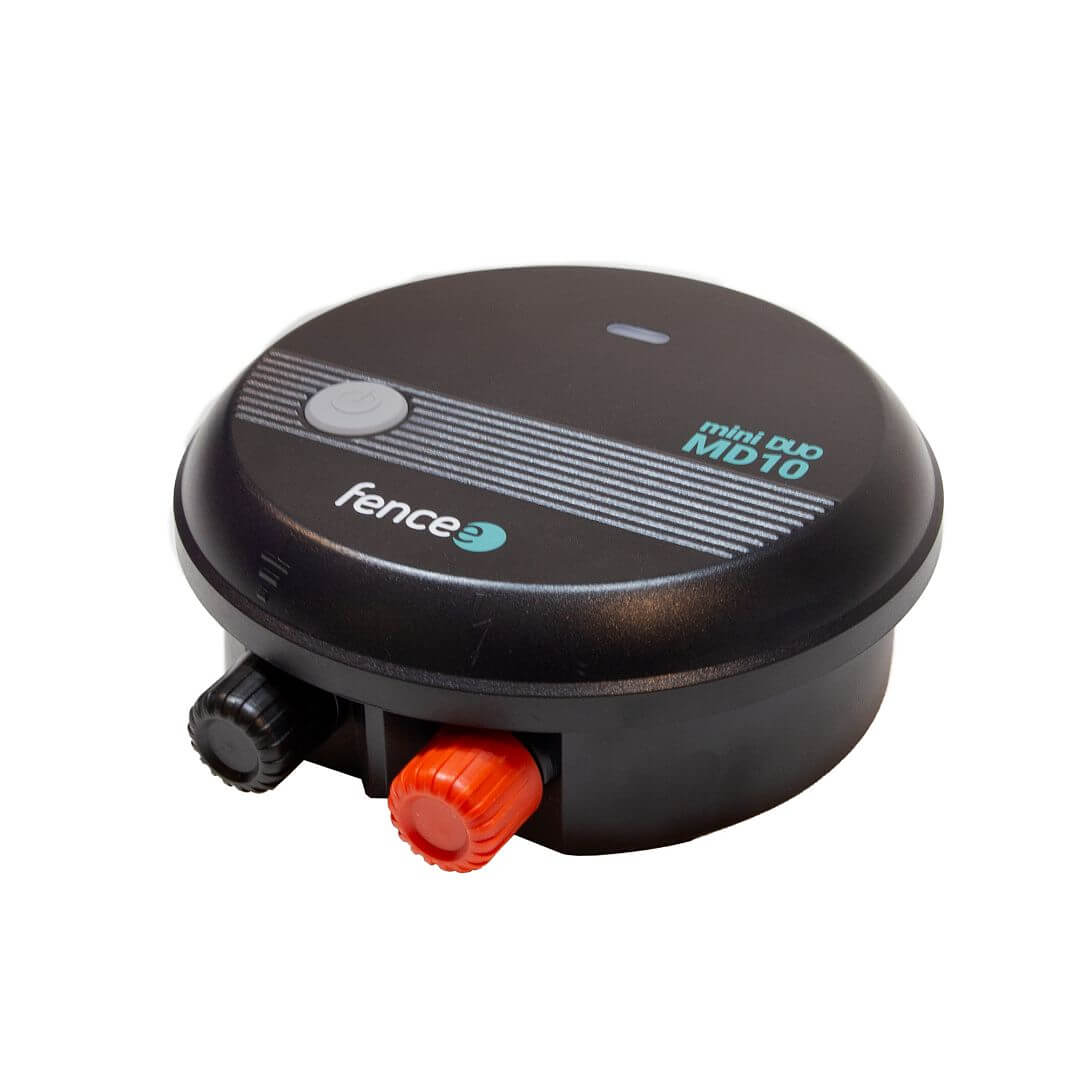

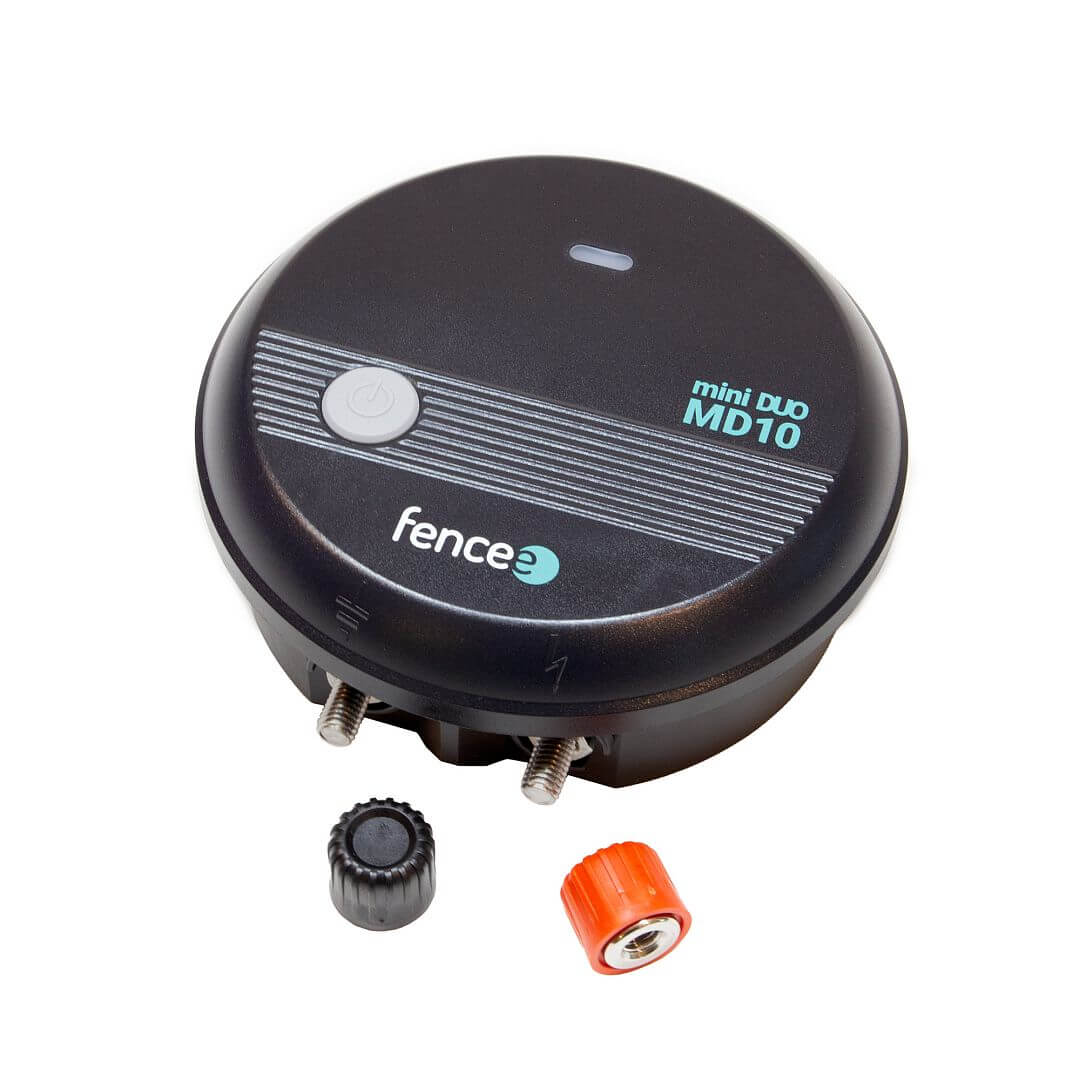

Electric fence energizer fencee mini DUO MD10

Functions of product Electric fence energizer fencee mini DUO MD10

Combined operation Power Save mode ON/OFF button LED diodes Safe Shock DIN rail Smart Control ST transformer Low consumption Resistant

Product´s description Electric fence energizer fencee mini DUO MD10

The new fencee mini DUO MD series of energizers with a combined power supply 230 V/12 V for universal use anywhere. The 1 J fence energizer can be powered with a mains adapter 230 V or from a 12 V battery. A small, universally usable energizer applicable for mobile electric fences with installation lengths of up to 9 km.

Electric fence energizer mini DUO MD10 for dogs, poultry, horses, and again pests, game

A reliable energizer that is a suitable solution for safe electric fence for horses and foals. The combined power supply 230 V/12 V and the small size of the energizer makes it an ideal combination for use in temporary electric fences, paddocks, and small horse fences. It also finds application when cats, rabbits, dogs or poultry need a protected area. Last but not least, this electric fence energizer is a great help in the fight against pests such as martens and otters, beavers, or herons. Suitable energizer for electric security of Koi carp breeding ponds.

Benefits and features of the fencee energizer

The mini DUO MD10 energizer is a modern device with microprocessor technology that controls the operation and adjusts the optimal output power of the fence energizer. The high-quality plastic case is weather, snow, rain, and UV resistant.

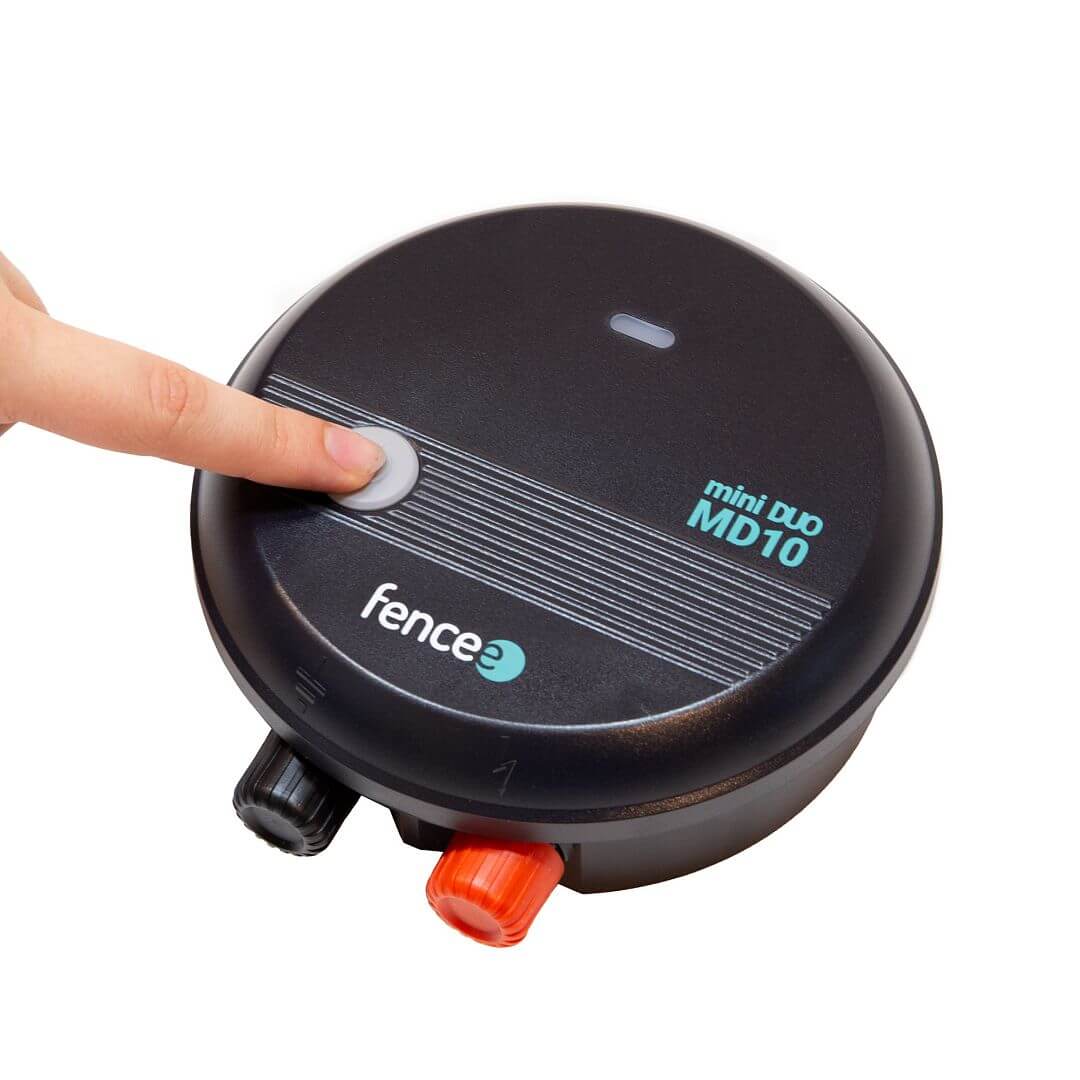

New Power Save function allows you to activate the power saving mode by long pressing the ON/OFF button. The interval between electric pulses will be extended, which significantly increases the life of the connected 12 V battery.

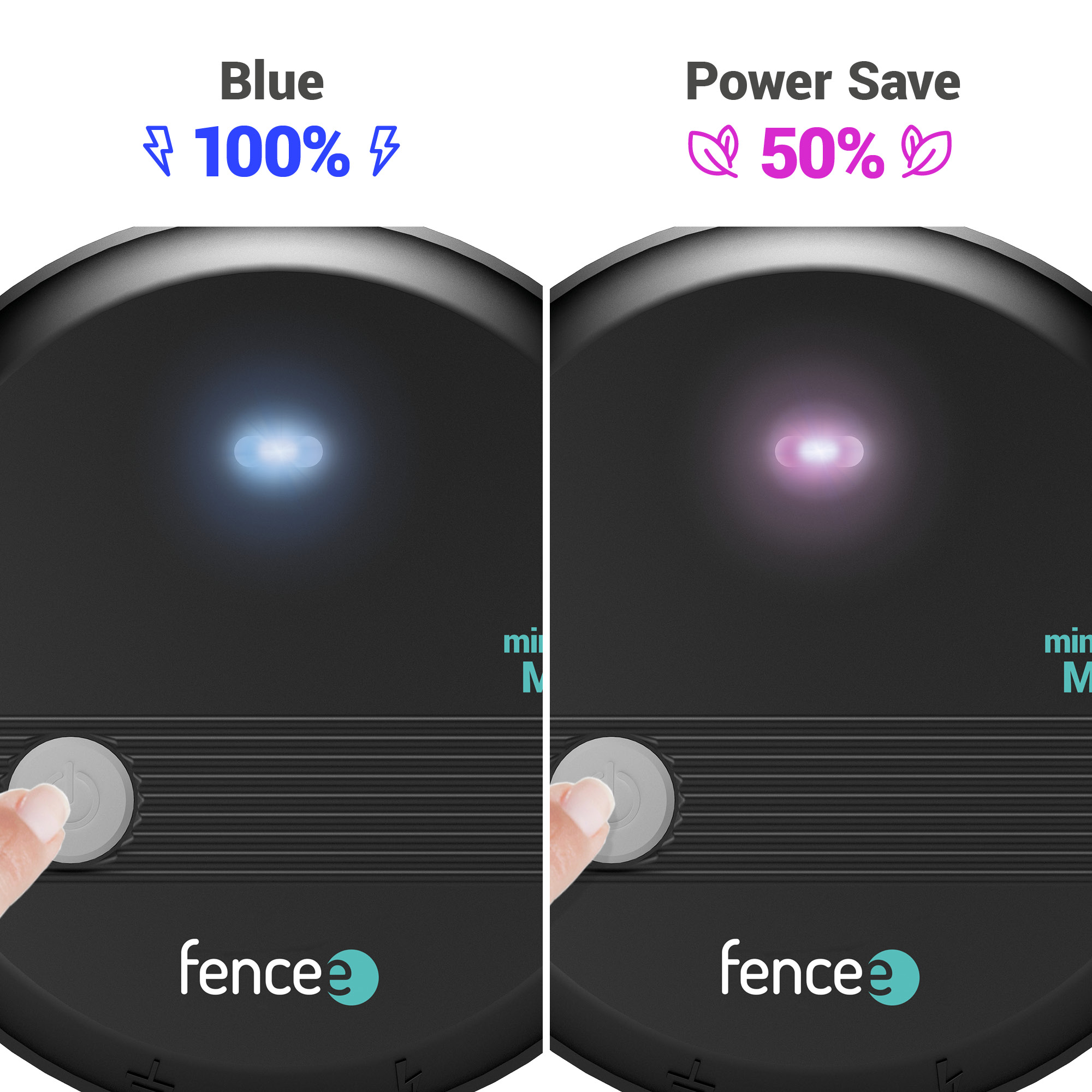

The BrightLight LEDs on the front of the energizer indicate the operation of the device in three colors:

  • Blue indicates the operation of the energizer and flashes in the interval of individual electric pulses.
  • Purple indicates power saving mode is running, extended time between electric pulses.
  • Red alerts the user in the event of a voltage loss or fault (e.g. battery voltage drops below 12 V or fence voltage drops below 2.5 kV.

Smart Control technology, low power consumption and several other benefits and features of the fencee mini DUO MD energizers.

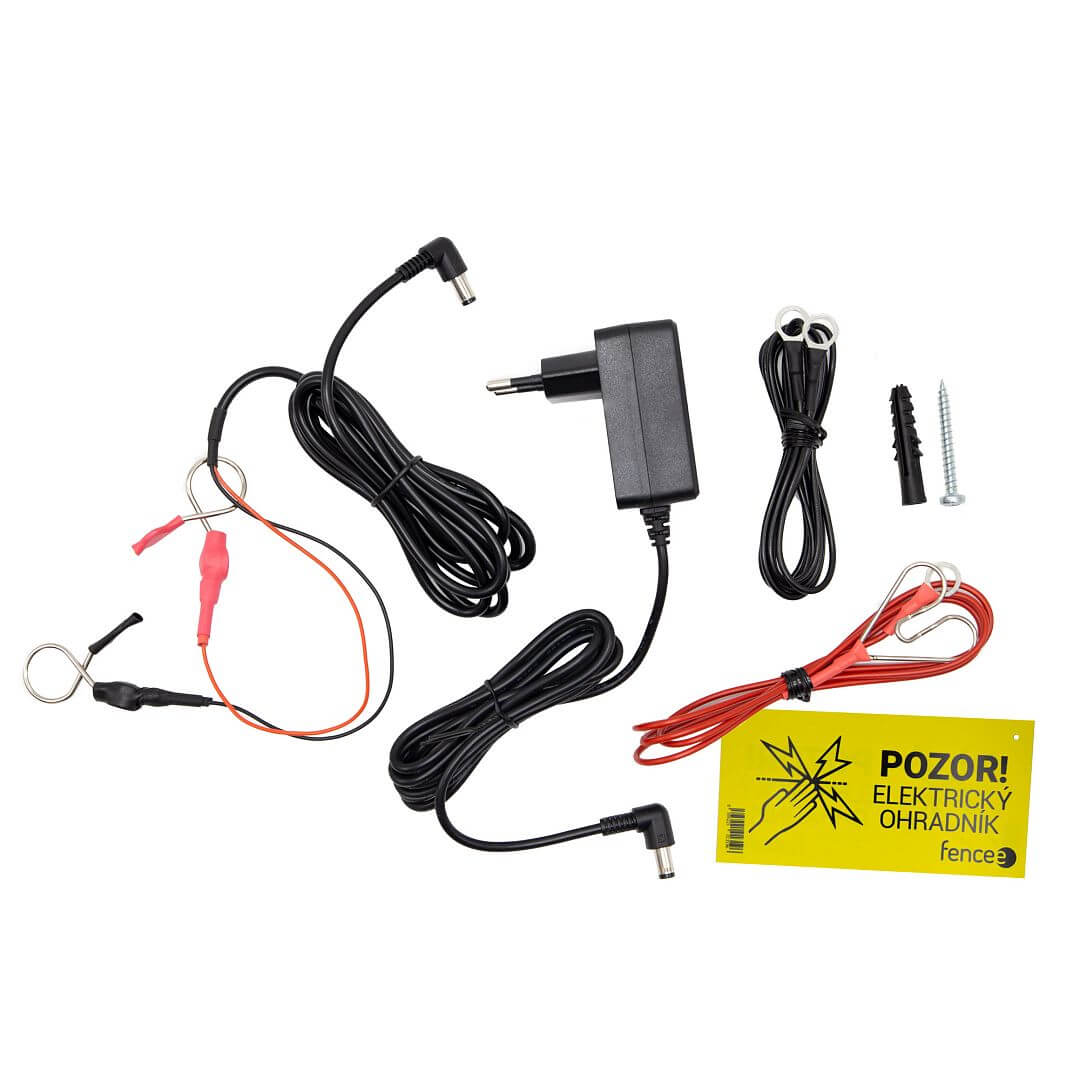

Package contents:

  • fencee energizer

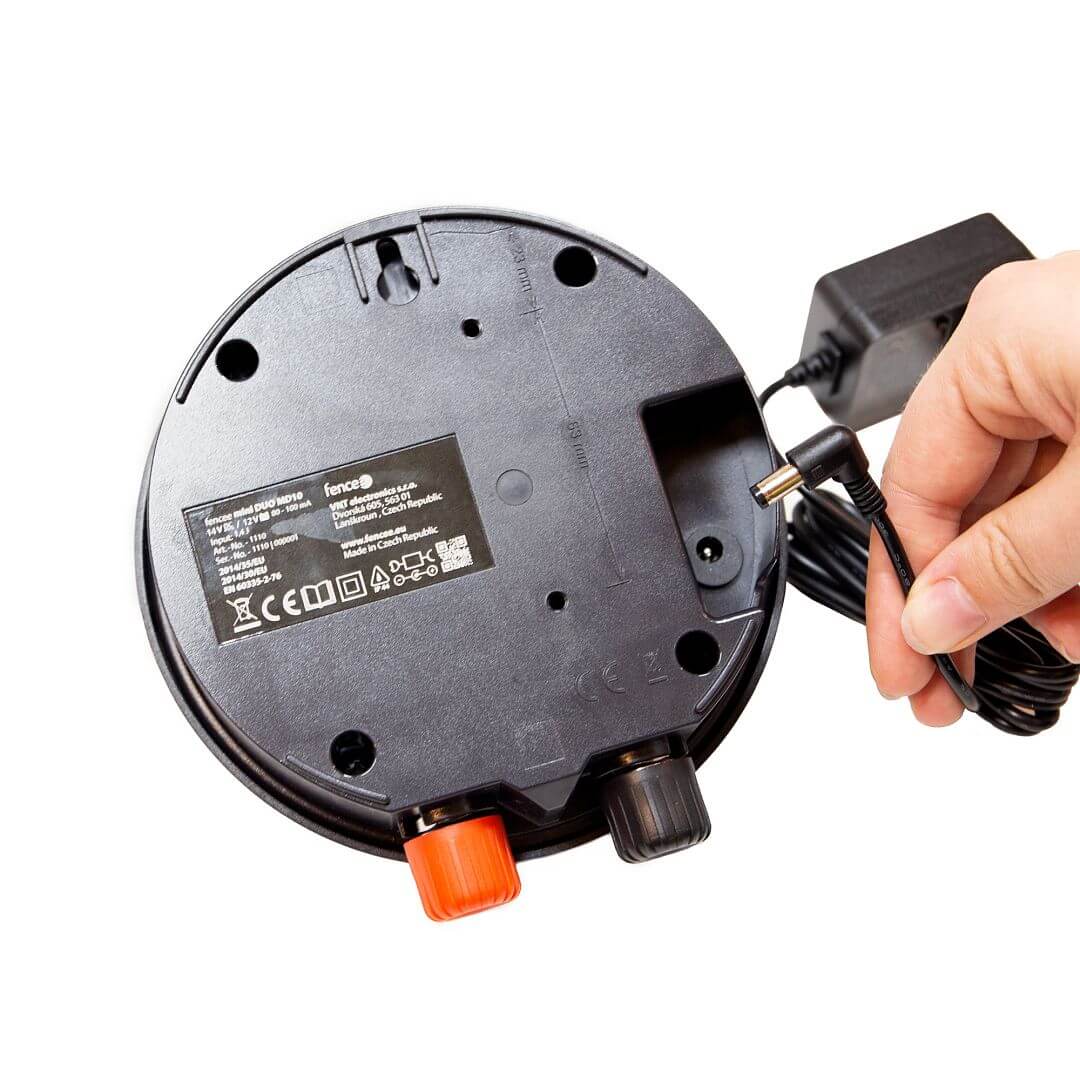

  • power adapter fencee DUO 14 V 1,5 m
  • earthing cable 150 cm (eyelet-eyelet)
  • connecting cable 100 cm (eyelet-heart)
  • battery cable fencee DUO 1,7 m
  • warning sign fencee
  • operating instructions
Power source 230 V ~ / 12 V
Energizer consumption 230 V 2 W
Energizer consumption 12 V 80 - 100 mA
Output energy 1 J
Input energy 1,4 J
Output voltage 10000 V
Output voltage 500 Ω 4000 V
ON/OFF
LED ON/OFF
LED impulse
LED low battery voltage
LED error check
LED indication
Power Save mode
TEOR. max. CEE 30 km
Low vegetation 9 km
Medium vegetation 6 km
High vegetation 1,5 km
Earthing 1 m 1 ×
El. fence nets 3 ×
DIN rail
Diameter 150 mm
Depth 57 mm
Weigth 748 g

Manuals and files for downloading

Manual fencee mini DUO MD

FAQ

Go to How-to guide
