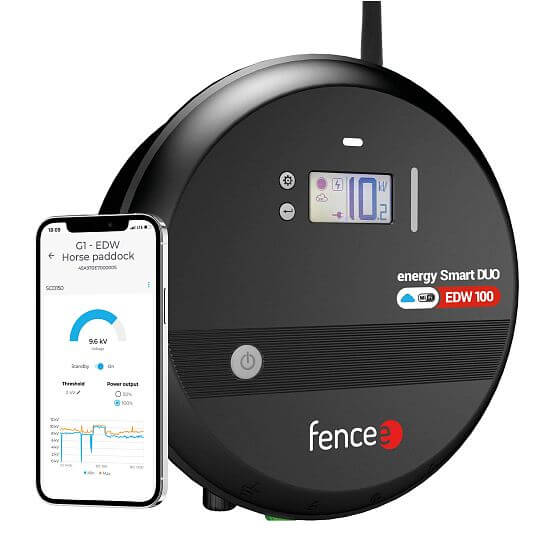

Product´s description Smart Wi-Fi electric fence generator fencee energy Smart DUO EDW100
A powerful smart power supply for the fencee electric fence designed for fences up to 90 km long. Also suitable for vegetation laden fences where maximum efficiency and reliability must be ensured .
The universal reliable generator for your fence
Smart fencing power supply with an output of 10 J. Suitable for fixed and mobile electric fences. Universally applicable power supply for electric fencing for all animals. Ideal for cattle, sheep, horses and also for protection against forest animals, wild boars and wolves. Easy to operate. Integrated microprocessor controls operation and ensures adequate power output in relation to the condition of the electric fence. Optimised power consumption. Practical DIN rail mounting.
Wireless communication at NO CHARGE
The smart Wi-Fi generator EDW is simply connected directly to the 2.4GHz router. The generator sends the collected data directly to the cloud, which collects and routes it to the mobile phone. The cloud solution allows remote control and monitoring of the fence from anywhere with the free fencee Cloud app. This can also be used on a tablet or in a browser on a PC. Unlimited control. No additional costs. WPA2 - PSK / WEP wireless network security.
24/7 overview of fence performance
In case of a problem in the fence, you get real-time alerts, e.g. drop below the minimum voltage setting or low battery. Online information about the current status of the fence, tracking the measured values for the last 7 days. Possibility to switch the power in the app.
4 outputs and combined power supply for maximum flexibility

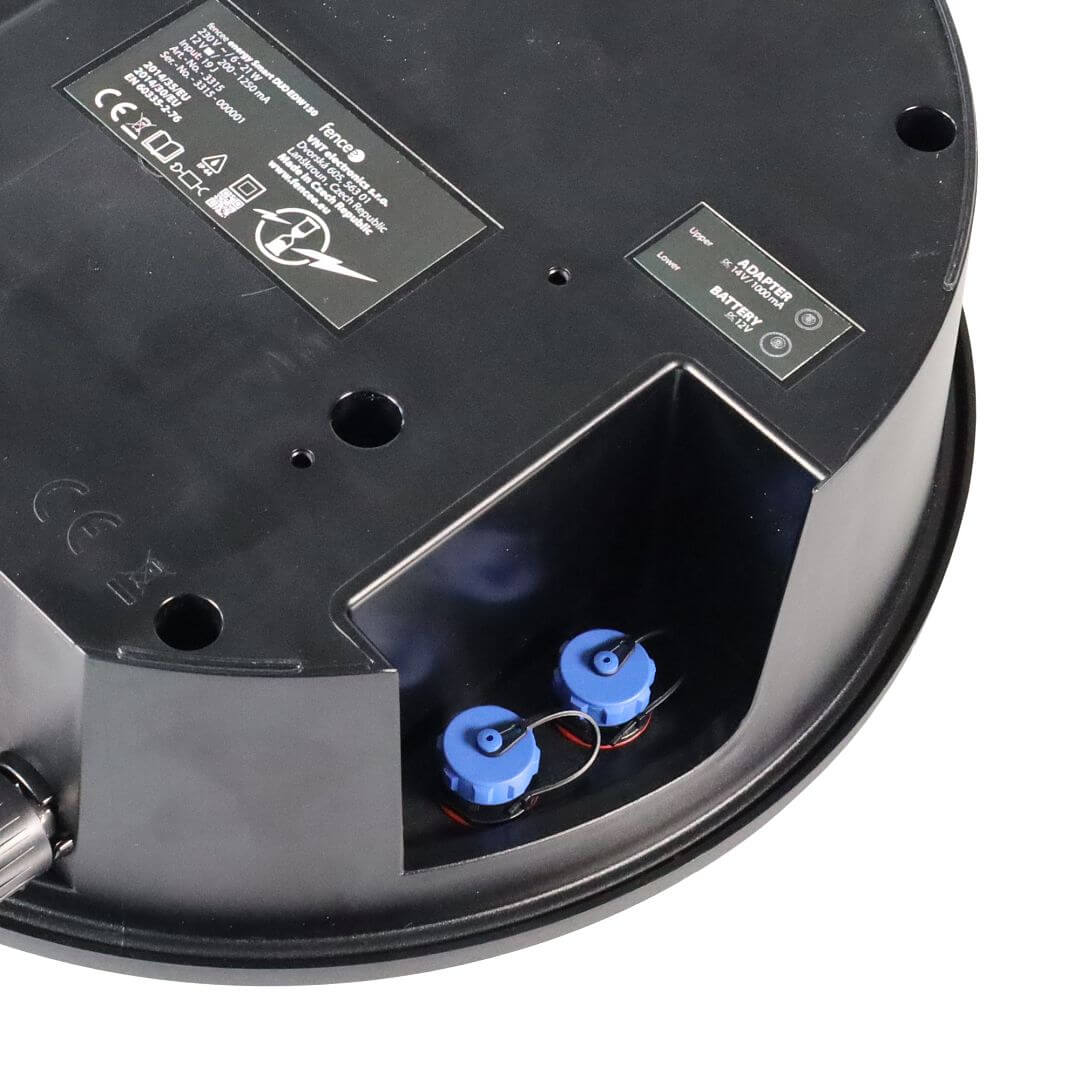

At the generator output there is a black earth terminal, a red terminal for connecting a full voltage fence, a yellow terminal for connecting a permanently reduced energy fence and a green terminal for checking the fence earth measurement. Power is supplied via an adapter from the 230 V mains or from a 12 V battery, which can also be used as a backup supply.
Safety of the device
Generators with a power output of more than 5 J meet special safety requirements prescribed by the standard. This includes a time delay of 50 s when increasing the power output due to an increased load on the fence. An additional feature is a warning in the event of a sudden load on the fence, e.g. a fallen branch, an entangled animal or a person. The generators comply with the applicable EU safety standards.
Included:
- Wi-Fi fencee generator
- Power adapter 14 V / 2 A
- 150 cm ground cable (eyelet to eyelet)
- Connecting cable 100 cm (eyelet-heart)
- battery cable
- fencee warning sign
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 6 - 14 W |
Energizer consumption 12 V | 200 - 850 mA |
Output energy | 10 J |
Input energy | 13 J |
Output voltage | 10500 V |
Output voltage 500 Ω | 7500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
Reduced output terminal | |
Earth measuring terminal | |
LCD display | |
fencee Cloud connection | |
TEOR. max. CEE | 300 km |
Low vegetation | 90 km |
Medium vegetation | 22 km |
High vegetation | 10 km |
Wi-Fi technology | 2,4 GHz |
Wi-Fi security | WPA2 – PSK / WEP |
Earthing 1 m | 5x |
El. fence nets | 27x |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3186 g |
