Read about the benefits and comfort of Smart electric fencing in the words of renowned Shetland sheep breeder Mr Roman Cieslar.

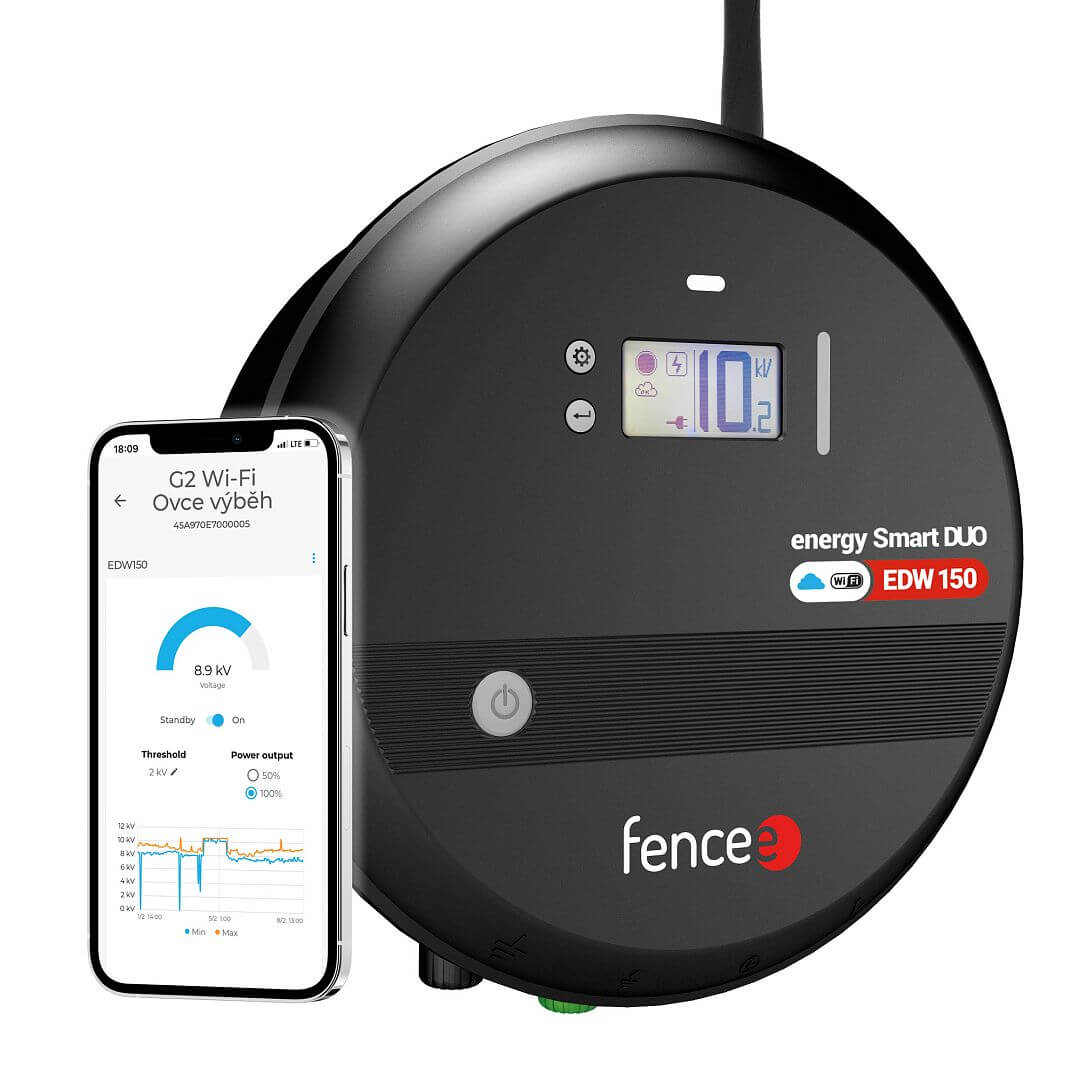

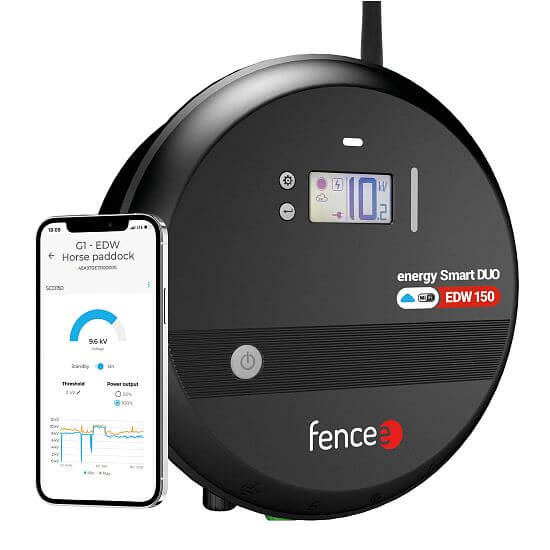

Product´s description Smart Wi-Fi electric fence energizer energy Smart DUO EDW150
High-performing Smart electric fence energizer designed for fences up to 120 km long. Suitable for long and vegetation-overgrown electric fences where maximum efficiency and reliability must be ensured.
Wireless communication, NO FEES
Simply connect the EDW Smart Wi-Fi energizer directly to a Wi-Fi router 2.4 GHz. The energizer sends the collected data directly to the cloud, which collects and routes it to your mobile phone. The cloud solution allows remote control and real-time monitoring of electric fences from anywhere using the free fencee Cloud app. Can also be used on a tablet or in a browser on a PC. Unlimited control. No additional costs. Wireless network security WPA2 - PSK / WEP.
Overview of electric fence performance 24/7
In case of a problem in the fence, you receive real-time alerts, e.g. a drop below the set minimum voltage value or a low battery. Online information about the condition of the electric fence, viewing the measured values for the last 7 days. Possibility to switch the power in the app.
Universal reliable energizer for your electric fence
Smart electric fence energizer with an output power of 15 J. Suitable for permanent and mobile electric fences. Universally applicable for all animals. Ideal for cattle, sheep, horses as well as for protection against wild animals, game, wild boars and wolves. Easy to use. An integrated microprocessor controls operation and ensures optimal power output in relation to the current fence condition. Optimized power consumption. Practical DIN rail mounting.
4 terminals and DUO powered for maximum flexibility
Black earthing terminal on the energizer output, a red terminal for connecting a full voltage fence, and a yellow terminal for connecting a permanently reduced energy fence and a green terminal for control measurement of the fence earthing. Power supply from the 230 V mains or a battery 12 V, which is also usable as a backup power supply.
Safety of the device
Energizers fencee with an output higher than 5 J meet the special safety requirements prescribed by the standard. This is a 50 s time delay when increasing the power due to increased load on the fence. Another feature is a warning in case of sudden loading of the electric fence, e.g. a fallen branch, an entangled animal or a person. The energizers comply with current EU safety standards.
- Wi-Fi fencee energizer
- Power adapter 14 V / 2 A
- 150 cm ground cable (eyelet to eyelet)
- 100 cm connection cable (eyelet-heart)
- battery cable
- fencee warning sign
- operating instructions
|Power source||230 V ~ / 12 V|
|Energizer consumption 230 V||6 - 21 W|
|Energizer consumption 12 V||200 - 1250 mA|
|Input energy||20 J|
|Output energy||15 J|
|Output voltage||10500 V|
|Output voltage 500 Ω||7500 V|
|LED low battery voltage|
|LED lower power 50%|
|LED error check|
|LED impulse bargraph|
|Reduced output terminal|
|Earth measuring terminal|
|fencee Cloud connection|
|TEOR. max. CEE||350 km|
|Low vegetation||120 km|
|Medium vegetation||28 km|
|High vegetation||16 km|
|Earthing 1 m||6x|
|Wi-Fi technology||2,4 GHz|
|El. fence nets||38x|
|Wi-Fi security||WPA2 – PSK / WEP|
Manuals and files for downloadingManual - fencee energy Smart DUO EDW Leaflet Wi-Fi energizer Smart DUO EDW Modern Smart Farm fencee Cloud 2022 - Catalogue
- 10 principles for the correct functioning of the fence
- Functional electric fence principles - troubleshooting tips
- RF technology
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
