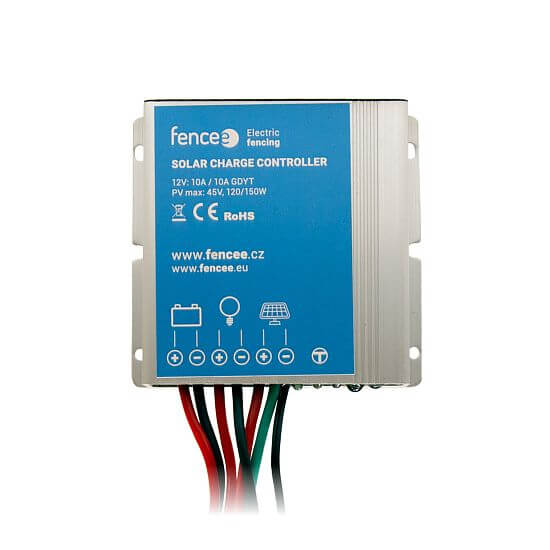

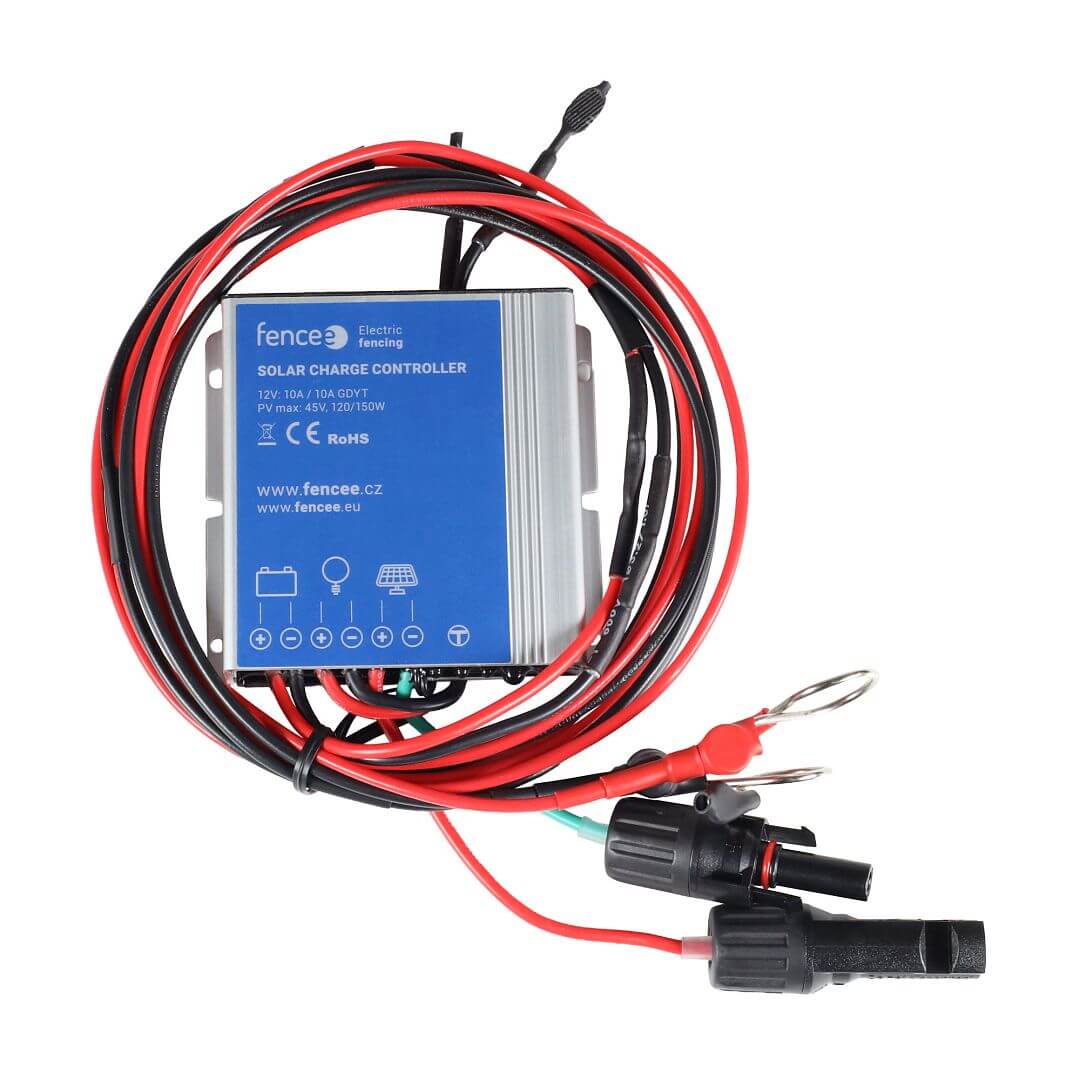

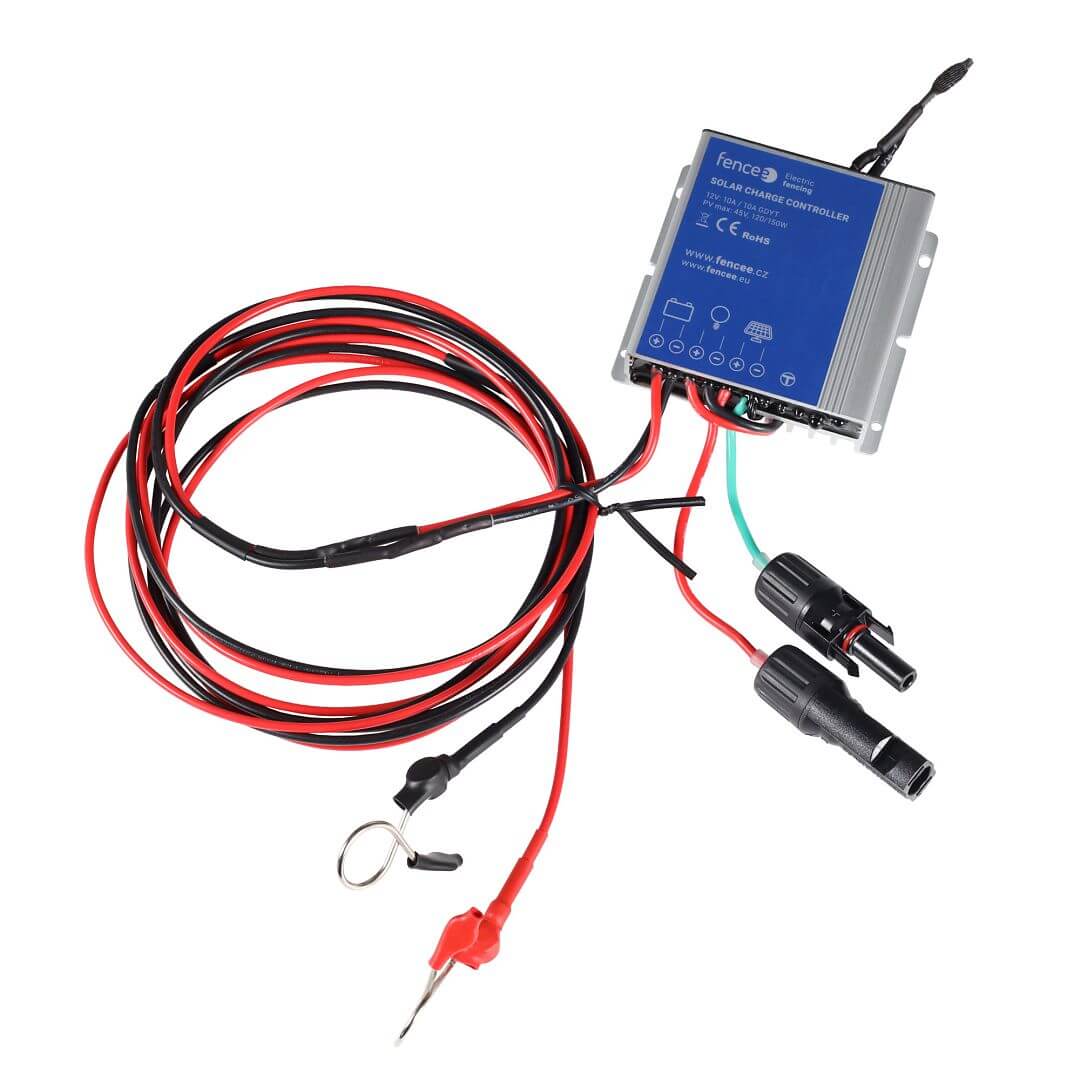

Product´s description Regulator 10 A for fencee solar panels 40, 100, 200 W
Regulator 10 A suitable for charging 44 Ah - 95 Ah batteries.
Features and functions of the 10 A regulator:
- Innovative Maximum Power Point Tracking (MPPT) technology, tracking efficiency > 99.9%.
- High charge conversion efficiency up to 97.5%
- Operating status and parameter monitoring
- Suitable for gel, liquid, AGM batteries
- IP67 waterproof, strong and durable aluminum housing
- Fully automatic electronic protection function
Battery parameters:
- Maximum charging current: 10 A
- System voltage: 12 V
- Maximum power: 130 W
- Maximum battery voltage: 25 V
- Battery type: Liquid, Gel, AGM
- Recommended battery capacity is 44 Ah for the 40 W and 100 W panels, and 95 Ah for the 200 W panel
Technical data of the 10 A regulator:
- Dimensions: 85.8 × 81 × 23.1 mm
- Weight: 260 g
- Ambient temperature: -35~+60℃
- Ambient humidity: 0~100%RH
- Degree of protection: IP67
manual for more information and safety instructions
Recommended battery capacity is 44 Ah for the 40 W and 100 W panels, and 95 Ah for the 200 W panel.
| Technical parameters | |
|---|---|
| System voltage | 12 V |
| Max. power input | 130 W |
| Max. charging current | 10 A |
| Max. voltage on the panel | 45 V |
