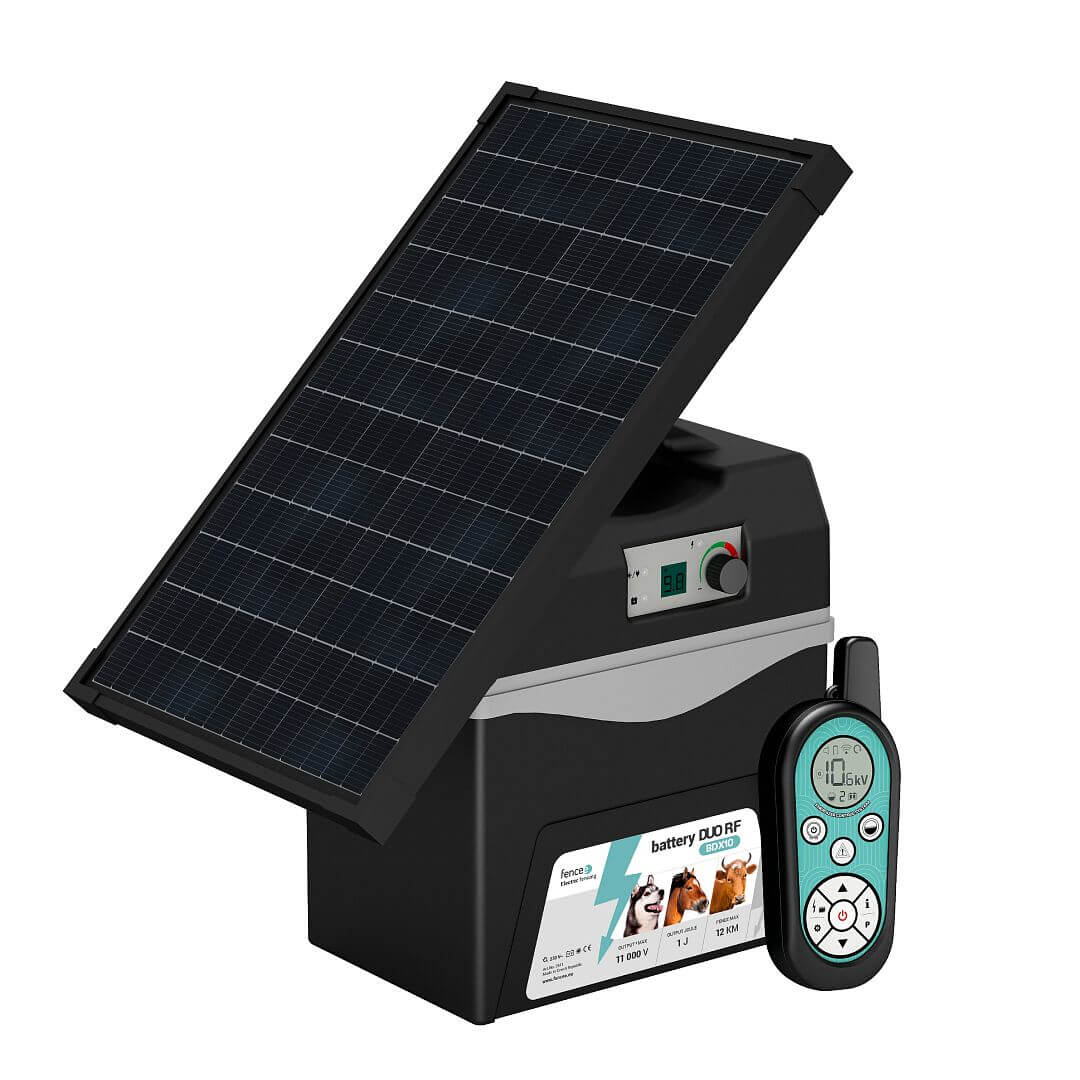

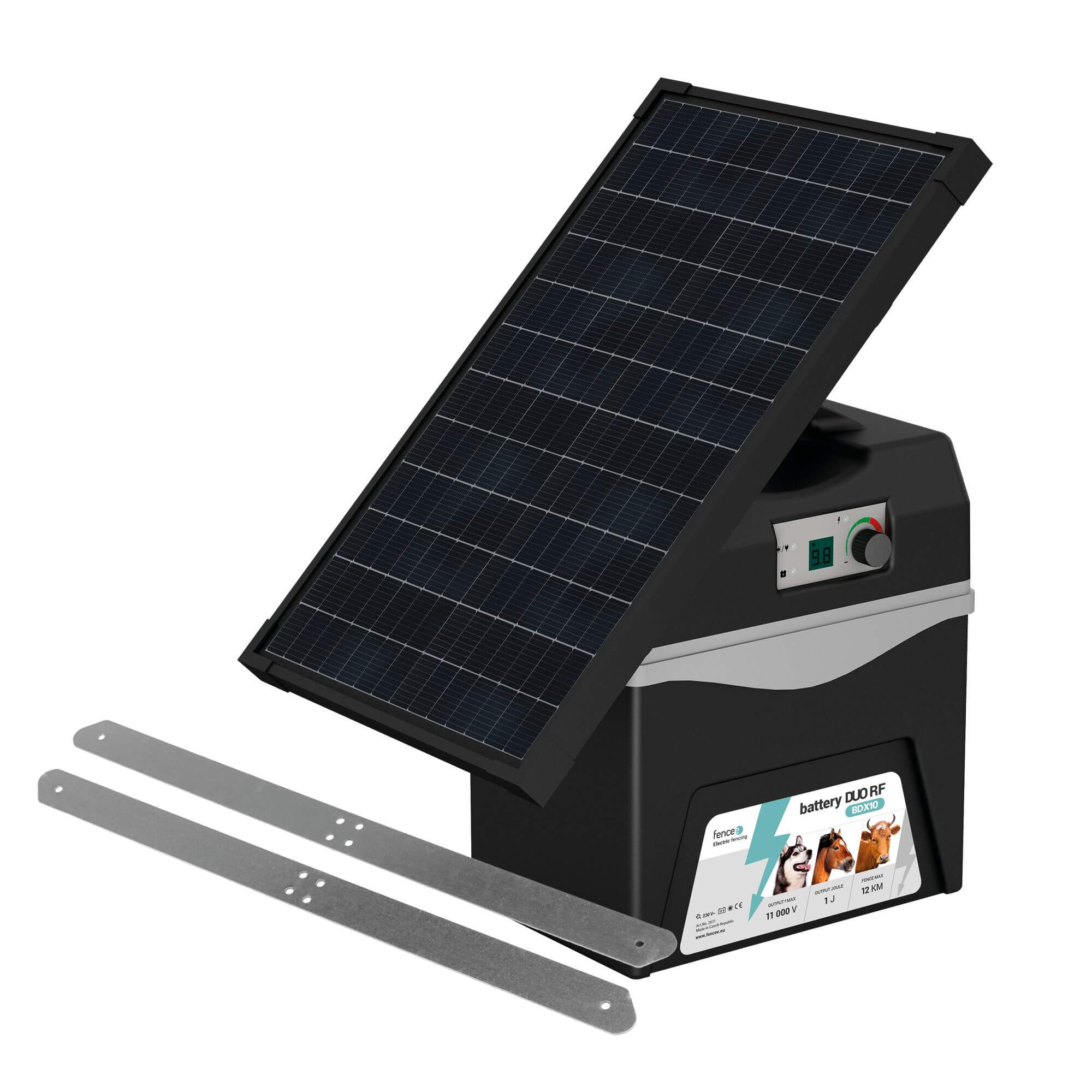

Product´s description Smart energizer fencee battery DUO RF BDX10 + solar panel 30 W + bracket
The smart battery powered electric fence is a compact, efficient and mobile fencing solution for horses and smaller animals. This portable electric fence is perfect for small farms, gardens or orchards where you need to keep animals safe or prevent the entry of pests such as martens, rabbits, otters, cats and herons.
Compact battery operated RF power supply for 1 J electric fence

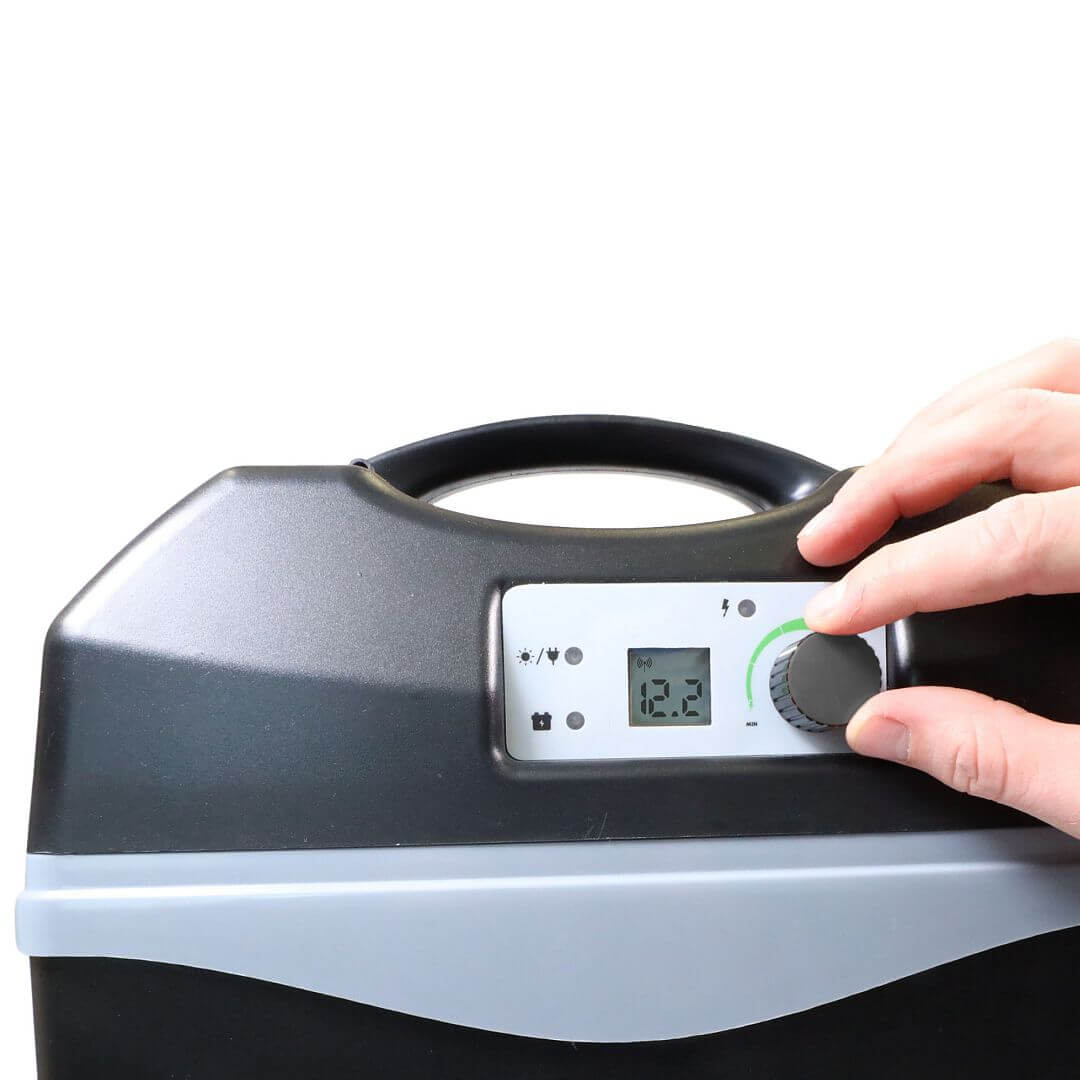

Battery smart power supply for electric fence with display to indicate fence voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. The device has a combined power supply, so it can also be powered by a 230 V mains adapter.
Energy-saving fence mode and efficient battery usage
The microprocessor controls the operation of the power supply, adjusts the optimal power and ensures maximum efficient use of the battery. The battery generators allow you to regulate the power in 19 degrees. Levels 1 to 6 function as ecomode.

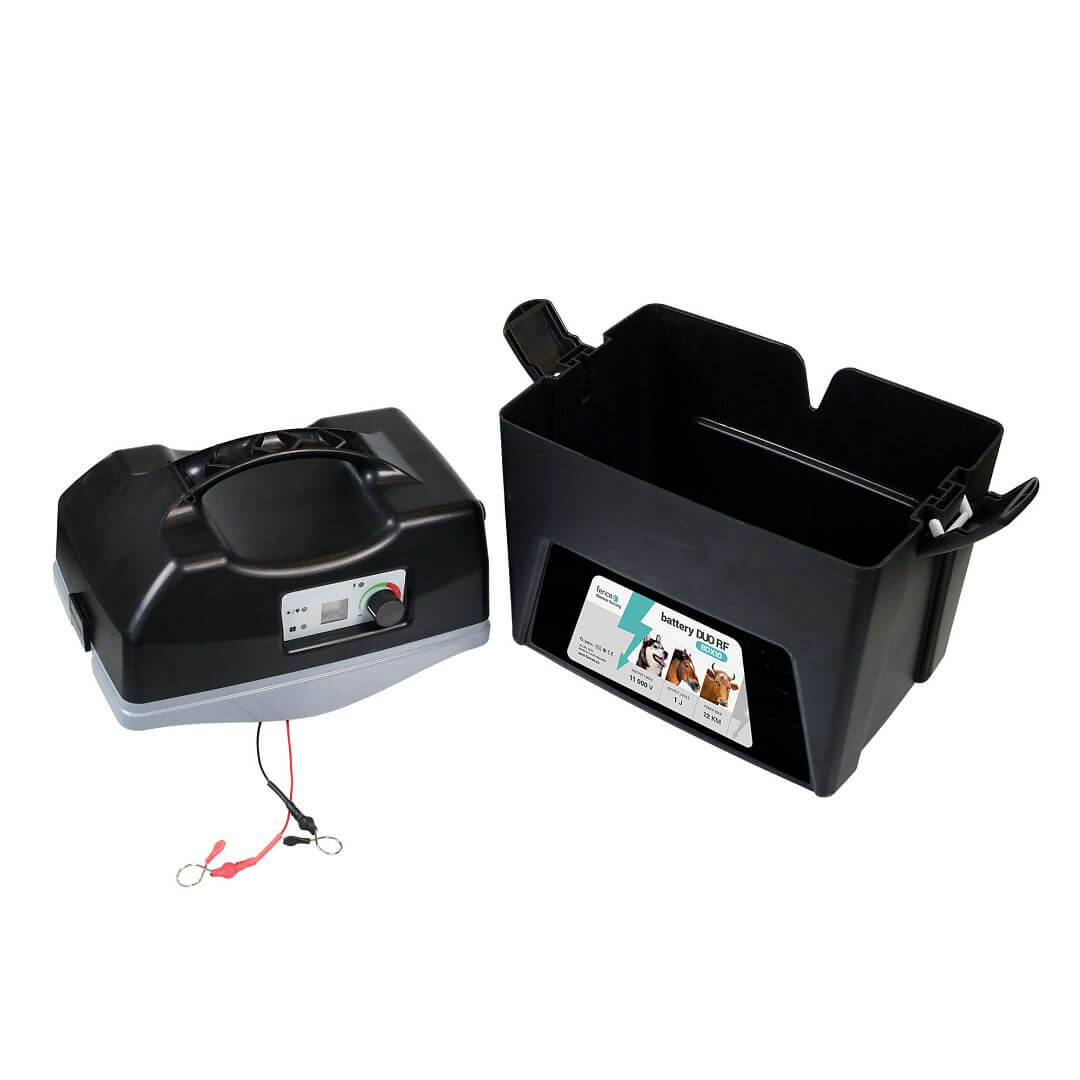

Enclosure with space for a 44 Ah 12 V battery
The battery-powered fence has a compartment for a 12 V battery with a capacity of 44 Ah. The battery is built into the housing and is protected from UV radiation and weather conditions. When fully discharged, the power supply automatically switches off to prevent damage to the battery
Mobile waterproof design with practical handle
The battery-powered electric fence is designed for harsh conditions and long-term outdoor use. Coverage IP44. The input connector for connecting the mains adapter is waterproof. Integrated lightning protection.

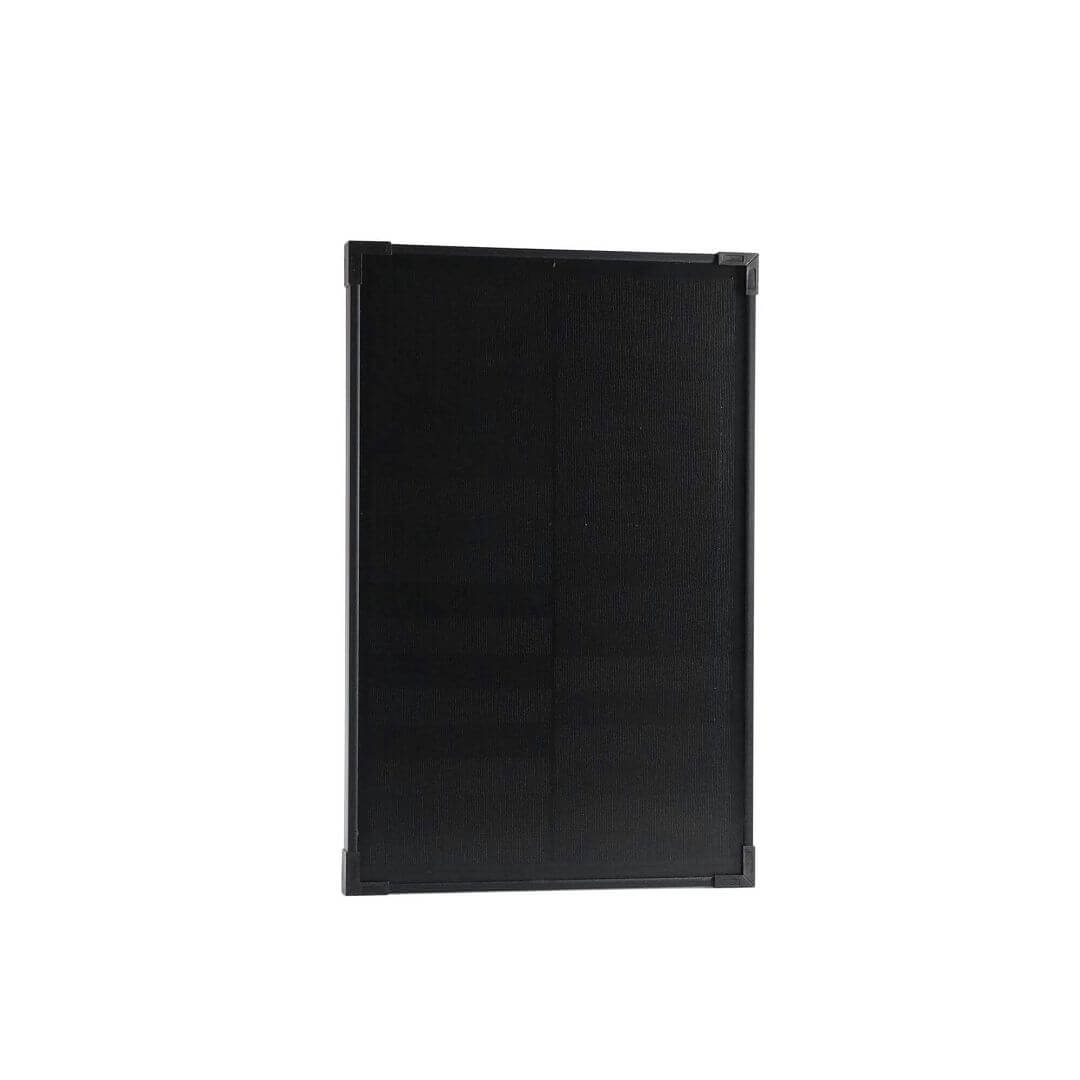

30 W solar panel

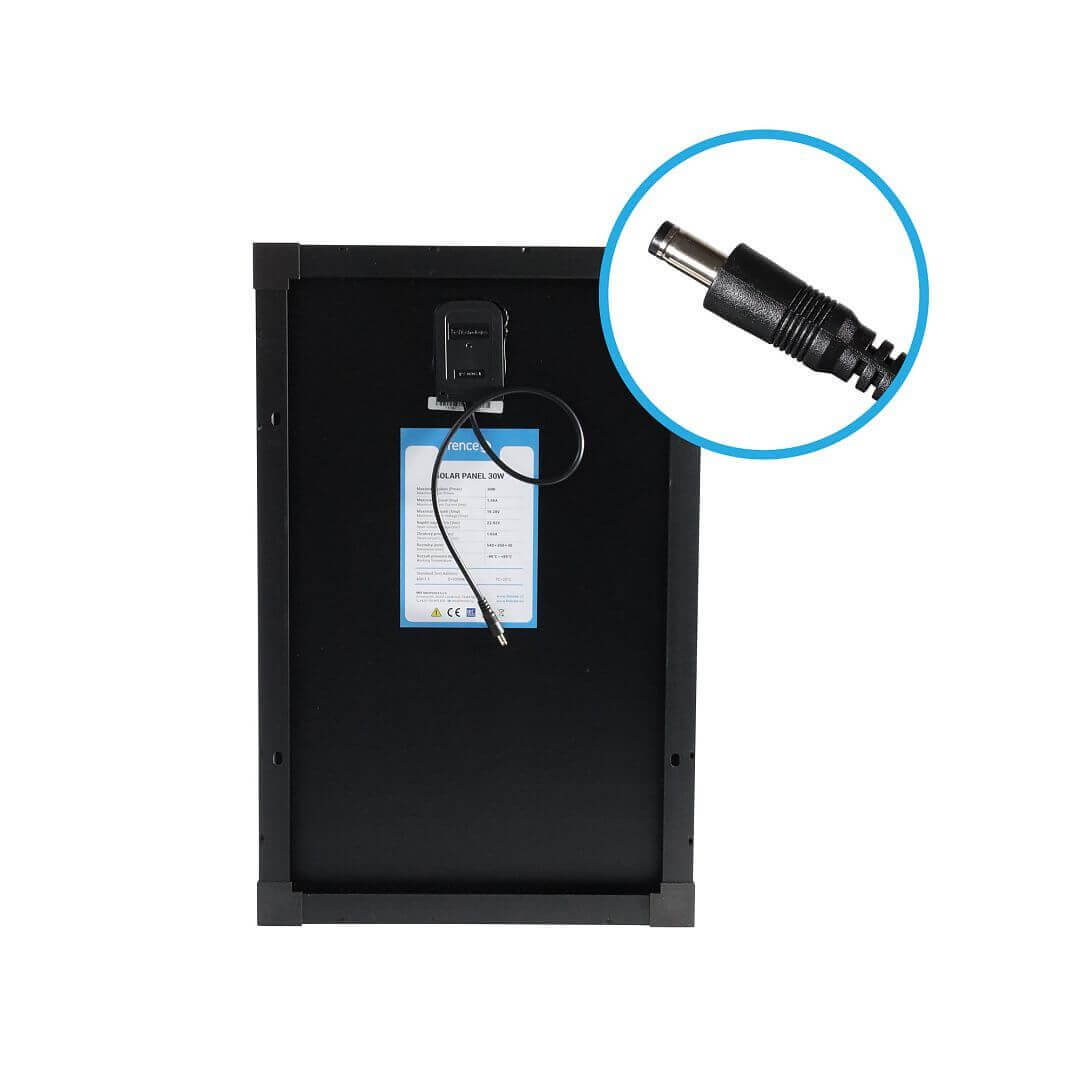

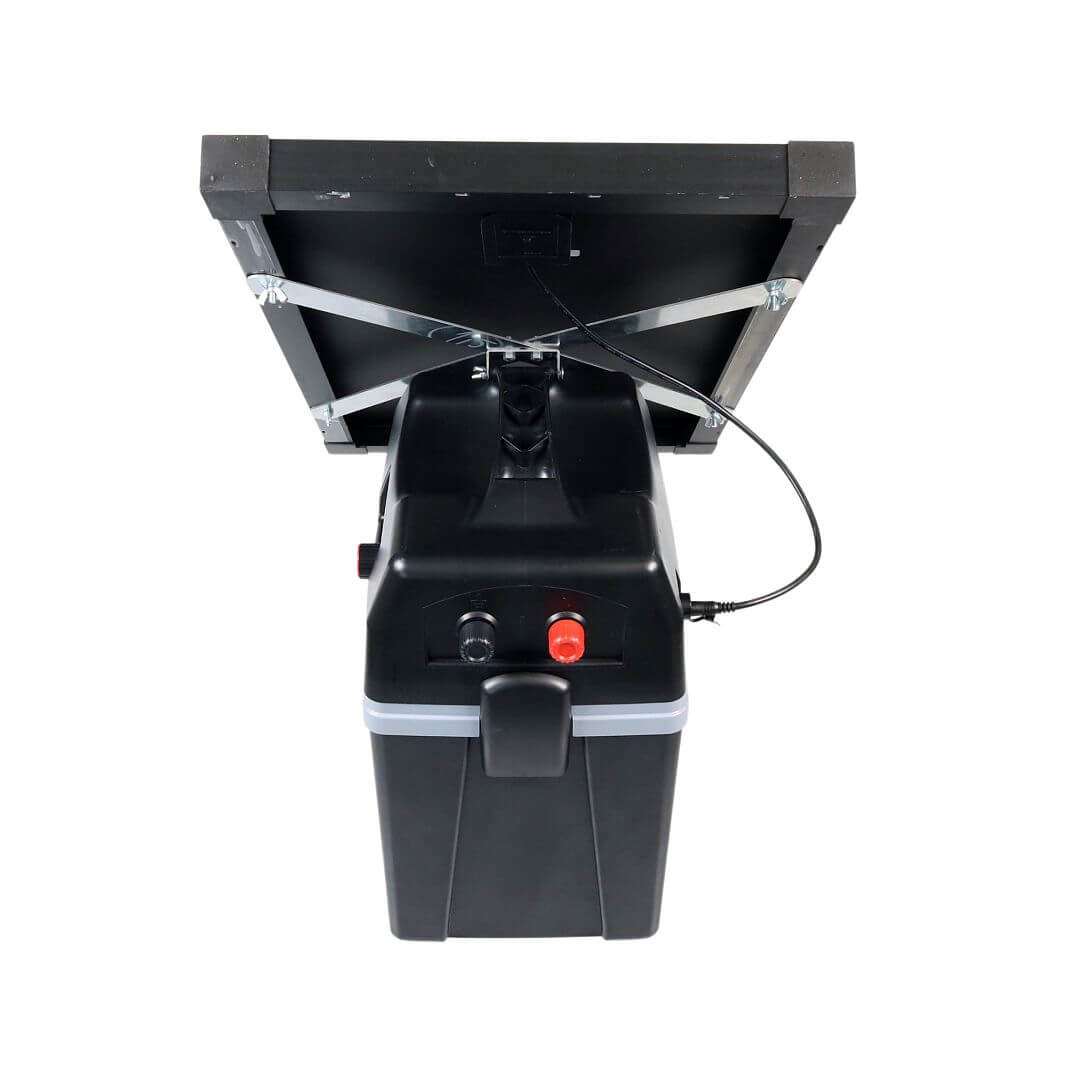

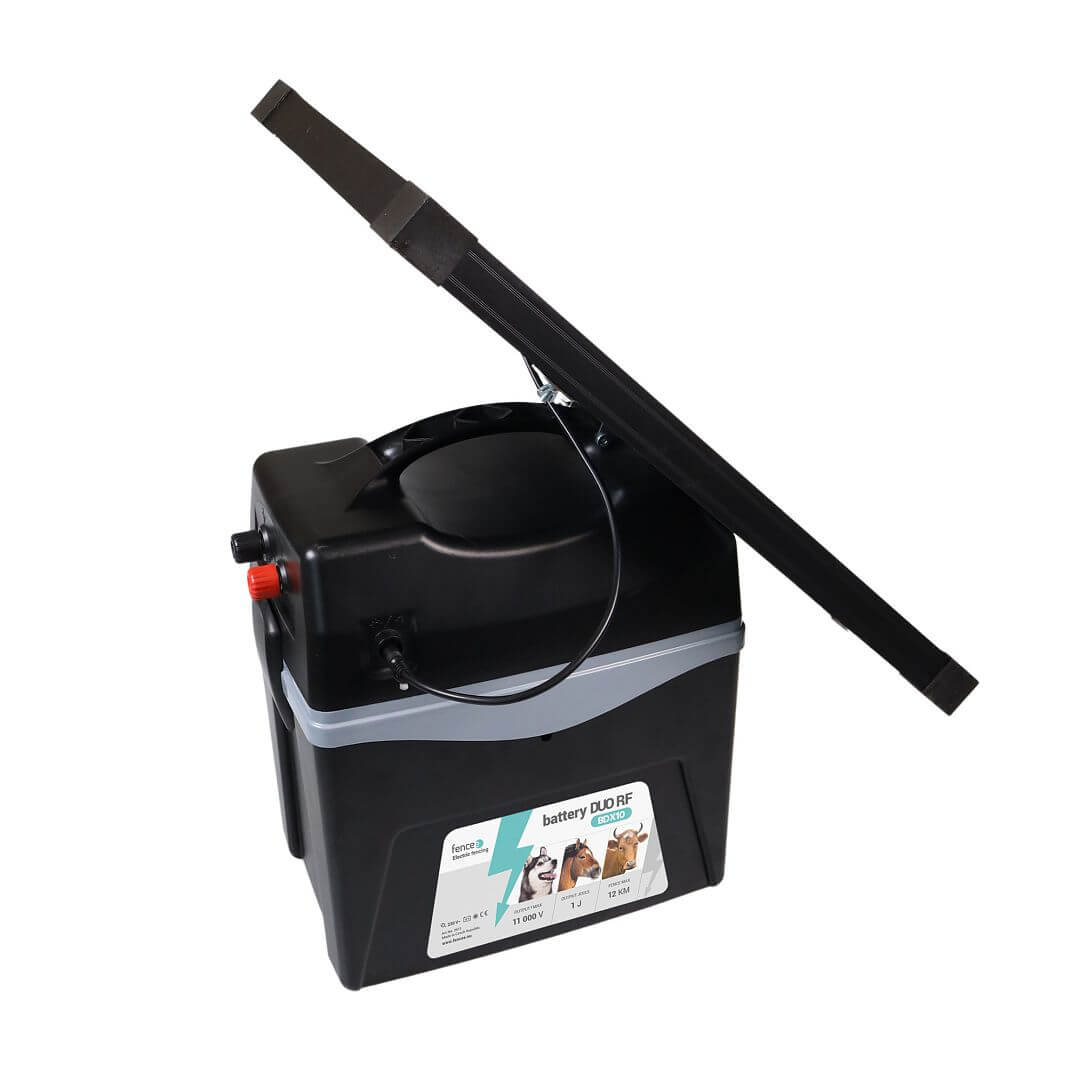

A 30 W solar panel can be connected to the battery pack to ensure continuous operation. With the option of solar charging of the electric fence, you get an energy self-sufficient system that can be operated even in remote areas.The panel is fixed with a mounting bracket and can be positioned towards the sun as required.
The fencee Control app for controlling and monitoring the fence
All models of the fencee battery DUO generators can also be controlled at a short distance of up to approx. 10 m with a mobile phone via the fencee Control Bluetooth app.
Package contents:
- 1 J battery RF source
- Console + 30 W solar panel
- integrated cable for connecting the power supply to the battery
- fencee DUO 14 V 1.5 m power adapter
- 100 cm connection cable (eyelet-heart)
- Ground cable 150 cm (eyelet to eyelet)

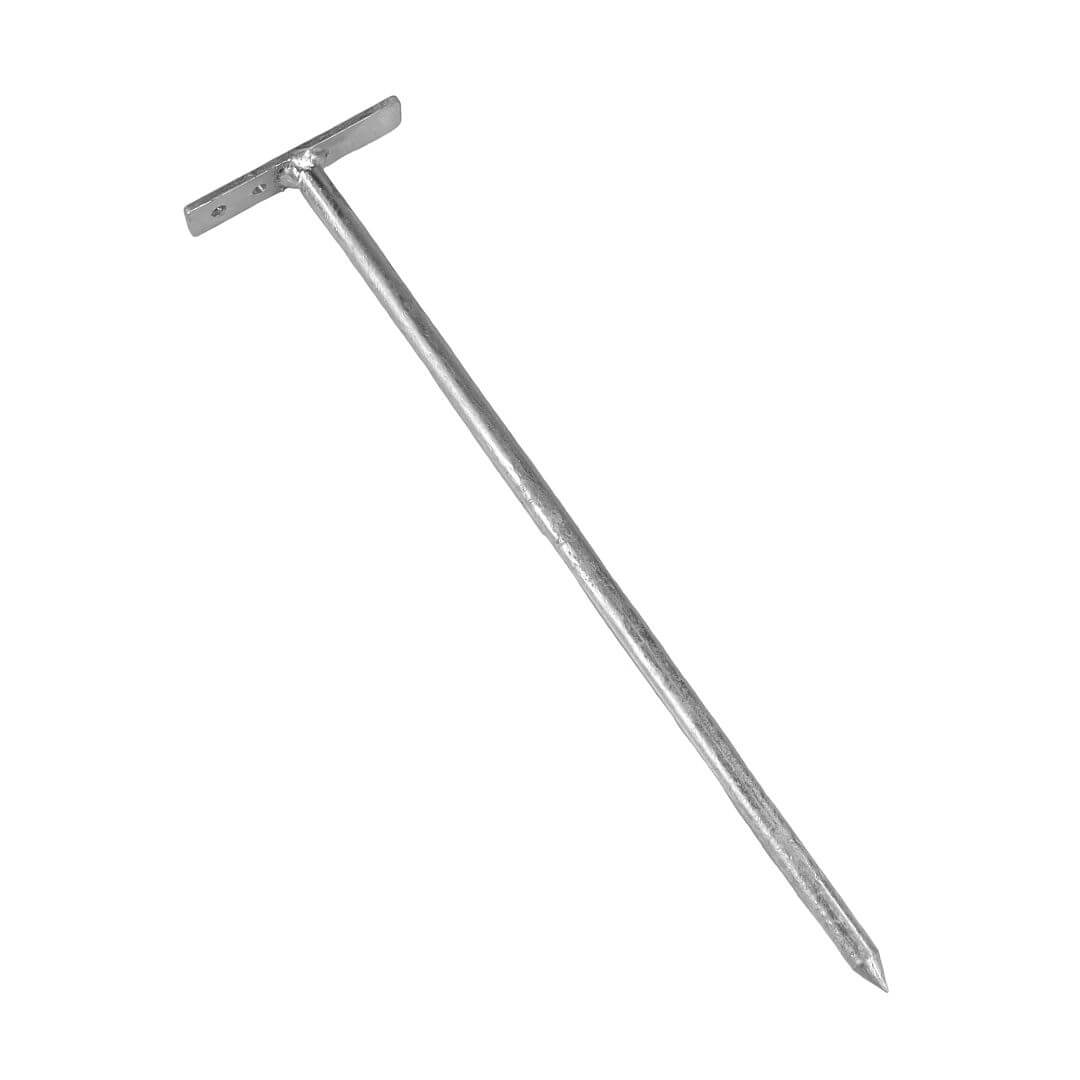

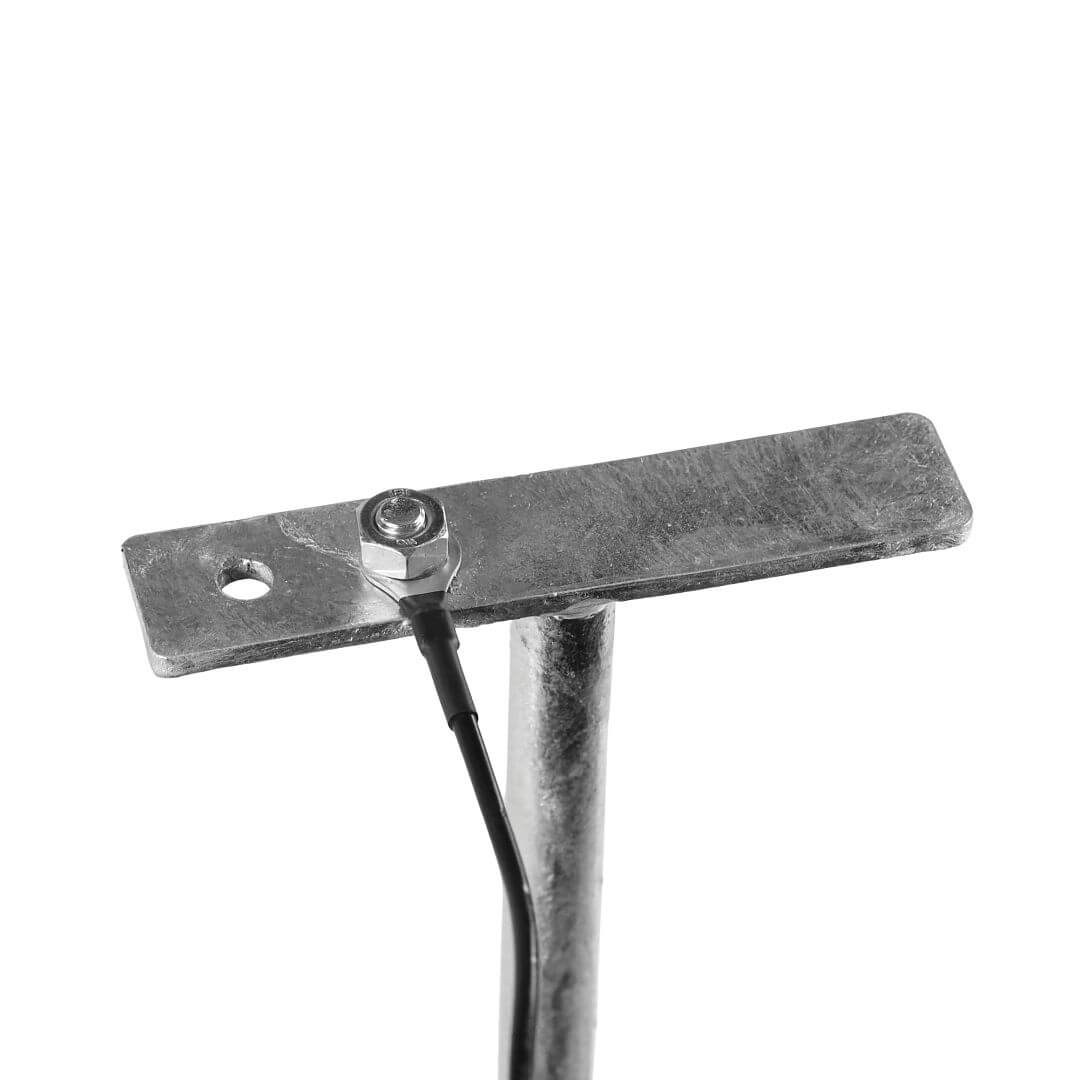

- grounding rod for the fence
- fencee warning plate
- operating instructions
The battery pack for the electric fence is supplied without the 12 V battery.
Get maximum visibility with the fencee Cloud app
In case you want to control the fence with your mobile phone for an unlimited range, get an additional central WiFi Gateway device. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere and at any time.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 1,2 W |
| Energizer consumption 12 V | 20 mA - 100 mA |
| Output energy | 1 J |
| Input energy | 1,4 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 5000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| LCD display | |
| fencee Cloud connection | |
| LED indication | |
| Power Save mode | |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| TEOR. max. CEE | 42 km |
| Low vegetation | 12 km |
| Medium vegetation | 6 km |
| High vegetation | 1,5 km |
| Earthing 1 m | 1× |
| El. fence nets | 5× |
| Weigth | 2920 g |
| Dimension | 38 × 31 × 21 cm |
| Solar panel | 30 W |
| Maximum power voltage (Vmp) | 19,28 V |
| Maximum power Current (Imp) | 1,56 A |
| Open circuit voltage (Voc) | 22,92 V |
| Short circuit current (Isc) | 1,65 A |
