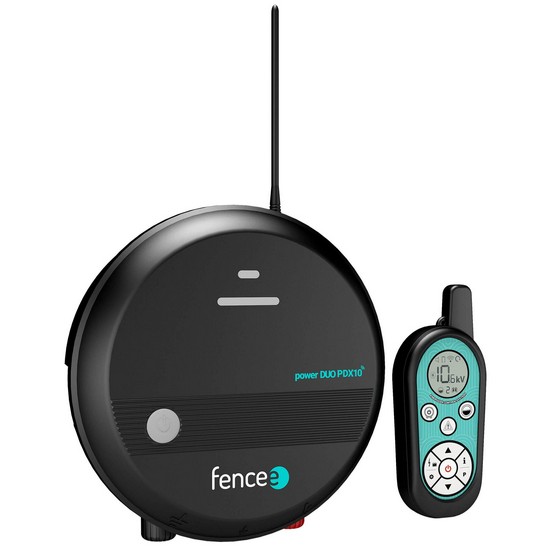

Electric fence energizer fencee power DUO RF PDX10

Functions of product Electric fence energizer fencee power DUO RF PDX10

Combined operation Alarm signaling Current information Cloud connection Power switching LED Bargraph Range up to 10 km No SIM CARD needed External antenna Range up to 30 km Battery management Remote control

Product´s description Electric fence energizer fencee power DUO RF PDX10

The compact and modern construction of the combined energizer fencee with ON/OFF button, remote controller and the latest microprocessor technology inside offers a practical fence solution under control. Energizers have the option of reducing the output energy to 50%. The LEDs and BARGRAPH on the front panel show the status of the energizer, measure the voltage on the fence and also signal a possible fault on the fence.

The remote control of the energizer can be used for up to 10 km distance in ordinary terrain and buildings. In difficult, eg hilly terrain, the range is shortened, on the contrary, in open space it can be even longer. An external antenna can be used to improve the signal transmission between the energizer and the controller up to 30 km.

Remote signal transmission using RF technology (radio frequency). This means that you no longer need a SIM card! Just install energizer, plug it in and you're working.

  • Up to six different energizers can be controlled by one controller
  • One energizer can be controlled by up to three controllers

You can use fencee energizers anywhere on the pasture. If you have a problem on the fence, you don't have to go anywhere. Just press the button on the remote controller and you will turn off the energizer remotely, correct the fault and turn it on again. Even checking the further fence is not a problem. The remote control immediately informs you that:

  • the voltage on the fence has dropped below the set value, e.g the line has been interrupted, the branch has fallen on the wires or there is tall grass,
  • the battery voltage has dropped below 12 V,
  • the signal is lost, e.g by disconnecting the energizer, damaging the antenna or for other reasons.

These energizers can be controlled remotely by a mobile phone via the fencee Cloud application or from the web interface.

A central control device FENCE WiFi GATEWAY GW100 is required to connect to the Cloud.

Package contents:

  • energizer fencee
  • energizer remote controller
  • CR2 battery
  • power adapter fencee DUO 14 V 1,5 m
  • earthing cable 150 cm (eyelet-eyelet)
  • connecting cable 100 cm (eye-heart)
  • battery cable fencee DUO 1,7 m
  • warning sign fencee
  • basic antenna to the energizer
  • operating instructions
Power source 230 V ~ / 12
Energizer consumption 230 V 3 W
Energizer consumption 12 V 40 - 100 mA
Input energy 1,4 J
Output energy 1 J
Output voltage 9000 V
Output voltage 500 Ω 5000 V
ON/OFF
LED ON/OFF
LED impulse
LED low battery voltage
LED lower power 50%
LED error check
LED impulse bargraph
fencee Cloud connection
External antenna SMA connector
Remote control
Data encoding
Controller batteries 1x CR2
Transmission frequency 869,525 MHz
Transmitting power +22 dBm
TEOR. max. CEE 35 km
Low vegetation 8 km
Medium vegetation 2 km
High vegetation 1,5 km
Earthing 1 m 1x
El. fence nets 3x
Diameter 210 mm
Depth 66 mm
Weigth 1580 g
