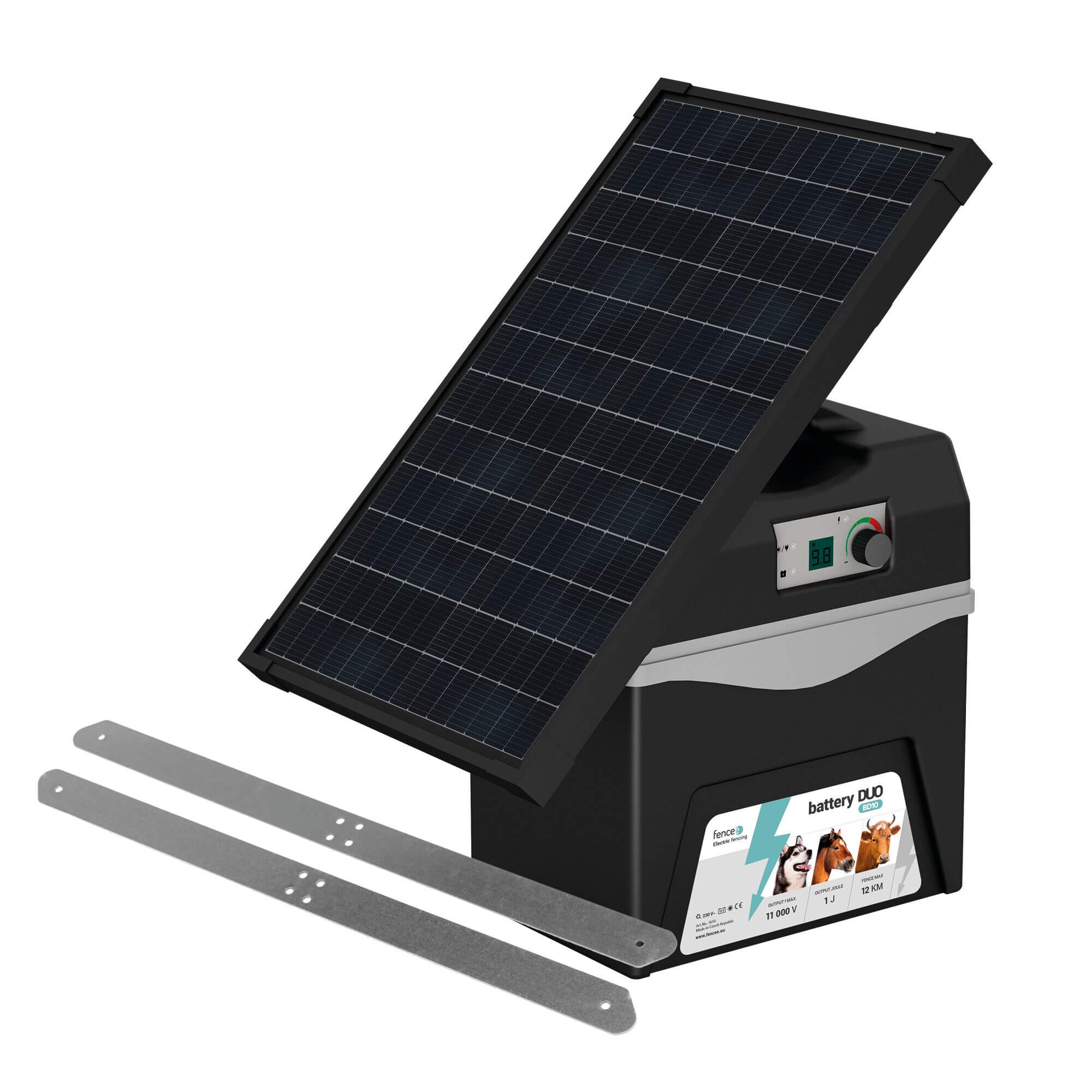

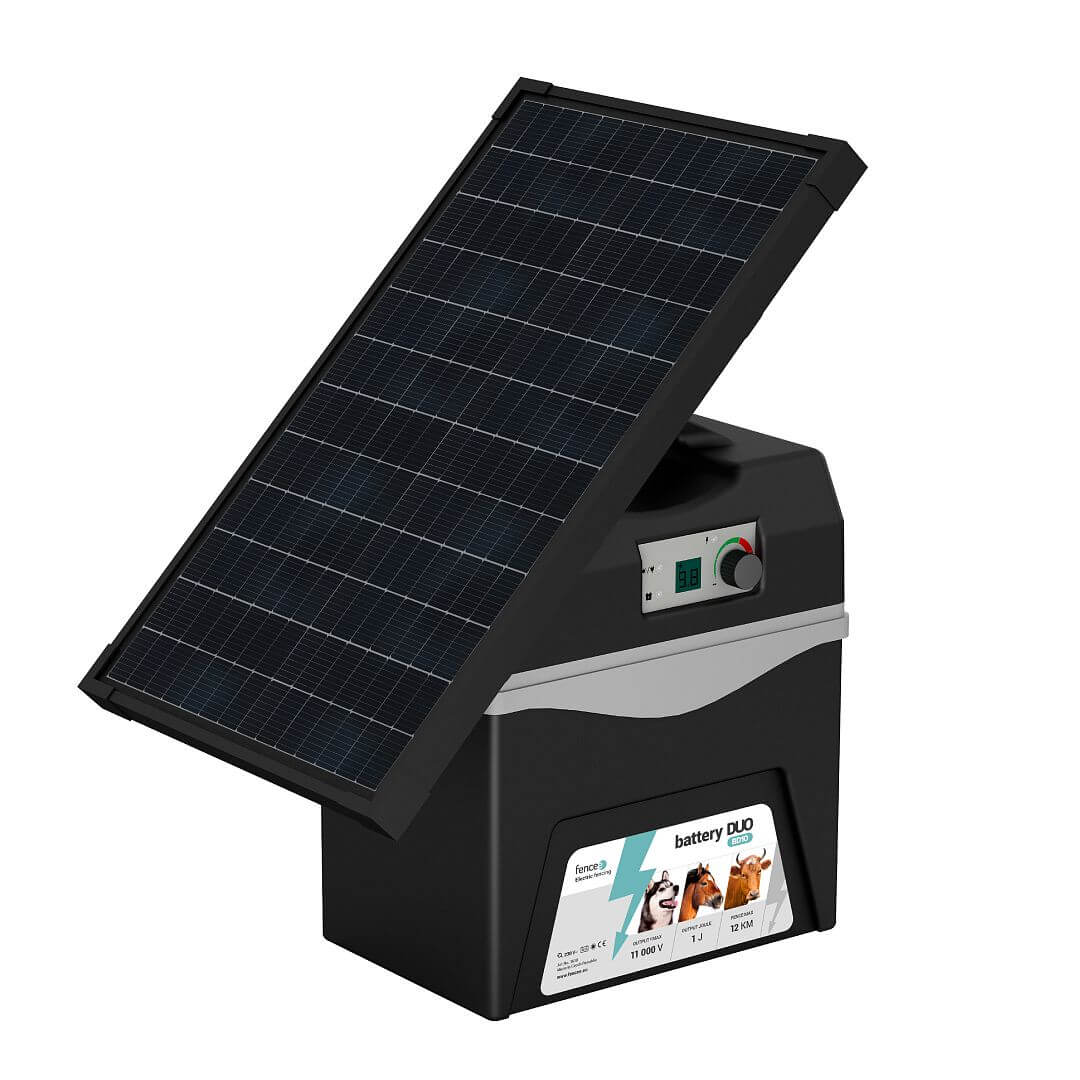

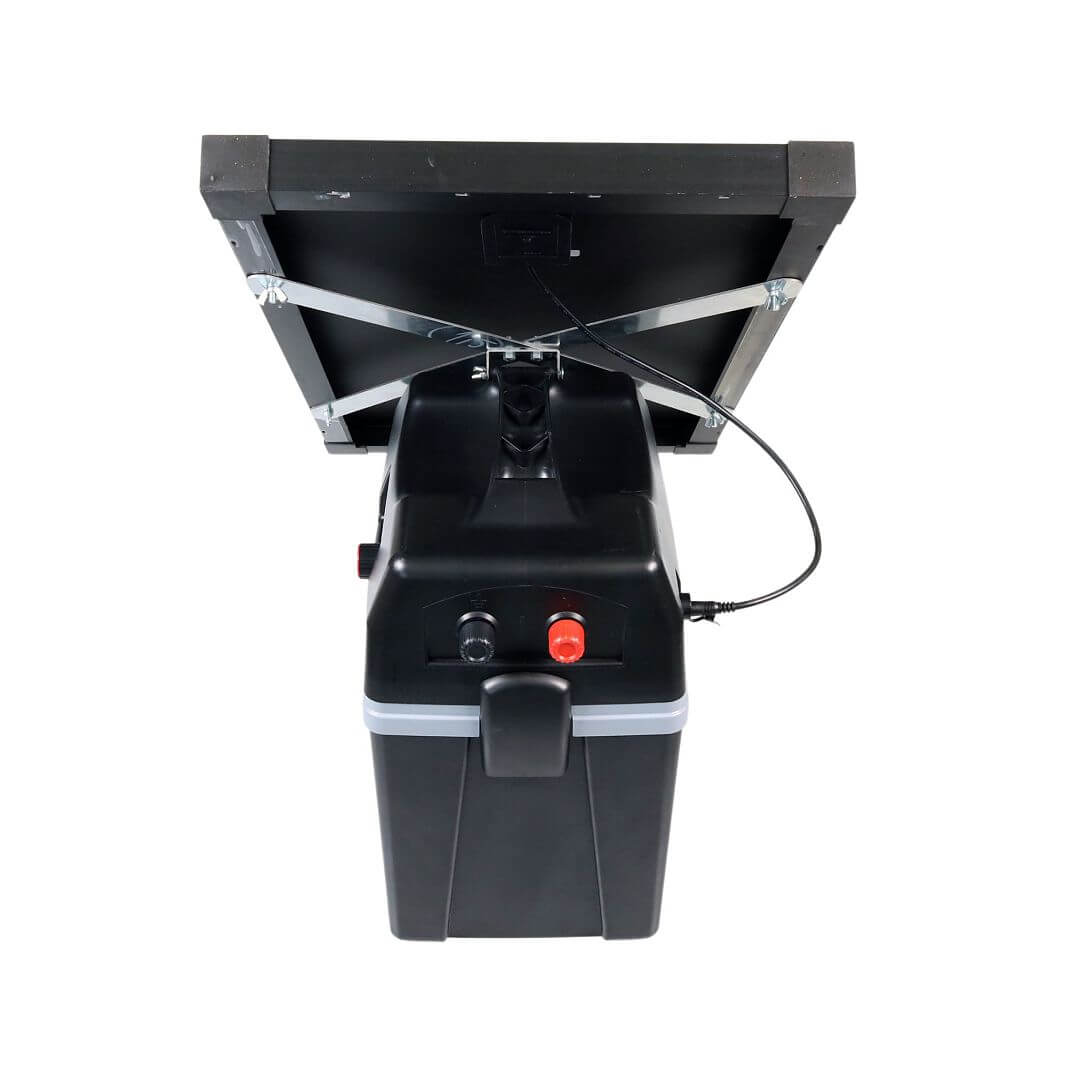

Product´s description Electric fence energizer fencee battery DUO BD10 + solar panel 30 W + bracket
The battery-powered 1 J electric fence is a compact, efficient and mobile solution for animal protection. This portable electric fence is perfect for small farms, gardens or orchards where you need to keep animals safe or prevent the entry of pests such as martens, rabbits, otters, cats and herons.
Compact battery power supply for 1 J electric fence

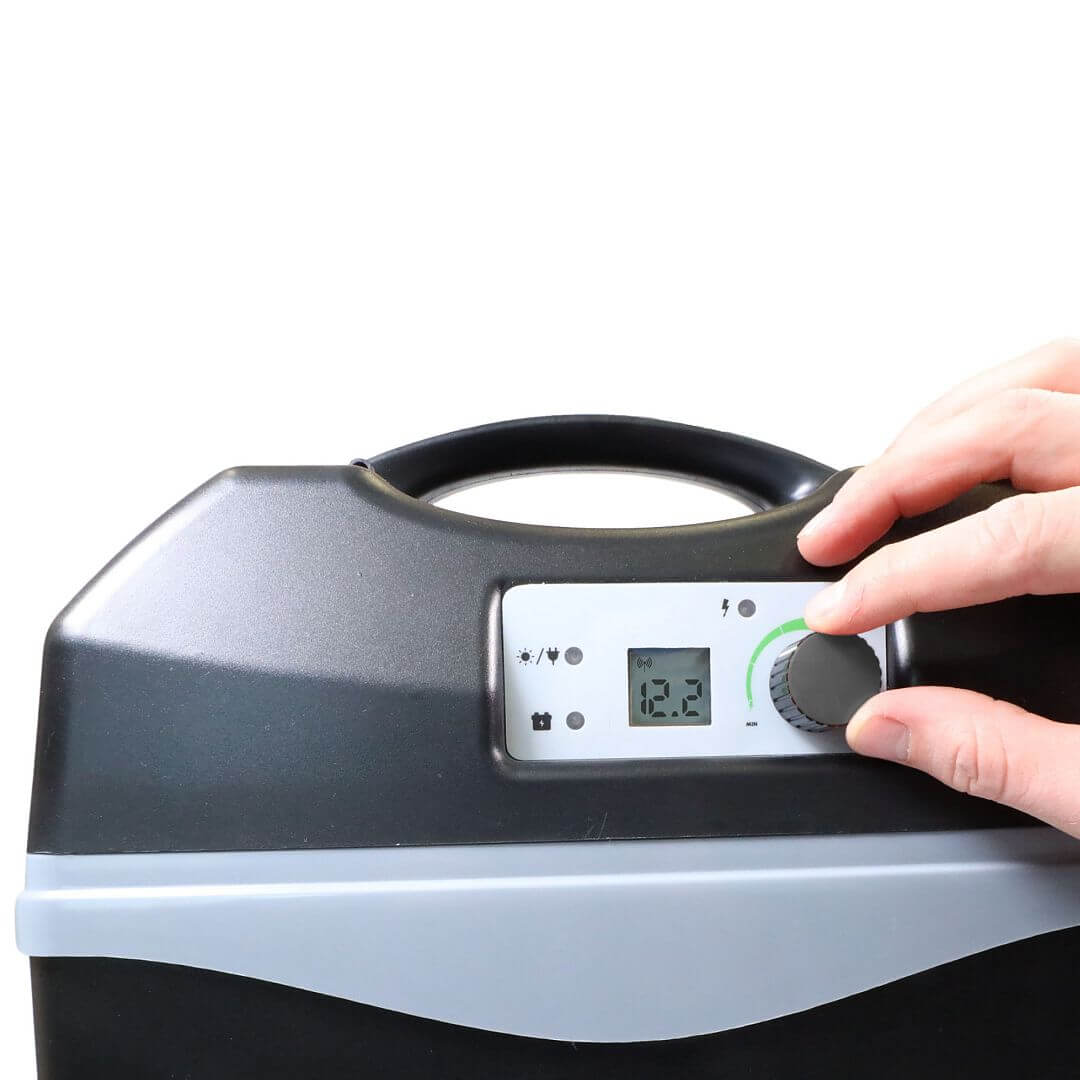

Mobile battery generator for electric fence with display to indicate fence voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs for device function and battery status. The device has a combined power supply, so it can also be powered by a 230 V mains adapter.
fencee Control app for control and monitoring of the fence
All fencee battery generator models can be controlled and adjusted at a short distance of up to approximately 10 m by mobile phone using the fencee Control app. You can download the app for free on Google play and the App store.
Energy saving fence mode and efficient use of the battery
A microprocessor controls the operation of the power supply, adjusts the optimum power output and ensures maximum efficient use of the battery. The battery generators allow you to regulate the power in 19 degrees. Levels 1 to 6 function as ecomode.
Mobile waterproof design with practical handle
The battery-powered electric fence is designed for harsh conditions and long-term outdoor use. Protection IP44. The input connector for connecting the mains adapter is waterproof. Integrated lightning protection.

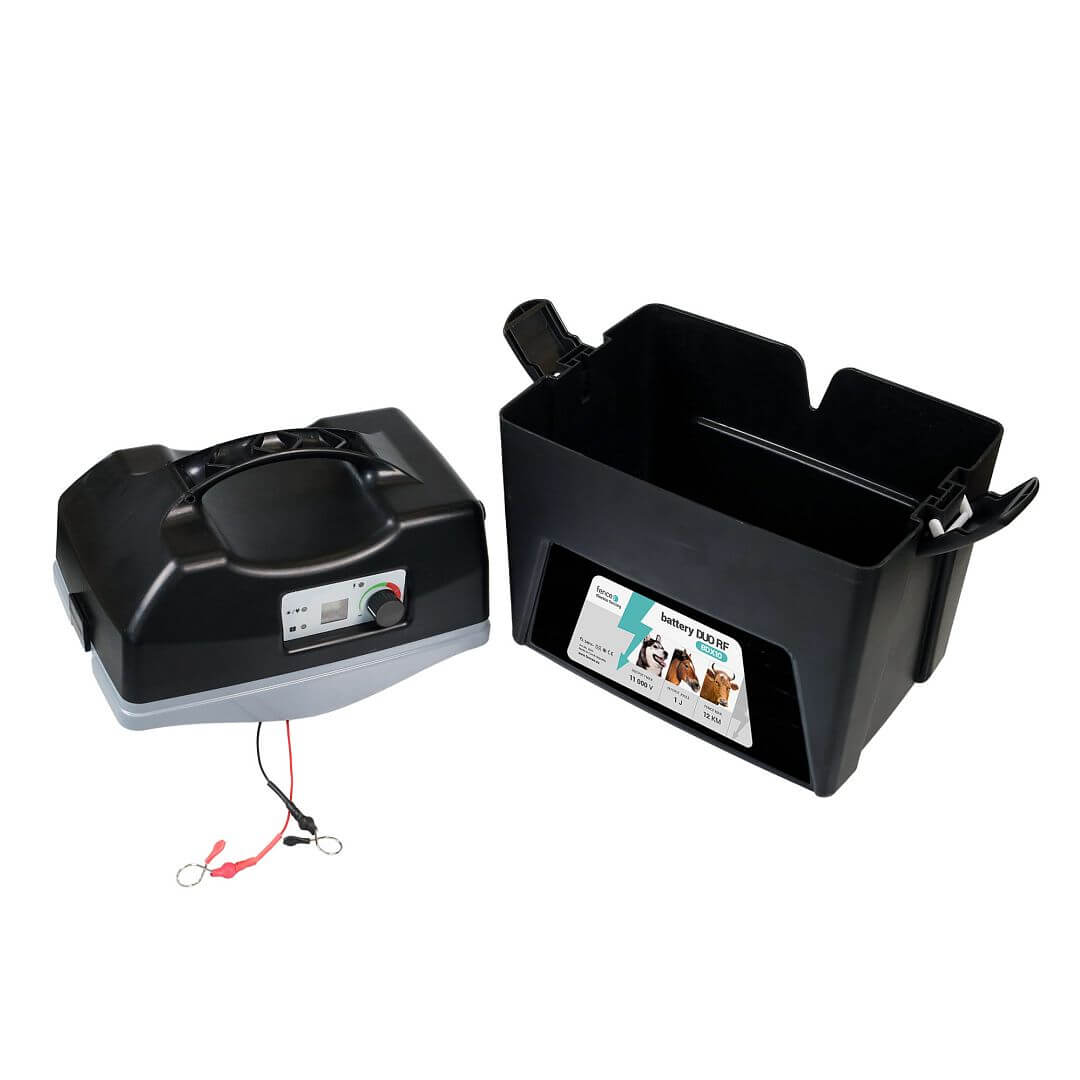

Enclosure with space for a 44 Ah 12 V battery.
The battery-operated fence has a large compartment for a 12 V battery with a capacity of 44 Ah. The battery is integrated in the housing and protected from UV radiation and weather conditions. The person carrying the battery fence is protected from contact with the battery. When the battery is completely discharged, the power supply automatically switches off to prevent damage to the battery.

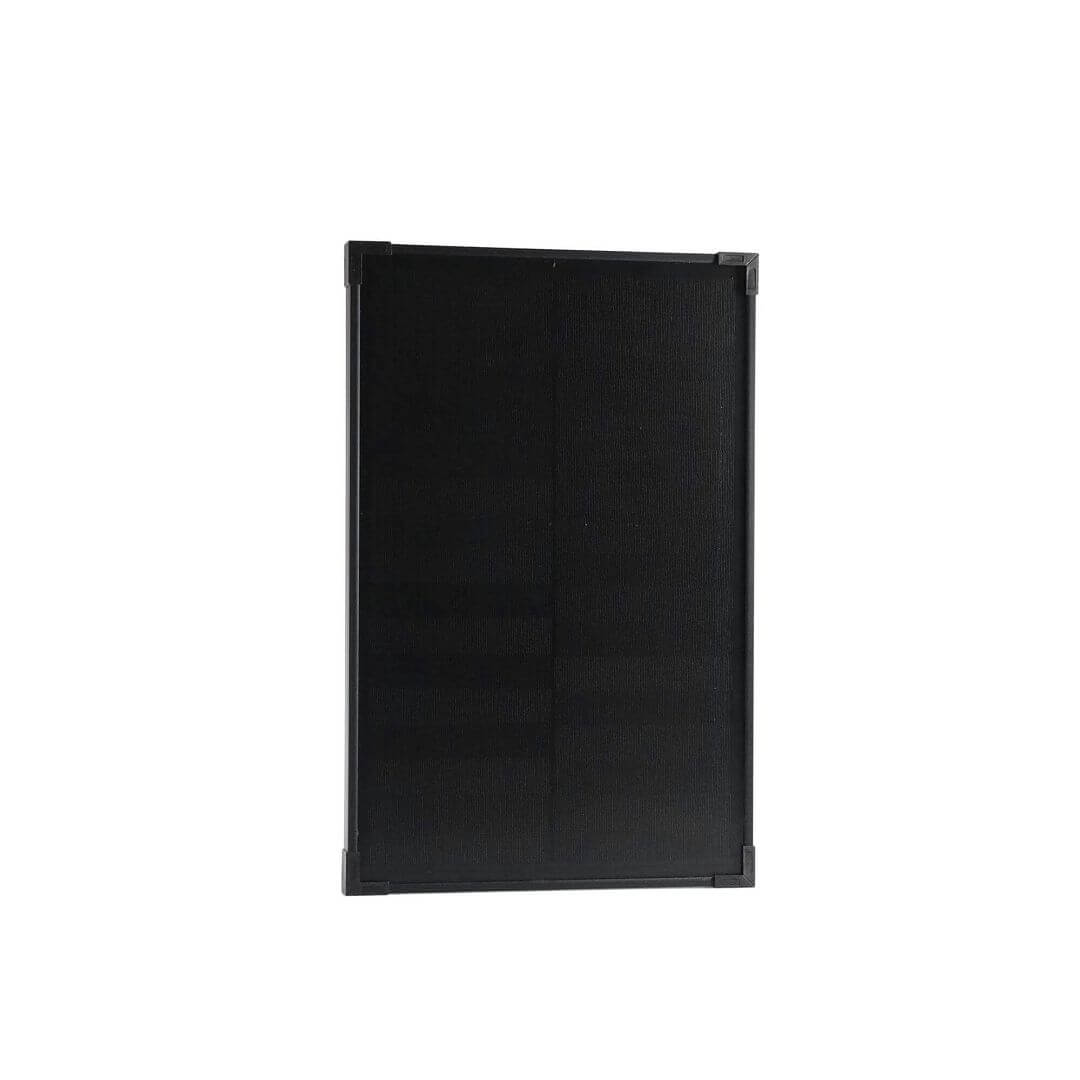

The solar panel with a power of 30 W

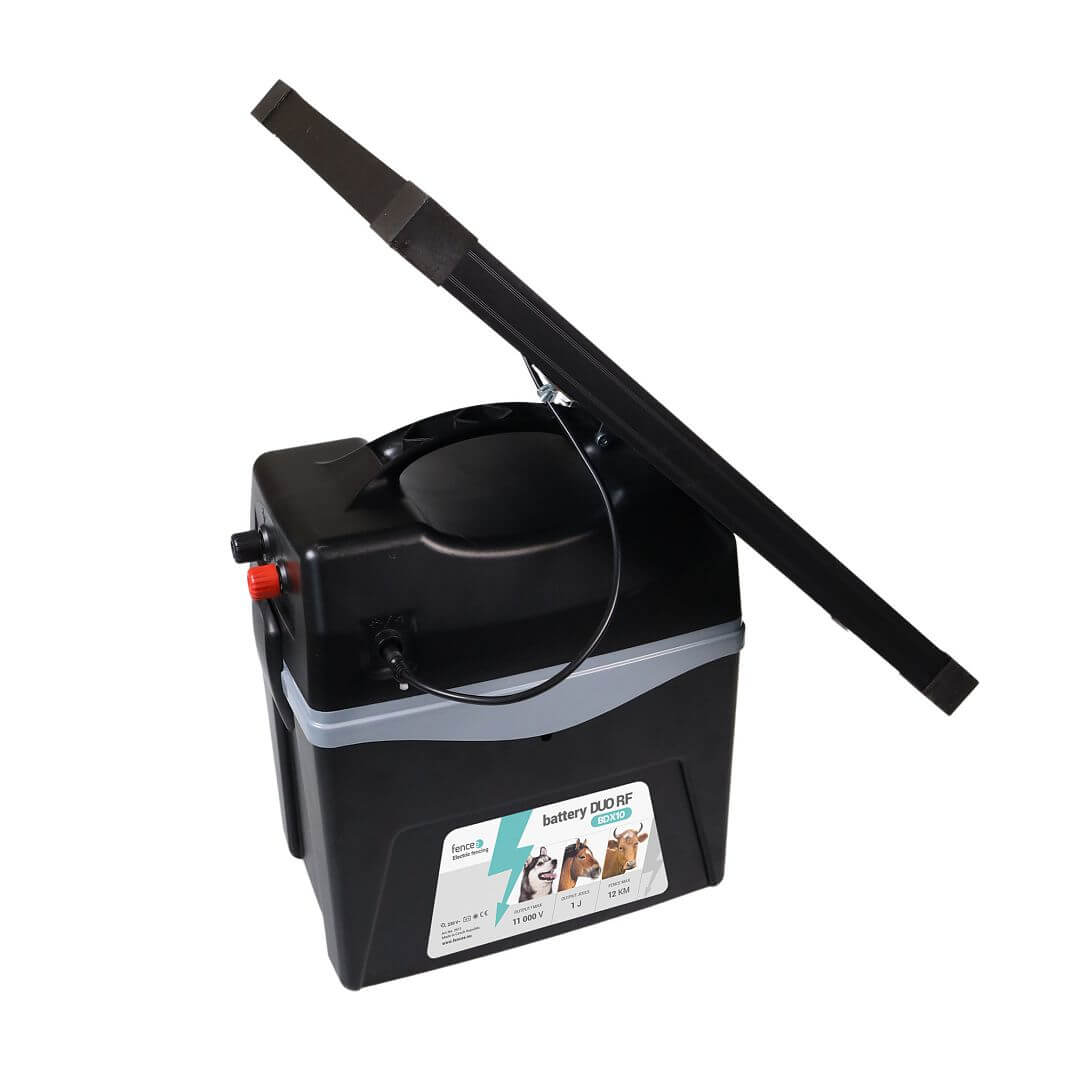

A 30 W solar panel can be connected to the battery pack to ensure continuous operation. With the option of solar charging of the electric fence, you get an energy self-sufficient system that can be operated even in remote areas. The solar panel is fixed with a mounting bracket and can be positioned towards the sun as required.
Package contents:
- fencee 1 J battery pack
- bracket + solar panel 30 W
- integrated cable for connecting the power supply to the battery
- fencee DUO 14 V 1.5 m power adapter
- 100 cm connection cable (eyelet-heart)
- ground cable 150 cm (eyelet to eyelet)

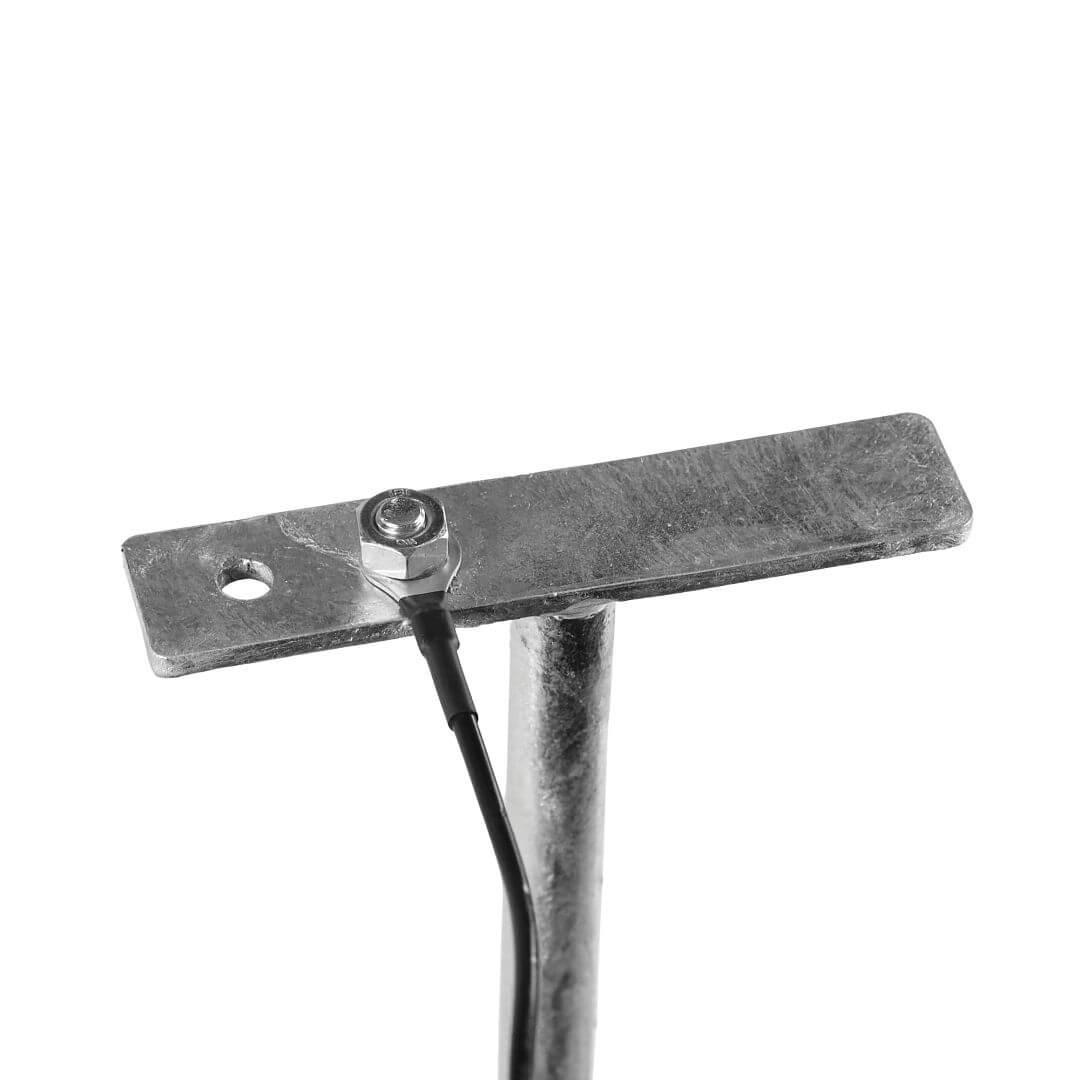

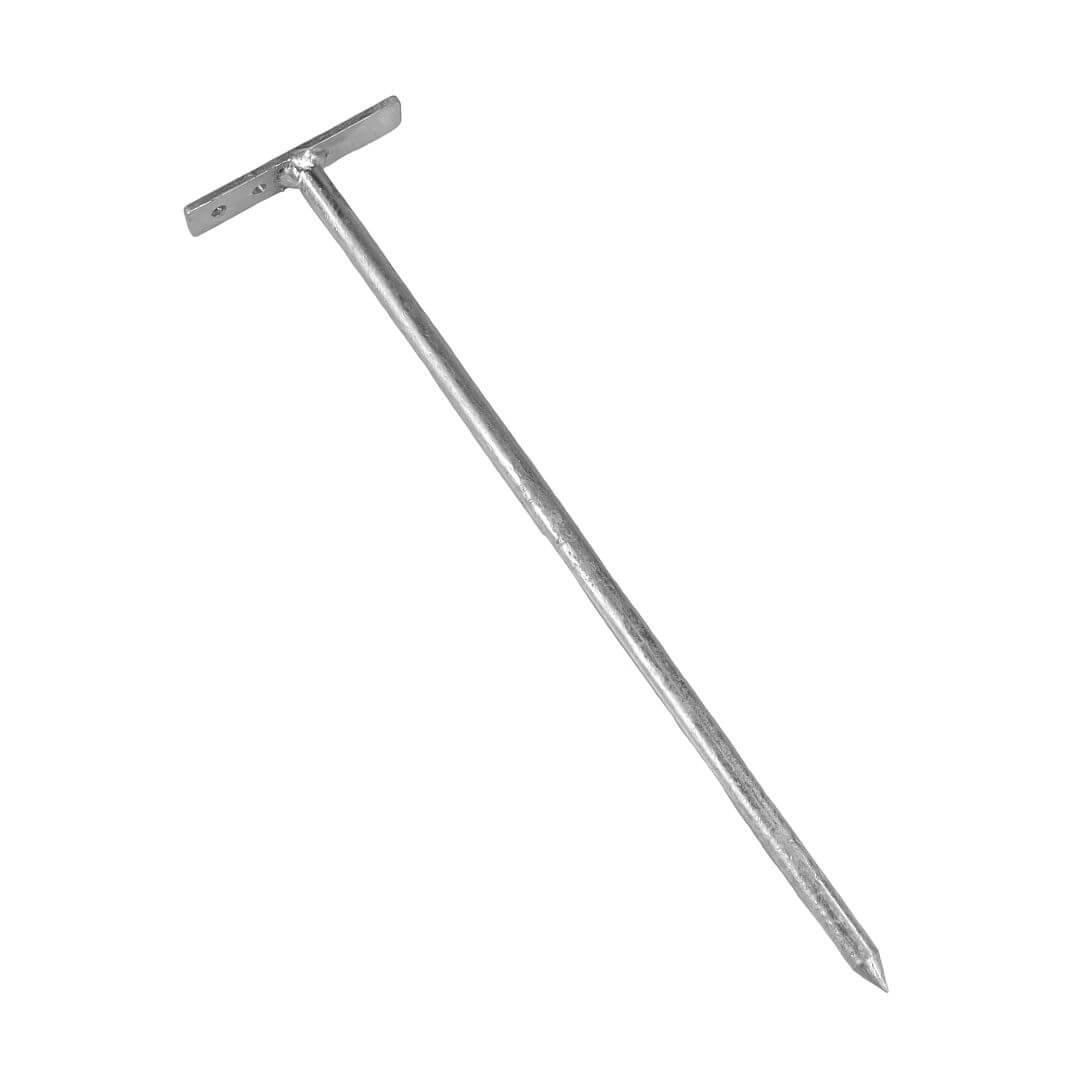

- grounding rod for the fence
- fencee warning plate
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 1,2 W |
Energizer consumption 12 V | 20 mA - 100 mA |
Output energy | 1 J |
Input energy | 1,4 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 5000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LCD display | |
Power Save mode | |
TEOR. max. CEE | 42 km |
Low vegetation | 12 km |
Medium vegetation | 6 km |
High vegetation | 1,5 km |
Earthing 1 m | 1× |
El. fence nets | 5× |
Weigth | 5010 g |
Dimension | 38 × 31 × 21 cm |
Solar panel | 30 W |
Maximum power voltage (Vmp) | 19,28 V |
Maximum power Current (Imp) | 1,56 A |
Open circuit voltage (Voc) | 22,92 V |
Short circuit current (Isc) | 1,65 A |
