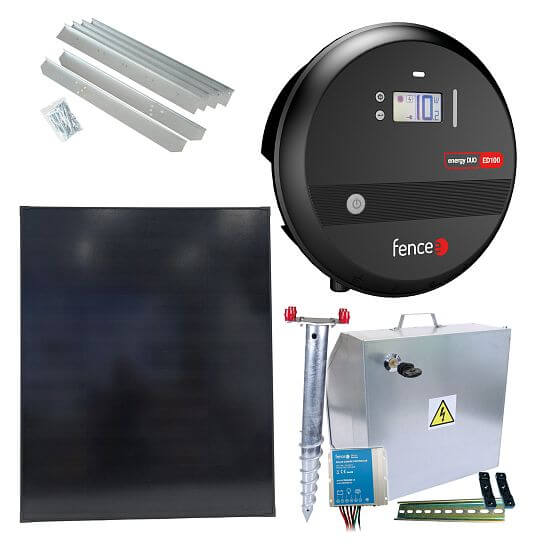

Product´s description Premium solar fence kit - Complete security box + energizer 10 J, solar panel 200 W
A practical solution for electric fence in places without electricity during the season. High-performing solar-powered electric fence kit suitable for demanding electric fences up to 90 km.
Security box for energizer and battery, Mounting post and Regulator 15 A included
Security box for electric fence energizer and battery. Electrifiable metal box with robust mounting post. The box can be connected to the fence energizer, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee energizer. Regulator 15 A for solar panel 200 W.
Security box features:
- Robust box made of galvanized steel
- Stable mounting post to the box 41,5 cm long
- Internal ground connection for the fence energizer
- All cables inside the box
- Space for a battery with a maximum length of 36.5 cm
- High voltage box - excellent protection against theft
- Insulated keys for safe unlocking of the box
- External dimensions of the box: 37 × 37 × 34.5 cm (W×D×H)
High-performing energizer fencee energy DUO ED100
The fencee 230/12 V energizer with a power output of 10 J is suitable for electric fences up to 90 km. It can provide sufficient voltage even for heavily grassed fences. An integrated microprocessor controls the entire operation and guarantees optimum energizer performance. The large LCD display with control buttons informs about important values on the fence.
At the energizer output, there is a black ground terminal, a red terminal for connecting a full voltage fence and a yellow terminal for connecting a permanently reduced energy fence. To learn how to use the yellow terminal with half power.
Solar panel with 200 W output
High-quality 200 W solar panel for solar charging of the 12V battery of the fence energizer. Anti-corrosion treatment. Use of tempered glass, high transparency. The location of the solar panel must be chosen so that it is towards the south and as perpendicular to the sun as possible. Poor positioning, shading and soiling of the solar panel reduces its performance.
Mounting bracket for attaching the 200 W solar panel to the security box
Mounting bracket for mounting the 200 W solar panel on security box. Consists of 6 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.
- Security box with DIN rail, mounting post and regulator 15 A
- Energizer fencee energy DUO ED100
- Solar panel with 200 W output
- Mounting bracket for attaching the 200 W solar panel to security box
|Power source||230 V ~ / 12 V|
|Energizer consumption 230 V||6 - 14 W|
|Energizer consumption 12 V||200 - 850 mA|
|Input energy||13 J|
|Output energy||10 J|
|Output voltage||10000 V|
|Output voltage 500 Ω||7000 V|
|LED low battery voltage|
|LED lower power 50%|
|LED error check|
|LED impulse bargraph|
|Reduced output terminal|
|TEOR. max. CEE||300 km|
|Low vegetation||90 km|
|Medium vegetation||22 km|
|High vegetation||10 km|
|Earthing 1 m||5x|
|El. fence nets||27x|
Manuals and files for downloadingManual - Mounting brackets for solar panels Manual - Regulators for solar panels Manual - Boxes for energizers and solar panels Manual - Solar panels 40, 100, 200 W Manual fencee energy ED
