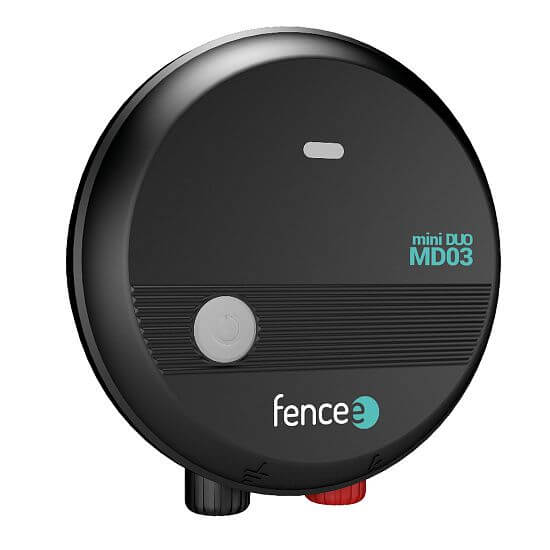

Product´s description Electric fence energizer fencee mini DUO MD03
The new range of reliable fencee electric fence sources with combined power supply for universal use even in places without electricity. The low-energy fence source can be powered by a 230 V mains adapter or from a 12 V car battery. Home universal fence source for smaller electric fences. Installation length of maximum 5 km in ideal conditions without dense vegetation.
Electric fence mini DUO MD03 for: dogs, cats, rabbits and against small pests
A lightweight portable generator with a power of 0.3 J, which can be used as a battery-powered electric fence source. The ideal choice for defining the free-range area of pets that nibble on the plants and flowers of your flowerbeds. The battery-powered option makes the fence suitable for use in temporary electric fences and mobile runs. The generator can be used to protect dwellings from pests such as marten, rat, otter or even heron. It can be used for electric security of remote but also domestic breeding ponds and ponds with sturgeons, Koi carp and caracas. If you are looking for fences for other animals, please consult the range of electric fence sources by animal.
Features and functions of the fencee electric fence
The mini DUO MD3 generator is a modern fencee power supply with microprocessor technology that adjusts the optimal performance of the device. The generator body made of high quality plastic is weather, rain and UV resistant.

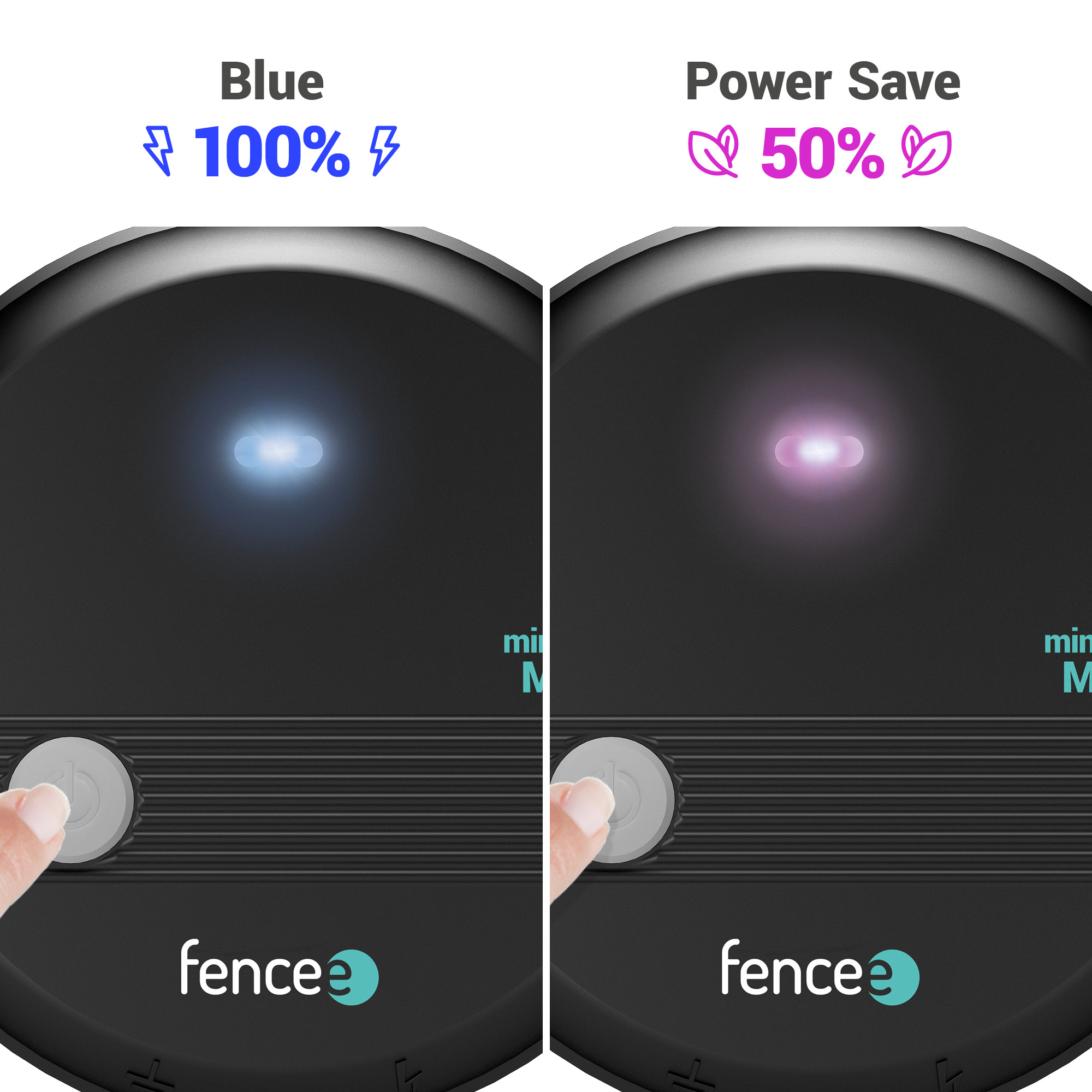

The BrightLight LED on the front of the generator indicates the operation of the device in three colors:
- Blue indicates device operation and flashes at pulse intervals.
- Purple indicates the power saving mode is running and the time between pulses is extended.
- Red warns in case of an error condition (e.g. battery voltage drops below 12 V, fence voltage drops below 2.5 kV.)
The Power Save function (power saving mode) allows a long press of the ON/OFF button to switch the generator power to a slower mode, where the interval between pulses is approximately twice as long. Switching to power saving mode saves battery power significantly. The generator can then power the pen for 50 to 55 days on a single battery charge.
SafeShock technology, ON/OFF button and several other benefits of the fencee mini DUO MD generator.

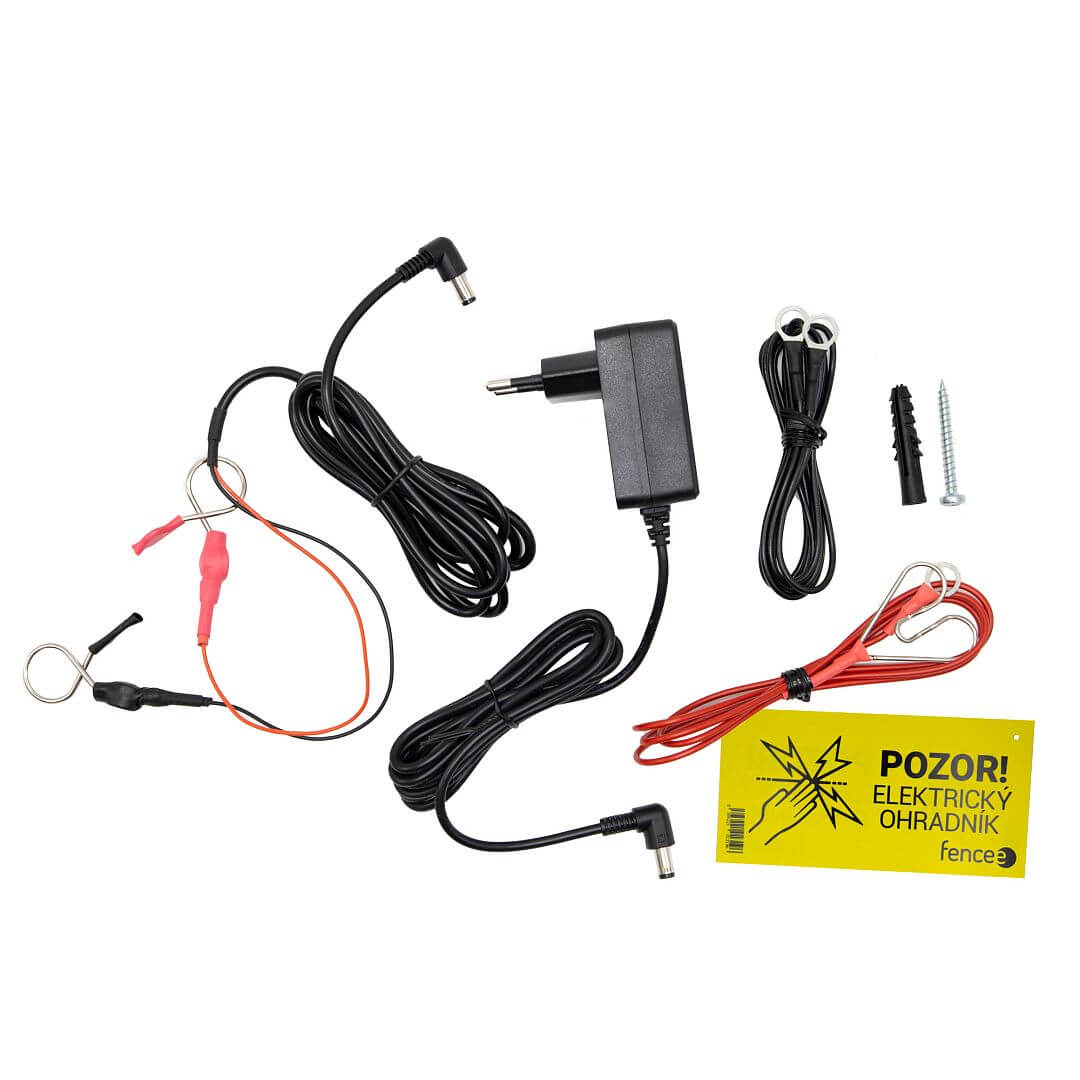

What you'll find in the package:
- fencee generator
- fencee DUO 14 V 1.5 m power adapter
- 150 cm ground cable (eye-to-eye)
- connection cable 100 cm (eyelet-heart)
- fencee DUO battery cable 1.7 m
- fencee warning plate
- operating instructions
We recommend purchasing an 80 mm DIN rail with the generator for easy wall mounting of the device.
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 1 W |
Energizer consumption 12 V | 20 - 40 mA |
Output energy | 0,3 J |
Input energy | 0,5 J |
Output voltage | 9000 V |
Output voltage 500 Ω | 3000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LED indication | |
Power Save mode | |
TEOR. max. CEE | 12 km |
Low vegetation | 5 km |
Medium vegetation | 3 km |
High vegetation | 0,5 km |
Earthing 1 m | 1 × |
El. fence nets | 1 × |
DIN rail | |
Diameter | 150 mm |
Depth | 57 mm |
Weigth | 729 g |
