Product´s description Electric fence kit for horses, ponies, dogs, cattle and again pests - DUO energizer - polytape 200 m
Electric fence set designed for more sensitive animals such as horses, ponies, dogs, cats or rabbits. It is also great as a protection against small pests (marten, otter, weasel). With this electric fence set, you will demarcate a safe space for animals or prevent them from accessing selected undesirable areas. The set includes a DUO energizer, which with its 1 J output is suitable for shorter and medium fences up to 8 km long.

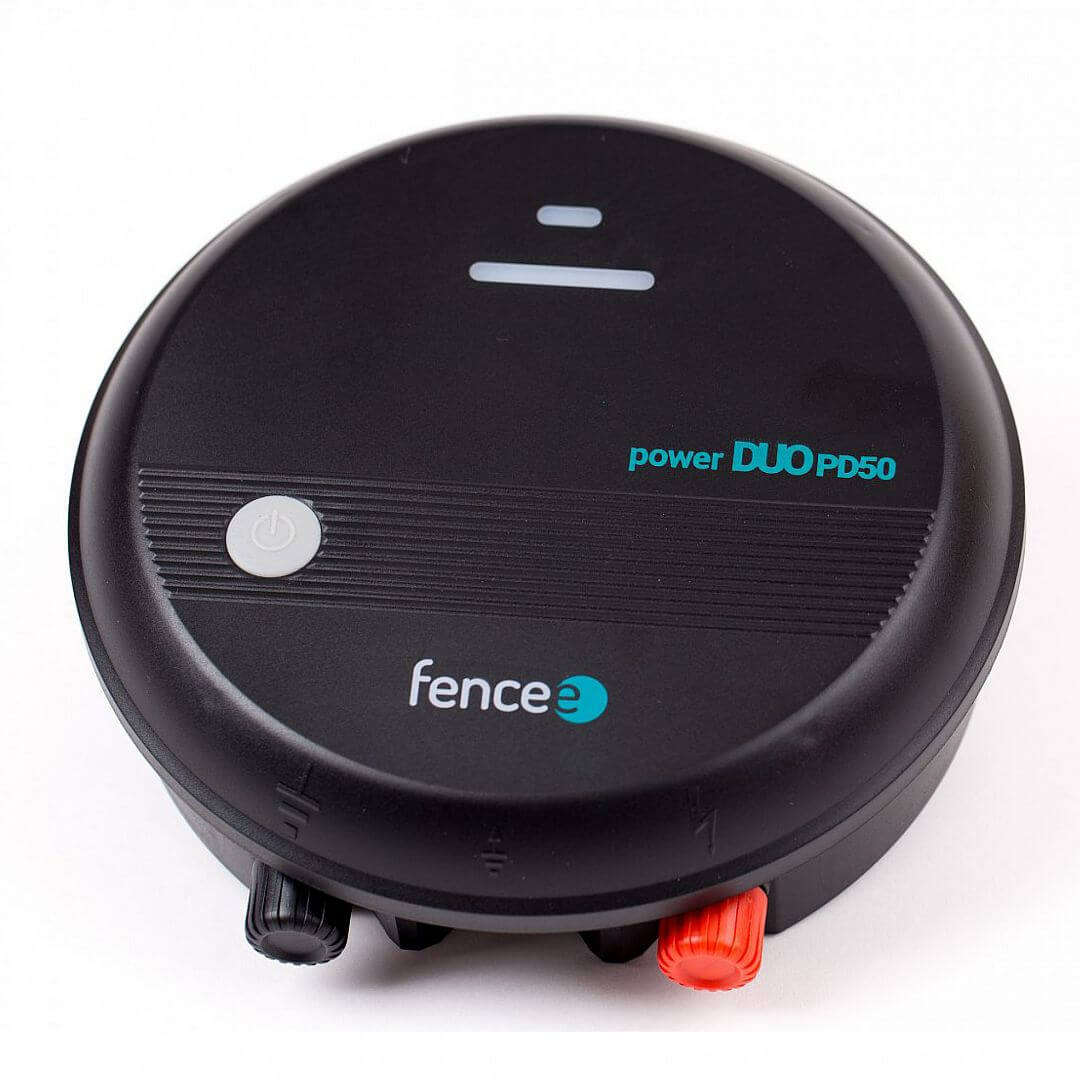

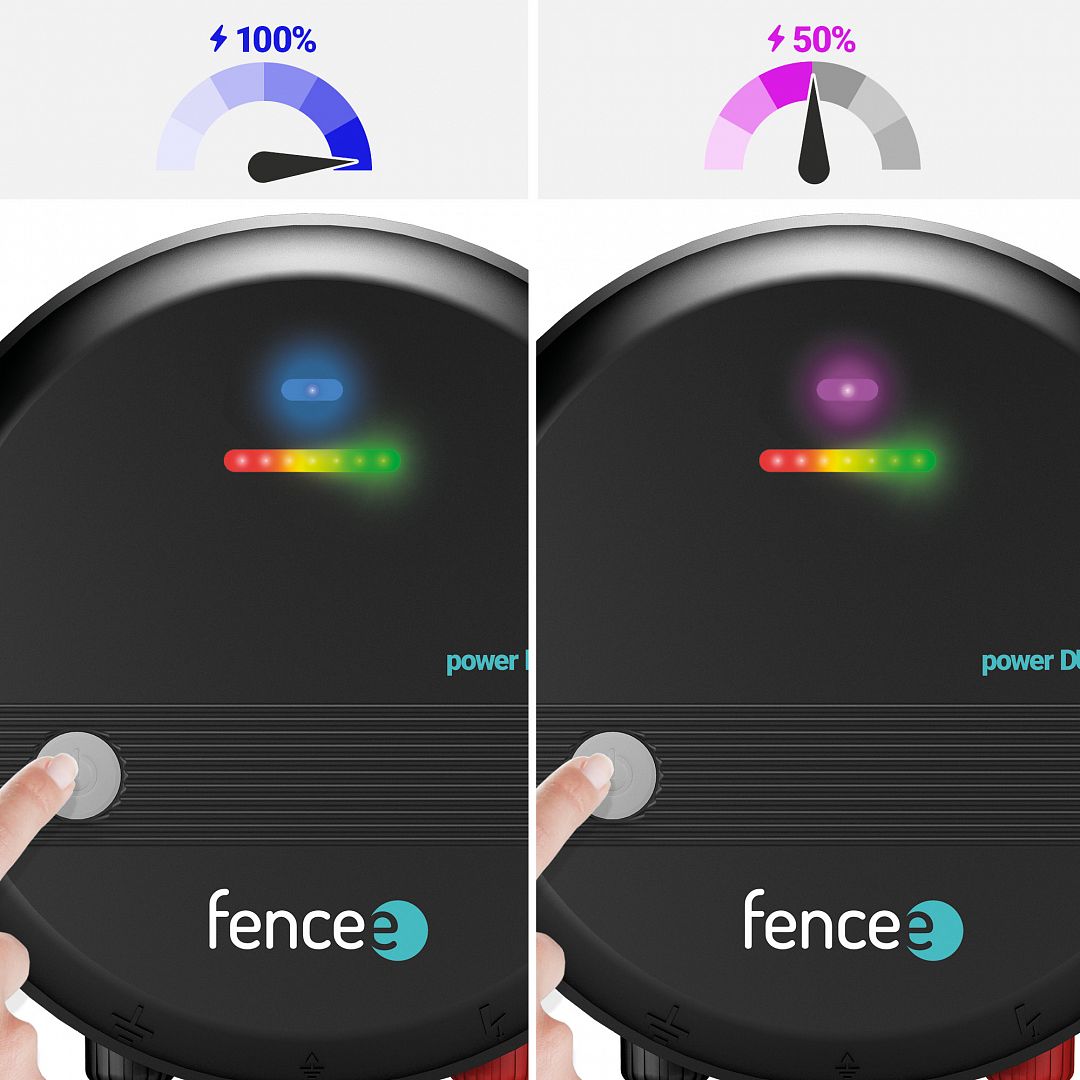

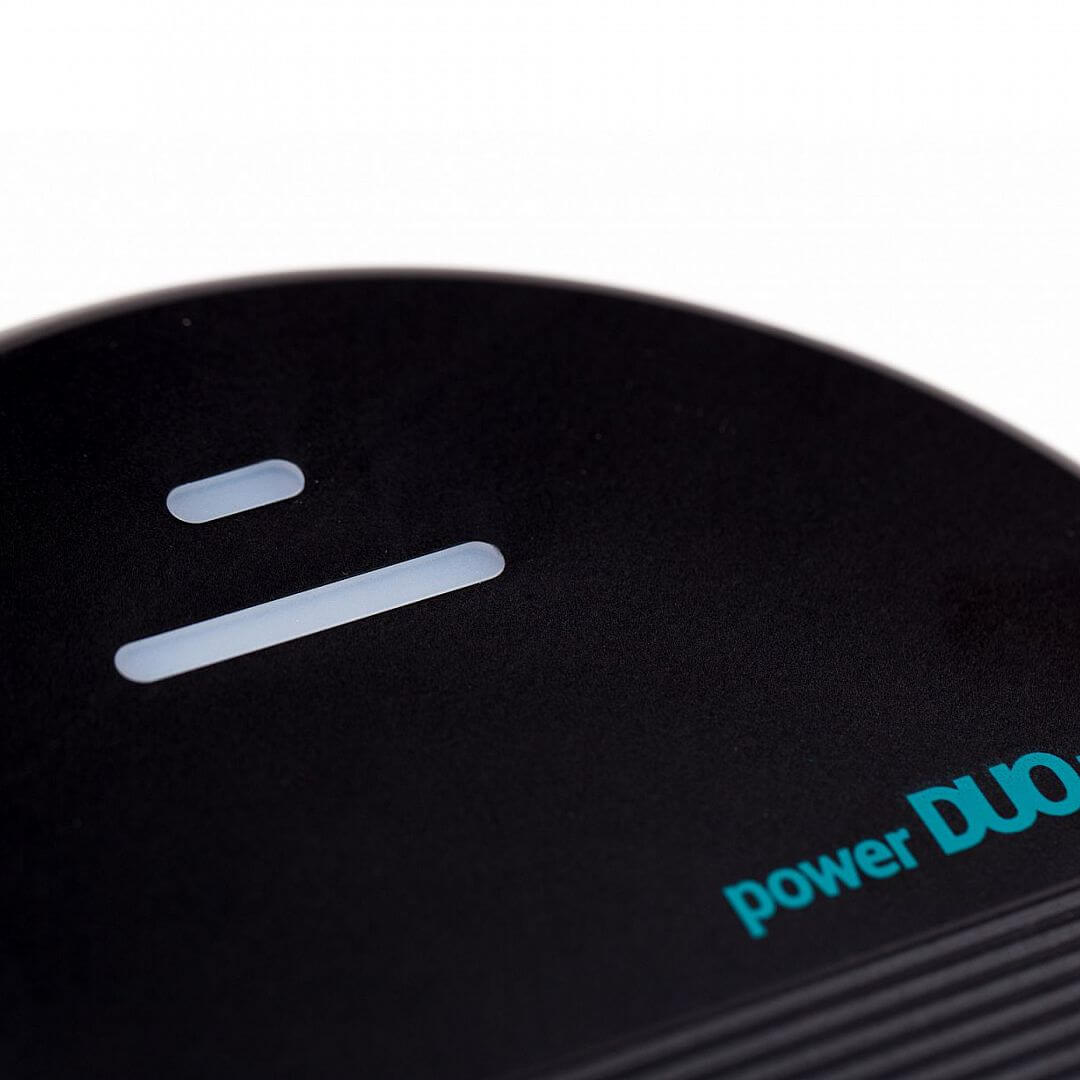

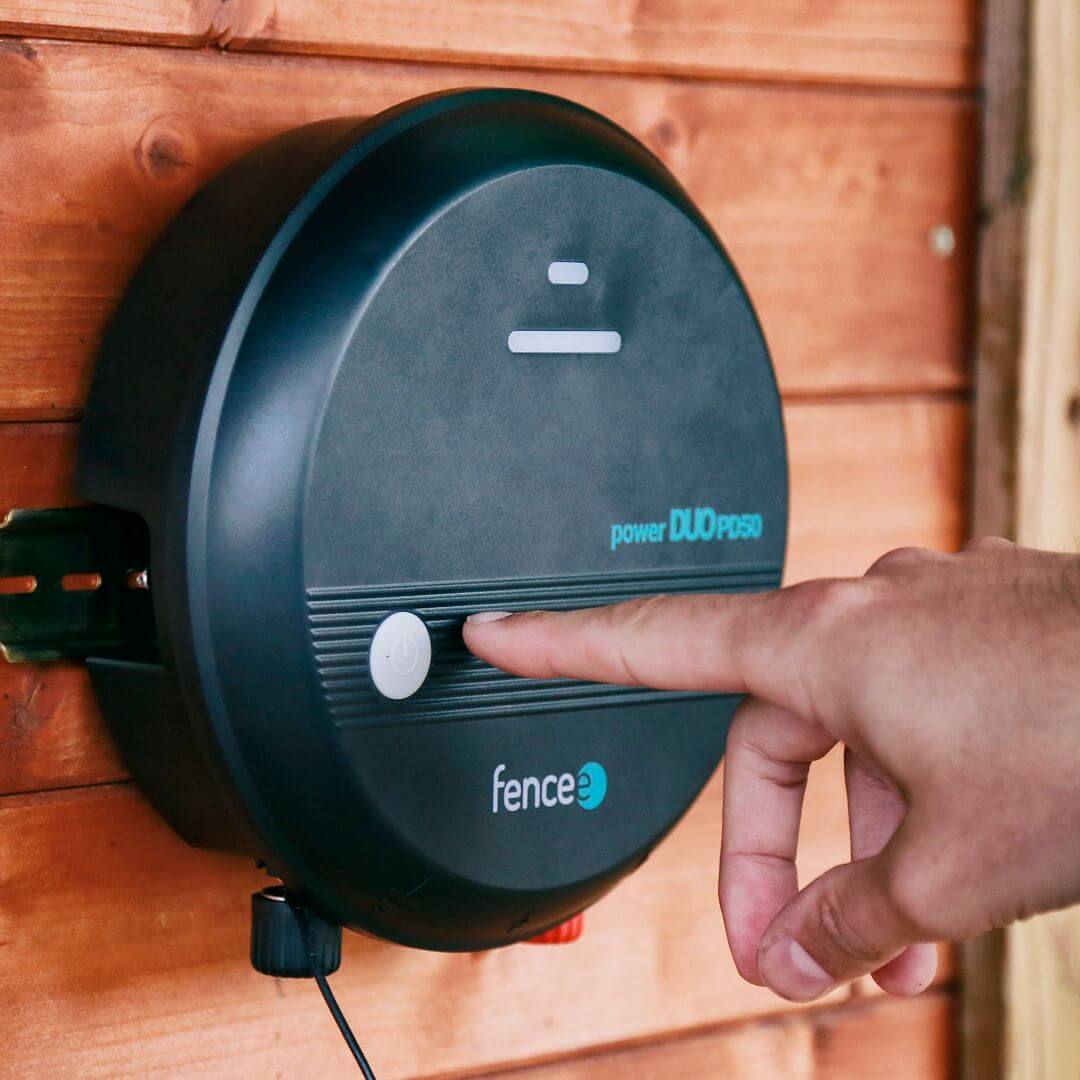

The power supply for the electric fence is provided by the fencee energizer power DUO PD10 with a power output of 1 J. The combined power supply can be powered using a 230 V mains adapter or a 12 V battery. This can also be used as a backup power supply in the event of a power failure. Power DUO PD energizers with the latest microprocessor technology offer a practical and reliable solution for installing an electric fence. LED lights and a bargraph, show the operation of the device or any malfunction on the fence. The ability to switch between full or half power, SafeShock technology and very low power consumption are other benefits of the power DUO PD energizers.

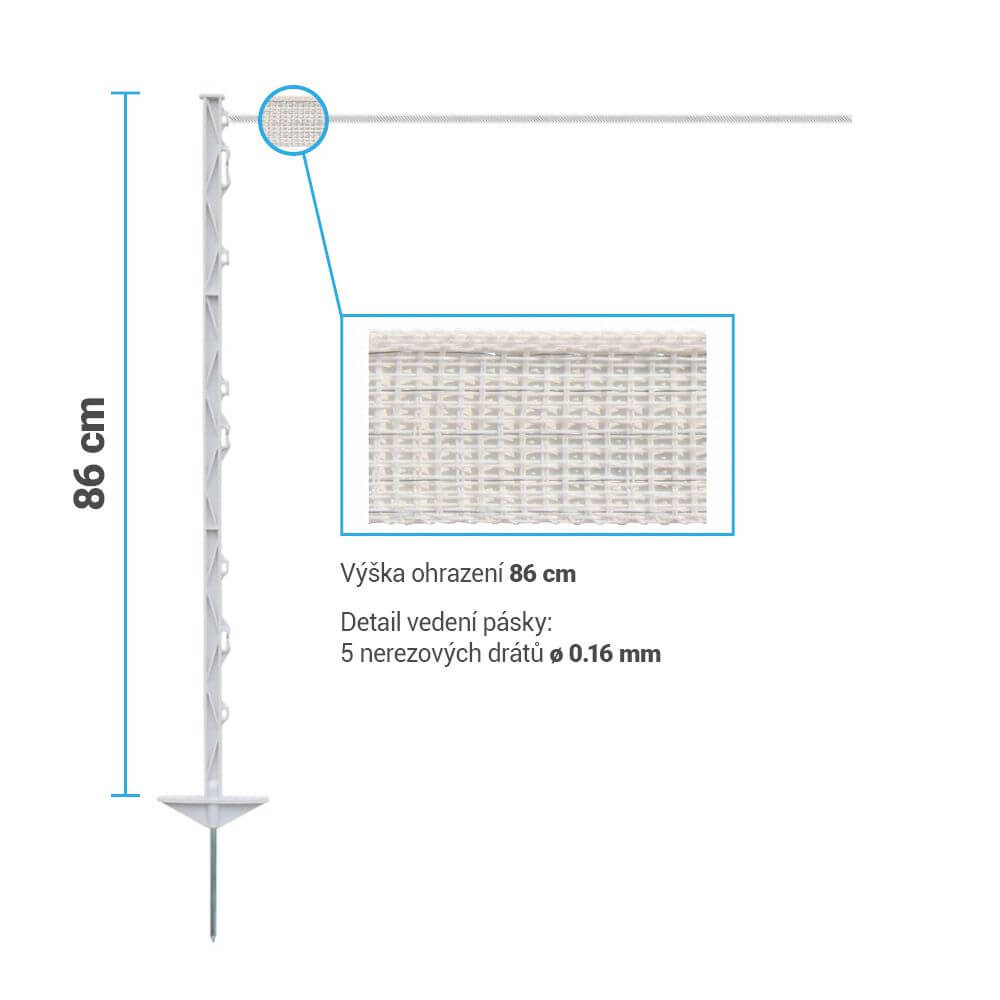

Thehigh-qualityy white tape in a 200 m roll with 5 stainless steel conductors ensures good conductivity along the entire length of the fence. The tape is a safe option when building fences for horses, ponies and donkeys. They are not at risk of injury when they come into contact with the wire. Plastic mobile posts with 8 eyelets and a solid metal spike, allow the wire to be installed up to 86 cm above the ground.
The complete electric fence set is a practical and mobile solution with easy installation.

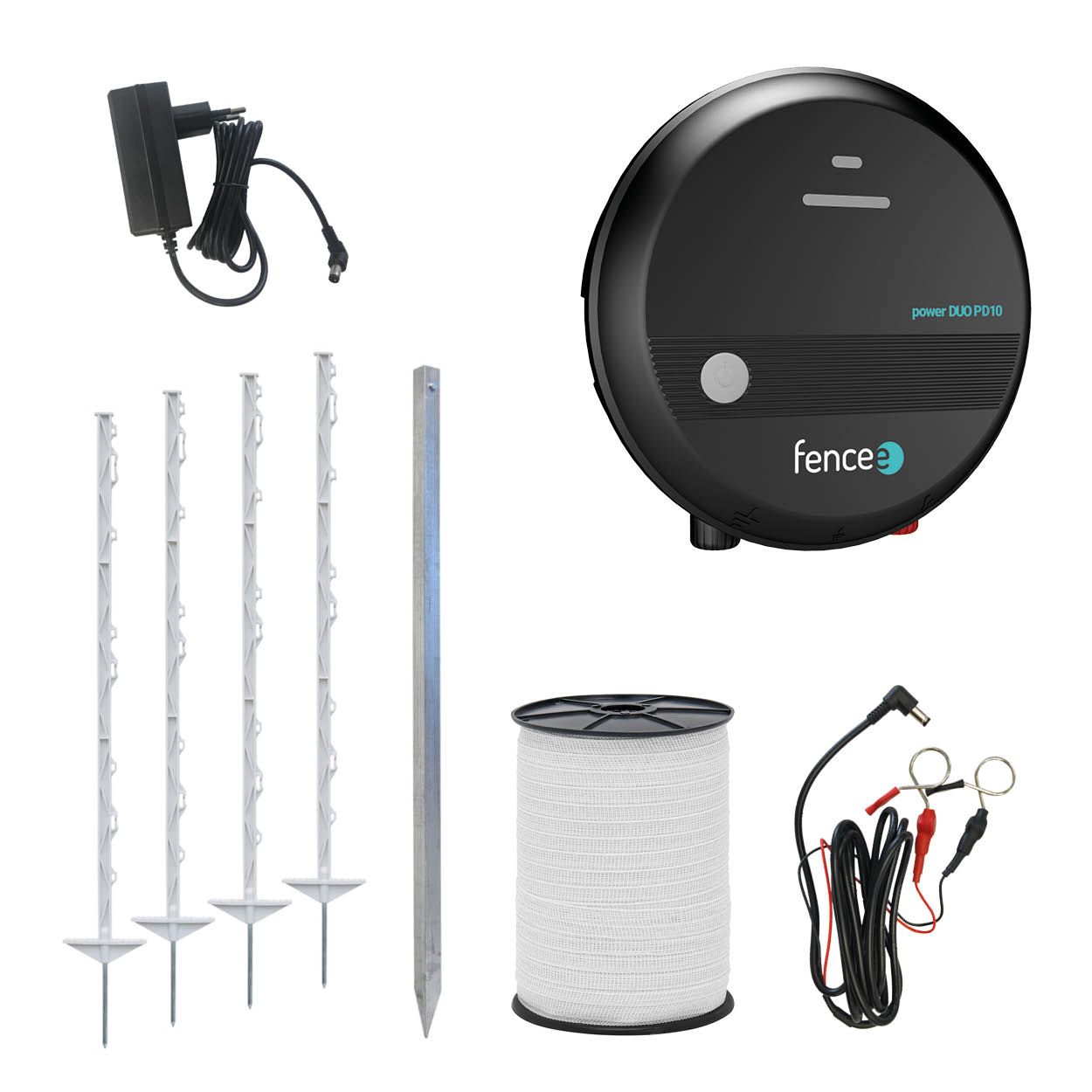

Package contents:
- fencee power DUO PD10 energizer
- 1× polytape 20 mm, 200 m, stainless steel 5 × 0.16 mm
- 10× post 105 cm (86 cm above ground), 8 eyelets
- 1× ground rod 100 cm

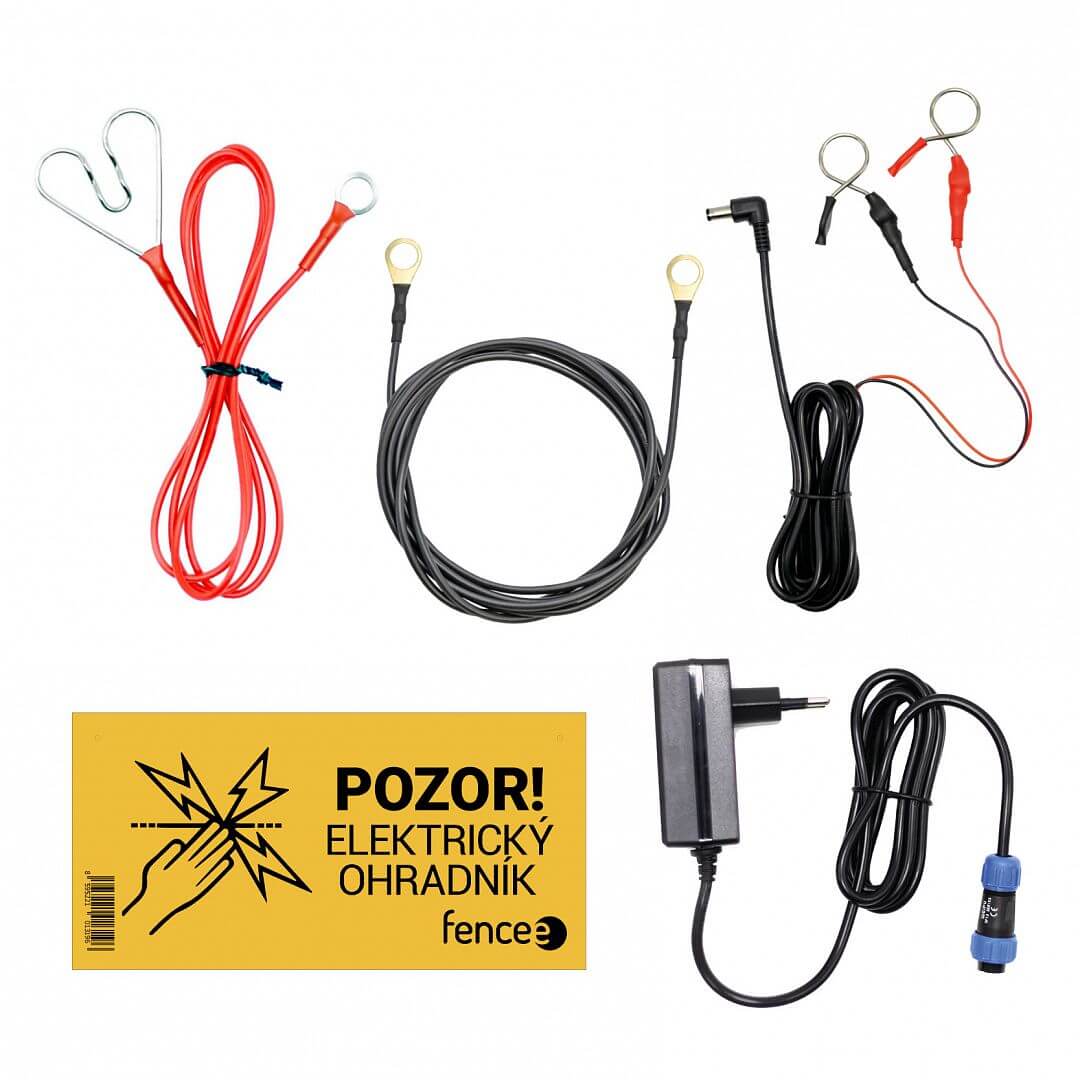

Included in the energizer package:
- 1× power adapter fencee DUO 14 V 1.5 m
- 1× earthing cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eye-bead)
- 1× fencee DUO battery cable 1.7 m
- 1× warning plate
- 1× operating instructions
We recommend purchasing a DIN rail 200 mm for easy mounting of the energizer.
Energizer consumption 230 V | 3 W |
Energizer consumption 12 V | 40 - 100 mA |
Output energy | 1 J |
Output voltage | 9000 V |
Output voltage 500 Ω | 5000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 35 km |
Low vegetation | 8 km |
Medium vegetation | 2 km |
High vegetation | 1,5 km |
Earthing 1 m | 1 × |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1512 g |
