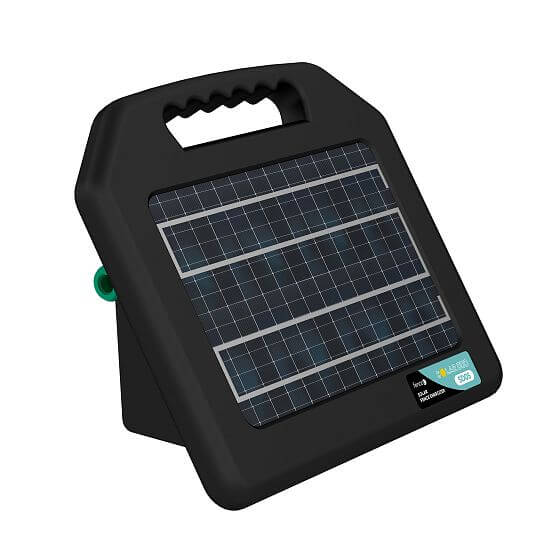

Product´s description Portable electric fence energizer fencee solar DUO SD05
Electric solar energizer with intergrated solar panel, which provides automatic recharging of the 12V battery. Lightweight portable energizer for short-term electric fencing, paddocks, tournaments, races and for fencing landscape features in the pasture.
Solar fence energizer SD05 with 0,5 J
Comprehensive solar fencing unit suitable for smaller electric fences. Maximum installation length of 10 km in conditions without dense vegetation. Suitable for dogs, cats, horses, ponies, rabbits and other small animals. Can also be used against pests, marten, otter, heron. Solar powered allows the energizer to be used in locations without access to mains electricity.
High-quality integrated solar panel with 8 W of power
The solar panel suitable for outdoors is weather and UV resistant. It provides automatic recharging of the fence energizer and ensures maintenance-free operation of the electric fence during the summer month.

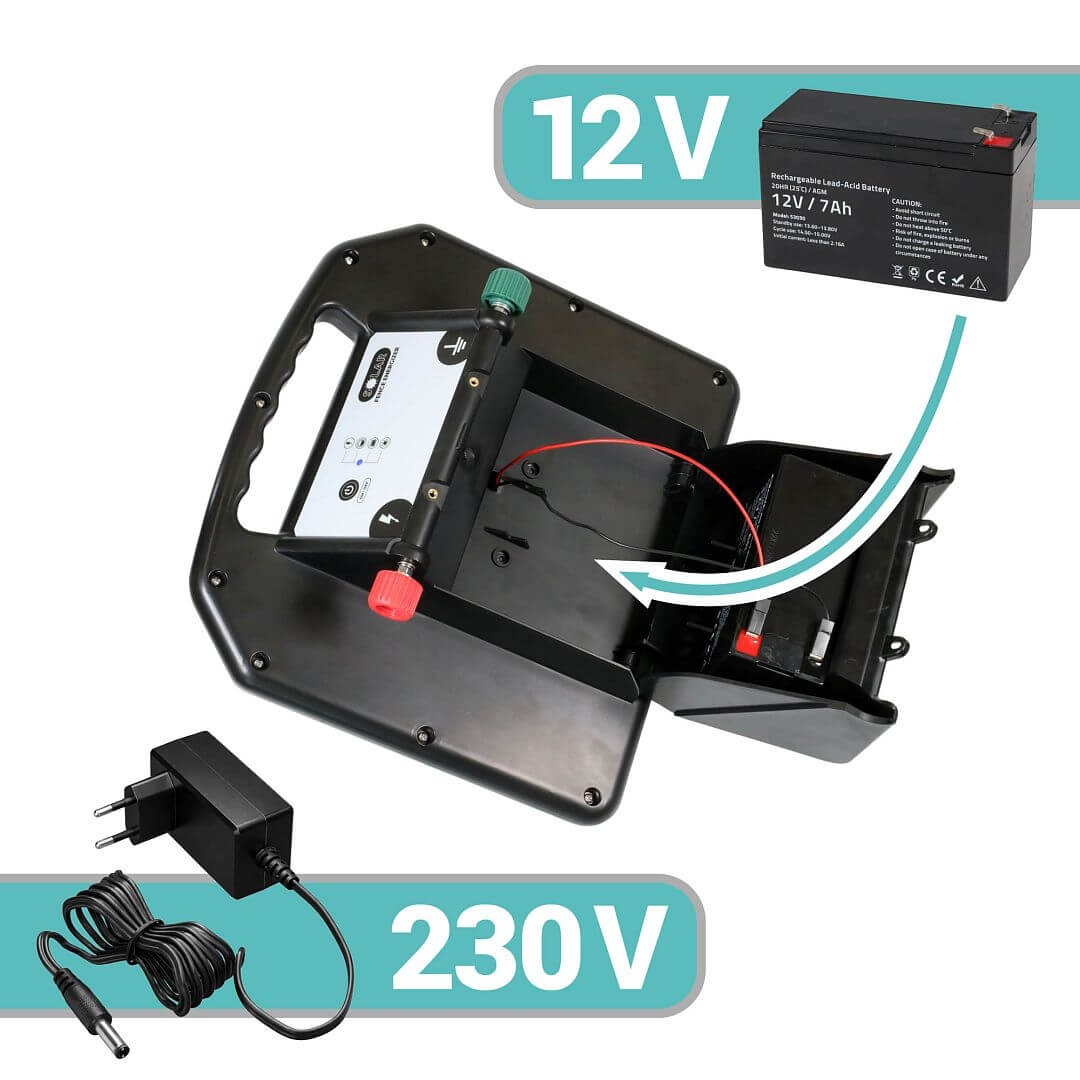

Powerful 12V gel battery 7 Ah for the electric fence
Powerful gel battery for the fencee comprehensive solar fence energizer which can be purchased and easily replaced if required. The device has a battery status indicator and deep discharge protection for the longest possible battery life of up to 10 years.
Automatic power adjustment, Battery management and Power saving mode
A microprocessor controls the operation of the device, adjusting the optimum power of the energizer and ensuring maximum efficient use of the battery. Power Saving Mode allows a long press of the ON/OFF button to switch the energizer to a slower mode where the interval between pulses is approximately twice as long. Switching to power saving mode significantly saves battery power.

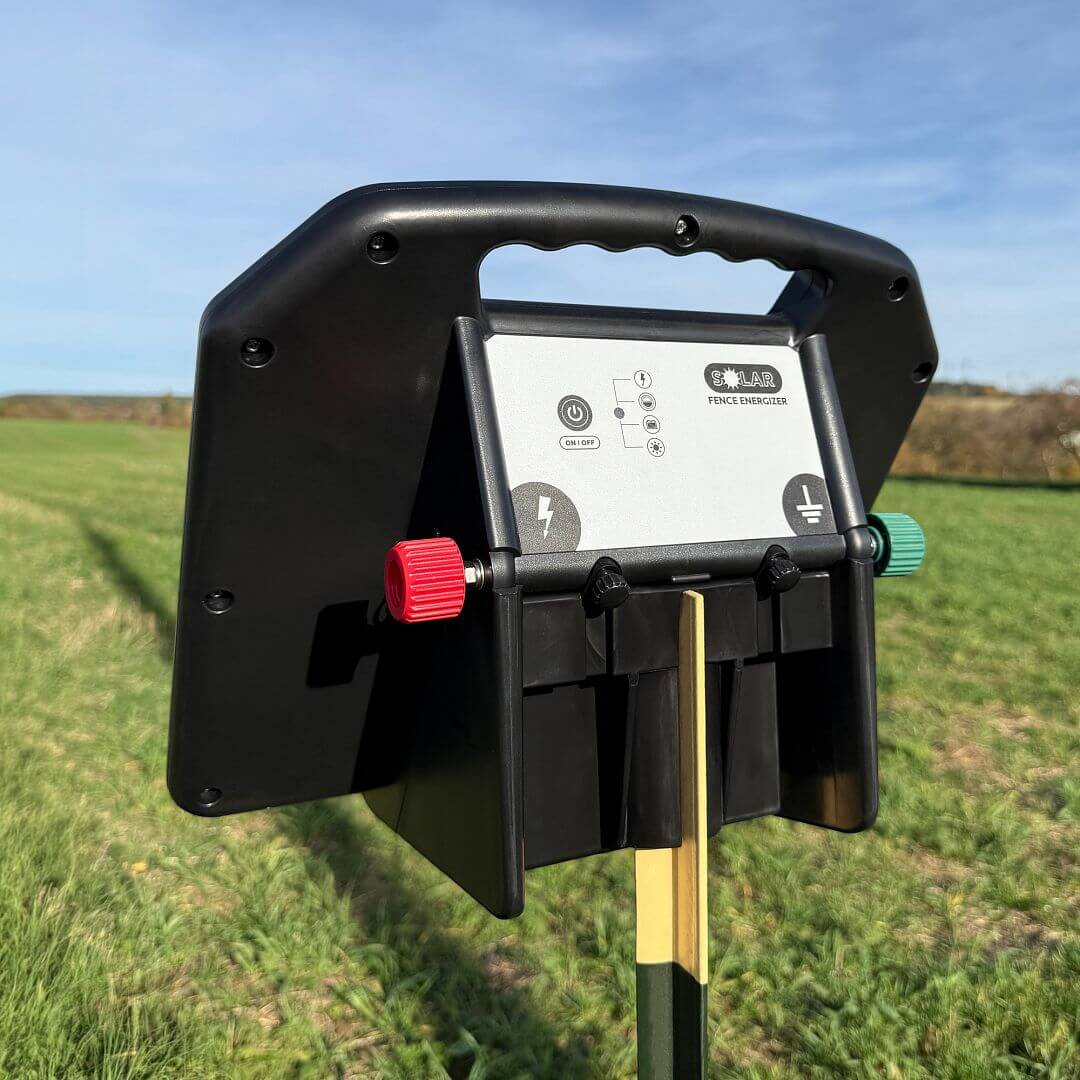

Compact solar fence with practical 360º mounting on a T/U post

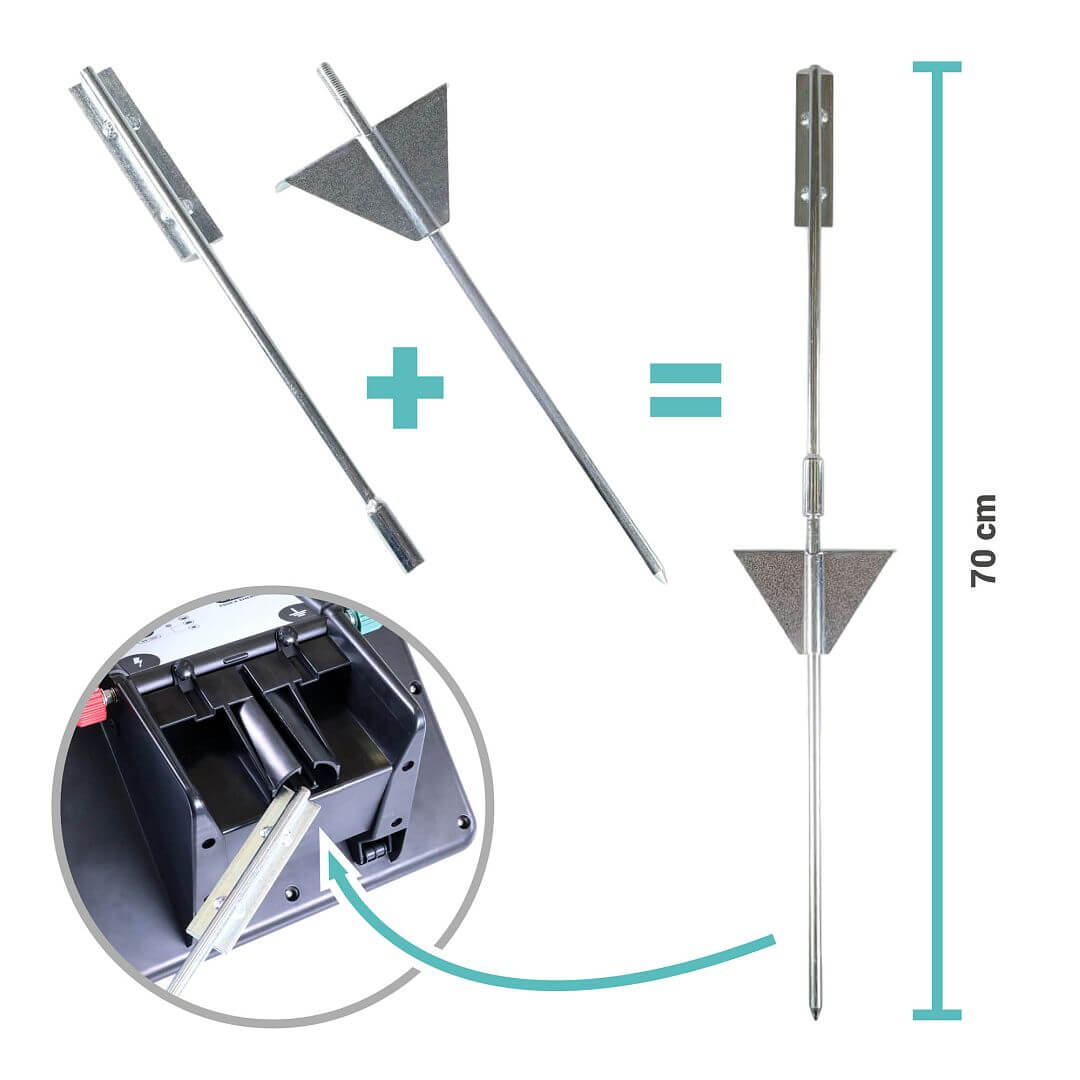

The mounting bracket on the rear of the device allows the fence to be attached to a special mounting and also earthing pole (included) at any location. For correct orientation of the solar panel to the sun, use the 360º rotation option. The device can also be mounted on a T-post or universal U-post.
Waterproof shockproof housing with built-in lightning protection
Designed for outdoor use, the device is rain and UV resistant. IP44 protection. The input connector for connecting the mains adapter is waterproof. The generator has integrated lightning protection.
Package contents:
- solar energizer fencee
- gel battery 12V 7 Ah
- integrated solar panel 8 W
- mounting and grounding rod for fencee solar DUO SD
- Power adapter fencee DUO 14 V 1.5 m
- Connecting cable 100 cm (eyelet-heart)
- ground cable 150 cm (eyelet-mesh)
- fencee warning plate
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 1,1 W |
Energizer consumption 12 V | 45 mA |
Output energy | 0,5 J |
Input energy | 0,7 J |
Output voltage | 10500 V |
Output voltage 500 Ω | 4000 V |
ON/OFF | |

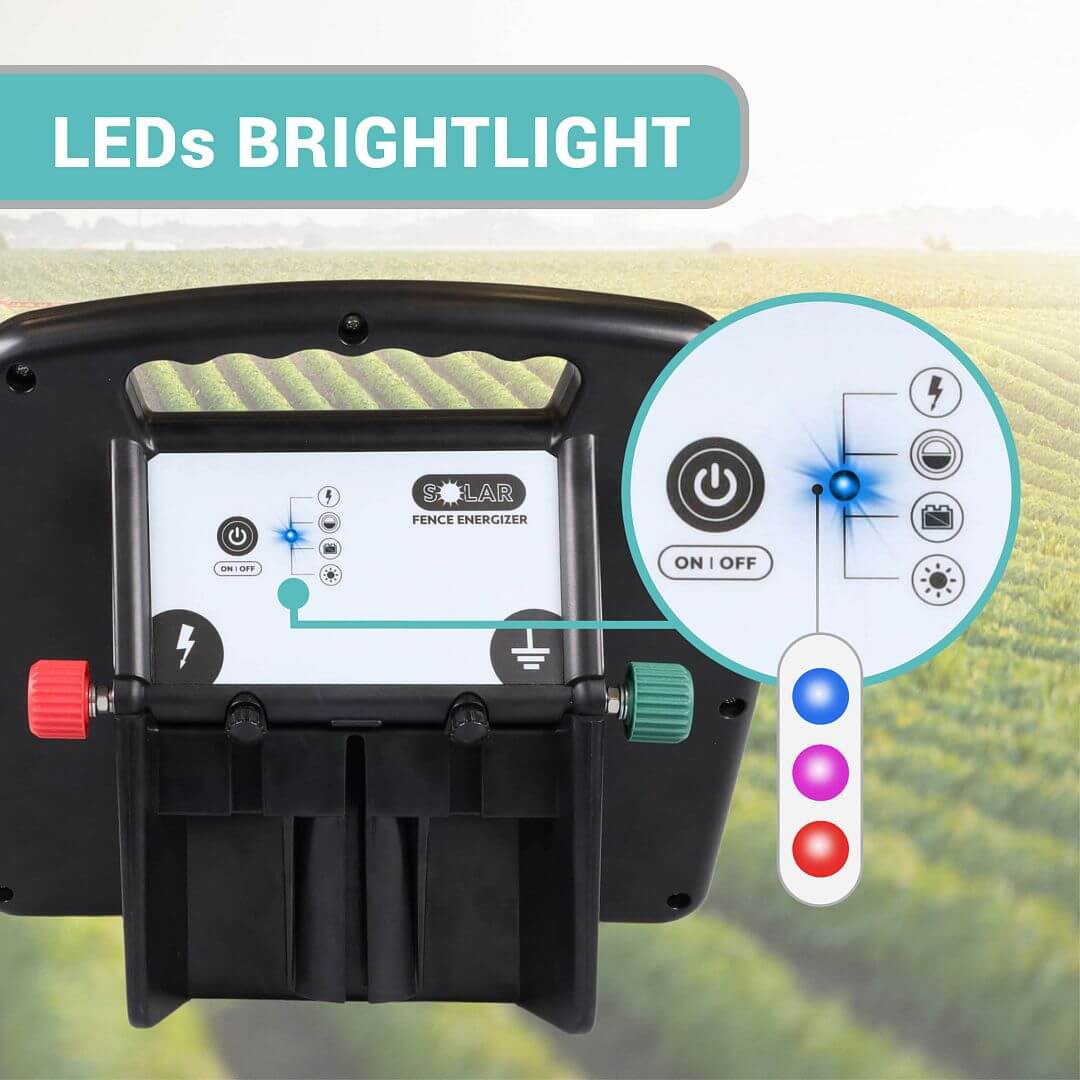

LED impulse | |
LED low battery voltage | |
LED error check | |
LED indication | |
Power Save mode | |
TEOR. max. CEE | 20 km |
Low vegetation | 10 km |
Medium vegetation | 6 km |
High vegetation | 2 km |
Earthing 1 m | 1 × |
El. fence nets | 2 × |
Weigth | 4600 g |
Dimension | 37×22×33 cm |
Solar panel | 8 W |
Solar panel consumption | 0,75 mA |
Operation without sun | up to 10 days |
Maximum power voltage (Vmp) | DC 18V |
Maximum power Current (Imp) | 0,47 A |
Open circuit voltage (Voc) | 22,3 V |
Short circuit current (Isc) | 0,3 A |
Solar panel dimension | 30,3×21,3 cm |
Manuals and files for downloading
Manual fencee solar DUO SD, RF SDXFAQ
- How to use a grounding quality terminal and terminal with reduced output?
- Positive-Negative electric fence
- Troubleshooting
