Product´s description Premium solar fence kit - Complete security box + energizer 2 J, solar panel 40 W
A practical solution for electric fence in places without electricity during the season. Solar-powered electric fence kit suitable for electric fences up to 15 km.
Security box for energizer and battery, Mounting post and Regulator 10 A included
Security box for electric fence energizer and battery. Electrifiable metal box with robust mounting post. The box can be connected to the fence energizer, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee energizer. Regulator 10 A for solar panel 40 W.
Security box features:
- Robust box made of galvanized steel
- Stable mounting post to the box
- Internal ground connection for the fence energizer
- All cables inside the box
- High voltage box - excellent protection against theft
- Insulated keys for safe unlocking of the box
- External dimensions of the box: 37 × 37 × 34.5 cm (W×D×H)
Electric fence energizer fencee power DUO PD20

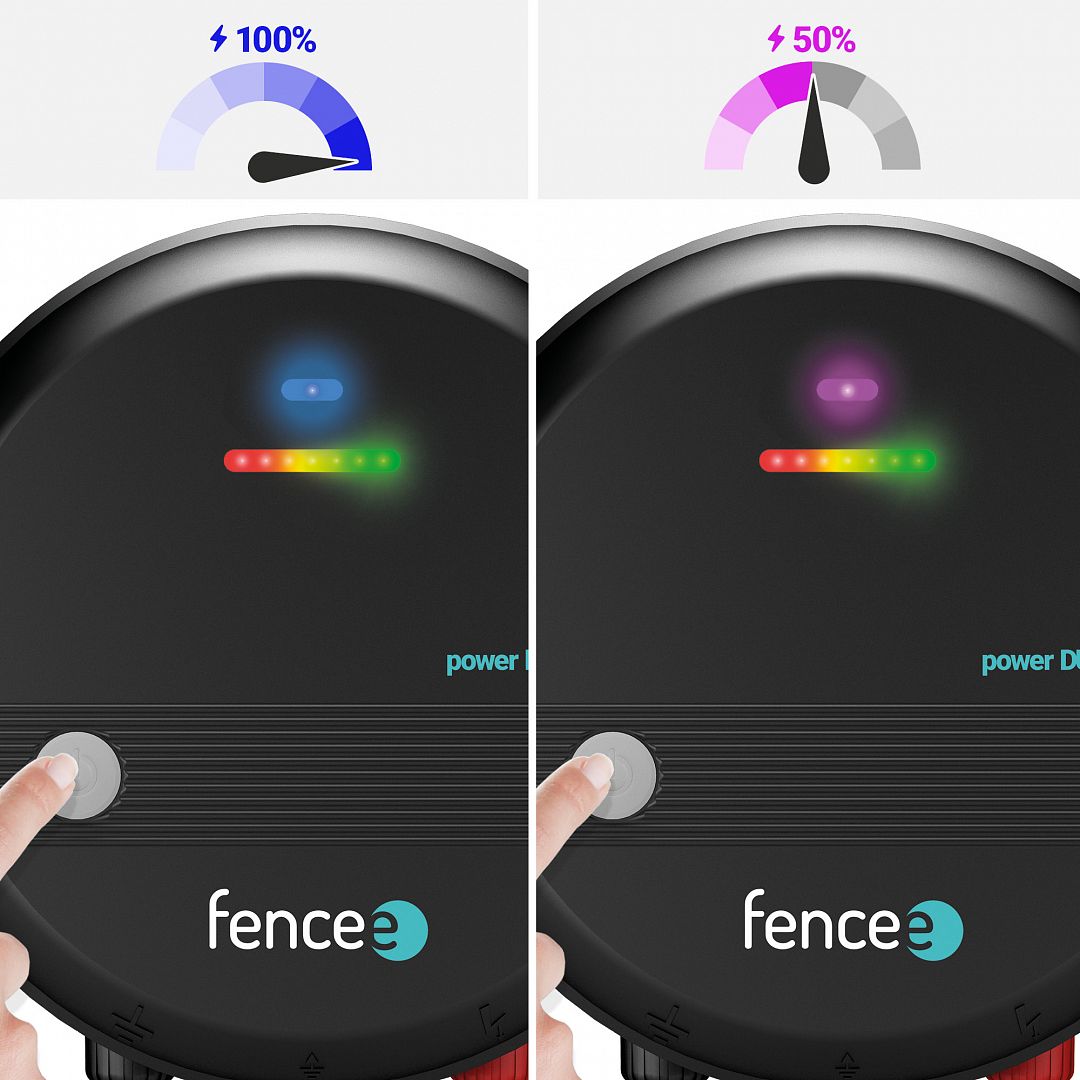

Electric fence energizer 12/230 V with 2 J. BrightLight LED on the front of the device indicates the operation of the energizer. Possibility to switch the power to 50%, SafeShock technology , ON/OFF button for safe device control and several other features of fencee power DUO PD energizers.
Energizer fencee power DUO PD20
Solar panel 40 W for electric fencing
Solar panel for solar charging of the 12V battery of the fence energizer. Anti-corrosion treatment. Use of tempered glass, high transparency. The location of the solar panel must be chosen so that it is towards the south and as perpendicular to the sun as possible. Poor positioning, shading and soiling of the solar panel reduces its performance.
Mounting bracket for attaching the 40 W solar panel to the safety box
Mounting bracket for mounting 40 W solar panel on security box. Consists of 2 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.
Instructions for assembling the mounting bracket

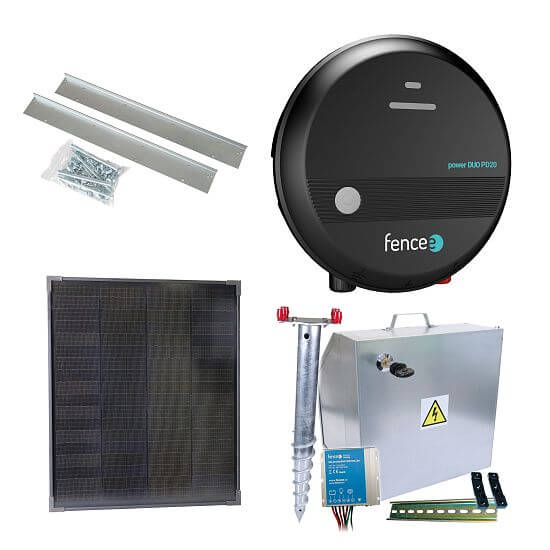

Package contents:
- Security box with DIN rail, mounting post and regulator 10 A
- Energizer fencee power DUO PD20
- Solar panel with 40 W output
- Mounting bracket for attaching 40 W solar panel to security box
This kit does not include a battery. A 12 V battery to power the energizer must be purchased. Accessories in complete kits are covered by a 24 month warranty only. All fencee energizers come with a 36 month extended warranty.
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 5 W |
| Energizer consumption 12 V | 40 - 140 mA |
| Output energy | 2 J |
| Output voltage | 12000 V |
| Input energy | 3 J |
| LED ON/OFF | |
| Output voltage 500 Ω | 6000 V |
| ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| LED impulse bargraph | |
| TEOR. max. CEE | 60 km |
| Low vegetation | 15 km |
| Medium vegetation | 3 km |
| High vegetation | 1,5 km |
| Earthing 1 m | 2 × |
| El. fence nets | 5 × |
| Diameter | 210 mm |
| Depth | 66 mm |
| Weigth | 1534 g |
