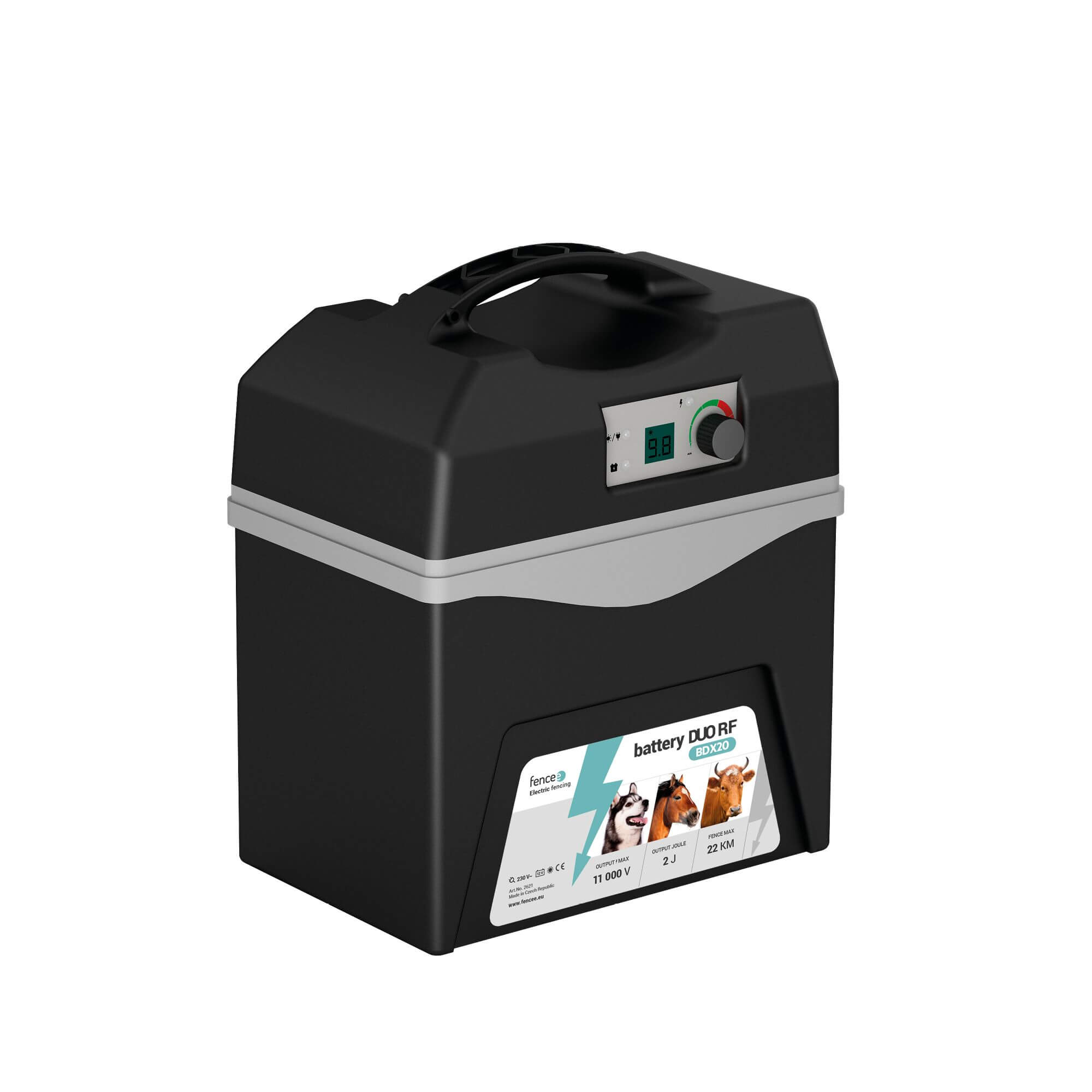

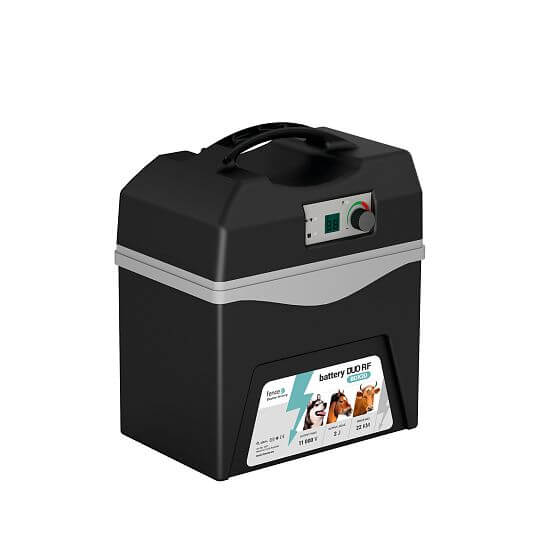

Product´s description Smart portable battery energizer fencee battery DUO RF BDX20
The clever battery-powered electric fence with 2 J provides sufficient power to protect animals while providing effective protection against smaller wildlife such as foxes or deer and fallow deer.
Flexible battery RF power supply for the 2 J electric fence

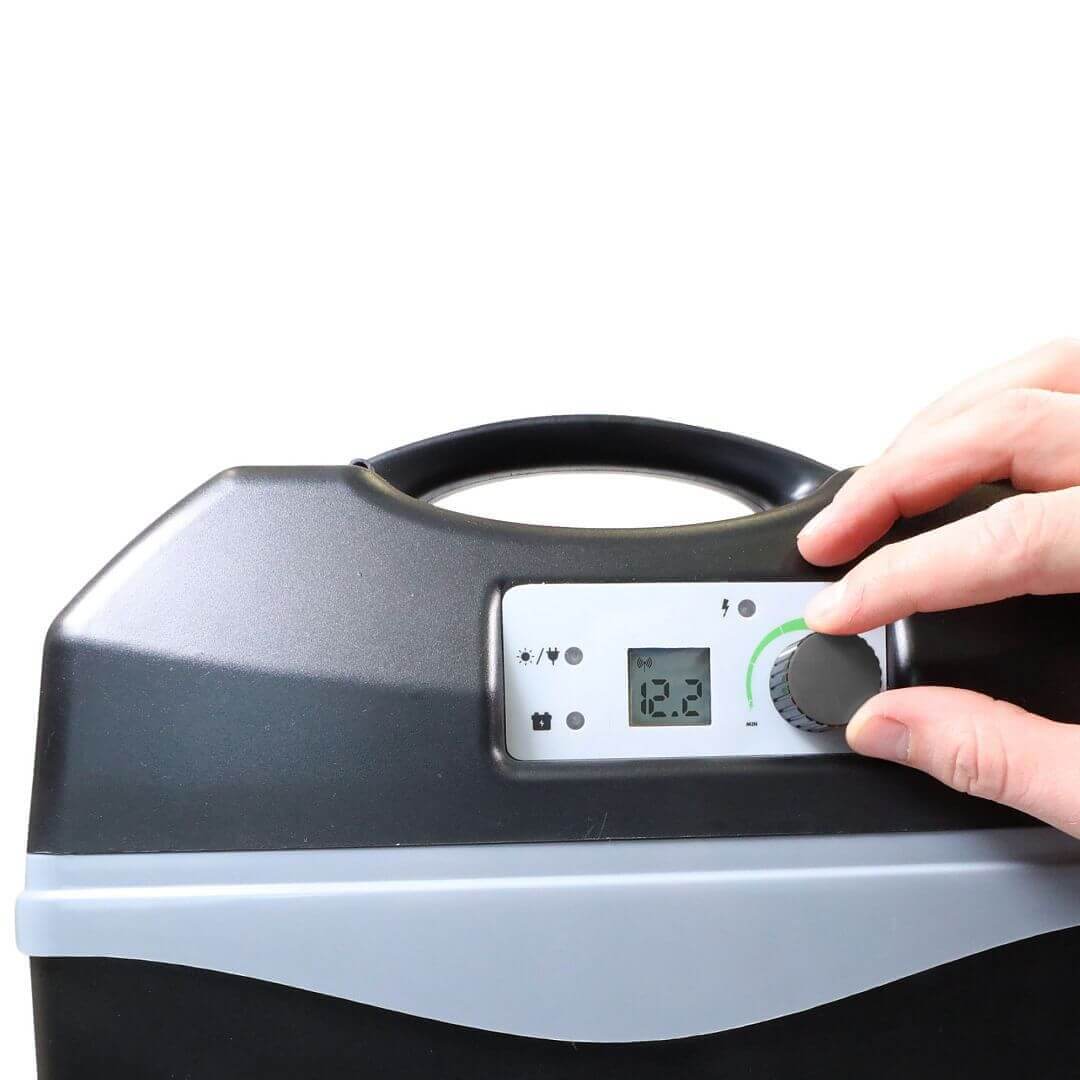

Smart battery generator for electric fencing with display and optical display control. The output power can be infinitely adjusted by a rotary control knob in 19 levels. Signalling LEDs for device function and battery status. Power supply with combined power supply, so it can also be powered by a 230 V mains adapter.

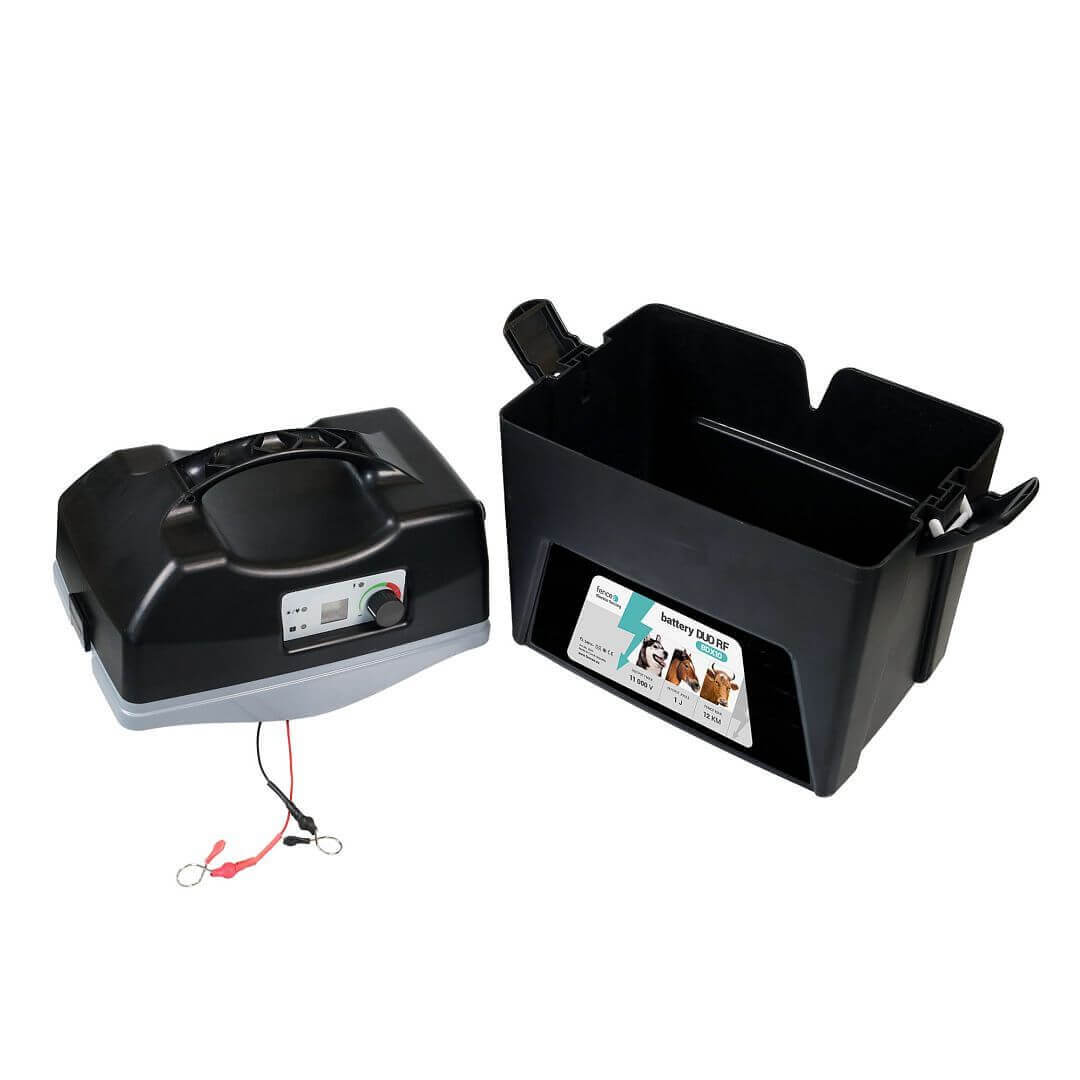

44 Ah 12 V battery storage box
The portable power supply has space for storing a 12 V battery with a capacity of 44 Ah. The battery is built into the housing and is protected from UV radiation and weather conditions. When fully discharged, the fence automatically switches off to prevent damage to the battery.

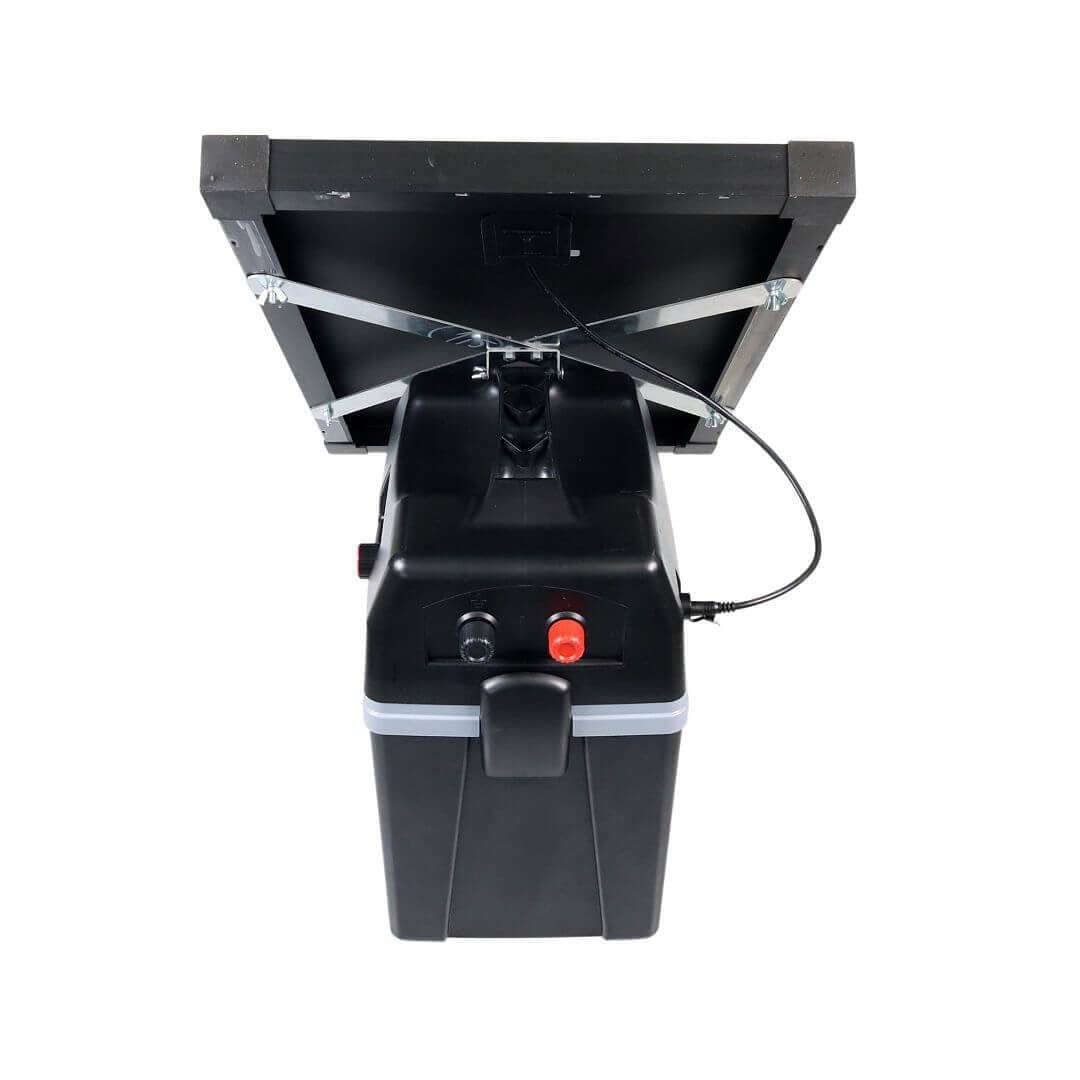

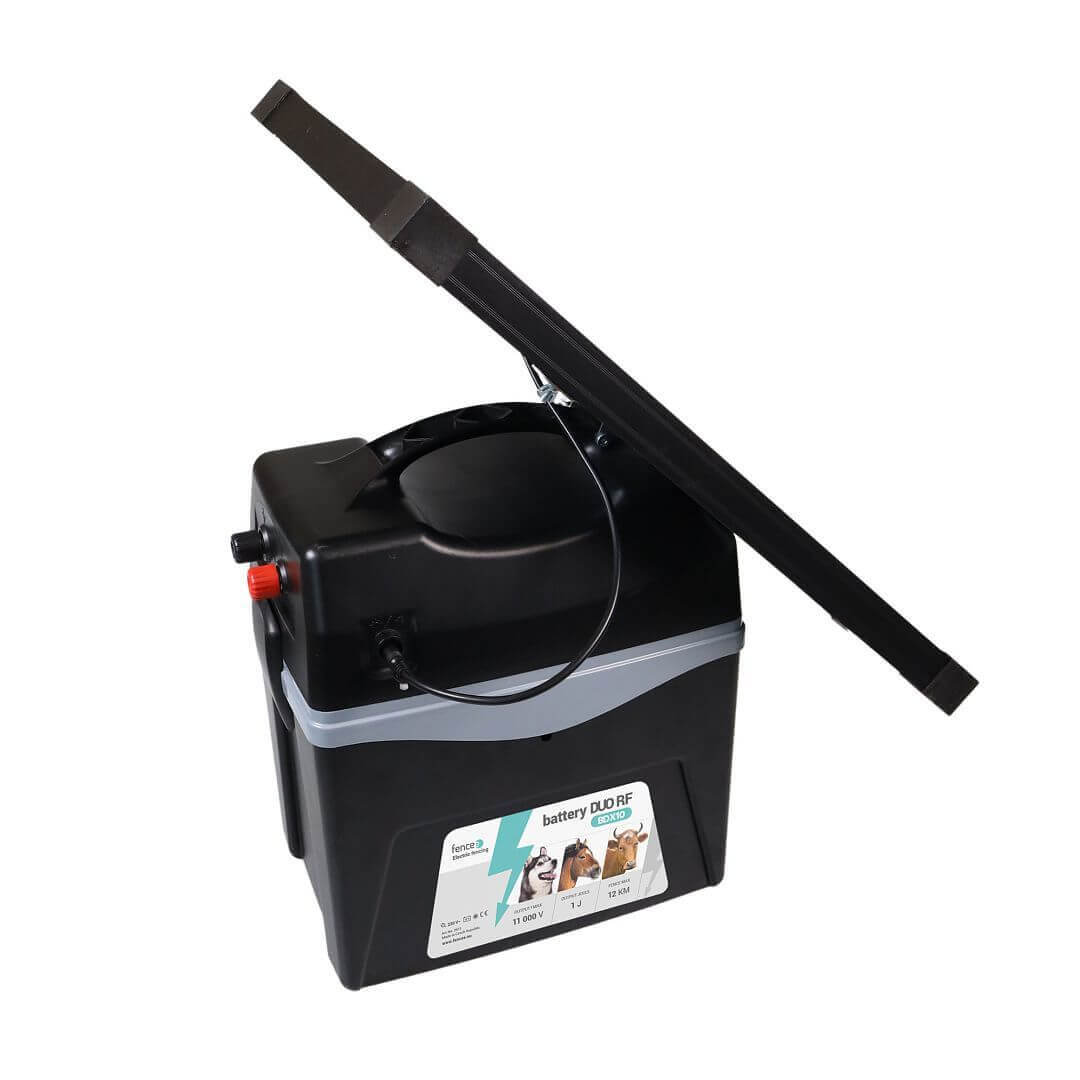

Ready for installation of a 30 W solar panel
With the option of connecting a 30 W solar panel, this electric fence is suitable for remote areas. An energy-saving solution for operating the fence without the need to connect to the mains.
Energy saving mode and efficient use of the battery
A microprocessor controls the operation of the power supply, adjusts the optimum power and ensures maximum efficient use of the battery. The battery generators allow the power to be regulated in 19 stages. Levels 1 to 6 function as ecomode.
Waterproof design with practical handle
The battery-powered electric fence is designed for harsh conditions and long-term outdoor use. Protection IP44. The input connector for connecting the mains adapter is waterproof. Integrated lightning protection.
Package contents:
- 2 J battery RF power supply
- Integrated cable for connecting the power supply to the battery
- power adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- ground cable 150 cm (eyelet-loop)

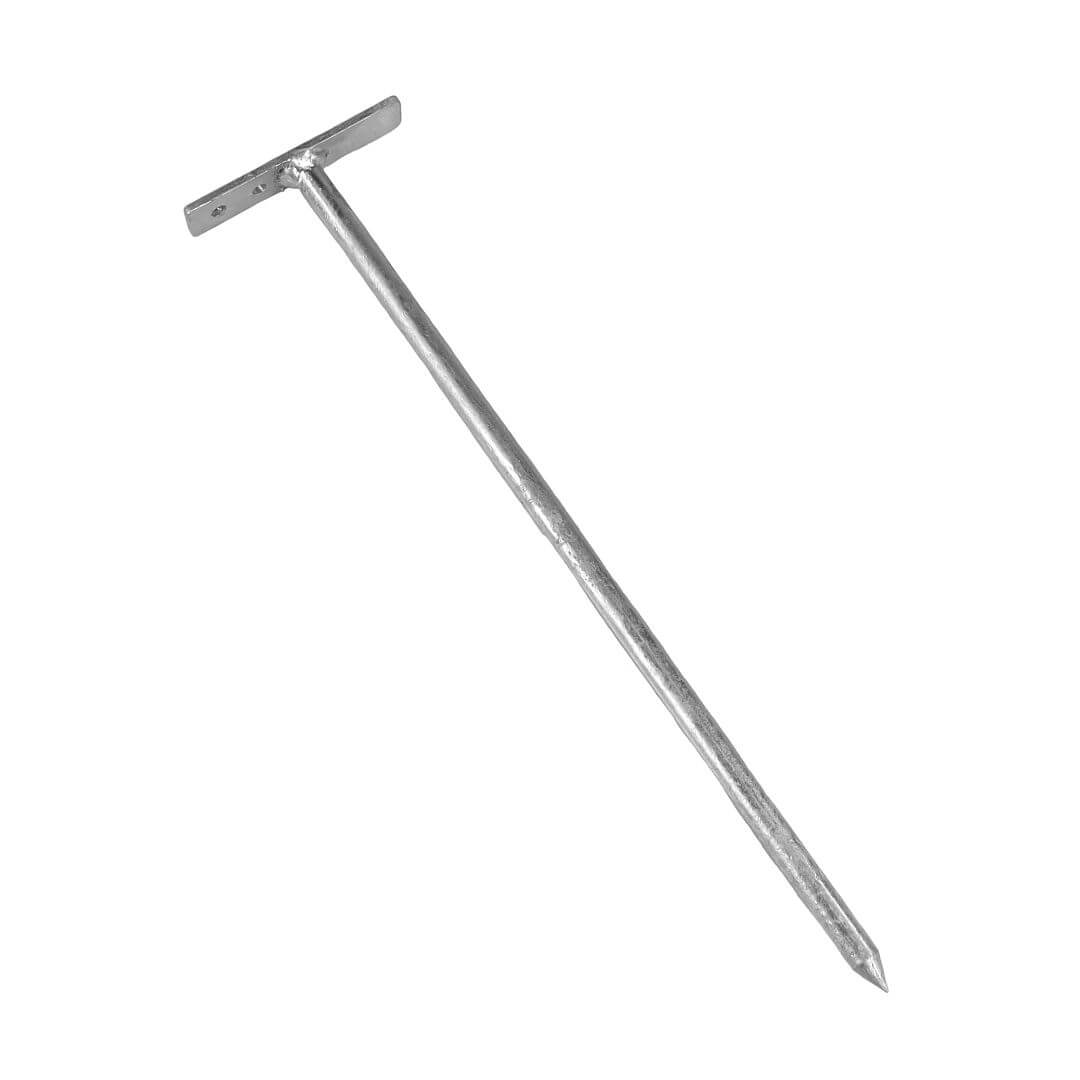

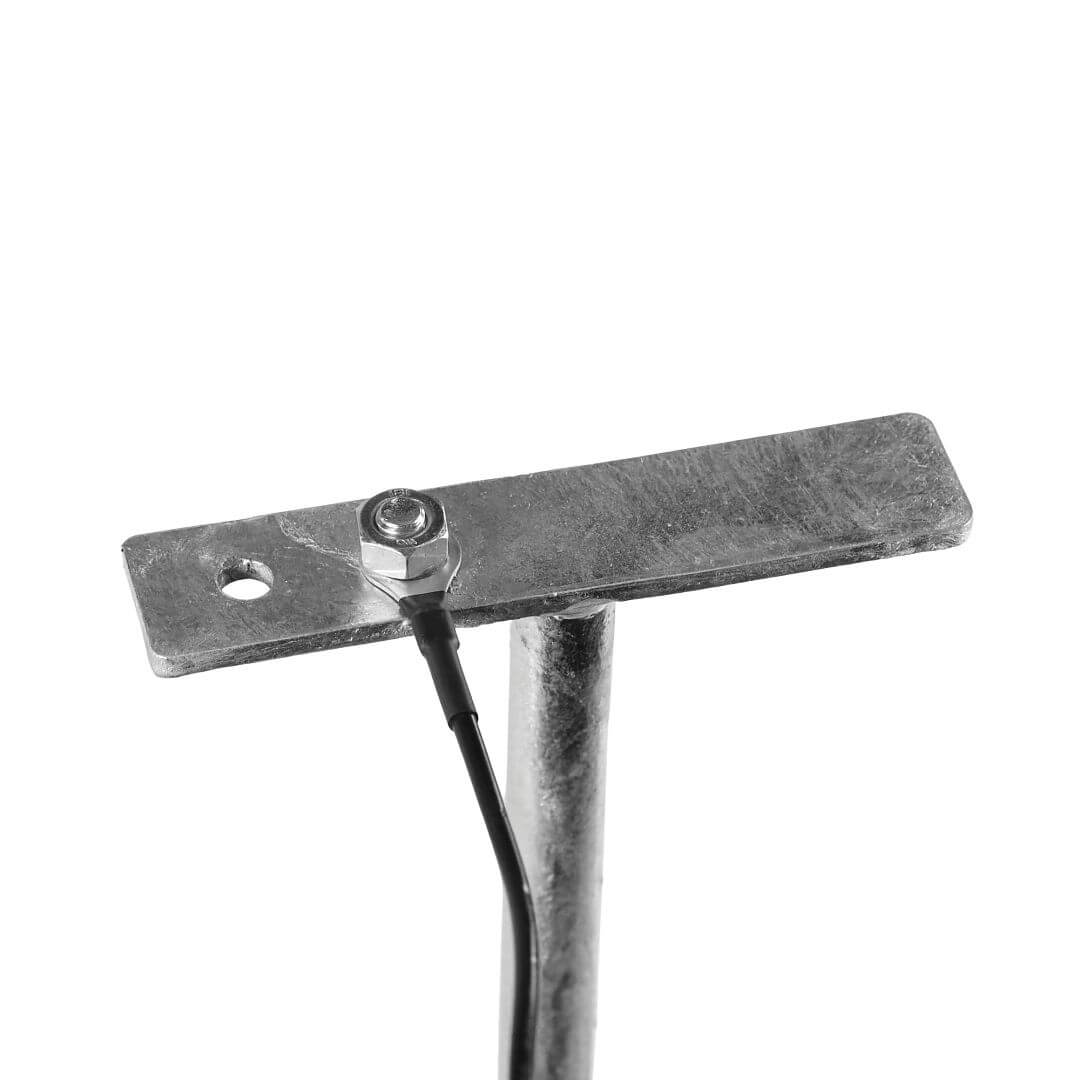

- grounding rod for the fence
- fencee warning plate
- operating instructions
The battery pack for the electric fence is supplied without the 12 V battery.
Get maximum visibility with the fencee Cloud app
In case you want to control the fence with your mobile phone for an unlimited range, get an additional central WiFi Gateway device. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere and at any time.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 1,9 W |
| Energizer consumption 12 V | 20 mA - 160 mA |
| Output energy | 2 J |
| Input energy | 2,6 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 5000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| LCD display | |
| fencee Cloud connection | |
| LED indication | |
| Power Save mode | |
| Remote control | |
| Data encoding | |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| TEOR. max. CEE | 60 km |
| Low vegetation | 22 km |
| Medium vegetation | 10 km |
| High vegetation | 3 km |
| Earthing 1 m | 2× |
| El. fence nets | 9× |
| Weigth | 2920 g |
| Dimension | 38 × 31 × 21 cm |
Manuals and files for downloading
Manual - fencee battery DUO BD, RF BDXFAQ
- How to use a grounding quality terminal and terminal with reduced output?
- How does an electric fence work?
- 10 principles for the correct functioning of the fence
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
