Product´s description Expert solar fence kit - Complete transport box + energizer power DUO 4 J, 100 W panel, 20 mm tape
A practical solution for operating the fence in places without electricity during the season. Solar electric fencing kit suitable for electric fencing against forest animals and wild boars.
Transport box for energizer and battery, 10 A regulator included
Metal transport box for fence energizer. Lockable sliding door. Protects electric fence energizer with battery from rain, weather and theft. Practical DIN rail 200 mm for easy fixing of the fencee energizer. Regulator 10 A for solar panel with 100 W. Box suitable for transport and protected placement of the energizer.
Features of the transport box:
- also has mounting holes for all common types of energizers
- increased protection against theft of the electric fence energizer
- suitable for transporting the energizer together with the battery
- made of galvanized steel sheet
- practical carrying handle
- lockable side door
- lock not included
- external dimensions of the box: 37,5 × 35 × 37,5 cm (W×D×H)
4 J electric fencee energizer power DUO with combined power supply

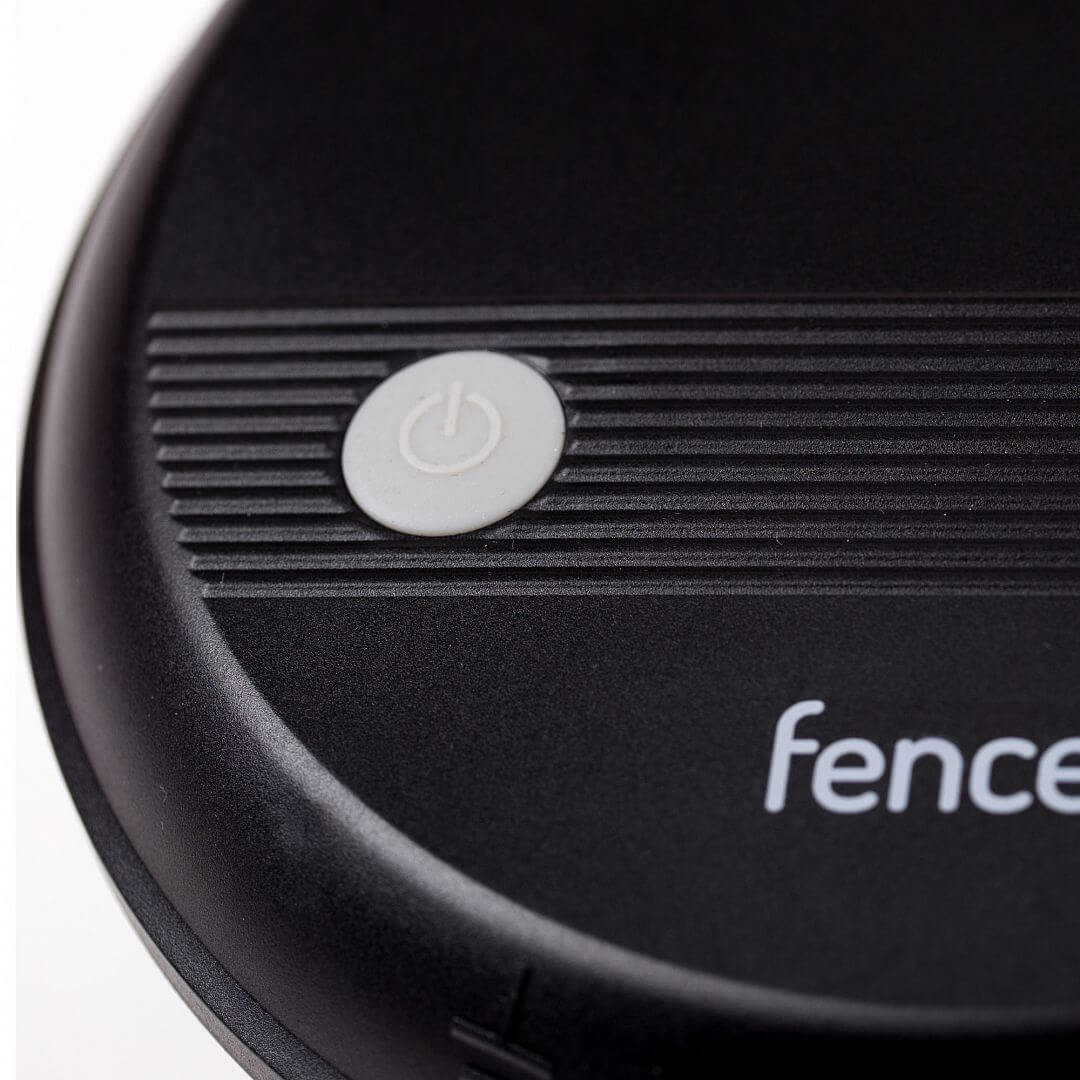

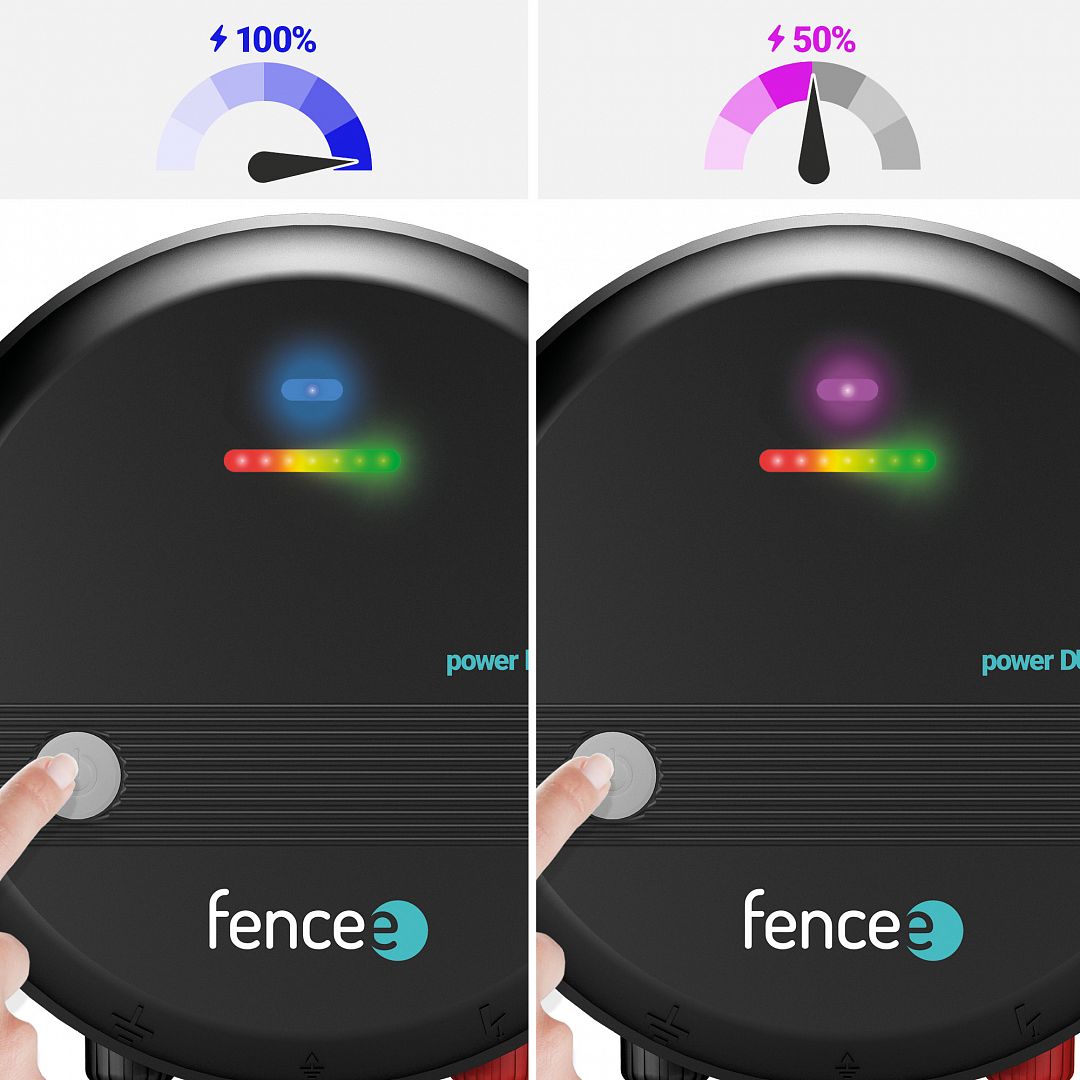

Electric fencee energizer 12/230 V with 4 J. The fence can be used anywhere thanks to the solar charging of the battery. BrightLight LED on the front of the device indicates the operation of the energizer. Possibility to switch the power to 50 %, SafeShock technology, ON/OFF button for safe energizer control and several other features of fencee power DUO PD energizers.
Combined energizer fencee power DUO PD40
100 W solar panel for electric fence
The location of the solar panel must be chosen to be south facing and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel. The fencee energizer cannot be powered by the solar panel alone, the battery and controller must always be connected at the same time.
Mounting bracket for attaching the 100 W solar panel to a transport box
Mounting bracket for mounting the 100 W solar panel on a transport box. Consists of 5 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.
Instructions for assembling the mounting bracket
Accessories for assembling the electric wildlife fence

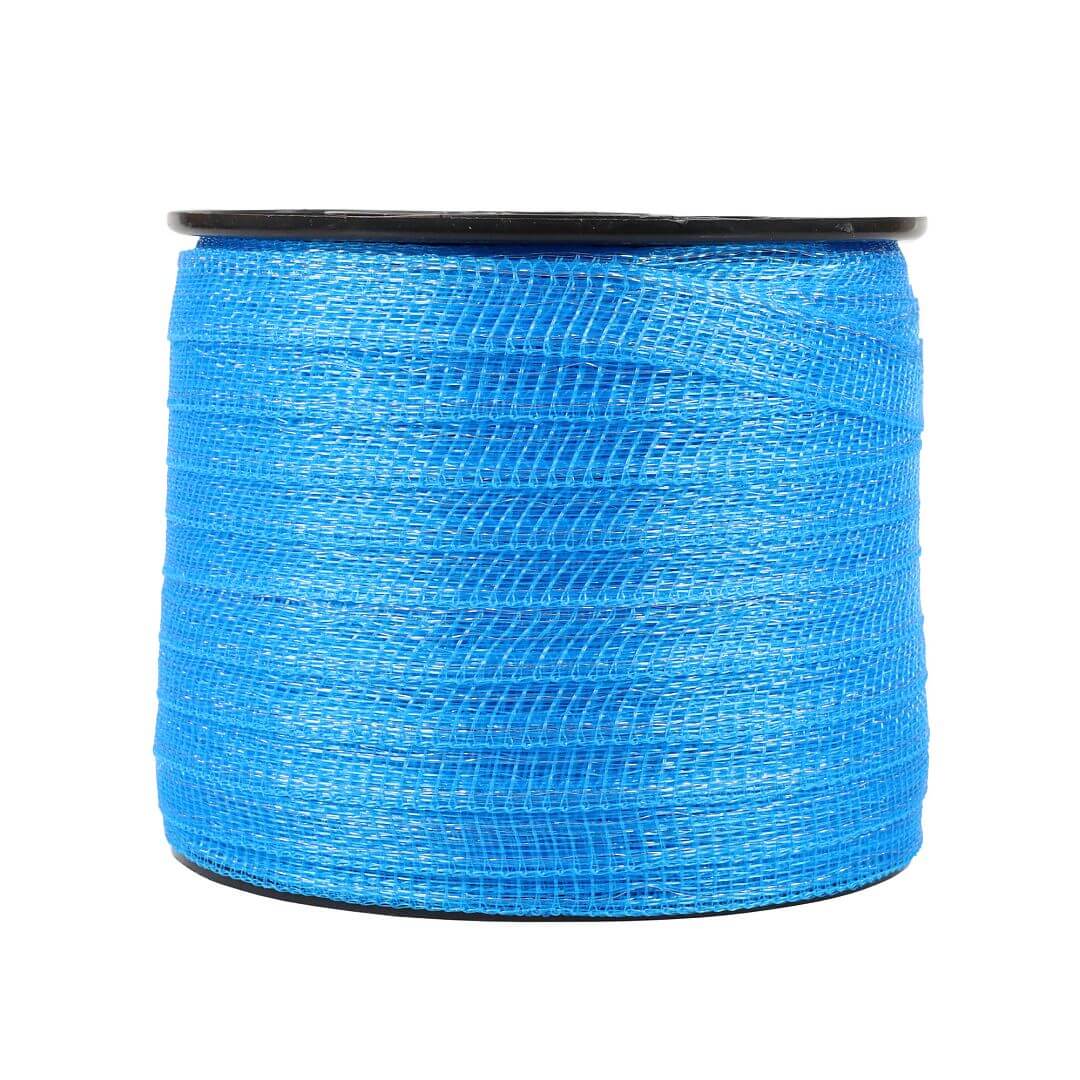

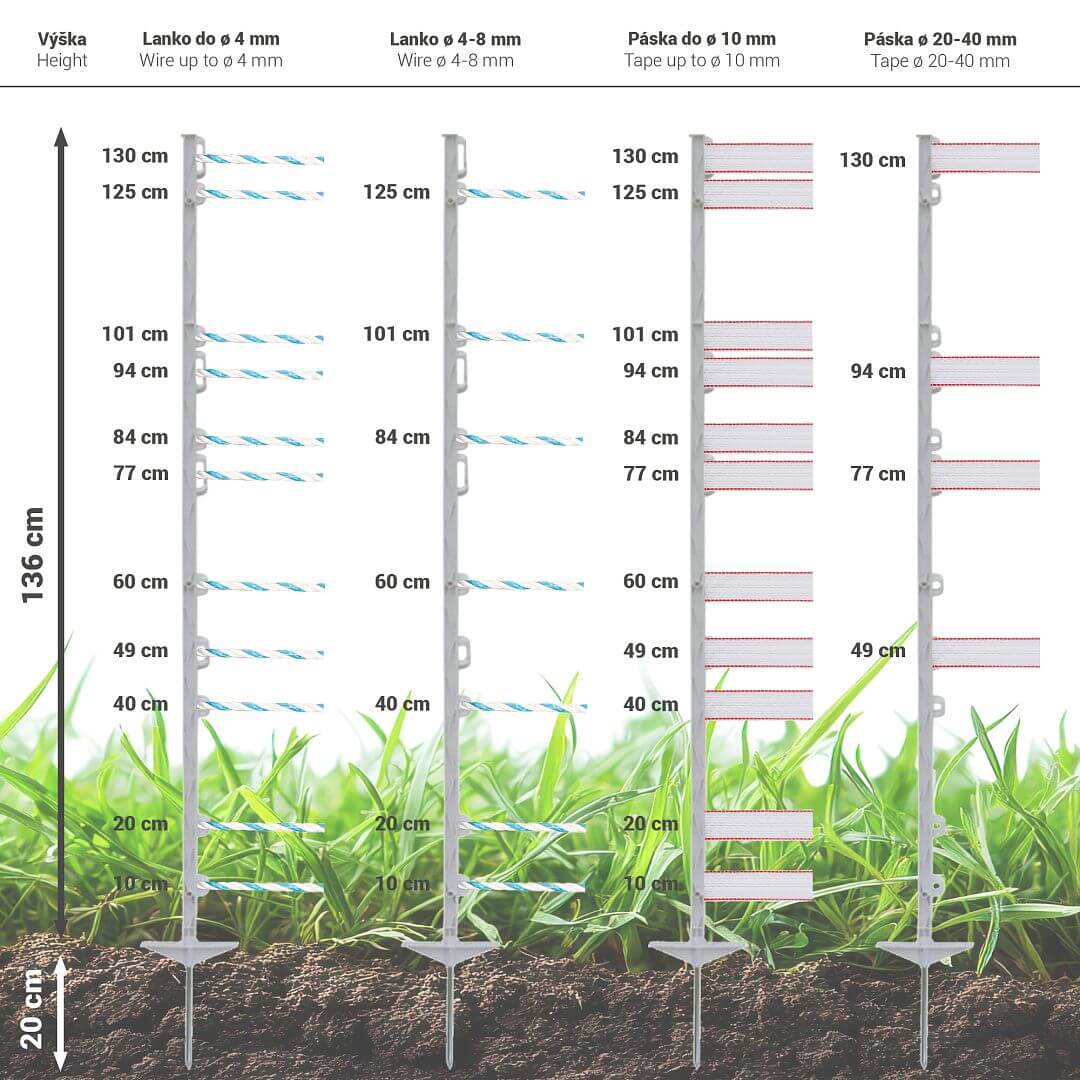

White plastic posts 20 pcs with a total length of 156 cm,136 cm above the ground. Blue conductive tape 20 mm wide in a 250 m roll, 5 × 0,16 stainless steel wire. The set also includes an earthing rod.

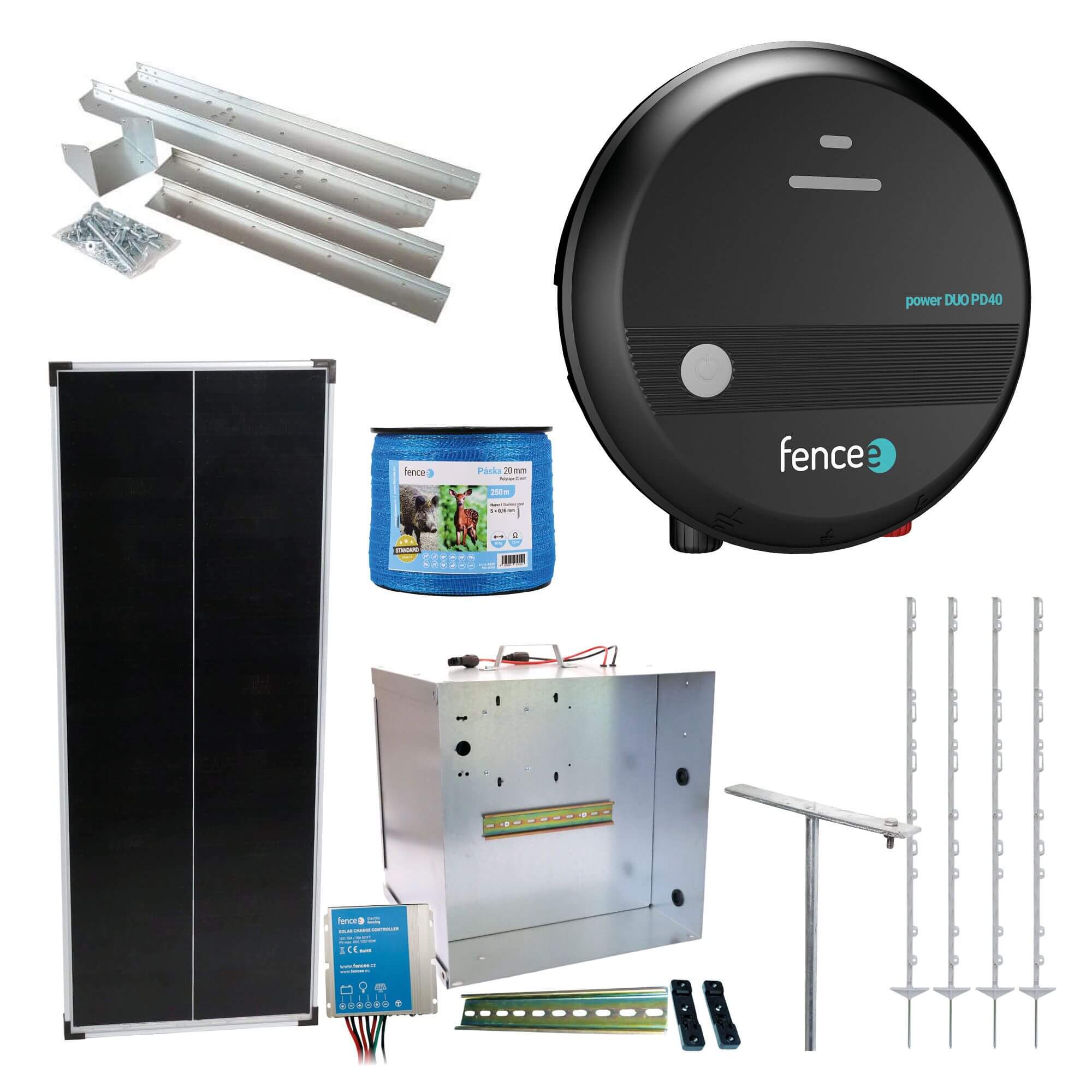

Package contents:
- combined fencee power DUO PD40 energizer
- transport box with DIN rail and 10 A regulator
- solar panel with 100 W output
- mounting bracket for attaching the 100 W solar panel to the transport box
- blue fence polytape 20 mm, 250 m, 5 × 0,16 stainless steel
- earthing rod round, 75 cm
- 20 × white plastic posts 156 cm
The following accessories can be purchased with the solar fence kit:
Battery for electric fence 12 V 44 Ah
High quality and reliable car battery, suitable for use with electric fence. Ergonomic…
Anti-Theft post for Transport box with energizer and battery, spiral, length 34 cm
Anti-Theft and grounding post to prevent theft of the transport box with energizer and…
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 80 - 320 mA |
Output energy | 4 J |
Input energy | 5,7 J |
Output voltage | 10000 V |
Output voltage 500 Ω | 5500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 120 km |
Low vegetation | 30 km |
Medium vegetation | 8 km |
High vegetation | 3 km |
Earthing 1 m | 3 × |
El. fence nets | 6 × |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1540 g |
