Product´s description Set of electric fence protection against black, forest animals - high voltage energizer - 2× polywire

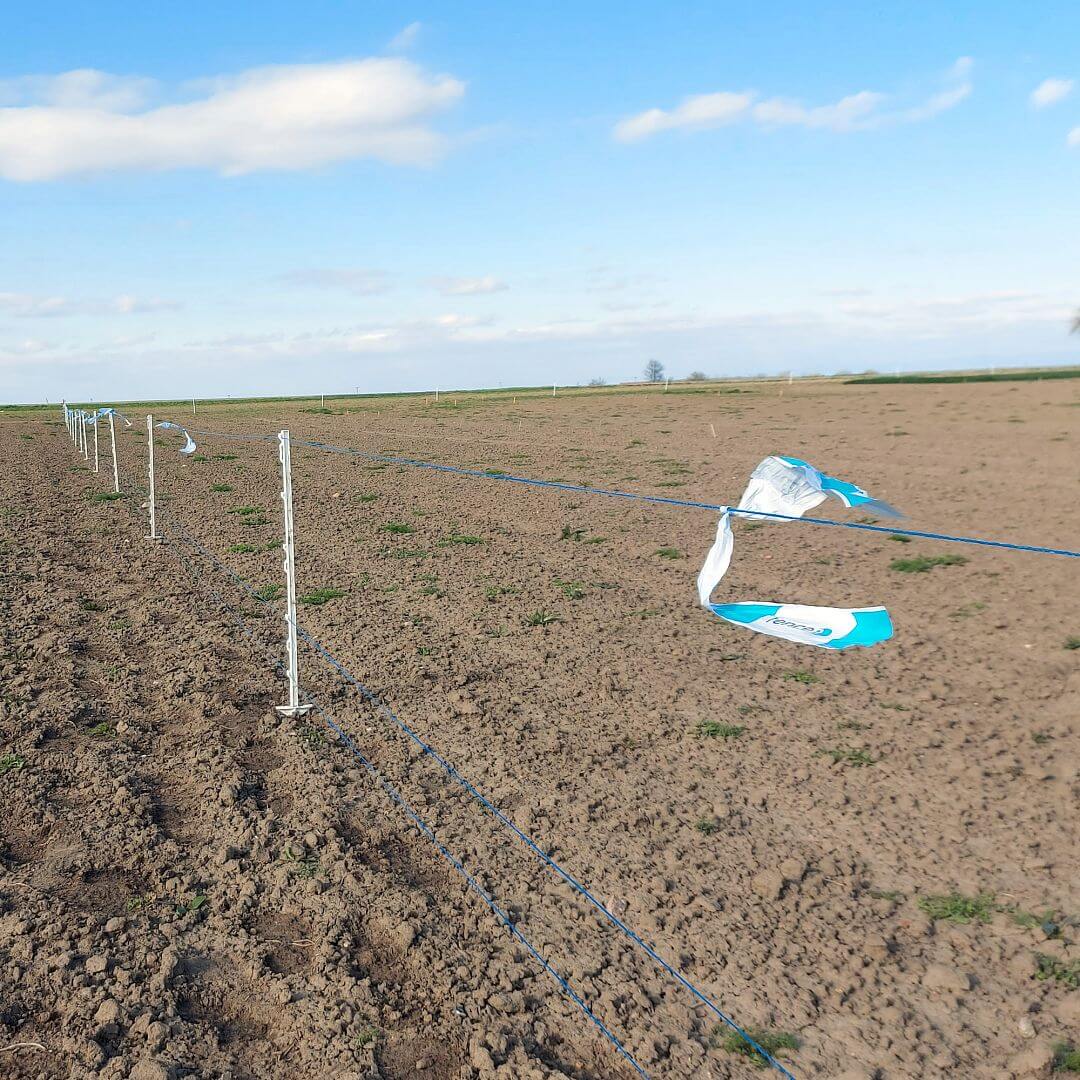

Complete set of electric fencing suitable for protecting land, field, vineyard, orchard, crops and crops against black, forest animals, fallow deer and wild boar. Save your crops from fallow deer and roe deer. Stop trees and fruits from being bitten. Prevent wild boar from tearing up fields, wheat.

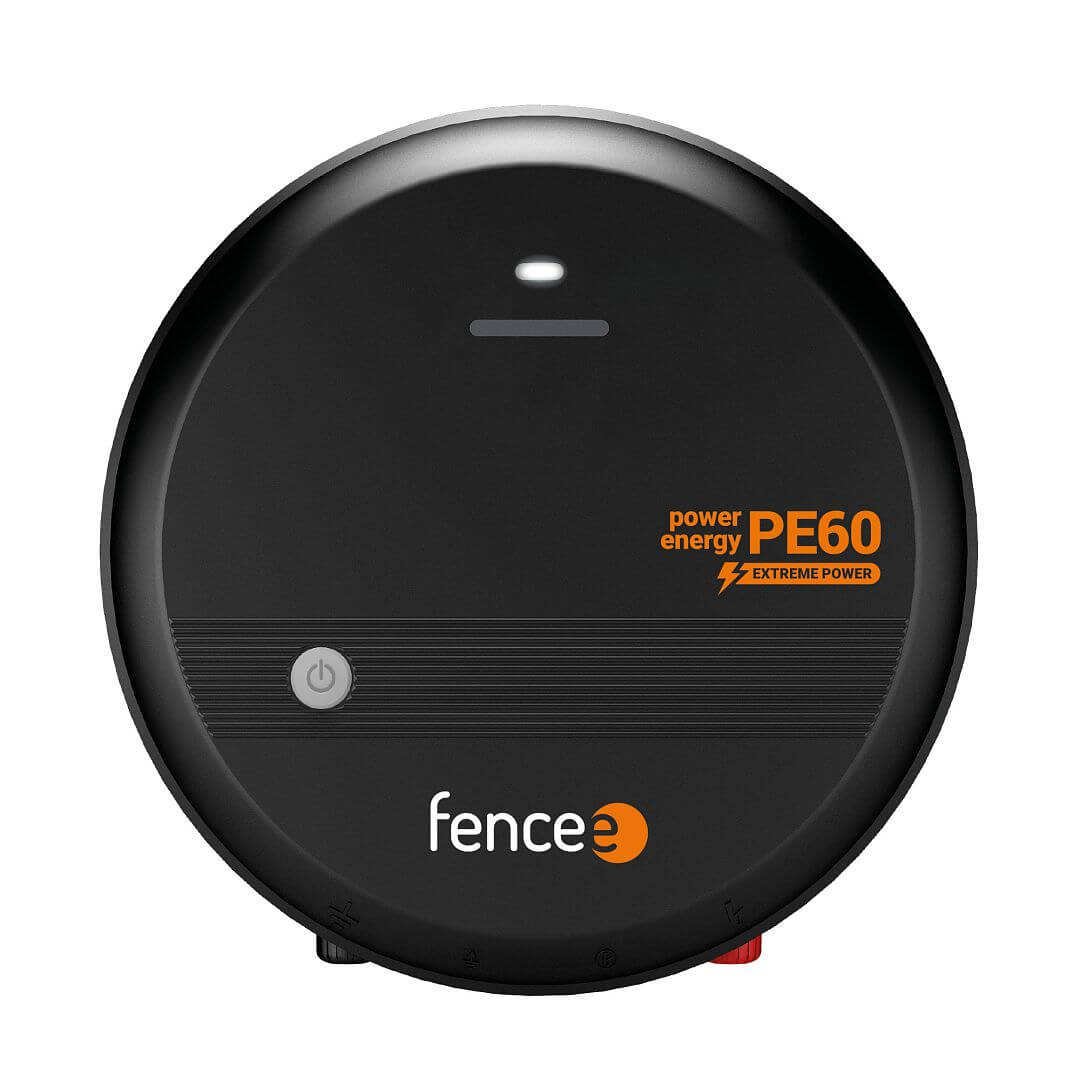

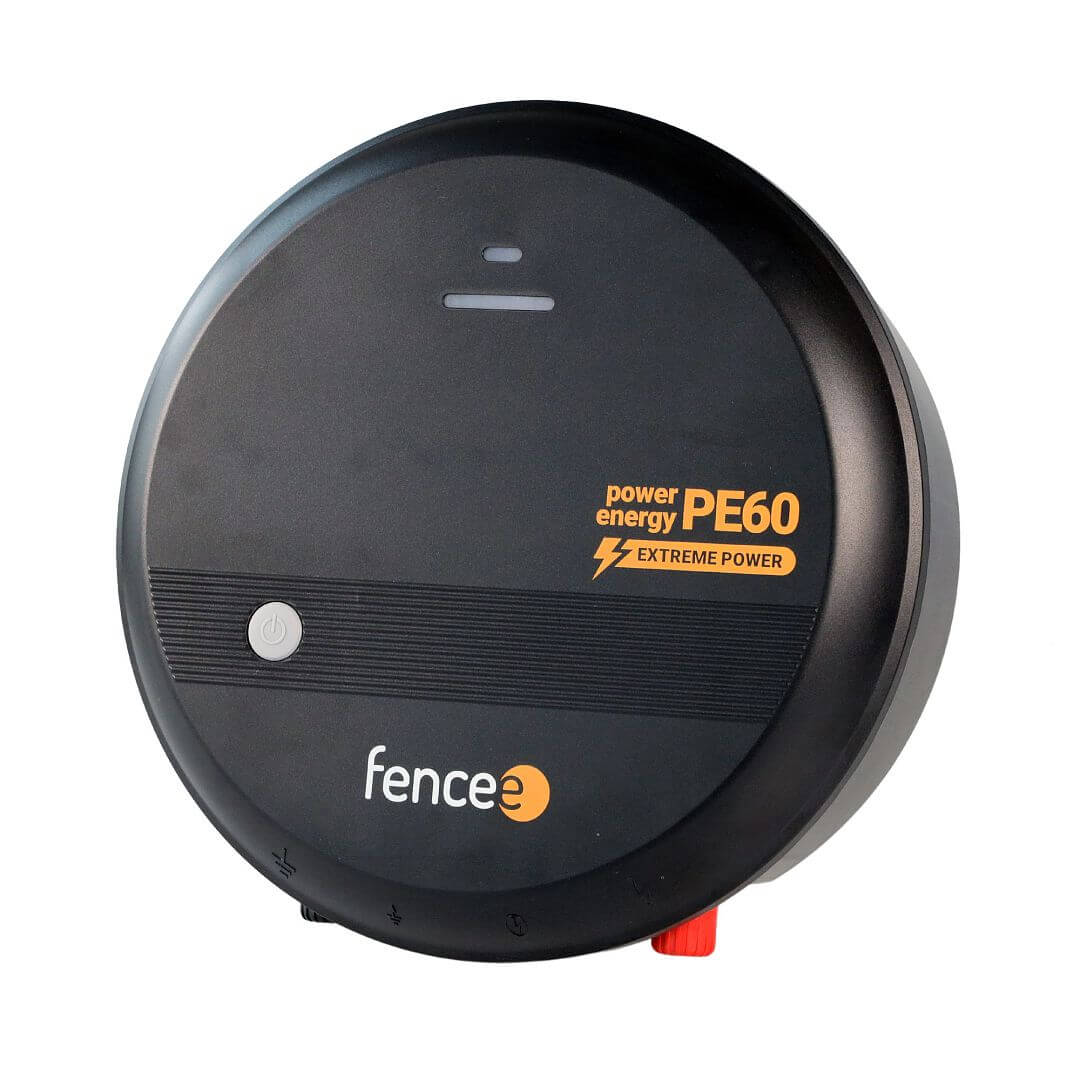

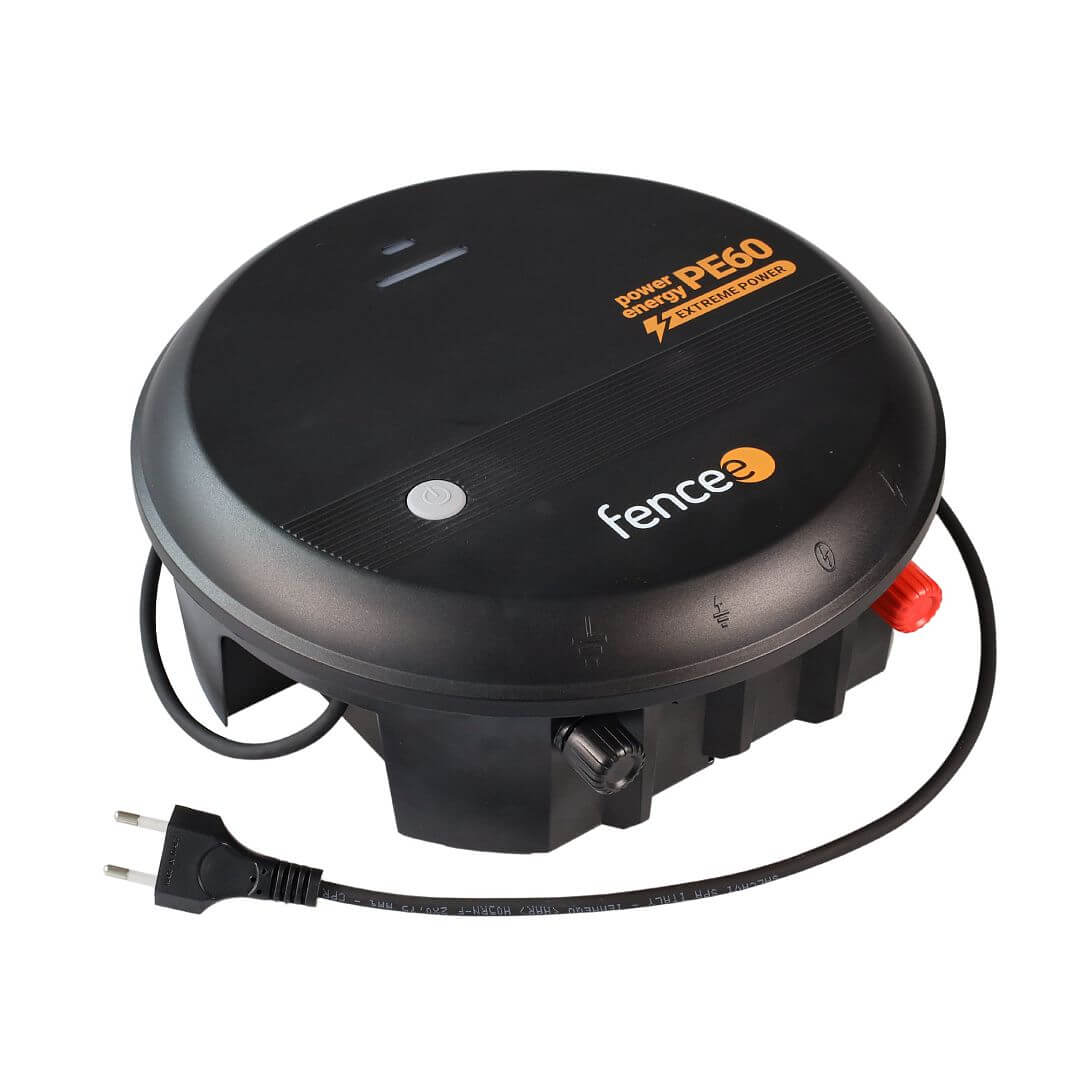

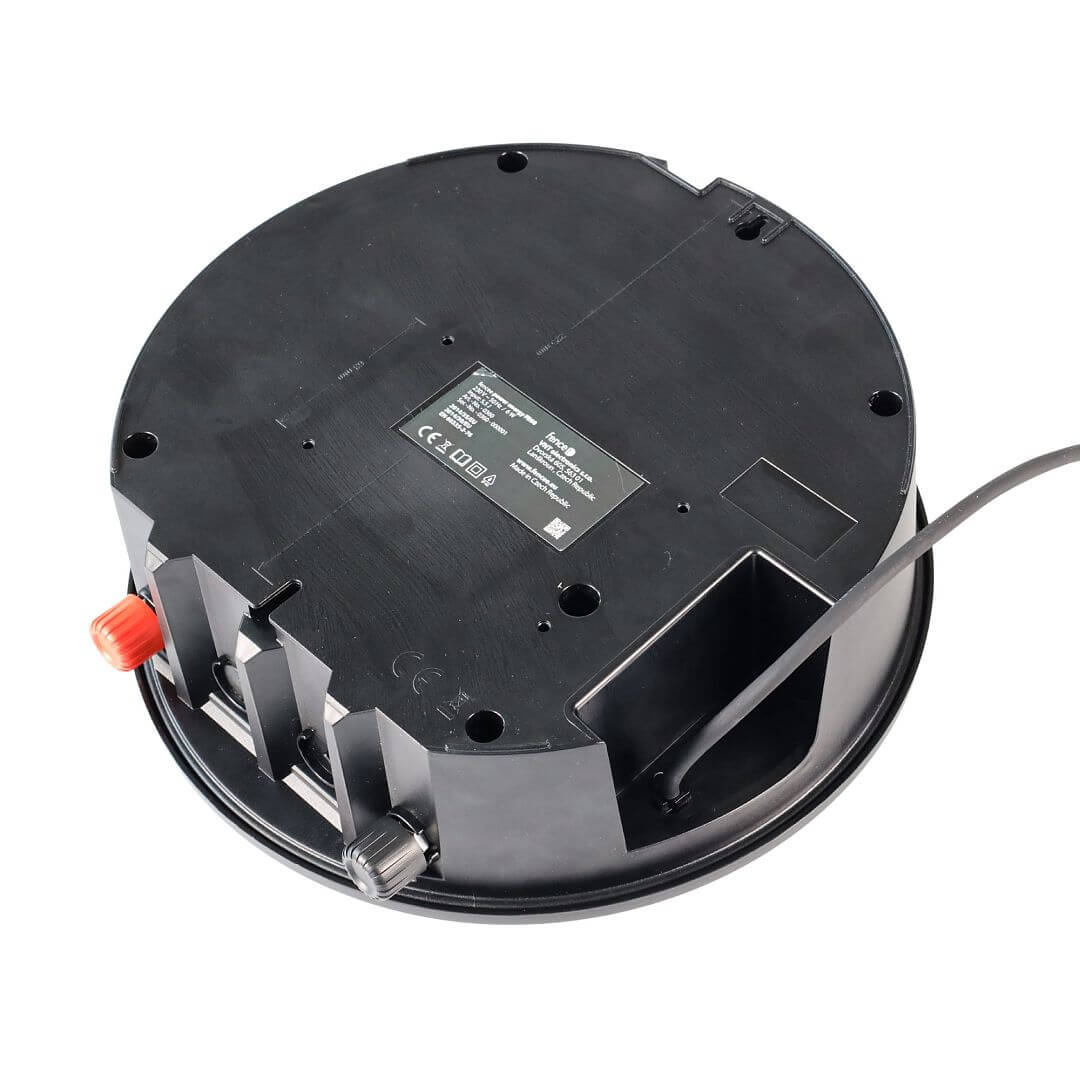

Powerful power supply fencee power energy PE60
High-power mains power supply with 5 J suitable for vegetation-laden electric fences. Output voltage 12 500 V. Powerful mains fence with a specific transformer designed for very high loads. Suitable for less sensitive and difficult to guard animals. Ideal fence for protection against wild boars and wolves. For high vegetation fences with a total length of up to 70 km. ON/OFF and LEDs. Can power up to 25 electric mains.
More about the power energy generator PE60
Accessories to build an electric fence

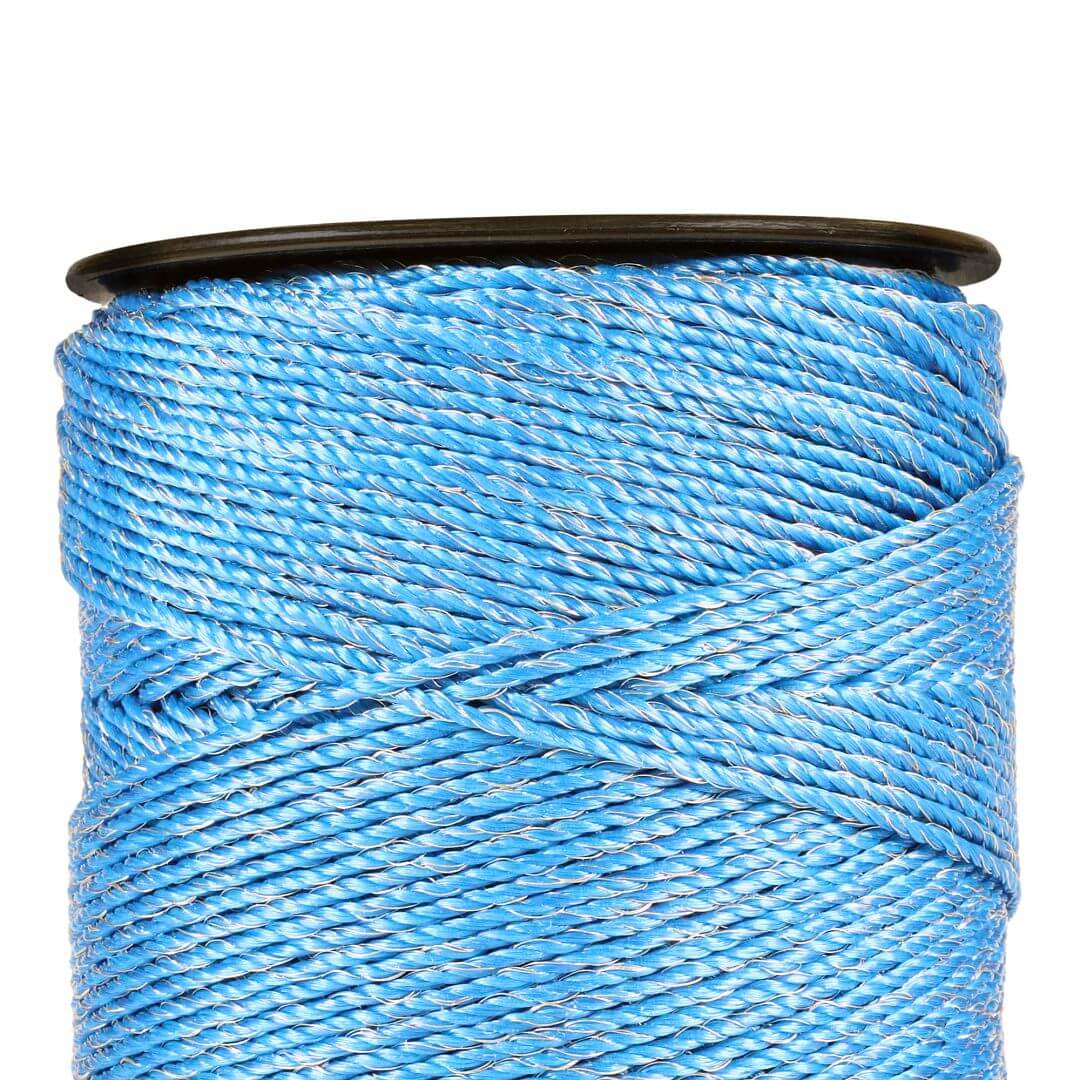

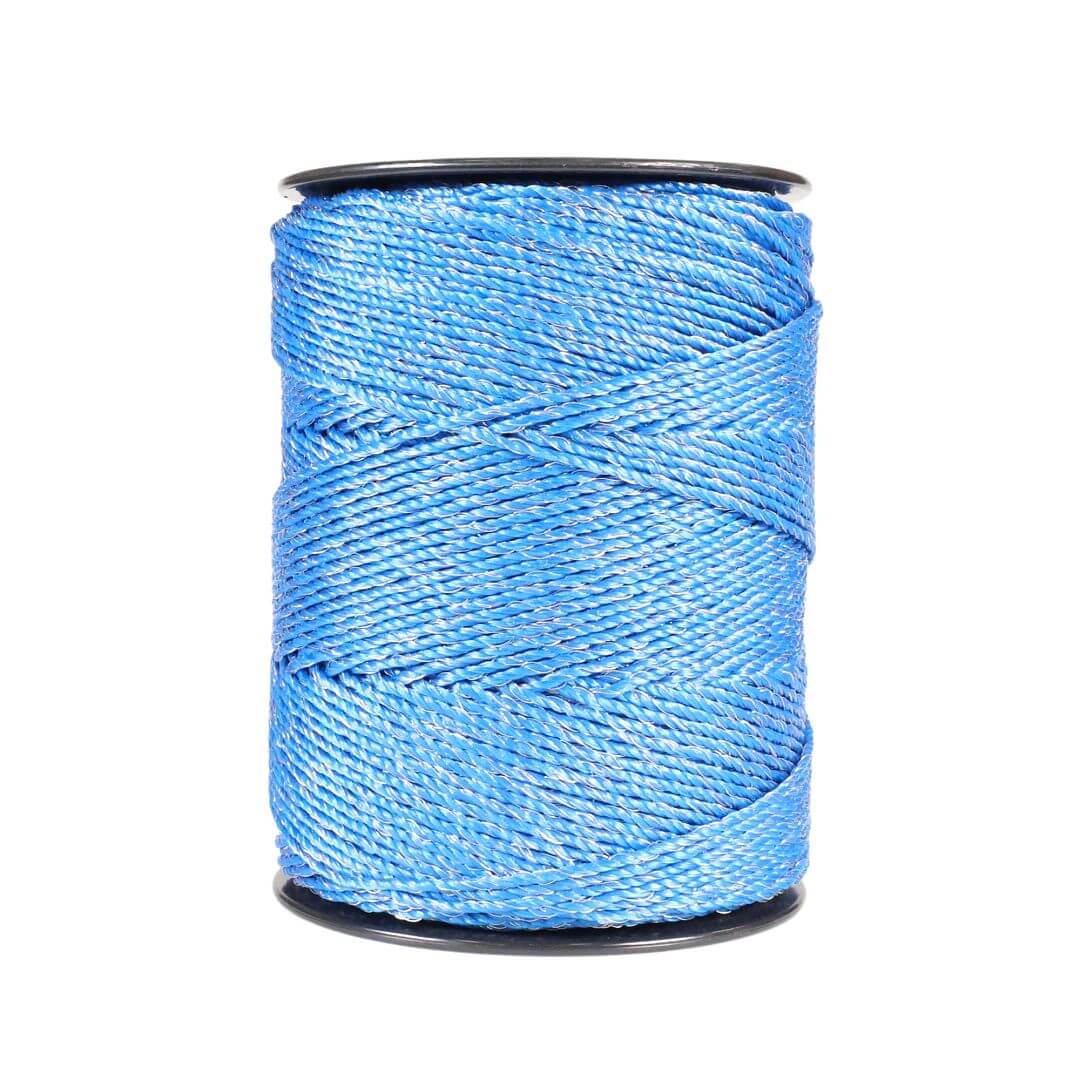

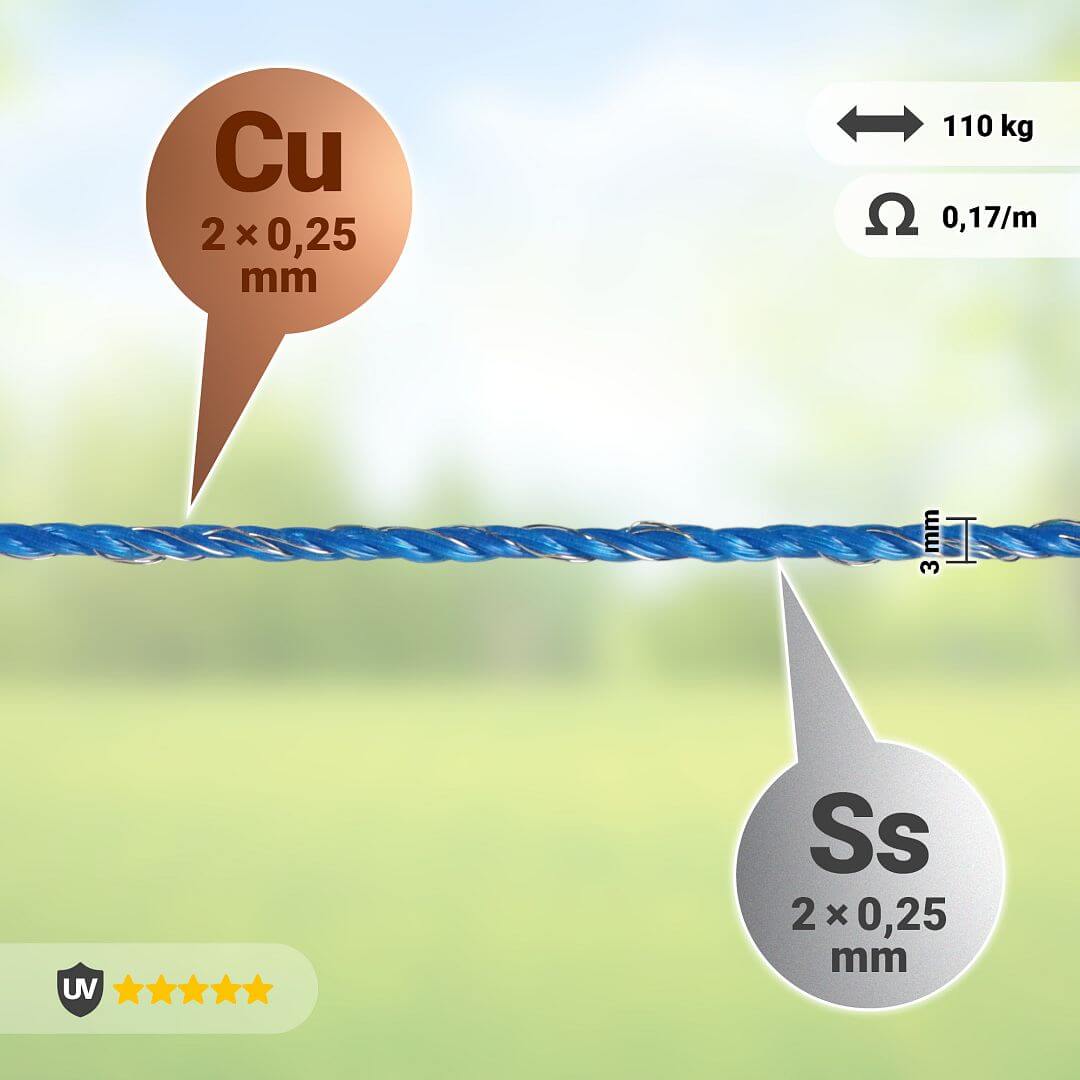

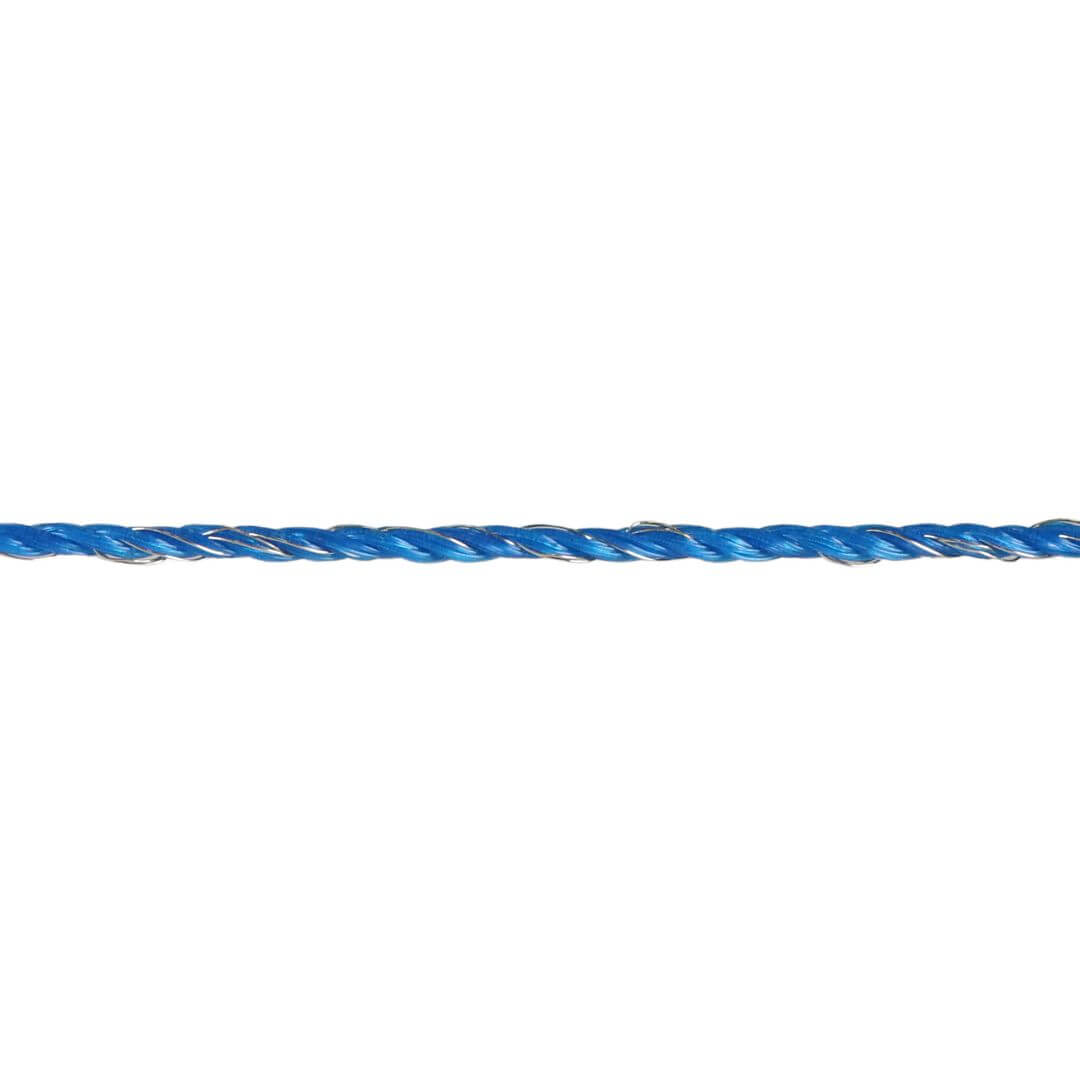

The complete fencing kit includes 2 pieces of high quality blue rope Ø 3 mm. The copper conductors ensure maximum conductivity - a resistance of 0.17 Ω/m. The blue colour is most visible to the eye of black and wild animals and acts as a warning before touching the fence itself. The rope for the fence in a 400 m roll is made of a strong material that is tear-resistant and has a long service life.

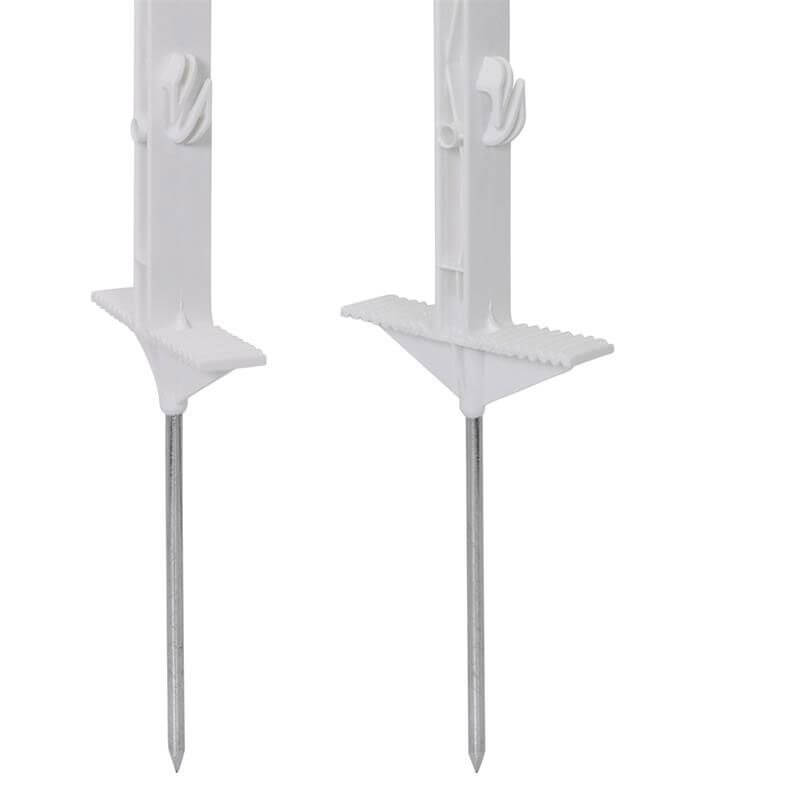

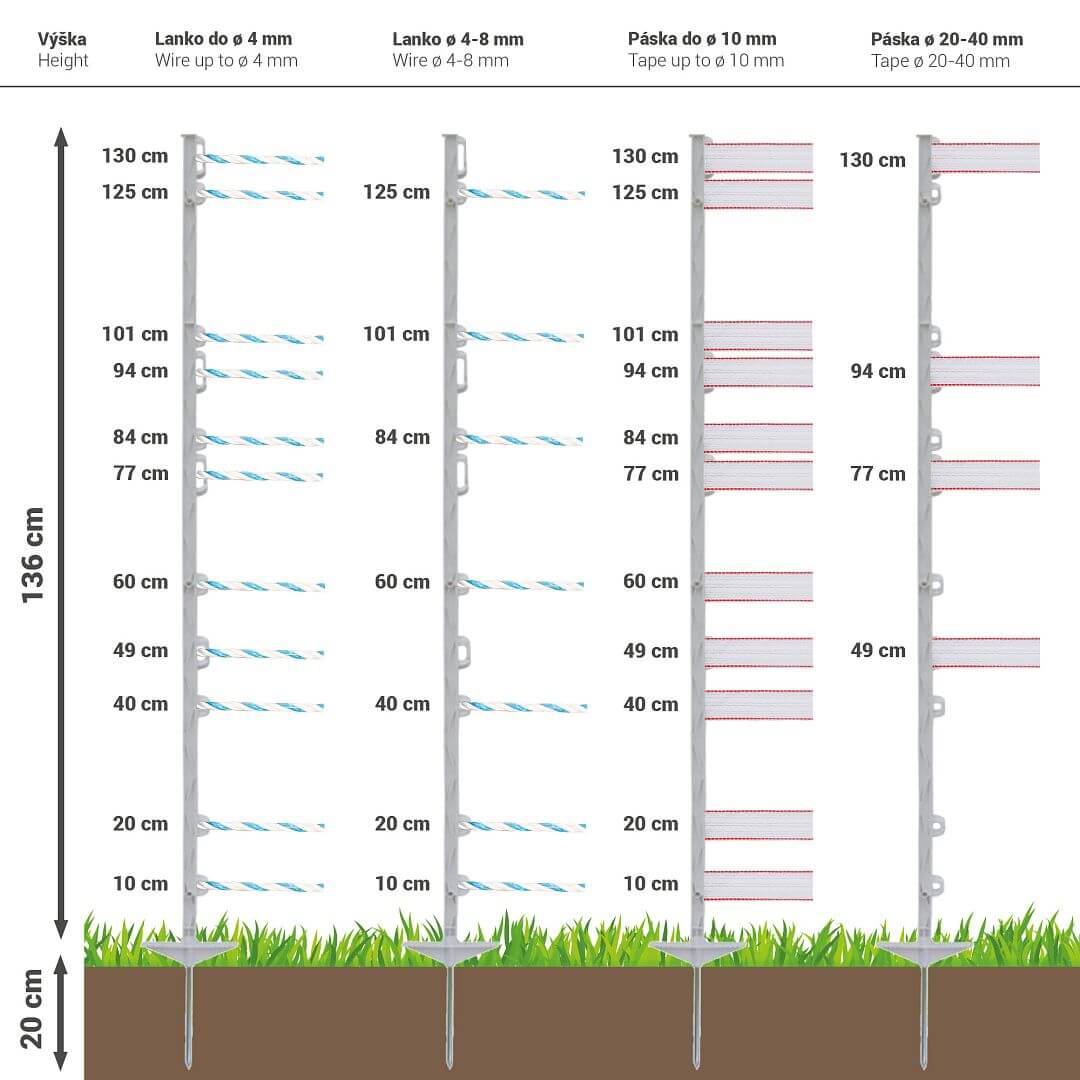

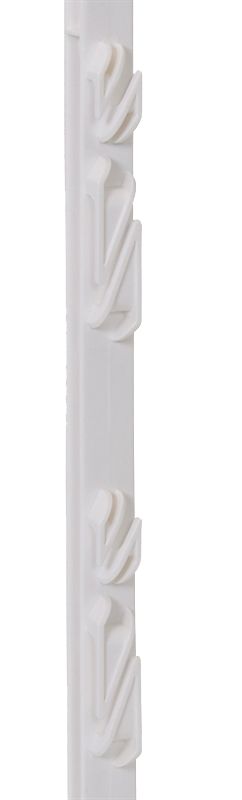

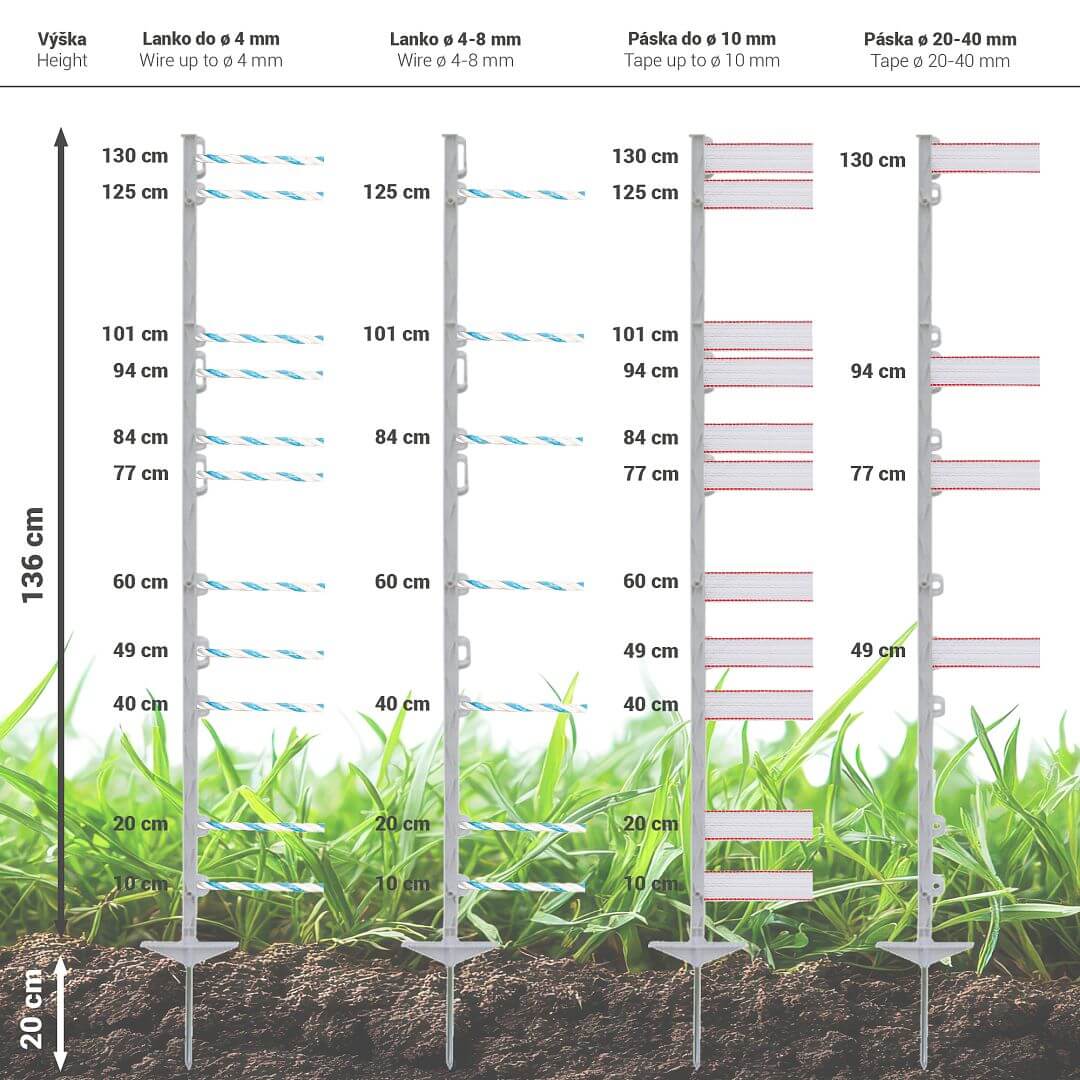

The fencing height of up to 136 cm above the ground is created by 15 mobile plastic posts with a total length of 156 cm and 11 eyelets for individual wire pulling.

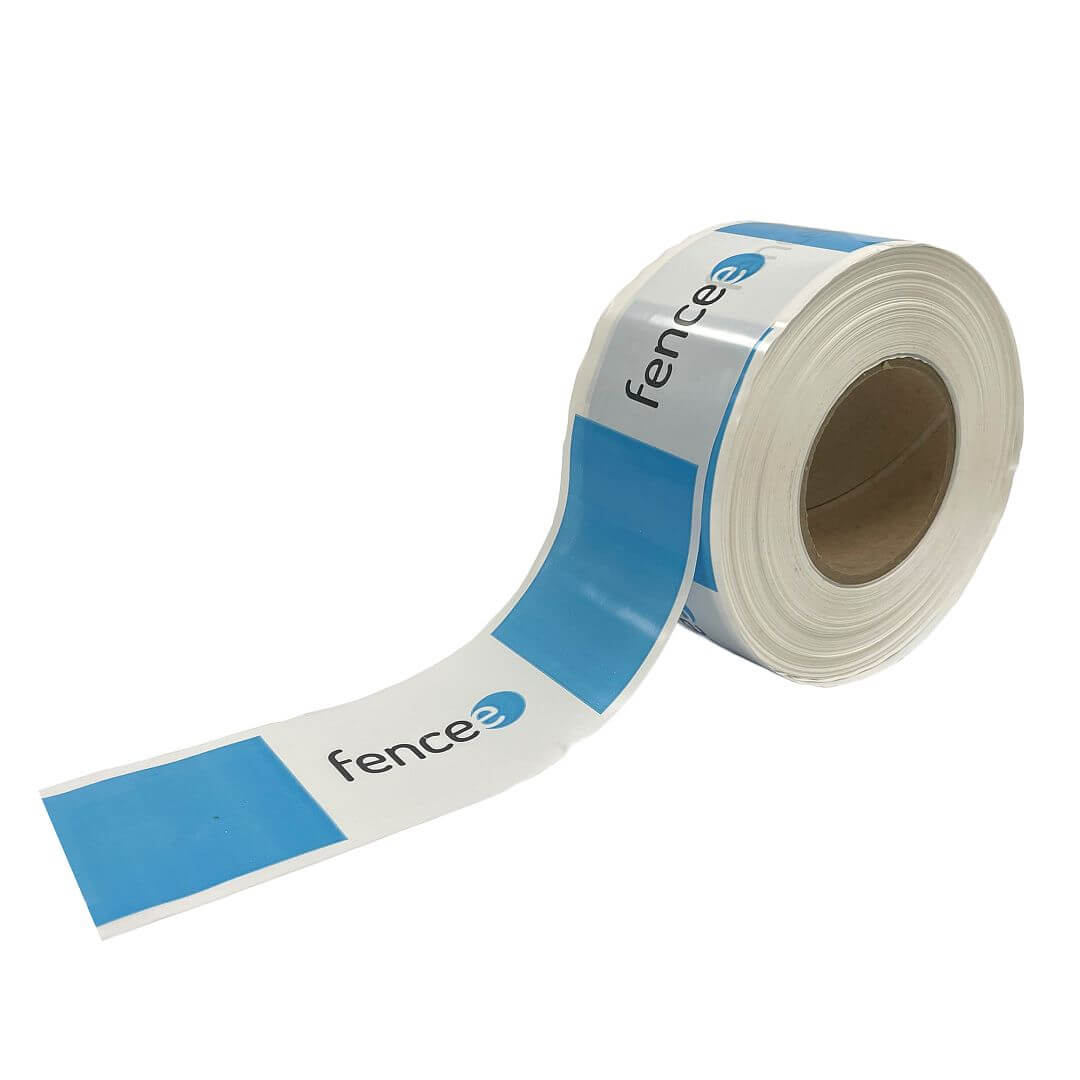

Warning signal tape - barrier
Signal plastic tape for electric fencing and for electric nets against game and wolves, blue and white 220 m. Acts as an optical and acoustic barrier. Increasesvisibility.
All necessary cables and ground rod included.
The complete electric fencing kit is practical and easy to assemble. The kit also includes a ground rod and all the necessary connecting cables to instantly put the mobile sheep enclosure with wolf protectioninto operation.
Package contents:
- fencee power energy PE60 mains generator
- 2× blue cable 3 mm, 400 m, copper 2×0.25 mm and stainless steel 2×0.25 mm
- 15× post 156 cm (136 cm above ground), 11 eyelets
- 1× blue-white warning signal tape

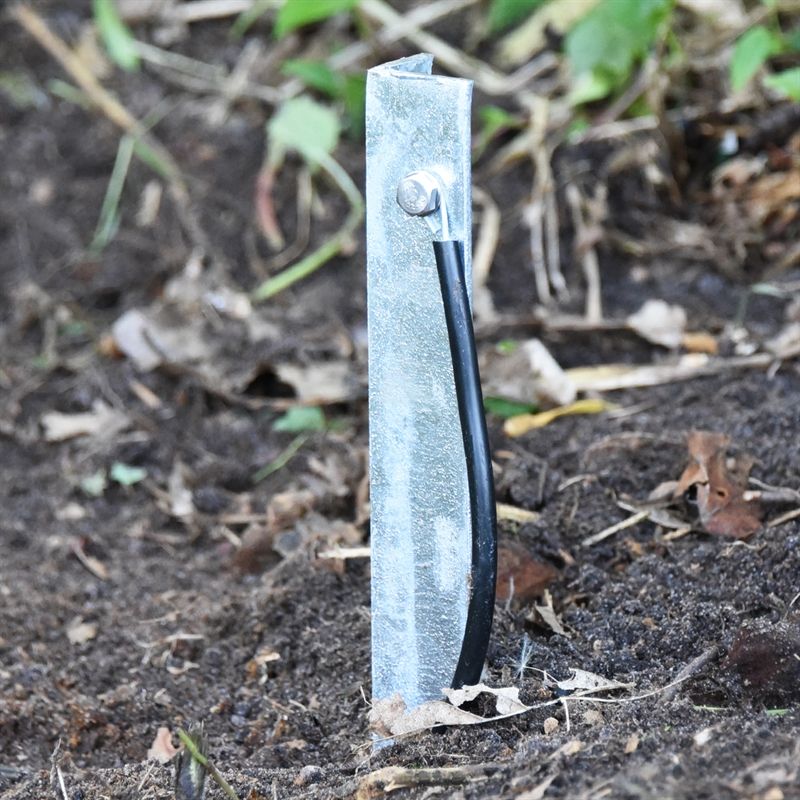

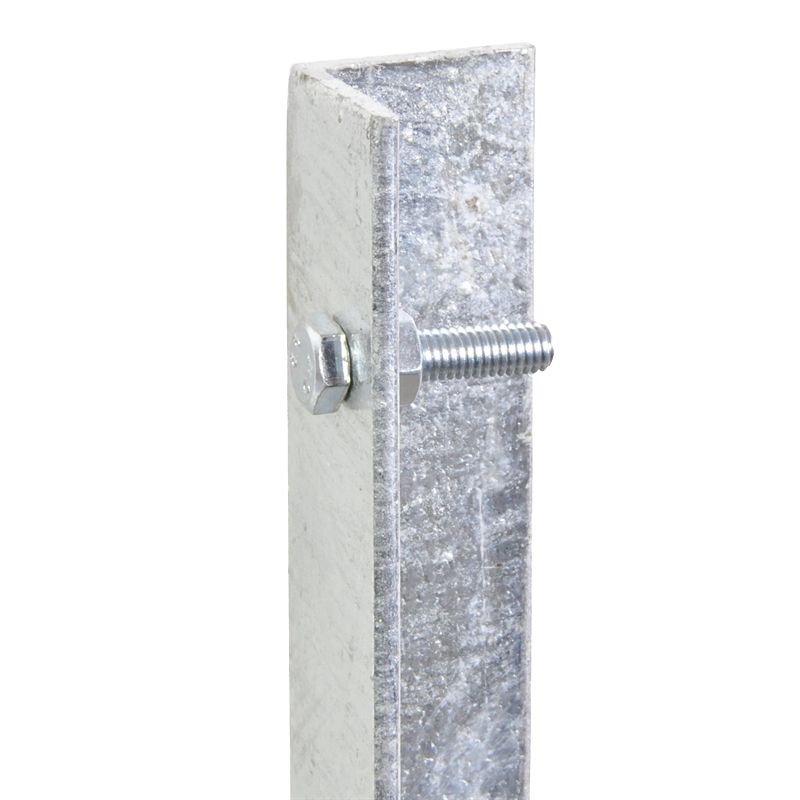

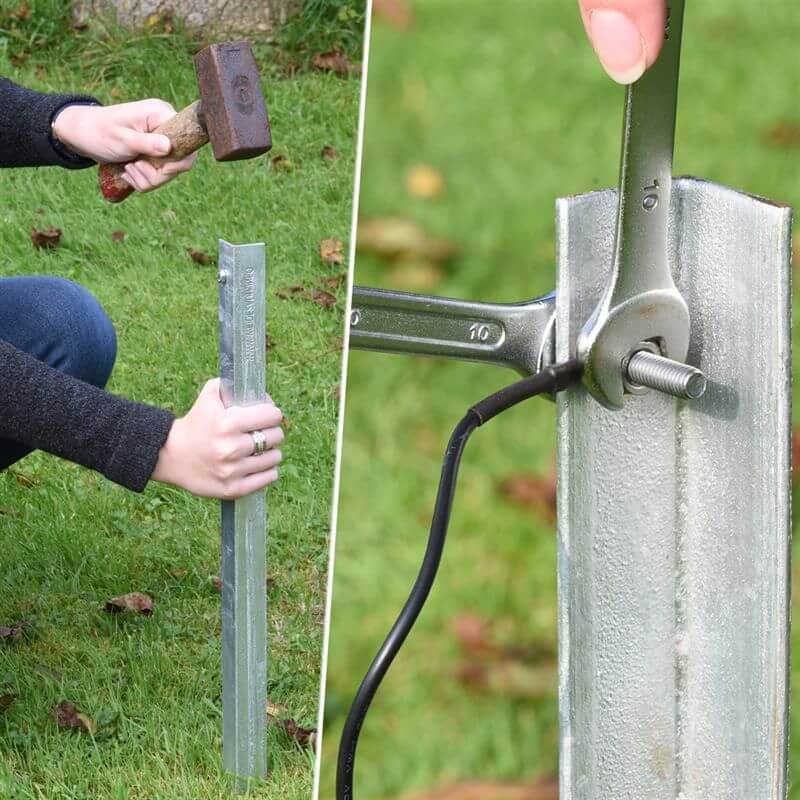

- 1× ground rod 100 cm
The individual items can be easily reordered according to the length of your installation.
Included in the generator package:
- 150 cm earthing cable (eyelet to eyelet)
- connection cable 100 cm (eyelet-heart)
- power cable 100 cm
- screw and dowel for installation 2 pcs
- fencee warning plate
- operating instructions
Power source | 230 V ~ |
Energizer consumption 230 V | 6 W |
Output energy | 5 J |
Input energy | 5,5 J |
Output voltage | 12500 V |

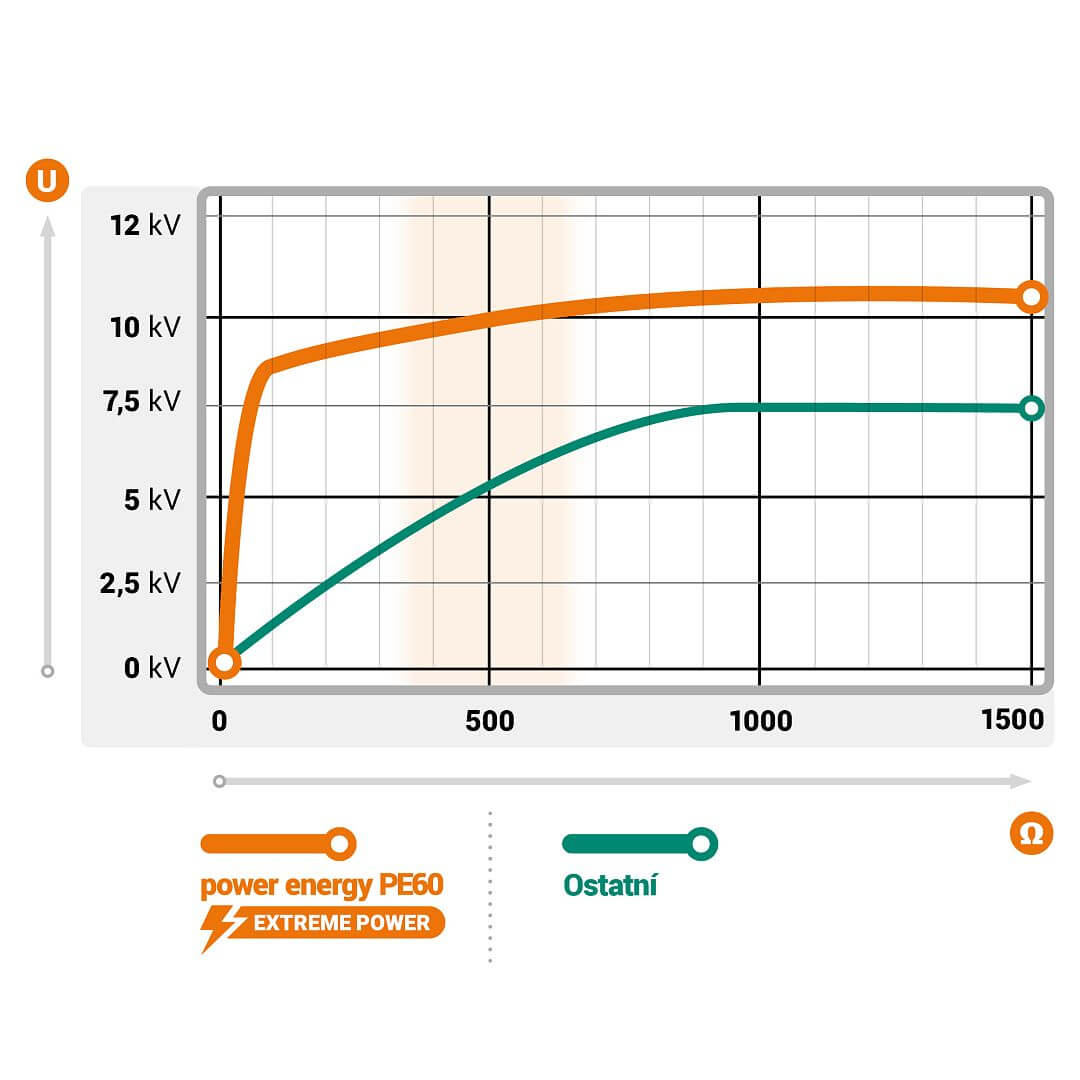

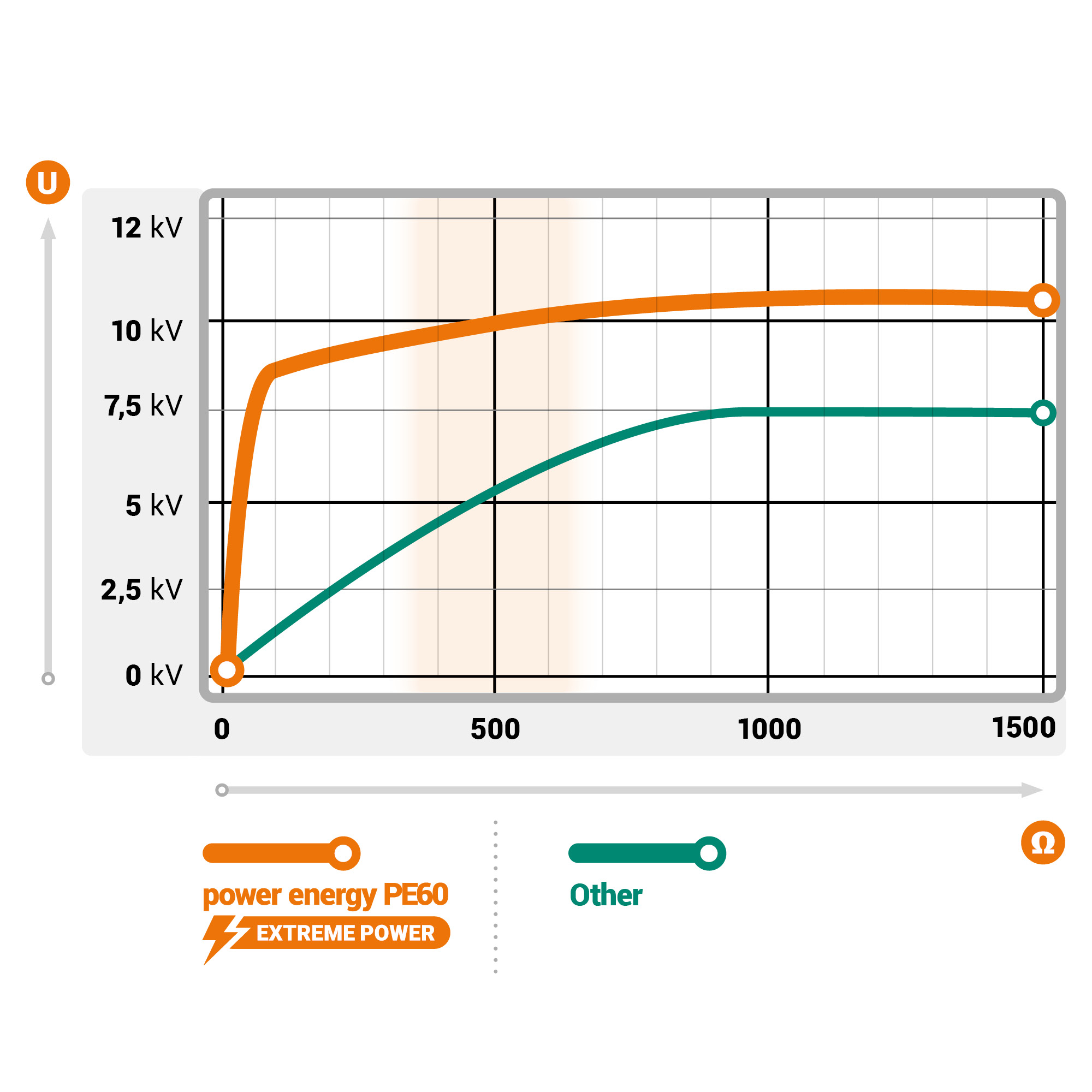

Output voltage 500 Ω | 10000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED error check | |
TEOR. max. CEE | 800 km |
Low vegetation | 70 km |
Medium vegetation | 25 km |
High vegetation | 10 km |
Earthing 1 m | 5 × |
El. fence nets | 25 × |
DIN rail | |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3450 g |
