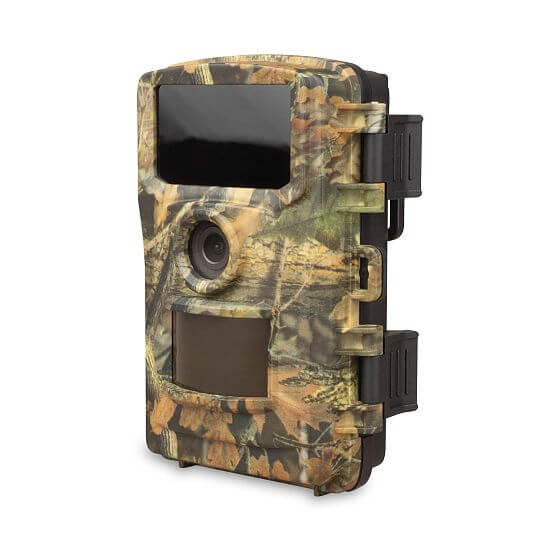

Dogtrace d-guard 940 photo trap

Functions of product Dogtrace d-guard 940 photo trap

color photo 940nm IR diodes resolution photo 20 Mpx resolution video 1080 px lens vision 80° waterproof camera display size 2" number diodes 42

Product´s description Dogtrace d-guard 940 photo trap

The photo trap remains in standby mode and activates independently within 0.4 s of motion detection.

During the day, the photo trap takes colour photos or videos. At night or in low light conditions, the camera's infrared LEDs are activated to act as an invisible flash, allowing black and white photos and videos to be taken.

The photo trap is perfectly waterproof and snowproof, so it can be left outdoors for months while automatically saving photos or videos in digital format to a MicroSD memory card.

Using the photo trap:

  • wildlife tracking or tracking while hunting
  • surveillance and intrusion prevention in homes, shops, offices, agriculture, etc.

Features of d-guard 940 photo trap:

  • 42 invisible 940nm IR LEDs do not emit any type of flash or visible light
  • powered by 1.5 AA batteries (not included) or 6V DC adapter (not included)
  • lower gloss design to allow for more camouflaged placement
  • Attaches to a screw stand, tripod thread or belt
  • tripod allows the camera to be mounted on trees, walls, ceilings
  • standby battery lasts up to 8 months
  • programmable on/off time
  • Waterproof photo trap with IP65 protection
  • 20 Mpx photos and 1080 HD video with sound
  • adjustable video length 10 sec to 10 min
  • 5 s to 1 hr interval between shots
  • burst mode up to 3 photos
  • MicroSD card up to 64 GB
  • Integrated USB port
  • time-lapse function

Package contents:

  • Photo Trap
  • USB cable
  • operating instructions
  • mounting strap
  • stand with screw base
