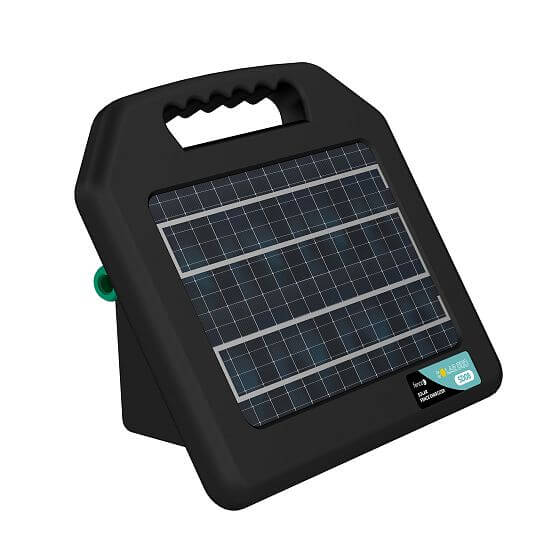

Portable electric fence energizer fencee solar DUO SD08

Functions of product Portable electric fence energizer fencee solar DUO SD08

Solar System Combination Operation ON/OFF Button LEDs Battery Management Low Power Smart Control Safe Shock ST Transformer Completely Resistant Power Saving Mode

Product´s description Portable electric fence energizer fencee solar DUO SD08

Complex design of solar electric fence with intergrated solar panel for automatic charging of 12V battery. Mobile energizer suitable for electric fences, paddocks and pastures for horses, ponies, cattle, goats.

Solar electric fence energizer SD08 with 0,8 J

Complete 3in1 solar fence (energizer, solar panel and battery) suitable for electric fences up to 15 km. The solar power supply allows the energizer to be used in locations without access to the electricity grid. The energizer can also be operated and charged with a 230 V mains adapter. Indicator LEDs for device function and battery status. Applicable in hobby and professional areas.

High-quality integrated solar panel with 8 W output

The solar panel suitable for outdoors is weather and UV resistant. For automatic recharging of the fence energizer, ensures maintenance-free operation of the electric fence in the summer months.

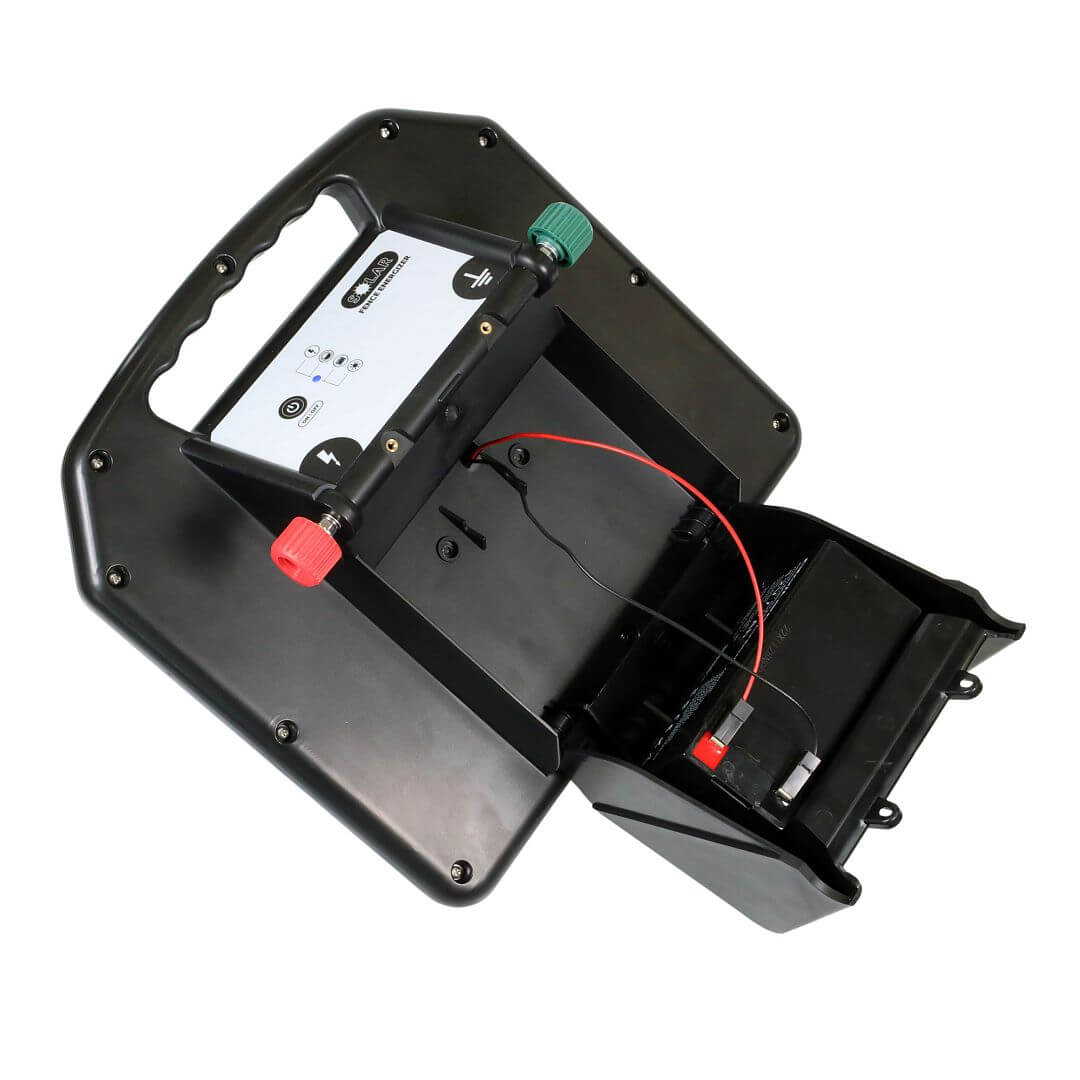

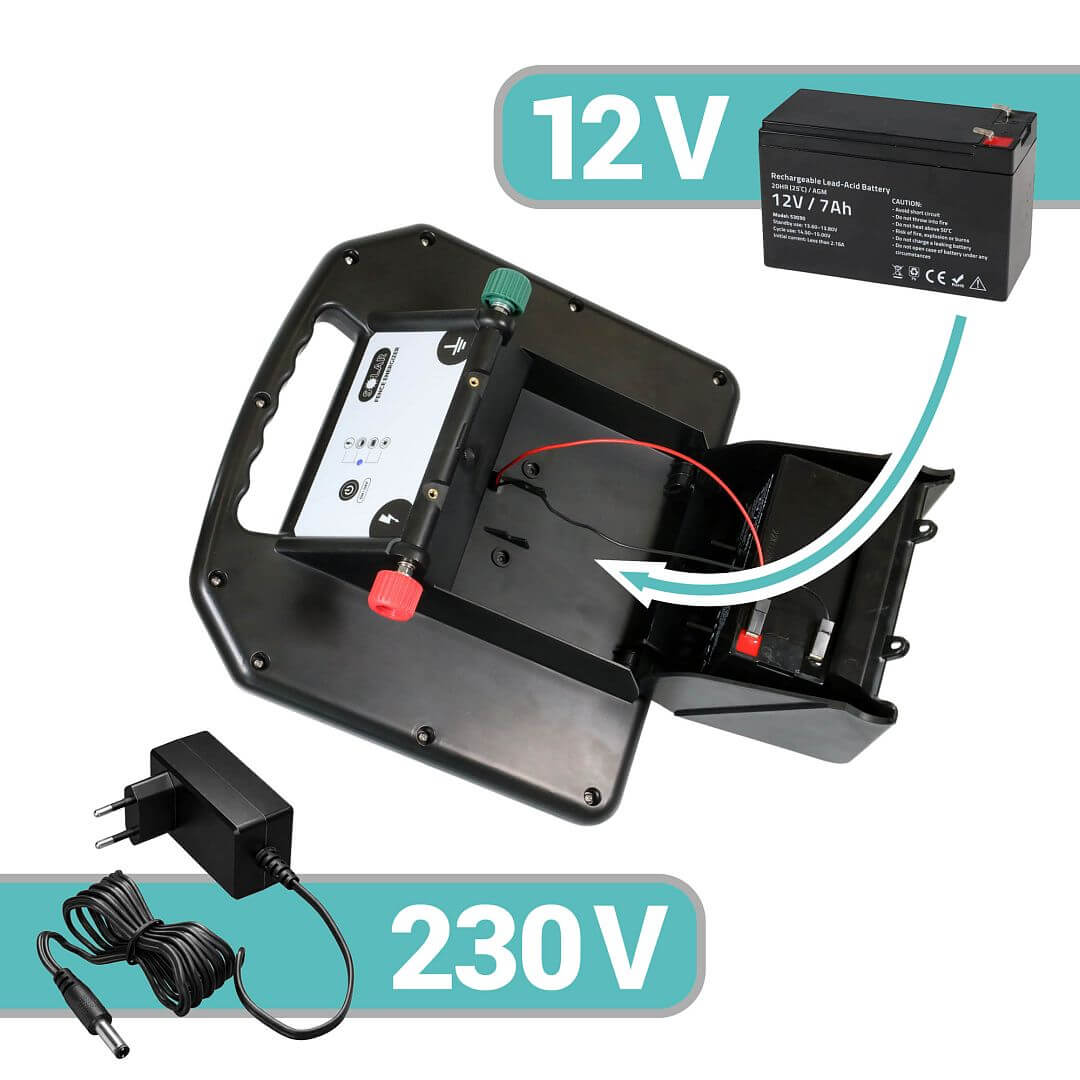

Powerful 12V gel battery 7 Ah with long life

Powerful 12V battery designed for the fencee solar fence, which can be purchased and easily replaced if required. The device has a battery status indicator and deep discharge protection for the longest possible battery life.

Maximum efficient use of the battery and Power save mode

The microprocessor controls the operation of the device, adjusting the optimum power and ensuring maximum efficient use of the battery. The power save mode allows a long press of the ON/OFF button to switch the energizer to a slower mode where the interval between pulses is approximately twice as long. Switching to power saving mode significantly saves battery power.

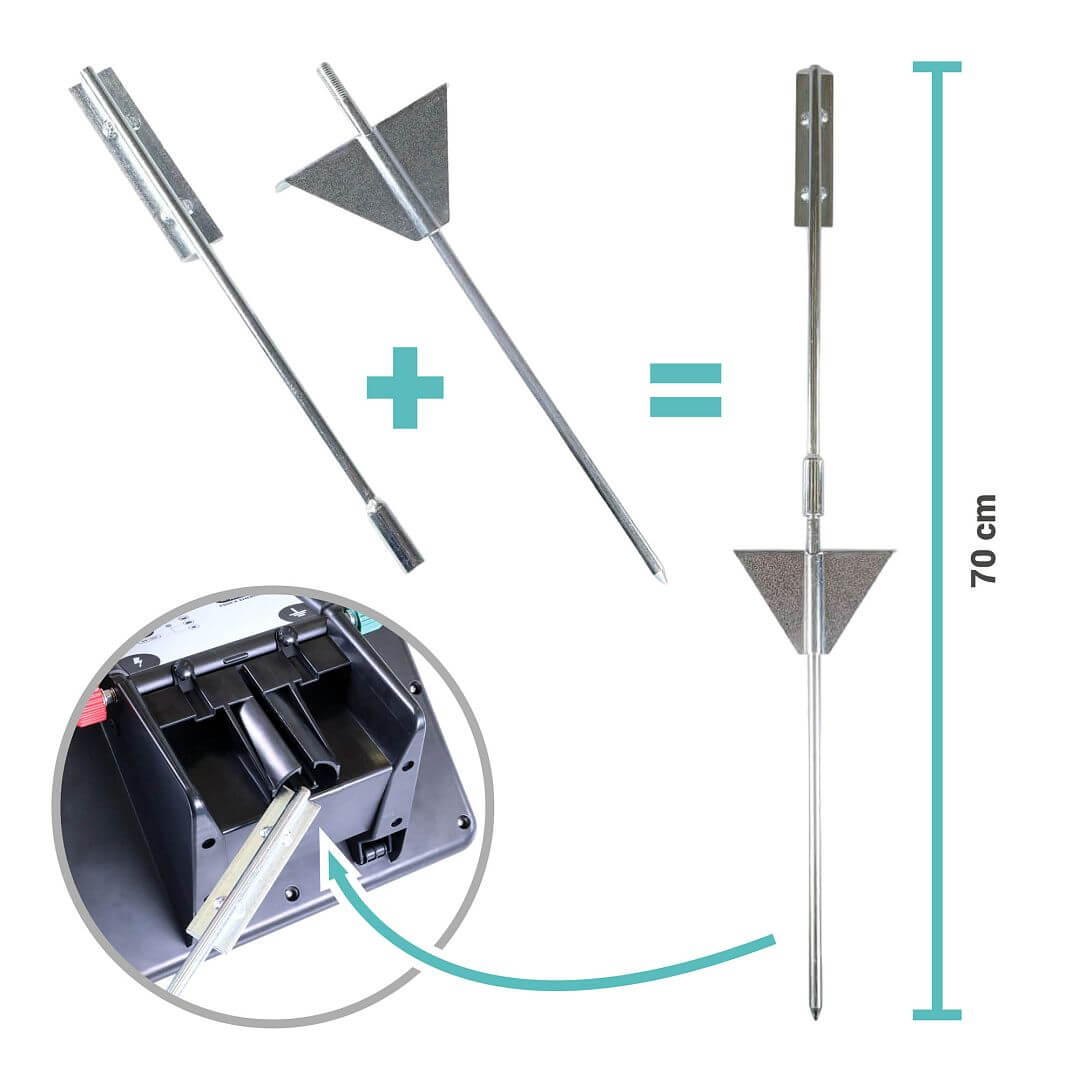

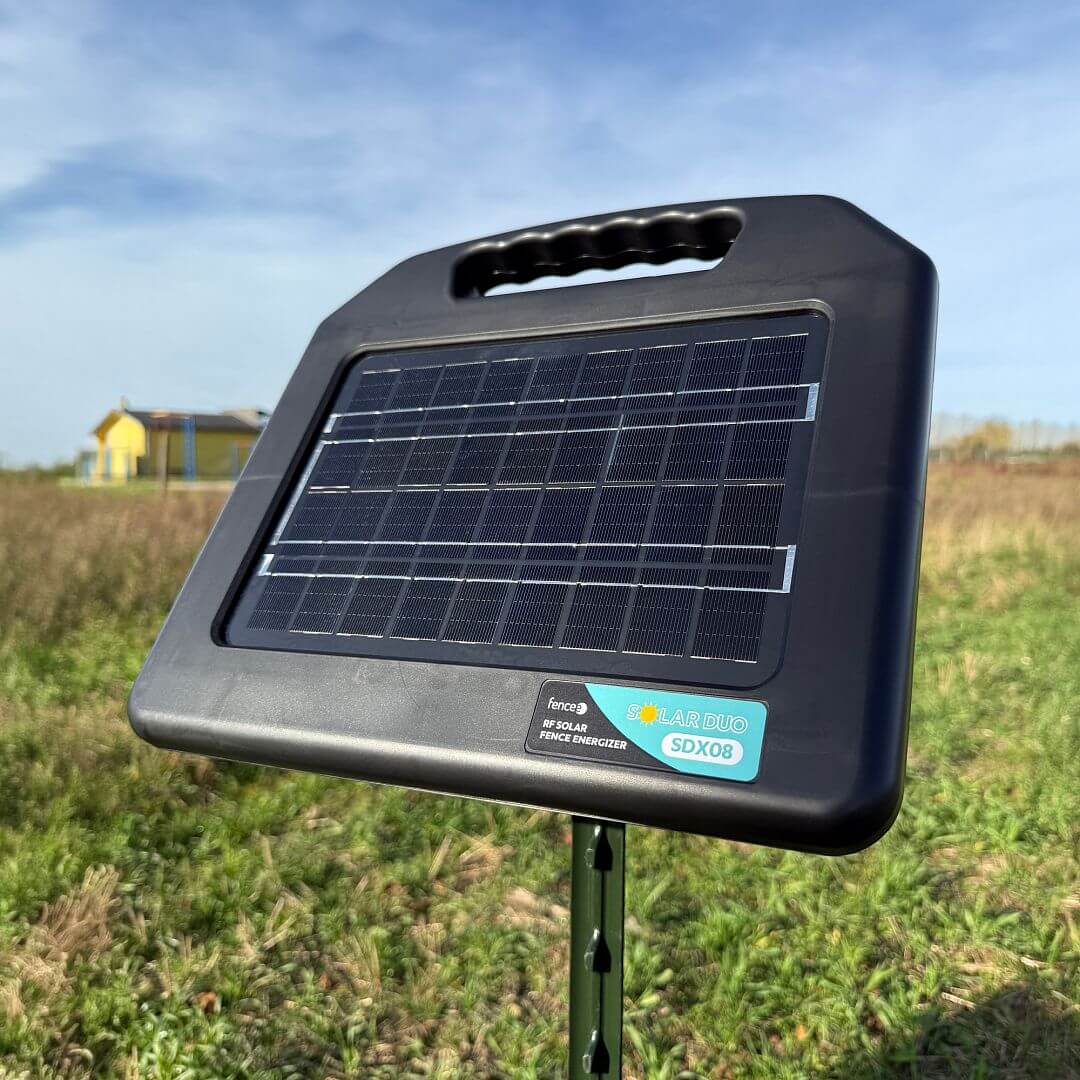

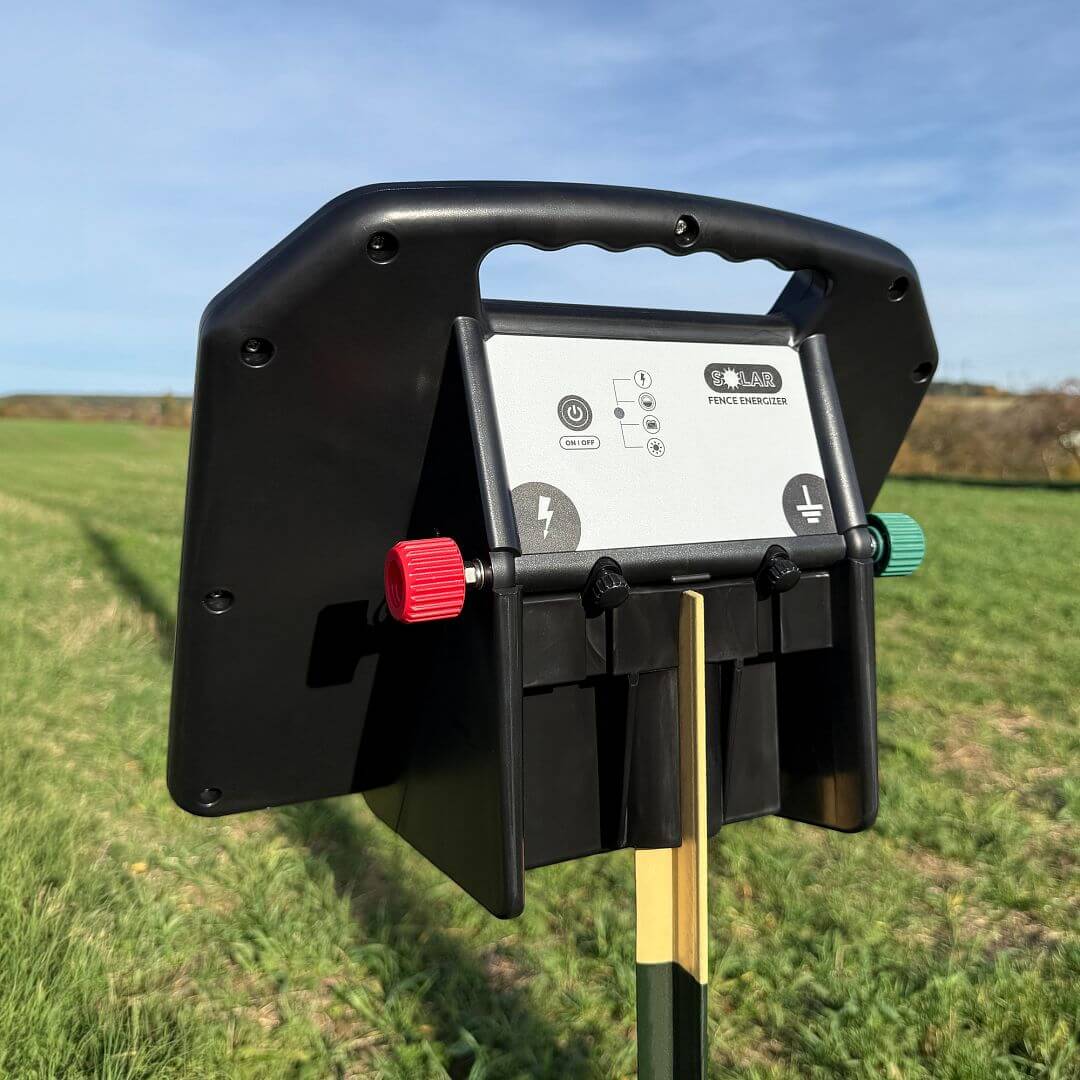

Compact solar fence with practical 360º mounting on a T/U post

The mounting bracket on the rear of the device allows the fence to be attached to a special mounting and also earthing pole (included) at any location. For correct orientation of the solar panel to the sun, use the 360º rotation option. The device can also be mounted on a T-post or universal U-post.

Waterproof compatible design with built-in lightning protection

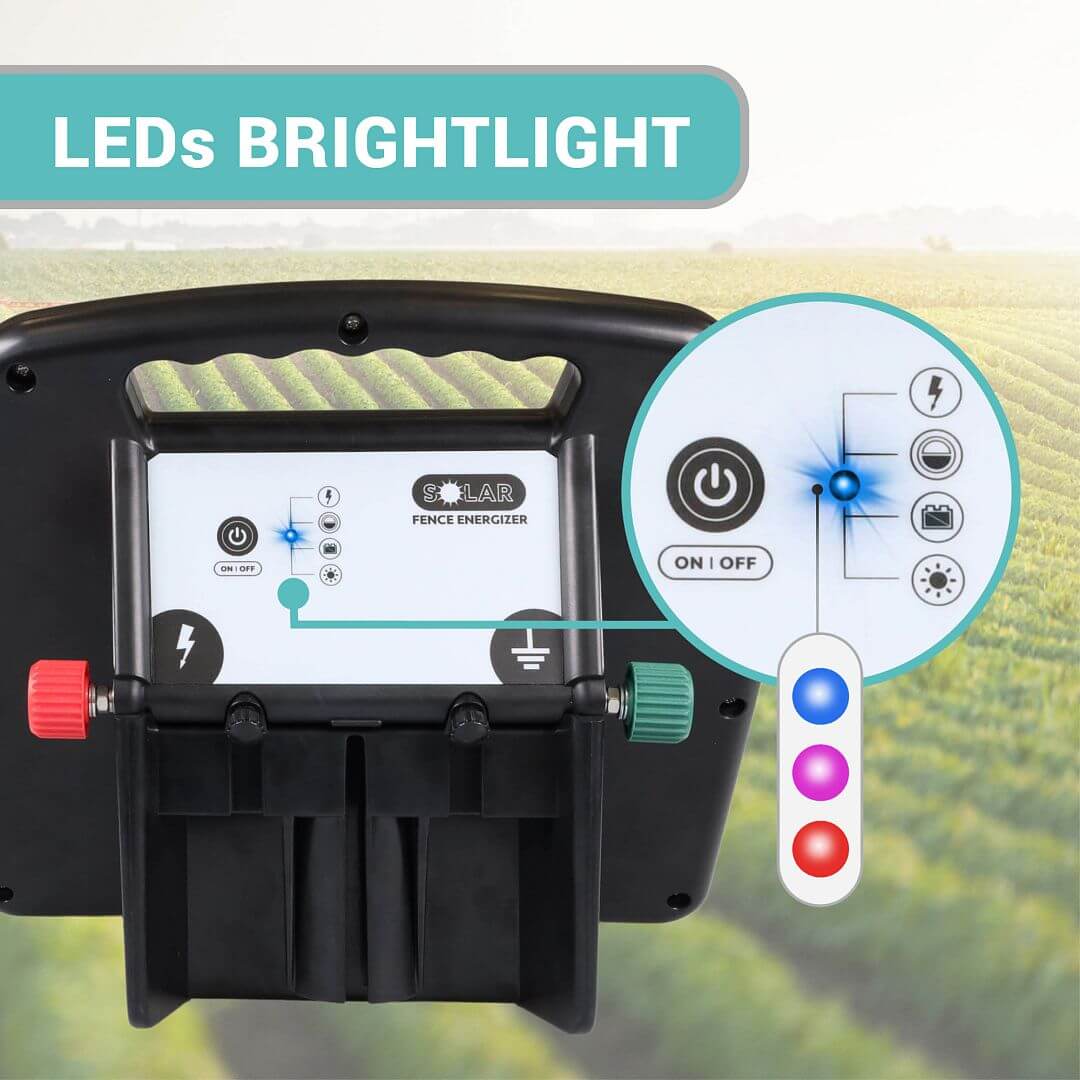

The device is resistant to rain, weather conditions and UV radiation. IP44 protection. The input connector for connecting the mains adapter is waterproof. The energizer has integrated lightning protection. Handle for easy transport.

Package contents:

  • fencee solar energizer
  • Gel battery 12V 7 Ah
  • integrated solar panel 8 W
  • mounting and grounding rod for fencee solar DUO SD
  • Power adapter fencee DUO 14 V 1.5 m
  • Connecting cable 100 cm (eyelet-heart)
  • ground cable 150 cm (eyelet-mesh)
  • fencee warning plate
  • operating instructions

Power source 230 V ~ / 12 V
Energizer consumption 230 V 1,4 W
Energizer consumption 12 V 60 mA
Output energy 0,8 J
Input energy 1 J
Output voltage 10500 V
Output voltage 500 Ω 4500 V
ON/OFF
LED impulse
LED low battery voltage
LED error check
LED indication
Power Save mode
TEOR. max. CEE 30 km
Low vegetation 15 km
Medium vegetation 10 km
High vegetation 4 km
Earthing 1 m 1 ×
El. fence nets 3 ×
Weigth 4600 g
Dimension 37×22×33 cm
Solar panel 8 W
Solar panel consumption 0,75 mA
Operation without sun up to 10 days
Maximum power voltage (Vmp) DC 18V
Maximum power Current (Imp) 0,47 A
Open circuit voltage (Voc) 22,3 V
Short circuit current (Isc) 0,3 A
Solar panel dimension 30,3×21,3 cm

Manuals and files for downloading

Manual fencee solar DUO SD, RF SDX
