Read about the benefits and comfort of Smart electric fencing in the words of renowned Shetland sheep breeder Mr Roman Cieslar.

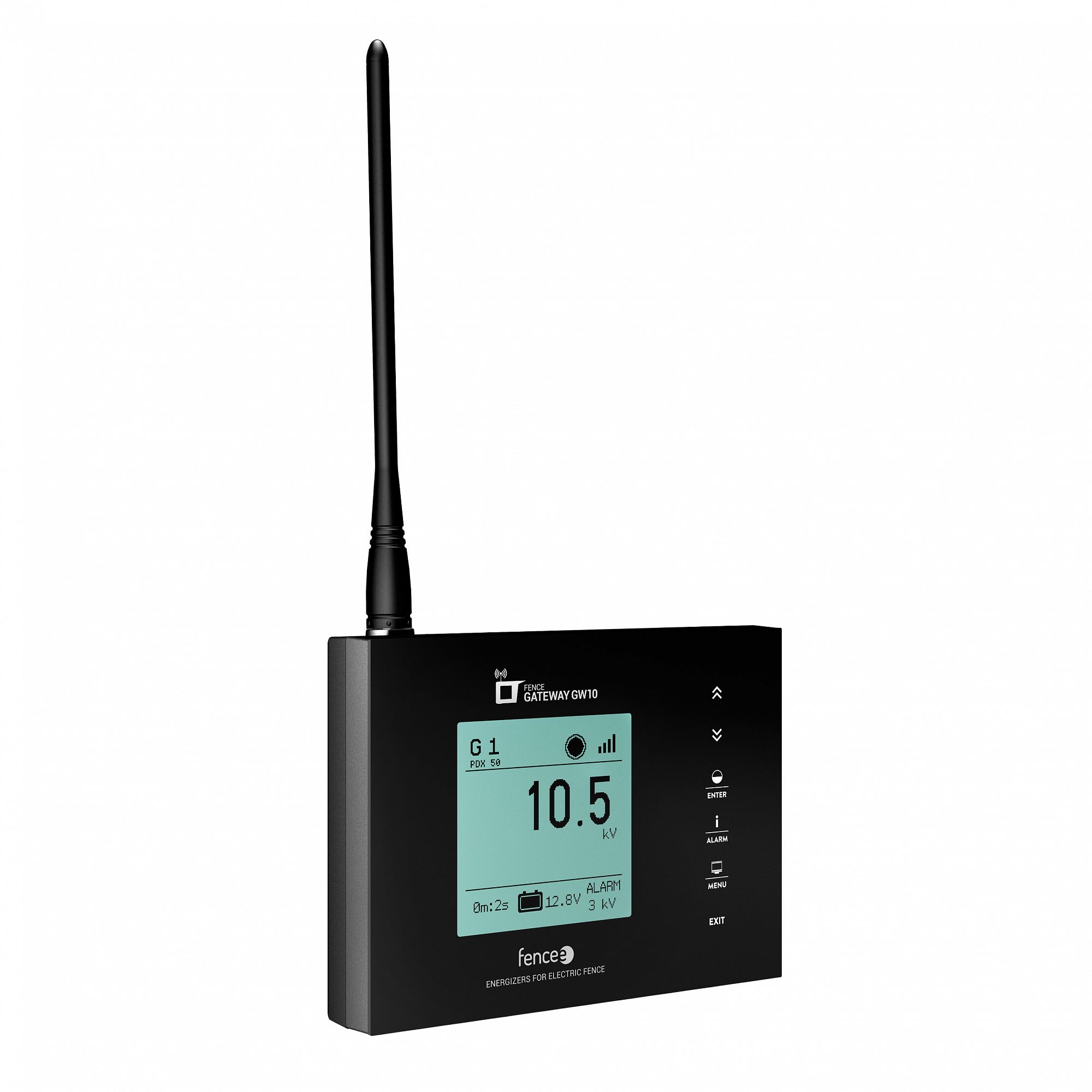

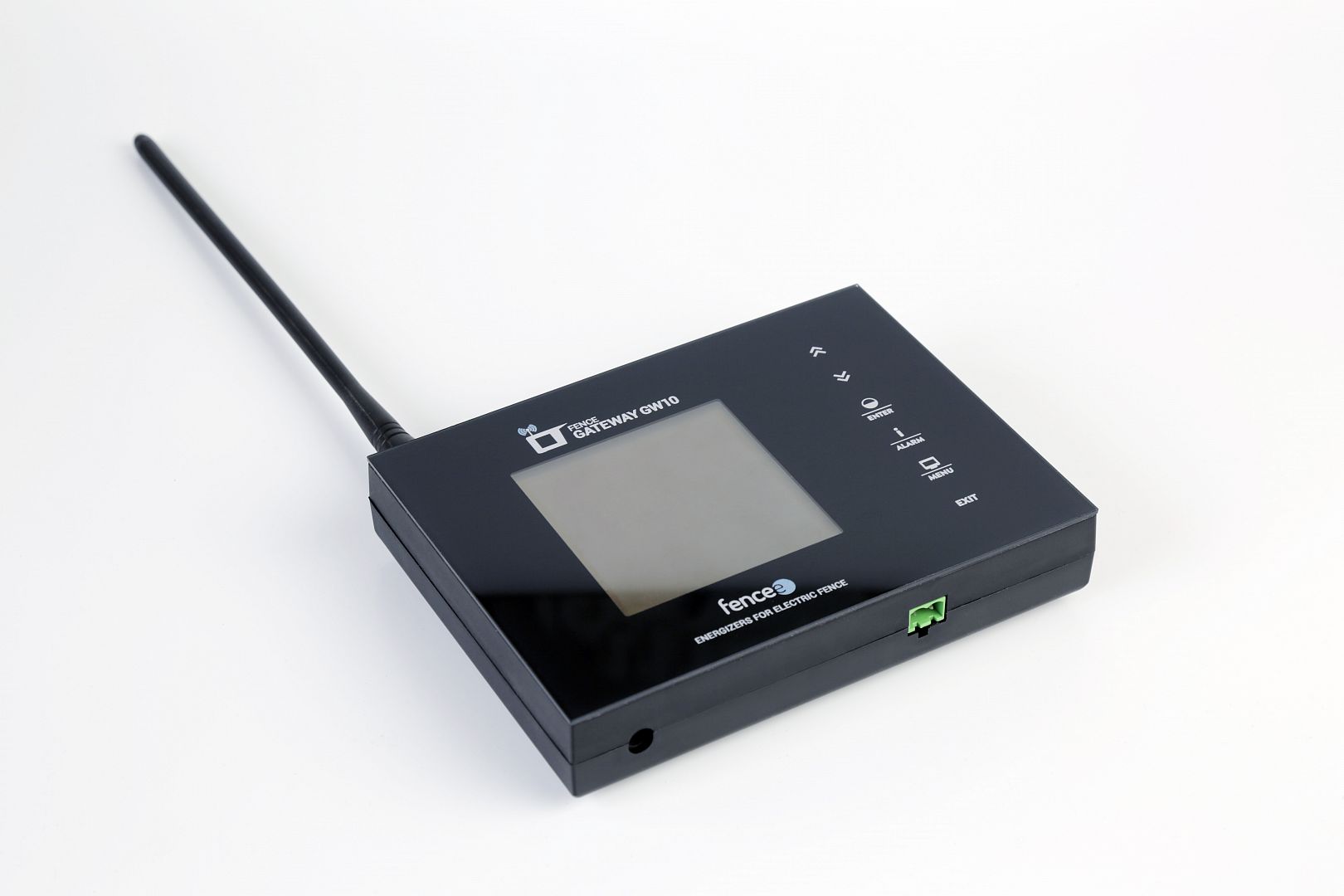

Product´s description Central device FENCE GATEWAY GW10
Device for remote central control and operation of fencee RF energizers power DUO RF PDX, energy DUO RF EDX and Monitor MX10
Range with basic antenna up to 10 km (included)
Possibility of connecting an external antenna (extension cable 2 or 10 m) - increasing the range up to 30 km
OVERVIEW OF MAIN BENEFITS
- Control and manage up to 6 energizers
- Clear, intuitive, touch control
- Wireless RF connection with energizers
- No SIM required
- All the necessary information together in one device
- Large, fully graphic LCD display
- Overview screen with information about all energizers
- Detailed display of individual energizer parameters
- Adjustable alarm level for each connected device
- Mains supply + battery backup
- Possibility to connect an external warning system (siren, light)

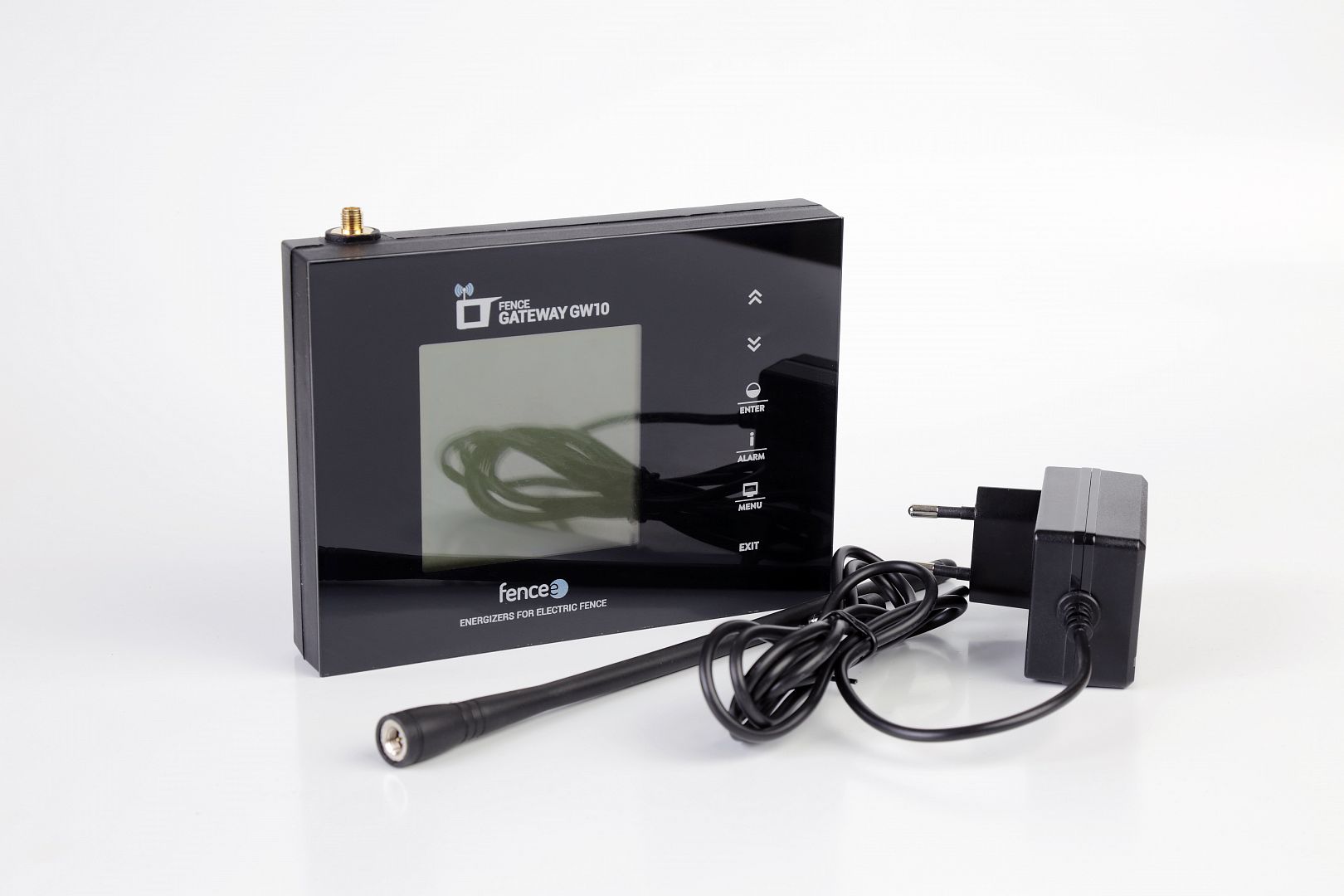

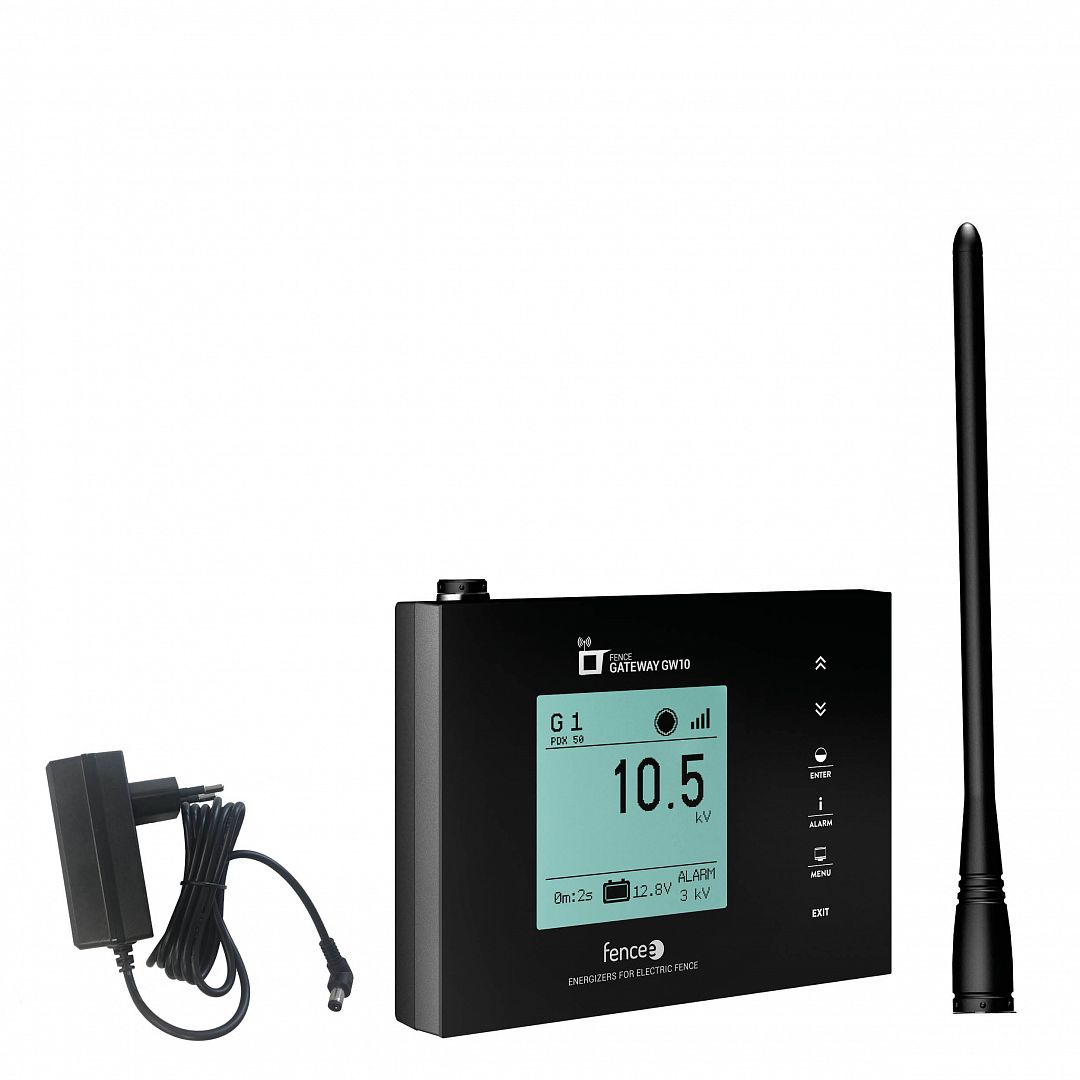

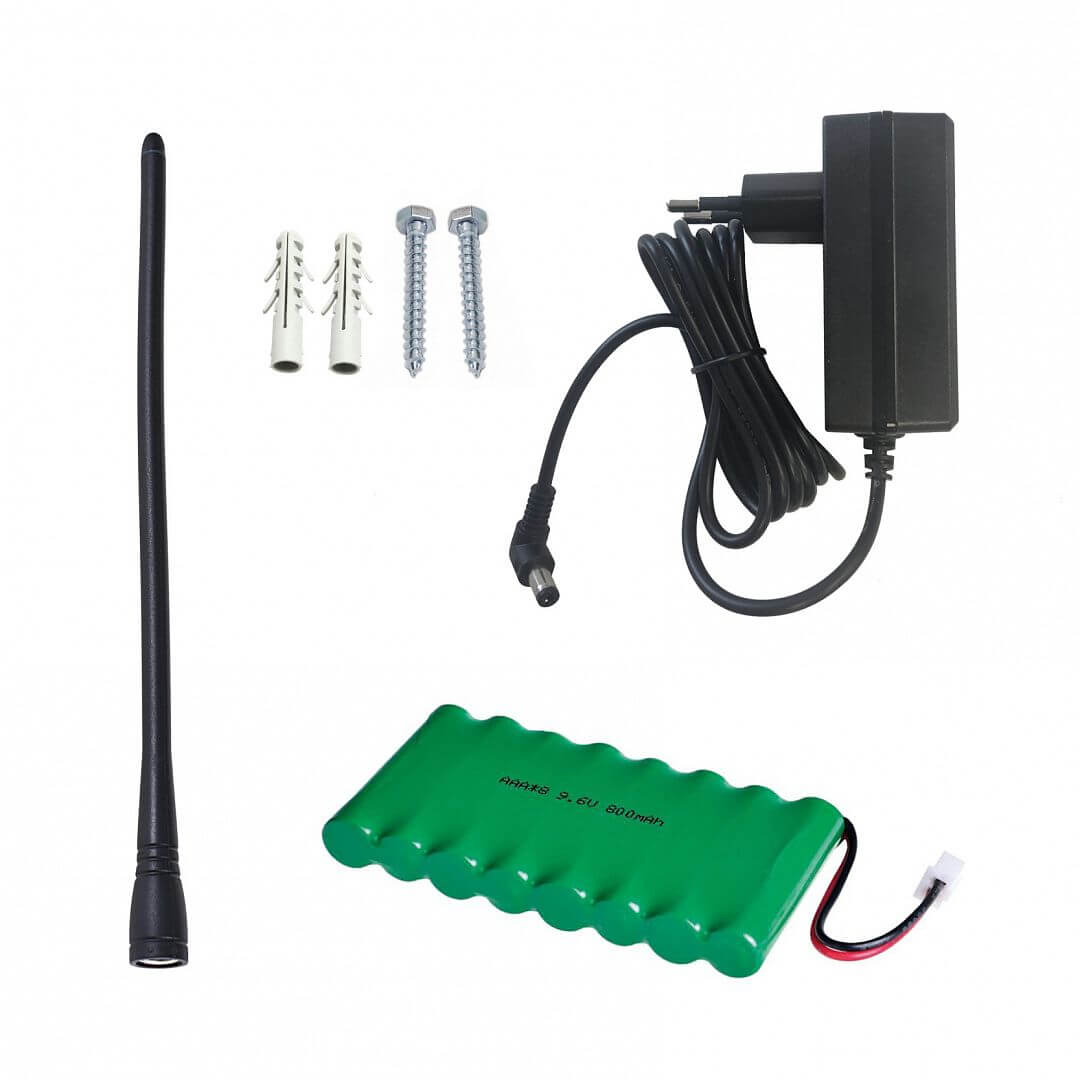

Package contents:
- gateway GW10 with basic antenna
- 14 VDC power adapter
- Operating Instructions

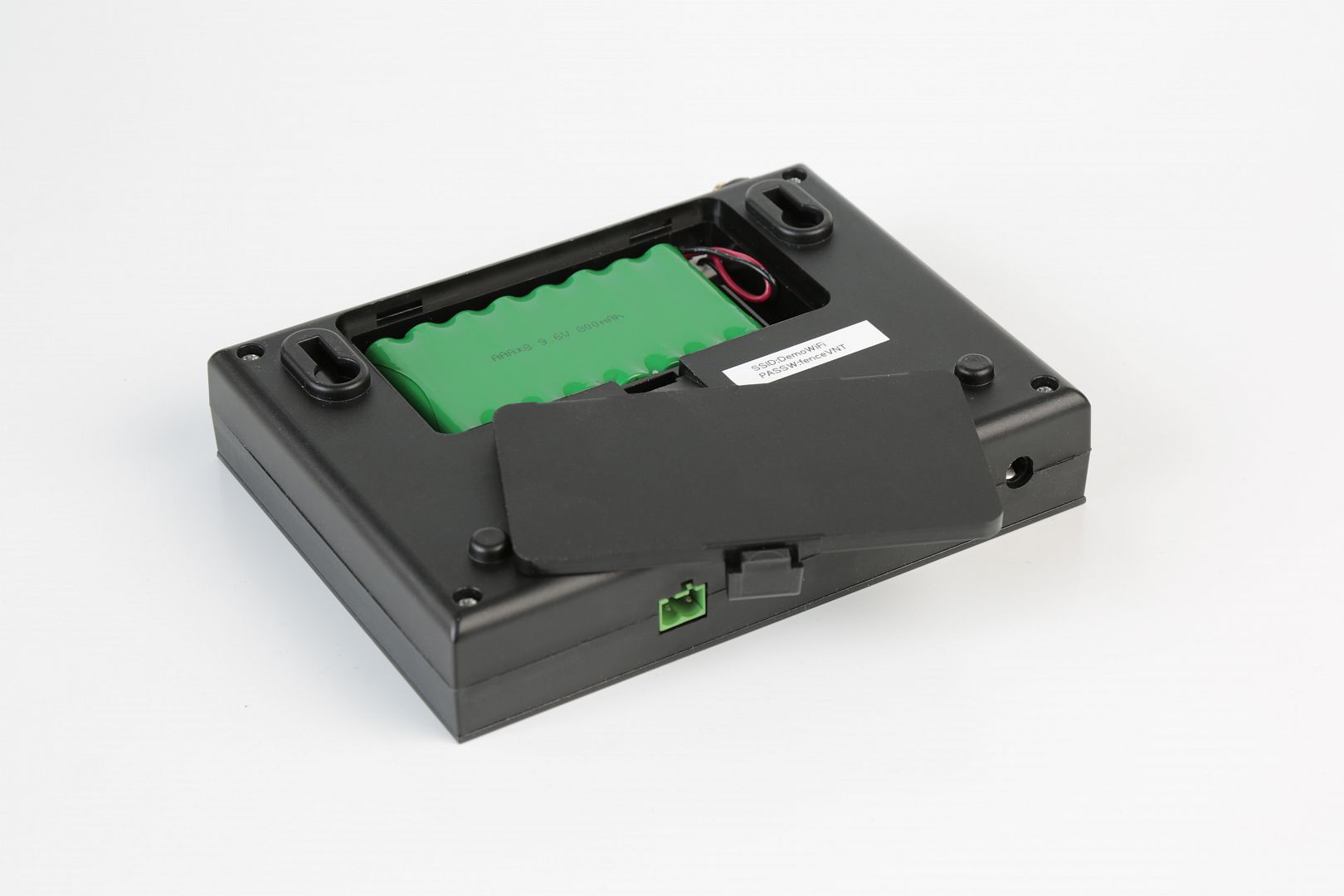

Backup battery | 9,6 V - 800m Ah |
Power source | 230 V ~ / 50 Hz, 14 VDC |
Energizer consumption 230 V | maximum 300 mA |
LCD display | |
Sound warning system | |
External antenna SMA connector | |
Number of connected devices | 1 - 6 |
Base antenna range | up to 10 km |
Range with external antenna | up to 30 km |
Transmission frequency | 869,525 MHz |
Transmitting power | +22 dBm |
Weigth | 420 g |
Dimension | 165 × 116 × 35 mm |
Manuals and files for downloading
Manual Fence Gateway GW10FAQ
- General information
- Can fencee energizers endure rain, snow or sun shining?
- How to use a grounding quality terminal and terminal with reduced output?
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
