Electric fence generator fencee power DUO PD20

Electric fence generator fencee power DUO PD20
Extended warranty 3 years
2 J
Mr. Tomáš Urban

Key Account Manager / Mo-Fr: 7:00 am - 3:00 pm

Mr. Tomáš Urban

Functions of product Electric fence generator fencee power DUO PD20

Combined operation Power switching ON/OFF button LED diodes LED Bargraph Battery management DIN rail ST transformer

Product´s description Electric fence generator fencee power DUO PD20

The combined fence generator with an output power of 2 J is suitable for all types of electric fence installations up to 15 km long. The device can be powered using an adapter from the 230 V mains or from a standard 12 V car battery using battery cables, which are included in the power supply package.

Popular electric fence most often for: dogs, horses, cattle and pest protection

Zdroj pro elektrický ohradník power DUO PD20 je svým výkonem vhodný pro většinu druhů zvířat jako jsou psi, koně, krávy a skot nebo ovce a kozy, kterým potřebujete vymezit prostor k pohybu na vaší zahradě, u domu nebo na loukách a pastvinách. Elektrický ohradník je účinnou pomůckou v boji proti malým škůdcům a drobným predátorům jako kuna nebo lasička. Ty velmi rádi a často navštěvují vaše pozemky, půdy nebo sklepy a tam páchají nemalé škody. Ohradník také ochrání vaše jezírka a chovné rybníčky před škůdci jako je vydra, bobr, liška, volavka a ostatní zvířata, která hledají potravu na vašich pozemcích a zahradách. S generátorem také zamezíte ničení a okusování vaší úrody a plodin srnkami, daňky a ostatní lesní zvěři. Pro jiná zvířata vybírejte z nabídky zdrojů pro elektrický ohradník podle zvířete. S elektrickým ohradníkem rychle a bezpečně zamezíte zvířatům v přístupu do nežádoucích míst nebo naopak snadno

Features and benefits of the fencee electric fence

A modern, highly reliable generator for electric fences with a combined power supply. The power supply can be supplied from the 230 V mains using an adapter, or you can use a standard 12 V car battery, to which you connect the generator using the connecting battery cables. You can also use the car battery as a back-up power supply in the event of a power failure.

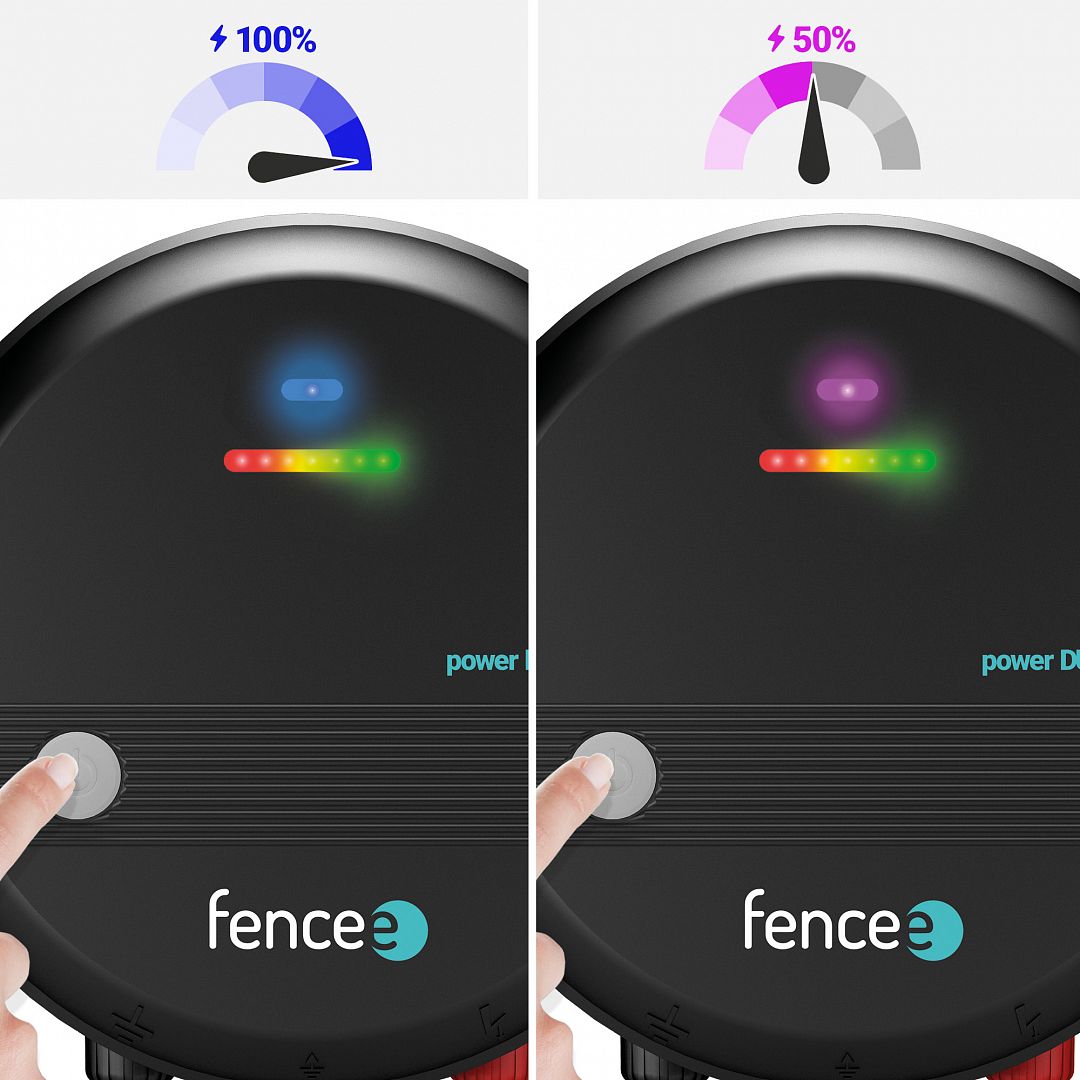

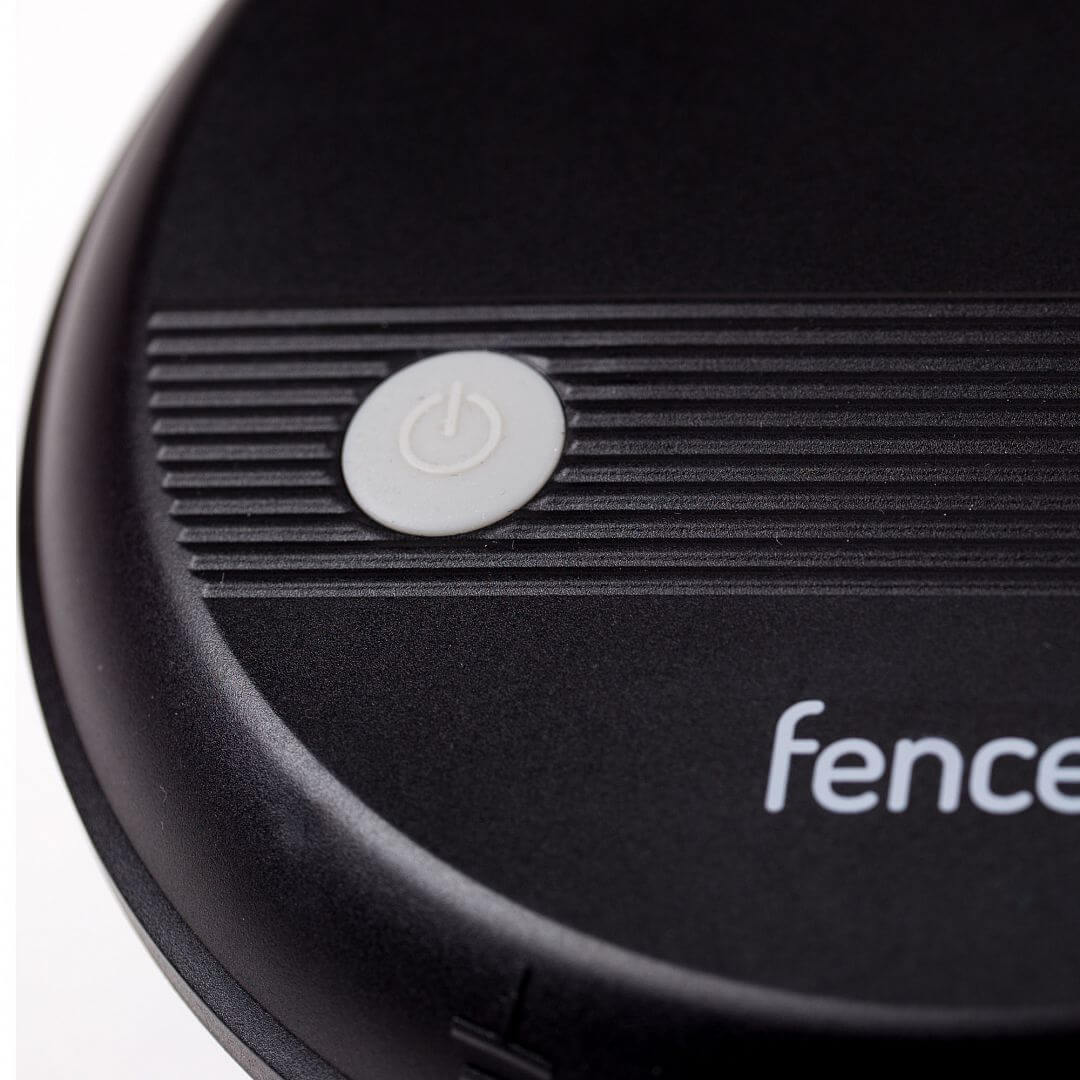

  • Thanks to the ON/OFF button on the front of the device, switching the generator off and on is easy and safe, besides, the button is also gentle to the operation of the whole device compared to competing models that are switched off by pulling the power cord out of the socket. The button also has an extended function for switching power, you will appreciate it especially in case when the device does not need to give full power, you can switch it to half power, thus also saving the energy of the connected battery.

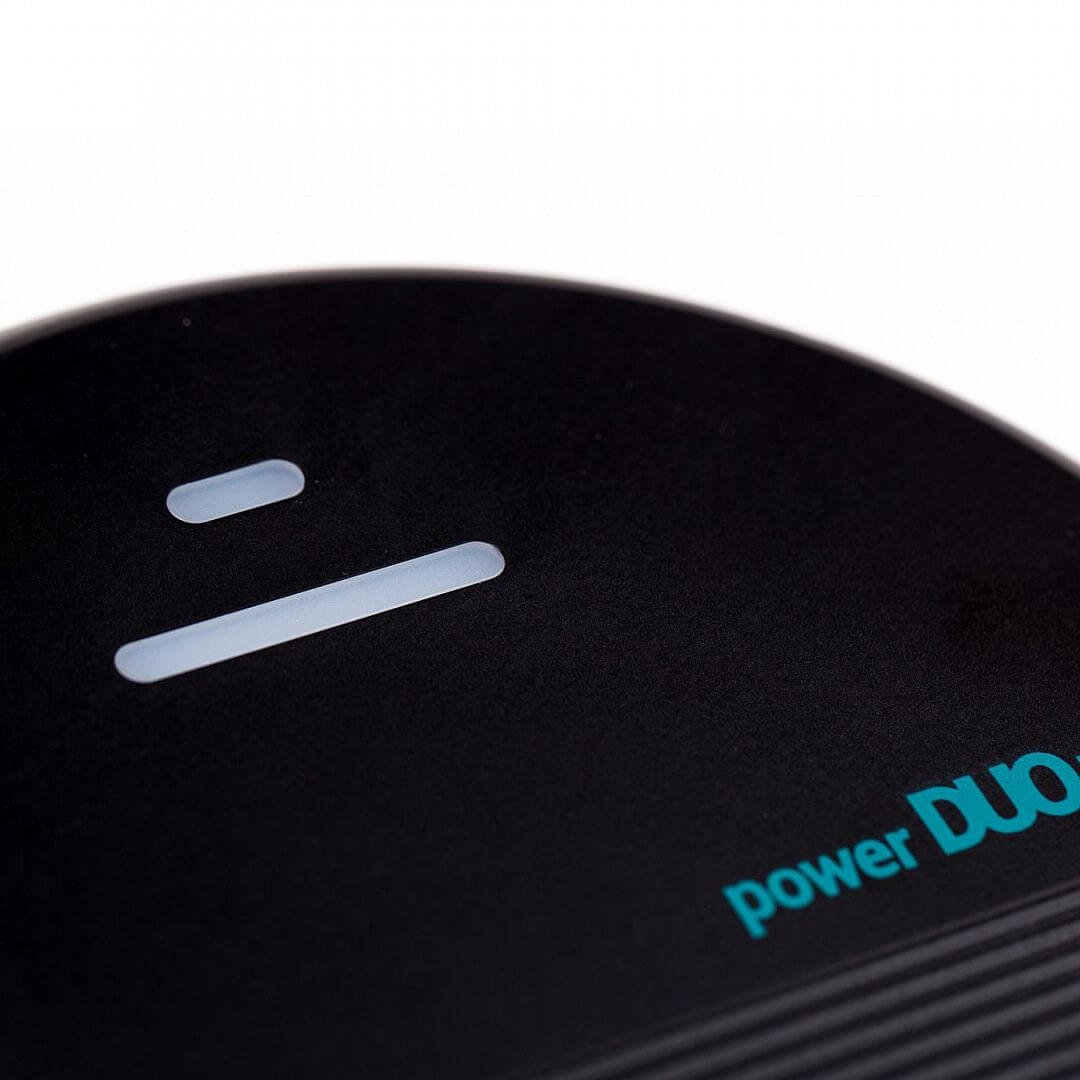

  • The bright LEDs and the bargraph show very clearly at a glance the operation of the power supply and its possible malfunction or failure on the electric fence. The generator measures the voltage of the fence and displays the values in colour using the bargraph. This is easily visible even from a distance and in direct sunlight.
  • The latest microprocessor technology has been used in the manufacture of the fencee generators . This makes the devices very reliable and safe. The power supply is provided by the Smart Control microprocessor, together with the ST transformer which is high voltage resistant and has been designed for the needs of electric fencing ensuring maximum efficient performance with low consumption and running costs.
  • SafeShock technology ensures maximum safety for you and your animals in the electric fence. The specially shaped pulse curve produces a faster and more efficient pulse compared to competitive sources.

With the electric fence, you will prevent animals from entering your gardens, grounds and homes. You will put an end to pests parasitizing your ornamental ponds and lakes once and for all. With the fence, you will quickly and easily demarcate an area for animals to roam freely or, on the contrary, prevent them from entering areas of your choice.

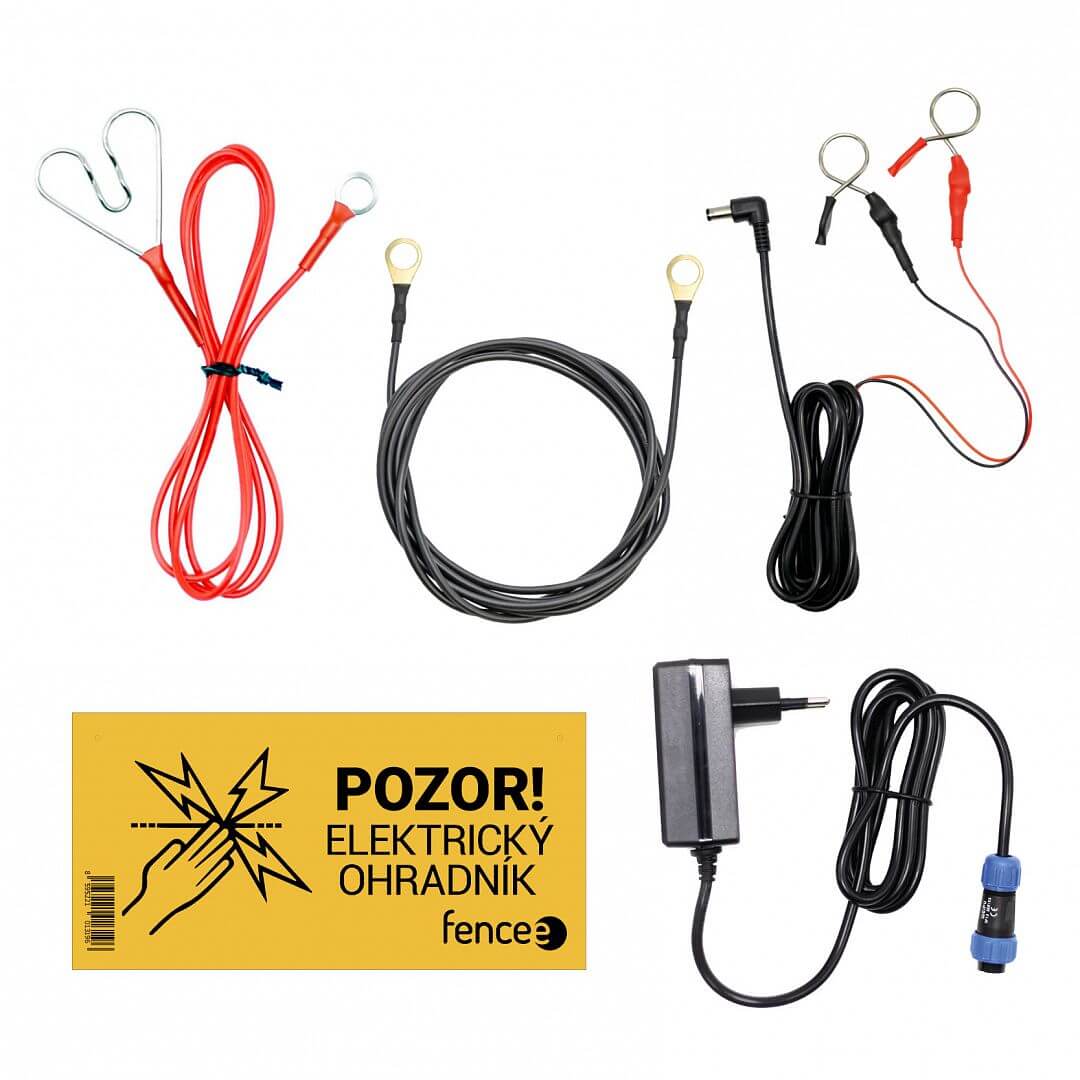

What you will find in the package:

  • Fencee power DUO PD20 generator
  • Power adapter fencee DUO 14 V, 150 cm
  • ground cable 150 cm (eyelet to eyelet)
  • Connecting cable 100 cm (eyelet-heart)
  • fencee DUO battery cable 170 cm
  • fencee warning plate
  • operating instructions

Together with the generator we recommend to purchase a DIN rail 200 mm for easy mounting of the fence.

Power source 230 V ~ / 12
Energizer consumption 230 V 5 W
Energizer consumption 12 V 40 - 140 mA
Output energy 2 J
Input energy 3 J
Output voltage 12000 V
Output voltage 500 Ω 6000 V
ON/OFF
LED ON/OFF
LED impulse
LED low battery voltage
LED lower power 50%
LED error check
LED impulse bargraph
TEOR. max. CEE 60 km
Low vegetation 15 km
Medium vegetation 3 km
High vegetation 1,5 km
Earthing 1 m 2x
El. fence nets 5x
Diameter 210 mm
Depth 66 mm
Weigth 1534 g

Manuals and files for downloading

Manual fencee power DUO PD
