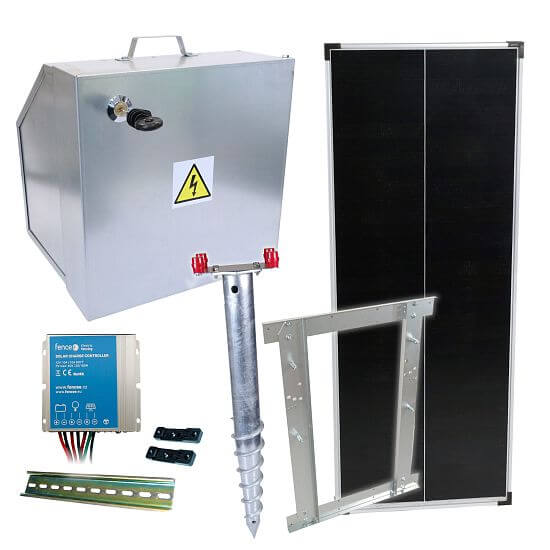

Basic solar fence kit - Complete security box + bracket and solar panel 100 W

System for solar charging of the battery of the electric fence power supply. The kit does not include the generator and battery. The battery and a suitable generator with combined power supply must be purchased.

• Choose the combined generators with a power output of 3 - 7 J from the fencee power DUO PD series

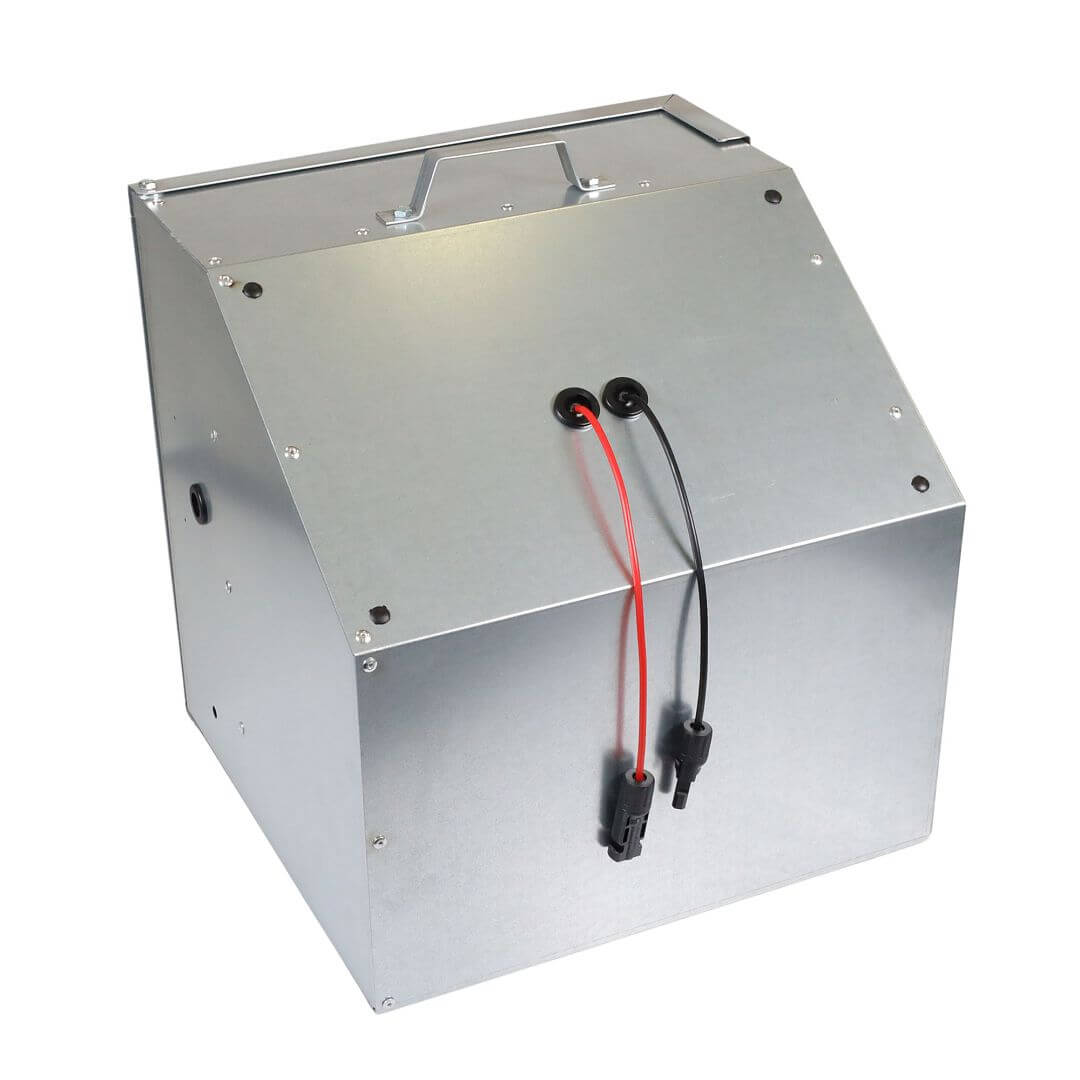

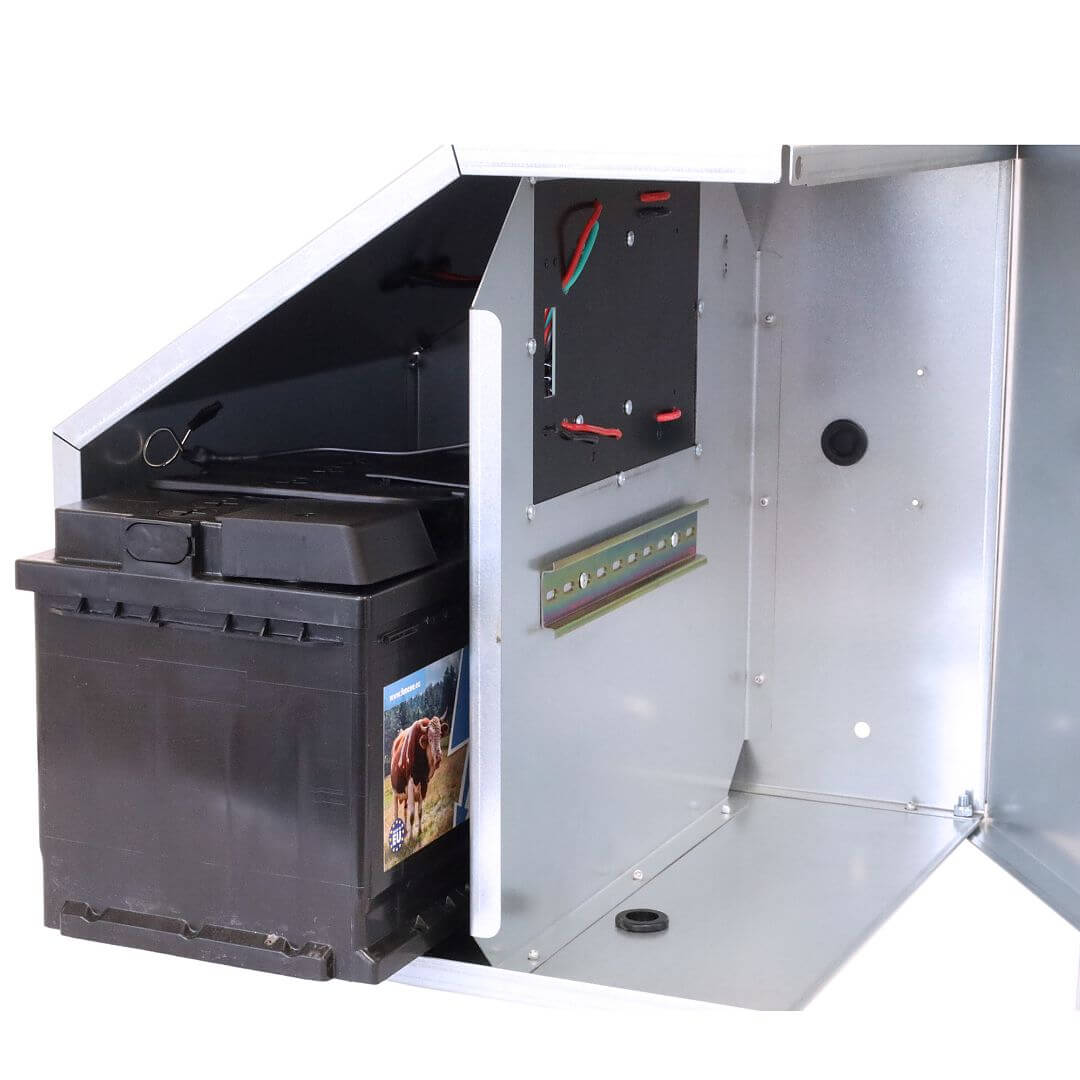

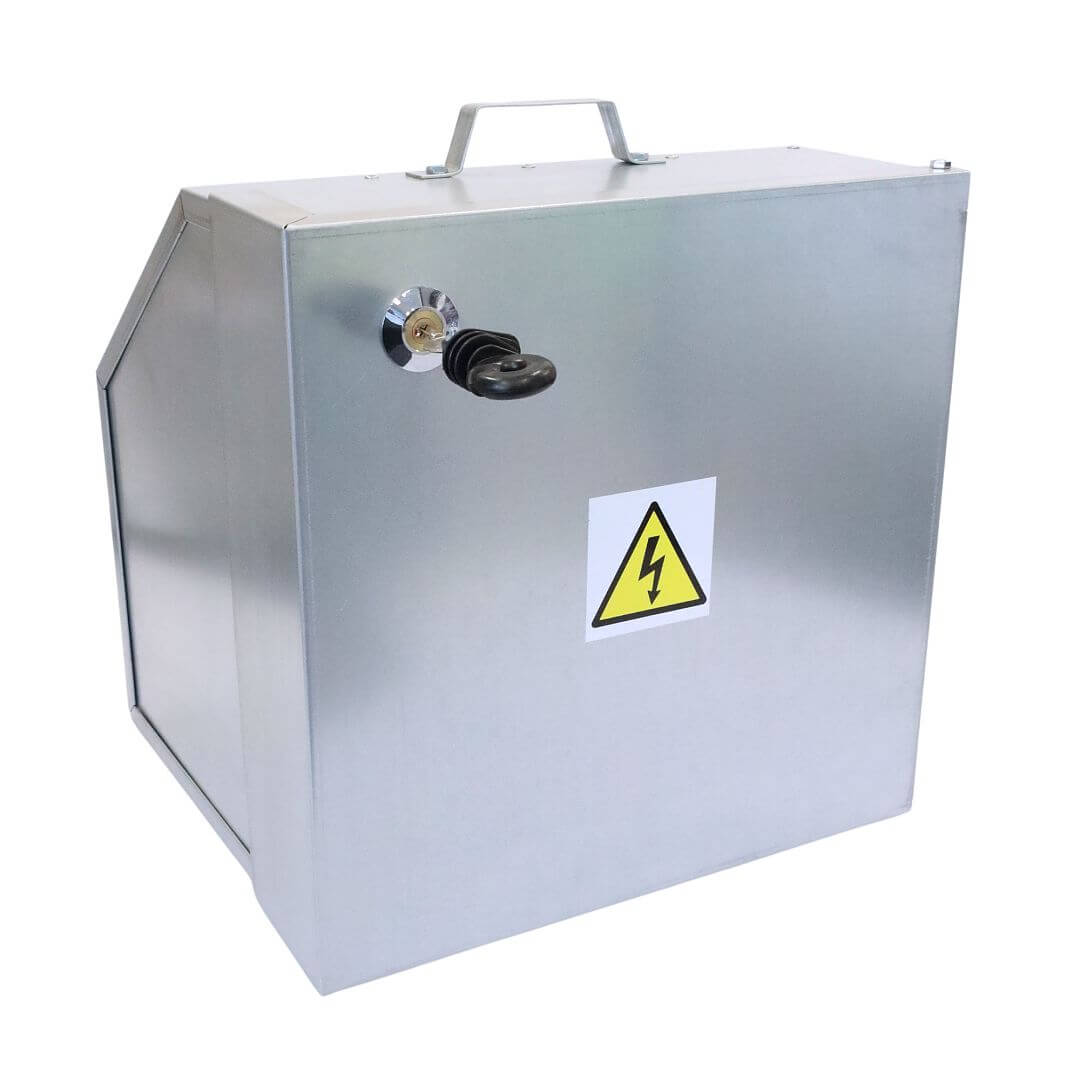

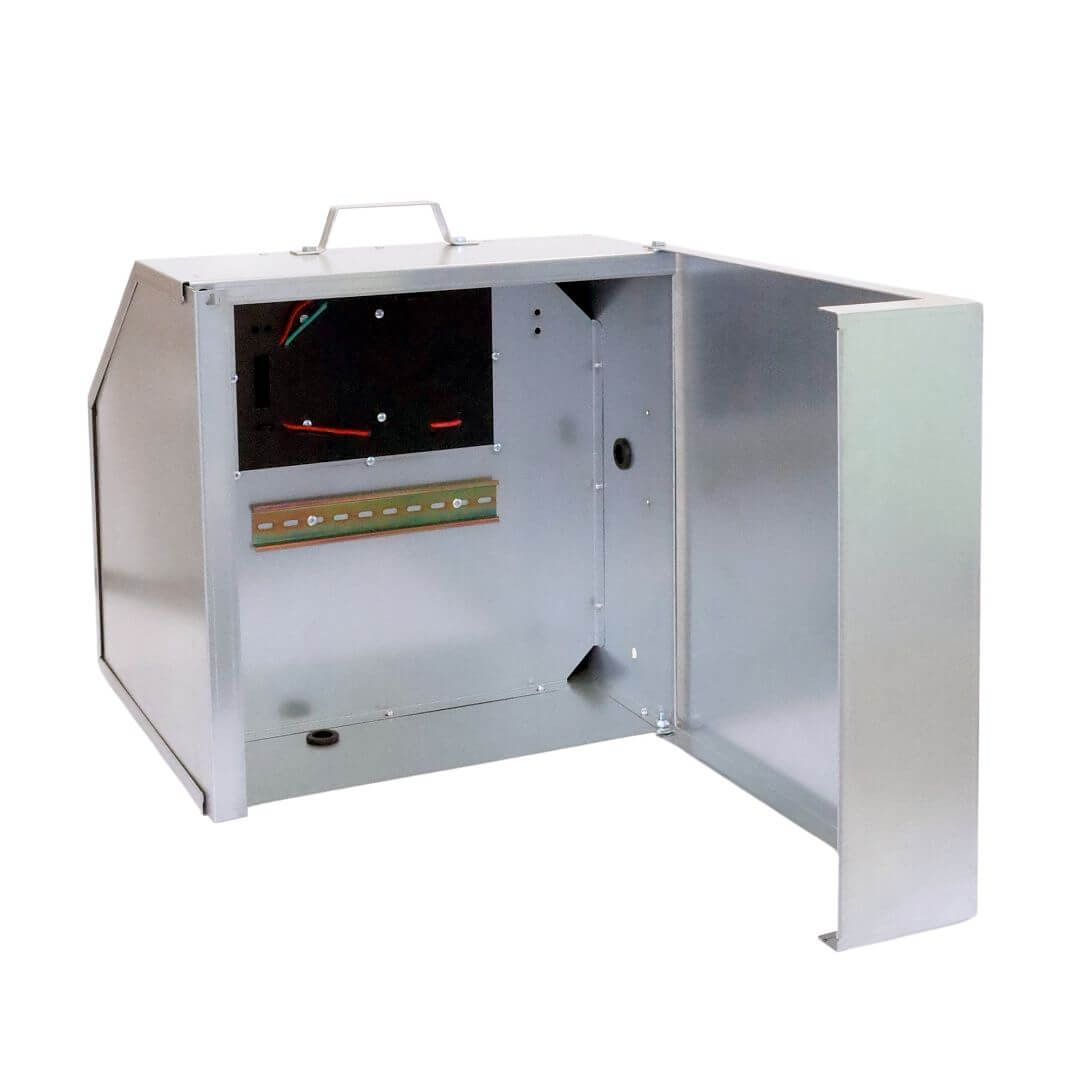

Safety box for fencee power supply with 10 A regulator, DIN rail for mounting the fencee generator

Security box for the fencee electric fence power supply and battery. Electrification option - theft protection. If the box is touched by an unauthorised person, they will receive an unpleasant electric shock. Insulated key (2 pcs) for opening the box. Practical DIN rail 200 mm for easy attachment of the fencee generator.

Safety box features:

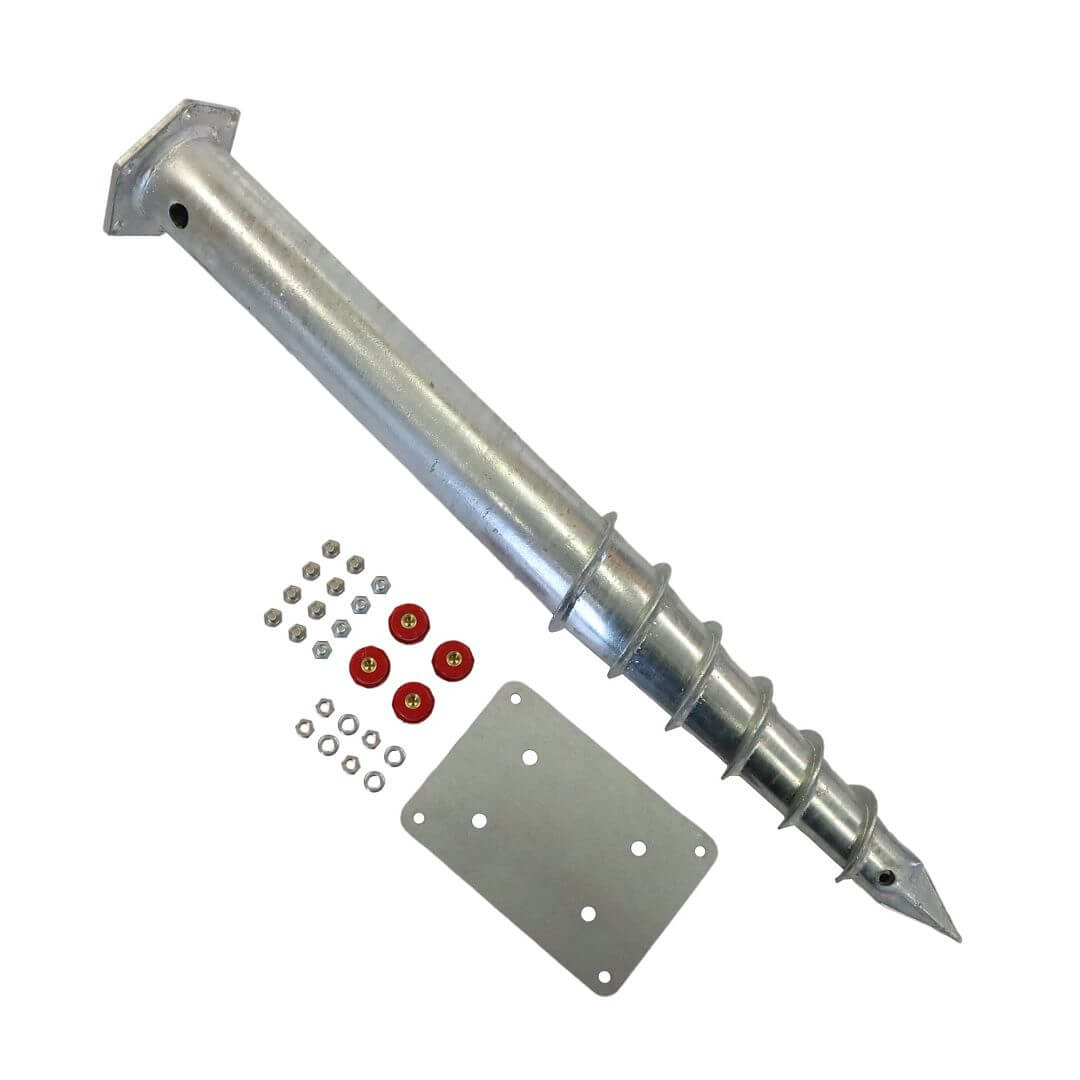

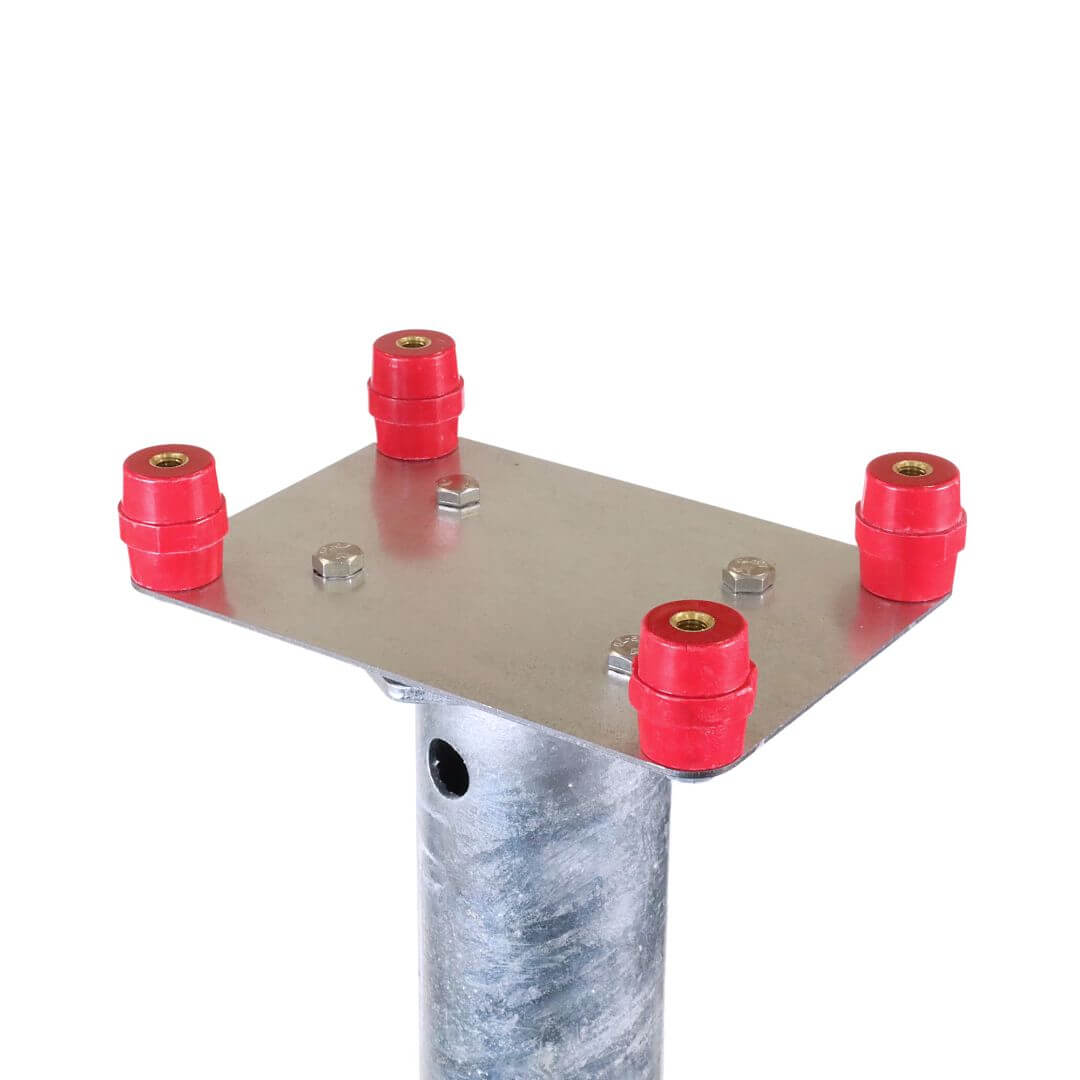

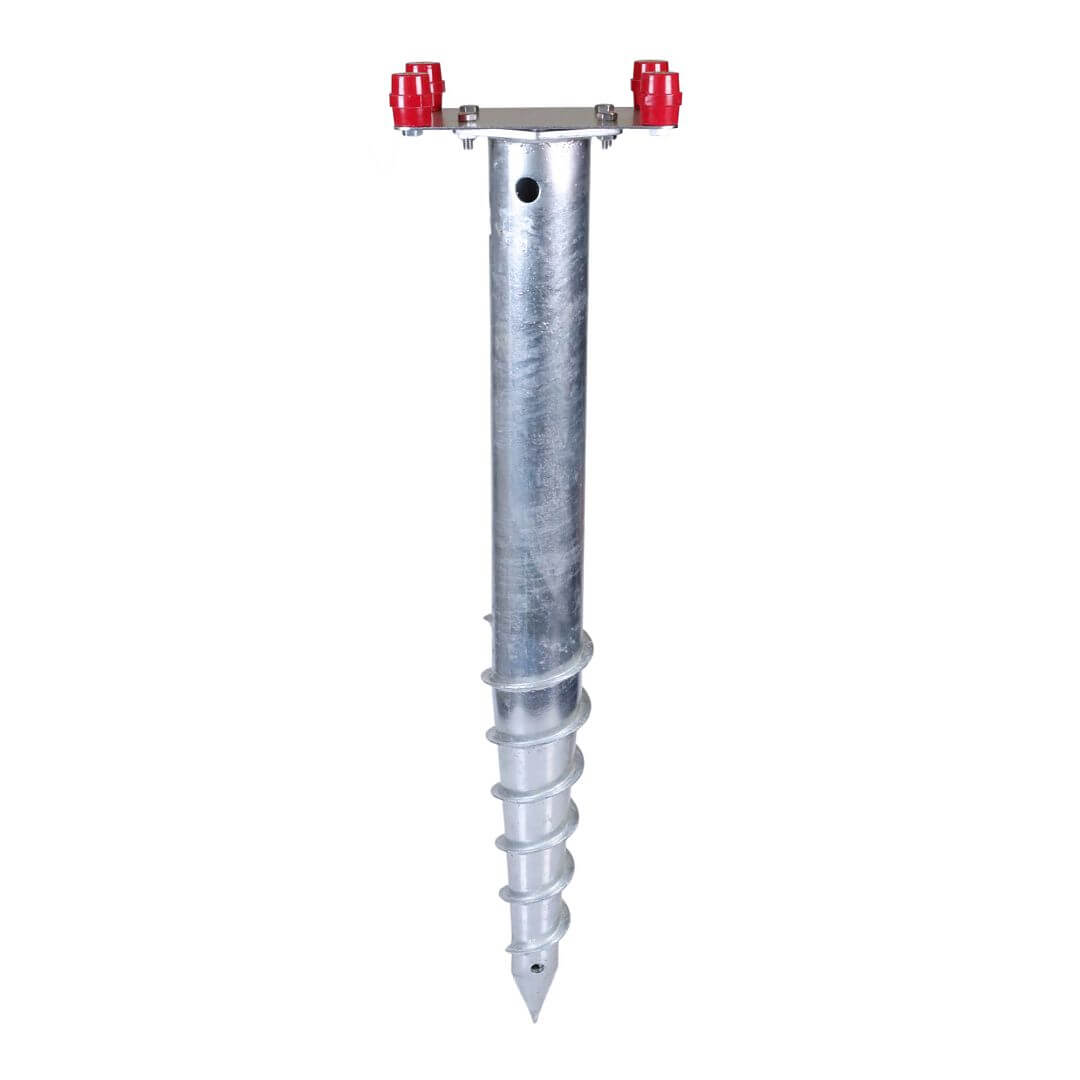

• Stable mounting mandrel to the box.
• High voltage box - excellent protection against theft

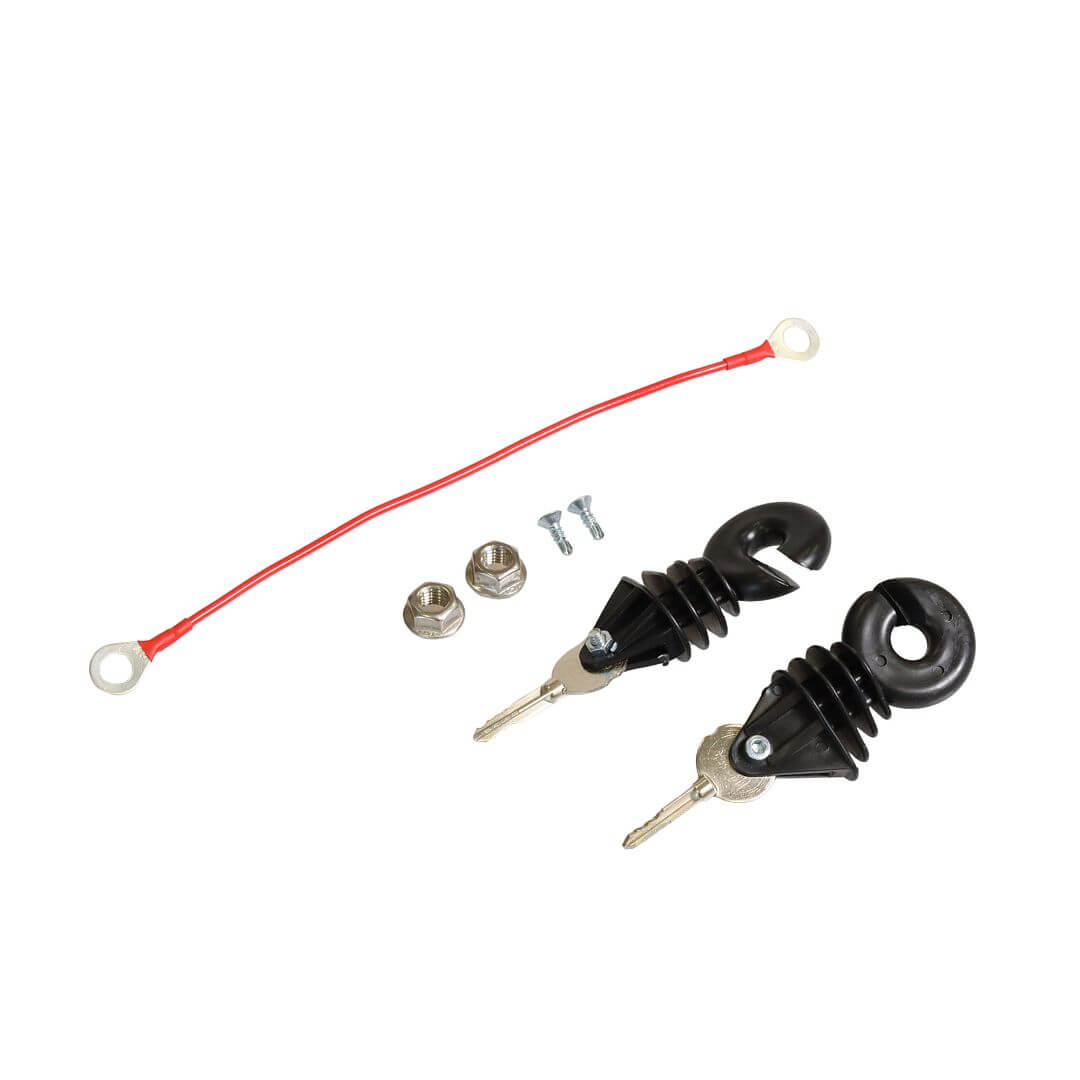

• Insulated keys for safe unlocking of the box

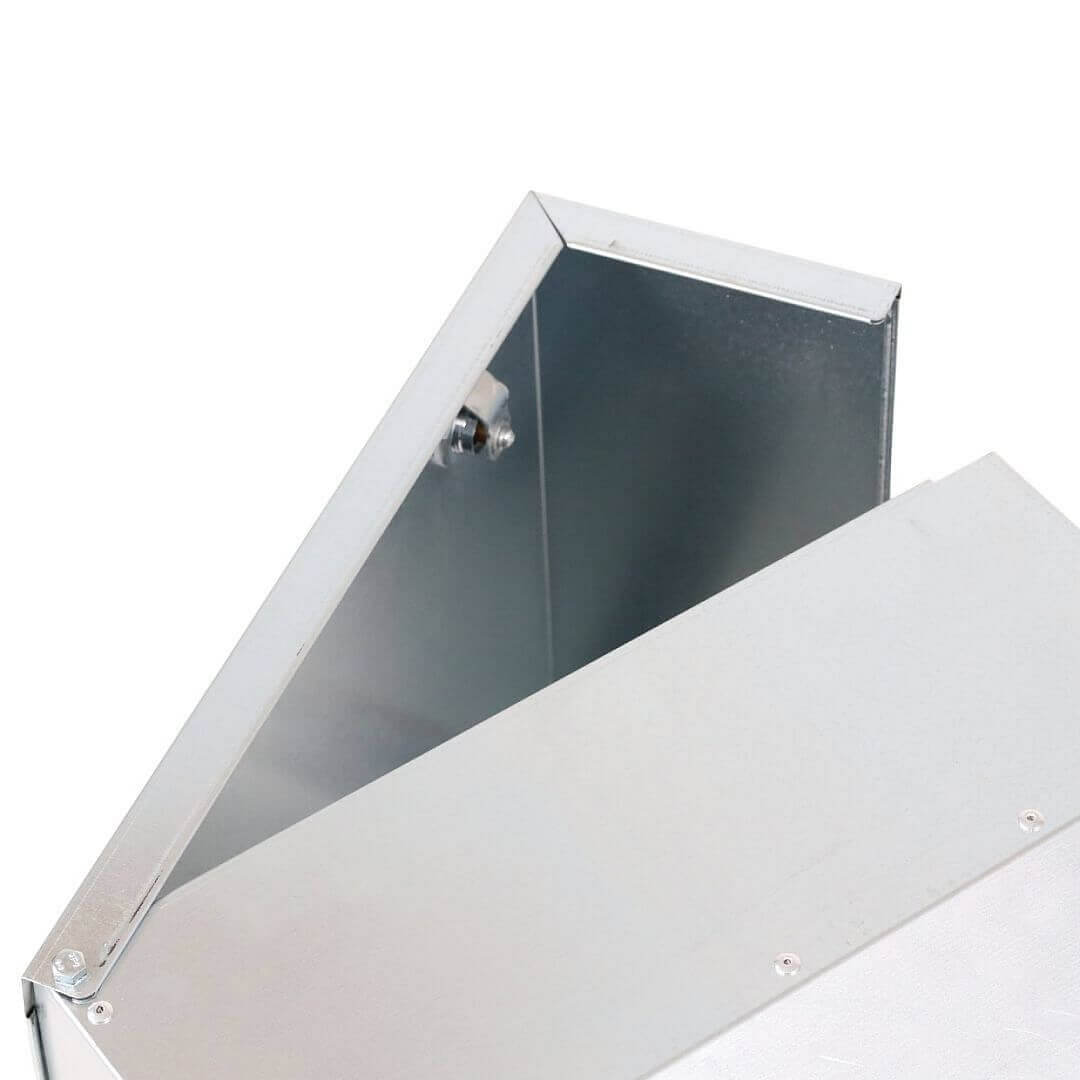

• Robust box made of galvanized steel
• Also has mounting holes for all common types of power supplies
• Internal ground connection for the fence power supply
• All cables inside the box

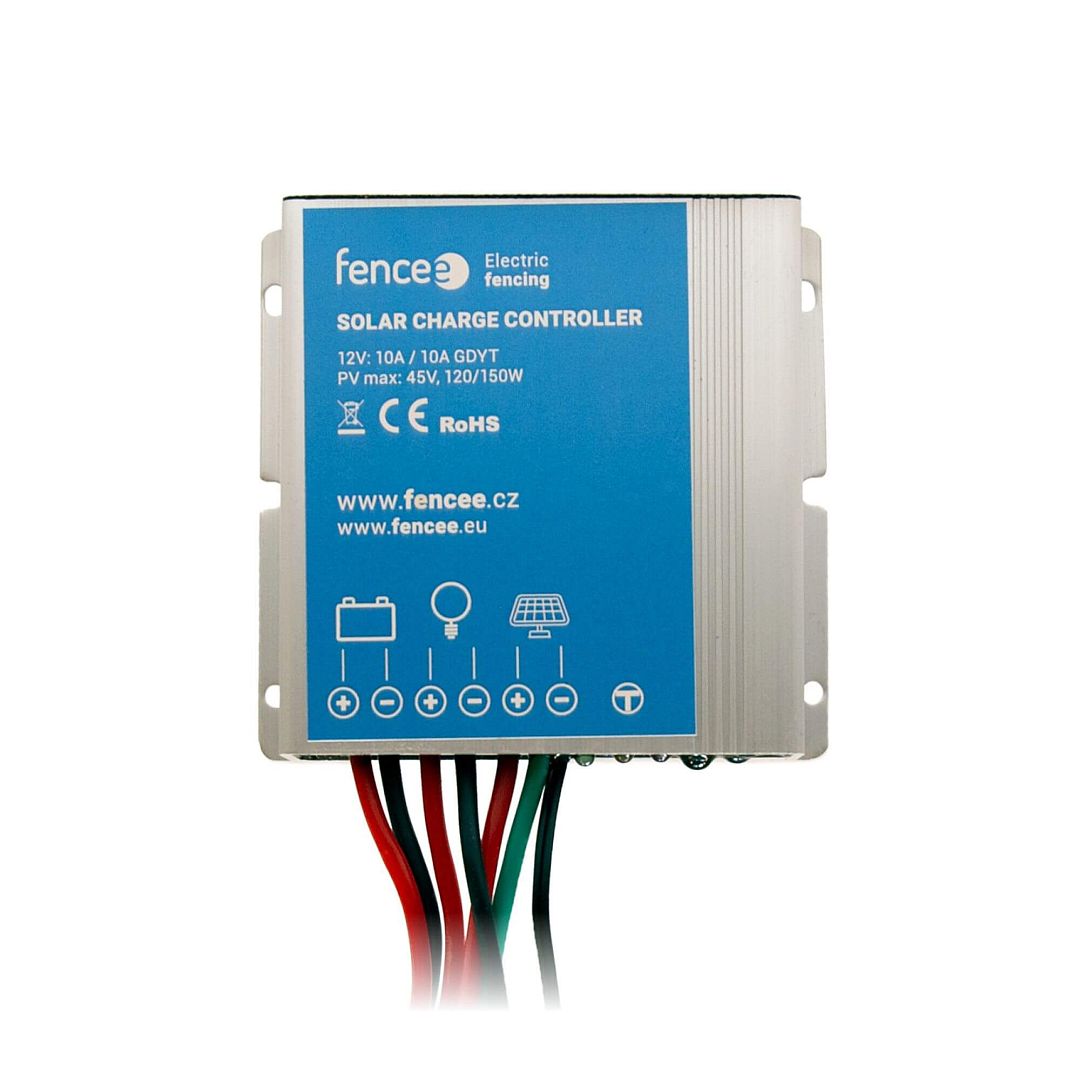

10 A regulator for 100 W solar panel

Waterproof controller suitable for a wide range of solar systems. High charge conversion efficiency of up to 97.5%. Adjustable 5-step timer for load power. Operating status and parameter monitoring. Suitable for gel, liquid AGM batteries. IP67 protection.

100 W solar panel for electric fence

The 100 W solar panel is suitable for combined power generators with a power output of 3 - 7 J.

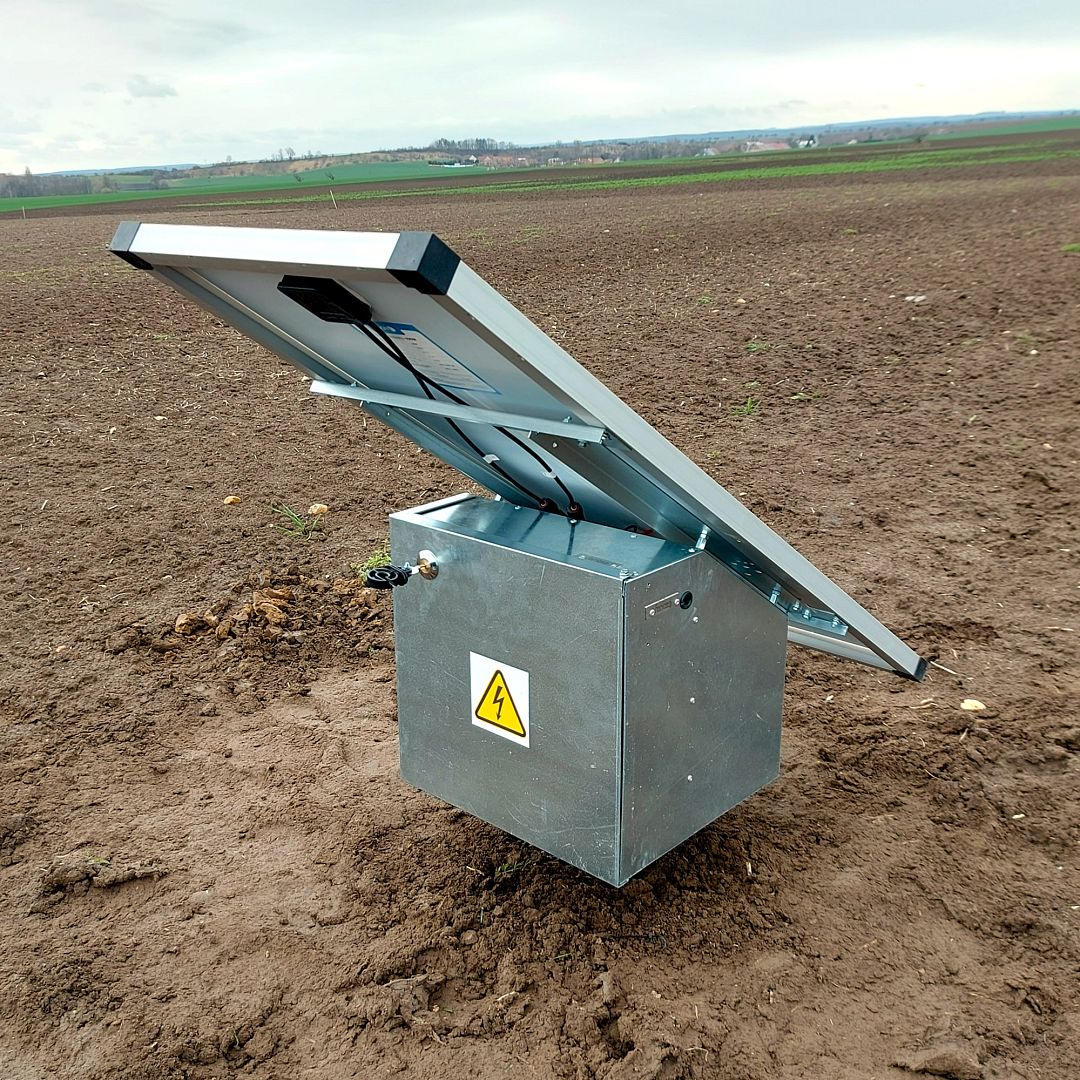

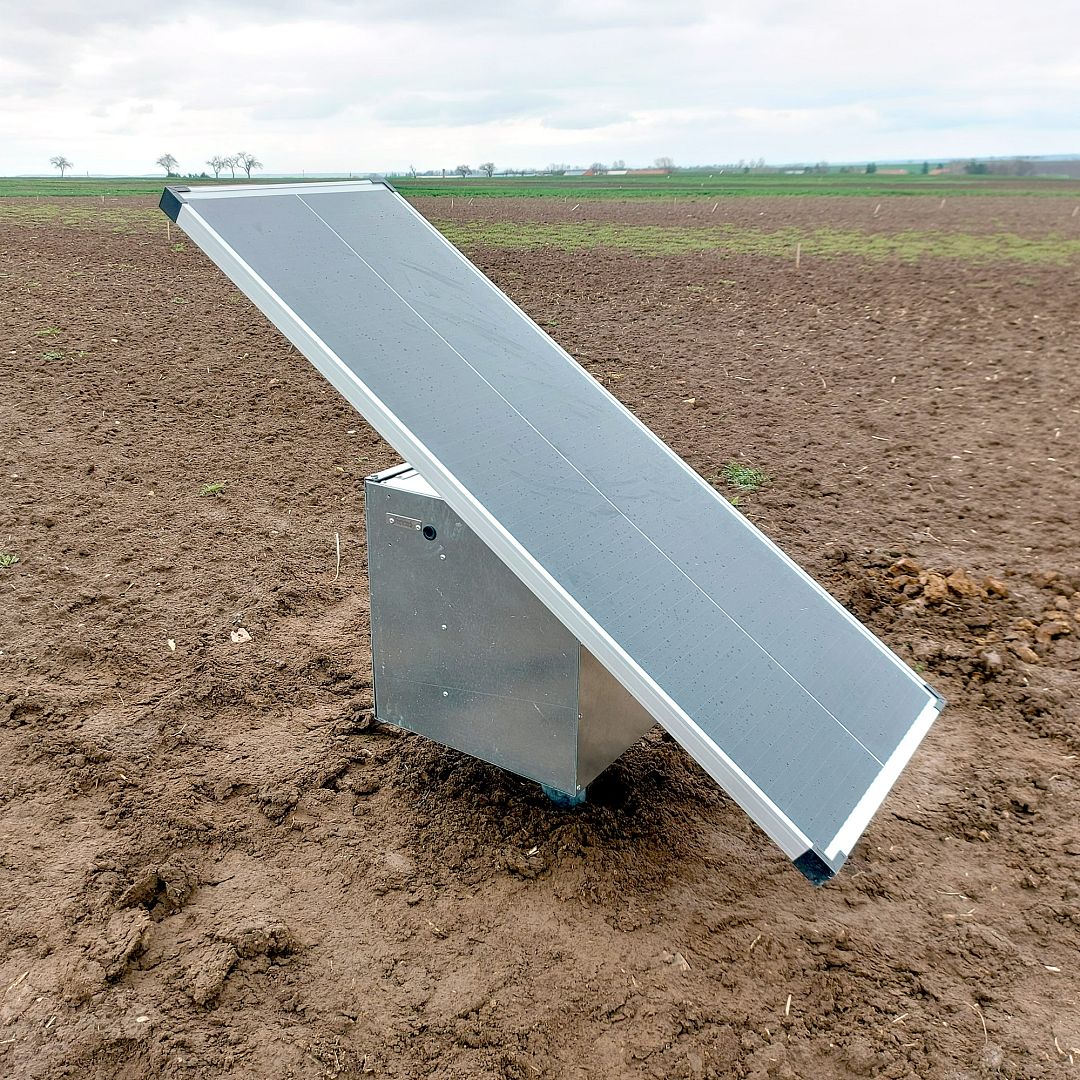

The location of the solar panel must be chosen so that it is facing south and as perpendicular to the sun as possible. Poor positioning, shielding and contamination of the solar panel will reduce its performance. The power supply of the electric fence cannot be powered by the solar panel alone, the battery and the controller must always be connected at the same time.

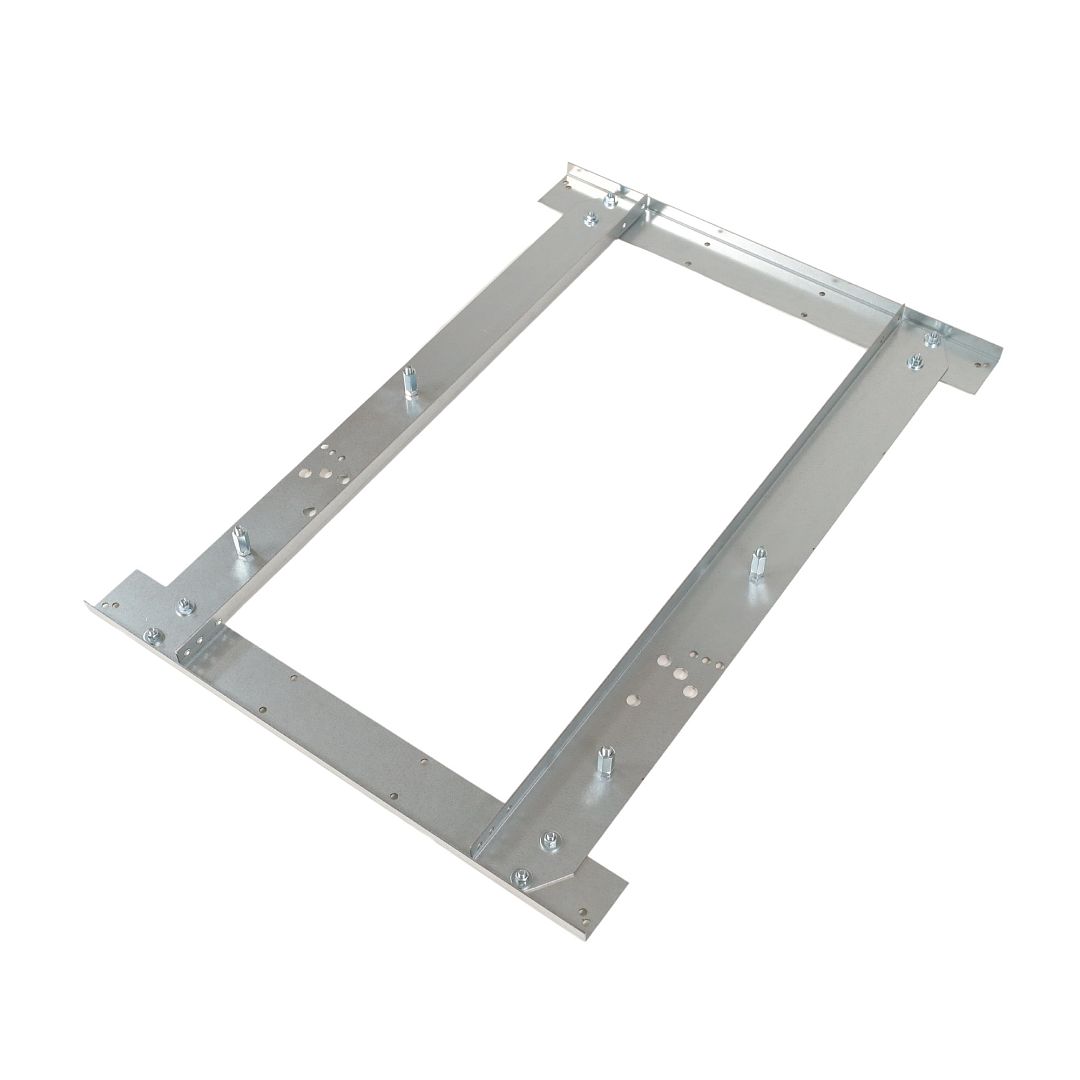

Mounting bracket for attaching the 100 W solar panel to the safety box

Mounting bracket for fixing the 100 W solar panel to the safety box. It consists of 4 parts and fasteners. You can find out how to assemble the bracket for fixing the solar panel in the instructions.

Package contents:

• Safety box with mounting mandrel, DIN rail and 10 A regulator
• Mounting bracket for attaching the 100 W solar panel to the safety box
• Solar panel output 100 W
