Product´s description Expert solar fence kit - Complete security box + energizer power DUO 1 J, 40 W panel, polywire 2,5 mm
A practical solution for operating the fence in places without electricity during the season. Solar electric fence kit suitable for shorter electric fences with smaller or more sensitive animals. Discreet green posts and rope.
Security box for energizer and battery, Mounting mandrel and 10 A regulator included.
Security box for electric fence energizer and battery. Electrifiable metal battery box with sturdy mounting mandrel. The box can be connected to the fence energizer, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee energizer. 10 A regulator for 40 W solar panels.
Security box features:
- robust box made ofgalvanized steel.

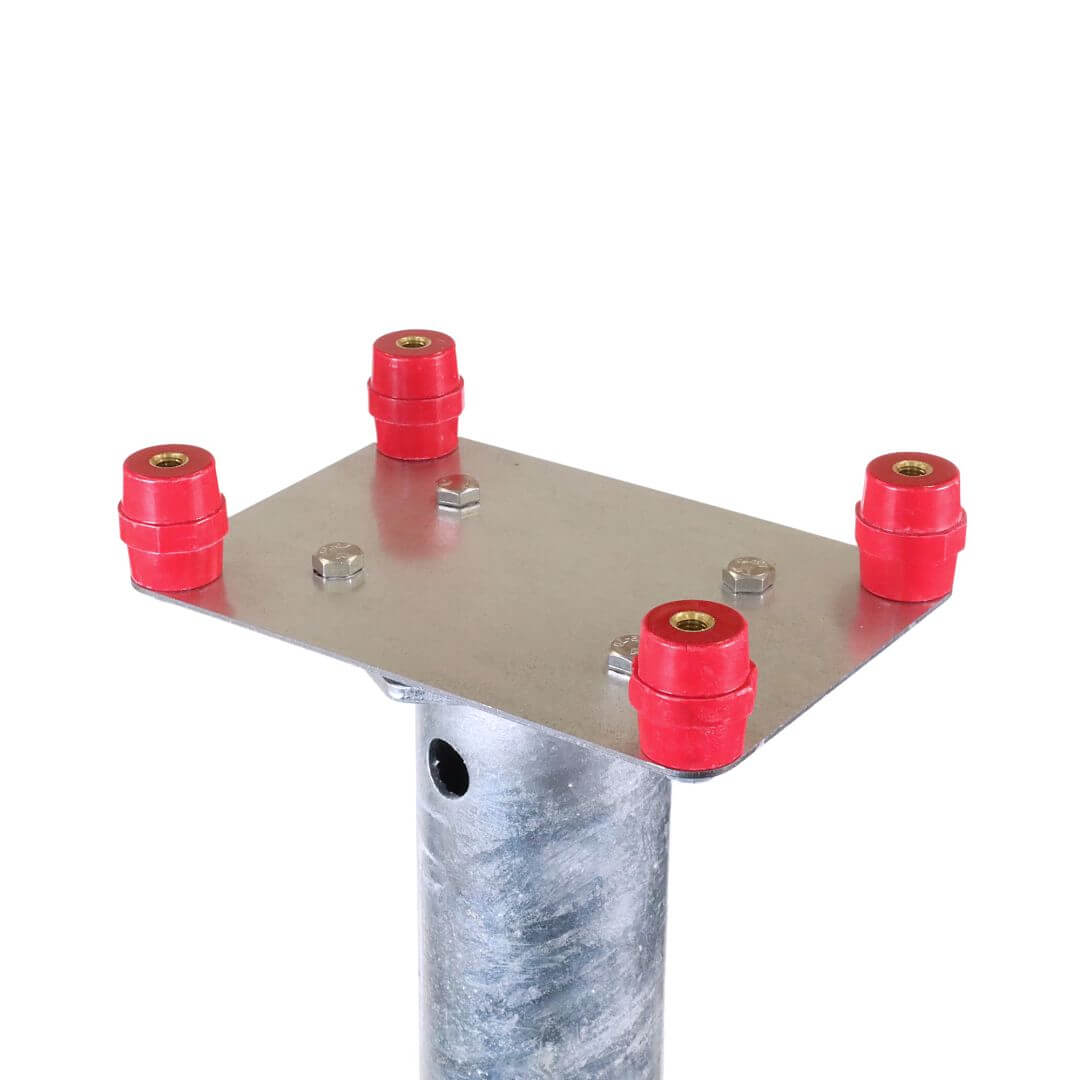

- stable mounting mandrel to the box
- internal ground connection for the fence energizer
- all cables inside the box
- high voltage box - excellent protection against theft
- insulated keys for safe unlocking of the box
- external dimensions of the box: 37 × 37 × 34,5 cm (W×D×H)
1 J fencee energizer power DUO with combined power supply
Electric fence energizer 12/230 V with 1 J. The fence can be used anywhere thanks to the solar battery charging. BrightLight LED on the front of the device indicates the operation of the energizer. Possibility to switch the power to 50 %, SafeShock technology, ON/OFF button for safe energizer control and several other features of fencee power DUO PD energizers.
Combined energizer fencee power DUO PD10
40 W solar panel for electric fencing
The location of the solar panel must be chosen to be south facing and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel.
Mounting bracket for attaching the 40 W solar panel to the security box
Mounting brackets for mounting the 40 W solar panel on a security box. Consists of 2 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.
Instructions for assembling the mounting bracket
Accessories for assembling a colour-neutral electric fence

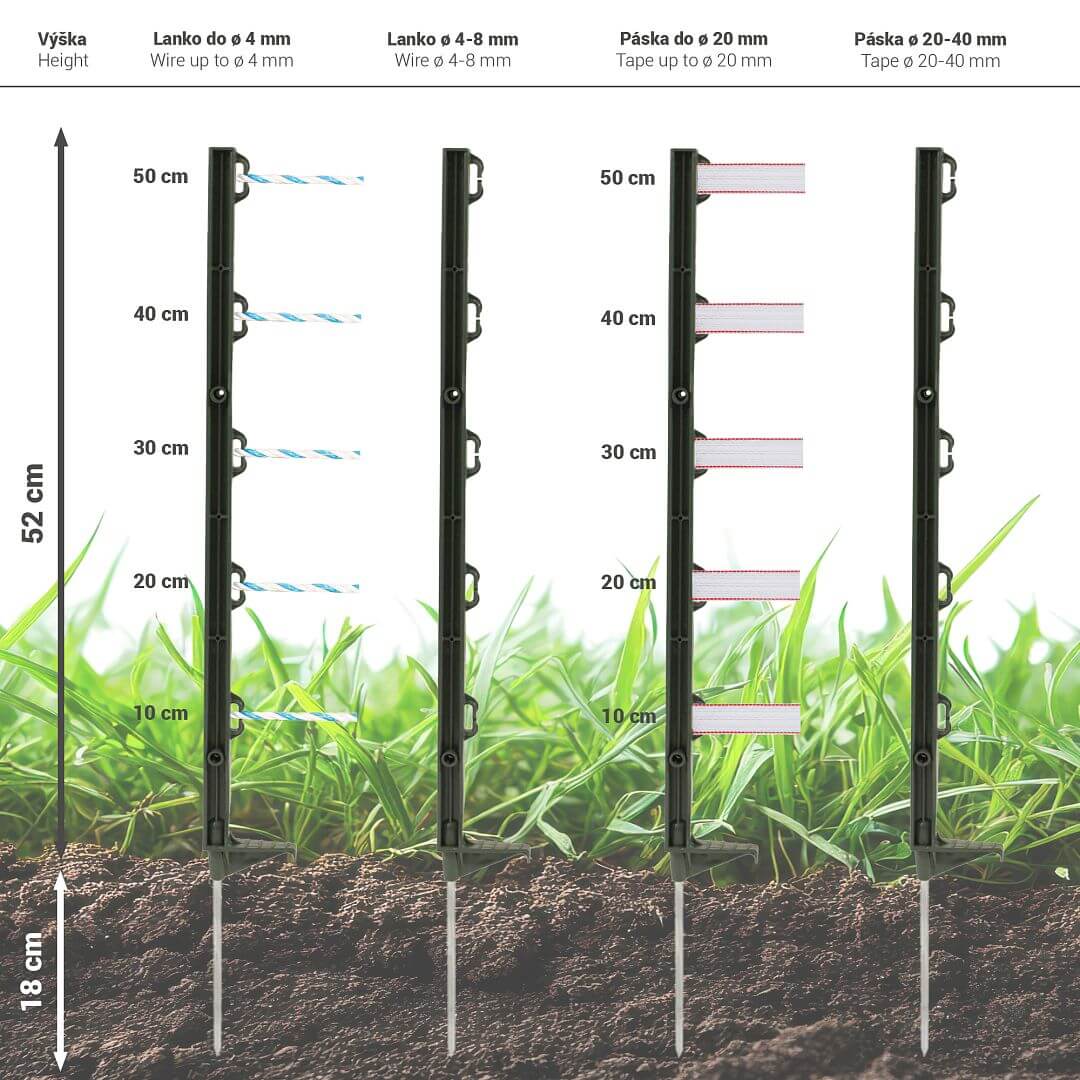

Green plastic posts 20 pcs with a total length of 70 cm, 52 cm above the ground. Green conductive wire with a diameter of 2,5 mm in a 250 m coil, 3 × 0,20 stainless steel wire. The set also includes a grounding rod.

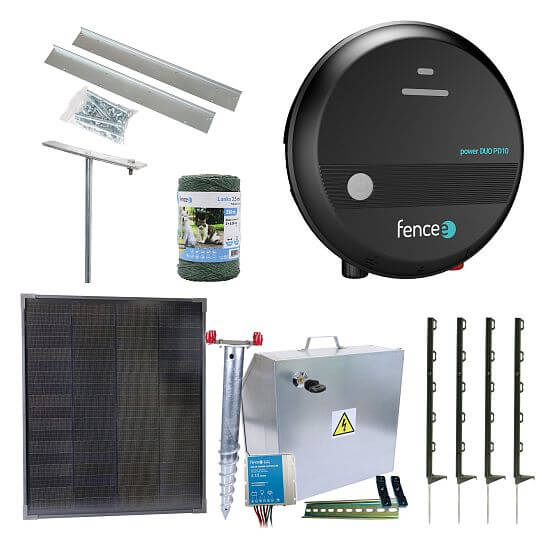

Package contents:
- combined fencee power DUO PD10 energizer
- security box with DIN rail and 10 A regulator
- 40 W solar panel
- mounting bracket for attaching the 40 W solar panel to the security box
- green wire with 2,5 mm diameter, 250 m winding
- earthing rod round, galvanized 75 cm
- 20 × plastic posts, 70 cm long
The following accessories can be purchased with the solar fence kit:
Battery for electric fence 12 V 44 Ah
High quality and reliable car battery, suitable for use with electric fence. Ergonomic…
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 3 W |
Energizer consumption 12 V | 40 - 100 mA |
Output energy | 1 J |
Input energy | 1,4 J |
Output voltage | 9000 V |
Output voltage 500 Ω | 5000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 35 km |
Low vegetation | 8 km |
Medium vegetation | 2 km |
High vegetation | 1,5 km |
Earthing 1 m | 1 × |
El. fence nets | 3 × |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1512 g |
