Electric fence generator fencee power DUO PD10

Electric fence generator fencee power DUO PD10
Extended warranty 3 years
1 J
Mr. Tomáš Urban

Key Account Manager / Mo-Fr: 7:00 am - 3:00 pm

Mr. Tomáš Urban

Functions of product Electric fence generator fencee power DUO PD10

Combined operation Power switching ON/OFF button LED diodes LED Bargraph Battery management DIN rail ST transformer

Product´s description Electric fence generator fencee power DUO PD10

The popular combination power supply for electric fence with an output power of 1 J and the possibility of power supply via an adapter from 230 V mains or from a standard 12 V car battery .

Universal electric fence most commonly for: horses, dogs, cats, poultry, otters

Thanks to its features and the modern technology used, the power DUO PD10 generator is suitable for smaller and more sensitive animals such as dogs, cats or poultry that need to be fenced off with an electric fence in your garden or backyard. The source is also suitable for larger animals such as horses, ponies. The electric fence is also a proven tool in the fight against pests such as martens, otters, beavers or weasels. With the electric fence you can easily and quickly define a space for your animals or, on the contrary, you can prevent animals from accessing unwanted places. For other animals, choose the electric fence sources from the offer according to the animal.

Features and benefits of the fencee electric fence

The most popular reliable electric fence generator with a combined power source. To be powered either from the 230 V mains or by a 12 V car battery. In the case of mains power , we recommend that you also connect the device to the car battery and use it as a backup power source in case of a power failure.

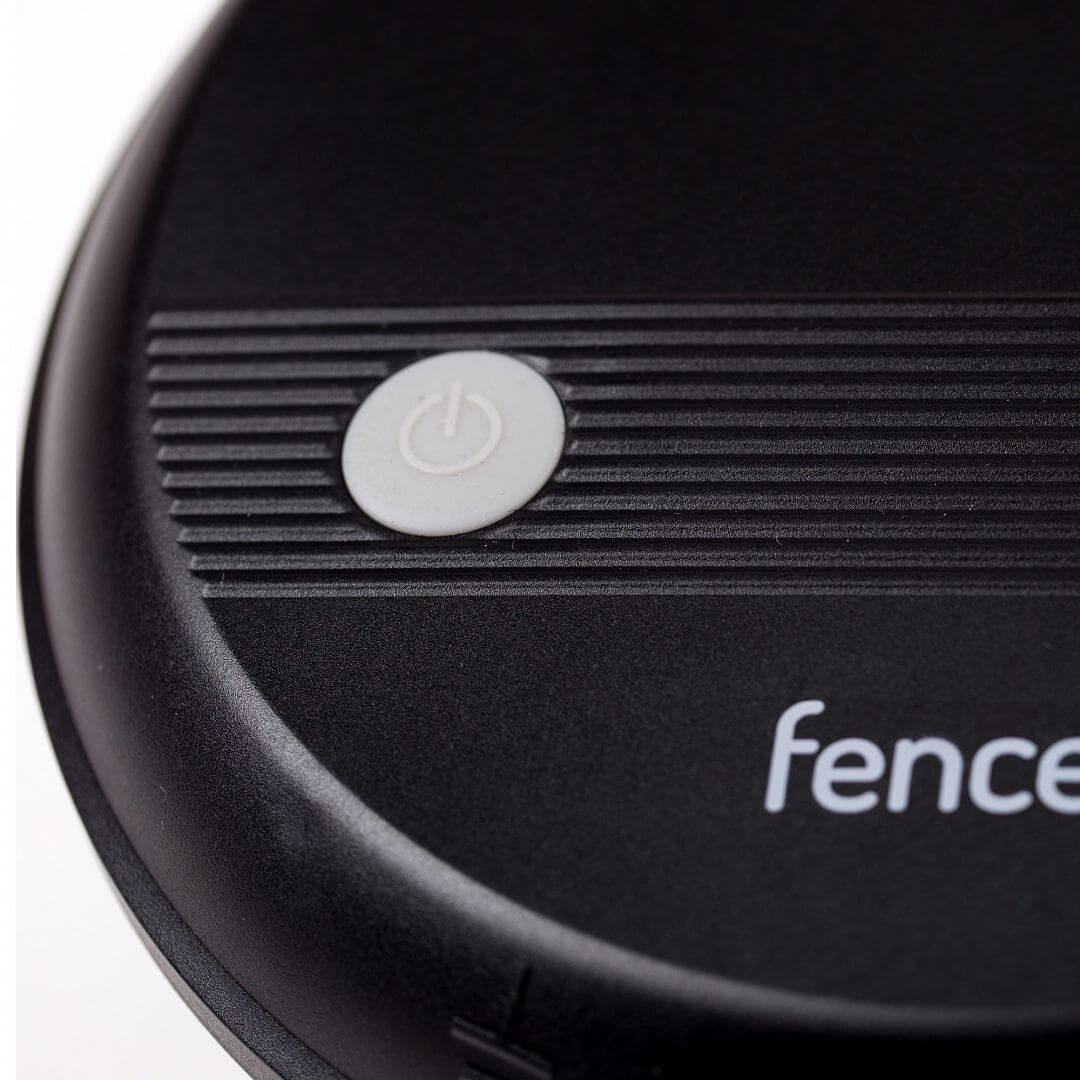

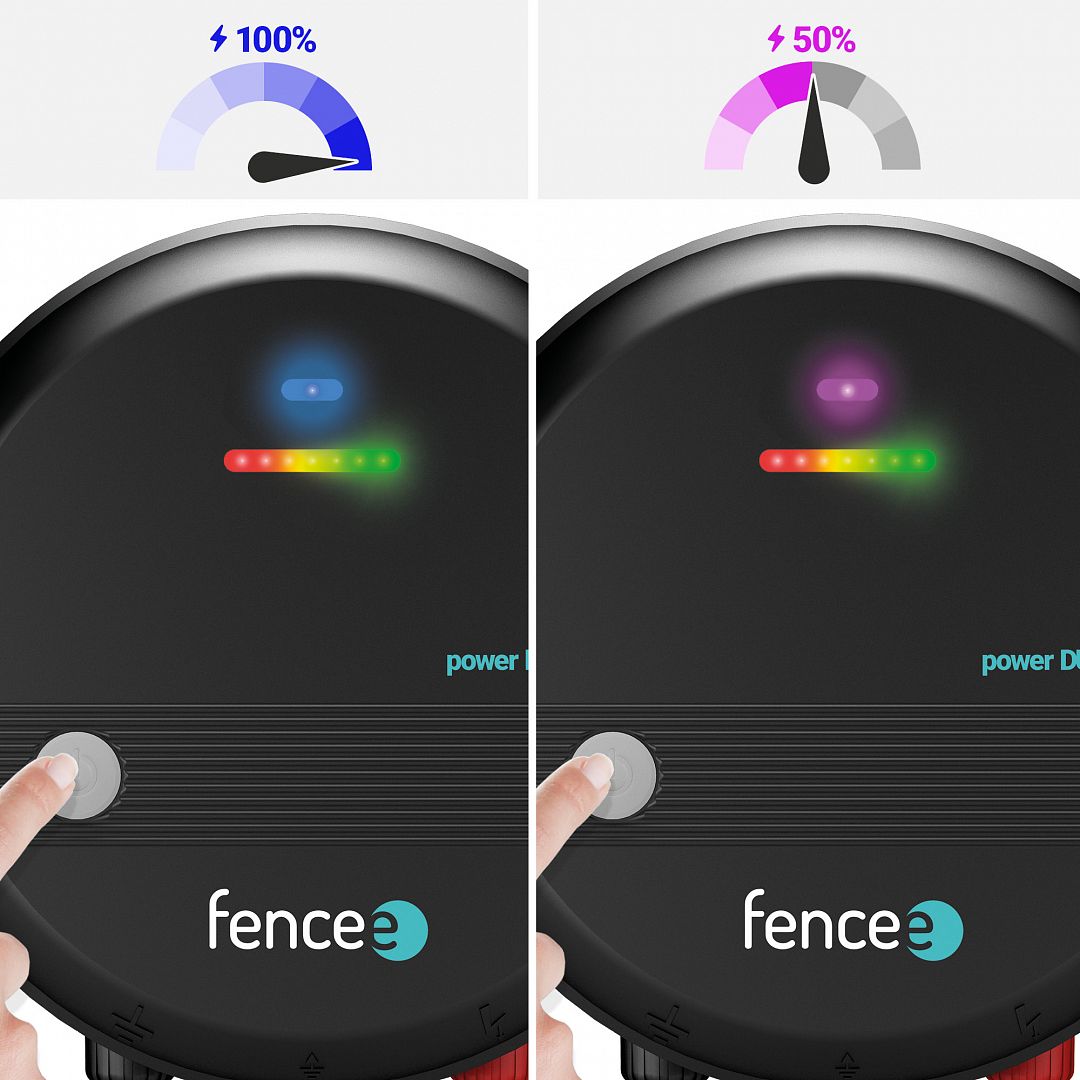

  • The handy ON/OFF button on the front of the device is easily accessible and can be used to switch power. This is useful when you don't need full power from the device and can easily save energy, for example from your battery. The power switching option is between 100% / 50% of the generator power.

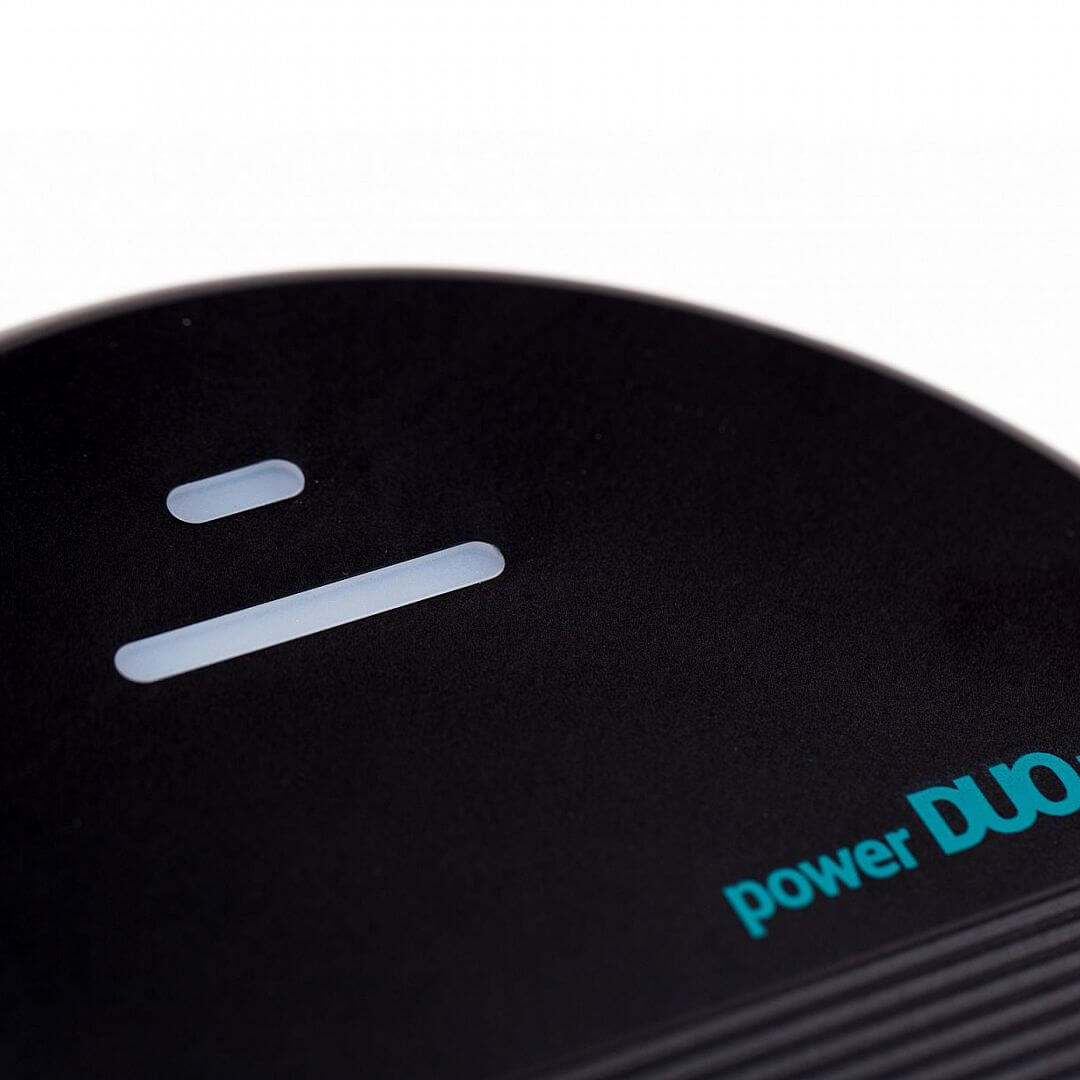

  • Highly luminous LEDs and a bargraph at the top on the front of the generator show the operation of the power supply at a glance and indicate a possible fault on the electric fence. The fencee generator measures the voltage on the fence and displays the values in colour via the bargraph.
  • The modern technology of the fencee electric fence ensures maximum power output, which is controlled by a microprocessor. It automatically optimises the entire operation and adapts the power output to the current conditions. The advantage of the power supplies is the very long life of the connected battery and the low operating costs of the electric fence.

With the fencee electric fence, you will solve problems such as the raking of your flower beds by uninvited pests. You will put an end to the eating of your ornamental ponds by pests such as martens, otters, herons and cats.

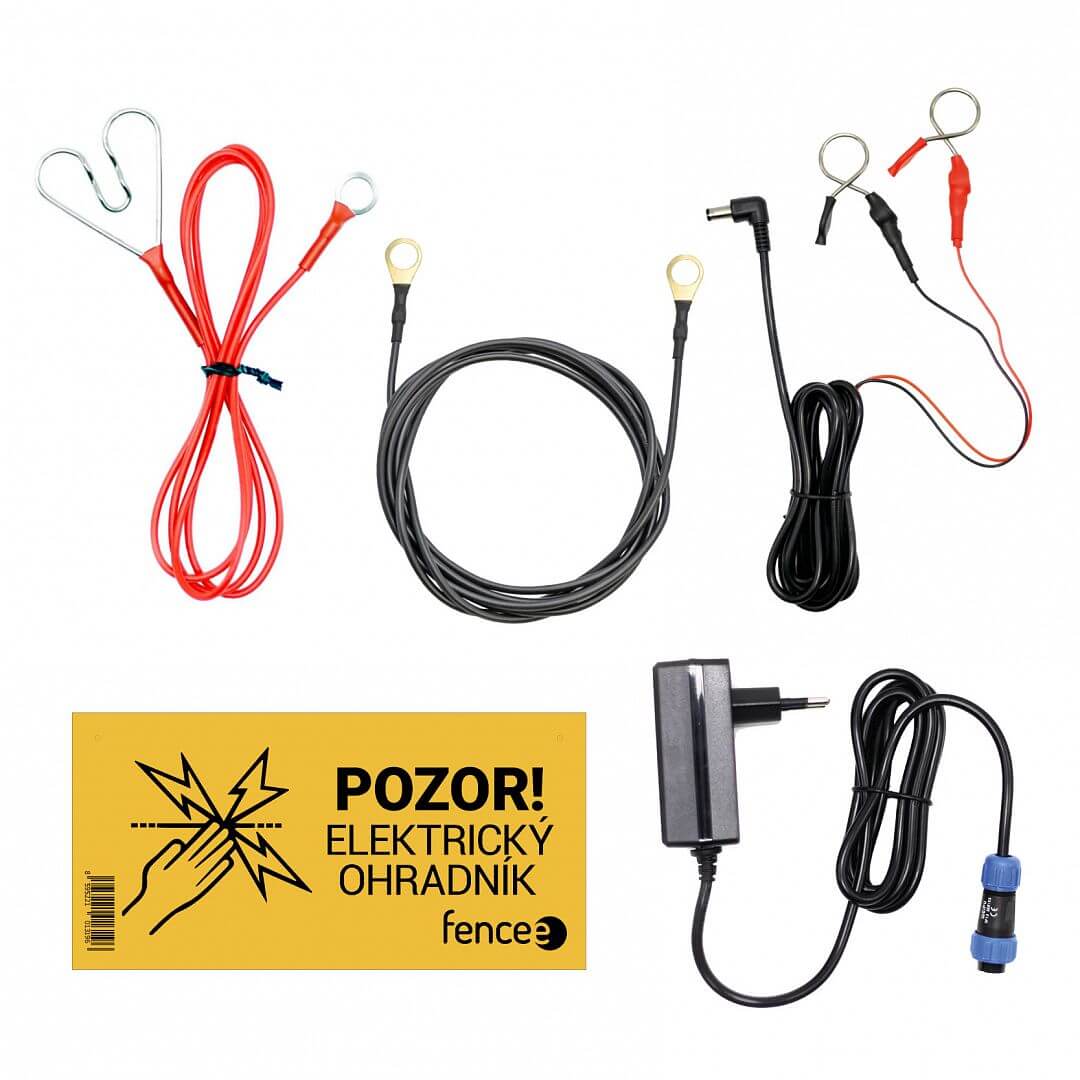

What you'll find in the pack:

  • fencee power DUO PD10 generator
  • Power adapter fencee DUO 14 V 1.5 m
  • 150 cm ground cable (eye-to-eye)
  • connection cable 100 cm (eyelet-heart)
  • fencee DUO battery cable 1.7 m
  • fencee warning plate
  • operating instructions

Together with the generator we recommend to purchase a DIN rail 200 mm for easy mounting of the fence.

Power source 230 V ~ / 12
Energizer consumption 230 V 3 W
Energizer consumption 12 V 40 - 100 mA
Output energy 1 J
Input energy 1,4 J
Output voltage 9000 V
Output voltage 500 Ω 5000 V
ON/OFF
LED ON/OFF
LED impulse
LED low battery voltage
LED lower power 50%
LED error check
LED impulse bargraph
TEOR. max. CEE 35 km
Low vegetation 8 km
Medium vegetation 2 km
High vegetation 1,5 km
Earthing 1 m 1x
El. fence nets 3x
Diameter 210 mm
Depth 66 mm
Weigth 1512 g

Manuals and files for downloading

Manual fencee power DUO PD
