Product´s description Electric fence kit for cattle, game, boars, sheep, goats - DUO energizer - polytape 400 m
Set of electric fence for demarcating a safe area for animals such as sheep, goats, cattle, poultry. Thanks to the electric fence, animals can move freely in the demarcated area. The set is also suitable for protecting your crops and land, from forest animals, wild boars, deer or roe deer.
The basis of the complete set is the combined generator of the fencee power DUO PD30 electric fence. With its 3 J output, it is suitable for fences with an installation length of up to 23 kilometres. The combined power supply can be powered via an adapter from a 230 V socket or from a conventional 12 V car battery, which can also be used as a backup power supply in the event of a power failure.
The durable modern and waterproof design of the generator with a switch on the front panel and the latest microprocessor technology inside, offers a practical and reliable solution for powering the electric fence. LED lights and BARGRAF clearly display the operation of the power supply, measure the voltage on the fence and also indicate any malfunction on the fence. The possibility of switching the power with the ON/OFF button and the very low consumption are further advantages of this generator.
The set includes a high quality 3 mm diameter wire rope with three copper conductors, ensuring maximum conductivity even in long installations. The 400 m long fencing rope is made ofa strong material that is tear-resistant and has a long service life. The fencing height of up to 136 cm is created by means of sturdy plastic posts with 11 eyelets for individual selection of wire pulling.
The complete electric fence set is very practical and easy to install.

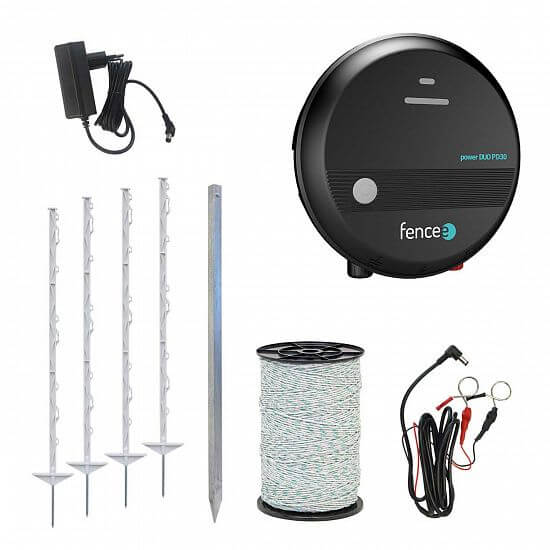

Package contents:
- fencee power DUO PD30 generator
- 1× wire ø 3 mm, stainless steel 3 × 0.20 mm + copper 3 × 0.25 mm - length 400 m
- 15× post 156 cm (above ground 136 cm), 11× eyelet
- 1× ground rod 100 cm
Included in the generator package:
- 1× power adapter fencee DUO 14 V 1.5 m
- 1× earth cable 150 cm (eyelet-mesh)
- 1× connection cable 100 cm (eye-bead)
- 1× fencee DUO battery cable 1.7 m
- 1× warning plate
- 1× operating instructions
Energizer consumption 230 V | 5 W |
Energizer consumption 12 V | 80 - 240 mA |
Output energy | 3 J |
Output voltage | 11200 V |
Output voltage 500 Ω | 6400 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 100 km |
Low vegetation | 23 km |
Medium vegetation | 5 km |
High vegetation | 2 km |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1451 g |
