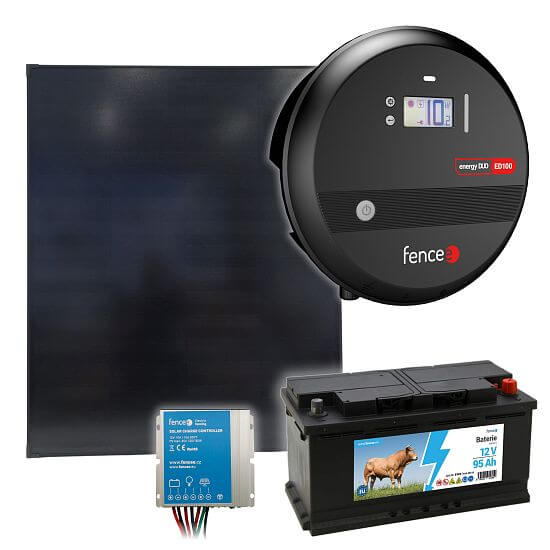

Product´s description Solar electric fence set with 10 J power + 200 W solar panel + controller and 12 V battery 95 Ah
A discounted solar-powered fencingkit suitable for larger and vegetation-laden electric fences. Ideal solution for fencing in places without electricity during the grazing season.

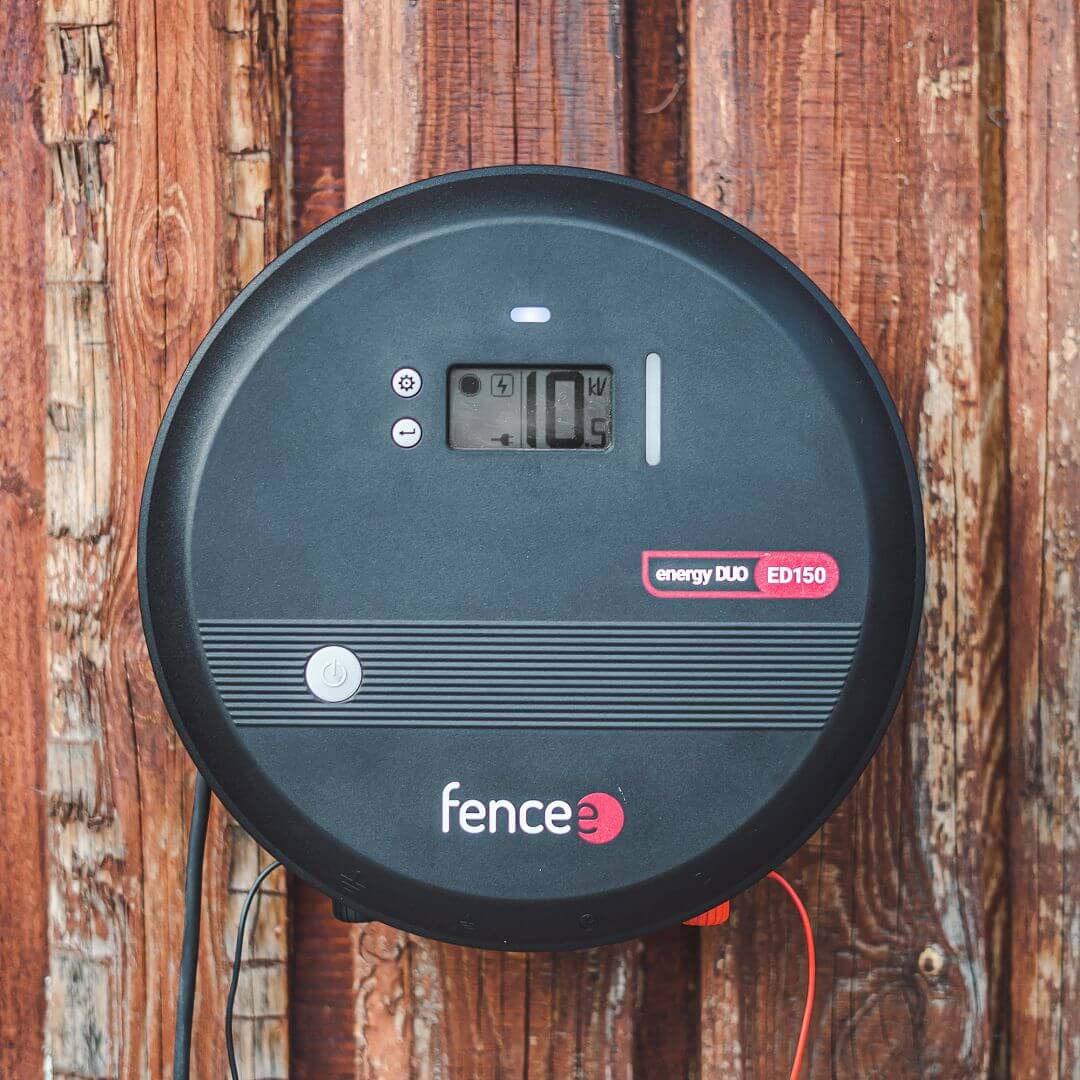

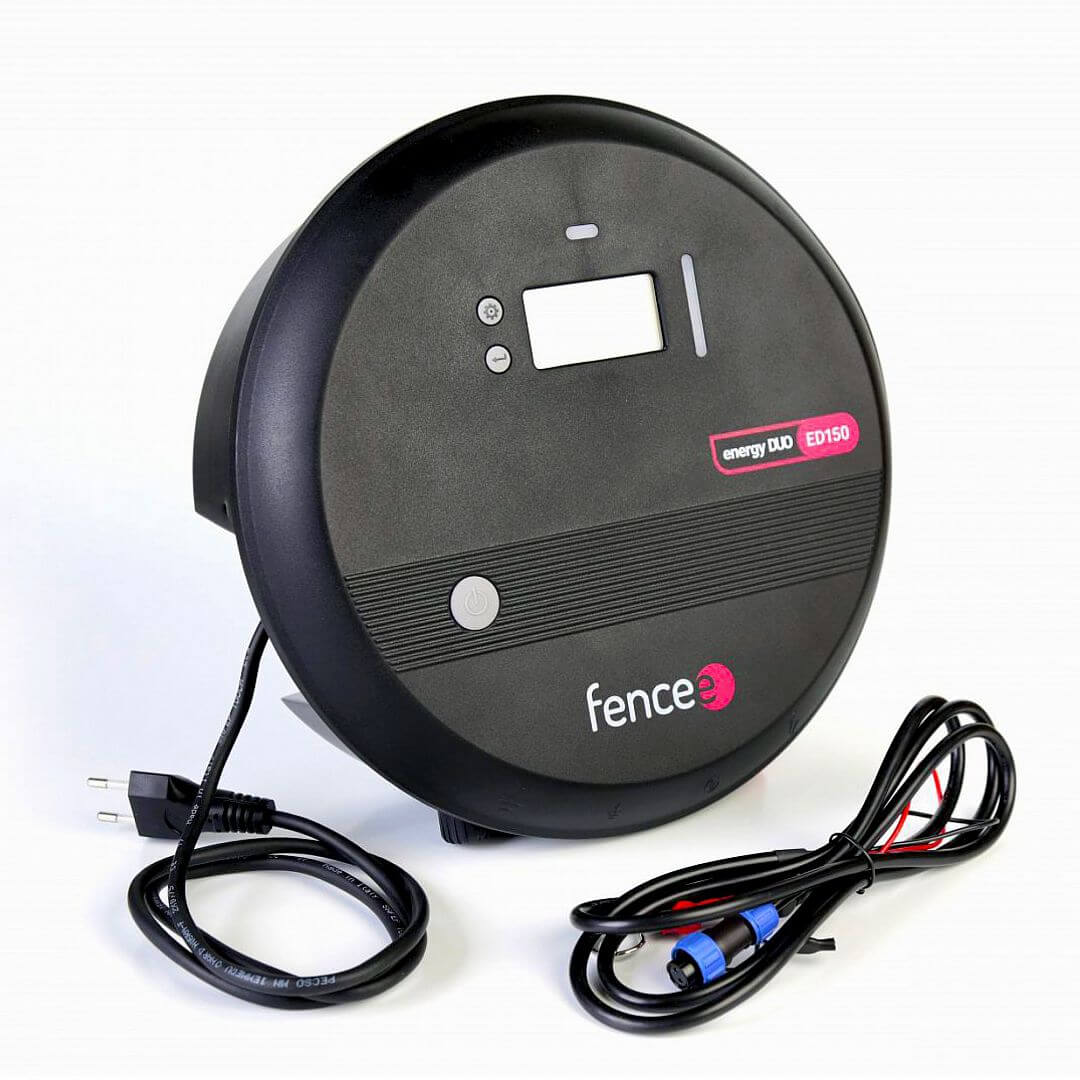

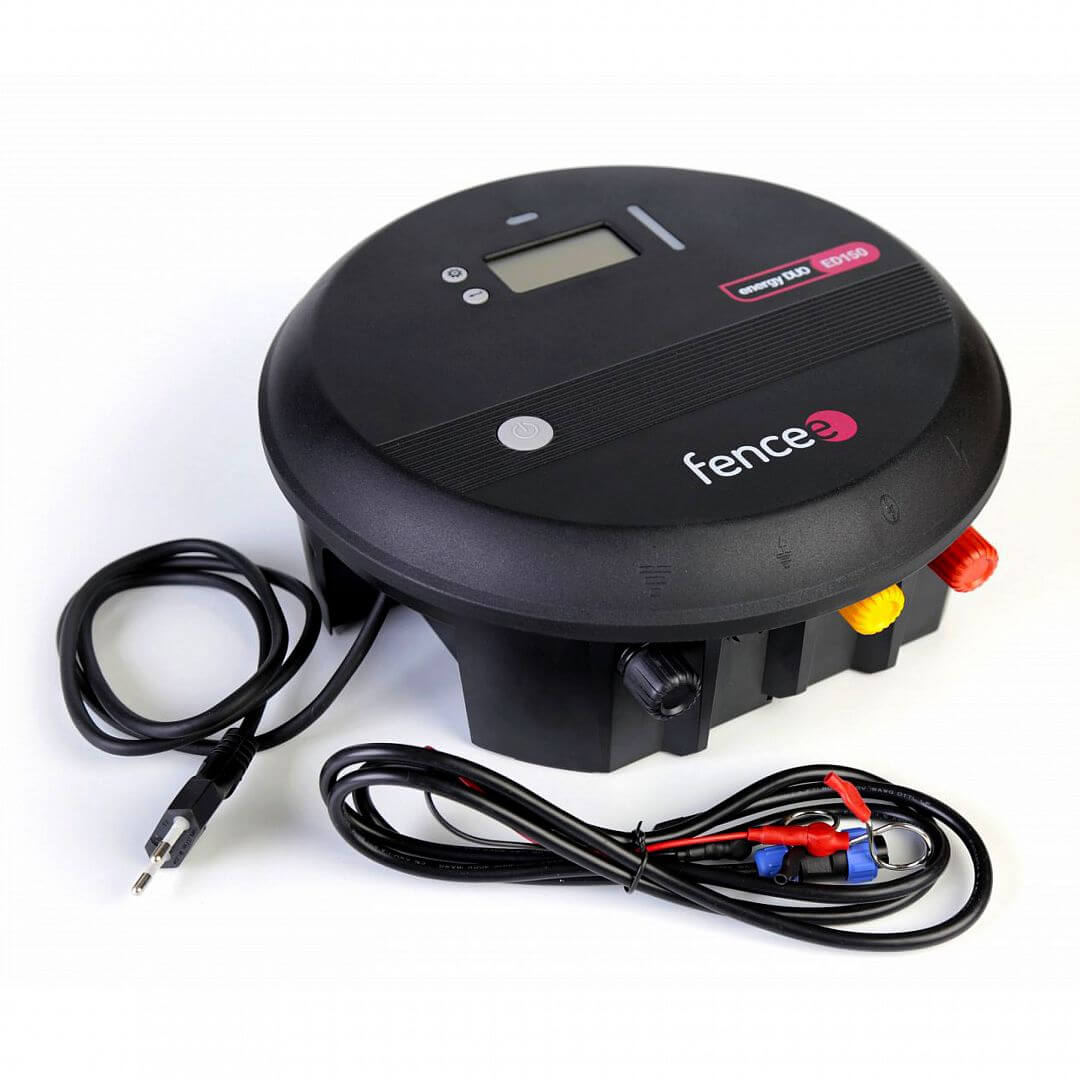

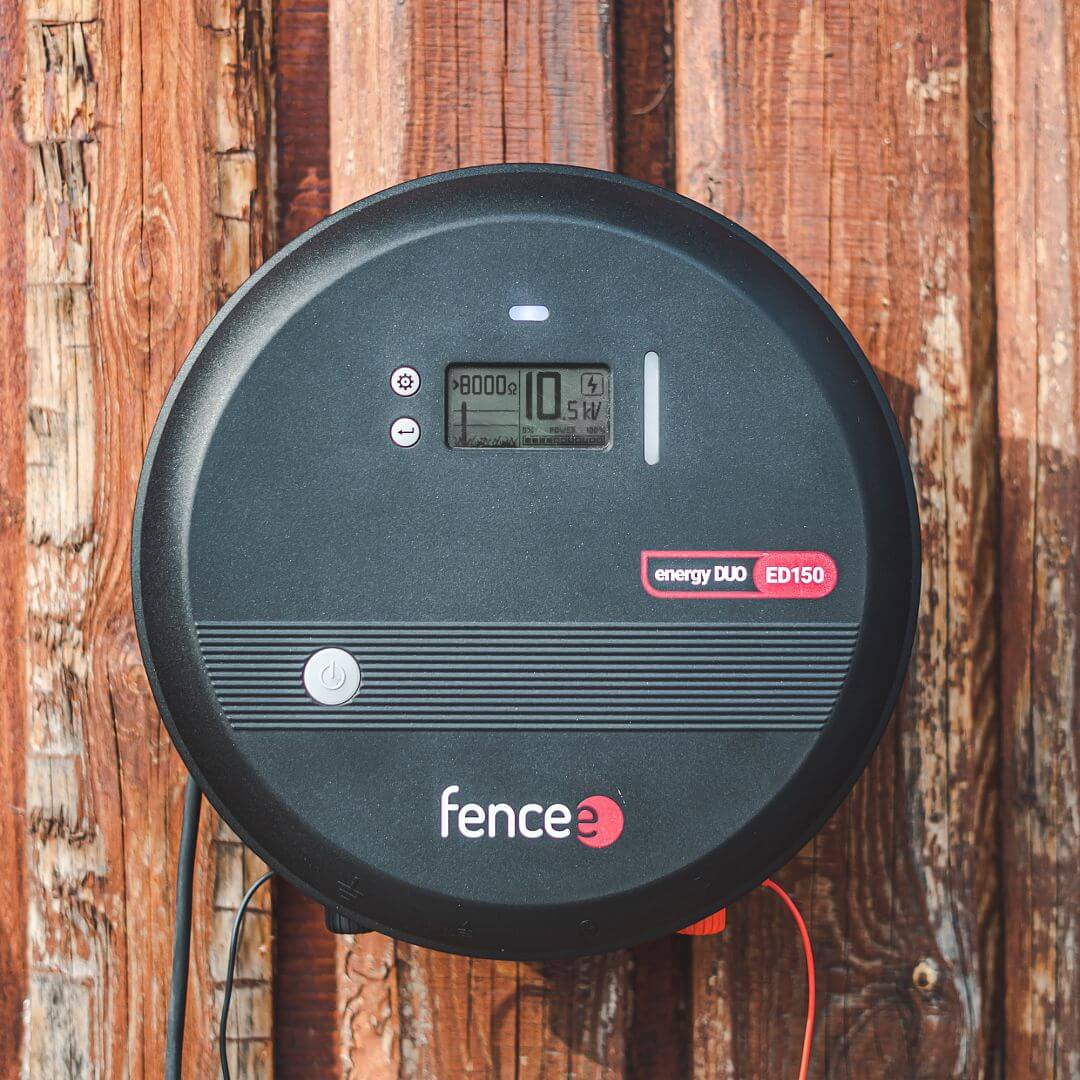

Powerful fencee energy DUO ED100 combined power supply
The fencee combined generator with a power of 10 J is suitable for electric fences up to 90 km long. It can provide sufficient voltage even in heavily grassed fences. An integrated microprocessor controls the entire operation and guarantees optimum performance of the generator. A large LCD display withcontrol buttons informs about important values on the fence .

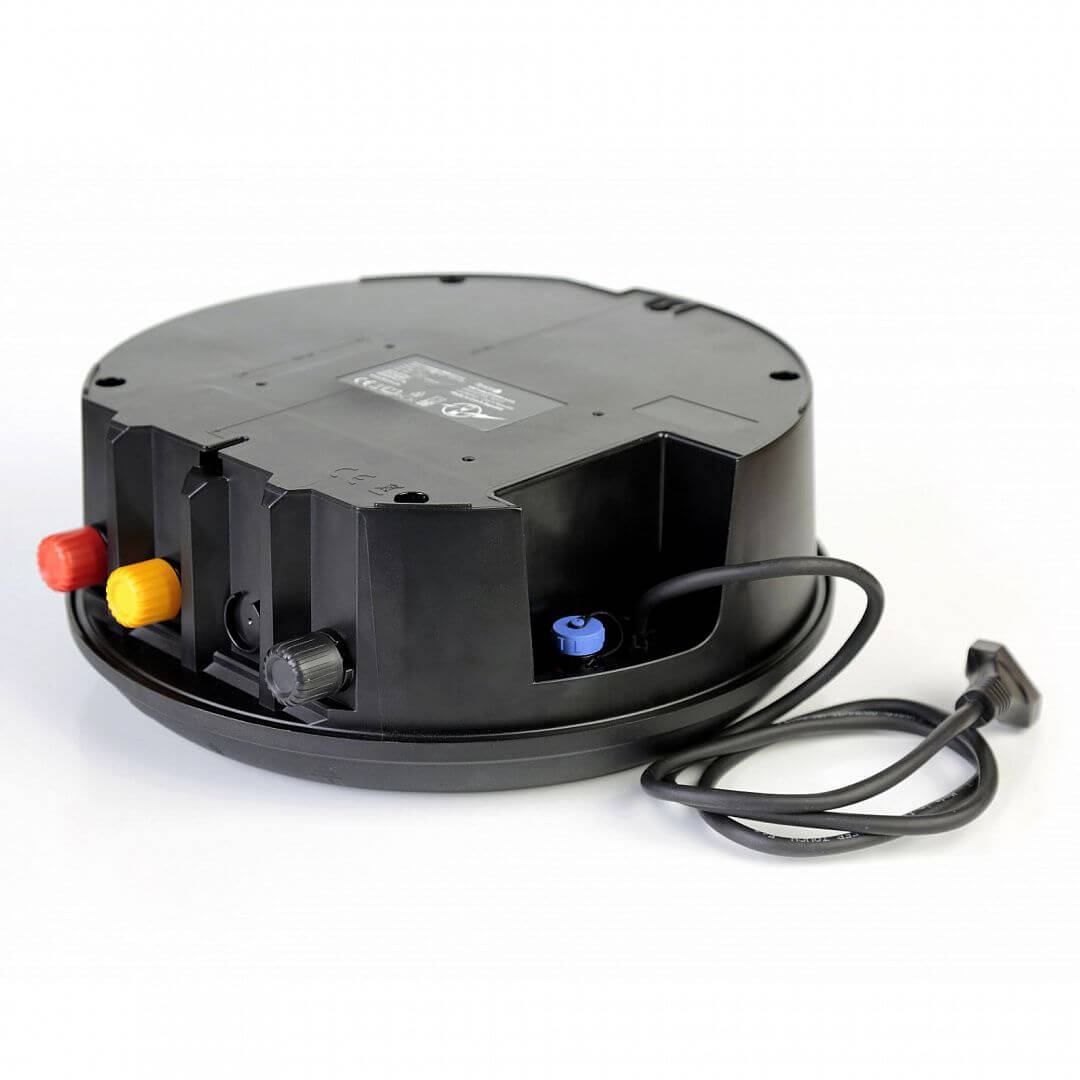

At the generator output, there is a black ground terminal, a red terminal for connecting a full-voltage fence and a yellow terminal for connecting a permanently reduced-energy fence. You can find out how to use the yellow terminal with half the power in our advice in the basic installation section.
FENCEE ENERGY DUO ED100 GENERATOR

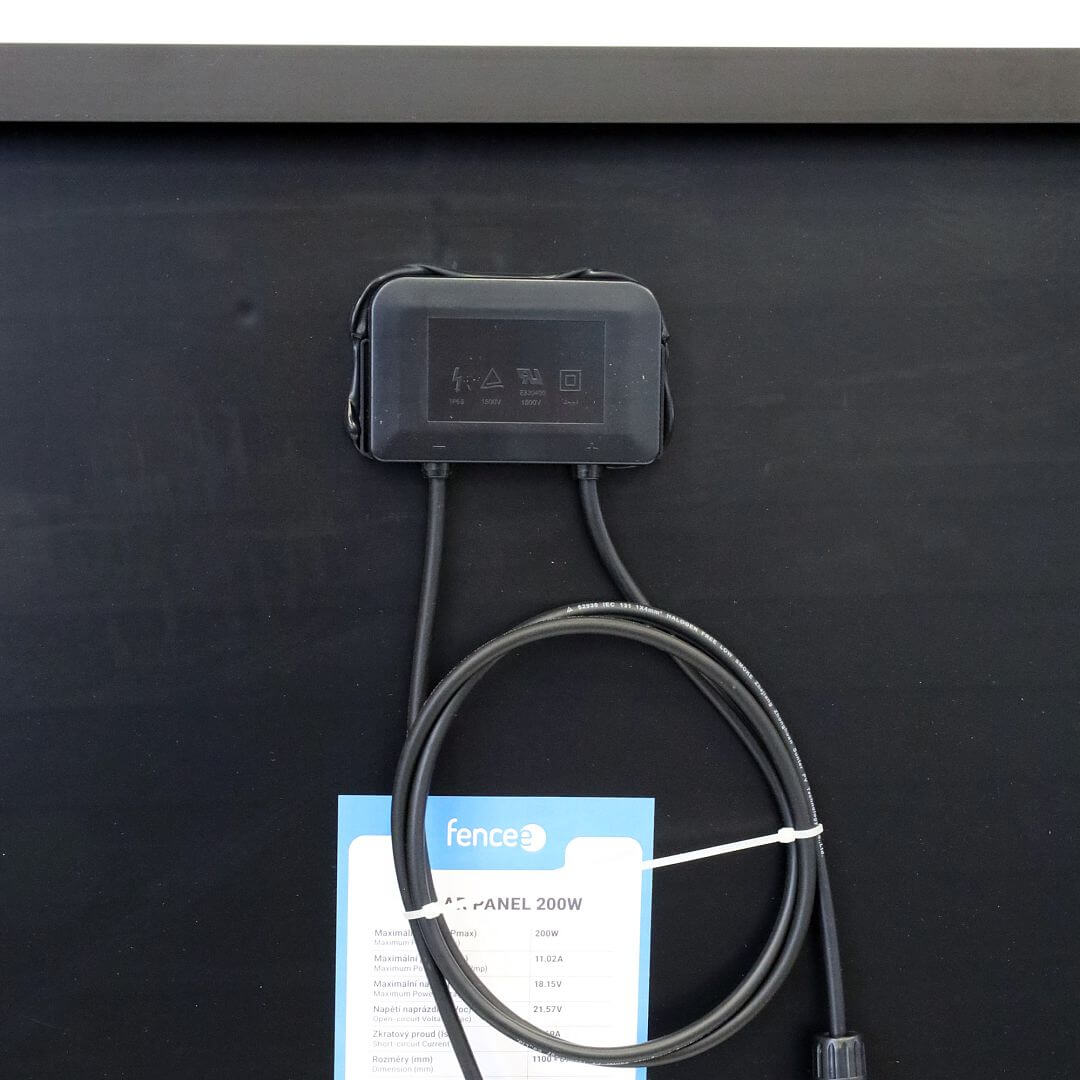

Solar panel with 200 W output
High-quality solar panel 200 W for reliable solar charging of the 12 V battery of the fence source. Anti-corrosive treatment. Use of tempered glass, high transparency. The position of the solar panel must be chosen so that it is towards the south and as perpendicular to the sun as possible. Poor positioning, shading and contamination of the solar panel reduces its performance. The fence source cannot be powered by the solar panel alone, the12 V batterymust always be connected at the same time .

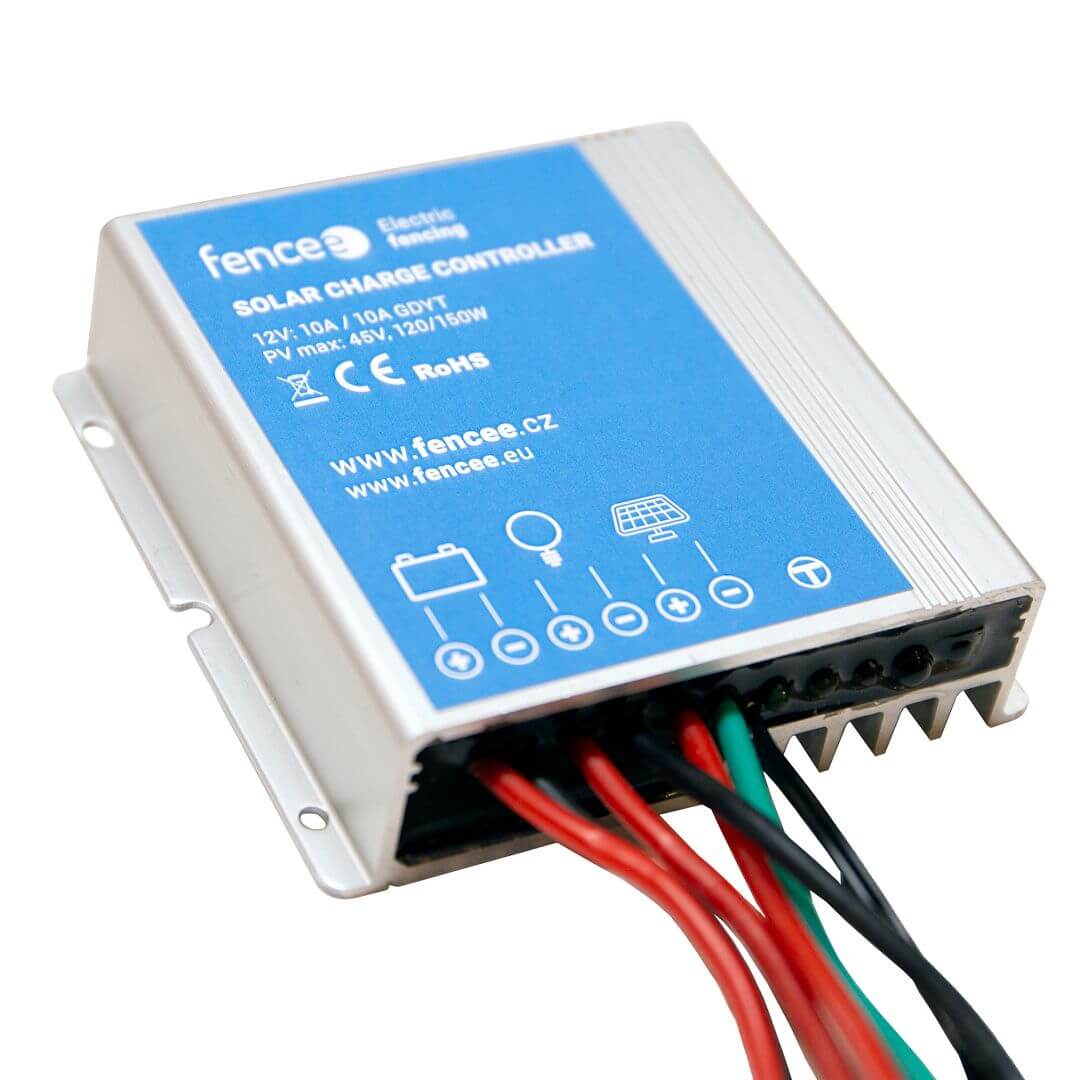

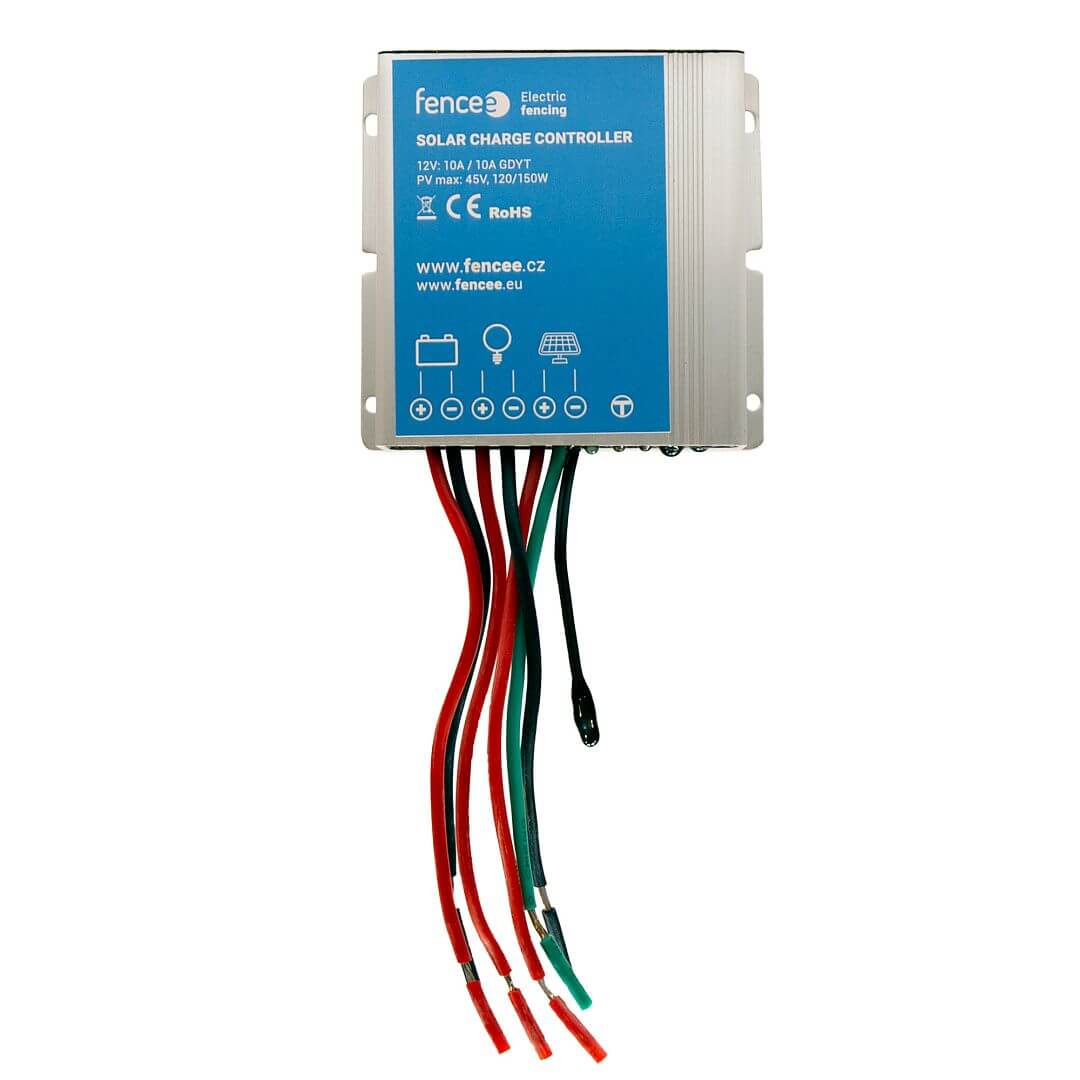

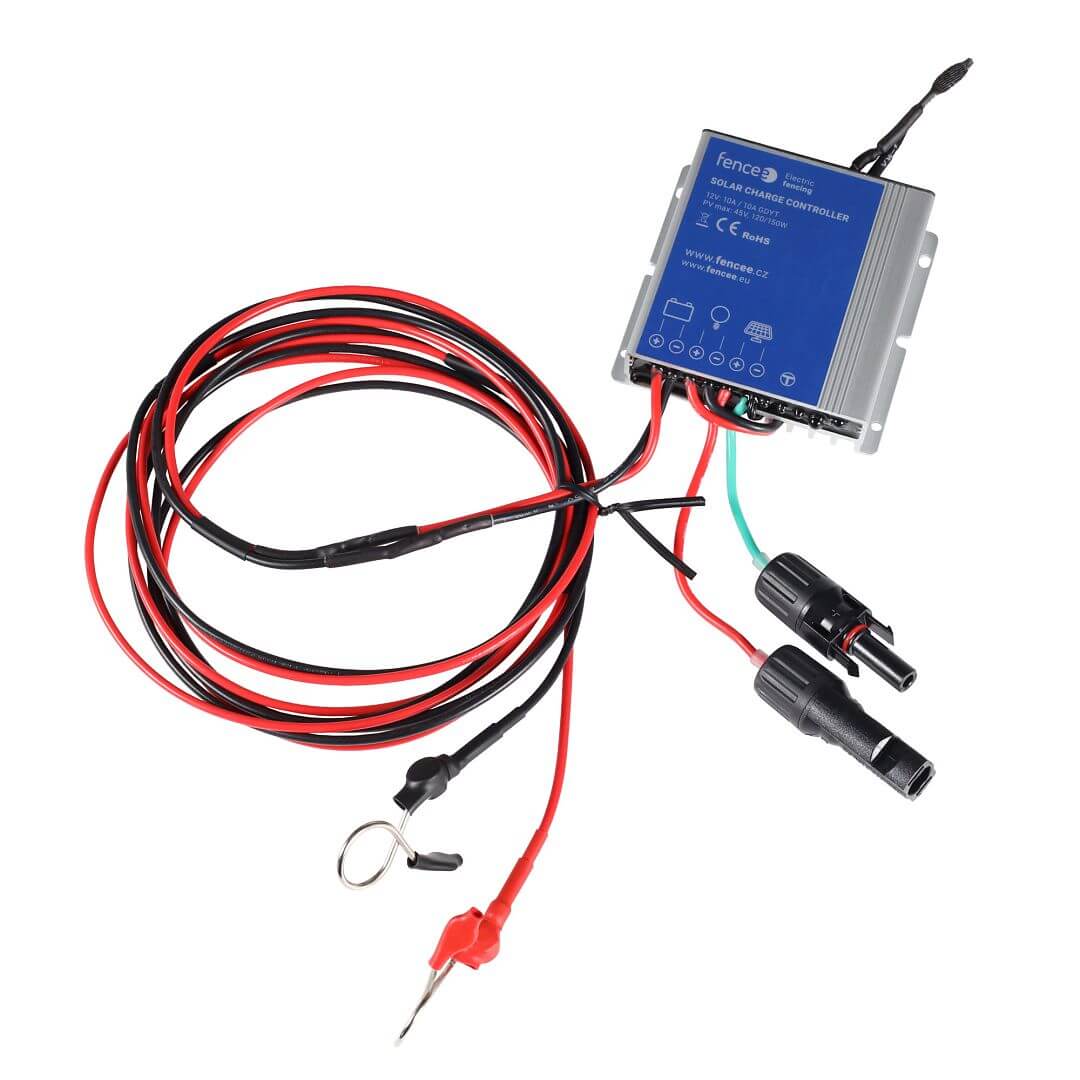

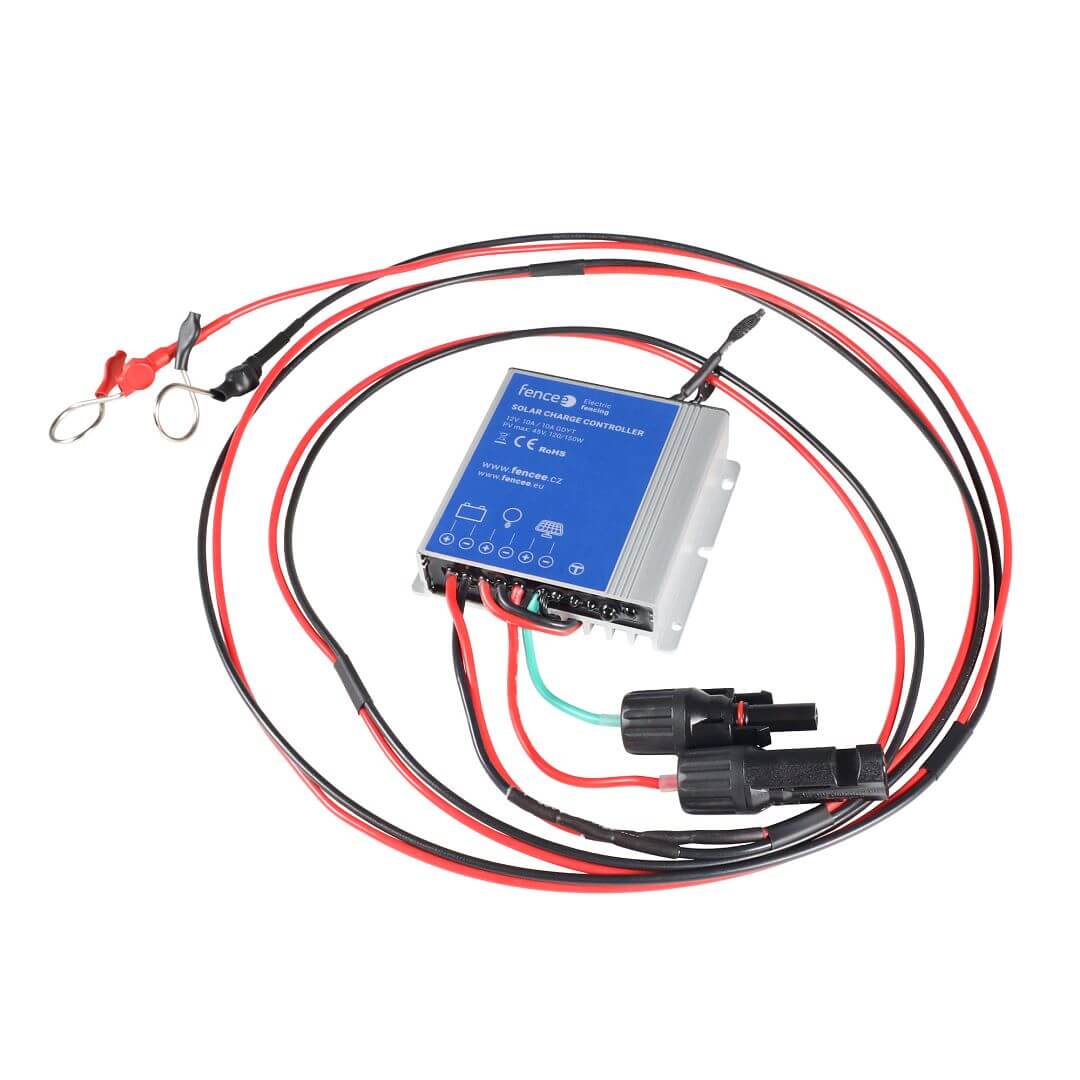

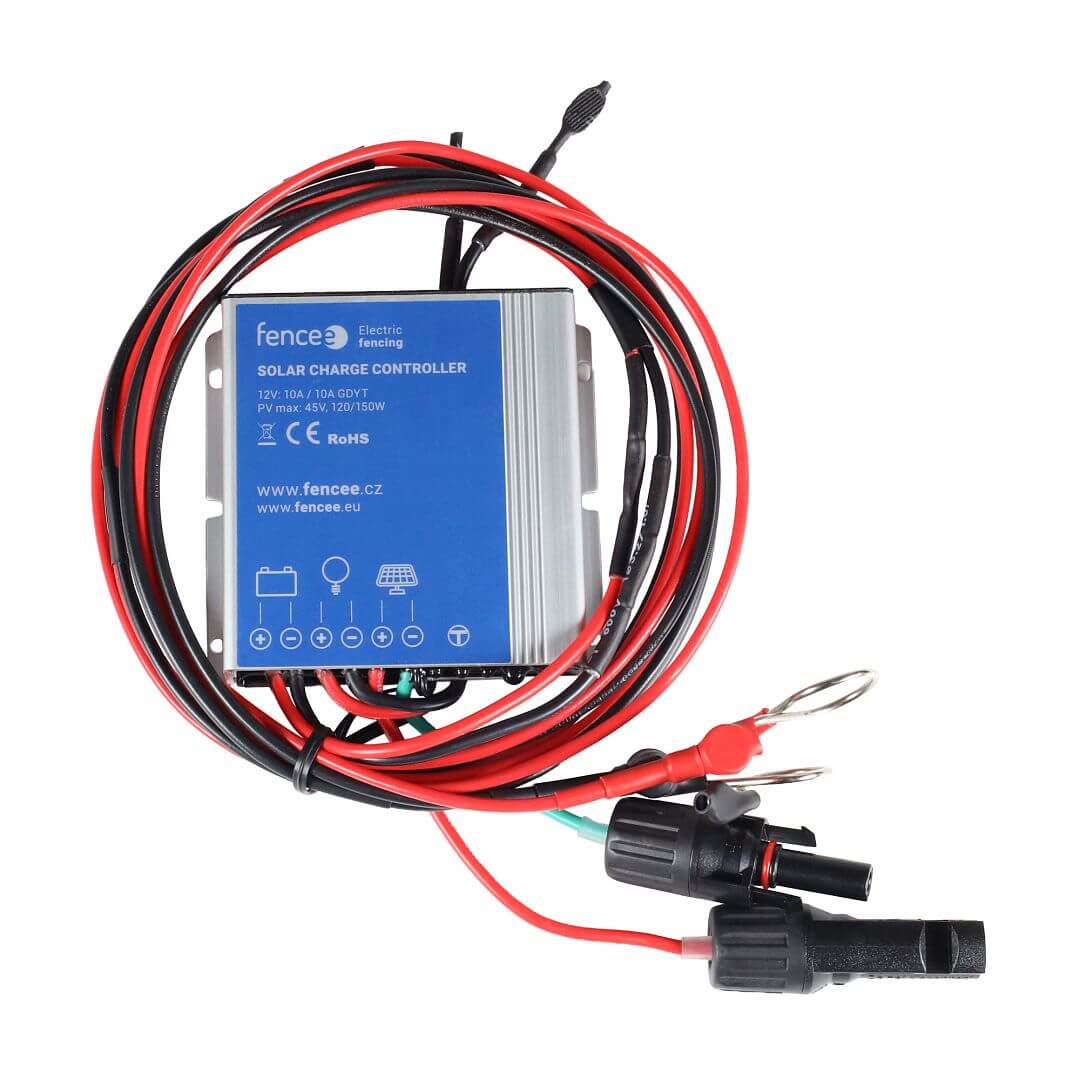

Waterproof 10 A regulator
Durable aluminium housing, IP67 protection. High charge conversion efficiency of up to 97.5%. Fully automatic electronic protection function. Never connect the solar panel directly to the power supply or battery - always use the regulator to avoid destroying the device.

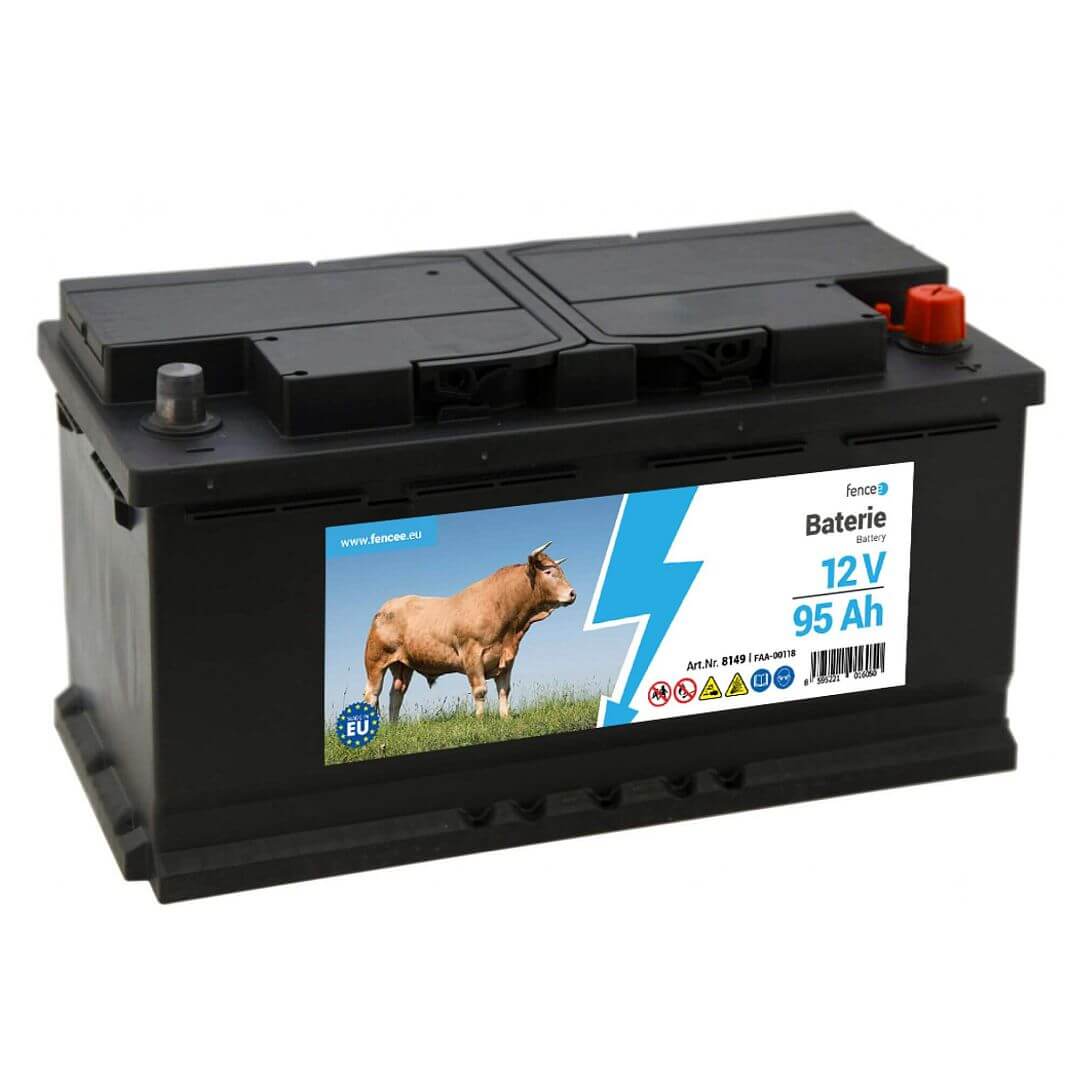

12V Battery 95 Ah for electric fence
Reliable, shock-resistant 12V battery suitable for use with electric fence. Capacity 95 Ah. Efficient solar charging with solar panel. Battery subject to special transport charges.
What you will find in the package:
- 1× fencee energy DUO ED100 combined generator
- 1× 200 W solar panel
- 1× battery 12 V 95 Ah
- 1× 10 A regulator

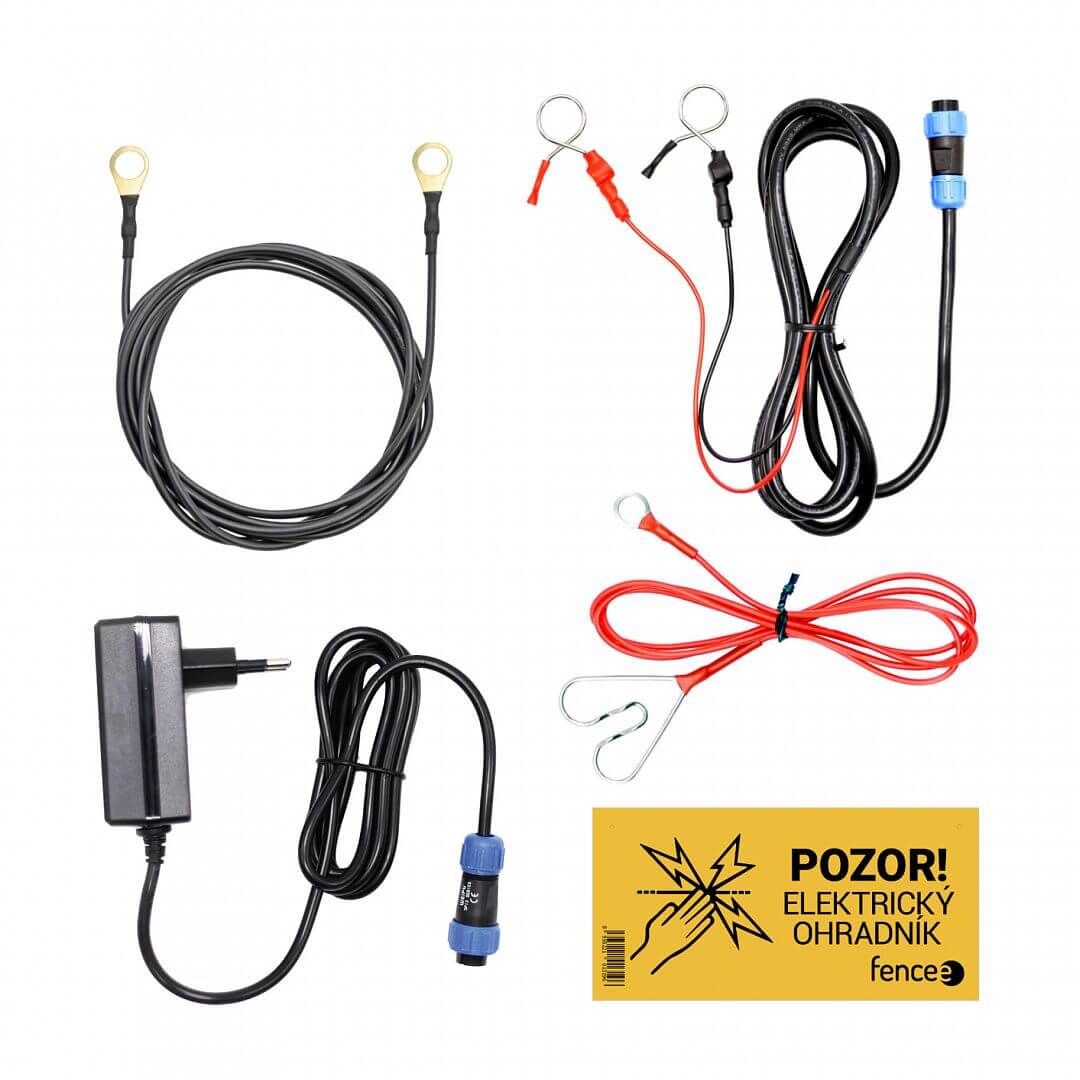

Generator package contents:
- fencee energy DUO ED100 combined generator
- Power adapter 14 V / 2 A
- 150 cm earthing cable (eyelet to eyelet)
- Connecting cable 100 cm (eyelet-heart)
- battery cable energy 170 cm
- fencee warning plate
- operating instructions
Together with the kit we recommend to purchase a DIN rail 200 mm for easy mounting of the generator on the wall.
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 6 - 14 W |
Energizer consumption 12 V | 200 - 850 mA |
Output energy | 10 J |
Input energy | 13 J |
Output voltage | 10000 V |
Output voltage 500 Ω | 7000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
Reduced output terminal | |
LCD display | |
TEOR. max. CEE | 300 km |
Low vegetation | 90 km |
Medium vegetation | 22 km |
High vegetation | 10 km |
Earthing 1 m | 5x |
El. fence nets | 27x |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3728 g |
