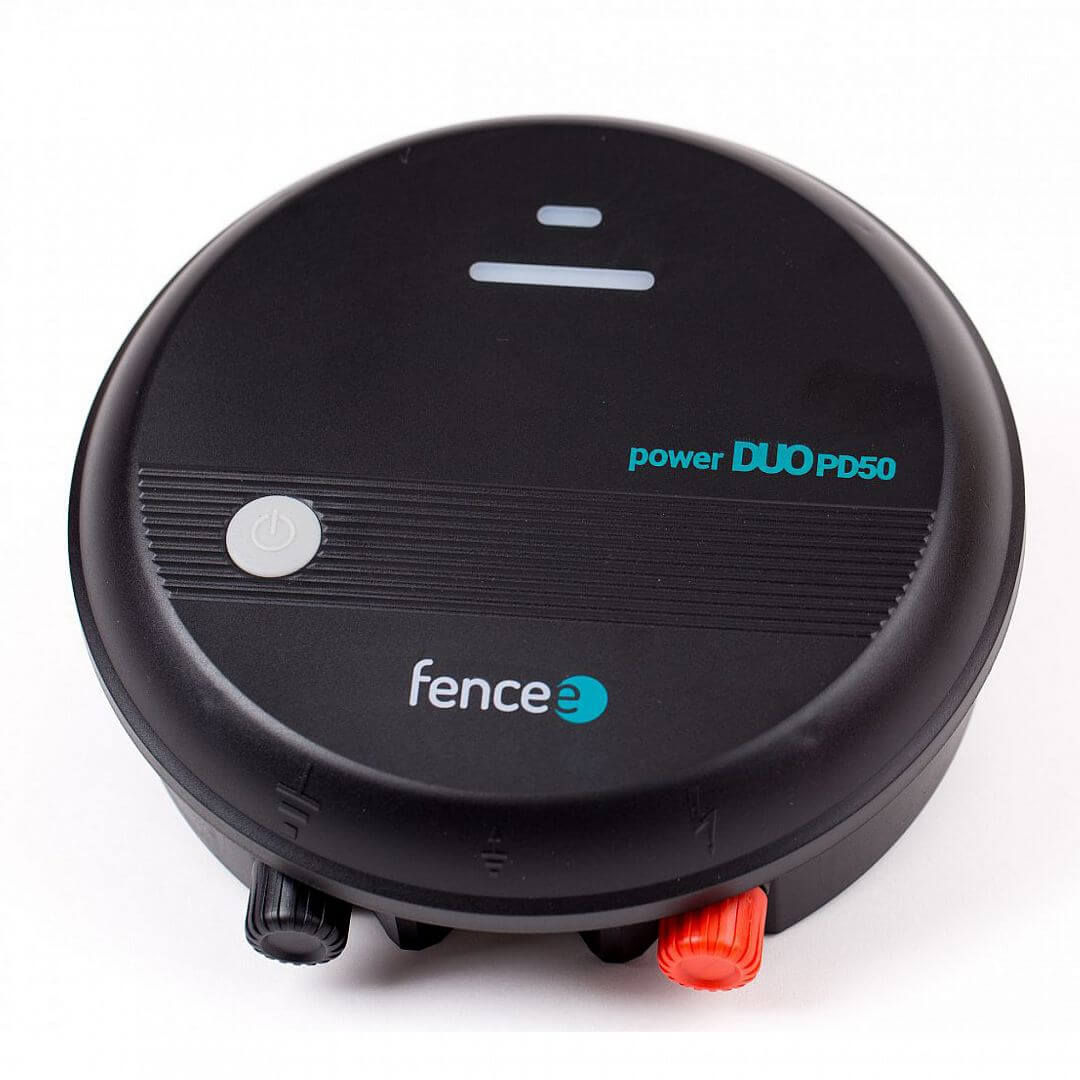

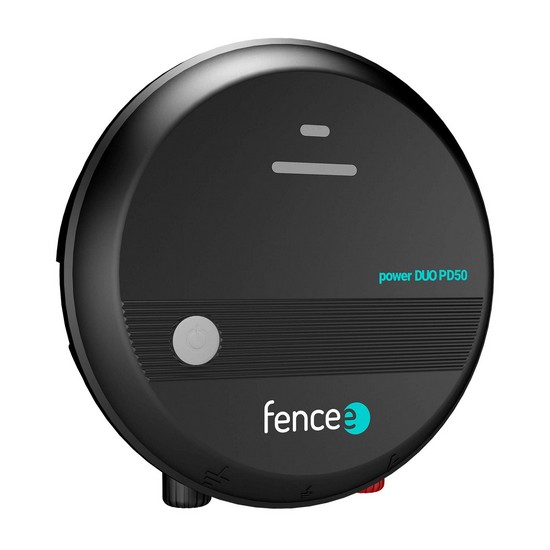

Product´s description Electric fence energizer fencee power DUO PD50
Power supply is possible using the adapter from the mains (230 V) or from a standard battery (12 V), which can also be used as a backup source.
The compact modern construction of the fence with a switch and the latest microprocessor technology inside offers a practical solution and allows easy installation. The LEDs and BARGRAPH on the front of the energizer show status of power supply, measure the voltage on the fence and also signal a possible fault on the fence. Automatic operation optimization, the possibility of switching power and very low consumption are other advantages of this energizer.
Package contents:
- fencee power DUO PD50 energizer
- power adapter fencee DUO 14 V 1.5 m
- earthing cable 150 cm (eyelet-eyelet)
- connecting cable 100 cm (eye-heart)
- battery cable fencee DUO 1.7 m
- warning sign fencee
- operating instructions
Power source | 230 V ~ / 12 |
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 100 - 420 mA |
Output energy | 5 J |
Input energy | 7,5 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 6600 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 140 km |
Low vegetation | 40 km |
Medium vegetation | 10 km |
High vegetation | 4 km |
Earthing 1 m | 3x |
El. fence nets | 8x |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1557 g |
