Product´s description Electric fence set for horses, foals, ponies, donkeys - DUO energizer + polyrope 200 m
Professional complete set of electric fence suitable for breeding horses, ponies or donkeys. With the complete set you can easily define a safe pasture for your animals or, on the contrary, prevent them from entering undesirable places. The set can also be used as a protection against forest and wild animals that often walk on your fields or land.
In the set you will find the powerful combined energizer energy DUO ED80. With its 8 J of power, it is also suitable for long fences with installation lengths of up to 80 km, where maximum efficiency of the electric fence must be ensured. The combined energizer can be powered by a 230 V mains adapter or from a standard 12 V car battery. The latter is recommended in this case mainly as a backup source in case of power failure. We do not recommend running the powerful energy DUO ED energizers only on the car battery due to their higher consumption.
The energizer with its large and easy to read LCD display and control buttons is very easy to use and you can see all important information about the fence at a glance. Devices with a power output greater than 5 J follow special requirements prescribed by the standard, this is a time delay of 50 seconds when increasing the power and thus ensuring safety. The energizer has a yellow output terminal with reduced power. This will be particularly appreciated if smaller and younger animals such as ponies or foals are in paddocks and pastures. The bottom wire of the fence can be connected to the yellow terminal, which gives approximately half the output power.
The high quality conductive rope with a diameter of 4,5 mm is suitable for grazing horses, ponies, and donkeys. Above all, it prevents injury to animals in the event of a possible collision with the conductor (does not cut). The set package contains a 200 m winding. With the plastic posts, you can quickly and easily install mobile fencing up to 136 cm above the ground. The posts have 11 eyelets for the possibility of pulling wires at multiple heights.
The complete set of electric horse and foal fencing is a suitable choice for creating a safe enclosure for your animals.

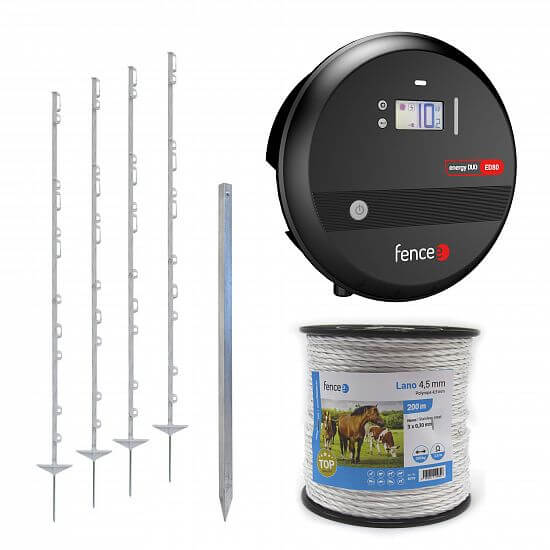

Package contents:
- fencee energy DUO ED80 energizer
- 1× polyrope ø 4,5 mm, stainless steel 3 × 0,30 mm - length 200 m, white
- 10× post 156 cm (above ground 136 cm), 11× eyelet, white
- 1× earthing rod profile 100 cm (galvanized)
Included in the energizer package:
- 1× power adapter fencee DUO 14 V 2A, lead length 1,5 m
- 1× earthing cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eyelet-heart)
- 1× fencee DUO battery cable 1,7 m
- 1× fencee warning plate
- 1× operating instructions
Energizer consumption 230 V | 6 - 11 W |
Energizer consumption 12 V | 200 - 750 mA |
Output energy | 8 J |
Input energy | 11 J |
Output voltage | 10500 V |
Output voltage 500 Ω | 7500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
LCD display | |
TEOR. max. CEE | 230 km |
Low vegetation | 80 km |
Medium vegetation | 17 km |
High vegetation | 8 km |
Earthing 1 m | 4 × |
El. fence nets | 22 × |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3677 g |
