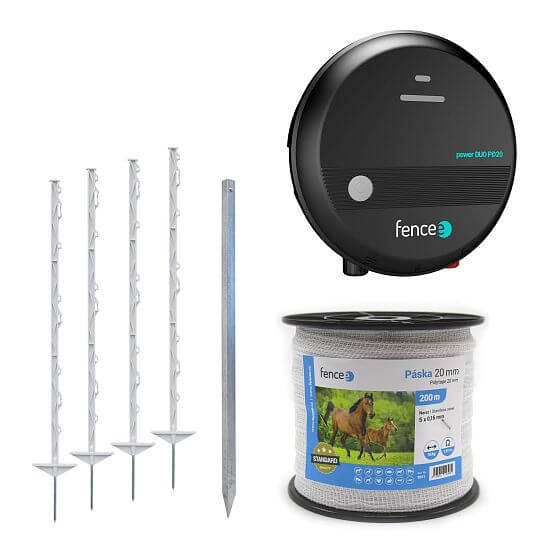

Product´s description Electric fence set for horses, ponies, donkeys, dogs, cattle - DUO energizer + polytape 200 m
Electric fence set designed for horses, ponies, donkeys, dogs and cattle. Can also be used for protection against pests and predators - protection against marten, otter, weasel, fox, hare and protecting crops from deer. With a small electric fence you can define a safe space for animals or prevent them from accessing unwanted areas. The set includes a energizer, which with its 2 J power is suitable for fences up to 15 km.
The energizer for the electric fence is provided by the fencee power DUO PD20 energizer with a power output of 2 J. The combined energizer can be powered via a 230 V mains adapter or from a conventional 12 V car battery. This can also be used as a backup power supply in the event of a power failure. The power DUO PD energizers with the latest microprocessor technology, offer a practical and reliable solution when installing an electric fence. LED lights and a bargraph on the front of the energizer, show the operation of the device or any malfunction on the fence. The ability to switch between full or half power, SafeShock technology and very low power consumption are other benefits of the power DUO PD energizers.
The high quality white tape in a 200 m roll with 5 stainless steel conductors ensures good conductivity along the entire length of the fence. The tape is a safe option when building fences for horses, ponies and donkeys. They are not at risk of injury when they come into contact with the wire. Plastic mobile posts with 8 eyelets and a solid metal spike, allow the wire to be installed up to 86 cm above the ground.
The complete electric fence set is a practical and mobile solution with easy installation.
Package contents:
- fencee power DUO PD20 energizer
- 1× white polytape 20 mm, 200 m, stainless steel 5 × 0,16 mm
- 10× post 105 cm (86 cm above ground), 8 eyelets
- 1× earthing rod profile 100 cm
Included in the energizer package:
- 1× power adapter fencee DUO 14 V 1,5 m
- 1× earthing cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eye-bead)
- 1× fencee DUO battery cable 1,7 m
- 1× warning plate
- 1× operating instructions
Energizer consumption 230 V | 5 W |
Energizer consumption 12 V | 40 - 140 mA |
Output energy | 2 J |
Output voltage | 12000 V |
Output voltage 500 Ω | 6000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 60 km |
Low vegetation | 15 km |
Medium vegetation | 3 km |
High vegetation | 1,5 km |
Earthing 1 m | 2 × |
El. fence nets | 5 × |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1534 g |
Manuals and files for downloading
Manual fencee power DUO PDFAQ
- 10 principles for the correct functioning of the fence
- Can fencee energizers endure rain, snow or sun shining?
- Functional electric fence principles - troubleshooting tips
