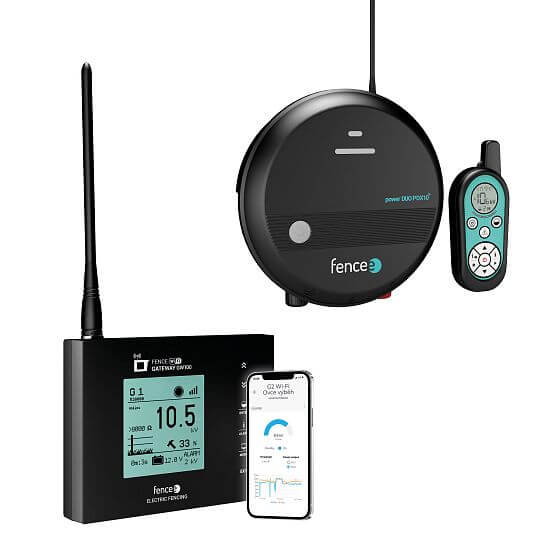

Product´s description Smart Farm electric fence system - RF energizer 1 J + Controller - WiFi Gateway GW100 - Phone control
A universal smart electric fence kit with RF generator and central Gateway that allows instant access to the fencee Cloud. Once connected, you get the ability to control the fence from your mobile phone, tablet or computer whenever and wherever you want. The only requirement for the fencee Smart Farm system to work is an internet connection.
Electric fence generator

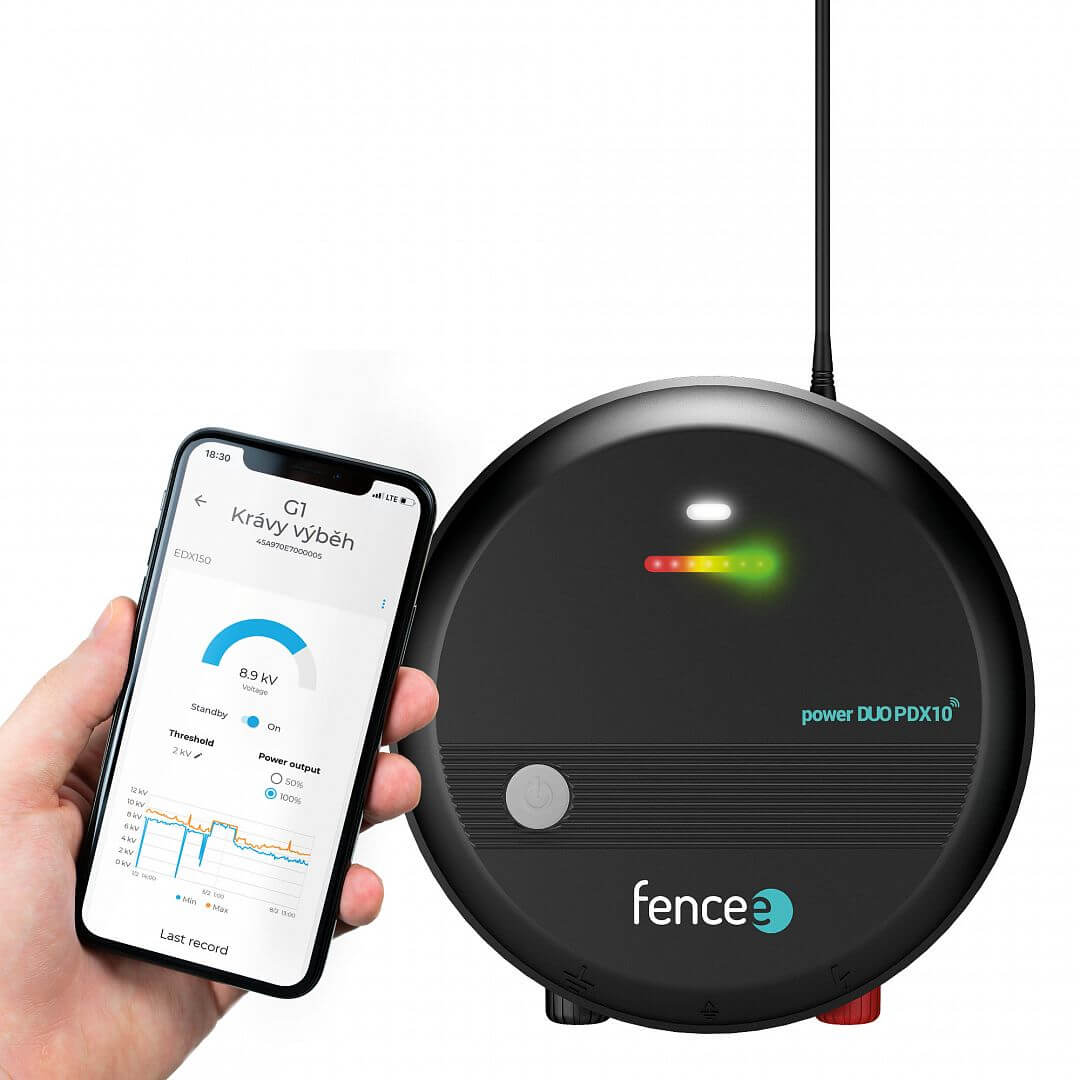

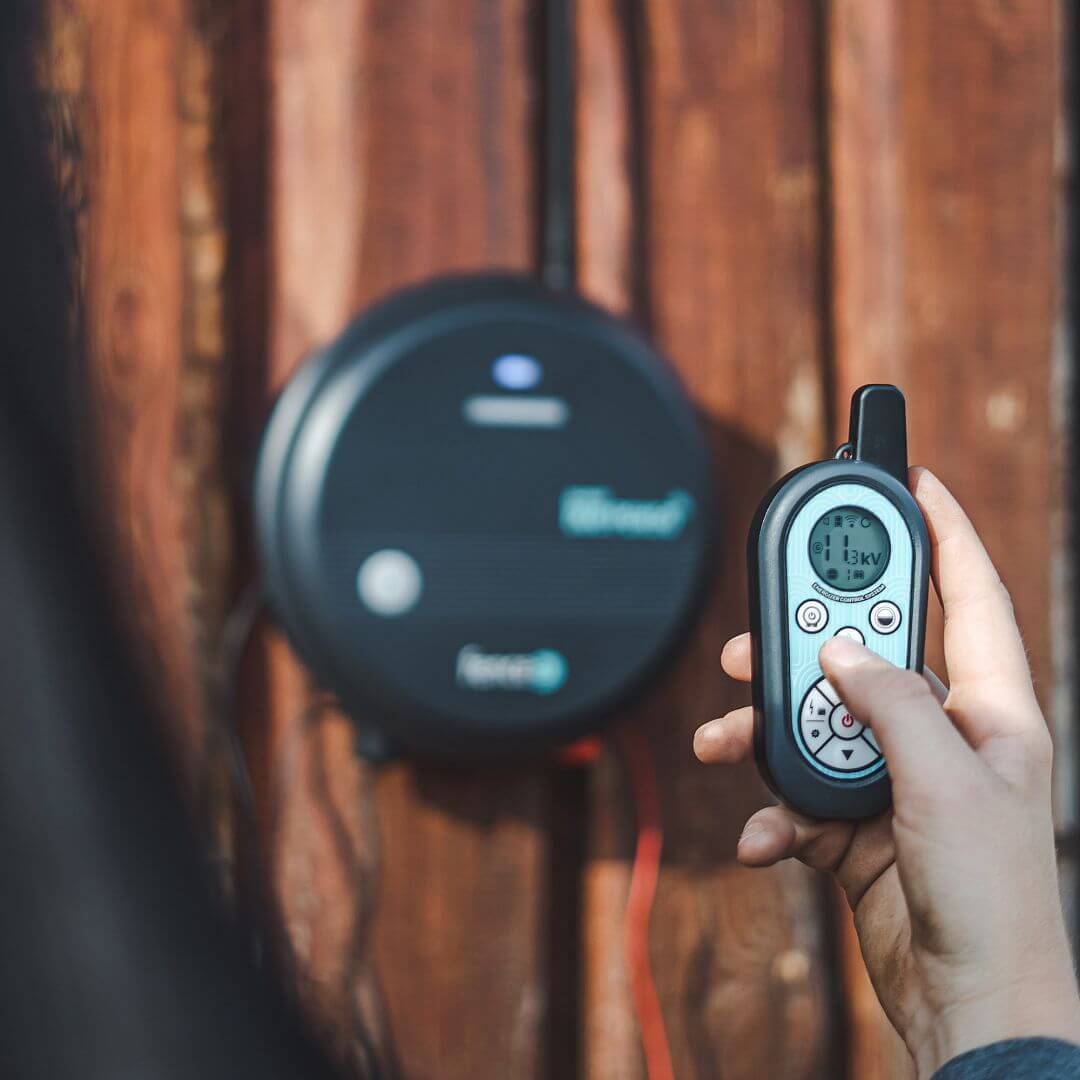

The basis of the set is thefencee power DUO RF PDX10 combined smart generator with 1 J power and remote control. This allows the device to be controlled from a distance of up to 10 km. This RF generator is suitable for more sensitive and smaller animals such as dogs, poultry, small pigs, goats, horses. It will also find use for protection against pests and small predators.
Central and control unit

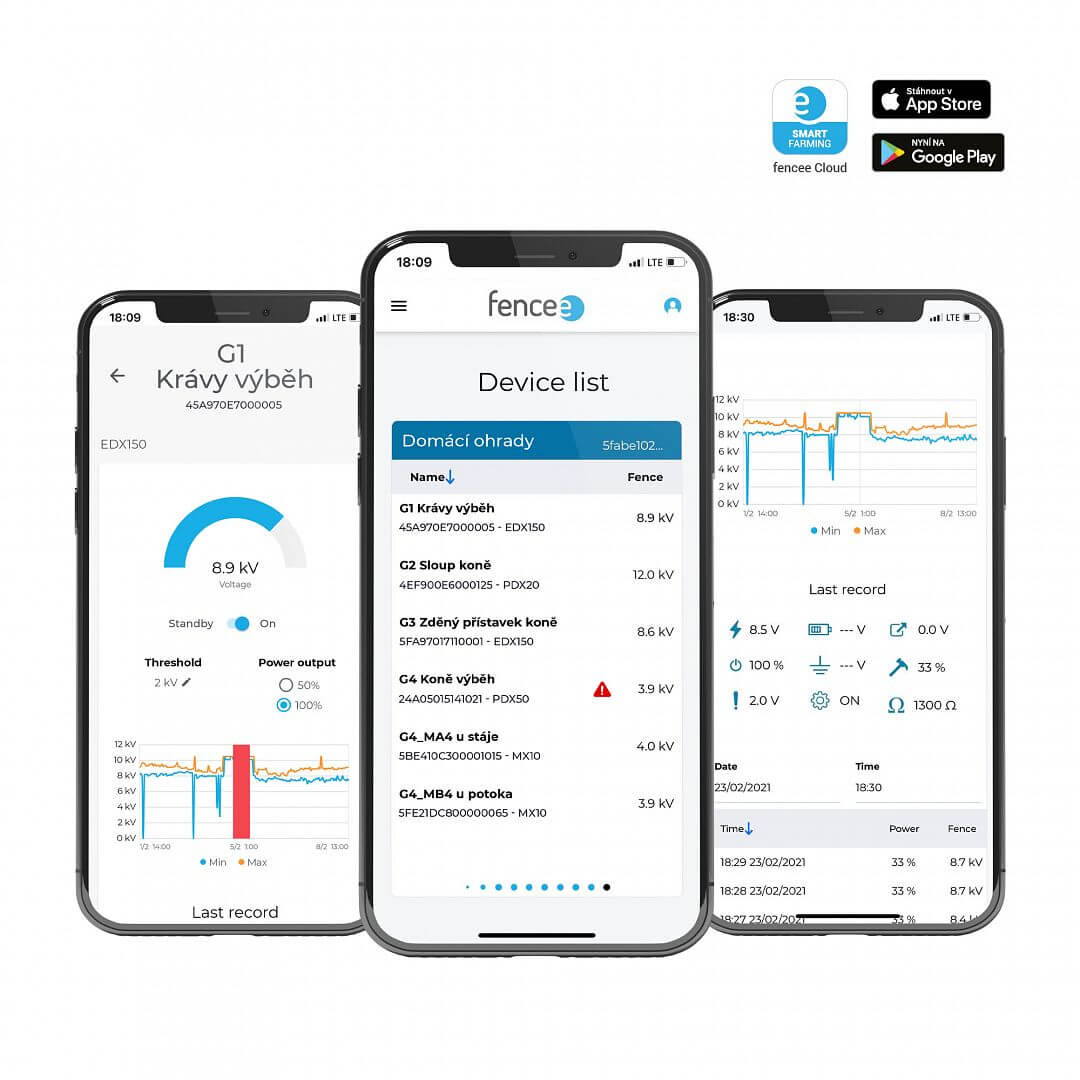

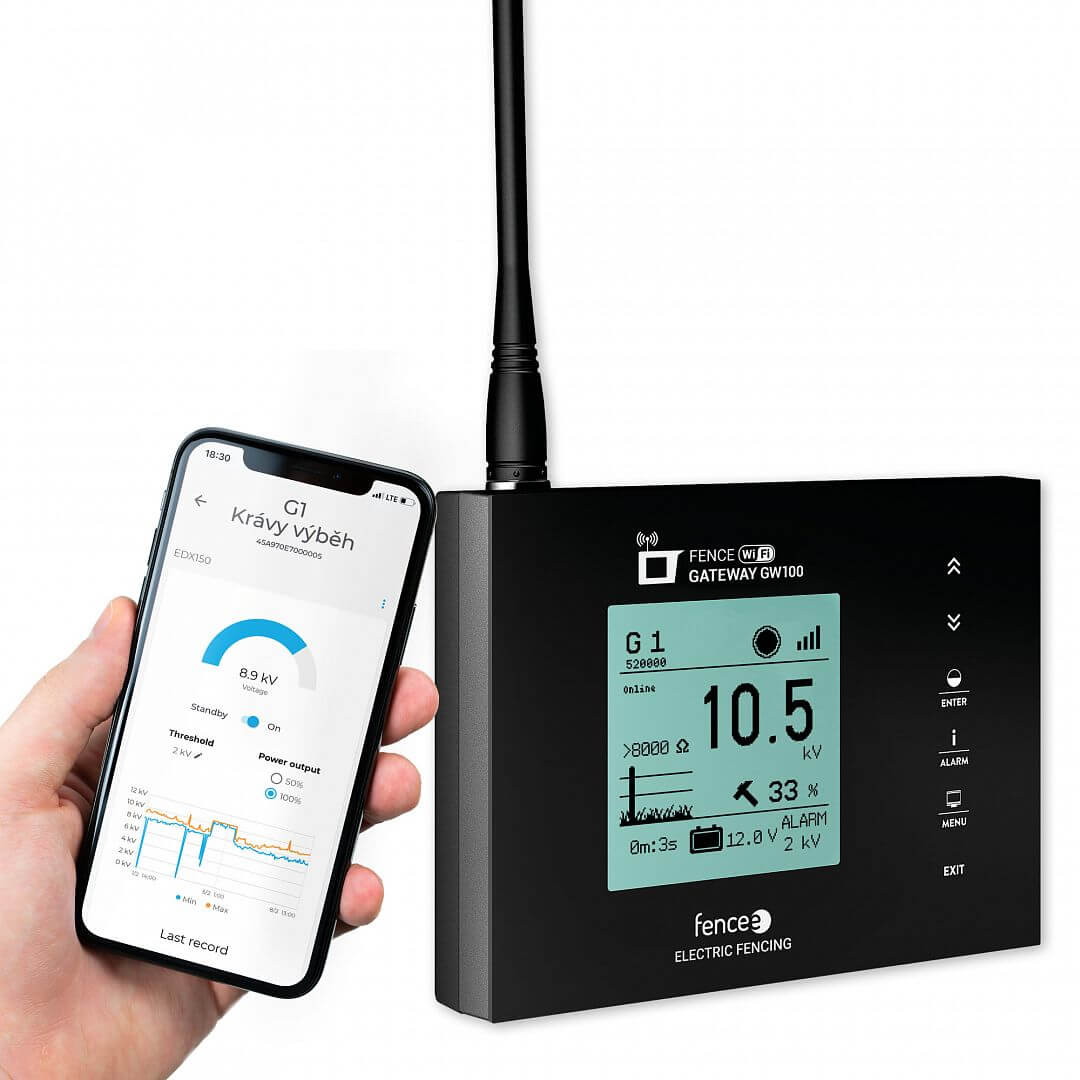

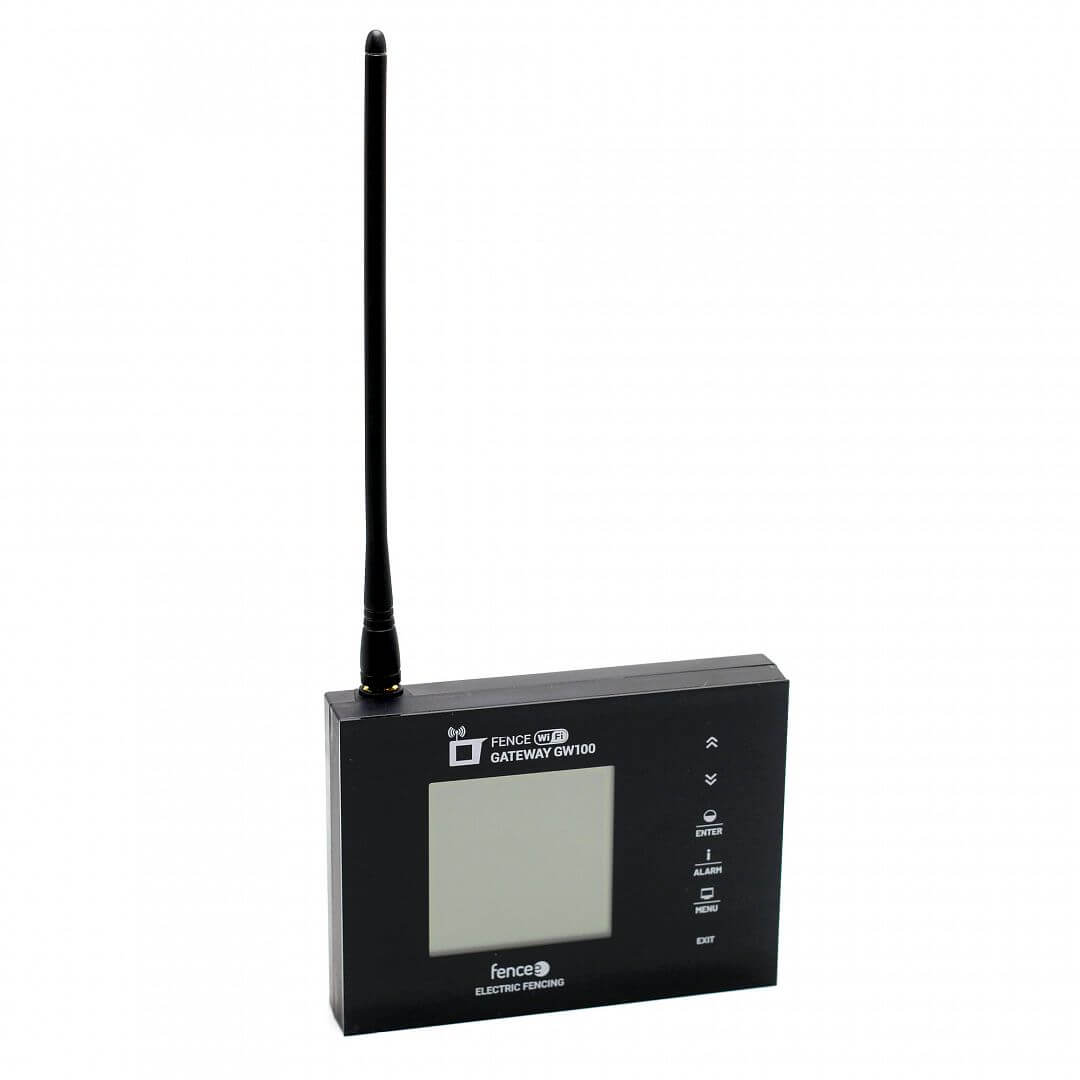

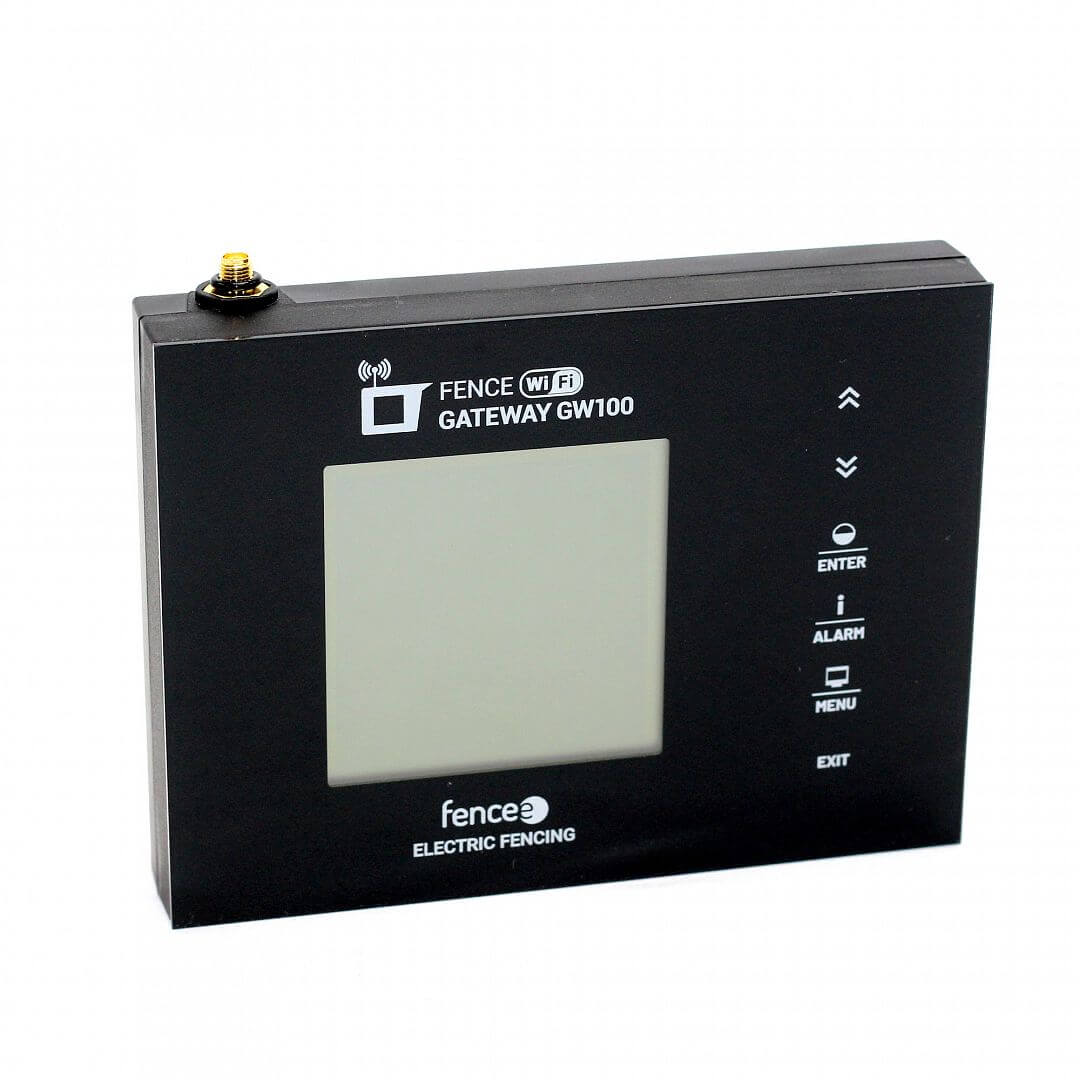

When connected to the fencee Cloud and paired with a smart RF generator, the FENCE WiFi GATEWAY GW100 central device becomes a command and control gateway that mediates communication between your phone and the generator. You can connect up to 12 fencee devices that support connection to the fencee Cloud to the Gateway. You then use the Gateway to control individual devices from your phone, tablet, or computer using the fencee Cloud app.

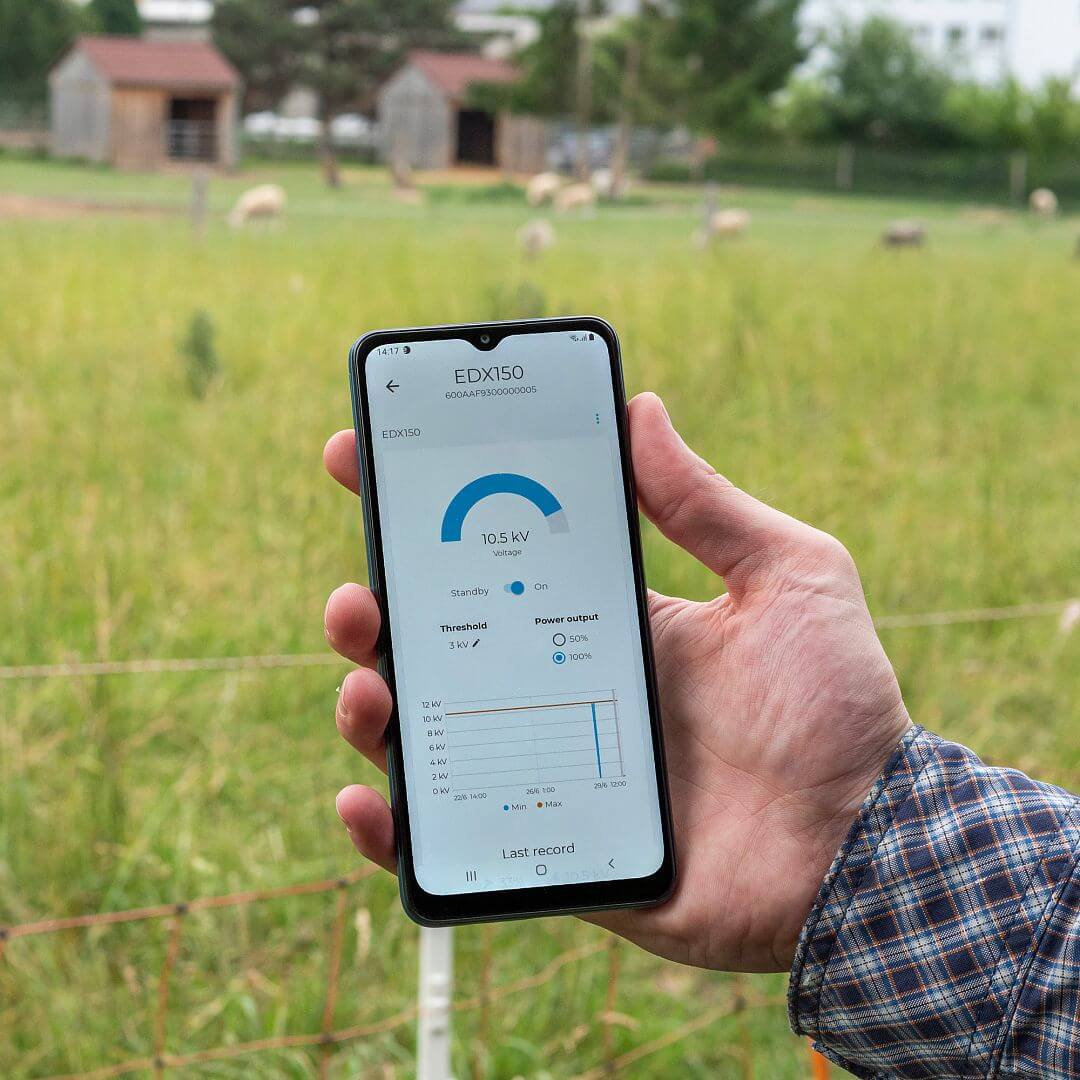

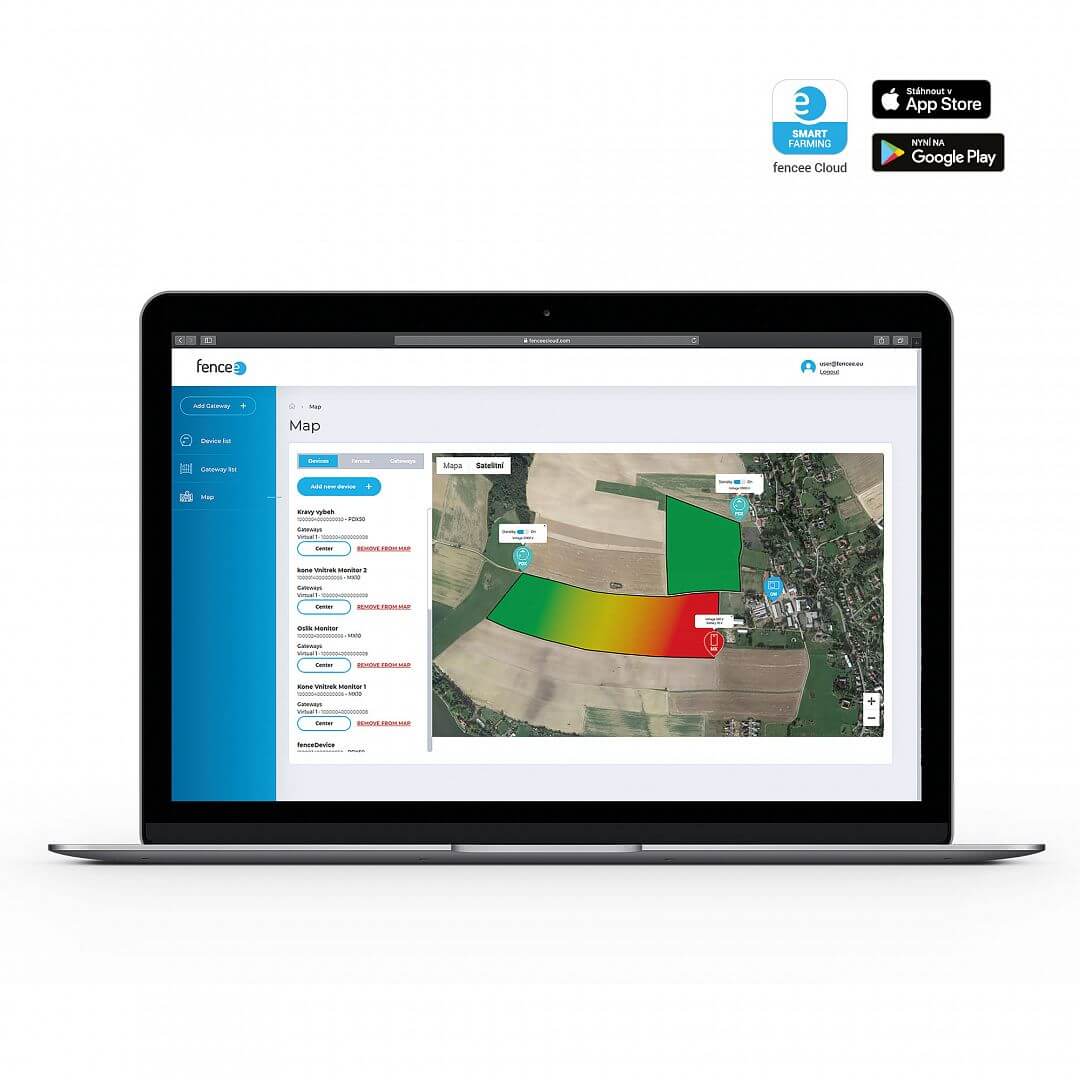

The Cloud collects data from the RF generators and control monitors. Using the central Gateway , you can then easily set up and control individual devices from one place, using the mobile app or the web interface. Through the fencee Cloud, you not only control the generators, but also monitor them with notifications that appear instantly on your phone or email.
Owner Mr. Eman Hanyk
Read full article

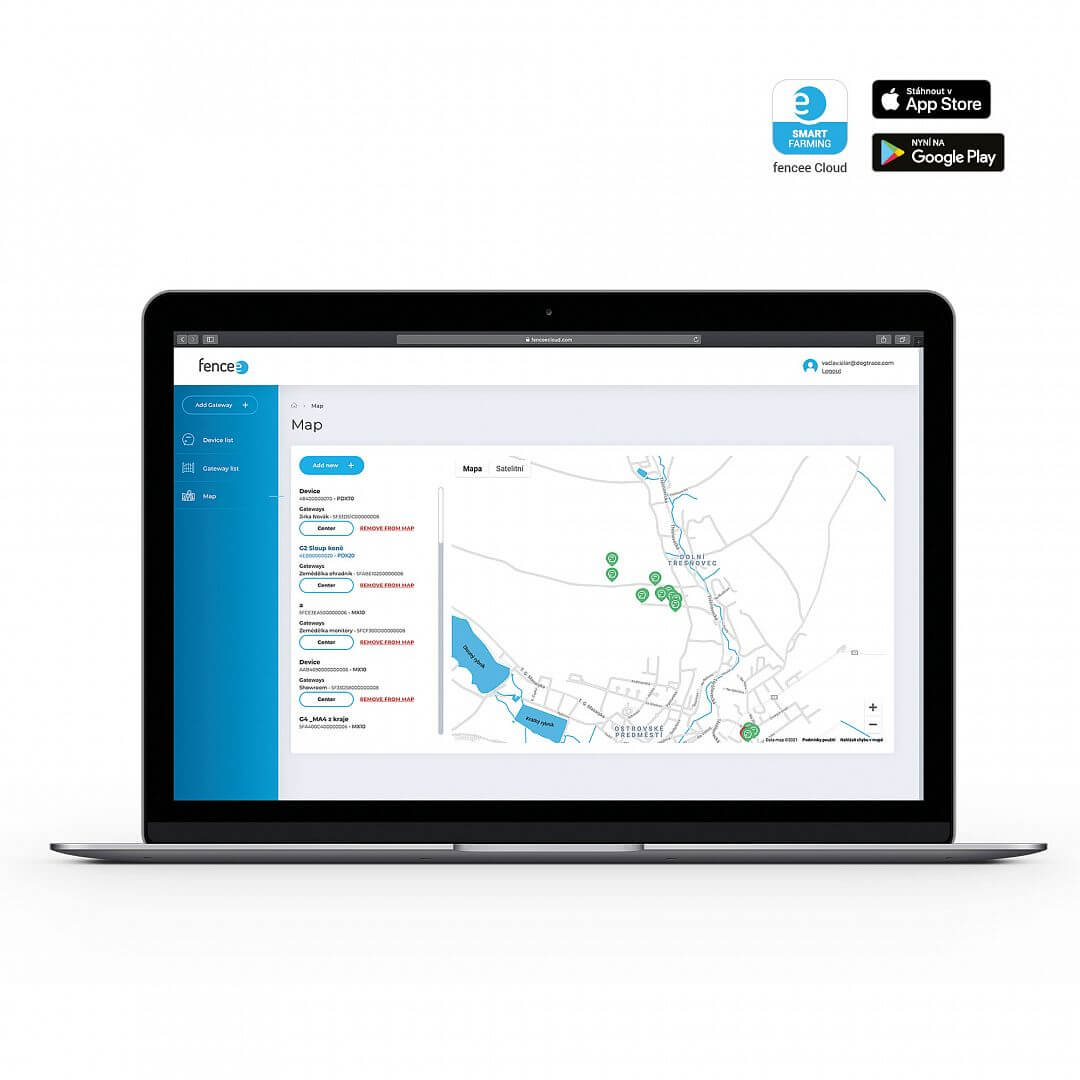

You get the most efficient monitoring of your electric fences with lots of additional benefits such as instant online notifications in case of a fault, plotting fences on maps or setting up virtual fences. Learn more about all the benefits and features of Smart Farm.

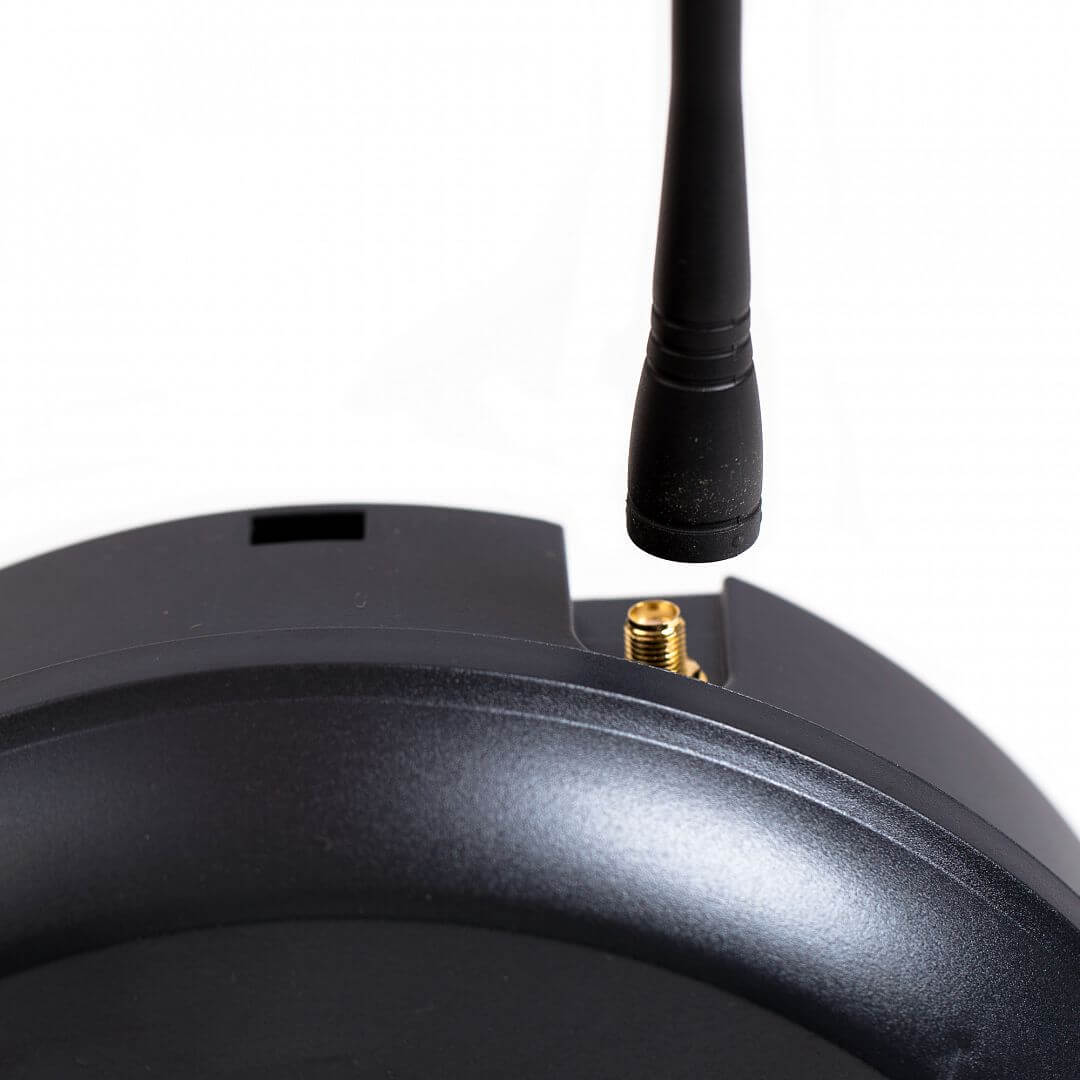

Base and external RF antenna
The standard range for the supplied basic RF antennas is 10 km. If you need to increase the signal range, use external antennas, which can increase the transmission quality and signal range between devices up to 30 km. Learn more about the operation and installation of devices with external antennas.
Combined power supply

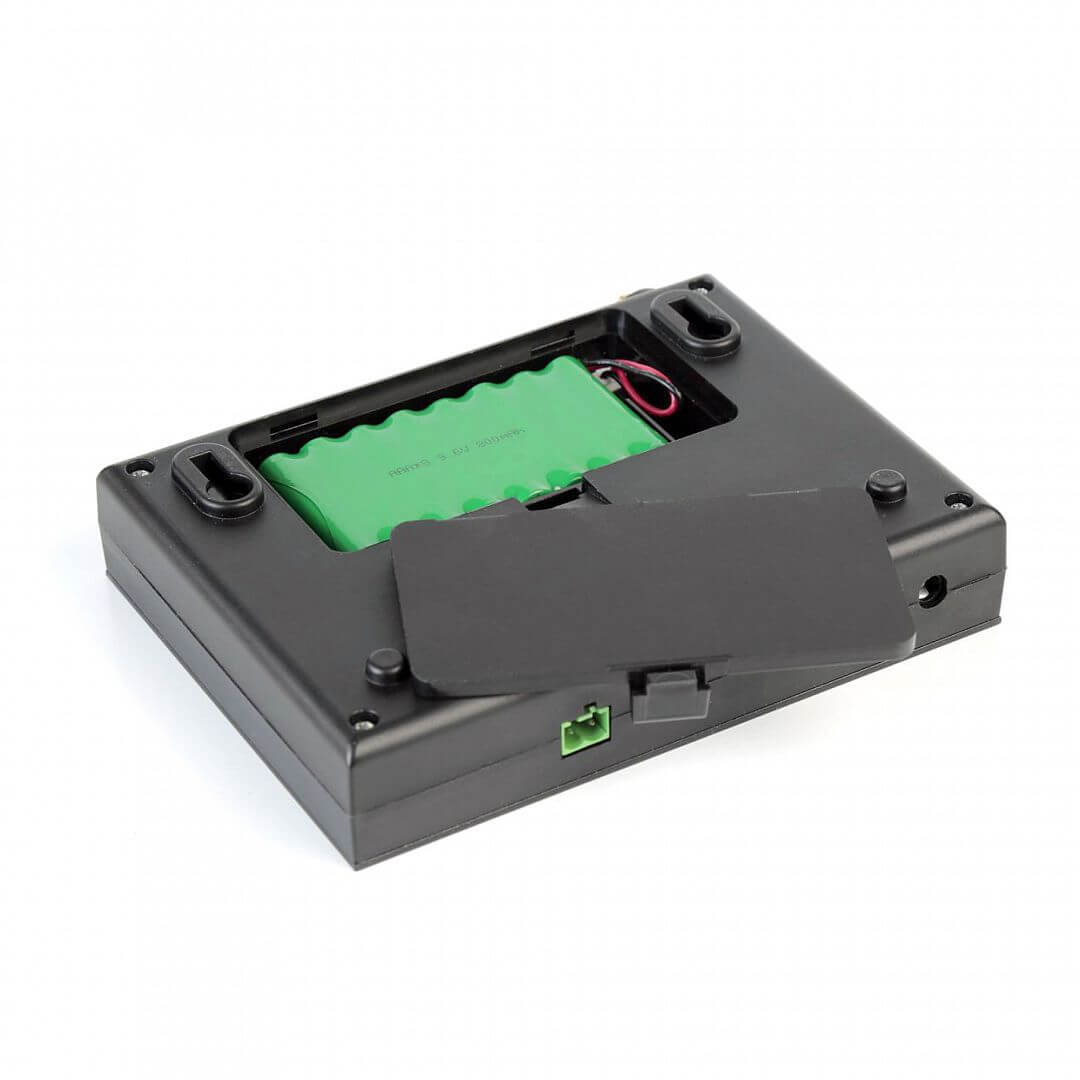

Combination generators can be powered using the included 230 V mains adapter or a standard car battery. This can be used as a backup power supply in the event of a power failure. The Central Gateway is equipped with a backup power supply that provides power for up to 12 hours in the event of a power line failure.
If you are unsure of the appropriate power supply and need advice before purchasing, please do not hesitate to contact our technical department for advice.
Package contents:
The package of the power DUO RF PDX10 generator includes:
- 1× fencee power DUO RF PDX10 generator
- 1× generator remote control
- 1× CR2 3V battery
- 1× fencee DUO 14 V 1.5 m power adapter
- 1× ground cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× fencee DUO 170 cm battery cable
- 1× fencee warning plate
- 1× basic RF antenna
- operating instructions

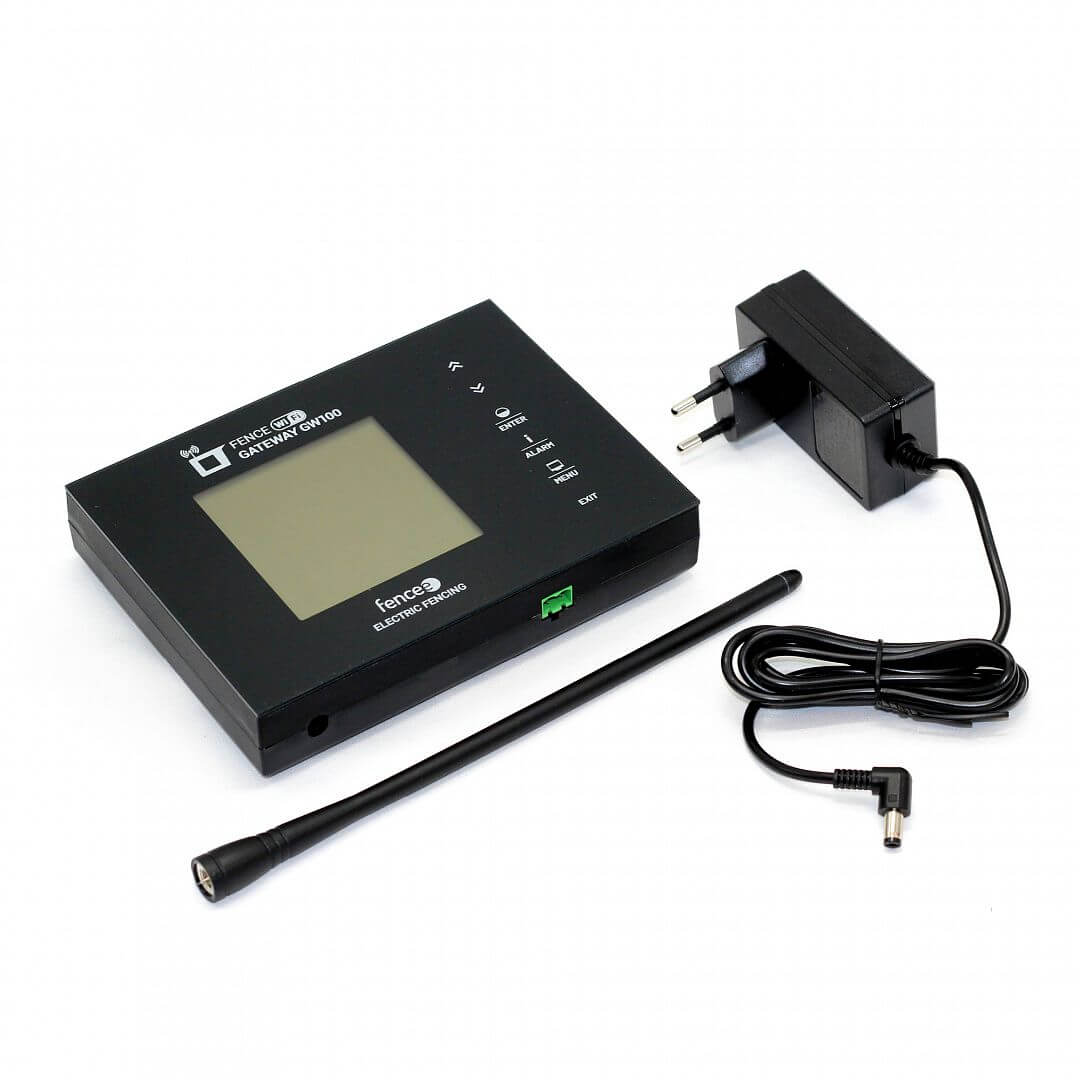

Included in the package FENCE WiFi GATEWAY GW100
- 1×basicRF antenna
- 1× 14 VDCpoweradapter
- 1× 9.6 V batterybackuppower supply
- 2× screw and dowel for installation
- operating instructions
Case Studies Smart Farm fencee Cloud
See how the Smart Farm with fencee Cloud app is helping several of our customers, including a zoo, a cattle farm, a sheep farm or a horse ranch.
| Energizer consumption 230 V | 3 W |
| Energizer consumption 12 V | 40 - 100 mA |
| Output energy | 1 J |
| Output voltage | 9000 V |
| Output voltage 500 Ω | 5000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| LED impulse bargraph | |
| fencee Cloud connection | |
| External antenna SMA connector | |
| Number of connected devices | 1 - 12 |
| Remote control | |
| Data encoding | |
| Controller batteries | 1× CR2 |
| Transmission frequency | 869,525 MHz |
| Transmitting power | +22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 35 km |
| Range with external antenna | 30 km |
| Low vegetation | 8 km |
| Medium vegetation | 2 km |
| High vegetation | 1,5 km |
| Earthing 1 m | 1 × |
| El. fence nets | 3 × |
| DIN rail | |
| Diameter | 210 mm |
| Depth | 66 mm |
| Weigth | 1580 g |
