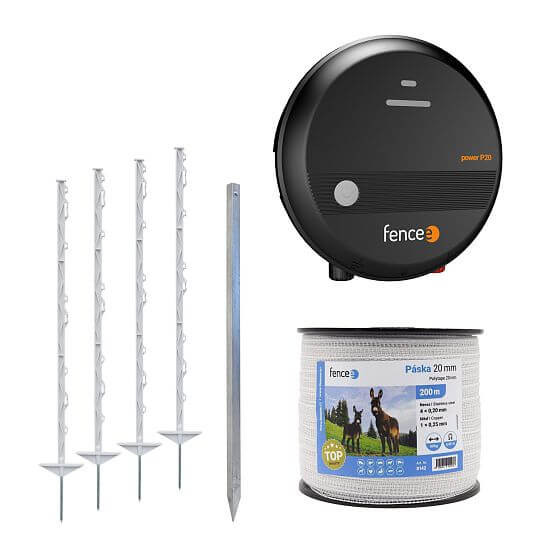

Product´s description Electric fence set for horses, ponies, dogs, cattle - energizer + polytape 200 m
Complete set of electric fence designed for horses, ponies, dogs and cows. Can also be used to protect land and fields from pests such as forest animals, deer, foxes and wild boar. With an electric fence, you can simply demarcate a safe space for animals or, on the contrary, prevent them from accessing selected areas. The kit includes a mains energizer which, with a power output of 2 J, is suitable for shorter and medium fences up to 19 km long.
The energizer for the electric fence is provided by the fencee power energizer P20 with an output of 2 J. The energizer is simply plugged into a 230 V socket using the included adapter and switched on using the practical ON/OFF button.
A maintenance-free fence energizer with very low energy consumption. Current microprocessor technology adjusts the optimum power output of the power supply. The UV-resistant, high-quality plastic housing protects the electronics from external climatic influences. IP44 protection. Highly luminous LED indicator lights on the front of the energizer show the operation of the energizer in colour. In the event of a fault, they change colour to inform you of a problem in the fence. All the benefits and features of the power P mains energizers.
High quality white tape in a 200 m roll with 4 stainless steel and 1 copper conductor ensures good conductivity along the entire length of the fence. Resistance only 0,45 Ω/m. The tape is a safe option when building fences for horses, ponies and donkeys. They are not at risk of injury when they come into contact with the wire. Plastic mobile posts with 8 eyelets and a solid metal spike, allow the wire to be installed up to 86 cm above the ground.
Package contents:
- fencee power energizer P20
- 1 × white polytape 20 mm, 200 m, copper 1 × 0,25 + stainless steel 4 × 0,20 mm
- 12× post 105 cm (86 cm above ground), 8 eyelets
- 1× earthing rod profile 100 cm
Included in the energizer package:
- 1× ground cable 150 cm (eyelet-mesh)
- 1× connection cable 100 cm (eye-bead)
- 1× warning plate
- 1× operating instructions
Power source | 230 V ~ |
Energizer consumption 230 V | 4 W |
Output energy | 2 J |
Output voltage | 10000 V |
Output voltage 500 Ω | 5000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED error check | |
TEOR. max. CEE | 70 km |
Low vegetation | 19 km |
Medium vegetation | 8 km |
High vegetation | 1,5 km |
El. fence nets | 5 × |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1382 g |
