Product´s description Set for electric fence for dogs, horses and cattle - DUO energizer - polywire 250 m
The fencing set suitable for large dogs, horses and cattle will simply provide you with a safe area or prevent them from accessing unwanted places. The electric fence is used as protection for your gardens, land and fields against martens, foxes, weasels and also as protection for orchards against biting by forest animals.
Reliable energizer fencee power DUO with power of 2 J
The fencee power DUO PD20 energizer with an output power of 2 J provides power for the electric fence. It can be powered from the 230 V mains using an adapter or from a standard 12 V car battery using the battery cables included in the package.
The car battery can be used as a backup power supply in the event of a power failure. This ensures continuous and effective protection.
The economical and highly reliable energizer is suitable for shorter and medium-long fences up to 19 km in length. It is easy to operate thanks to the practical ON/OFF button.
Further added value is the power switching function, the illuminated LEDs and the bargraph, which allow monitoring of the energizer's functionality. The Smart Control microprocessor, together with the ST transformer has been designed for maximum efficient performance with low power consumption.
The fencee power DUO PD20 energizer with maximum efficient power and low consumption
Durable electric fence design for the protection and safety of your animals

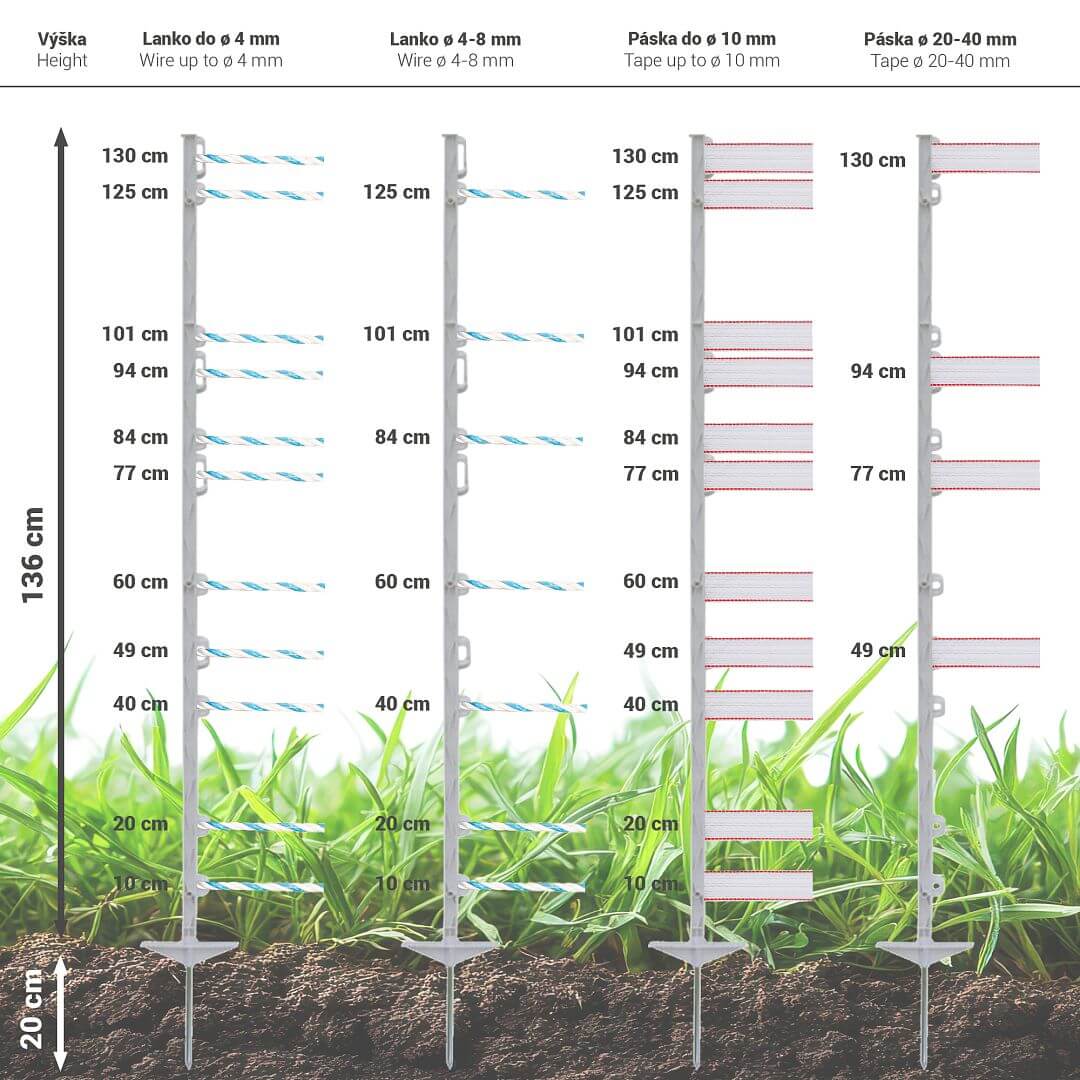

High quality plastic posts for the electric fence with a reinforced robust profile, ensure high post strength and increased stability for easy installation of the fence up to 136 cm above the ground. The post is white in colour, with 11 handy eyelets for attaching rope and tape.
The set comes with a green conductive rope for the electric fence with three stainless steel conductors in a 250 m coil. The UV-protected material guarantees a long service life.
Easy handling and simple operation
The electric fence set is easy to assemble and disassemble. The combination of a highly reliable energizer and high-quality, durable construction ensures maximum protection and safety for your animals.

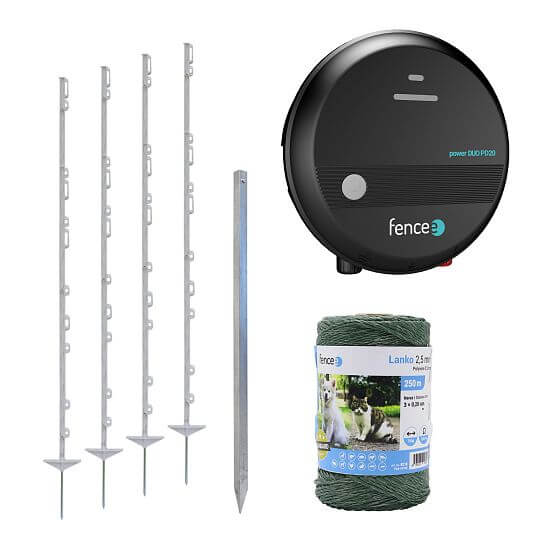

Package contents:
- fencee power DUO P20 energizer
- 1 × earthing rod profile - 100 cm, galvanized
- 1 × polywire 2,5 mm, stainless steel 3 × 0,2 mm, 250 m, green
- 15 × plastic posts, length 156 cm, 136 cm above ground, 11 eyelets, white
Included in the energizer package:
- 1× fencee DUO 14 V power adapter, 150 cm
- 1× earthing cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eyelet-heart)
- 1× fencee DUO battery cable 170 cm
- 1× warning plate
- 1× operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 5 W |
Energizer consumption 12 V | 40 - 140 mA |
Output energy | 2 J |
Input energy | 3 J |
Output voltage | 12000 V |
Output voltage 500 Ω | 6000 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 60 km |
Low vegetation | 15 km |
Medium vegetation | 3 km |
High vegetation | 1,5 km |
Earthing 1 m | 2 × |
El. fence nets | 5 × |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1534 g |
