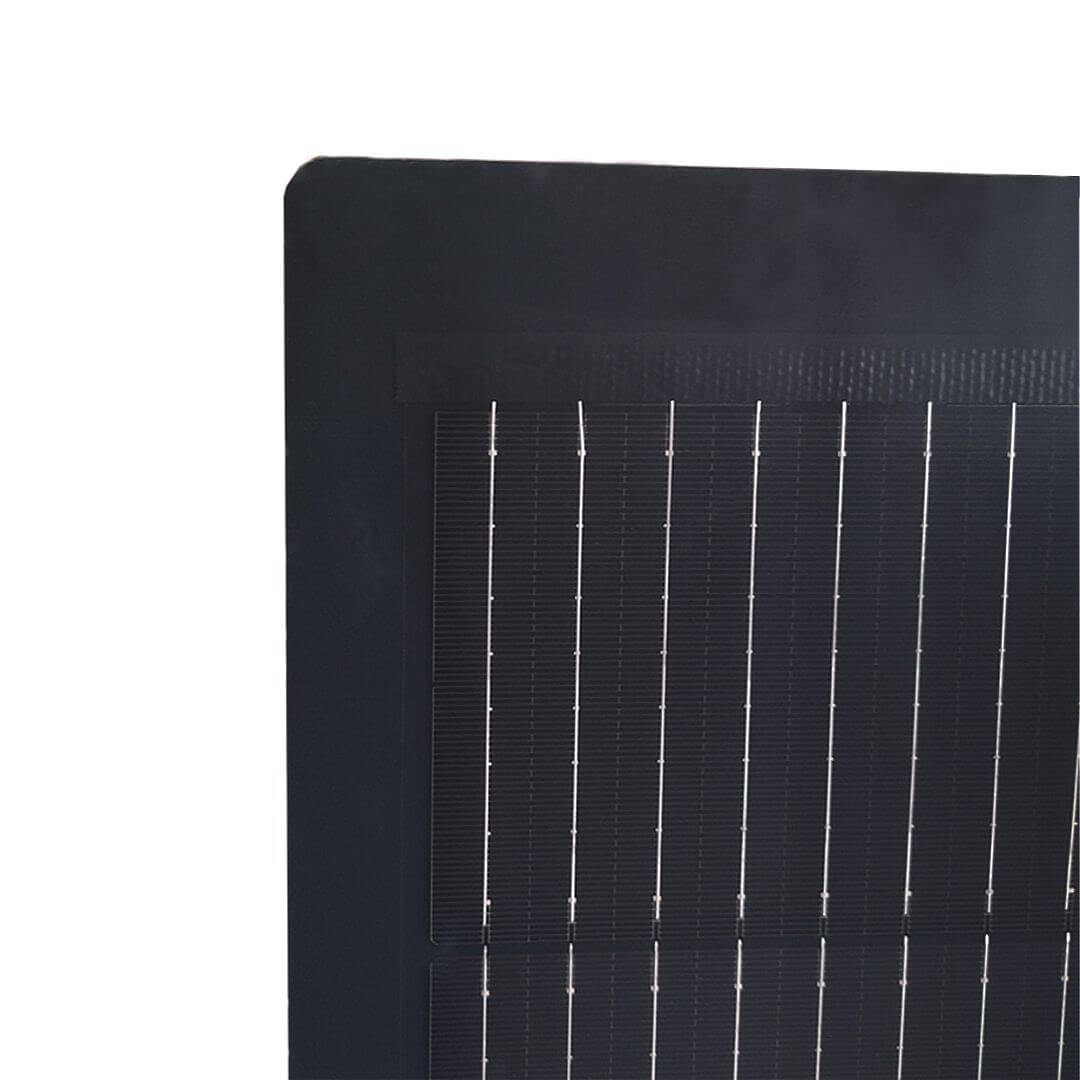

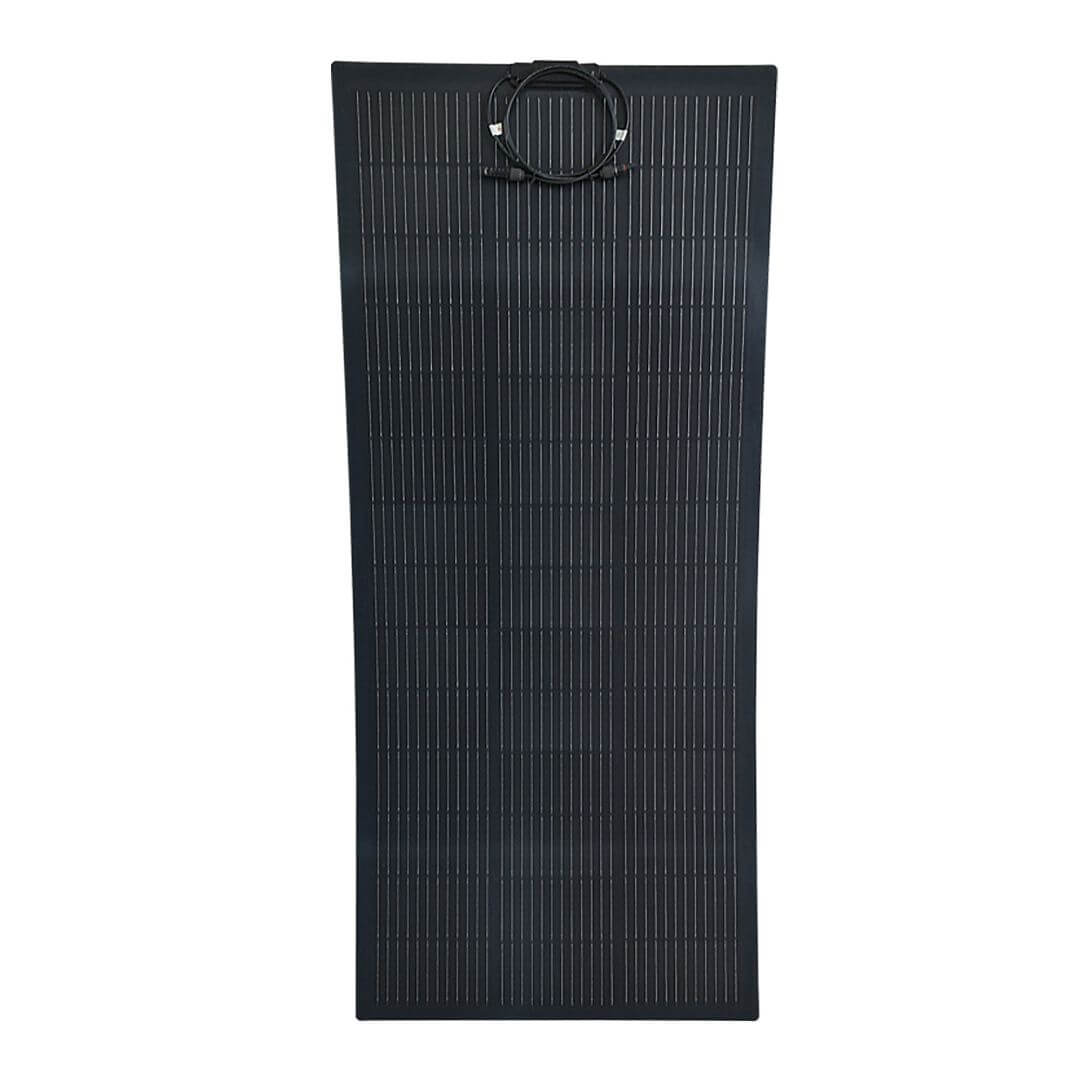

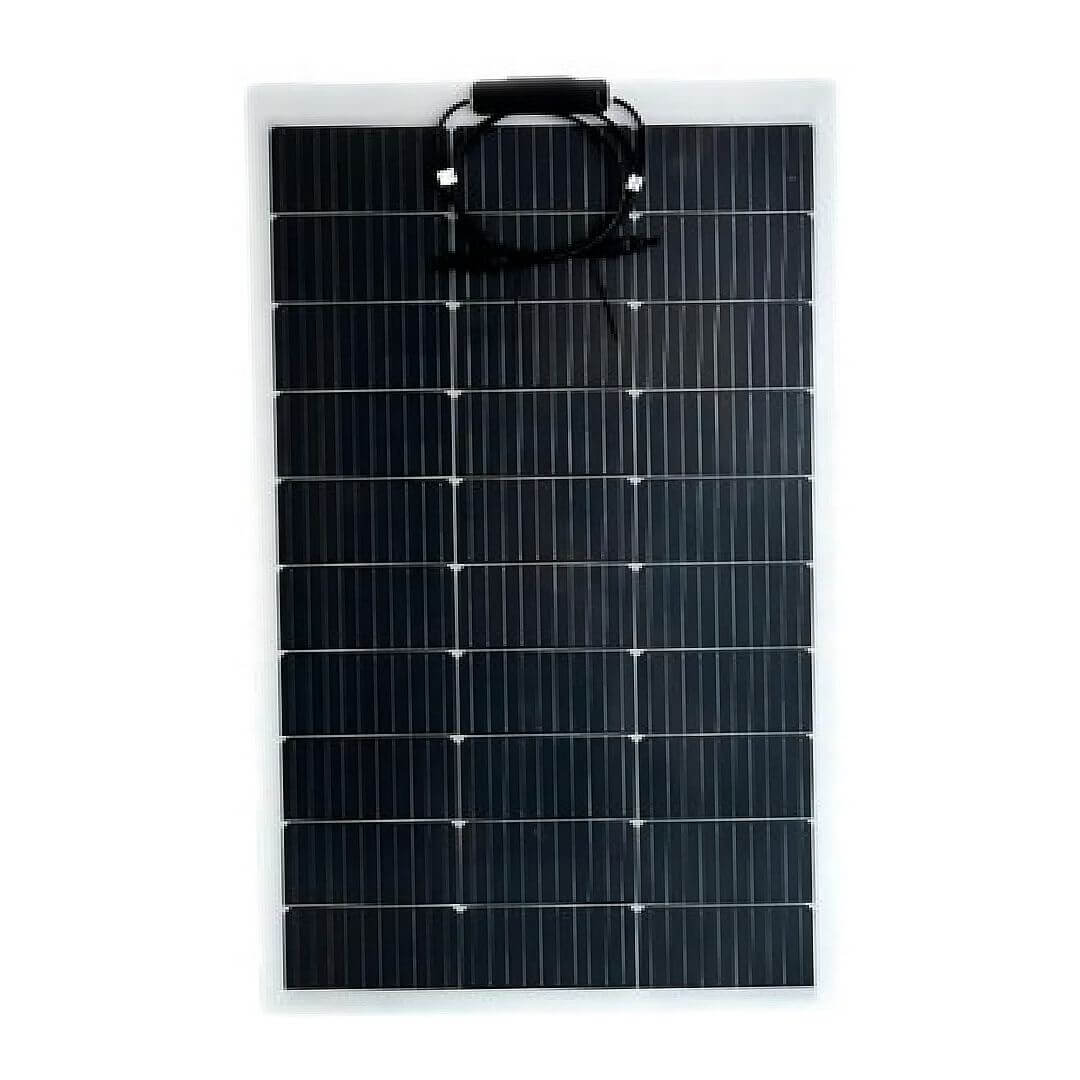

Flexible solar panel with 200 W output

The flexible solar panel is a modern and environmentally friendly energy source that is ideal for recharging the 12V battery of an electric fence. The 200W model delivers increased efficiency and reliability while maintaining a compact design, making it suitable for mobile applications and harsh conditions.

Flexible 200 W solar panel for electric fence power supplies with output power from 7 J

The panel is made of premium monocrystalline silicon, which guarantees high efficiency and stable performance. With dimensions of 1570 x 680 x 2 mm, it is still easily portable, making it the ideal solution for your projects requiring mobility and flexibility.

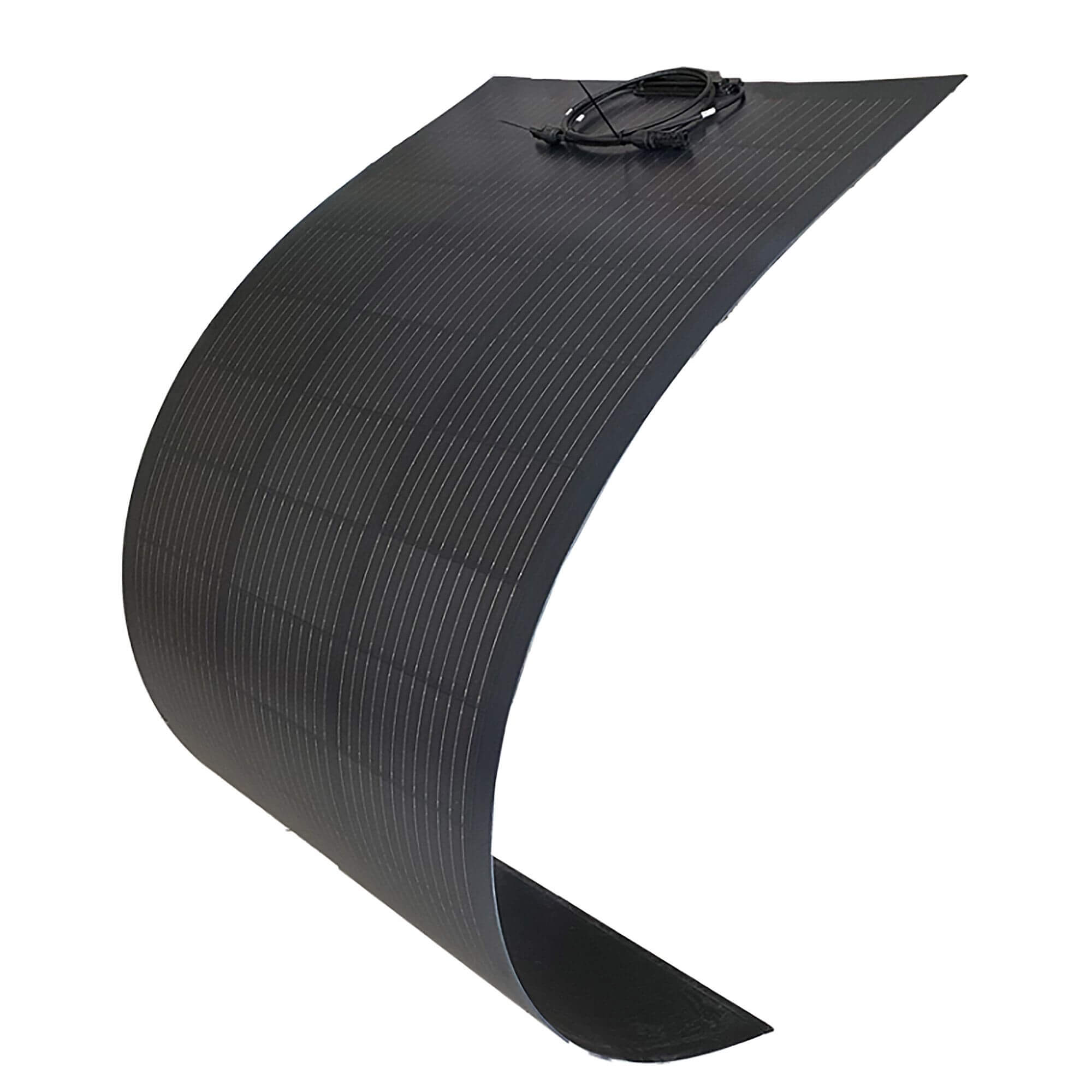

The flexible and waterproof design provides resistance to harsh weather conditions, ensuring long life and reliability. These solar panels are designed with practicality in mind, enabling the efficient use of renewable energy in a wide range of applications.

Flexible 200W solar panel in CPC material - innovative technology

The use of CPC material brings exceptional properties that surpass traditional ETFE materials.

CPC offers:

• Higher weather resistance, ensuring longer panel life.
• Exceptional light transmittance that maximizes solar cell performance.
• Lightweight and practical, making panel handling, transportation and installation significantly easier.

In addition, the integration of composite material provides better protection for the solar cells, increasing their reliability and efficiency. These features make the solar panel an ideal solution for modern applications requiring flexibility and high performance.

Placement, installation and maintenance of a 200W flexible solar panel

When installing, it is crucial to place the panel in a sufficiently lit and unshaded location, ideally facing south. For maximum efficiency, it is recommended to set the angle to approximately 40°, which will ensure optimum performance.

The panel should be connected via a regulator to avoid damage to the battery or generator. Proper connection of connectors with correct polarity is essential for safe system operation. If unsure, consultation with a specialist is recommended.

Maintenance of the flexible solar panel is also very important to ensure its longevity and maximum performance. Regularly inspect the panel surface and keep it clean to minimize the risk of loss of efficiency due to dirt and dust. If necessary, clean the surface using water and a soft sponge or cloth. Avoid using aggressive cleaners or harsh materials that could damage the flexible solar panel.

We also recommend that you regularly inspect the flexible solar panel, including the wiring and controller, to ensure that all components are working properly. By doing this, you can extend the life of the flexible solar panel and ensure that it will produce energy efficiently for many years.

Read more in the fencee solar panel instructions

Features of the 200 W flexible solar panel

• Maximum power output (Pmax): 200 W
• Maximum current (Imp): 10.78 A
• Maximum voltage (Vmp): 18.56 V
• No-load voltage (Voc): 21.76 V
• Short circuit current (Isc): 11.44 A

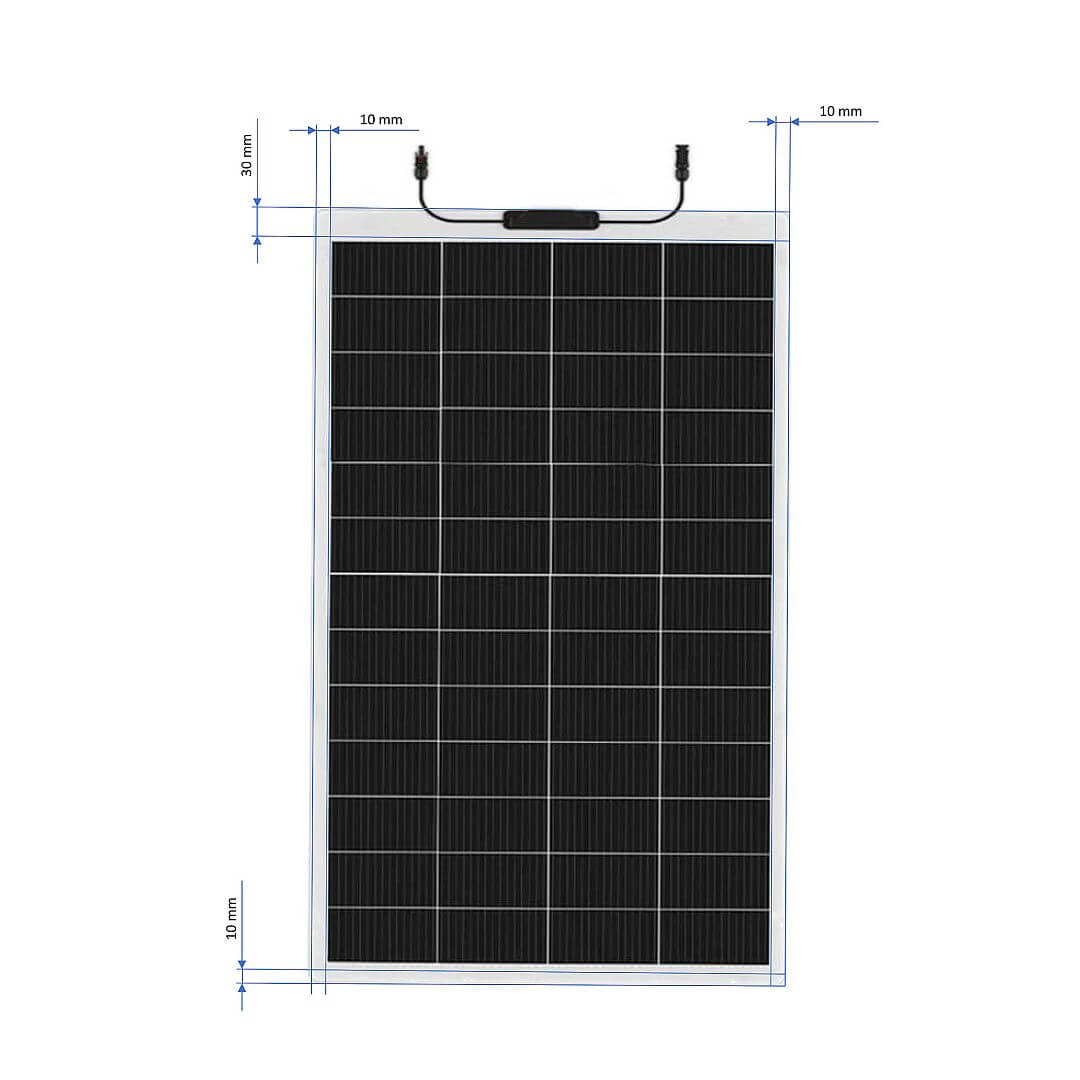

• Dimensions: 1570 × 680 × 2 mm
• Operating temperature range: -20°C ~ +65°C
• Protection class: IP67
• Standard test conditions: AM = 1.5, E = 1000W/m², TC = 25°C
• Solar panel for charging battery power supply electric fence

If you need a Flexible Solar Panel for a lower power (100W) electric fence source
