Mains electric fence energizer fencee power energy PE100

The mains power energizer for electric fencing is a reliable and maintenance-free solution for powering electric fences from the mains. IP44 protection allows safe outdoor operation all year round. The robust housing made of high-quality, UV-resistant plastic. Energizer with overgrowth protection to minimise power loss.

Use of mains electric fence energizer with 10 J

This mains-powered electric fence provides enough power to contain goats, sheep, cattle and other large animals, while deterring wildlife such as feral pigs and wolves. The energizer is designed primarily for longer electric fences with medium to high losses due to dense vegetation, poorer fence condition or more difficult installation. Therefore, we recommend the use of perfect grounding and quality conductors.

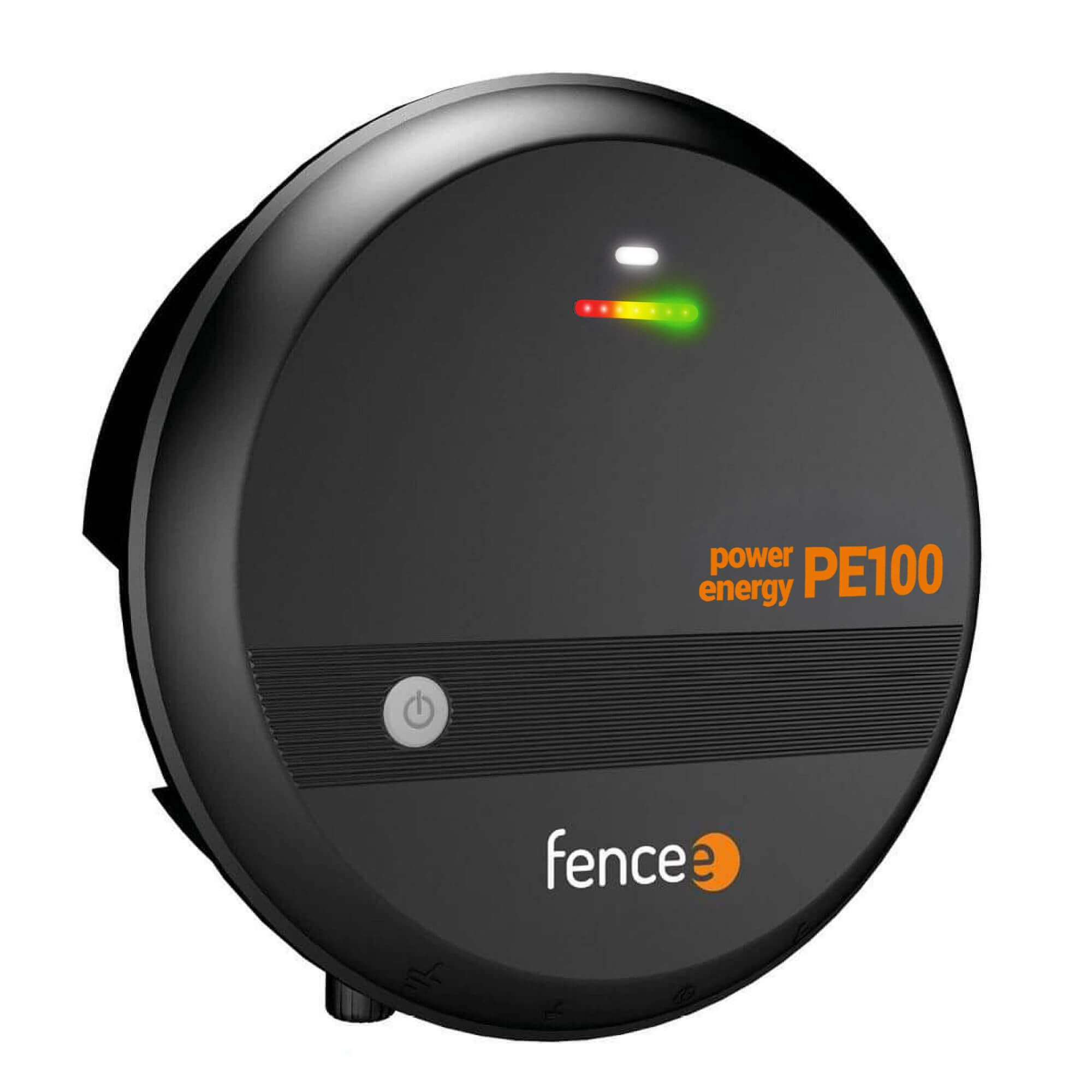

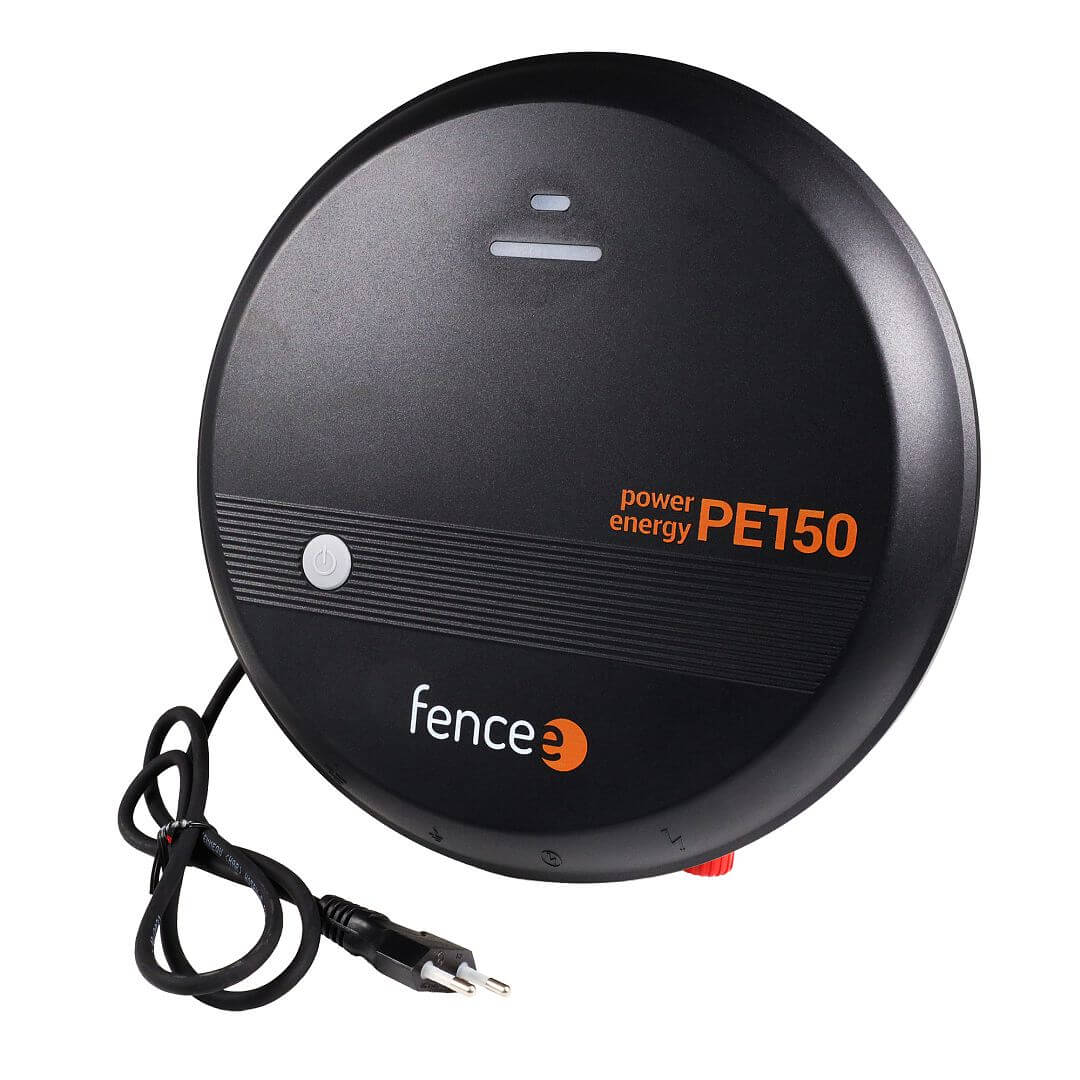

Operation signalling with LEDs and Bargraph

On the front of the energizer you will find a handy ON/OFF button for easy switching on and off of the device. There are also highly luminous LEDs that are easily visible from a distance and a multi-coloured bargraph showing the operation of the energizer and the voltage level in the electric fence. You are immediately visually alerted in the event of a power outage, fault or voltage drop.

Intelligent power control - Smart Control

Microprocessor technology automatically measures the load on the electric fence and adjusts the output power of the power supply to maintain maximum voltage over the widest possible load range. This saves energy in a well-built low-load fence while maintaining high voltage even in fences burdened by vegetation or in poorer condition.

Safety standard and time delay of 50 s

Intelligent control optimizes the output parameters of the power supply to achieve maximum efficiency and reliable operation of the fence even with high losses caused by vegetation, material or installation defects, while complying with the applicable European safety standard. For sources with an output of more than 5 J, the control will take effect with a delay of approximately 50 seconds based on the safety requirements of the standard.

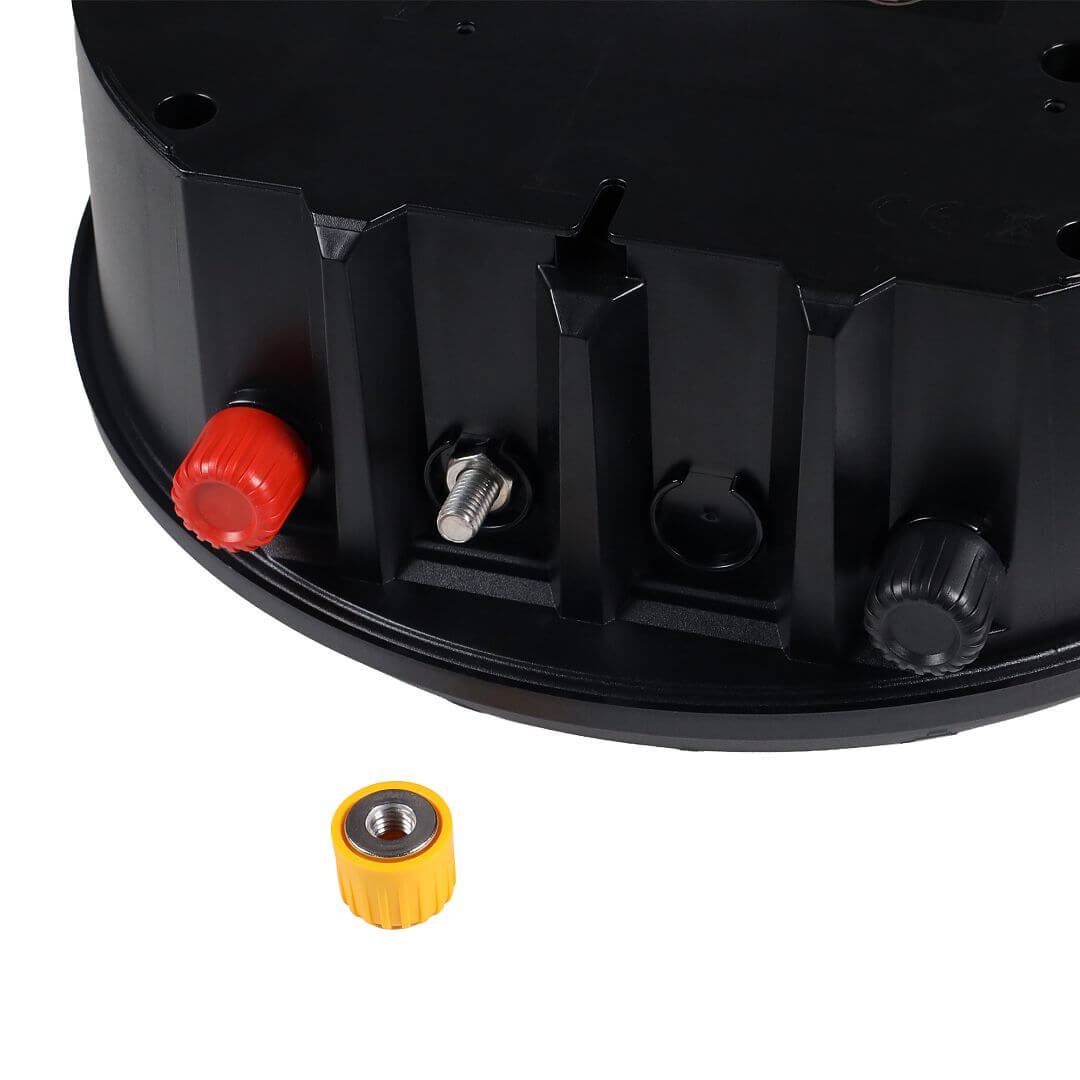

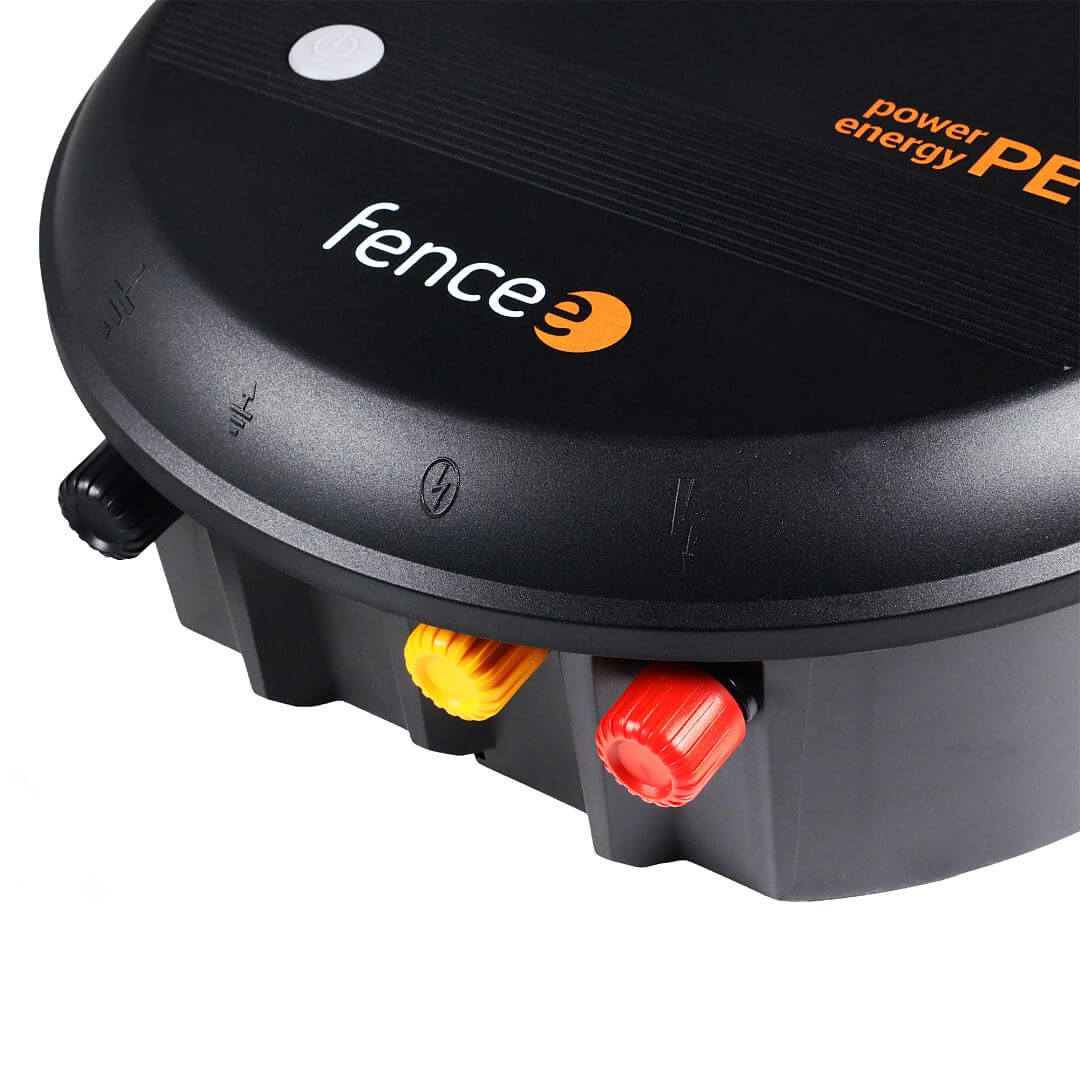

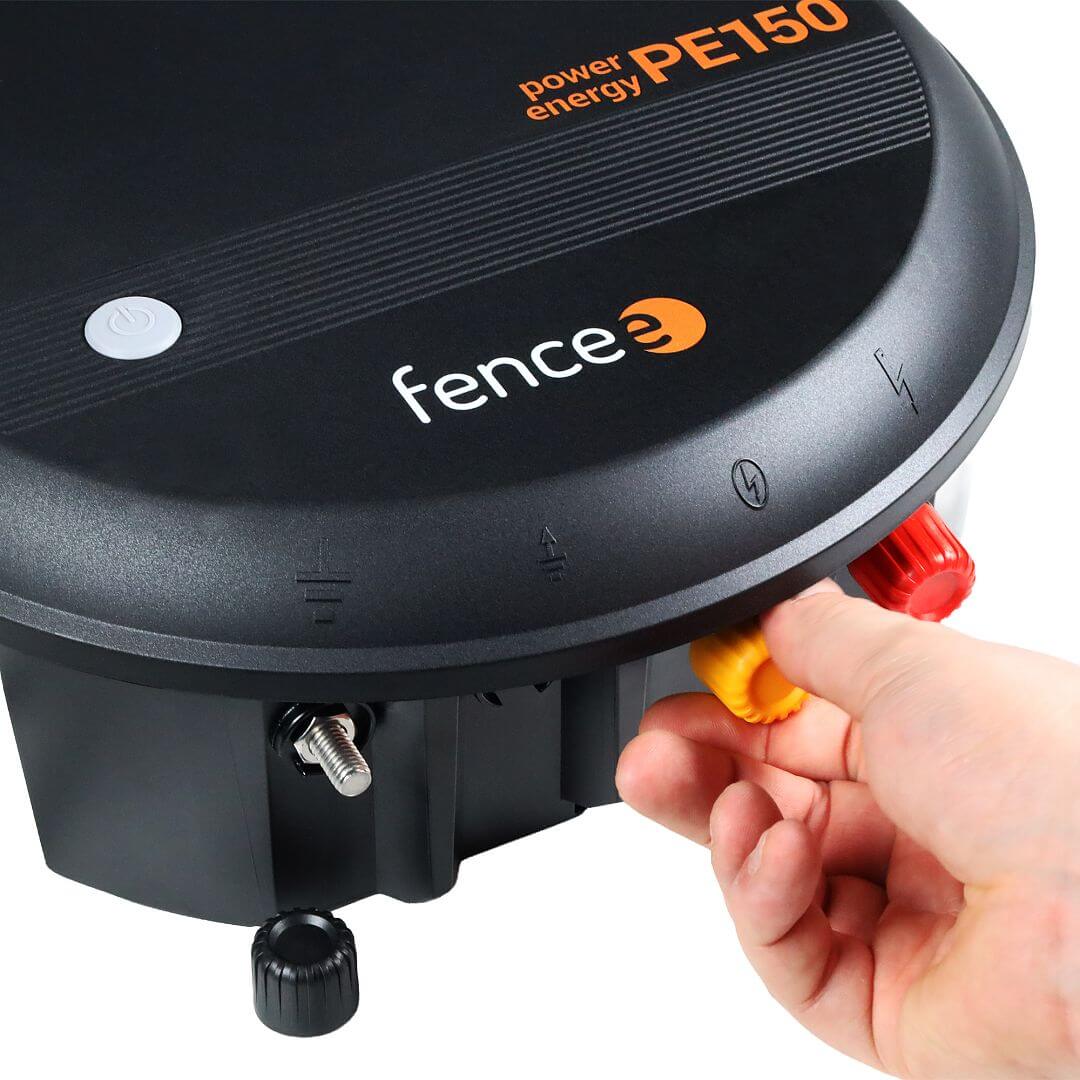

Yellow terminal 50% output power

The energizer includes a yellow terminal with reduced power, which allows flexible wiring of the electric fence according to the specific situation. Can be used for shorter fence sections, combination wiring or reduced power where full power is not required. You can find the use of the yellow terminal in our advice in the Basic Electric Fence Installation section.

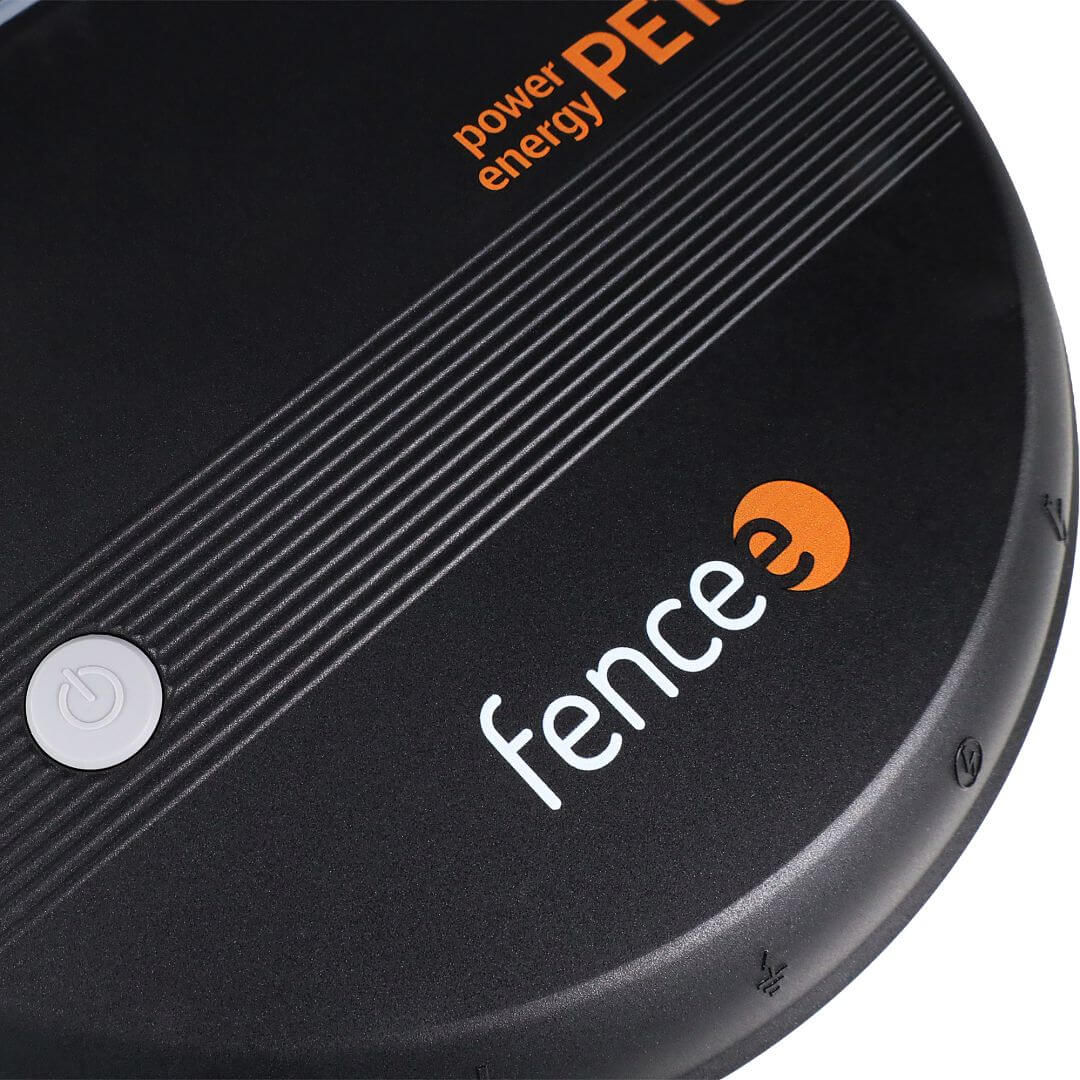

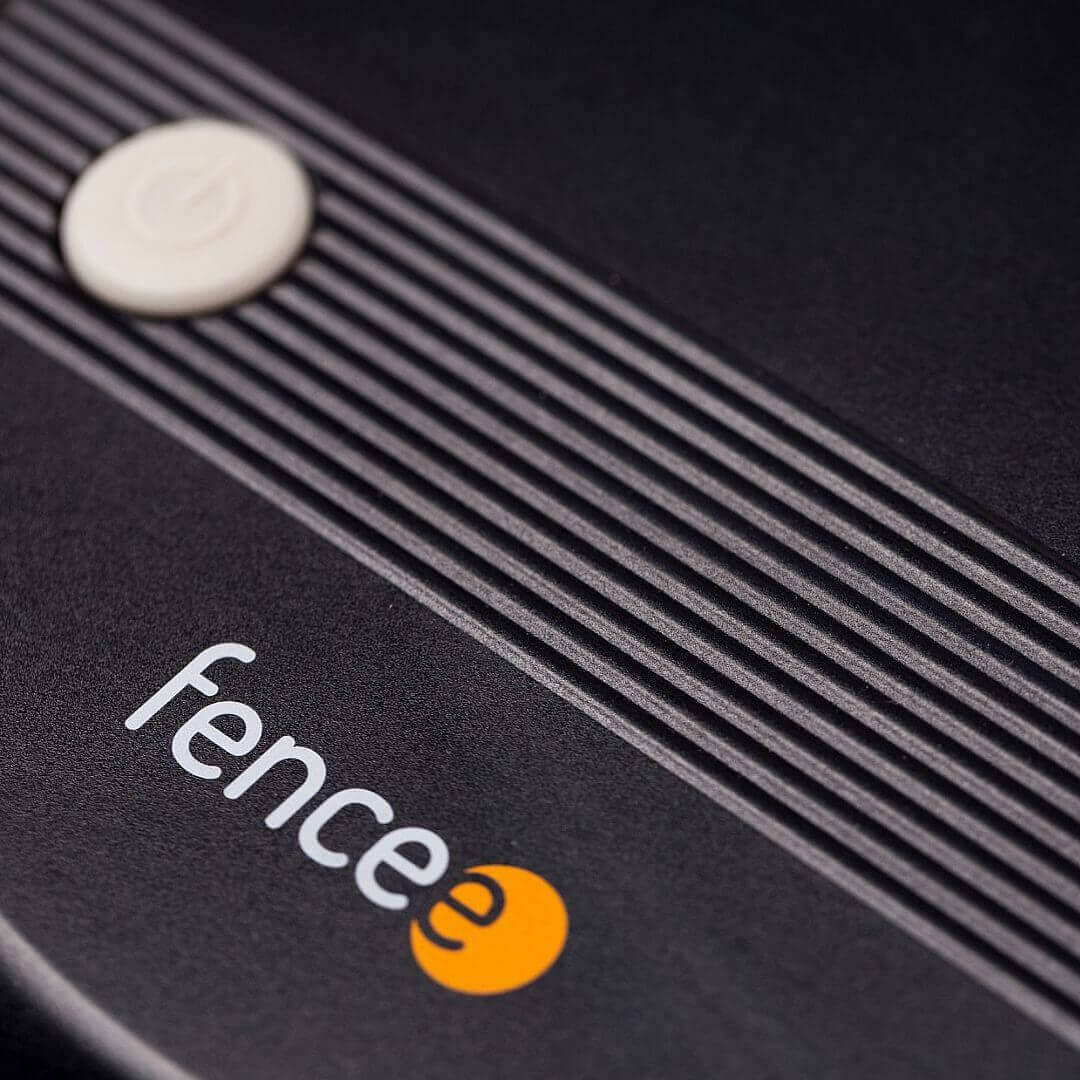

Power switching with an ON/OFF button

The energizer allows you to switch between high and low power. Low power (approx. 50%) can be used, for example, for smaller or more sensitive animals. You can switch the power while the electric fence is switched on by pressing and holding the ON/OFF button. The fence power is indicated by the upper LED indicator.

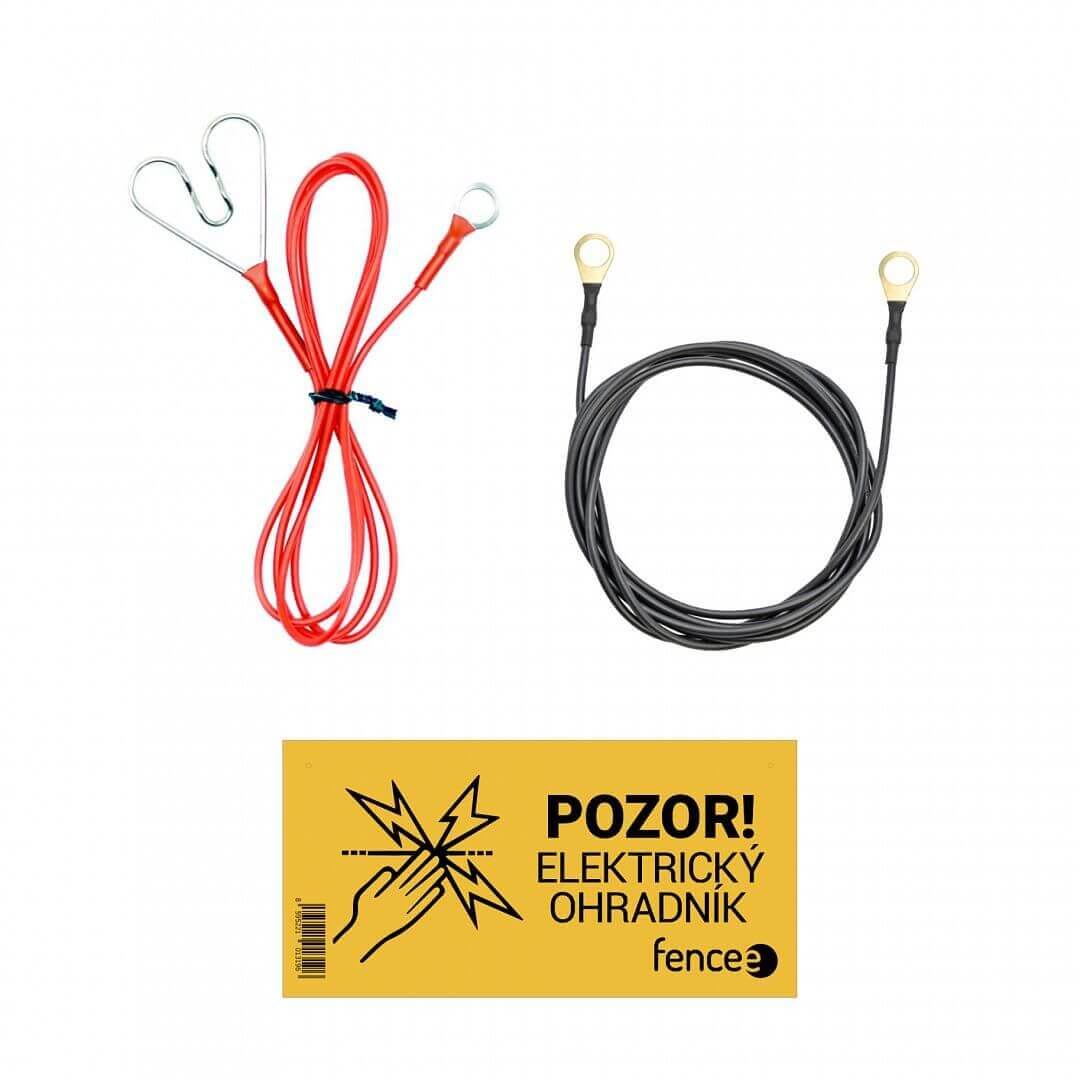

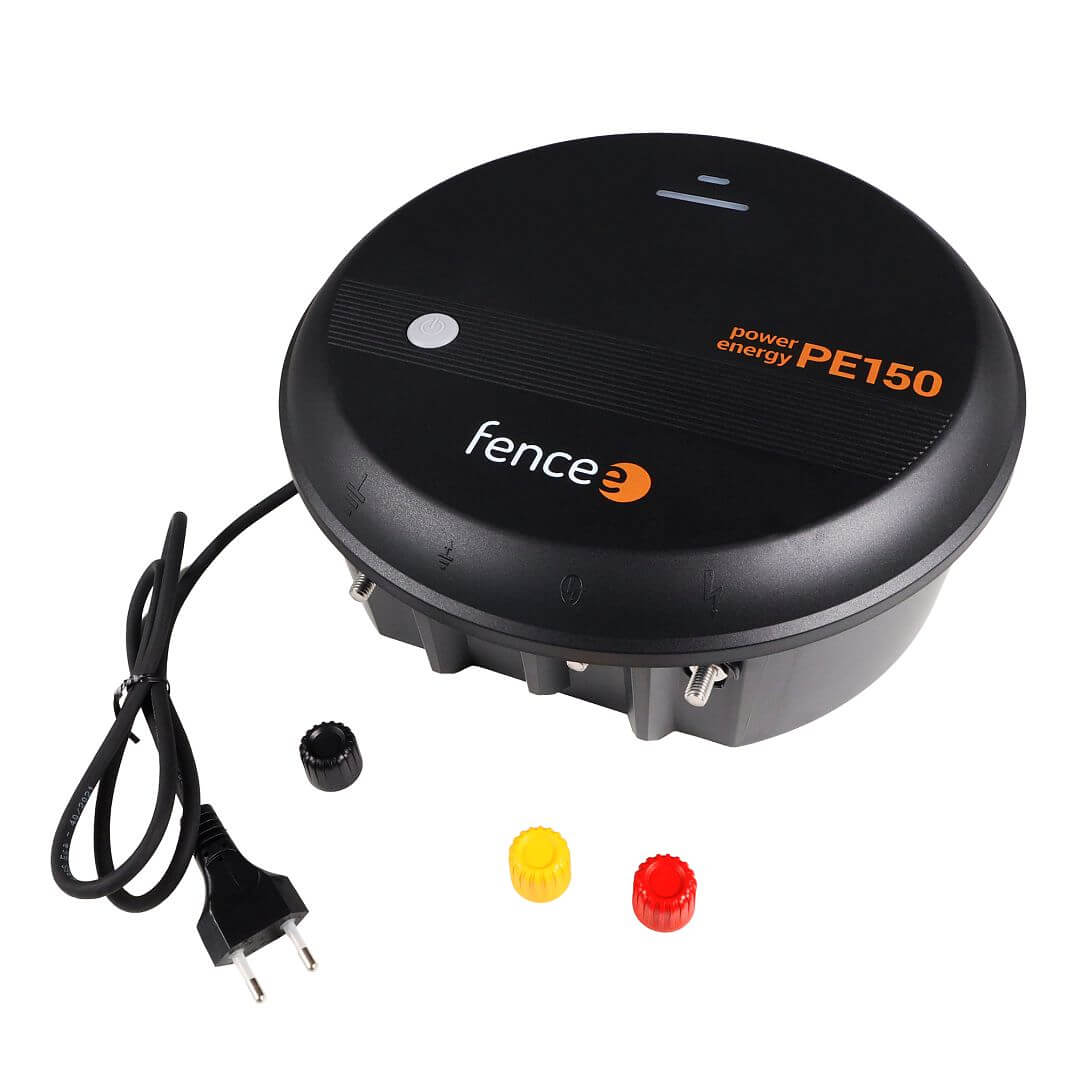

Package Contents:

• fencee mains energizer with 100 cm power cable
• connecting cable 100 cm (eye and heart)
• ground cable 150 cm (eyelet to eyelet)
• fencee warning plate
• operating instructions
