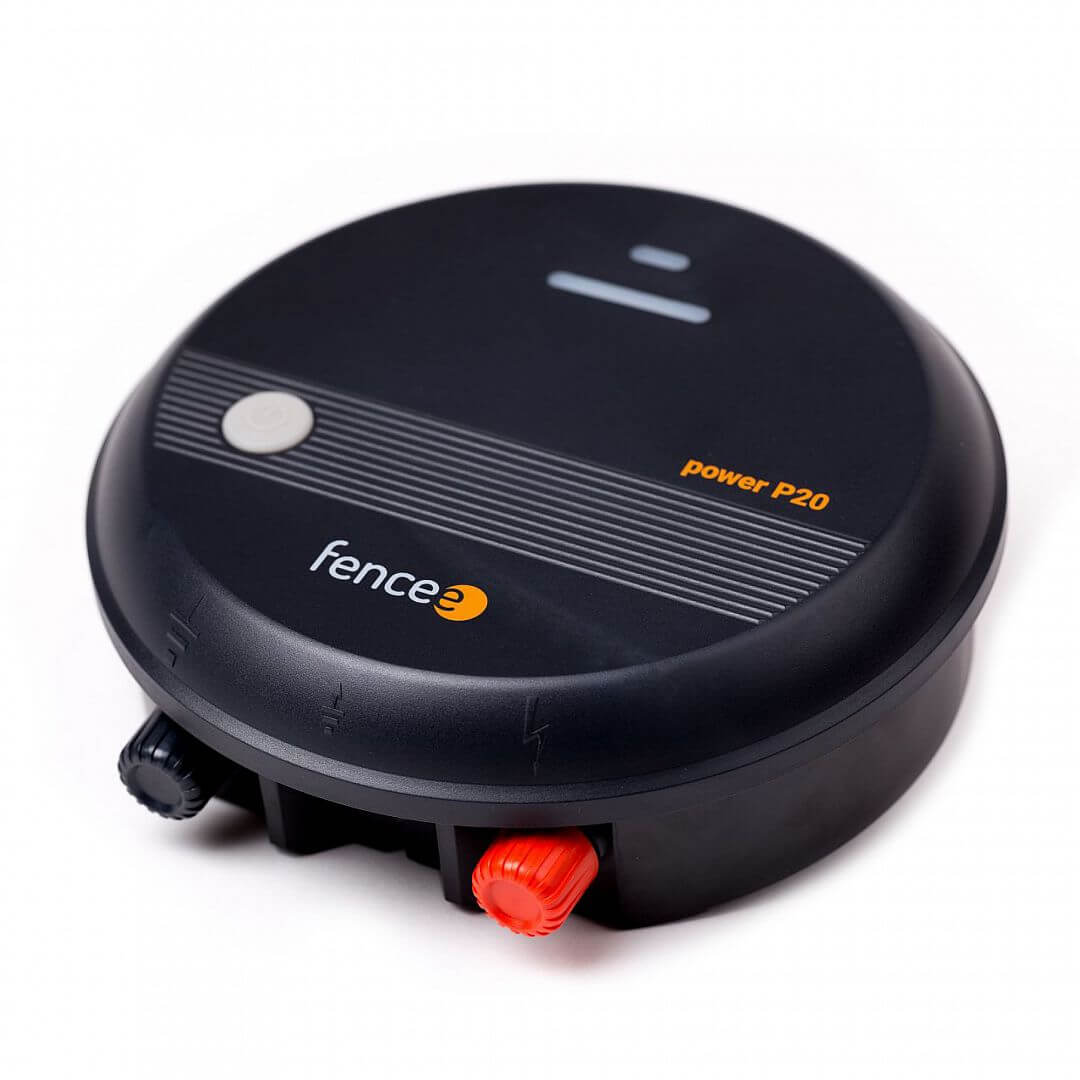

Electric fence generator fencee power P20

Electric fence generator fencee power P20
Extended warranty 3 years
2 J
Mr. Tomáš Urban

Key Account Manager / Mo-Fr: 7:00 am - 3:00 pm

Mr. Tomáš Urban

Functions of product Electric fence generator fencee power P20

ON/OFF button ST transformer LED diodes Safe Shock Low consumption Smart Control DIN rail Resistant

Product´s description Electric fence generator fencee power P20

An affordable, low-power mains power supply for electric fences. The 2 J output power of this generator allows you to power fences up to 19 km long.

Ideal for: horses, dogs, cats, chickens and protecting them from foxes and martens

High-quality generator with 2 J power for electric fencing with farm and domestic animals. Its power makes the source suitable for powering chicken and chicken runs, while also serving as an electric fence against fox and marten. It can be used to power a mobile poultry enclosure with net fencing. It is also suitable for powering electric fencing for horses. A suitable choice of source for fencing large dogs in gardens and around flowerbeds, swimming pools and ponds. For fencing runs with other animals, choose sources for electric fencing according to the specific animal.

Features and functions of the fencee generator

  • Maintenance-free fencing power supply with very low power consumption. Up-to-date microprocessor technology adjusts the optimum power output of the power supply. High-quality plastic housing that is UV-resistant protects the electronics from external climatic influences. IP44 protection.

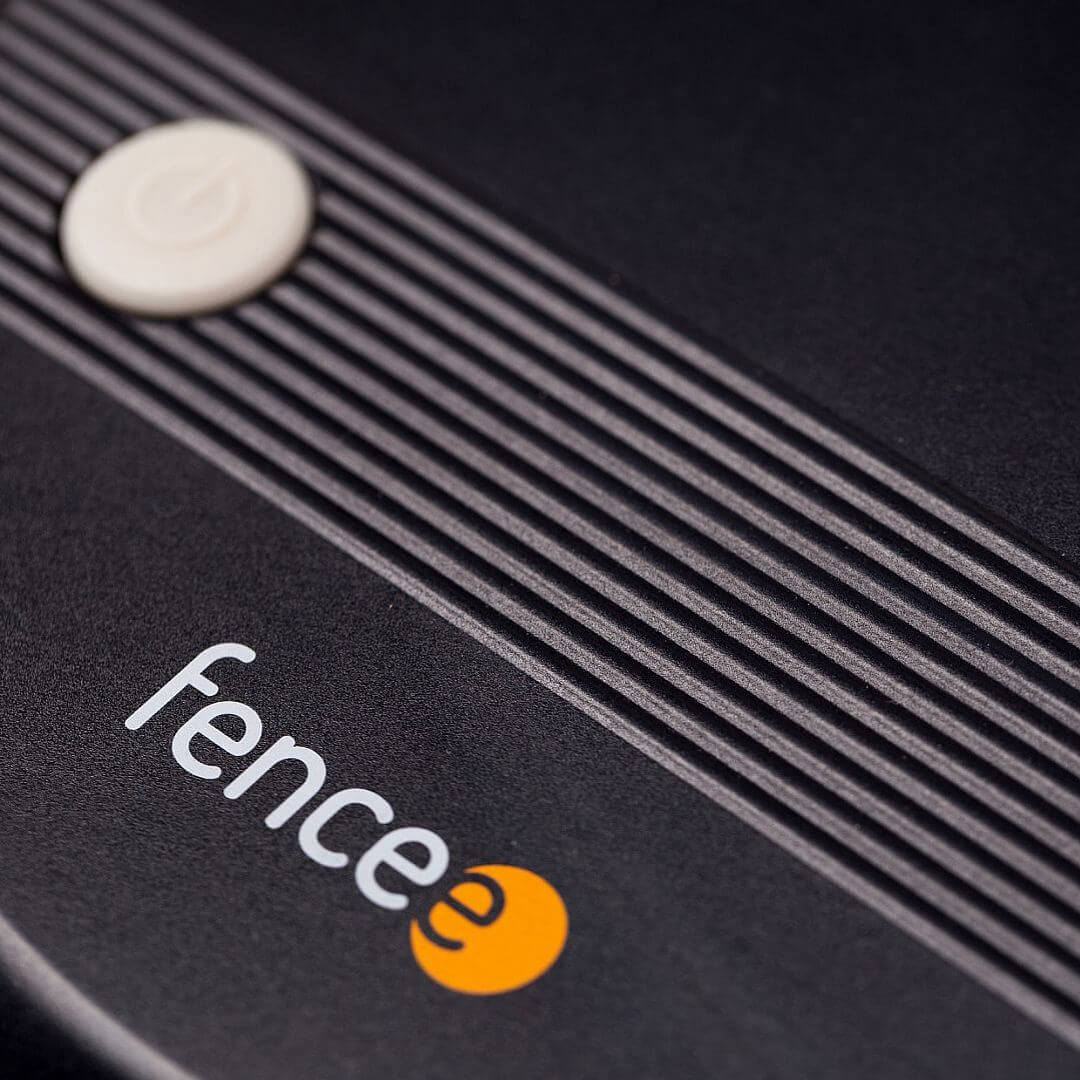

  • Practical ON/OFF switch, which means you don't have to pull the generator out of the socket every time, thus extending the life of the device. Switching the generator off and on is therefore easy and safe.
  • TheLED lights on the front of the generator show the operation of the power supply in colour. In the event of a fault, they change colour to inform you of a problem in the fence. Highly illuminated LEDs are clearly visible even in direct sunlight.
  • Smart Control technology continuously ensures optimum power source performance for specific electric fence conditions. Special ST transformer with very high voltage for long term protection ensures high generator life and safety.

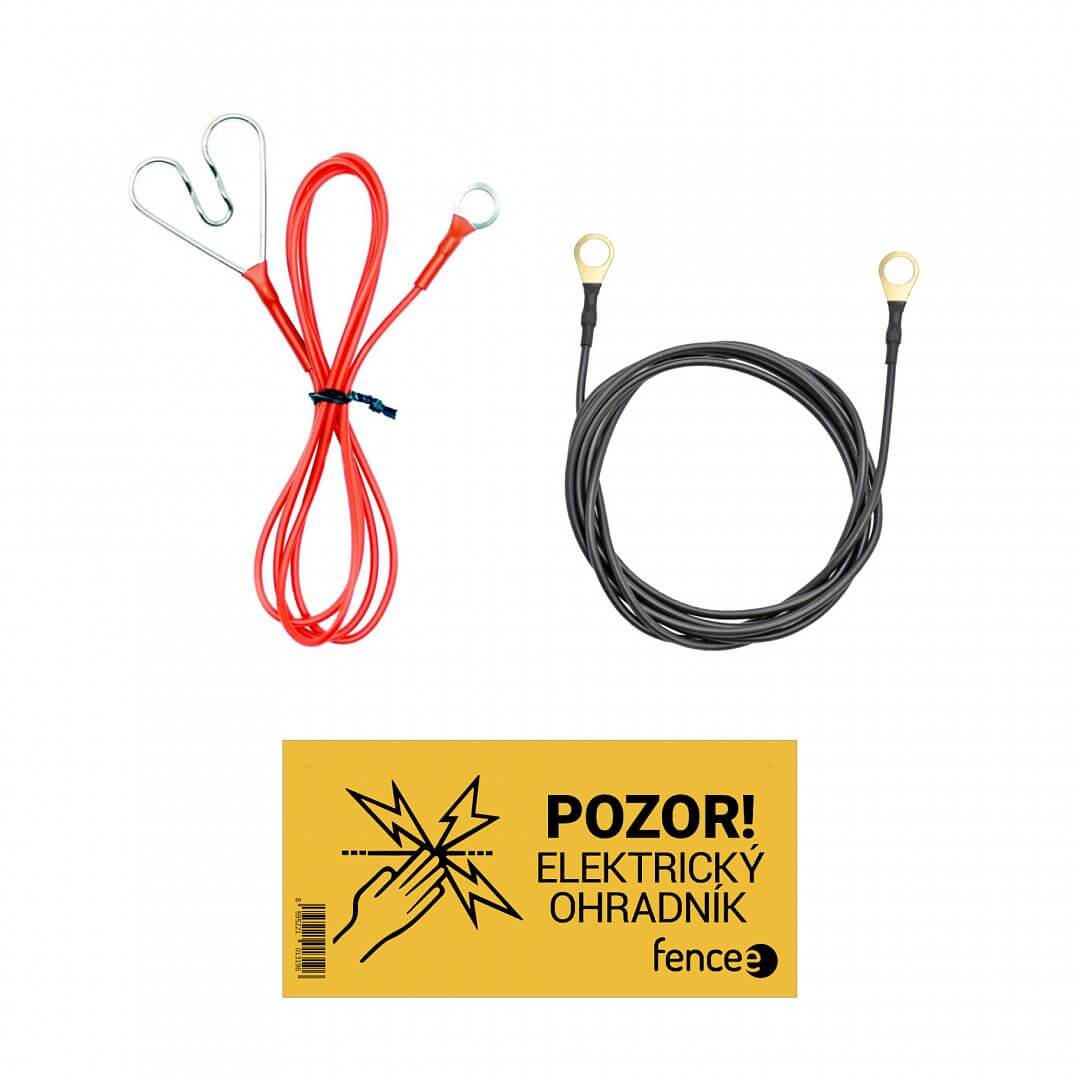

What's included:

  • fencee generator with 100 cm power cable
  • ground cable 150 cm (eye-to-eye)
  • connection cable 100 cm (eyelet-heart)
  • fencee warning plate
  • operating instructions

Together with the generator we recommend to purchase a DIN rail 200 mm for easy mounting of the fence on the wall.

Power source 230 V ~
Energizer consumption 230 V 4 W
Output energy 2 J
Input energy 2,6 J
Output voltage 10000 V
Output voltage 500 Ω 5000 V
ON/OFF
LED ON/OFF
LED impulse
LED error check
TEOR. max. CEE 70 km
Low vegetation 19 km
Medium vegetation 8 km
High vegetation 1,5 km
Earthing 1 m 2x
El. fence nets 5x
Diameter 210 mm
Depth 66 mm
Weigth 1382 g

Manuals and files for downloading

Manual fencee power P
