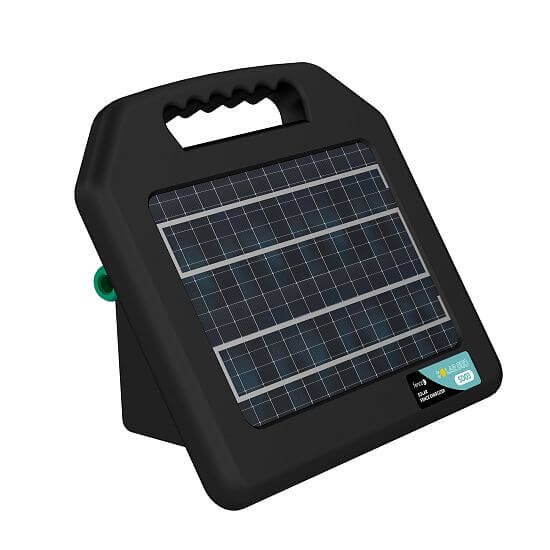

Product´s description Portable electric fence energizer fencee solar DUO SD03
Compact solar energizer for electric fence with intergrated solar panel, which takes care of automatic charging of the built-in battery. The portable energizer is suitable for small pens, mobile electric fences, paddocks and grazing paddocks.
Solar electric fence SD03 with a power of 0.3 J
The fence energizer in a practical comprehensive design is offered for smaller electric fences without 230 V mains connection. Maximum installation length of 5 km in ideal conditions without dense vegetation. The solar power supply allows the energizer to be used in places without electricity. Suitable for dogs, cats, quiet horses, ponies, rabbits and other small animals.
Durable integrated solar panel with 8W power
Suitable for outdoors, the solar panel is weather and UV resistant. It takes care of the automatic recharging of the electric fence and ensures maintenance-free continuous operation of the device during the summer months.

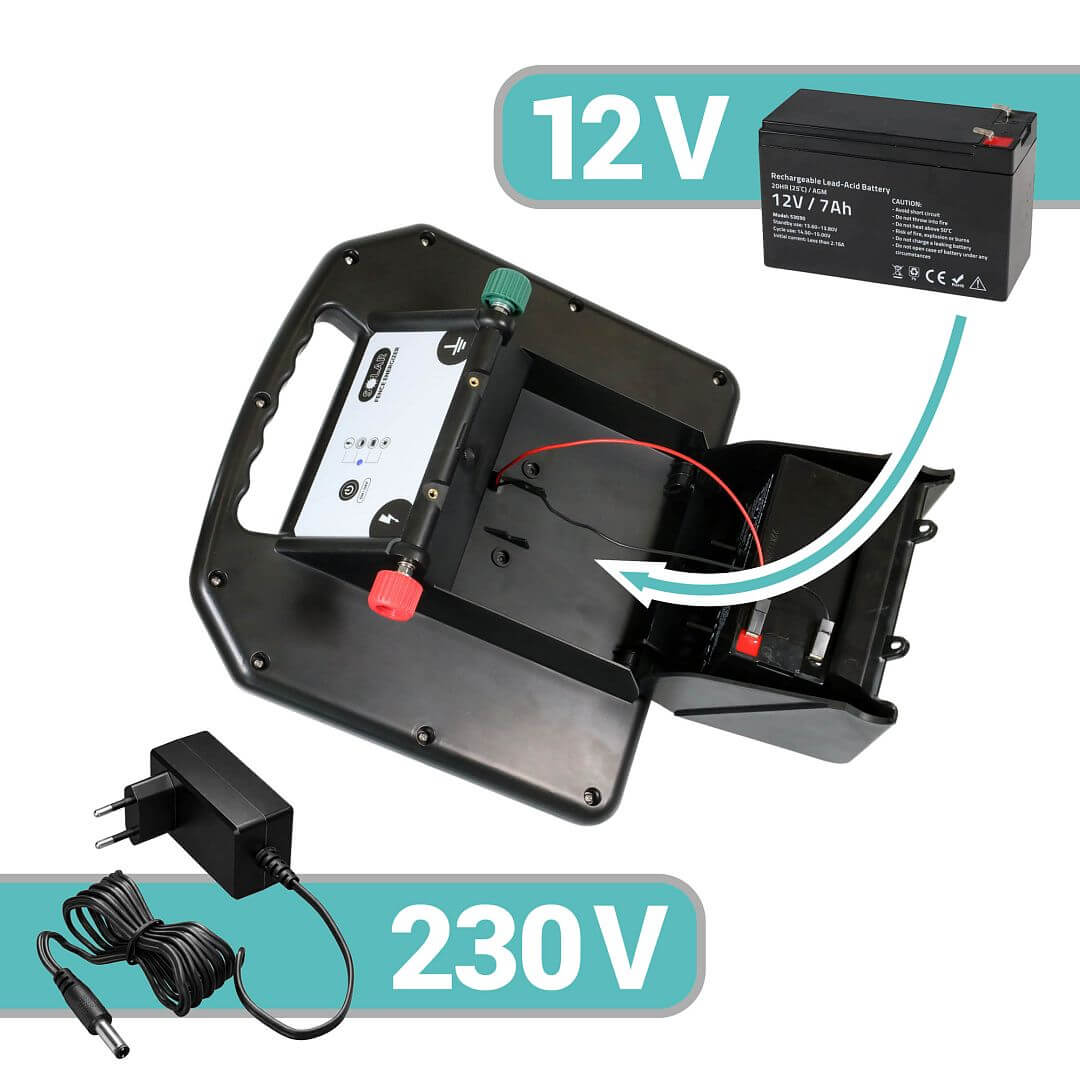

Powerful 12V gel battery 7 Ah with long lifetime
A powerful gel battery for the portable solar fence that can be easily replaced if necessary. Battery status indicator. Deep discharge protection ensures long battery life.
Automatic power adjustment and power-save mode
A microprocessor controls the operation of the energizer and adjusts the optimum performance of the device. Power Save mode allows a long press of the ON/OFF button to switch the solar energizer's power output to a slower mode, where the interval between pulses is approximately twice as long. Switching to power save mode significantly saves battery power.

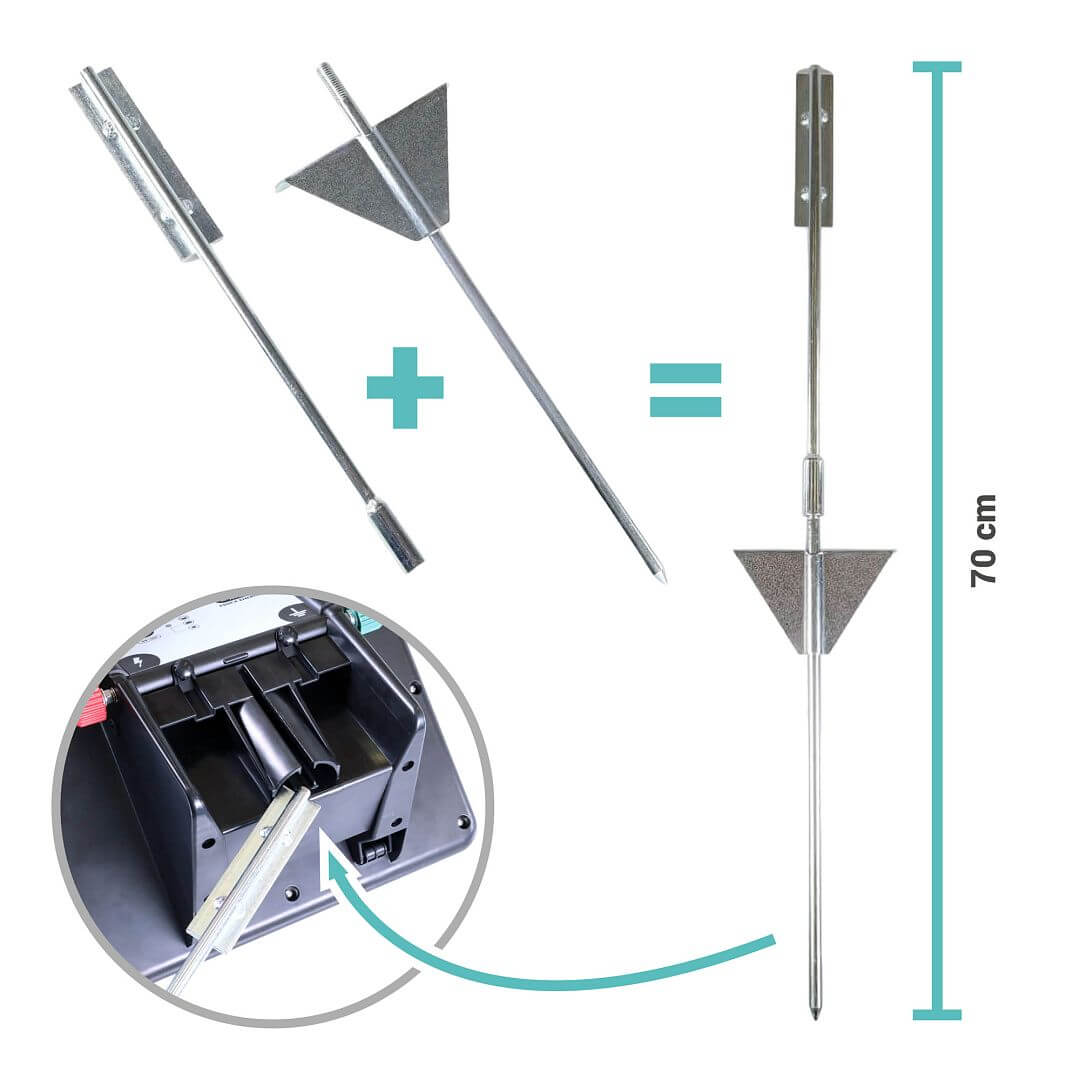

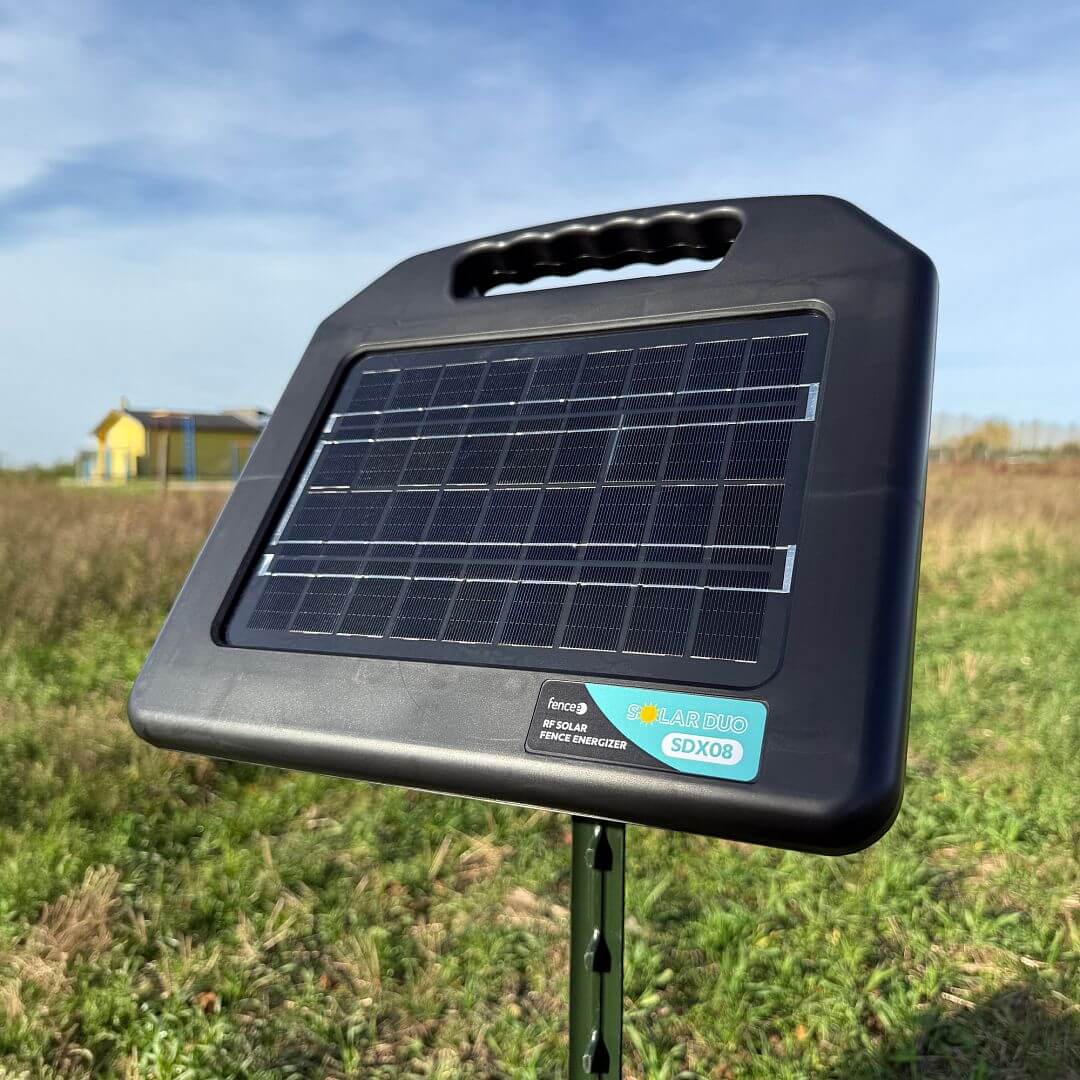

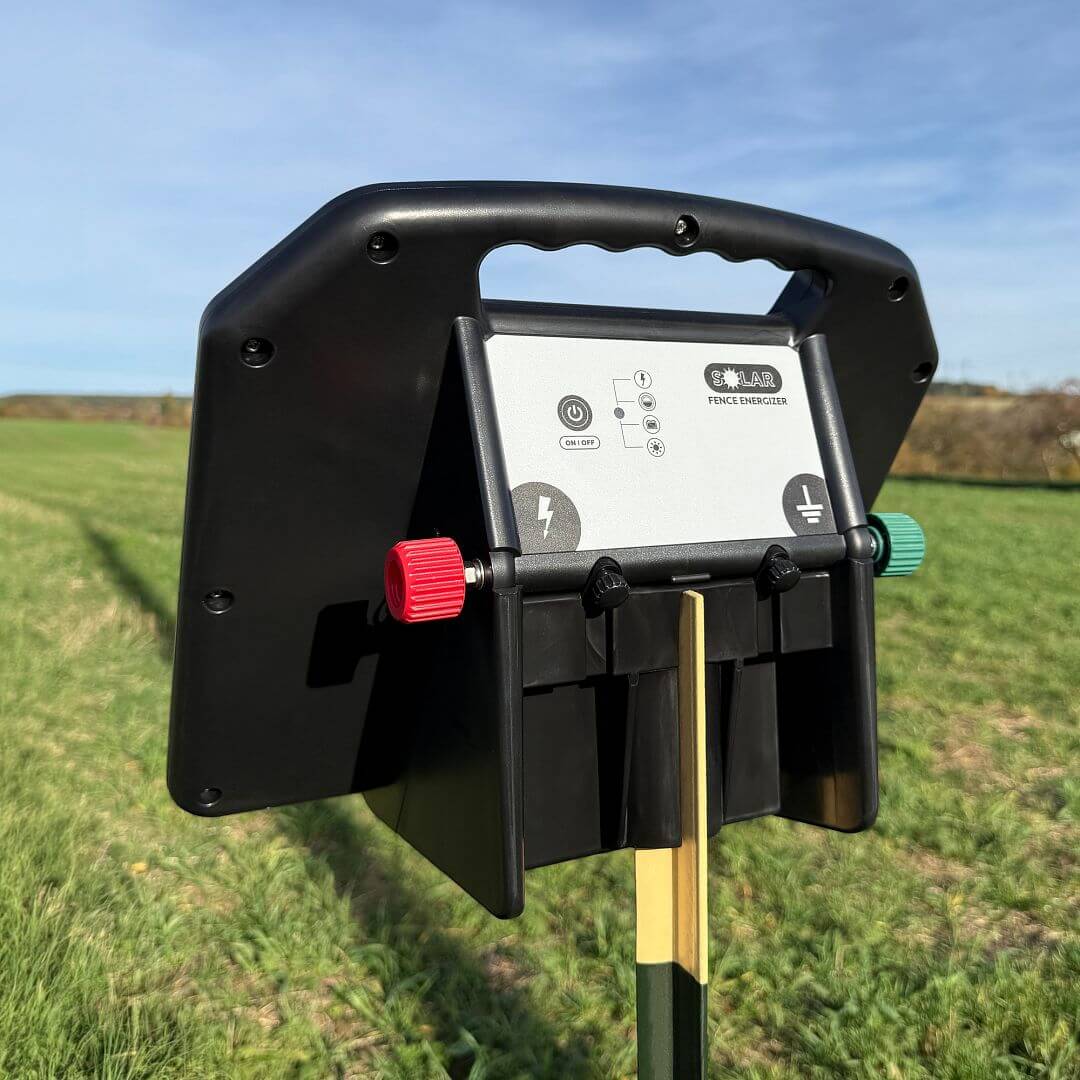

Mobile energizer with practical 360º mounting on a T/U post
The mounting bracket on the rear of the device allows the fence to be attached to a special mounting and also earthing post (included) at any location. For correct orientation of the solar panel to the sun, use the 360º rotation option. The energizer can also be mounted on a fence T-post or universal U-post.
Waterproof shockproof housing with built-in lightning protection
Designed for outdoor use, the device is rain and UV resistant. IP44 protection. The input connector for connecting the mains adapter is waterproof. The energizer has integrated lightning protection.
Package contents:
- solar energizer fencee
- gel battery 12V 7 Ah
- integrated solar panel 8 W

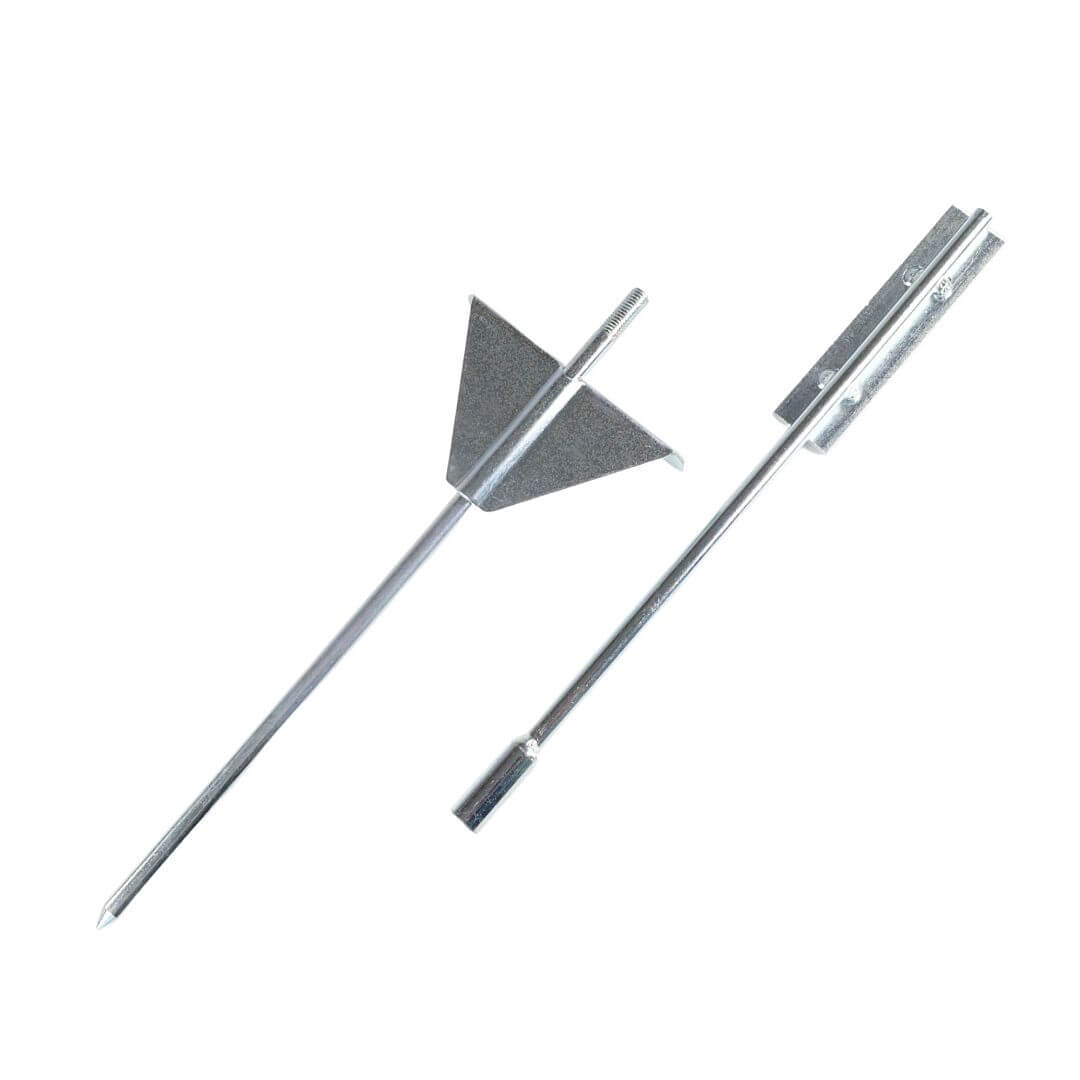

- mounting and grounding rod for fencee solar DUO SD
- Power adapter fencee DUO 14 V 1.5 m
- Connecting cable 100 cm (eyelet-heart)
- ground cable 150 cm (eyelet-mesh)
- fencee warning plate
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 1 W |
Energizer consumption 12 V | 30 mA |
Output energy | 0,3 J |
Input energy | 0,4 J |
Output voltage | 10000 V |
Output voltage 500 Ω | 3500 V |
ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |

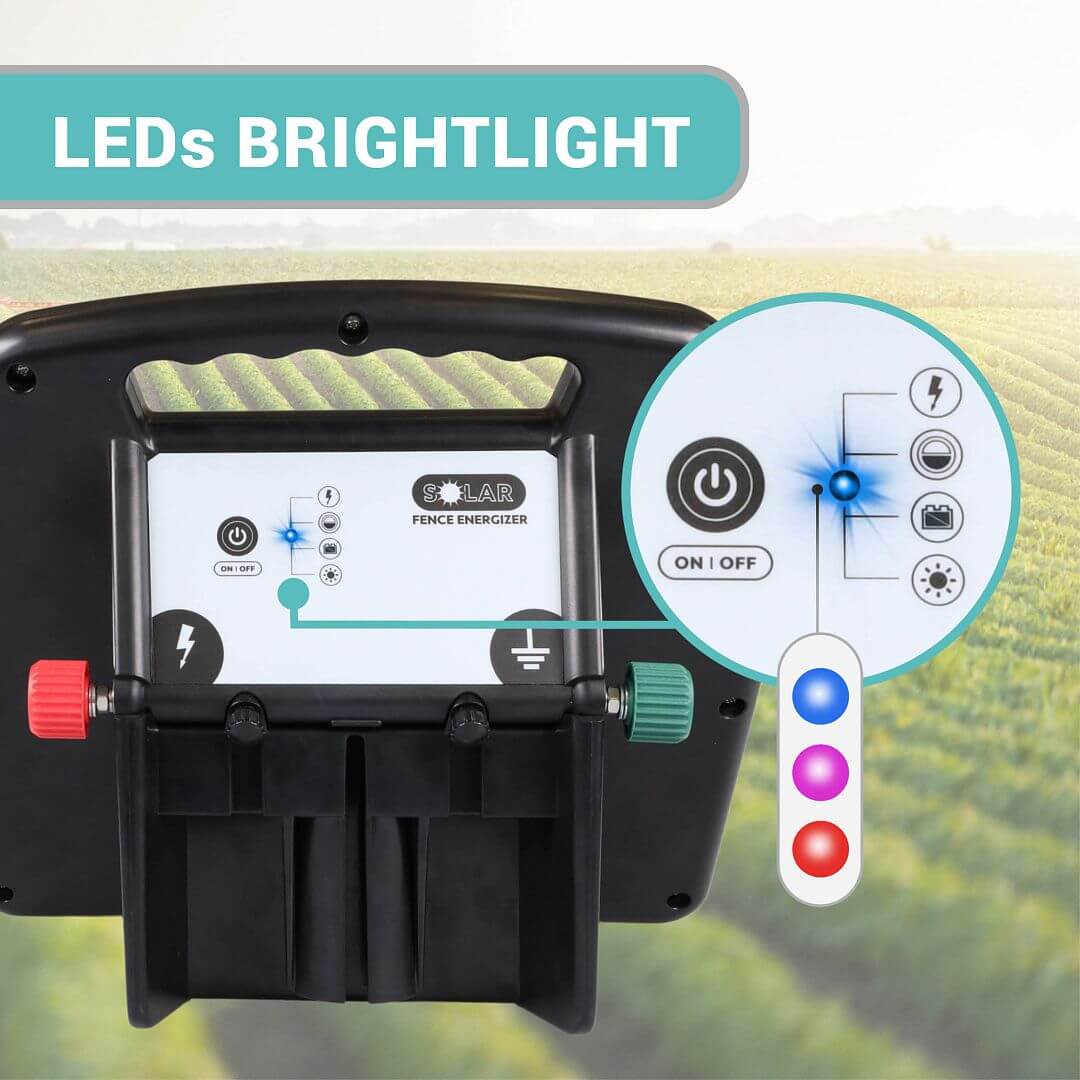

LED indication | |
Power Save mode | |
TEOR. max. CEE | 10 km |
Low vegetation | 5 km |
Medium vegetation | 3 km |
High vegetation | 1,2 km |
Earthing 1 m | 1 × |
El. fence nets | 1 × |
Weigth | 4600 g |
Dimension | 37×22×33 cm |
Solar panel | 8 W |
Solar panel consumption | 0,75 mA |
Operation without sun | up to 10 days |
Maximum power voltage (Vmp) | DC 18V |
Maximum power Current (Imp) | 0,47 A |
Open circuit voltage (Voc) | 22,3 V |
Short circuit current (Isc) | 0,3 A |
Solar panel dimension | 30,3×21,3 cm |
