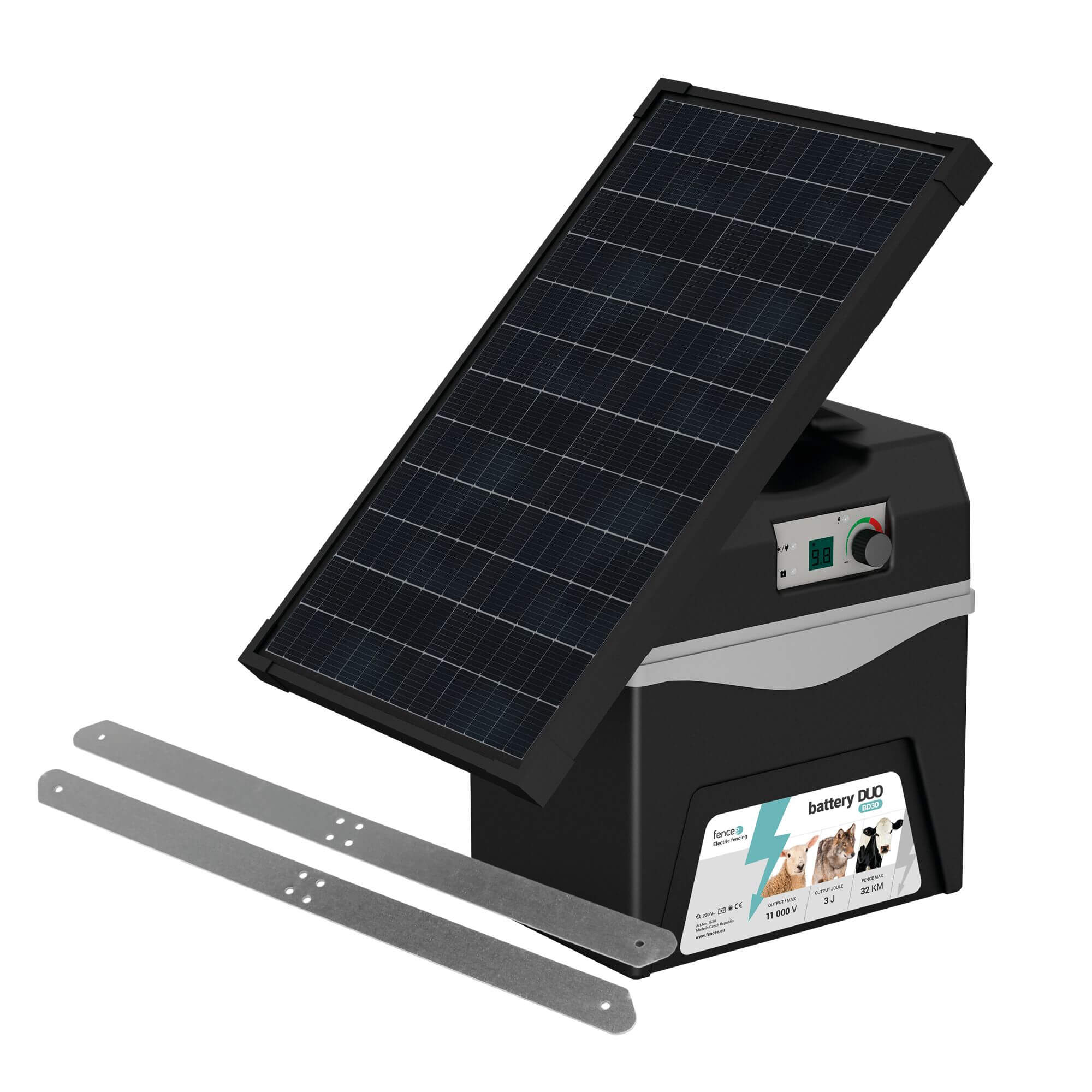

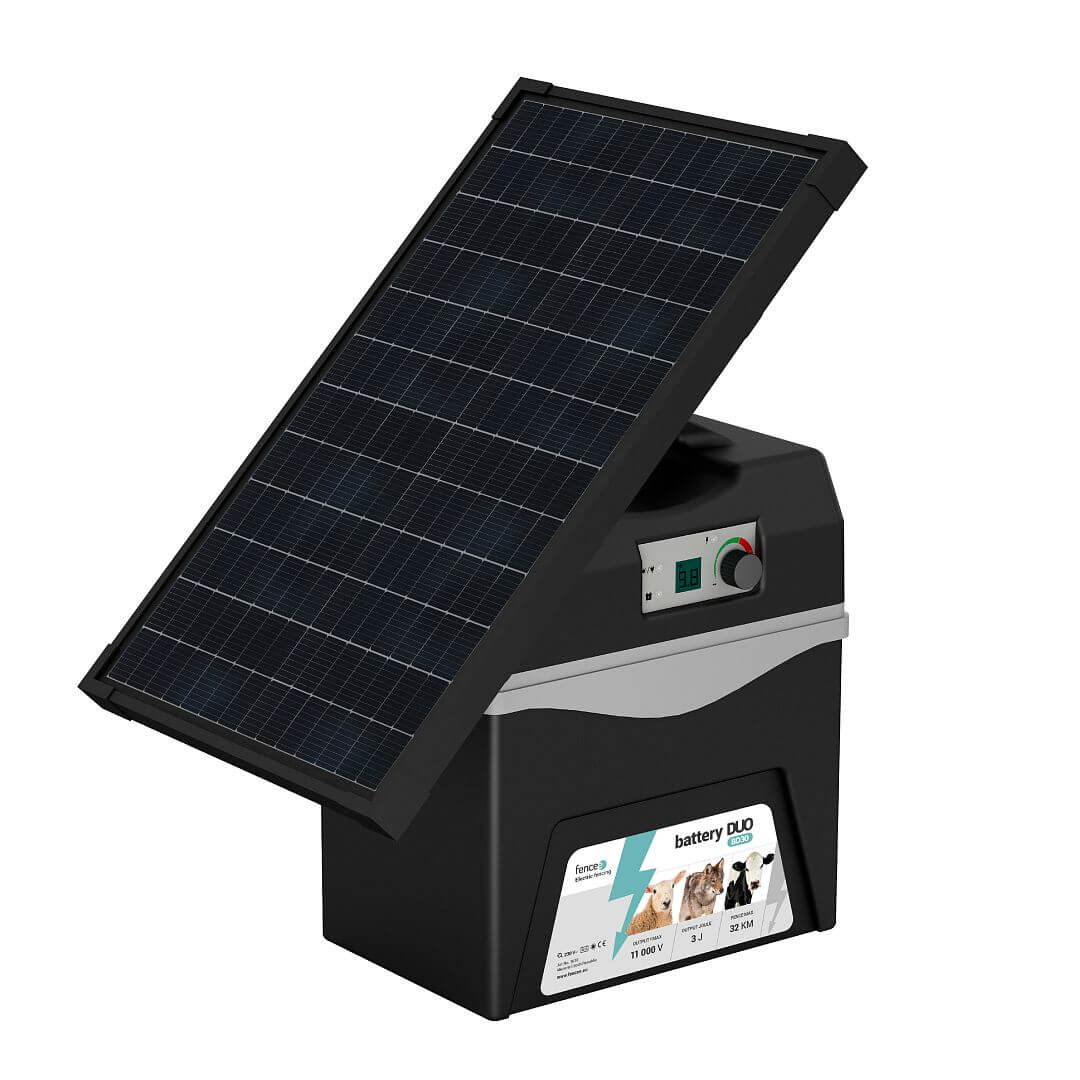

Product´s description Electric fence energizer fencee battery DUO BD30 + solar panel 30 W + bracket
The battery-powered 3 J electric fence is a robust solution for protecting large farms, pastures, fields and crops. This electric fencing system is designed to effectively keep livestock such as cattle, horses, goats or deer on pasture, while protecting areas from feral pigs and wildlife.
The battery-powered electric fence with 3 J

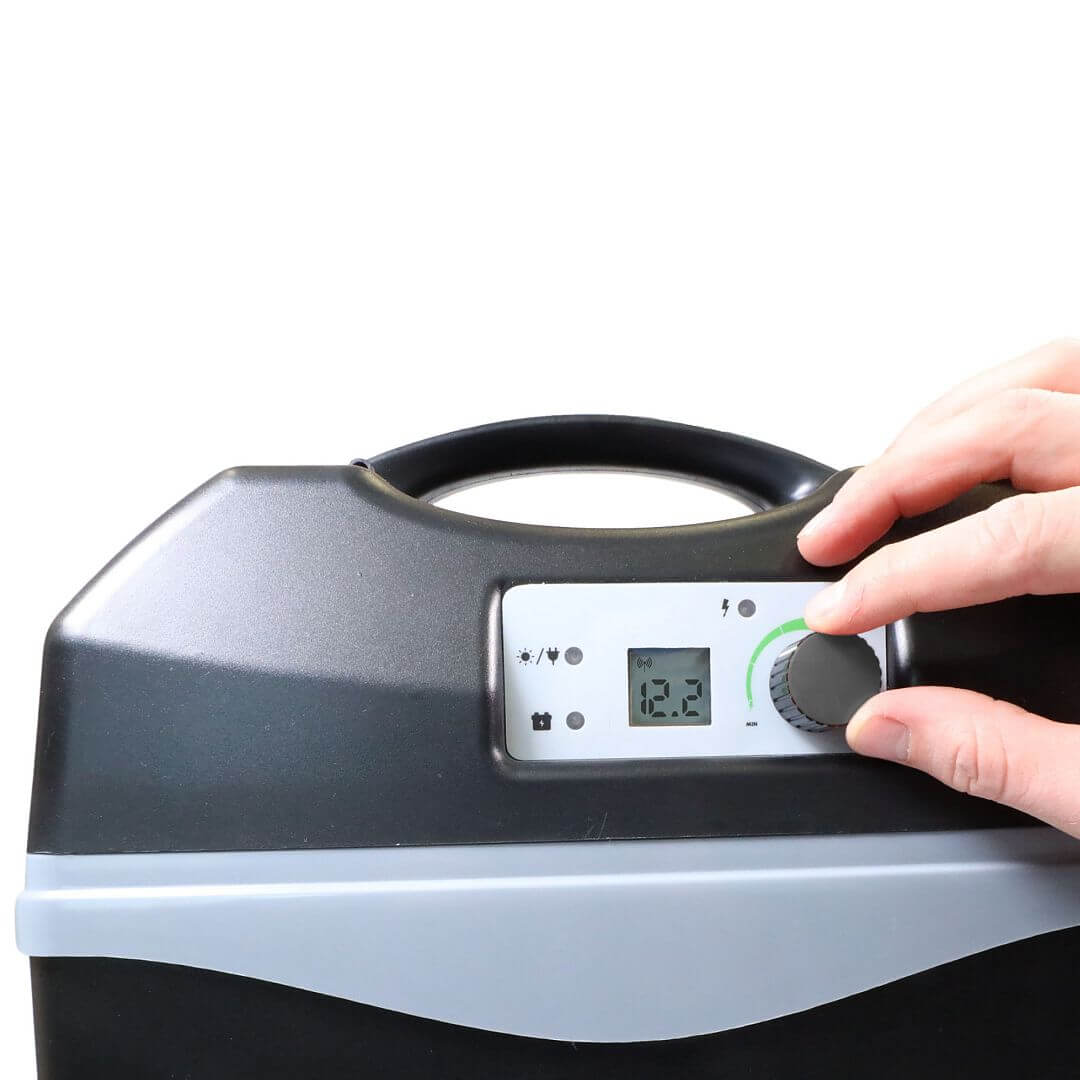

Battery powered fence with display to indicate generator voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs and battery level indication. The device has a combined power supply, so it can also be powered by mains adapter. Waterproof connector for 230 V adapter connection.
fencee Control application for control and monitoring of the fence
All fencee battery generator models can be controlled and adjusted at a short distance of up to approx. 10 m by mobile phone using the fencee Control app. You can download the app for free on Google play and the App store.
Energy saving fence mode and efficient use of the battery
A microprocessor controls the operation of the power supply, adjusts the optimum power output and ensures maximum efficient use of the battery. The battery generators allow you to regulate the power in 19 degrees. Levels 1 to 6 function as ecomode.

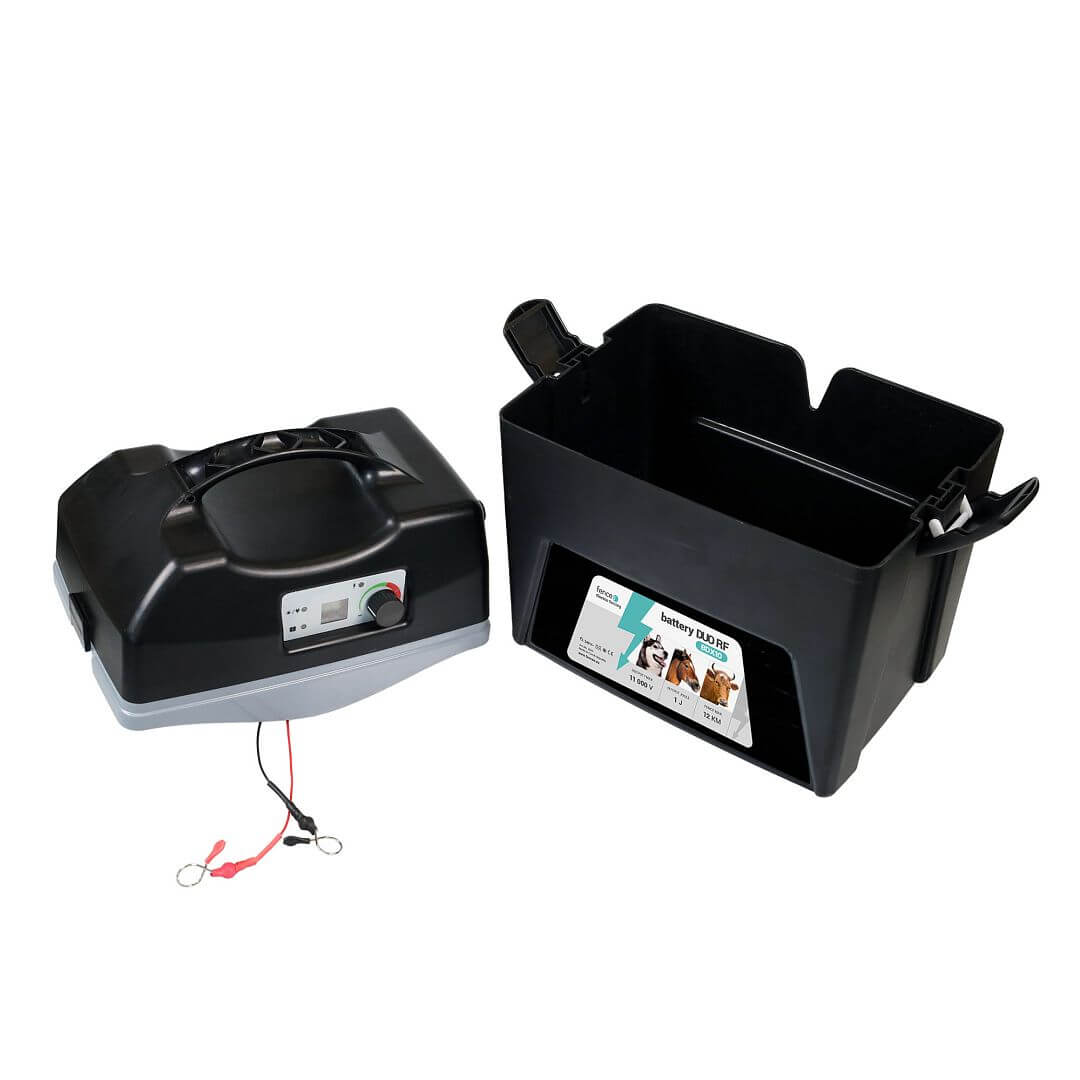

Ample space for 12 V battery placement
The battery-powered fence has a large compartment for a 12 V battery with a capacity of 44 Ah. The battery is built inside the device and is protected from UV radiation. The person carrying the battery fence is protected from contact with the battery.

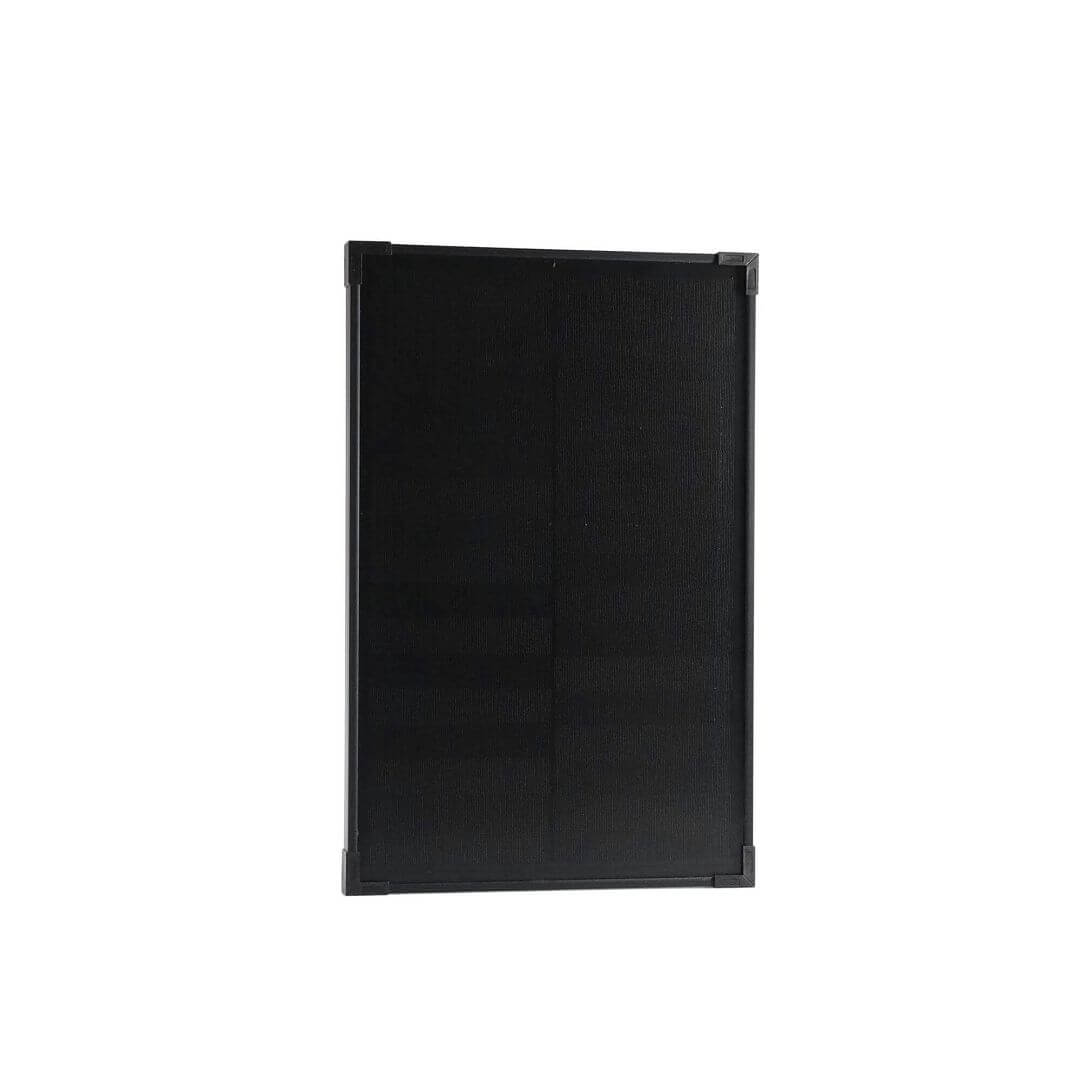

The solar panel with a power of 30 W

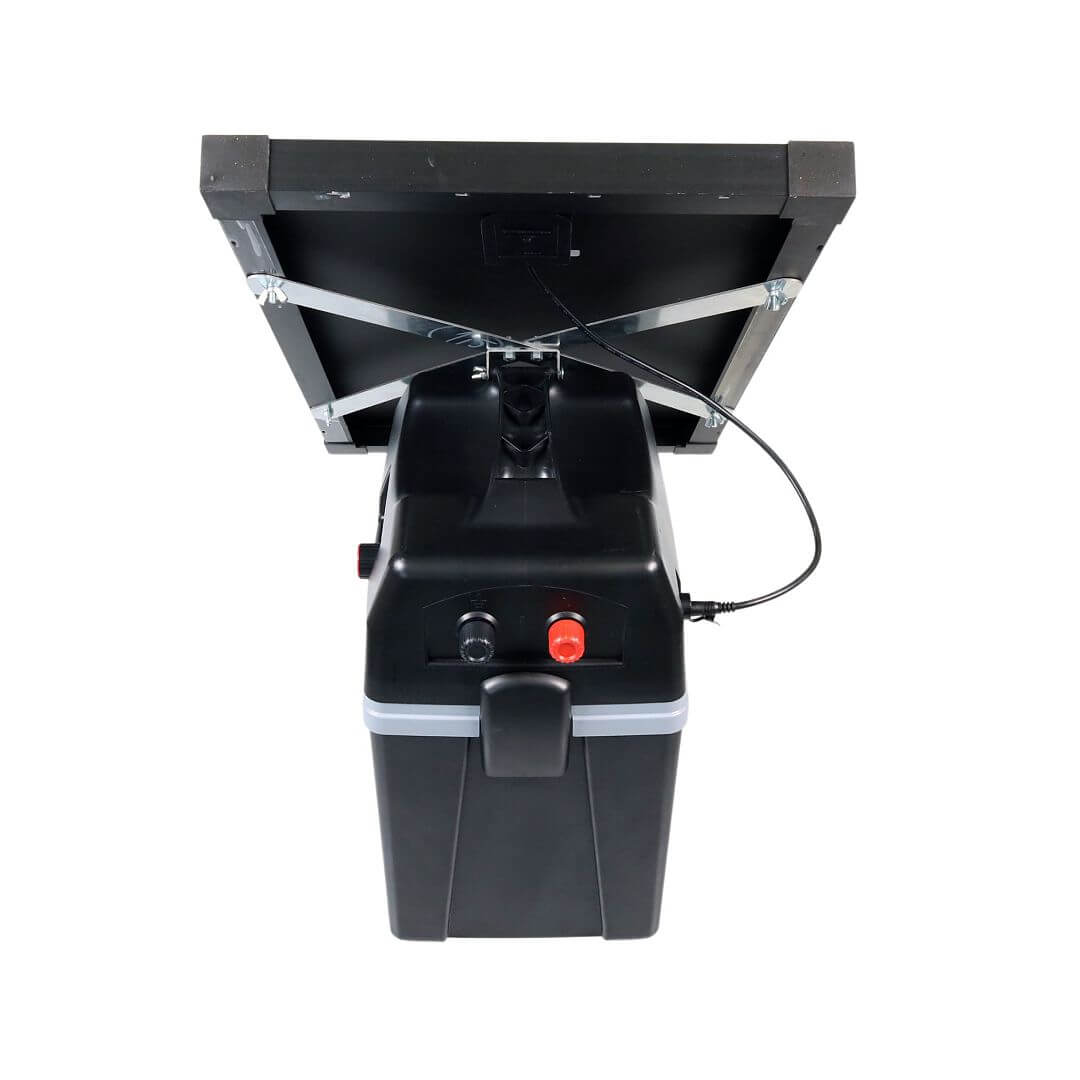

A 30 W solar panel can be connected to the battery pack to ensure continuous operation. With the option of solar charging of the electric fence, you get an energy self-sufficient system that can be operated even in remote areas. The solar panel is fixed with a mounting bracket and can be positioned towards the sun as required.

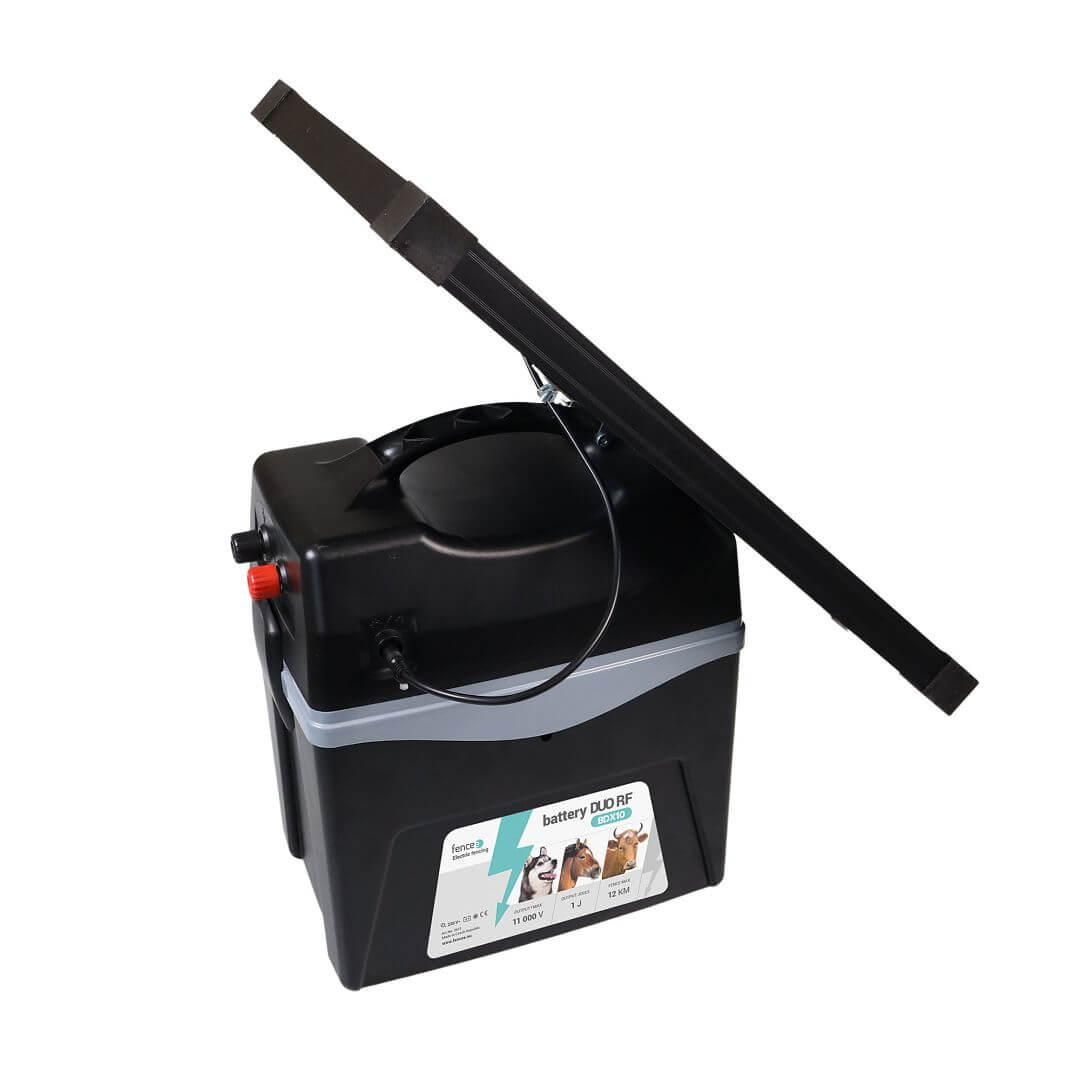

Robust construction with handle for easy transport
Battery fence for harsh conditions and long term outdoor use. Coverage IP44. The device is resistant to rain, weather conditions and UV radiation. Generator with integrated lightning protection.
Package contents:
- battery power supply fencee 3 J
- bracket + solar panel 30 W
- integrated cable for connecting the power supply to the battery
- Power adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- Ground cable 150 cm (eyelet to eyelet)

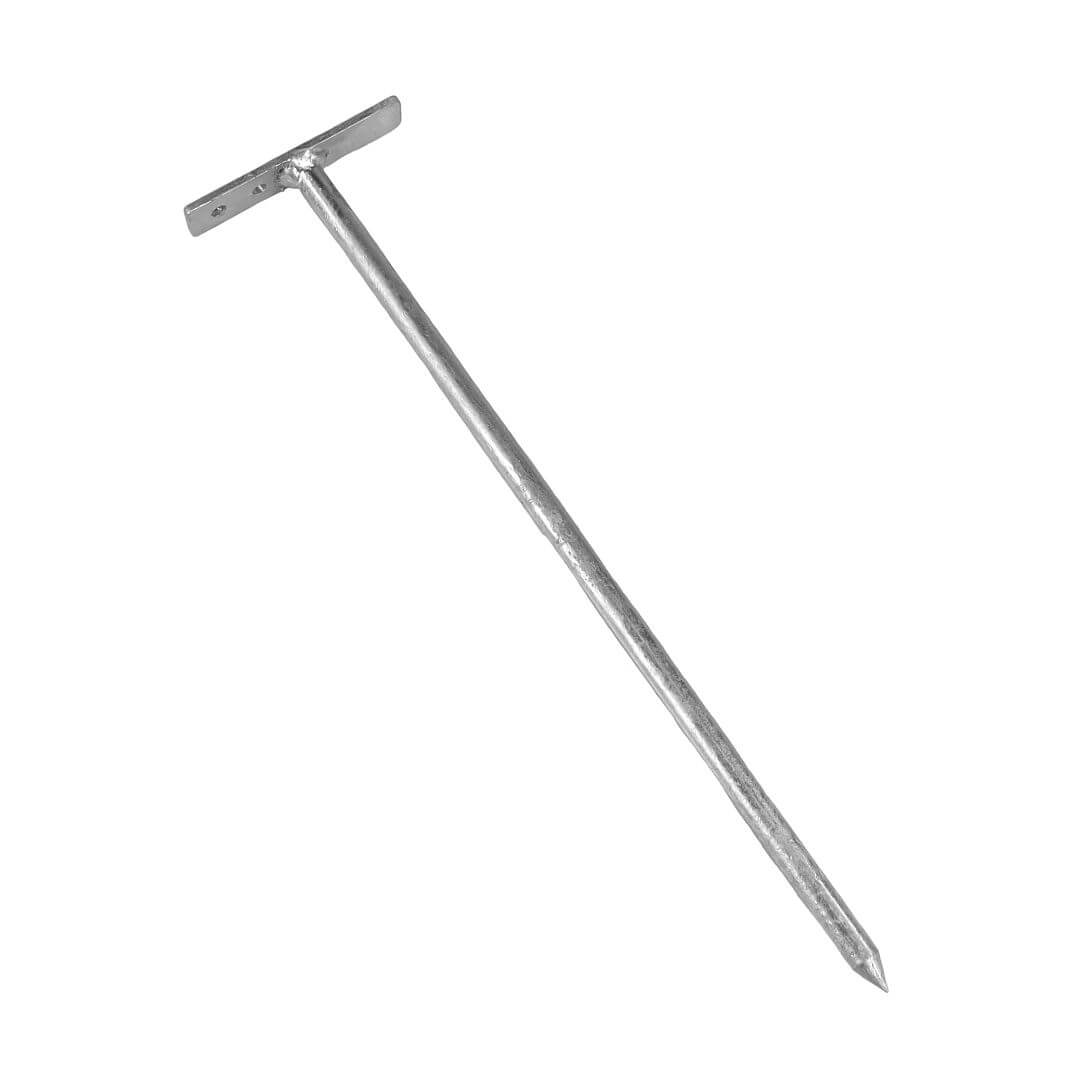

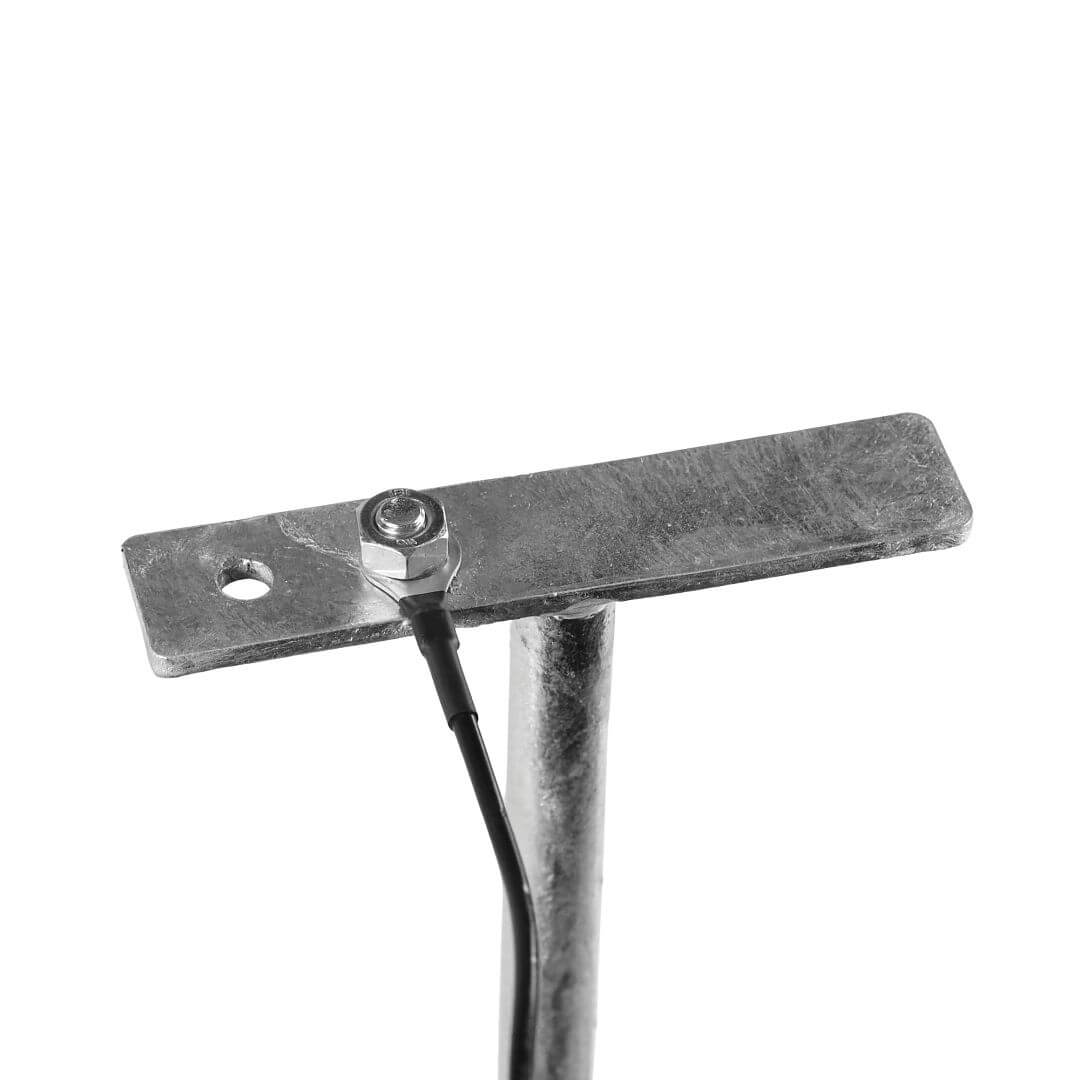

- grounding rod for the fence
- fencee warning plate
- operating instructions
Power source | 230 V ~ / 12 V |
Energizer consumption 230 V | 3 W |
Energizer consumption 12 V | 25 mA - 250 mA |
Output energy | 3 J |
Input energy | 4 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 5500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED error check | |
LCD display | |
Power Save mode | |
Transmission frequency | 869,525 MHz |
Transmitting power | 22 dBm |
TEOR. max. CEE | 100 km |
Low vegetation | 30 km |
Medium vegetation | 13 km |
High vegetation | 5 km |
Earthing 1 m | 3× |
El. fence nets | 13× |
Weigth | 5010 g |
Dimension | 38 × 31 × 21 cm |
Solar panel | 30 W |
Maximum power voltage (Vmp) | 19,28 V |
Maximum power Current (Imp) | 1,56 A |
Open circuit voltage (Voc) | 22,92 V |
Short circuit current (Isc) | 1,65 A |
