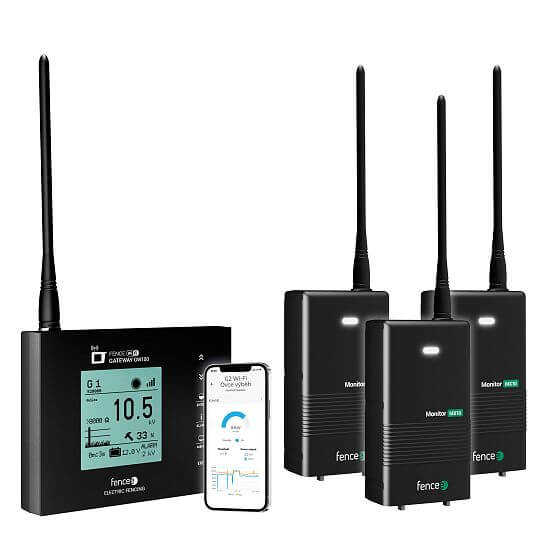

Product´s description Universal electric fence online monitoring set - WiFi Gateway GW100 - 3 × Monitor MX10
The fencee smart device monitoring kit for monitoring and controlling the electric fence with your mobile phone or via a web browser. Monitor the status of your electric fence conveniently from wherever you need it.
Online monitoring FOR EVERY ELECTRIC FENCE
The universal monitoring kit can be applied to any electric fence. It can be connected to all electric fences and works with all commercially available fence sources. Suitable for long permanent fences as well as mobile and temporary electric fences.
Immediate problem detection FOR GREATER FENCE SAFETY
Get the advantage of online monitoring of electric fences and receive alerts for unexpected situations. Monitor your electric fences in real time and receive alerts in case of power loss. With up-to-date information on your mobile phone , you minimize the occurrence of unpleasant situations.
Continuous overview of the voltage in the electric fence with the MX10 Monitor

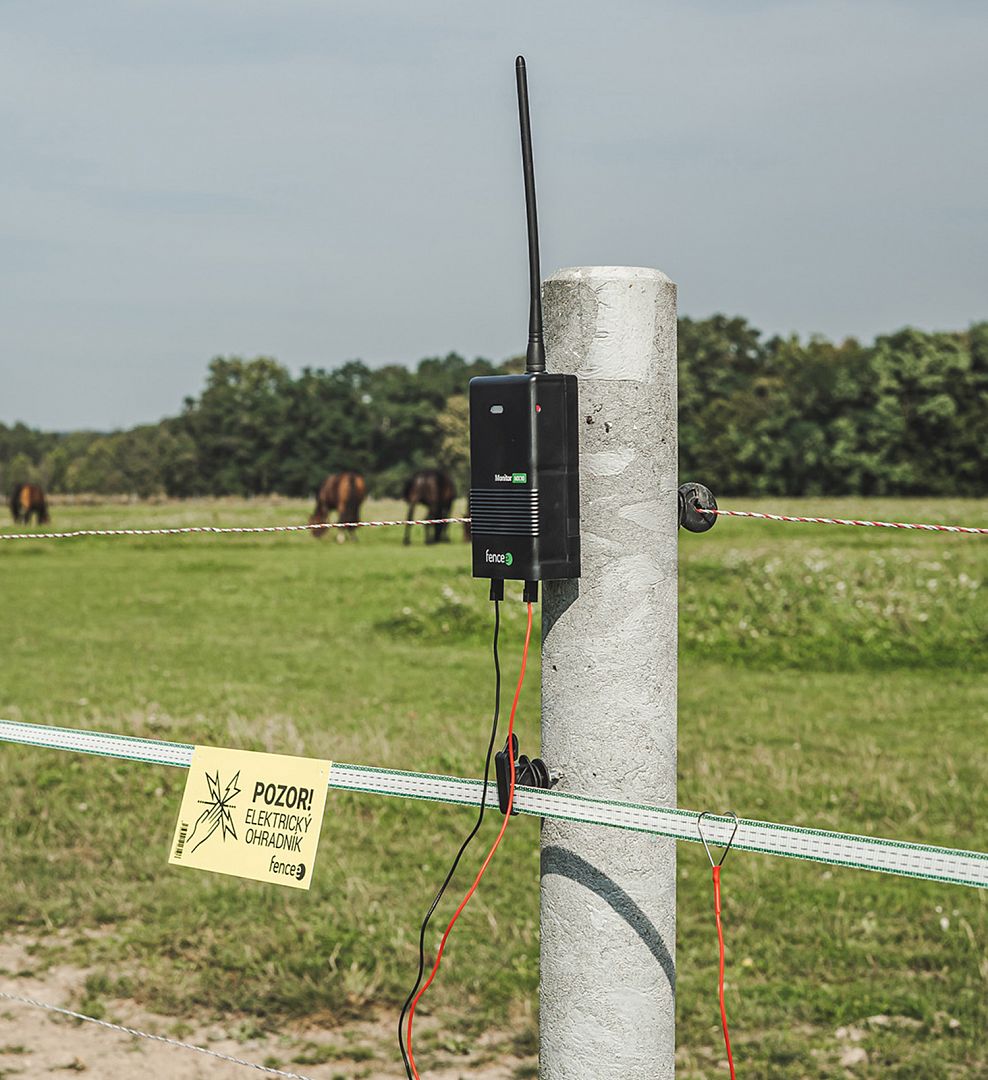

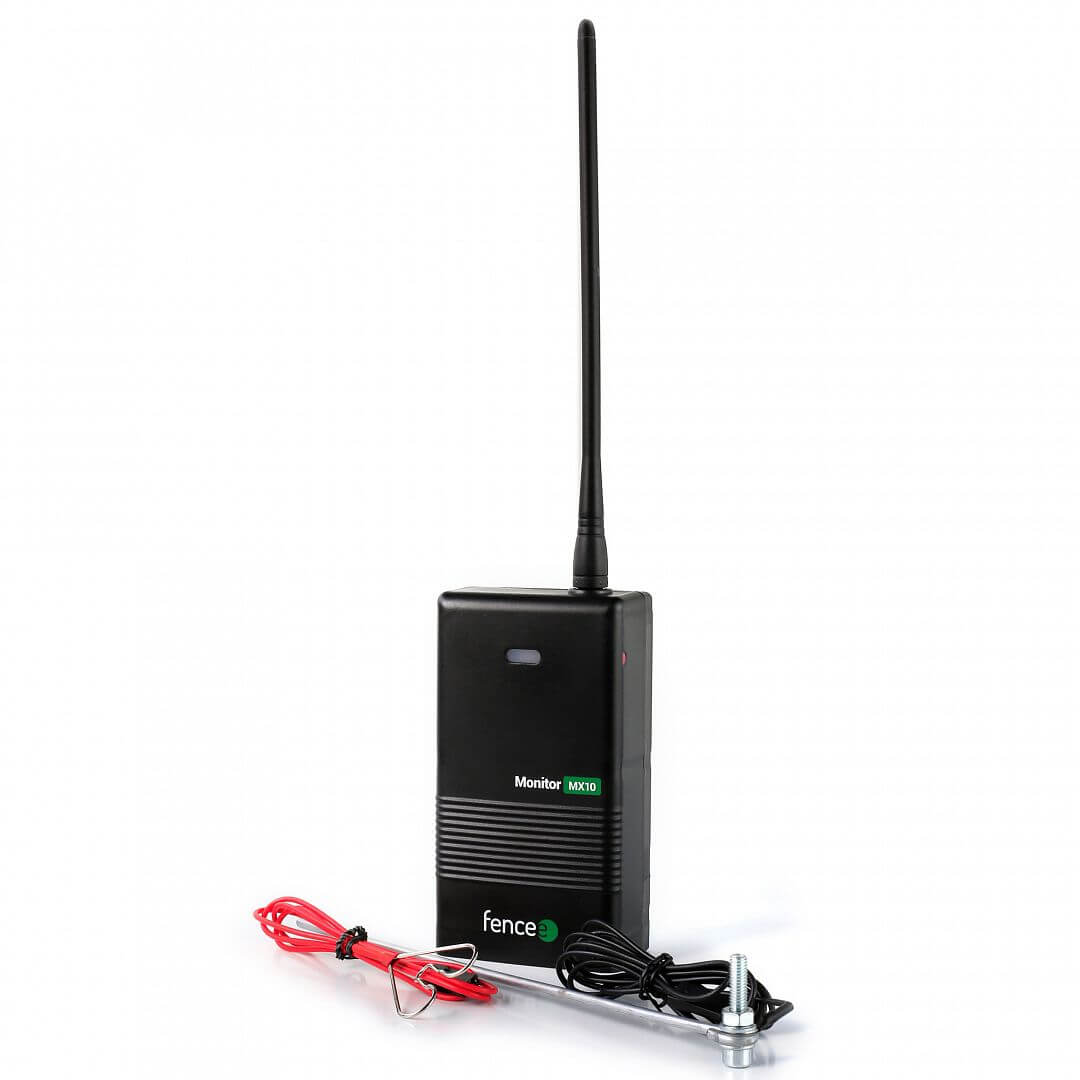

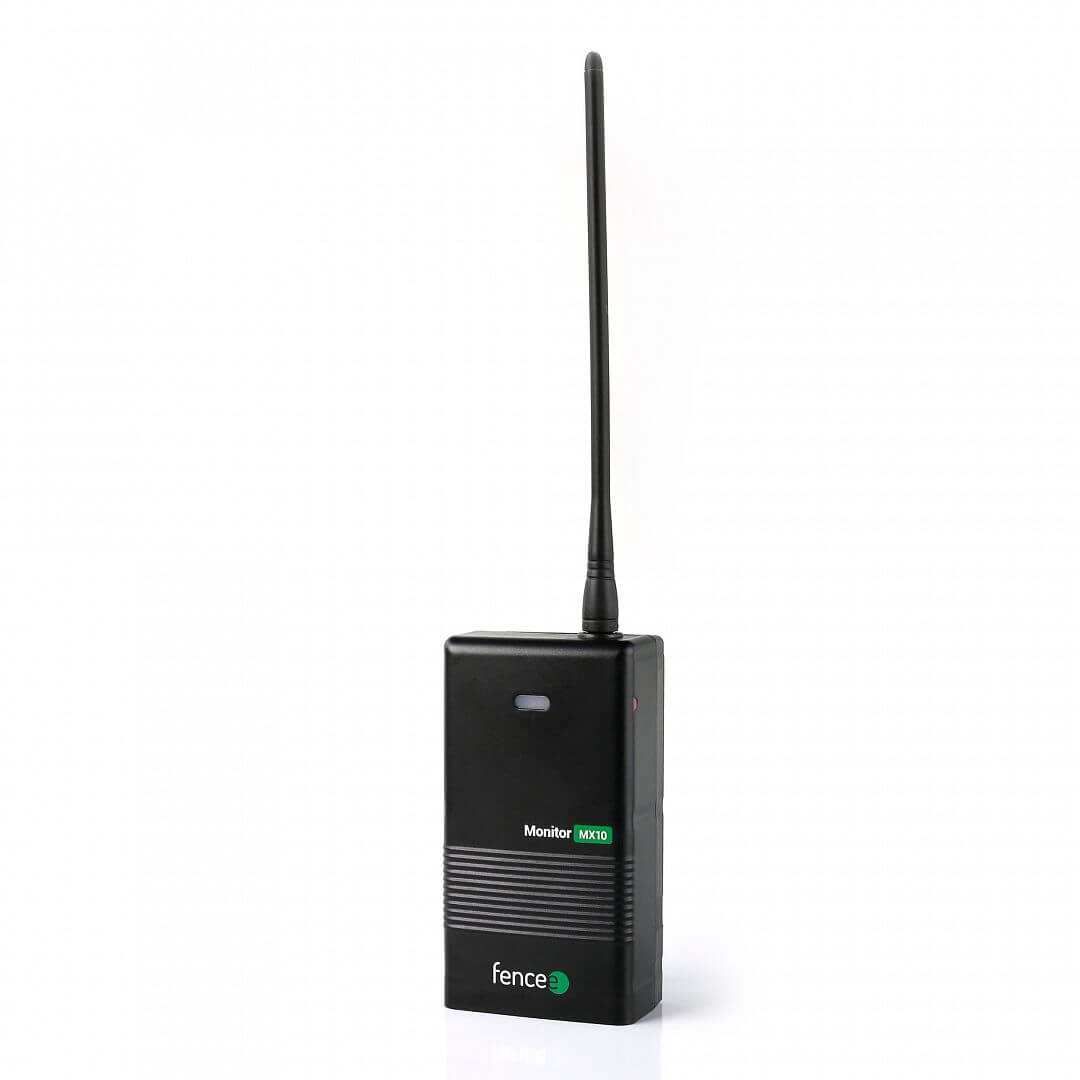

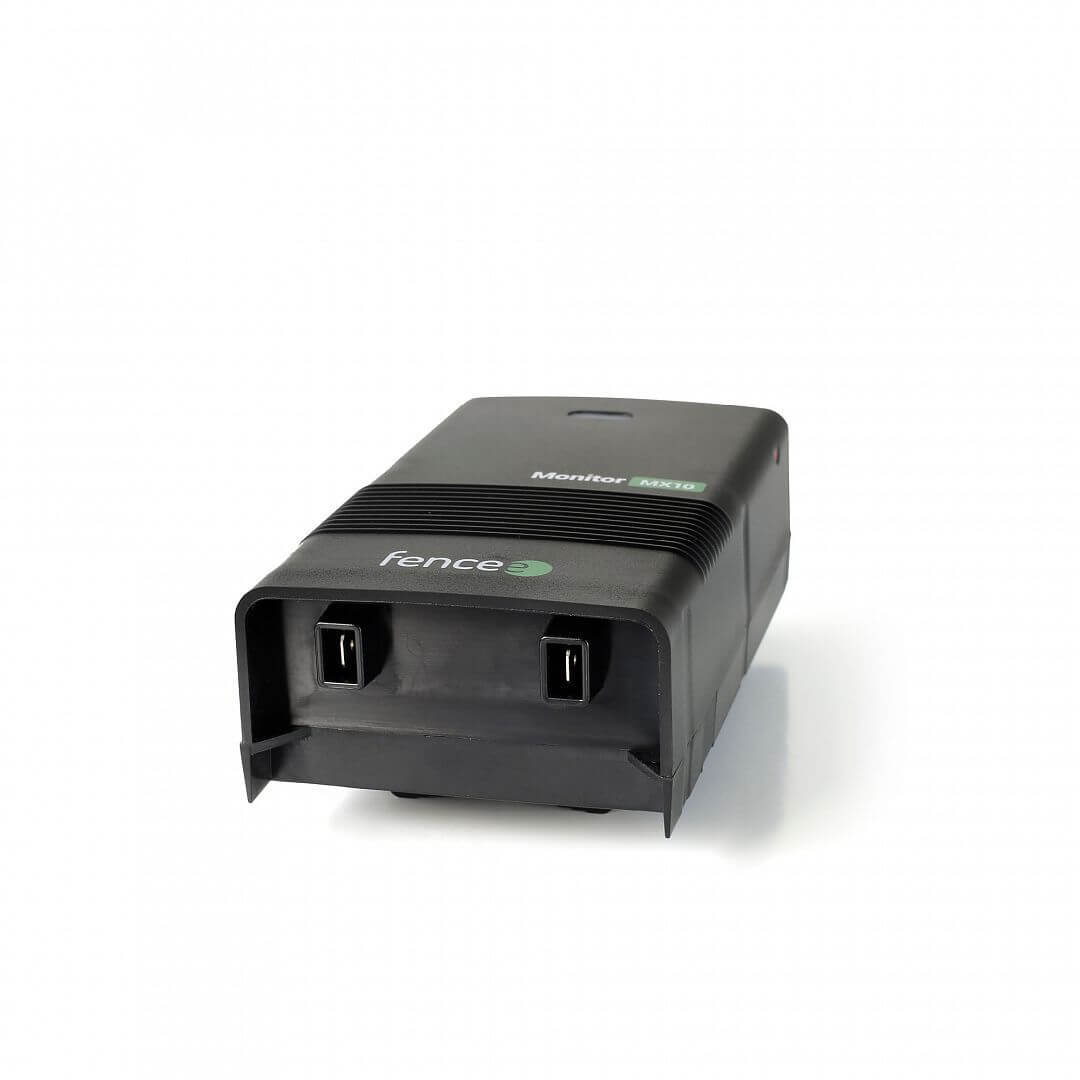

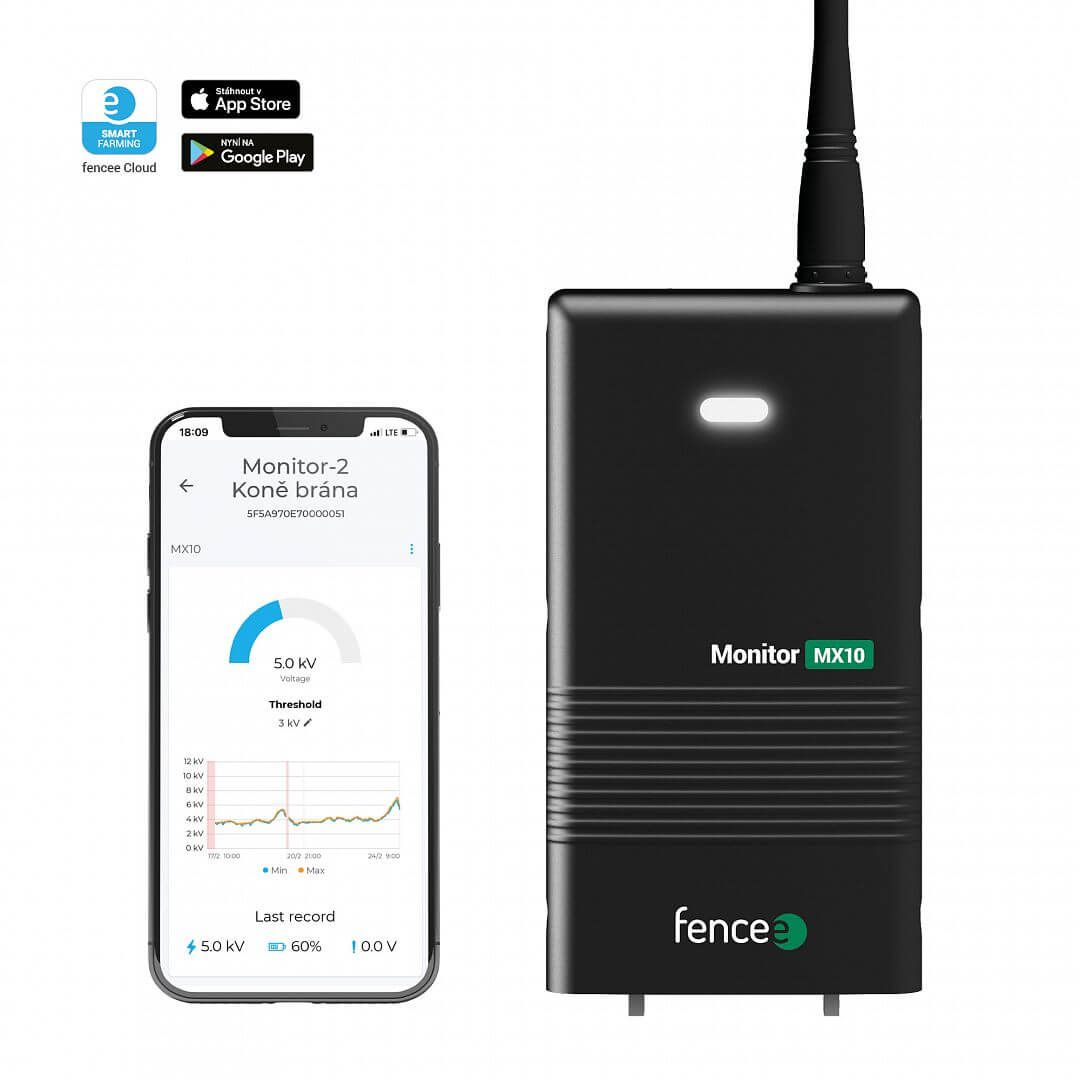

The Monitor MX10 measures the voltage value and records the parameters of the electric fence, which can be viewed in the fencee Cloud app. Any minimum voltage value can be set for each fence (e.g. 3000 V). If the voltage drops, an alarm is triggered. The constant overview allows you to prevent abnormal situations and cases where an animal may be lost or injured. Functions of the Monitor MX10
Mediator for UNLIMITED COMMUNICATION central WiFi Gateway device

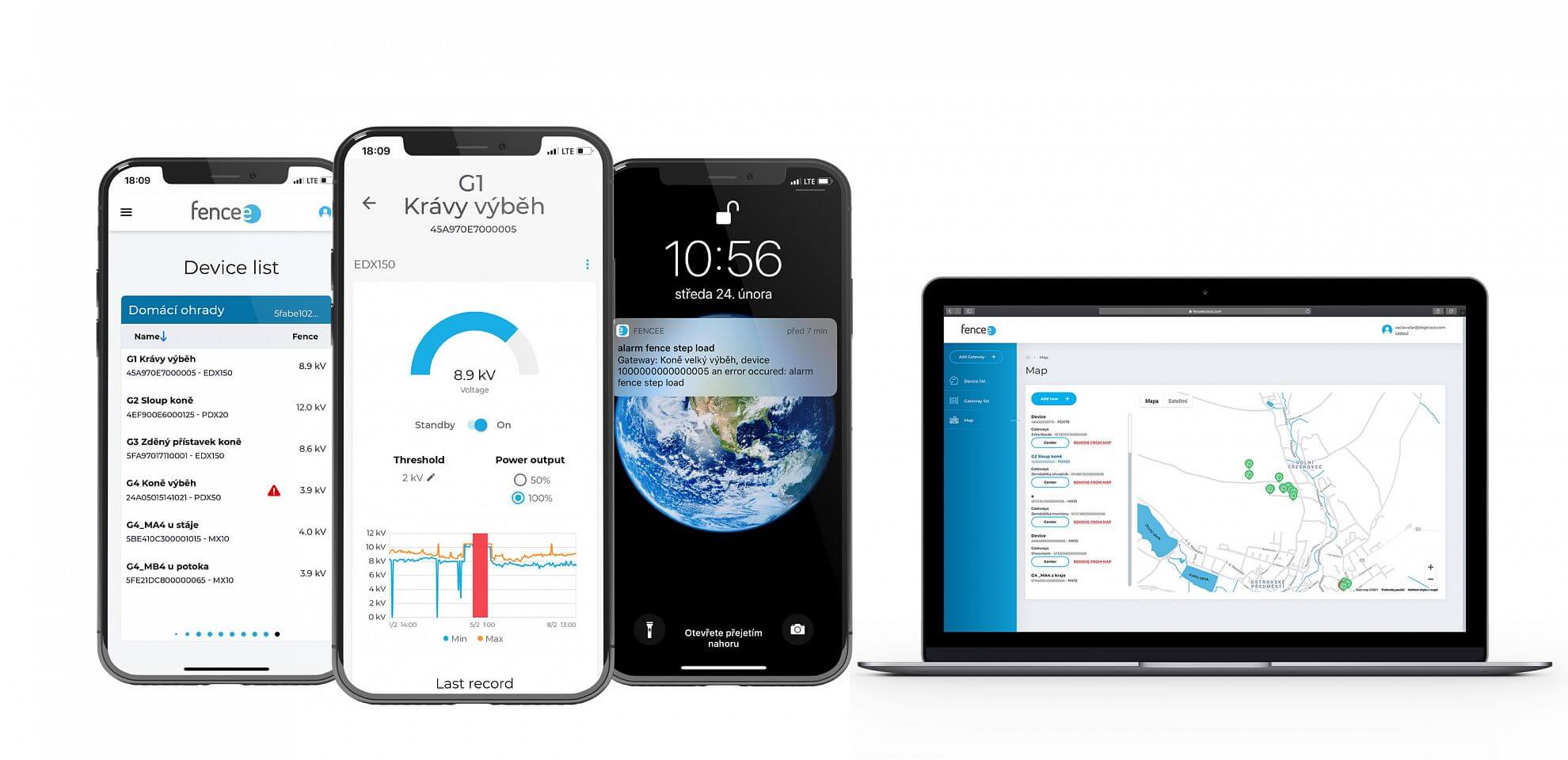

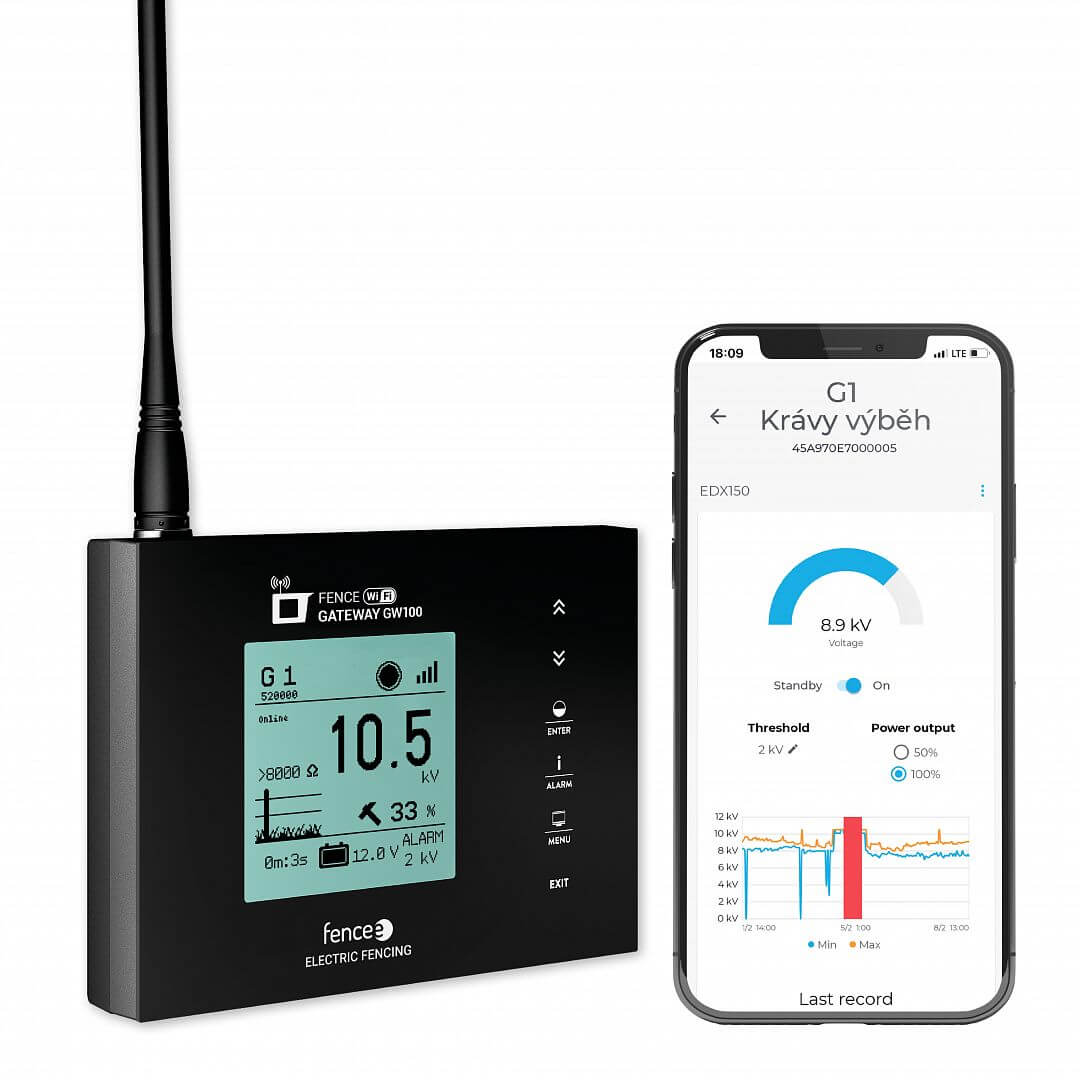

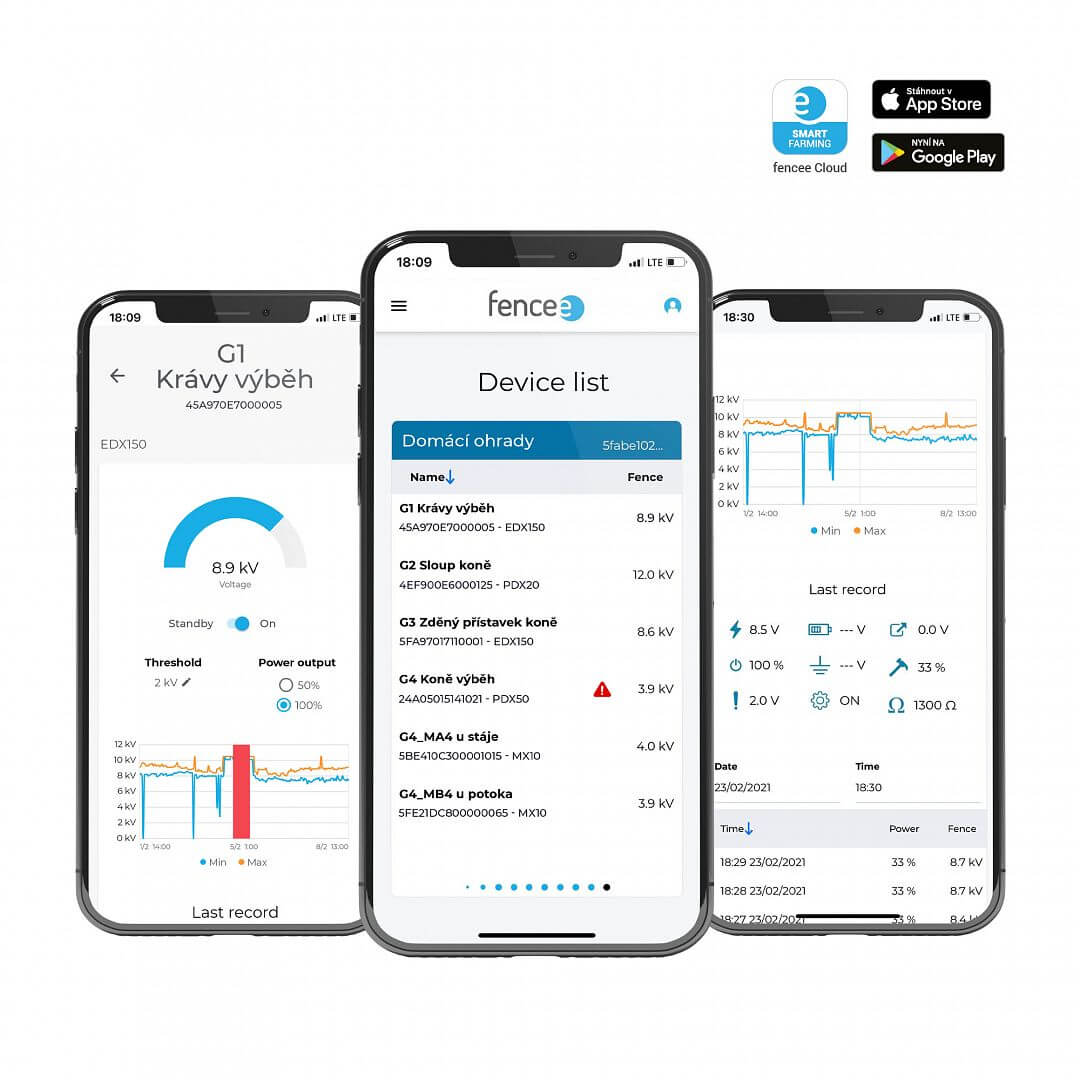

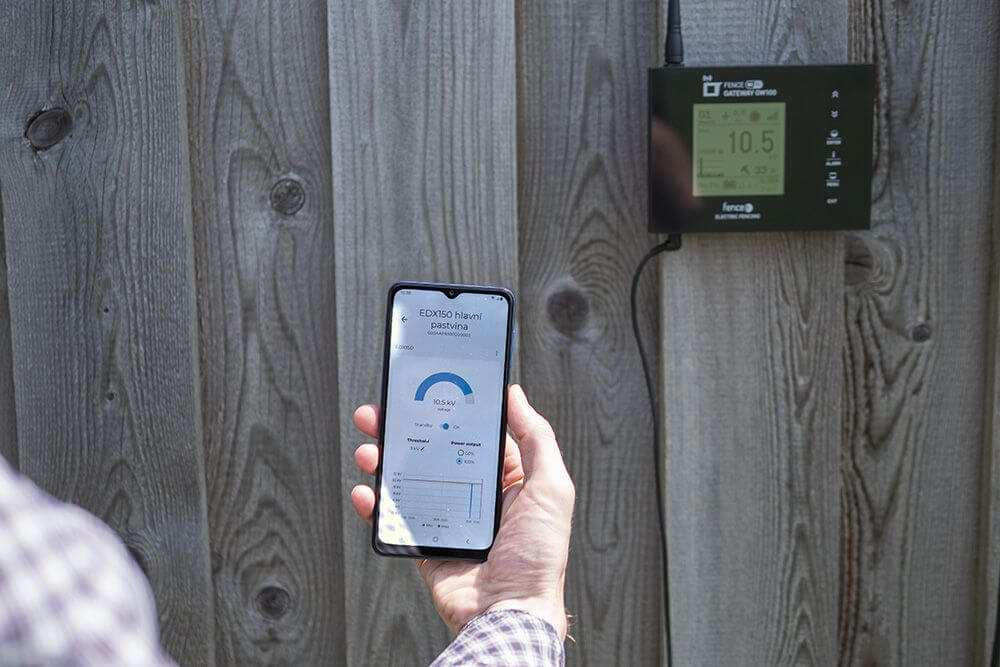

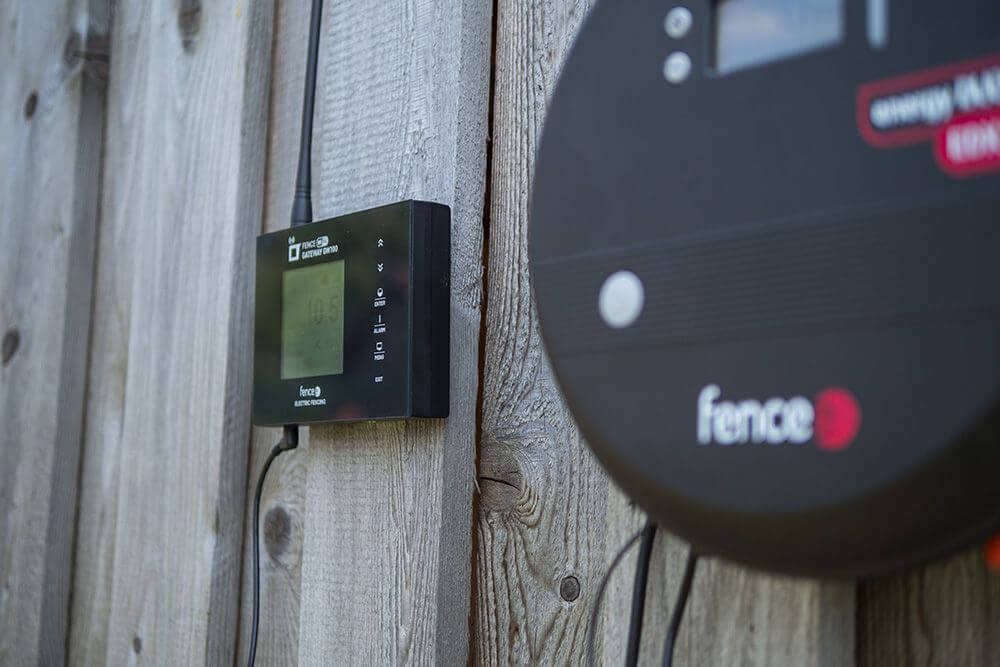

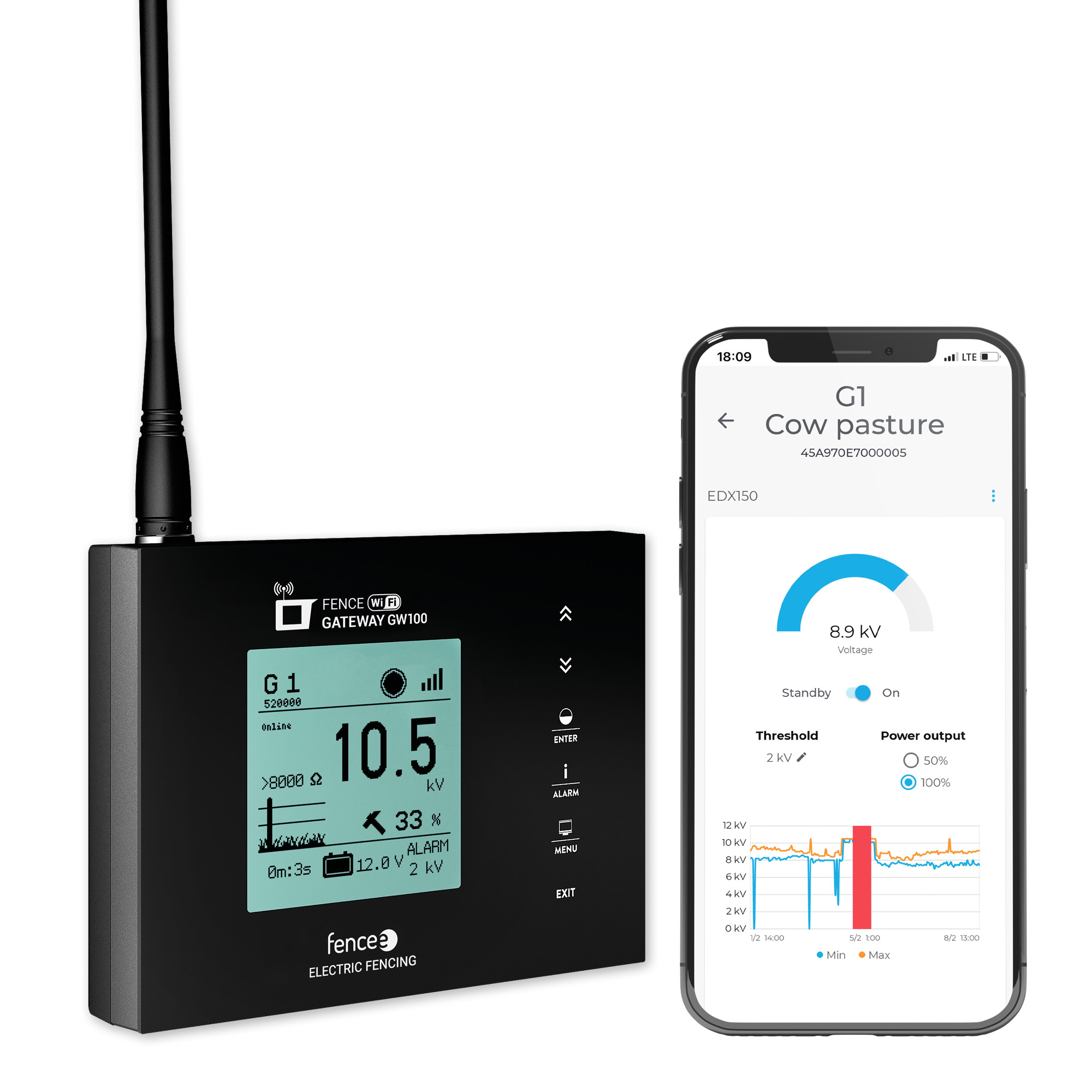

When connected to the fencee Cloud , the central device FENCE WiFi GATEWAY GW100 becomes a control and monitoring gateway that mediates communication between your phone and the entire monitoring suite. Through the central device, you control and monitor the individual fence devices from your phone, tablet or PC. The clear and user-friendly fencee Cloud app is free to download.
Up to 12 smart RF devices can be added to a single Gateway. The Gateway is powered by a mains adapter and has a backup power supply that provides power for up to 12 hours in the event of a power outage. fence wifi gateway gw100 features
Cloud data storage and continuous ACCESS FROM ANYWHERE

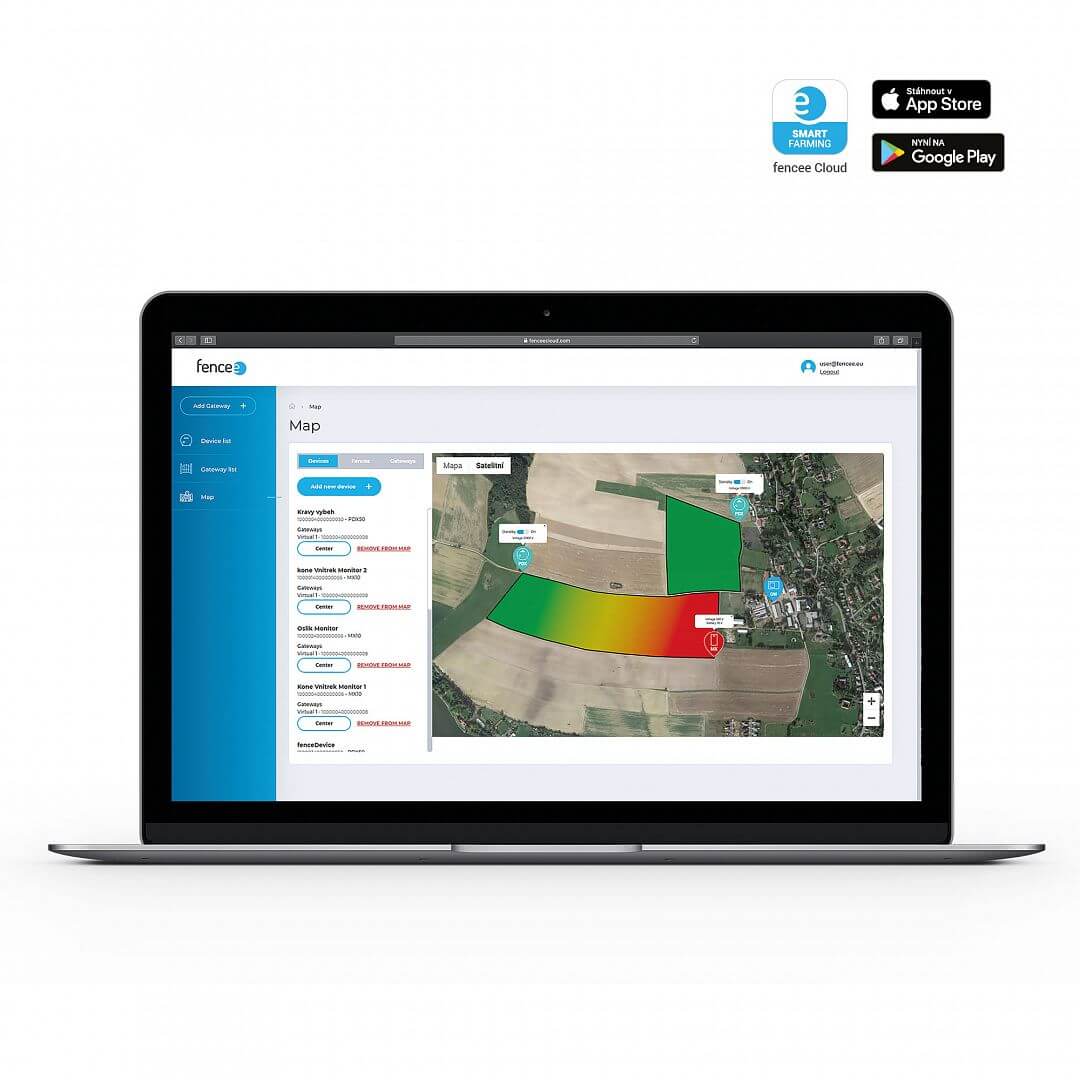

Cloud storage collects data from Monitor MX10 monitoring devices. With the central gateway , you can easily set up and control individual devices, using the mobile app or from the app's web interface. Get additional benefits such as plotting fences on maps, setting up virtual fences and sharing devices.
Base and external RF antenna, communication at NO CHARGE

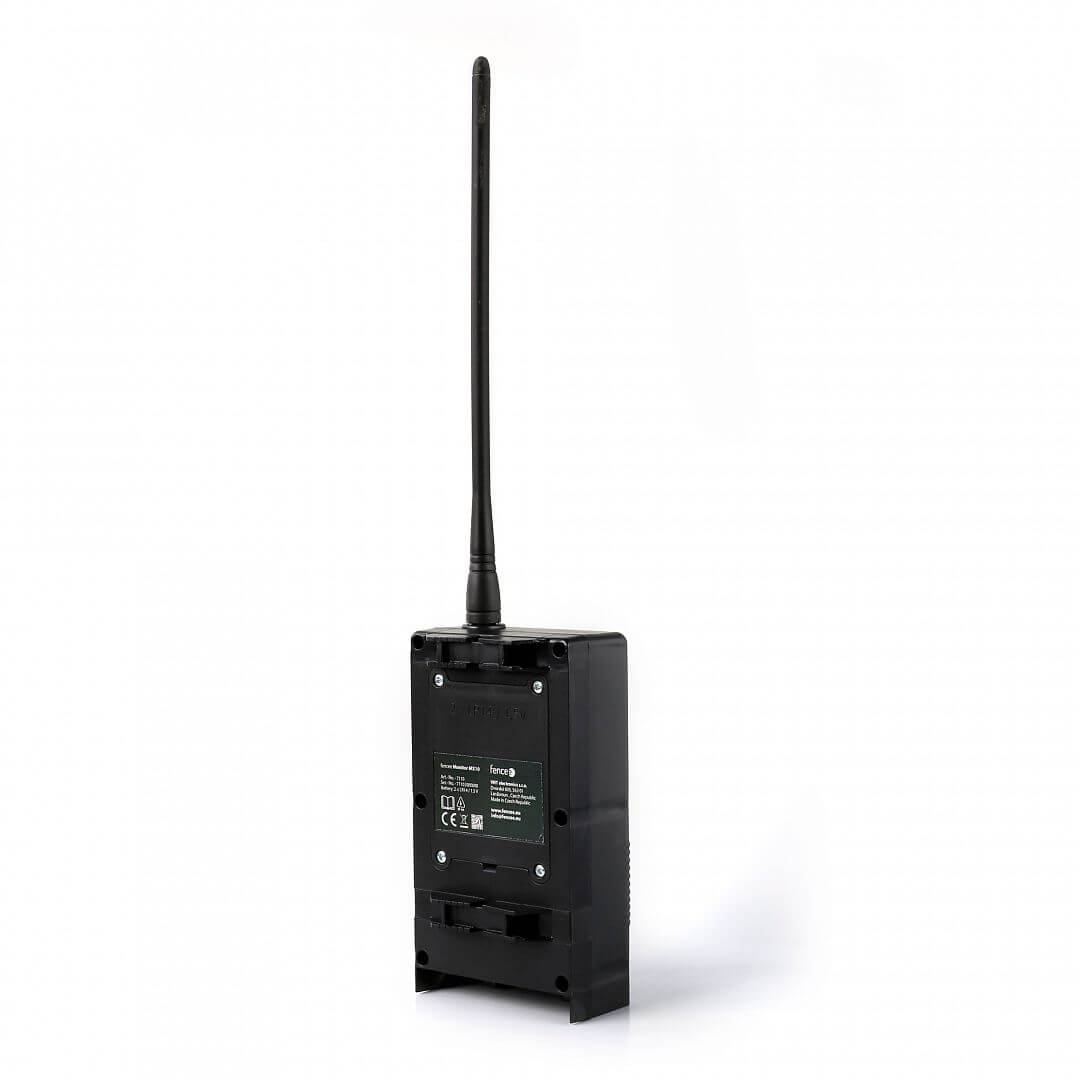

Communication between RF devices via RF technology. Free radio frequency - no operating costs. The standard range between the gateway and the monitor for the supplied basic RF antennas is 10 km. If you need to increase the signal range, use an external antenna to increase the transmission quality and signal range between devices up to 30 km.
If you need advice before purchasing, please do not hesitate to contact us, we will be happy to advise you.
Package contents:
Included in the package FENCE WiFi GATEWAY GW100:
- 1× basic RF antenna
- 1× 14 VDC power adapter
- 1× 9.6 V battery backup power supply
- 2× screw and dowel for installation
- operating instructions

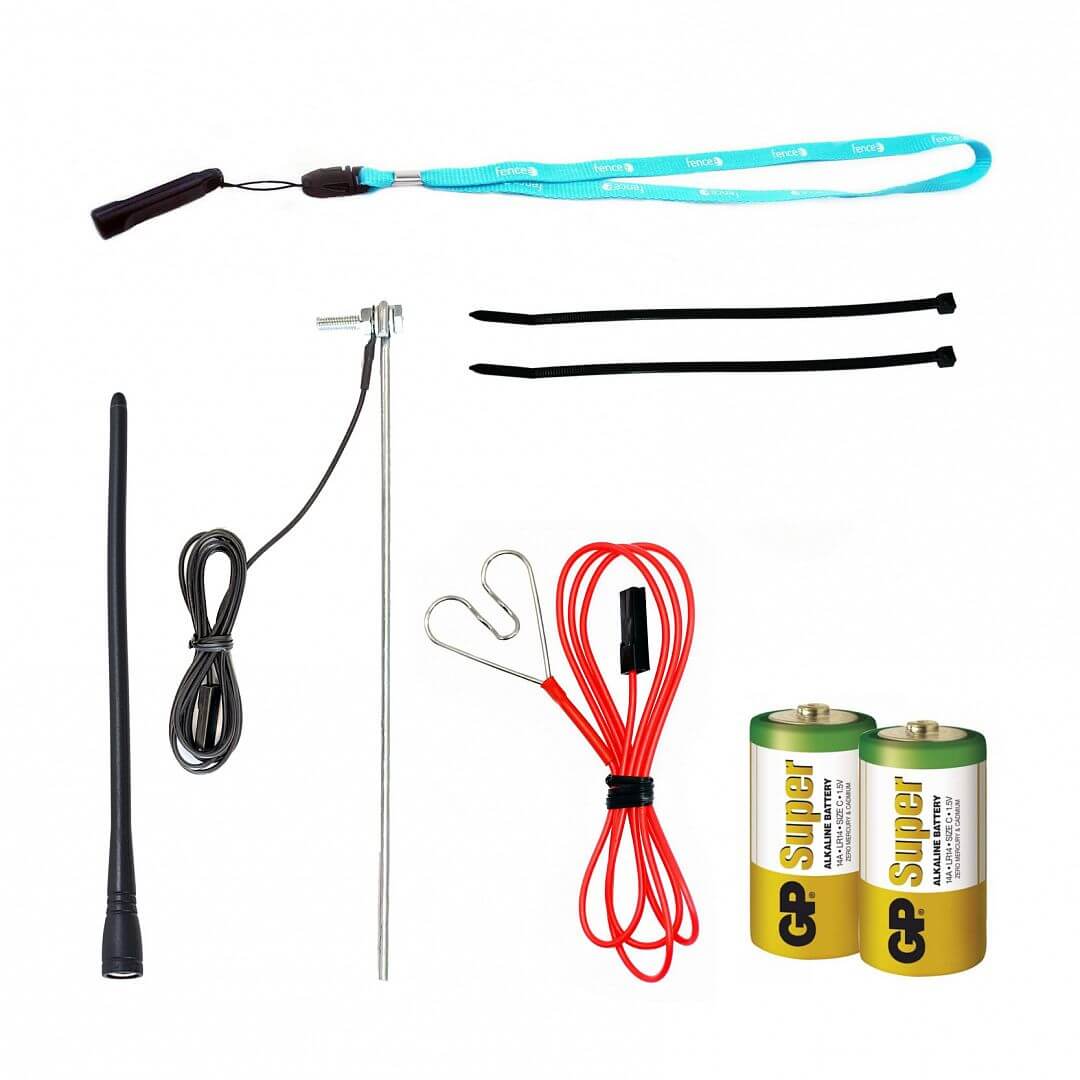

Included with the MX10 Monitor:
- 1× basic RF antenna
- 2× Type C LR14 batteries with season-long battery life
- 1× 100 cm connection cable
- 1× 150 cm ground cable with ground pin
- 2× pull-tabs for easy mounting of the monitor
- 1× magnet with lanyard
- operating instructions
Case Studies Smart Farms fencee Cloud
See how Smart Farm with fencee Cloud helps several of our customers, including a zoo, cattle farm, sheep farm or horse ranch.
LCD display | |
fencee Cloud connection | |
LED indication | |
Sound alarm | |
External antenna SMA connector | |
Transmission frequency | 869,525 MHz |
Transmitting power | +22 dBm |
Base antenna range | 10 km |
Range with external antenna | 30 km |
Wi-Fi technology | 2,4 GHz |
