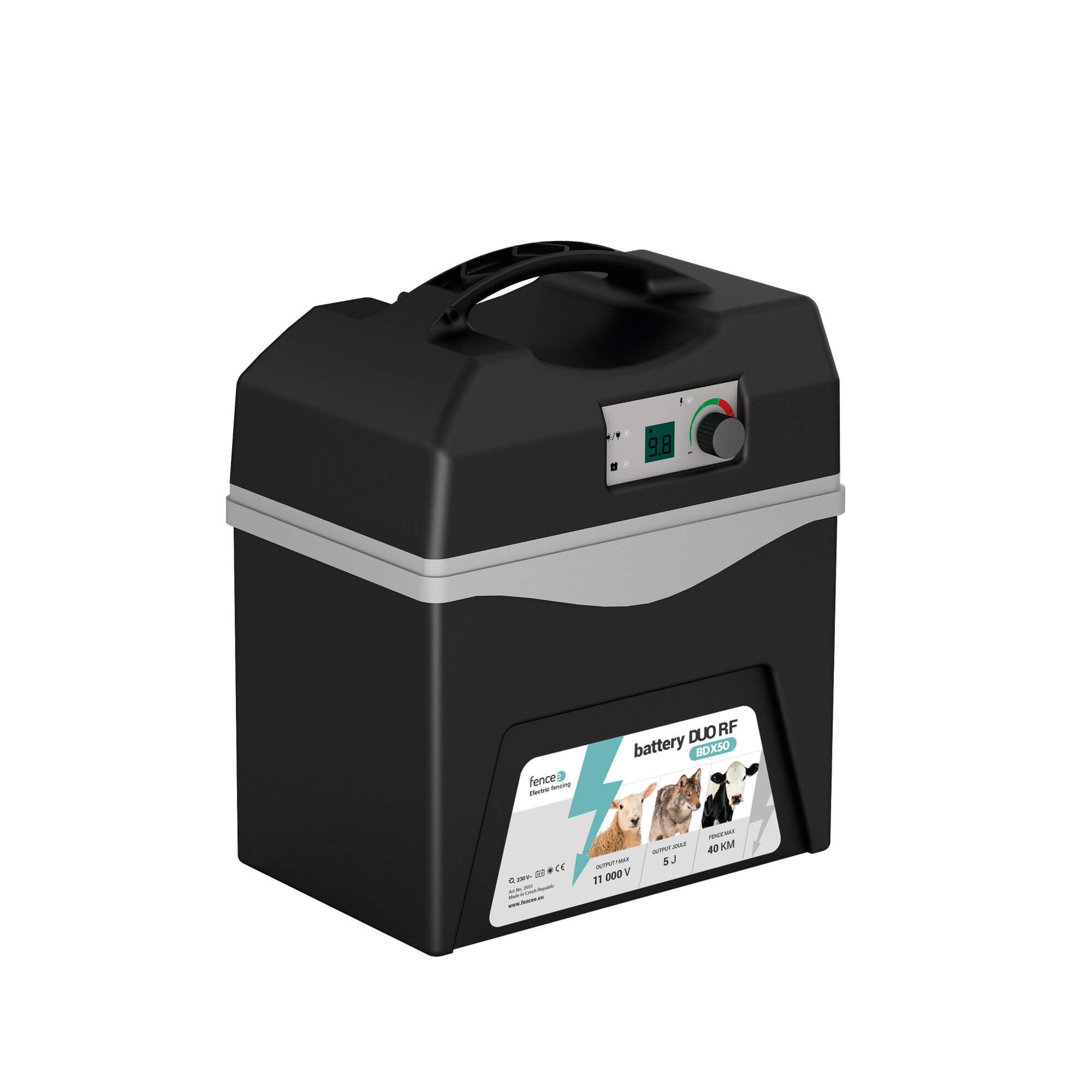

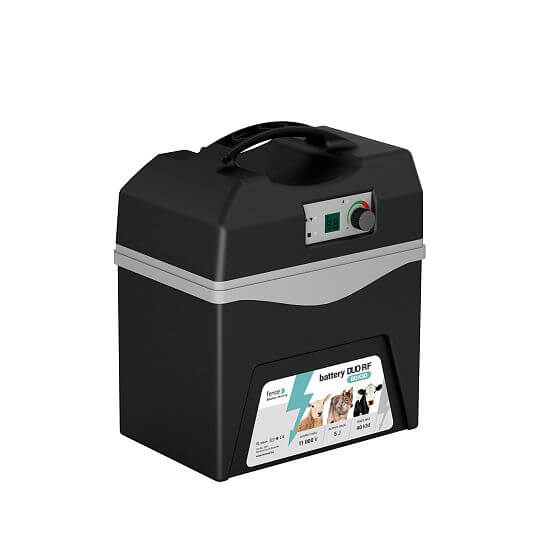

Product´s description Smart portable battery energizer fencee battery DUO RF BDX50
When you need maximum power and performance to protect remote areas and animals, the Smart Battery RF Fence with 5 J output power is the best solution.
Powerful 5 J RF battery power supply for electric fencing

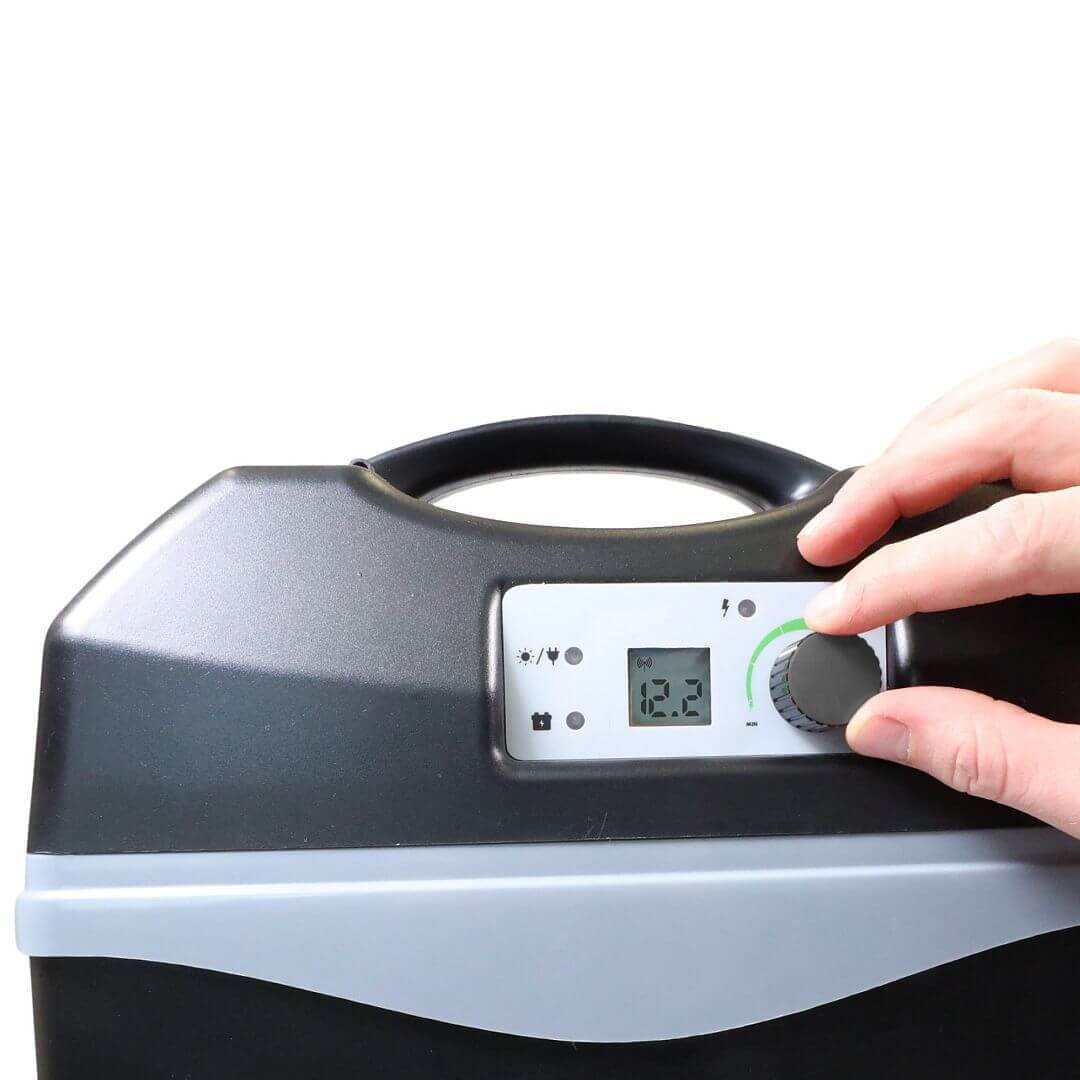

Portable smart battery generator for electric fencing with display to indicate fence voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs for device function and battery status. Device with combined power supply, so it can also be powered by an adapter from the 230 V mains.
Space for a 44 Ah 12 V battery

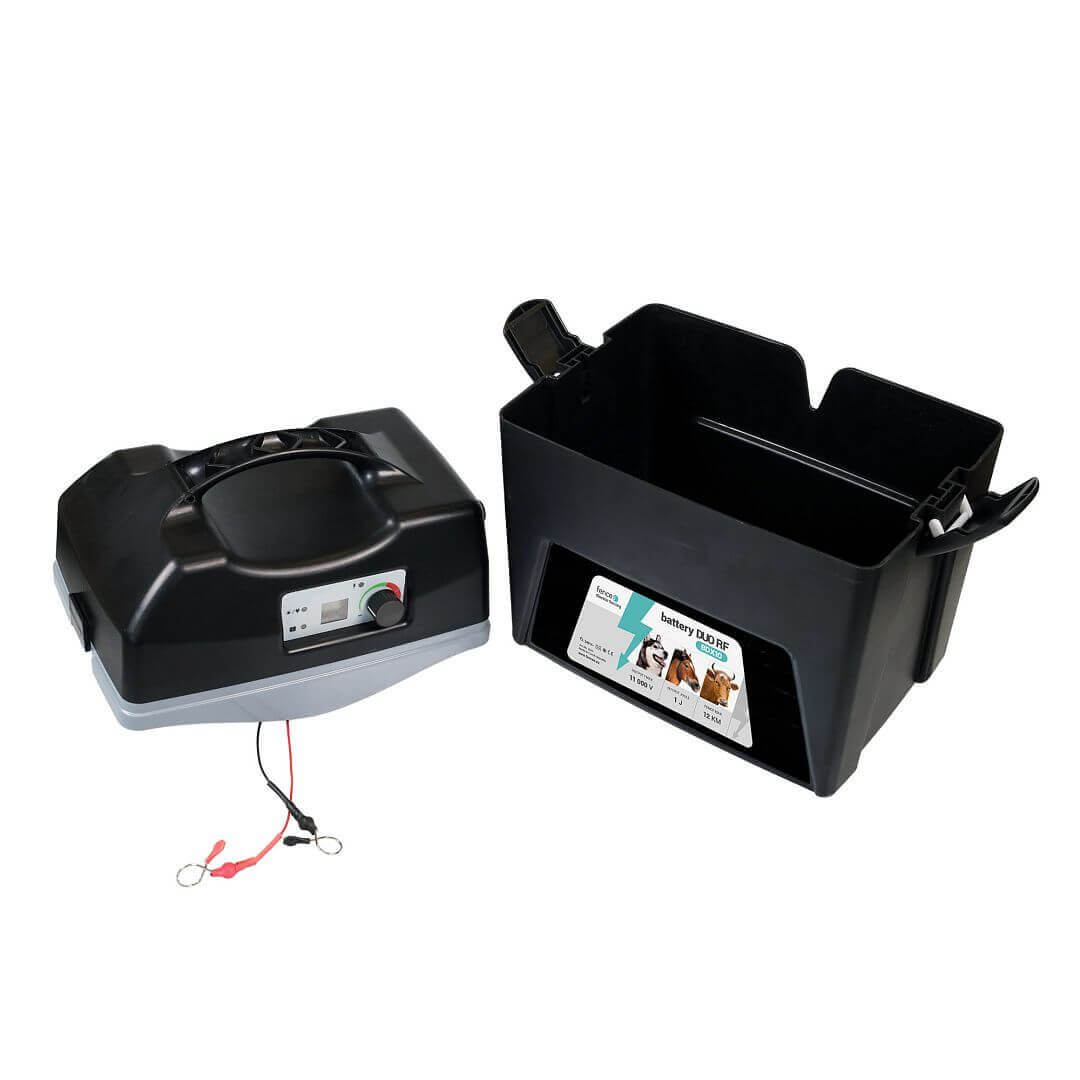

The battery-powered fence has a large compartment for a 12-volt battery with a capacity of 44 Ah. The battery is built into the housing and protected from UV rays and weather conditions. The person carrying the battery fence is protected from contact with the battery. The device has a battery status indicator and deep discharge protection for the longest possible battery life.
Energy saving mode and efficient use of the battery
The microprocessor controls the operation of the power supply, adjusts the optimum power output and ensures maximum efficient use of the battery. The battery generators allow power to be regulated in 19 stages. Levels 1 to 6 function as ecomode.
Mobile waterproof design with practical handle
The battery-powered electric fence is designed for harsh conditions and long-term outdoor use. Protection IP44. The input connector for connecting the mains adapter is waterproof. The generator has integrated lightning protection. Handle for easy transport.
Possibility of connecting a 30 W solar panel.

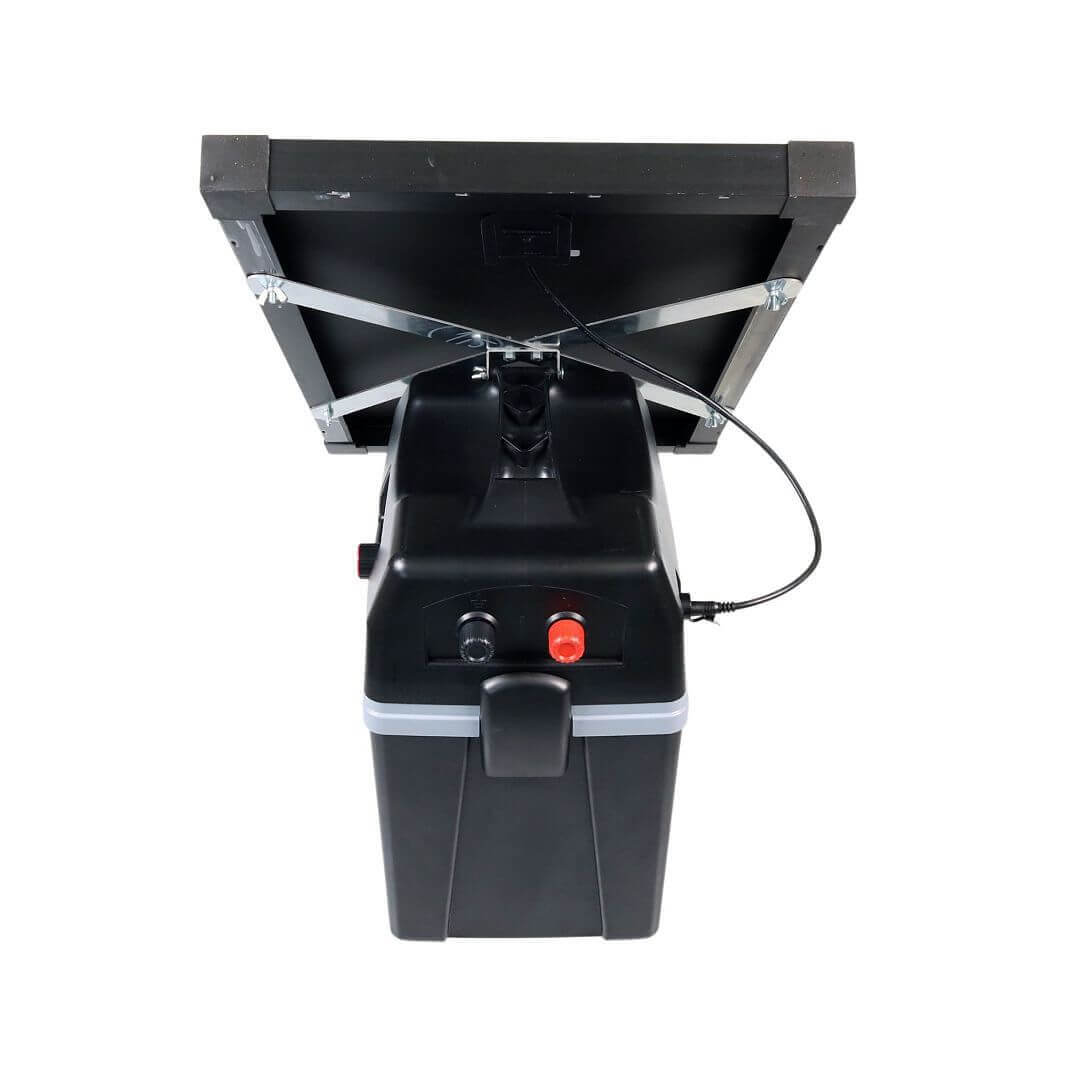

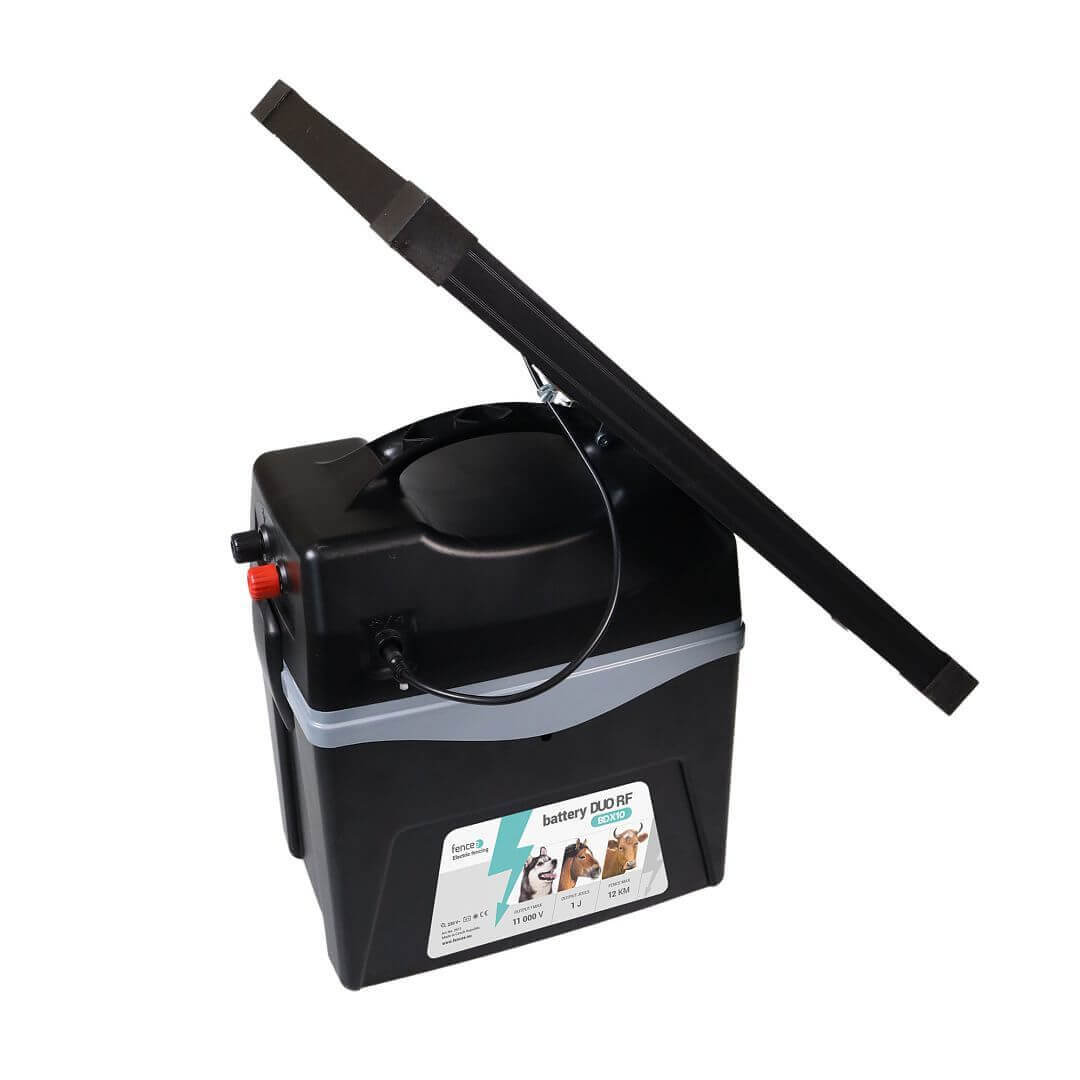

A 30 W solar panel can be connected to the device to ensure continuous operation even in remote locations. The mounting bracket allows easy positioning of the solar panel.
Package contents:
- 5 J battery RF source
- Integrated cable for connecting the power supply to the battery
- Power adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- 150 cm ground cable (eyelet-loop)

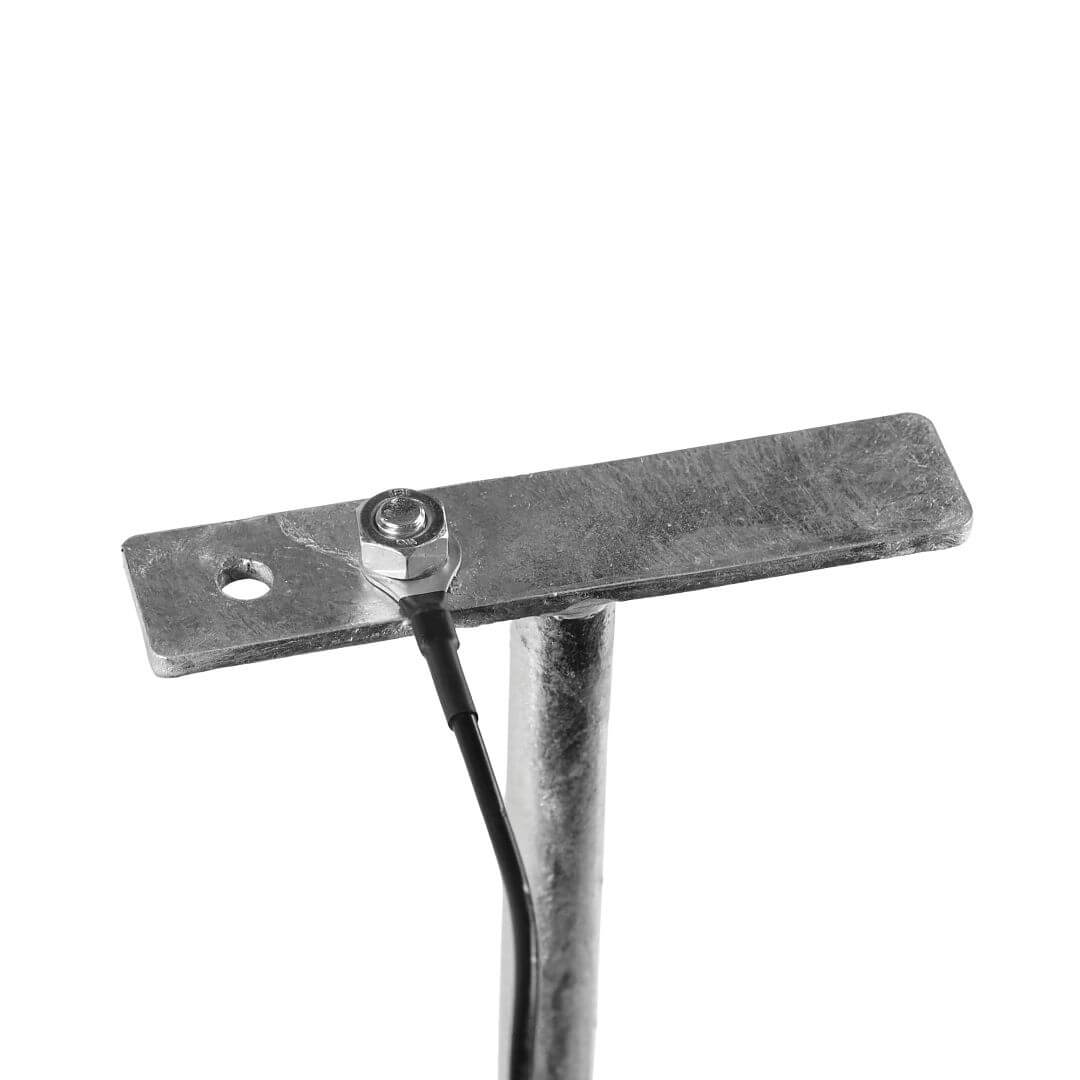

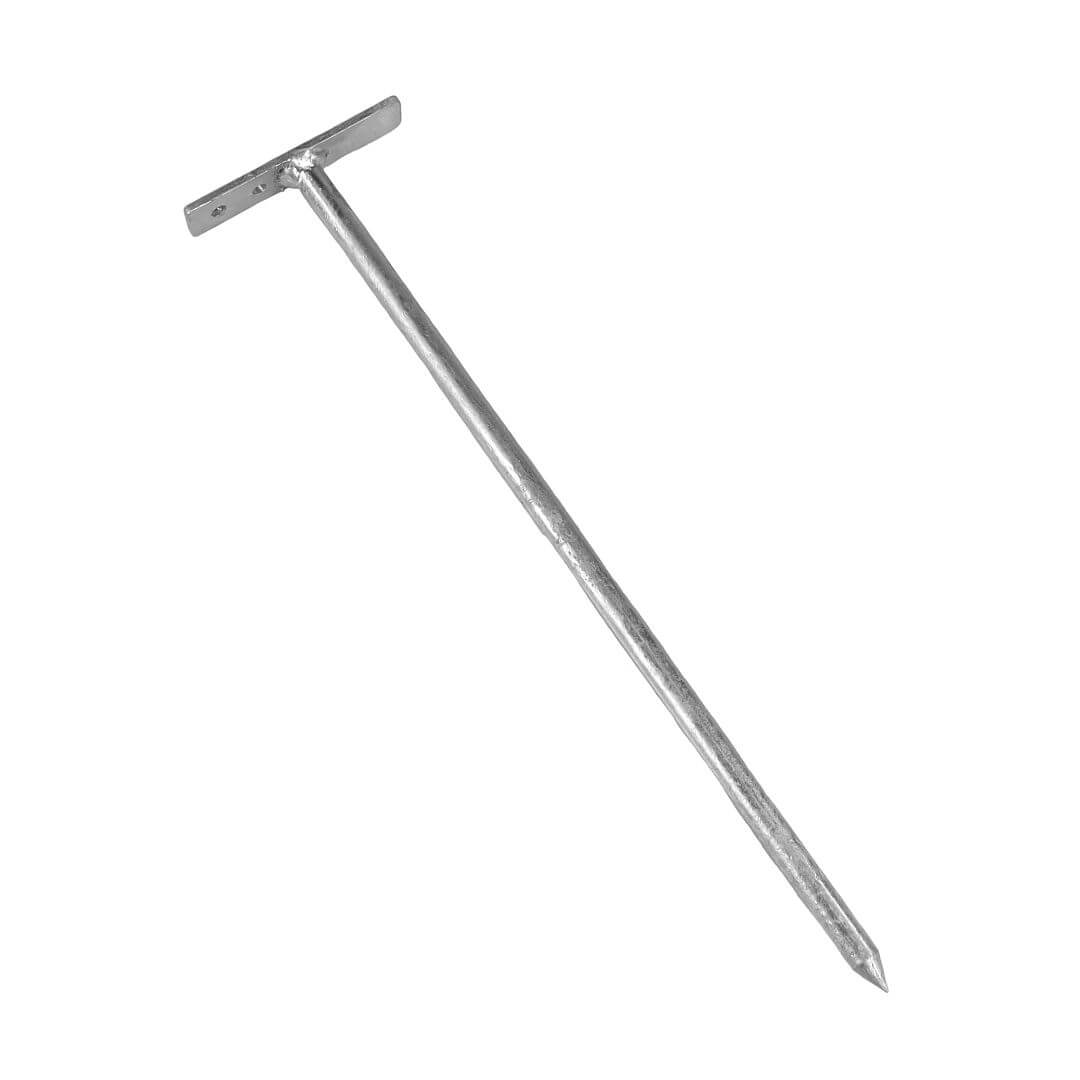

- grounding rod for the fence
- fencee warning plate
- operating instructions
The battery pack for the electric fence is supplied without the 12 V battery.
Get maximum visibility with the fencee Cloud app
In case you want to control the fence with your mobile phone for an unlimited range, get an additional central WiFi Gateway device. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere and at any time.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 4,5 W |
| Energizer consumption 12 V | 28 mA - 380 mA |
| Output energy | 5 J |
| Input energy | 6,5 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 6000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| LCD display | |
| fencee Cloud connection | |
| Power Save mode | |
| Remote control | |
| Data encoding | |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| TEOR. max. CEE | 140 km |
| Low vegetation | 40 km |
| Medium vegetation | 16 km |
| High vegetation | 6 km |
| Earthing 1 m | 4× |
| El. fence nets | 20× |
| Weigth | 2920 g |
| Dimension | 38 × 31 × 21 cm |
Manuals and files for downloading
Manual - fencee battery DUO BD, RF BDXFAQ
- How to choose the right energizer?
- fencee Cloud application
- Functional electric fence principles - troubleshooting tips
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
