Product´s description Premium solar fence kit - Complete safety box + Smart LTE energizer 5 J, solar panel 100W

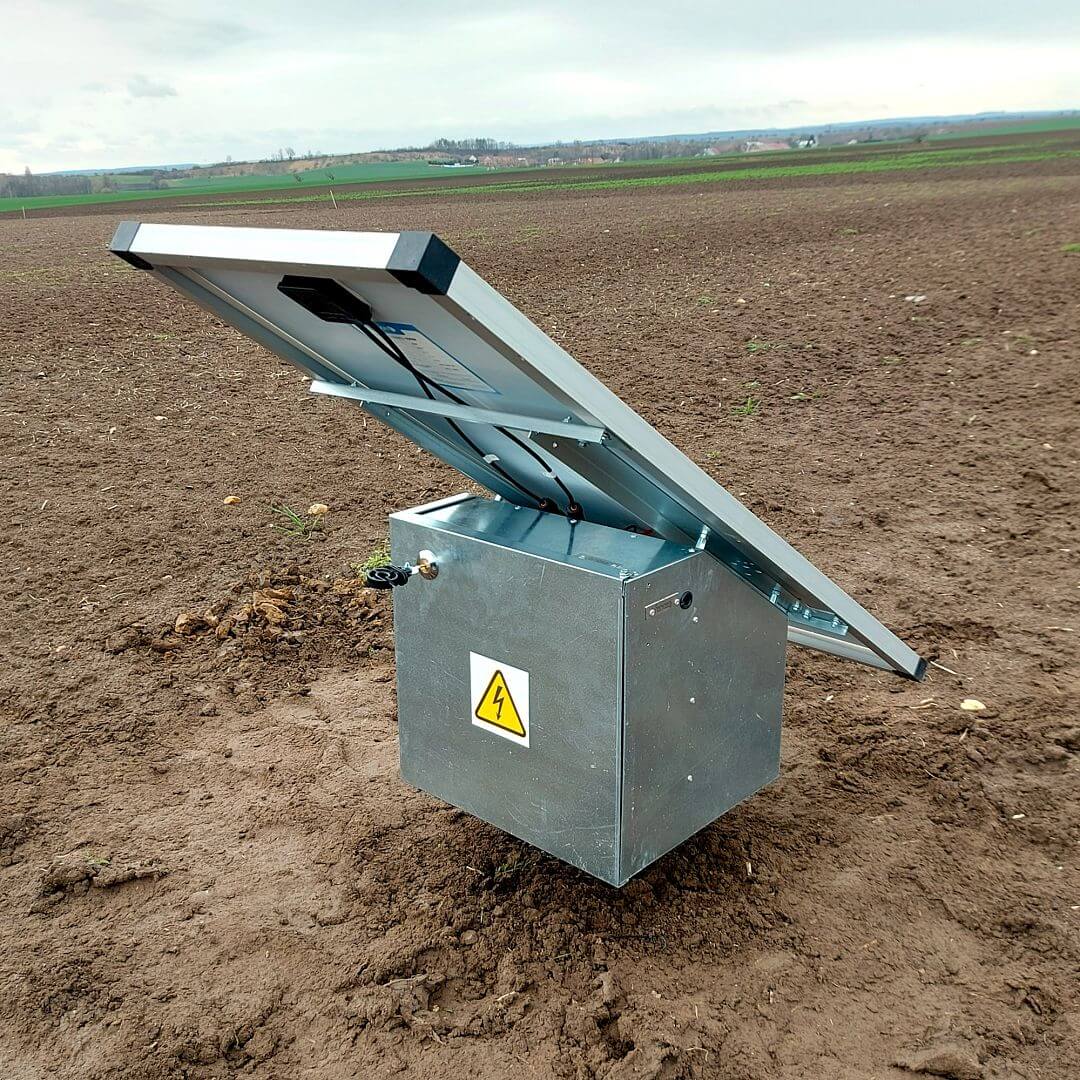

A practical solution for operating the fence in places without electricity during the season. Solar-powered fence kit suitable for electric fences up to 45 km.
Safety box for power supply and battery, Mounting mandrel and 10 A regulator included

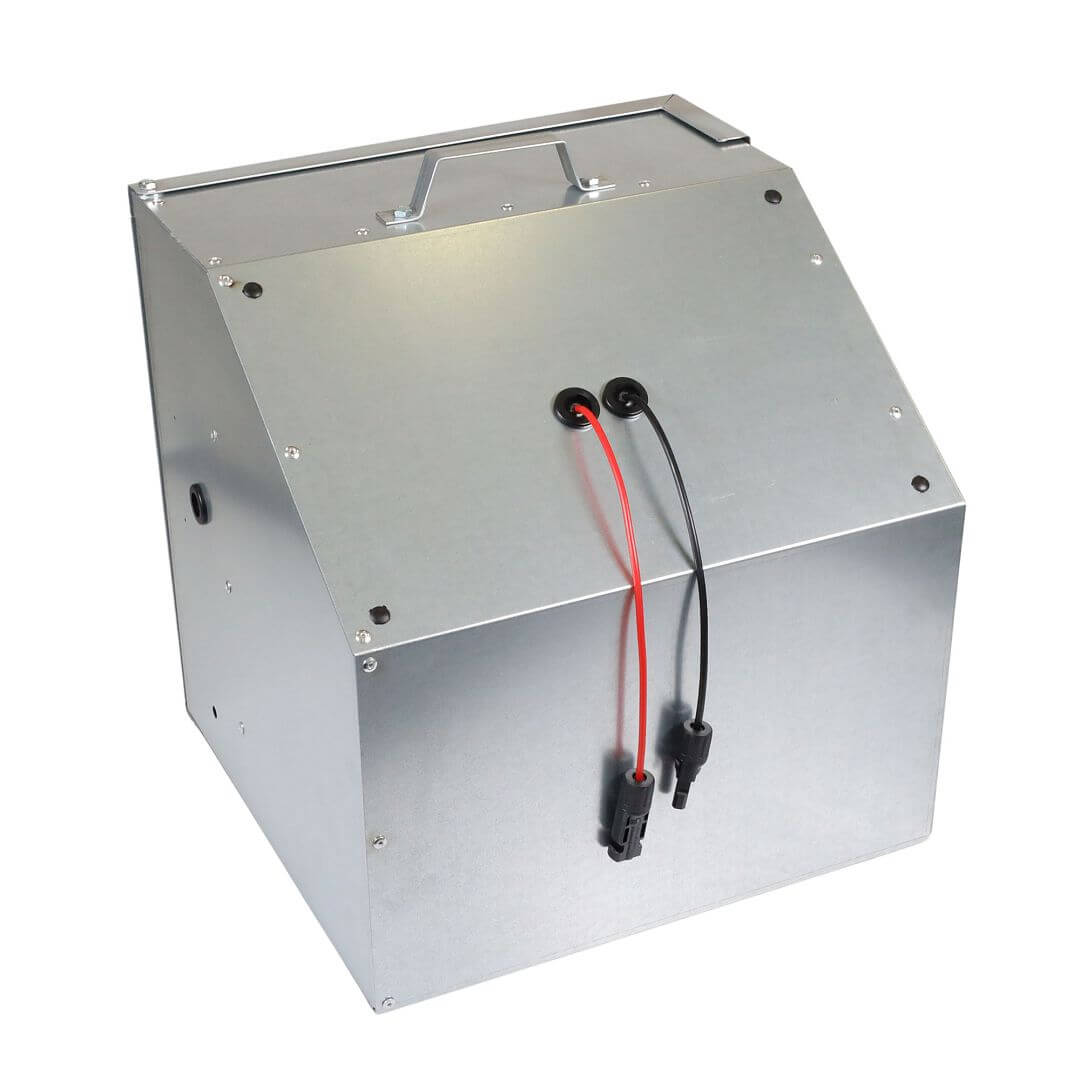

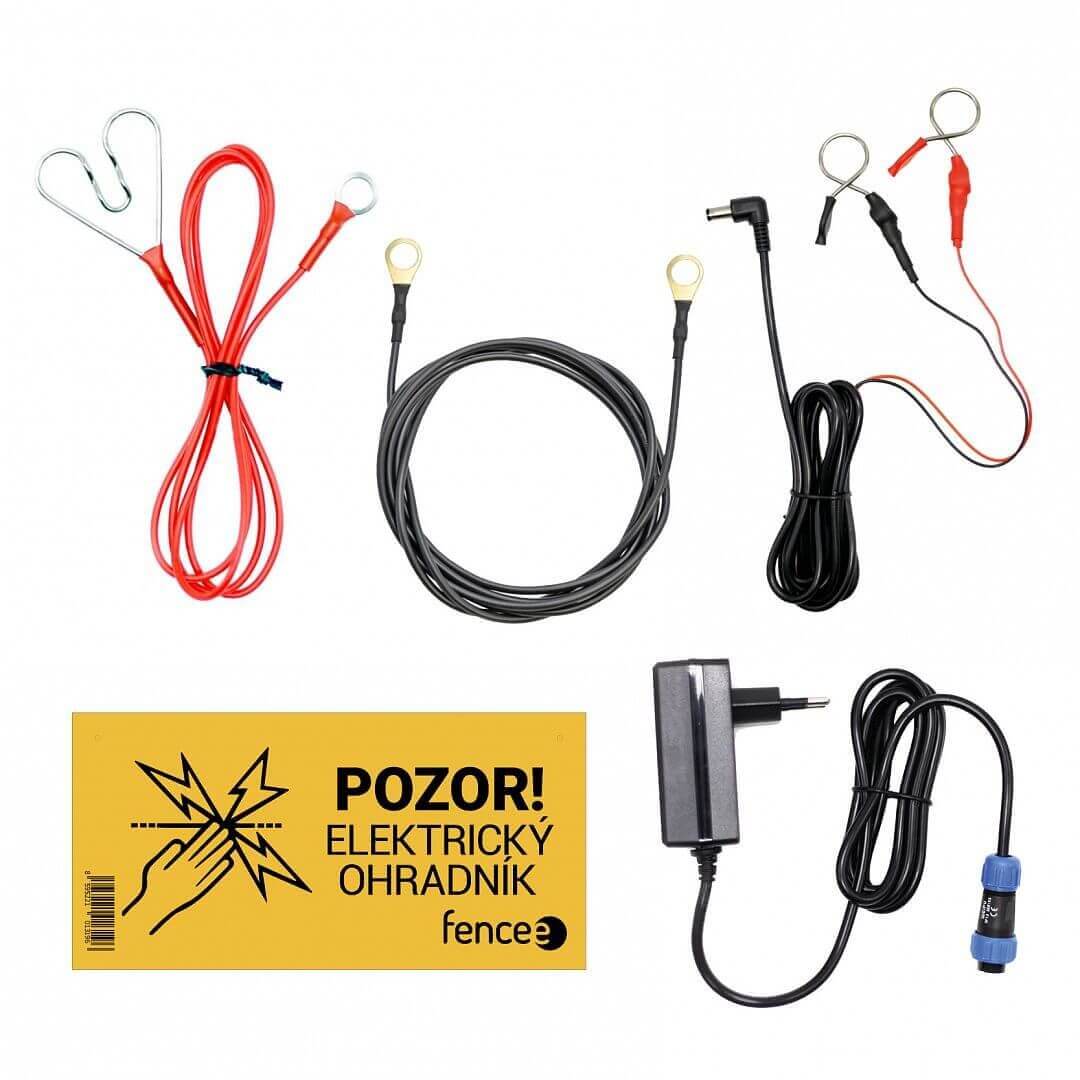

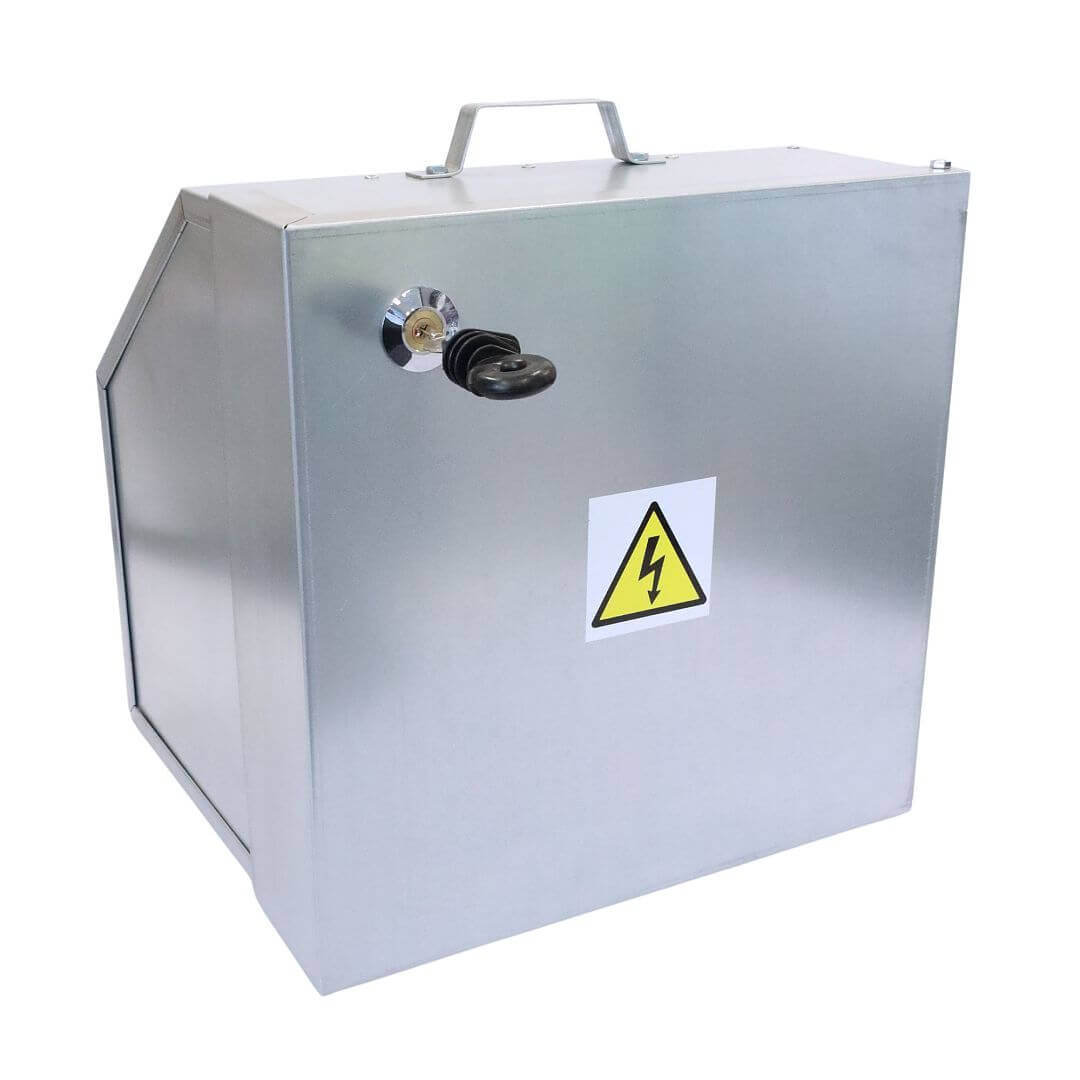

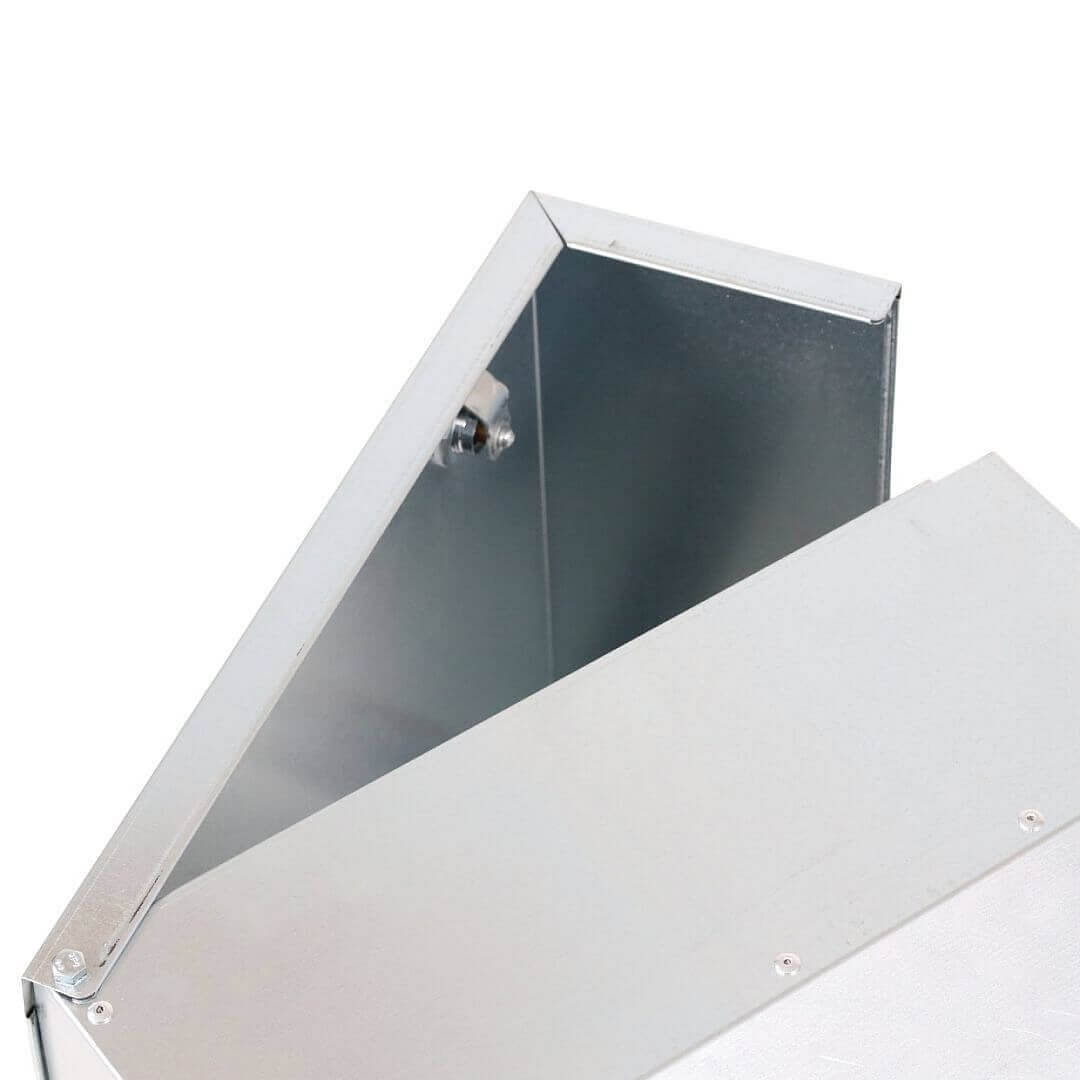

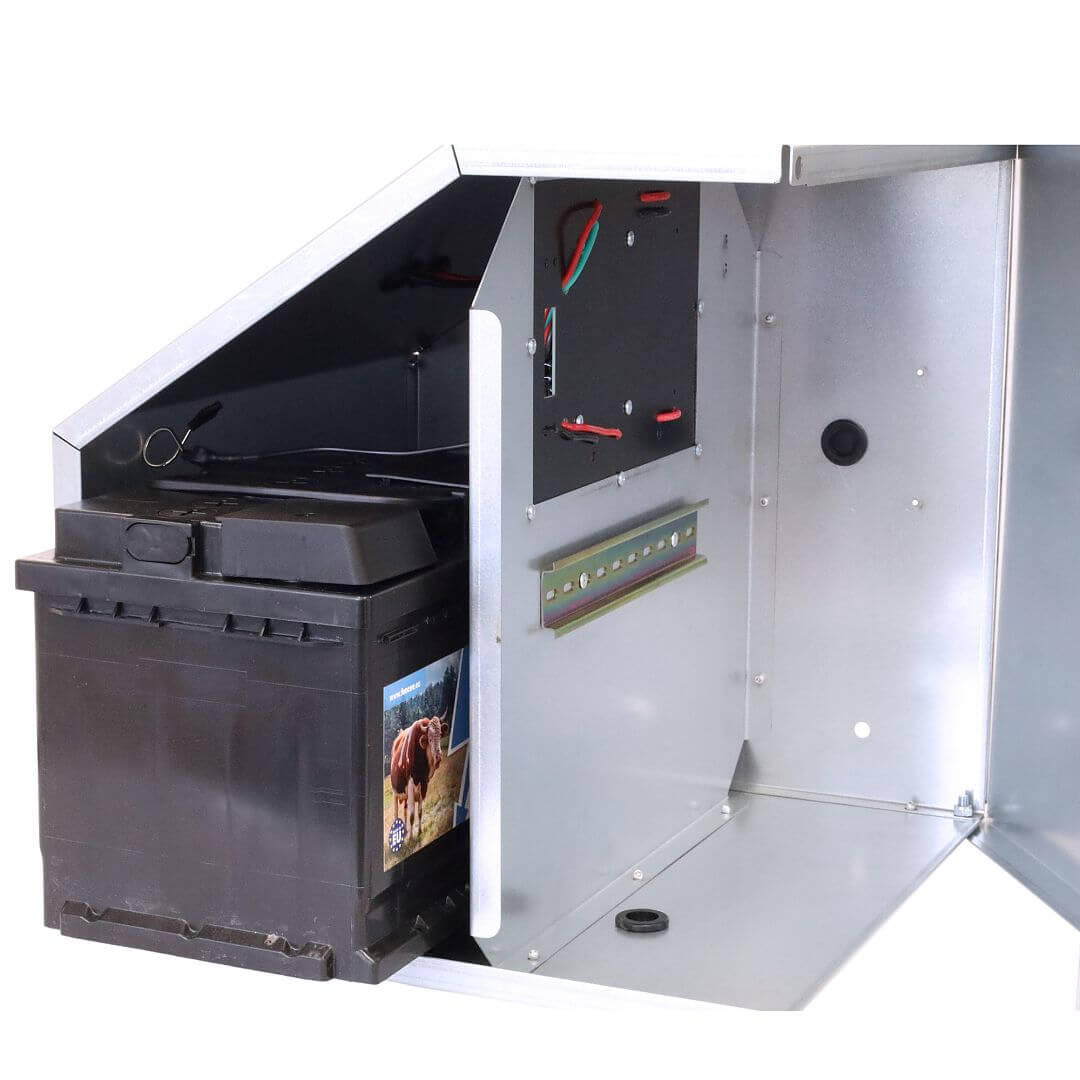

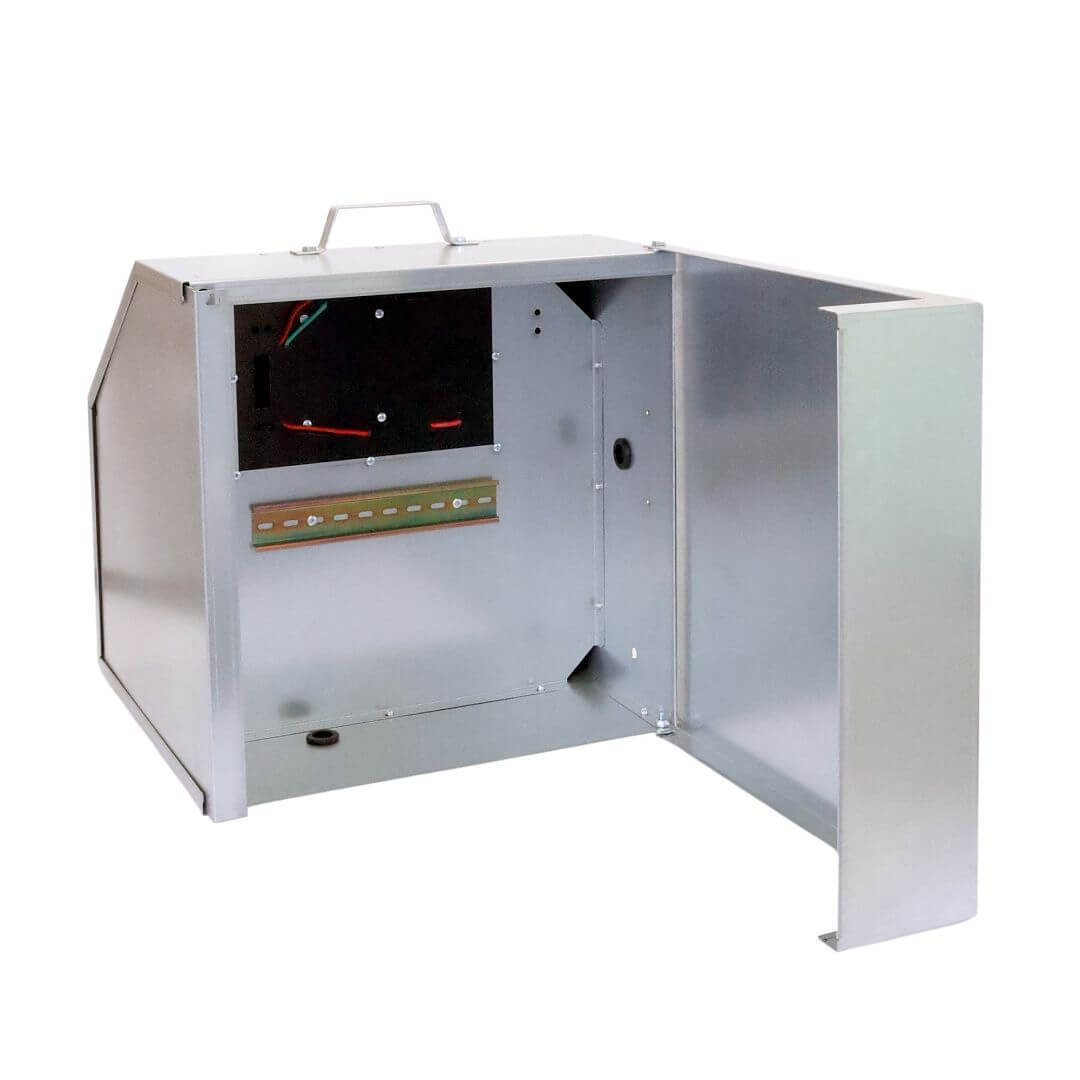

Safety box for electric fence power supply and battery. Electrifiable metal battery box with robust mounting mandrel. The box can be connected to the fence power supply, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee generator. 10 A regulator for 100 W solar panel.
Safety box features:
- Robust box made ofgalvanized steel.

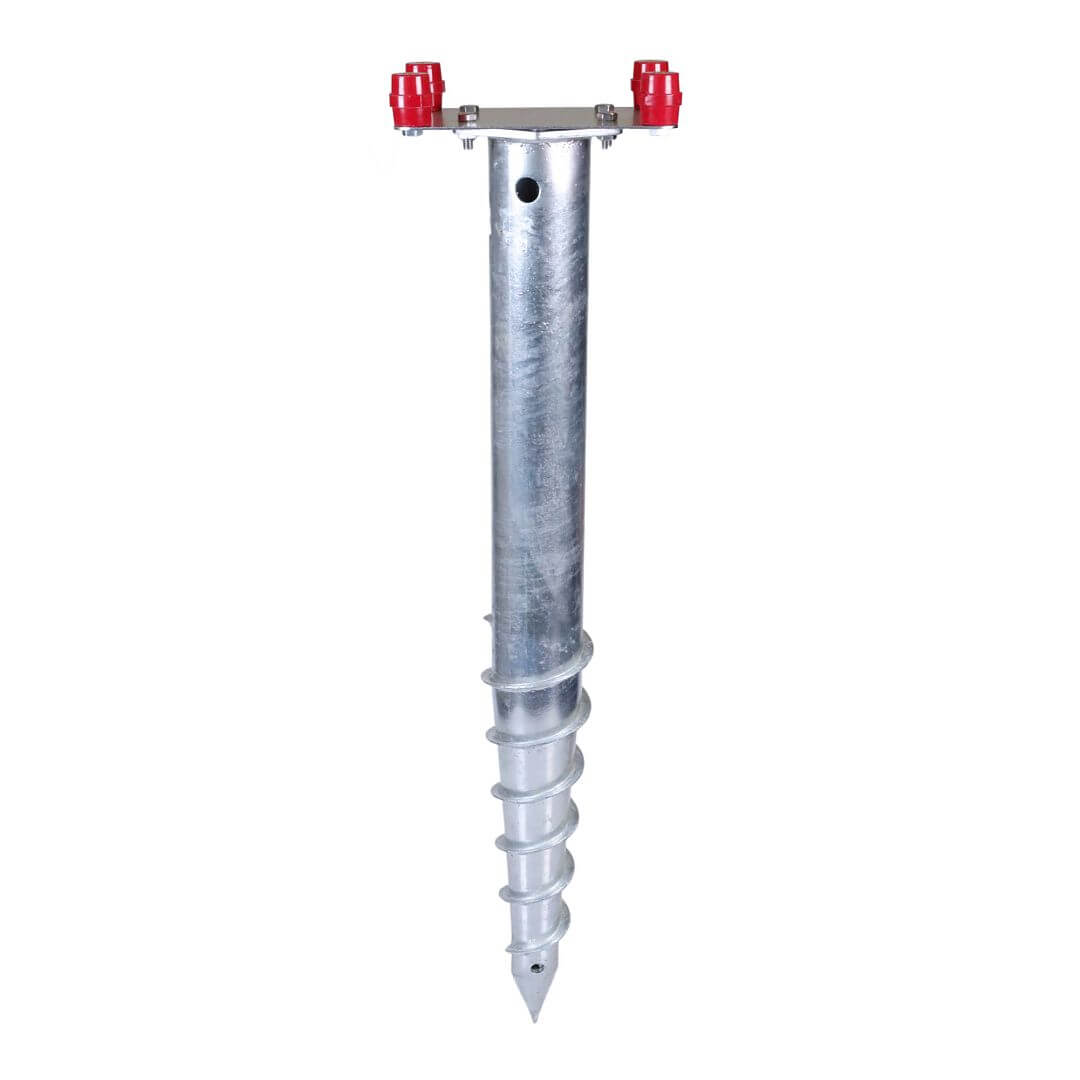

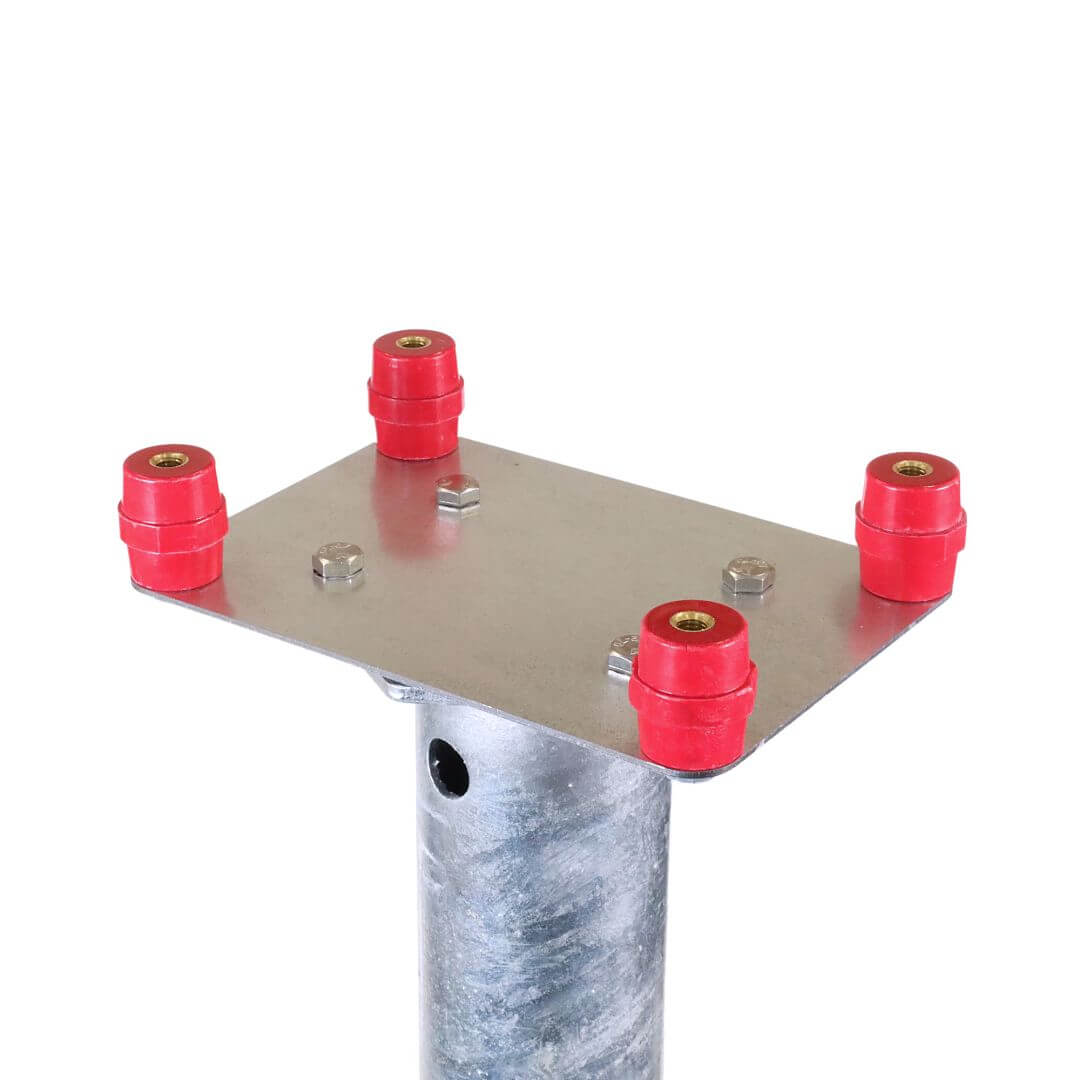

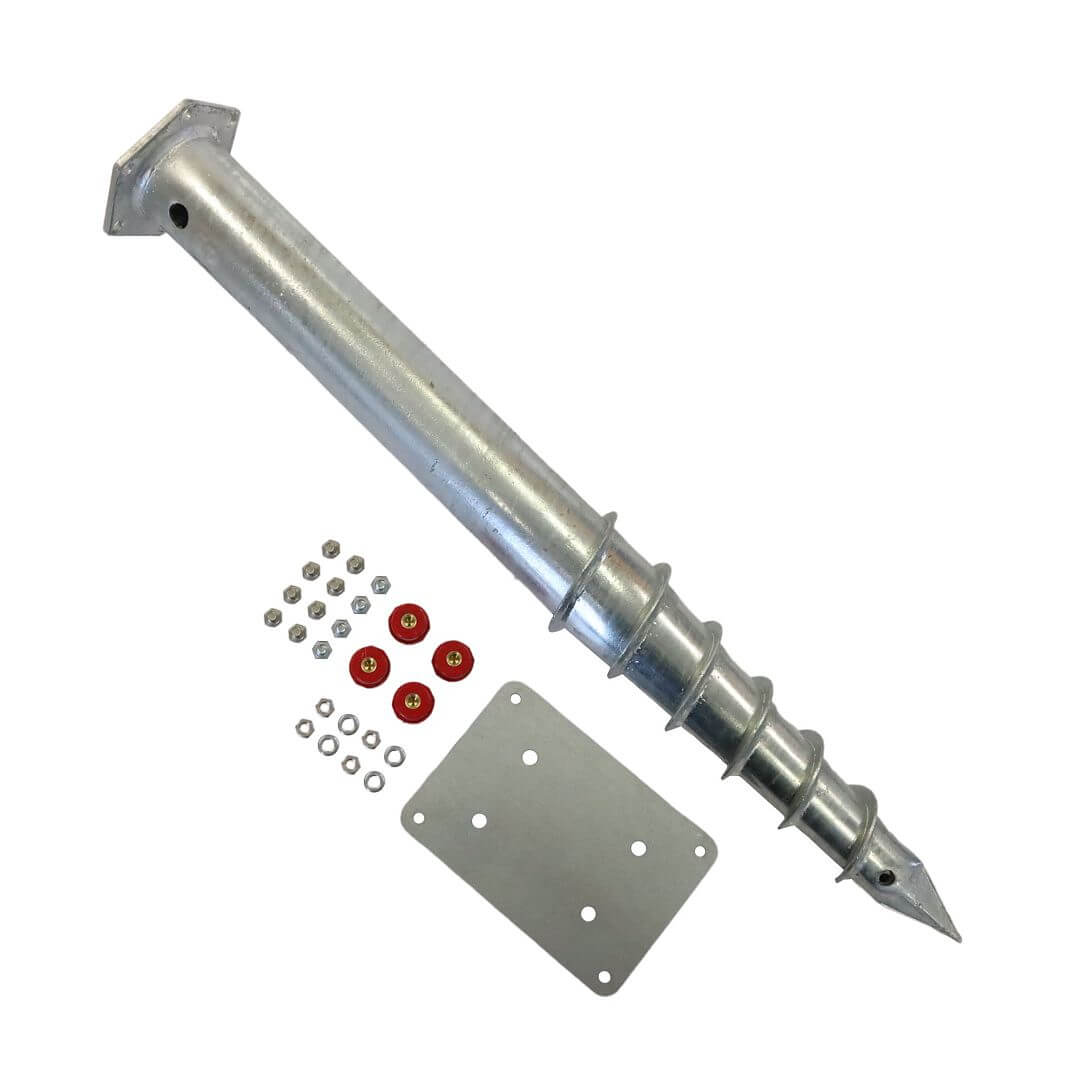

- Stable mounting mandrel to the box
- Internal ground connection for the fence power supply
- All cables inside the box
- High voltage box - excellent protection against theft

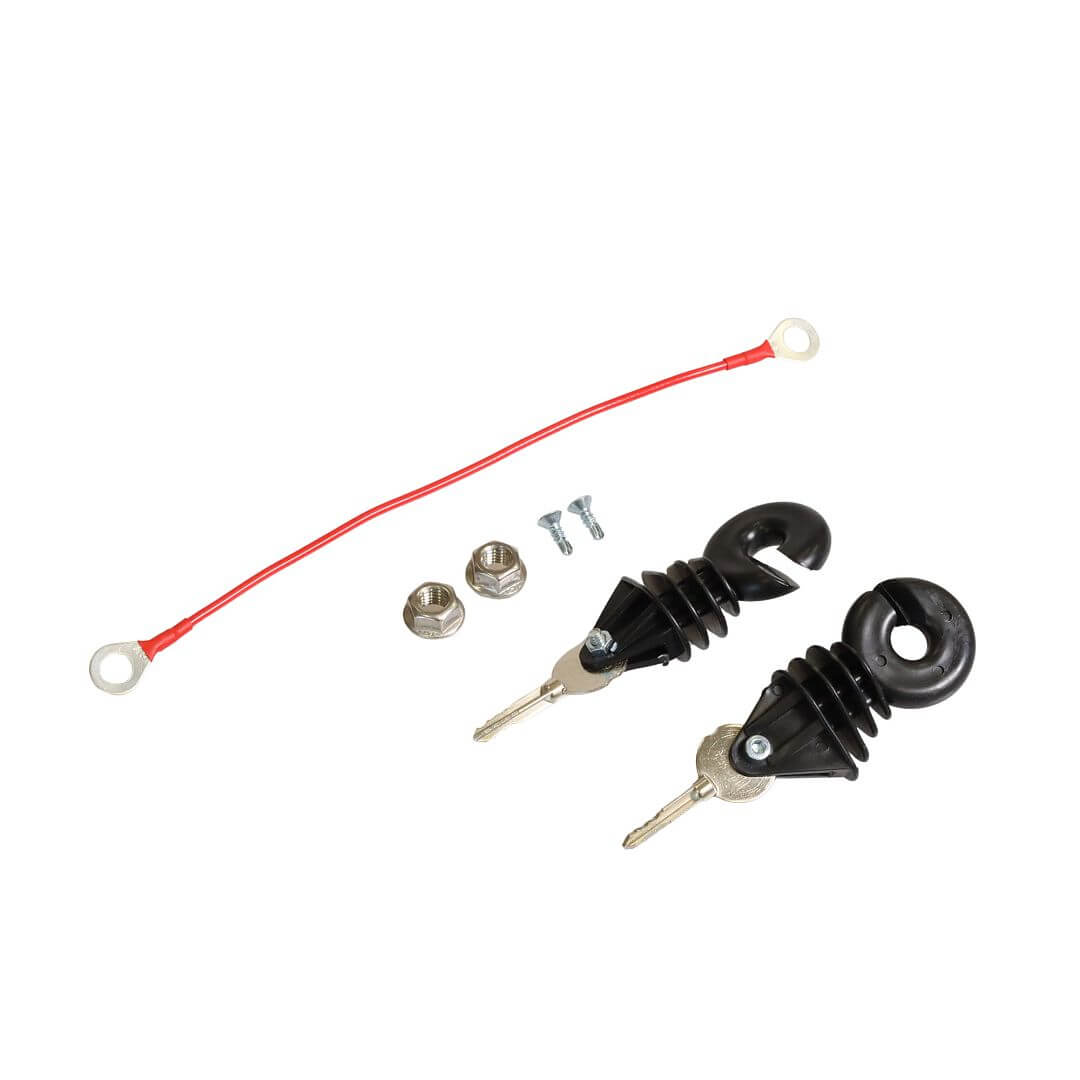

- Insulated keys for safe unlocking of the box
- External dimensions of the box: 37 × 37 × 34.5 cm (W×D×H)

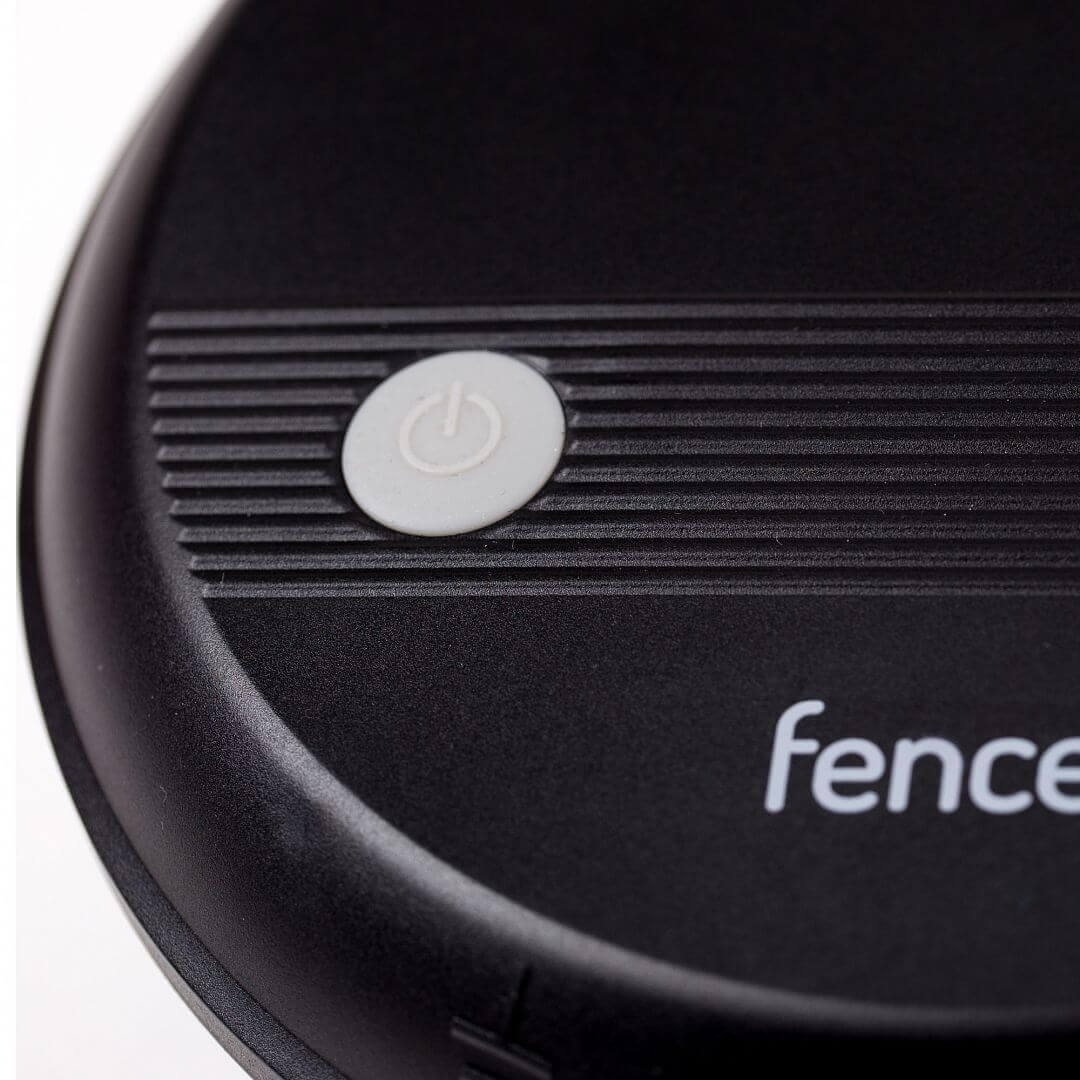

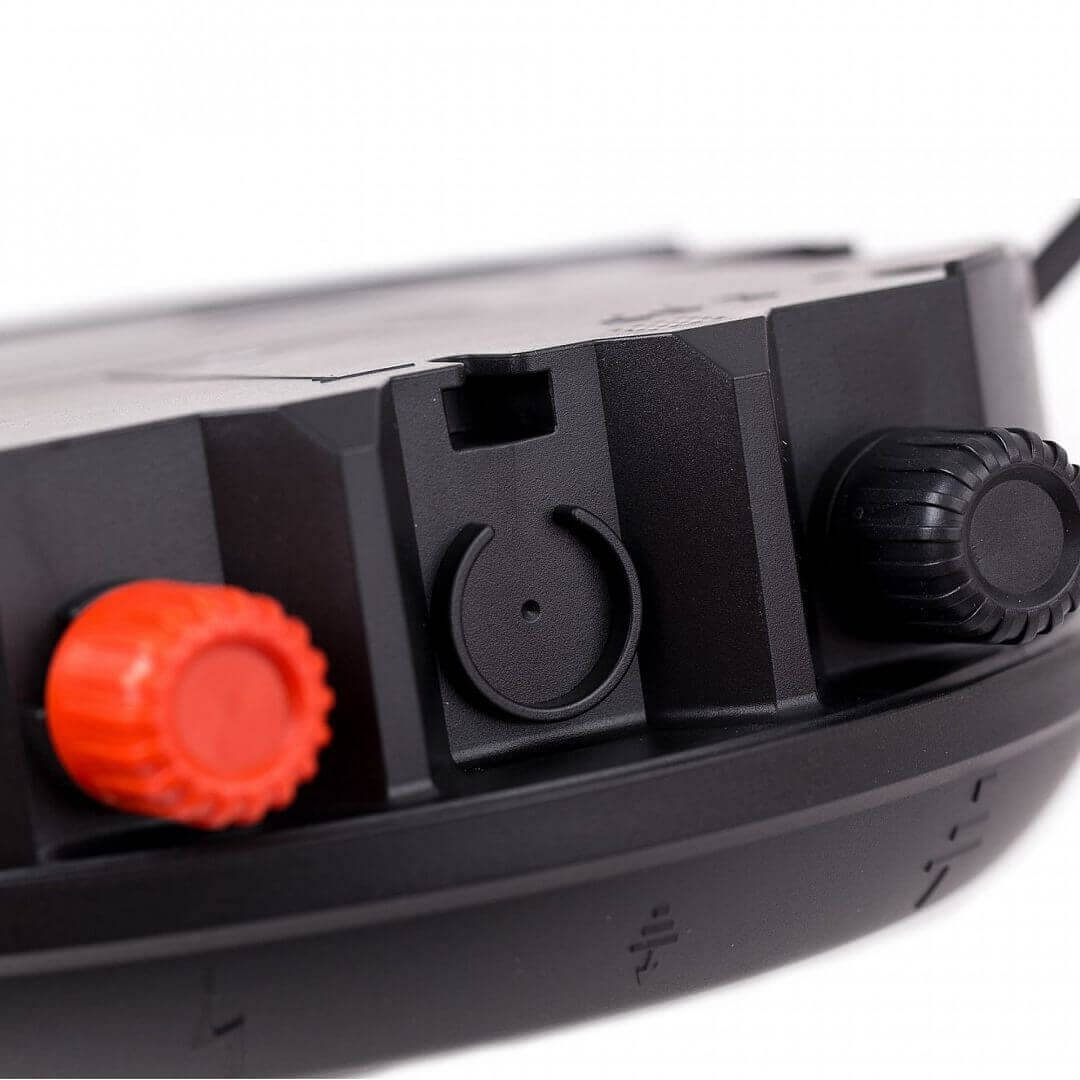

Smart LTE electric fence 5 J with e-SIM technology, NB-loT and GSM network

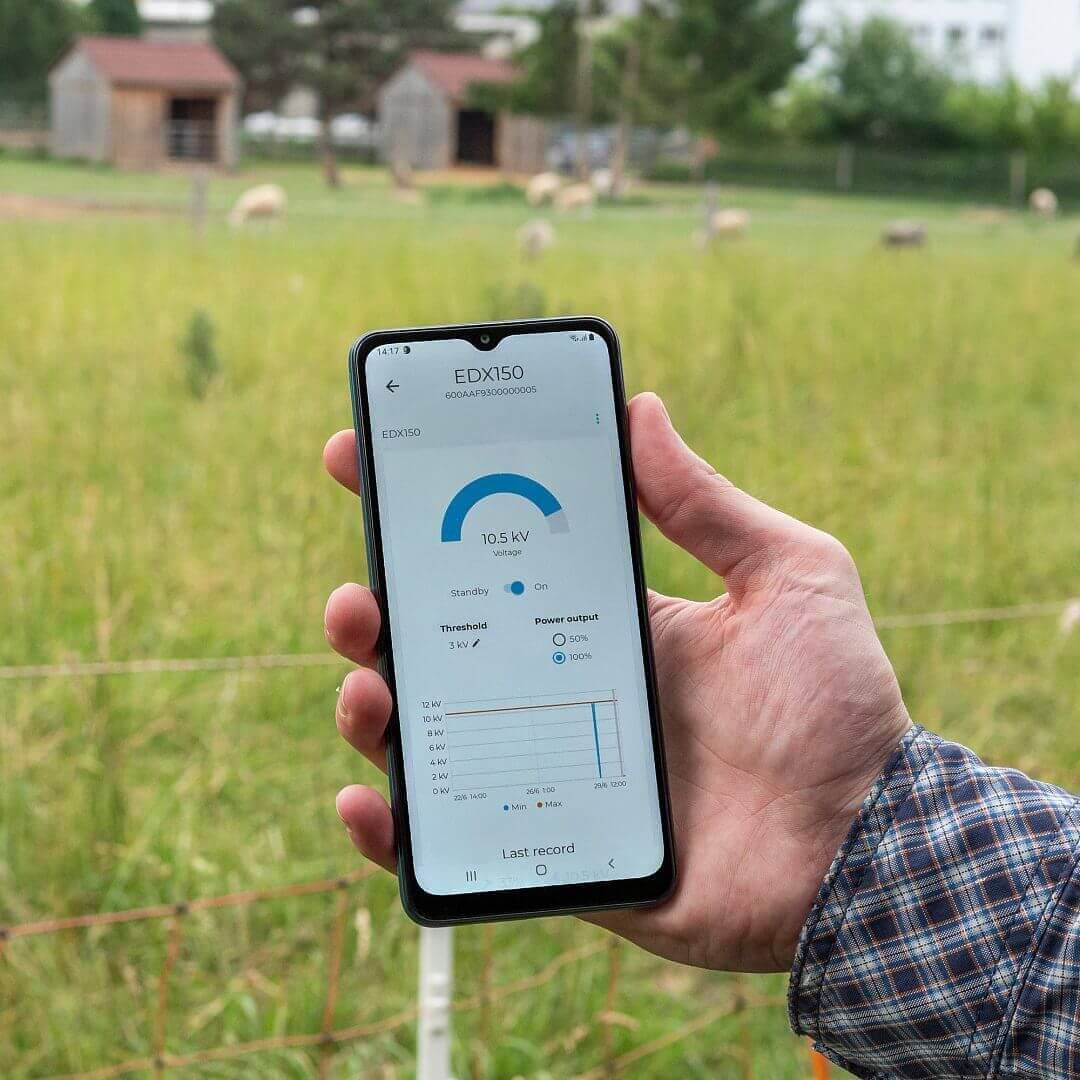

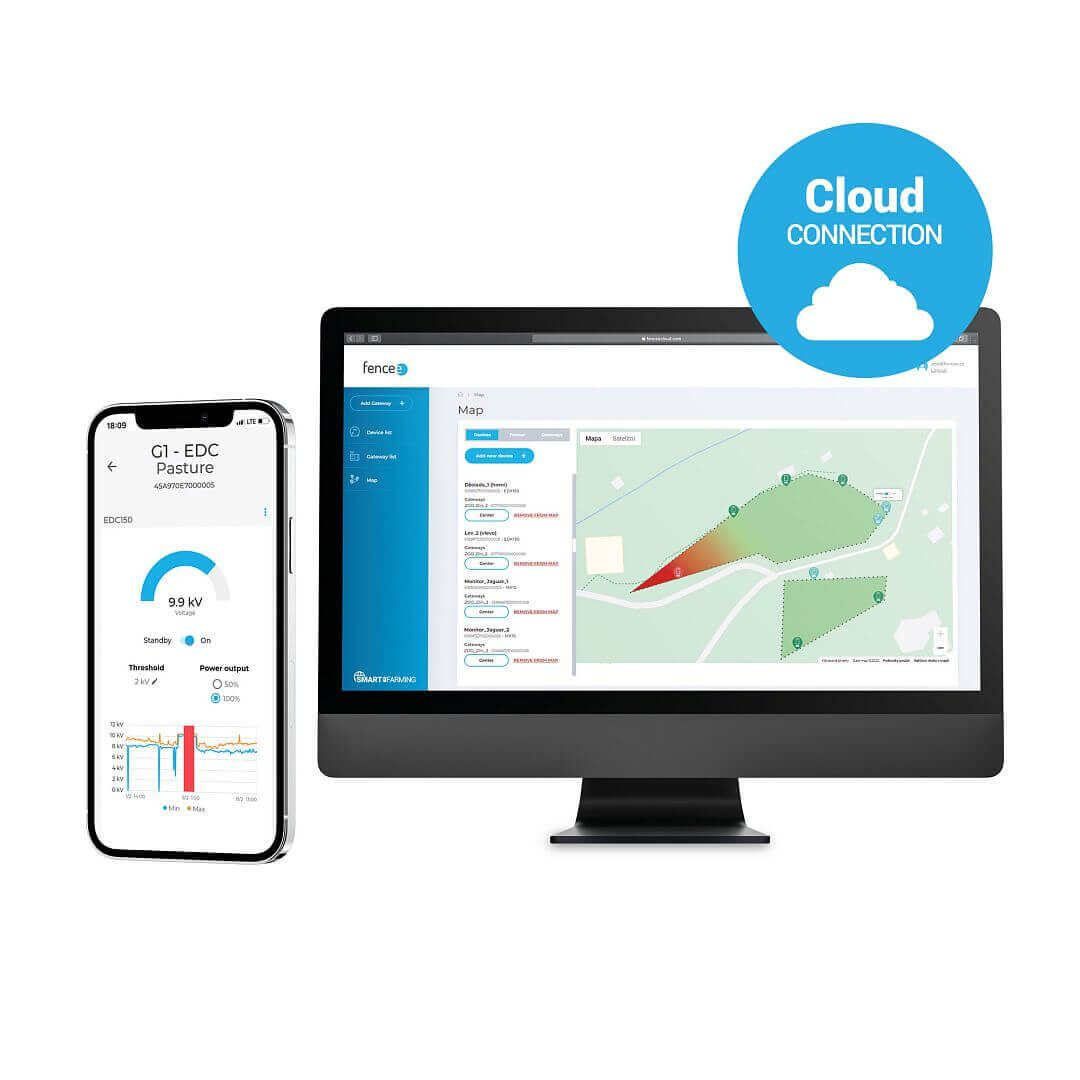

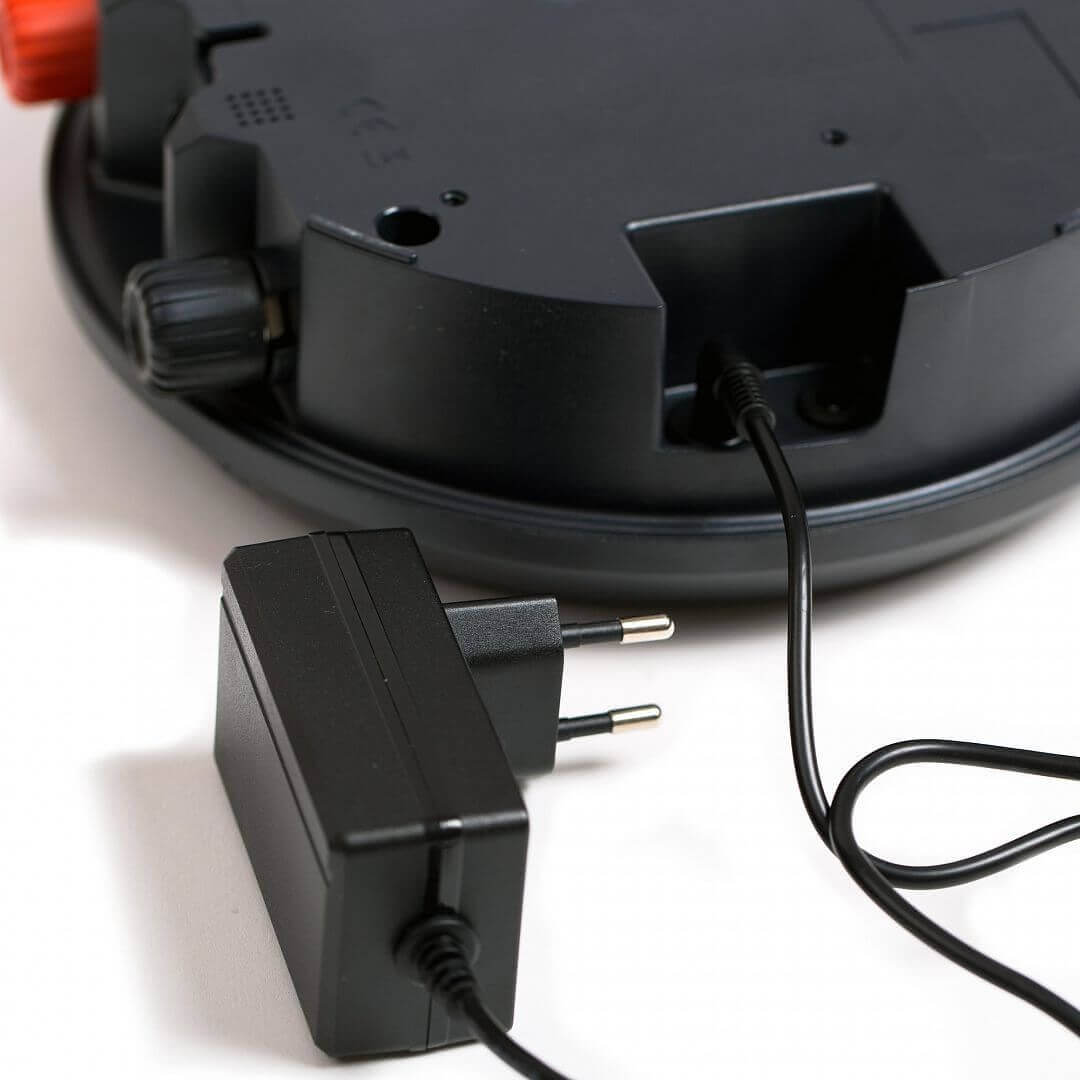

Cellular LTE generator with direct connection to the Internet and Cloud. Combined 230/12 V power supply. Control of the electric fence by mobile phone with the fencee Cloud application using e-SIM technology and the most widely used GSM mobile data network. Combination ofenergy efficient NB-Iot and high speed Cat-M1 network. GPS positioning.

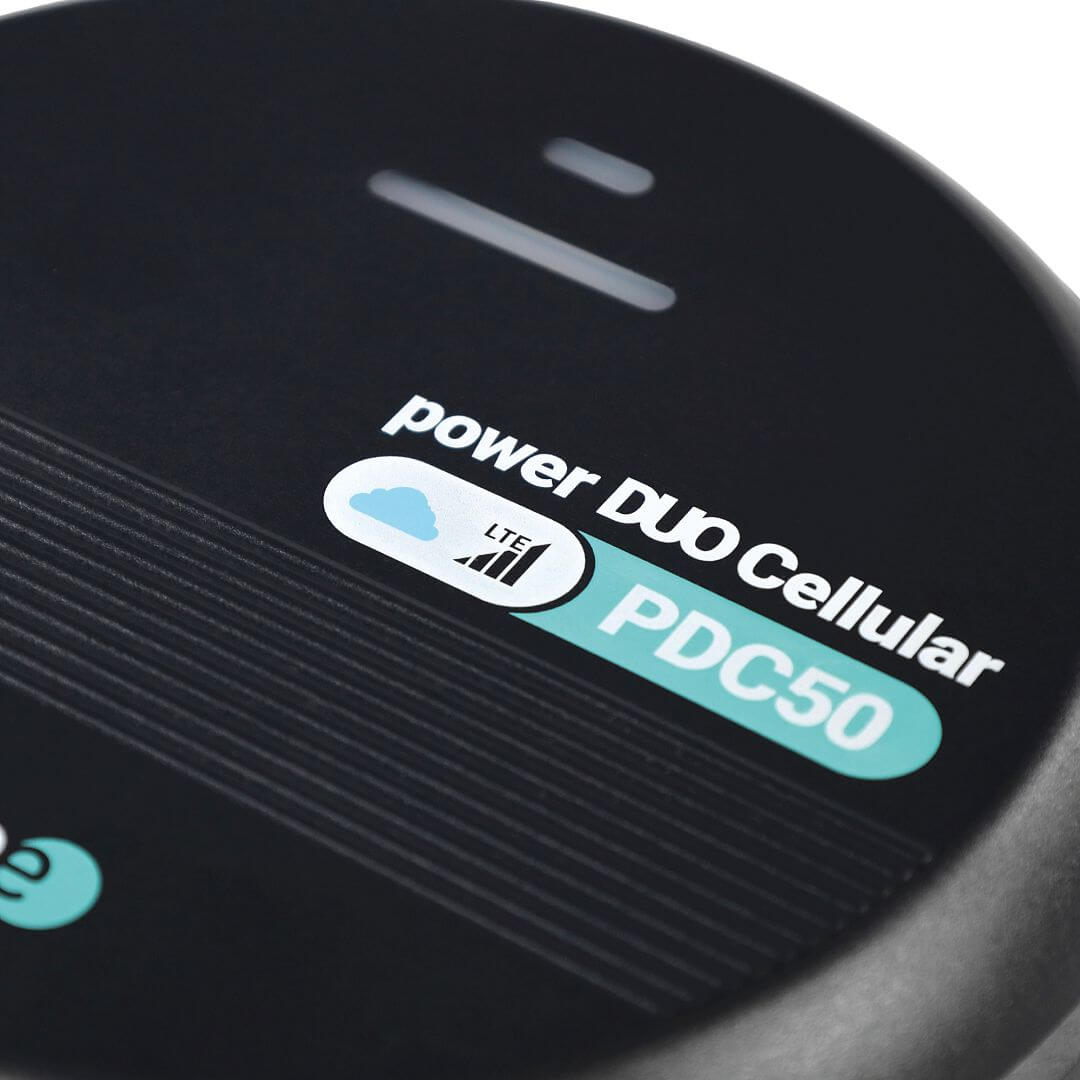

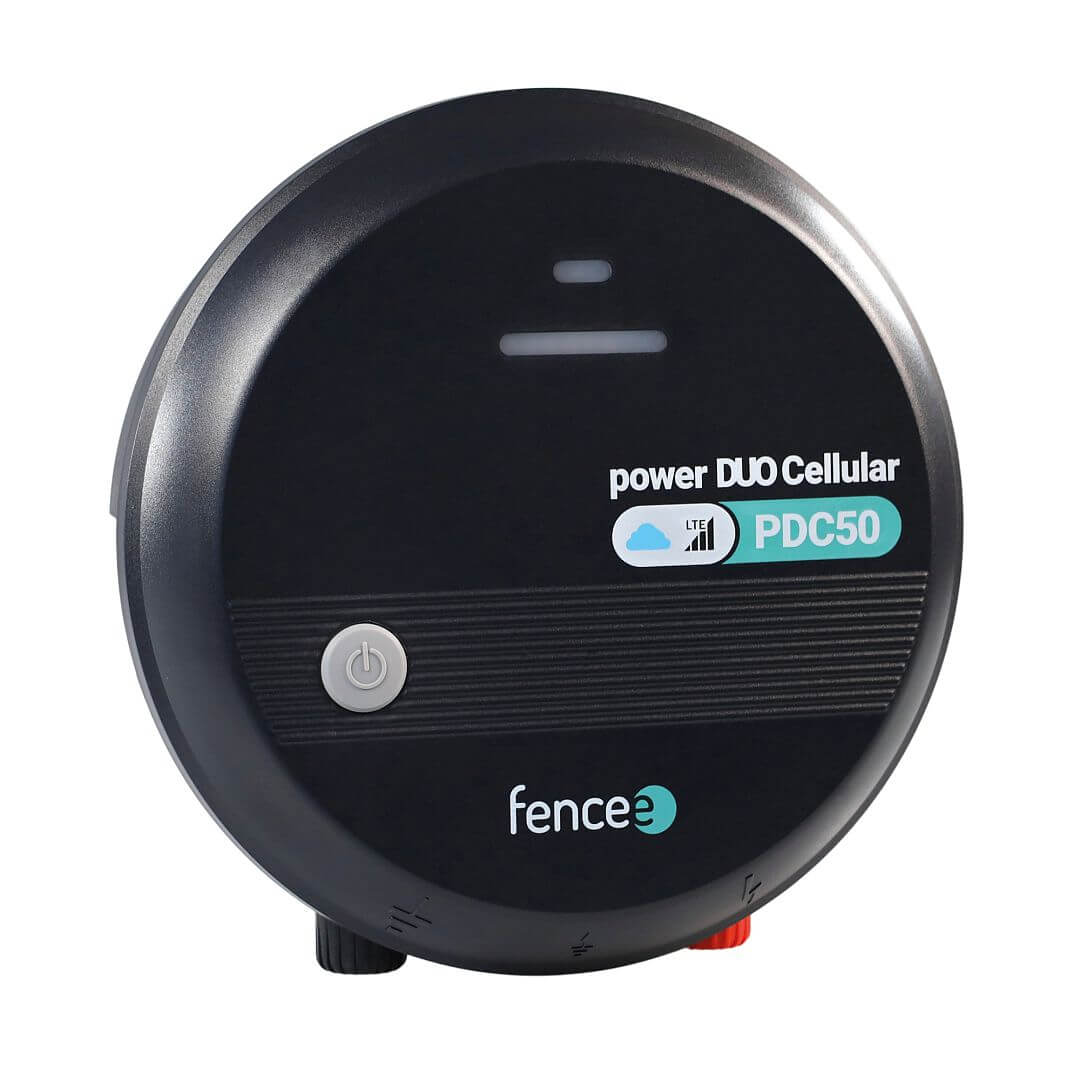

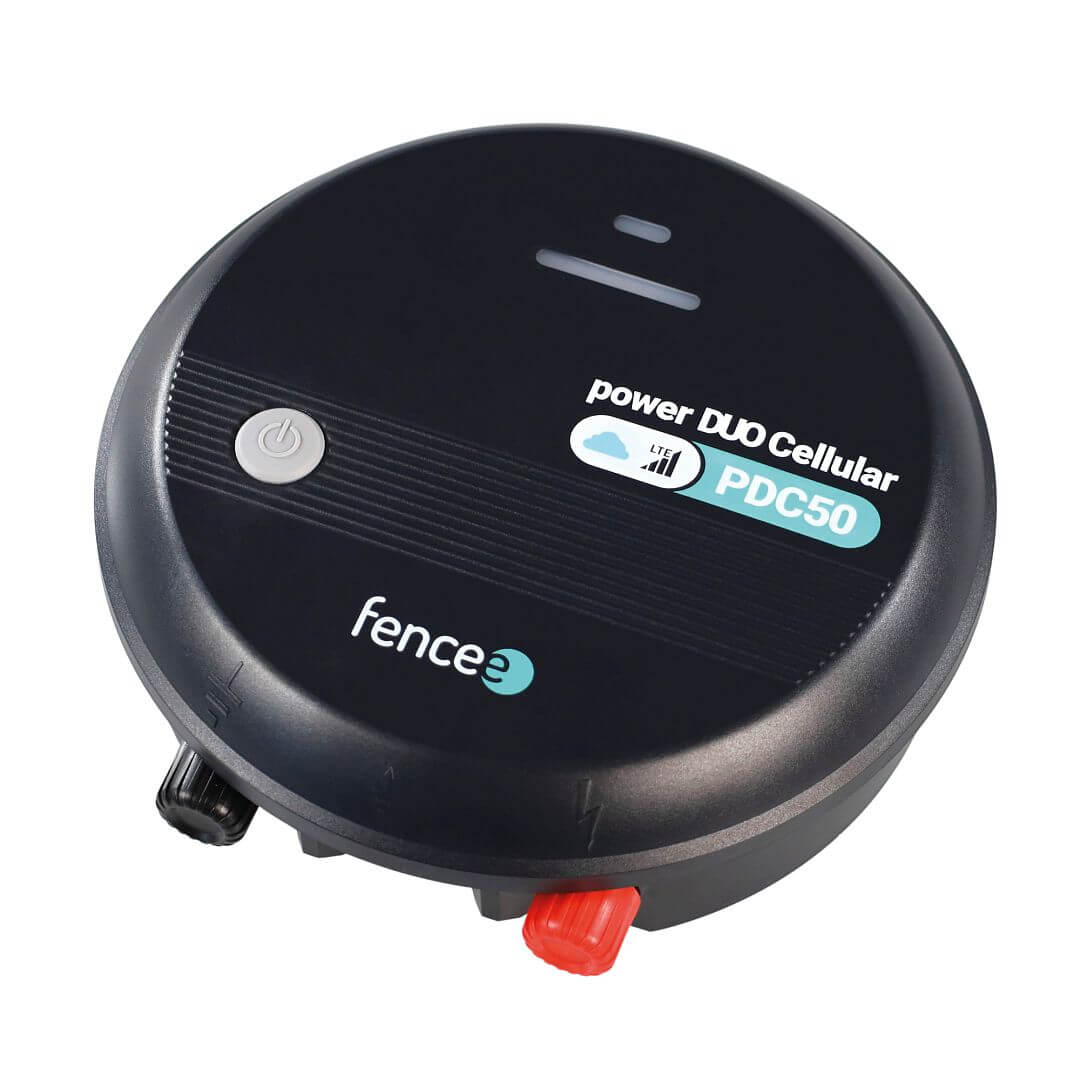

LTE source fencee power DUO PDC50

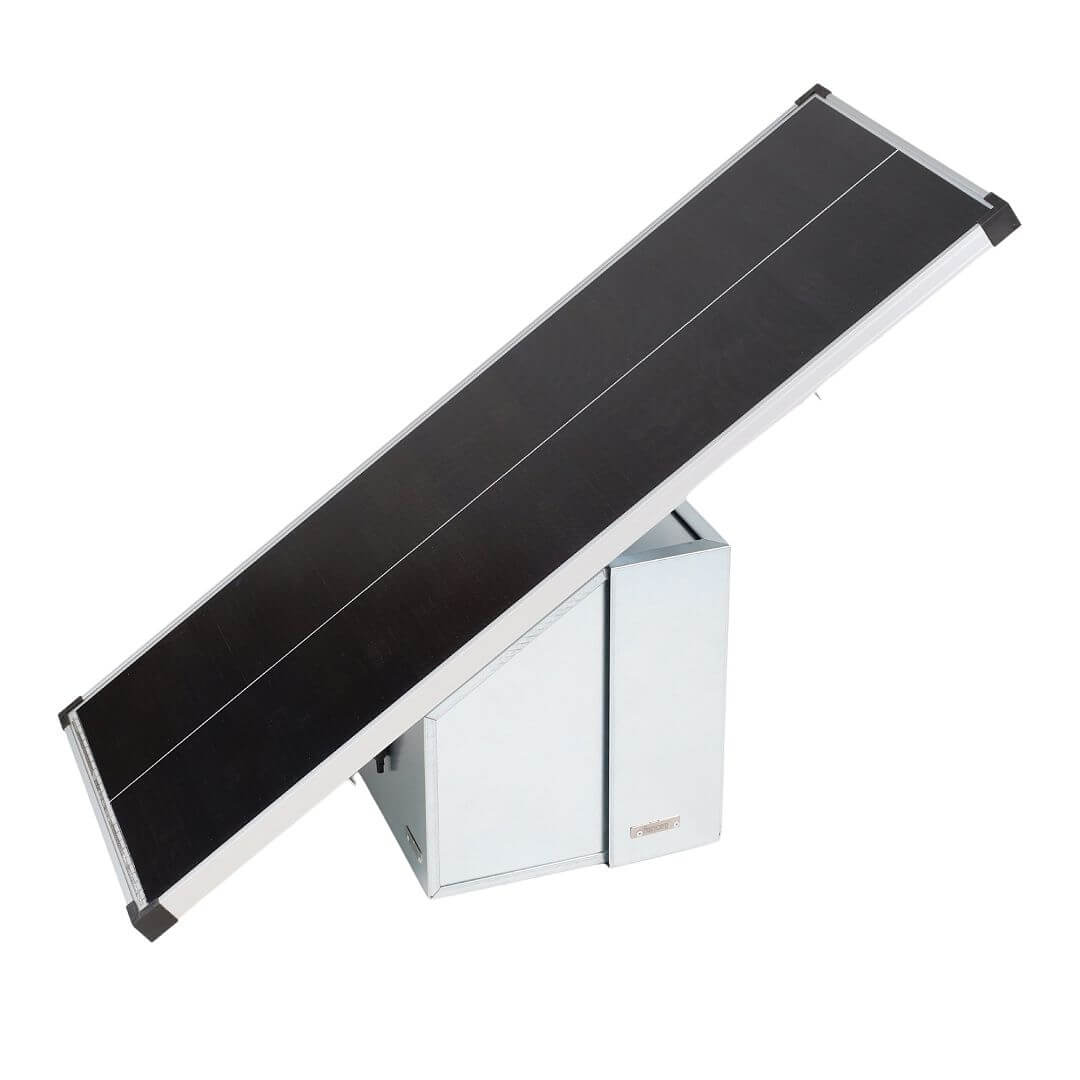

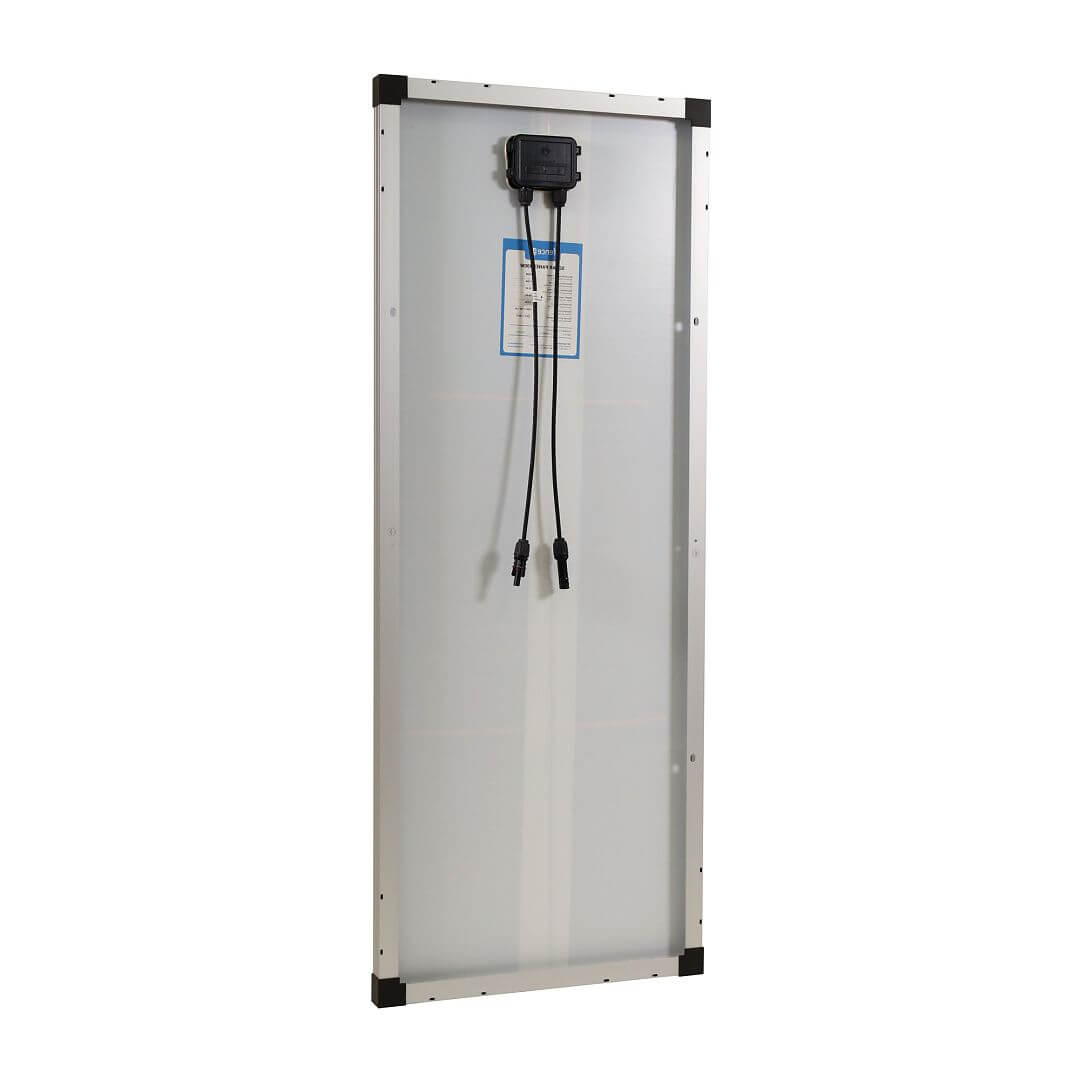

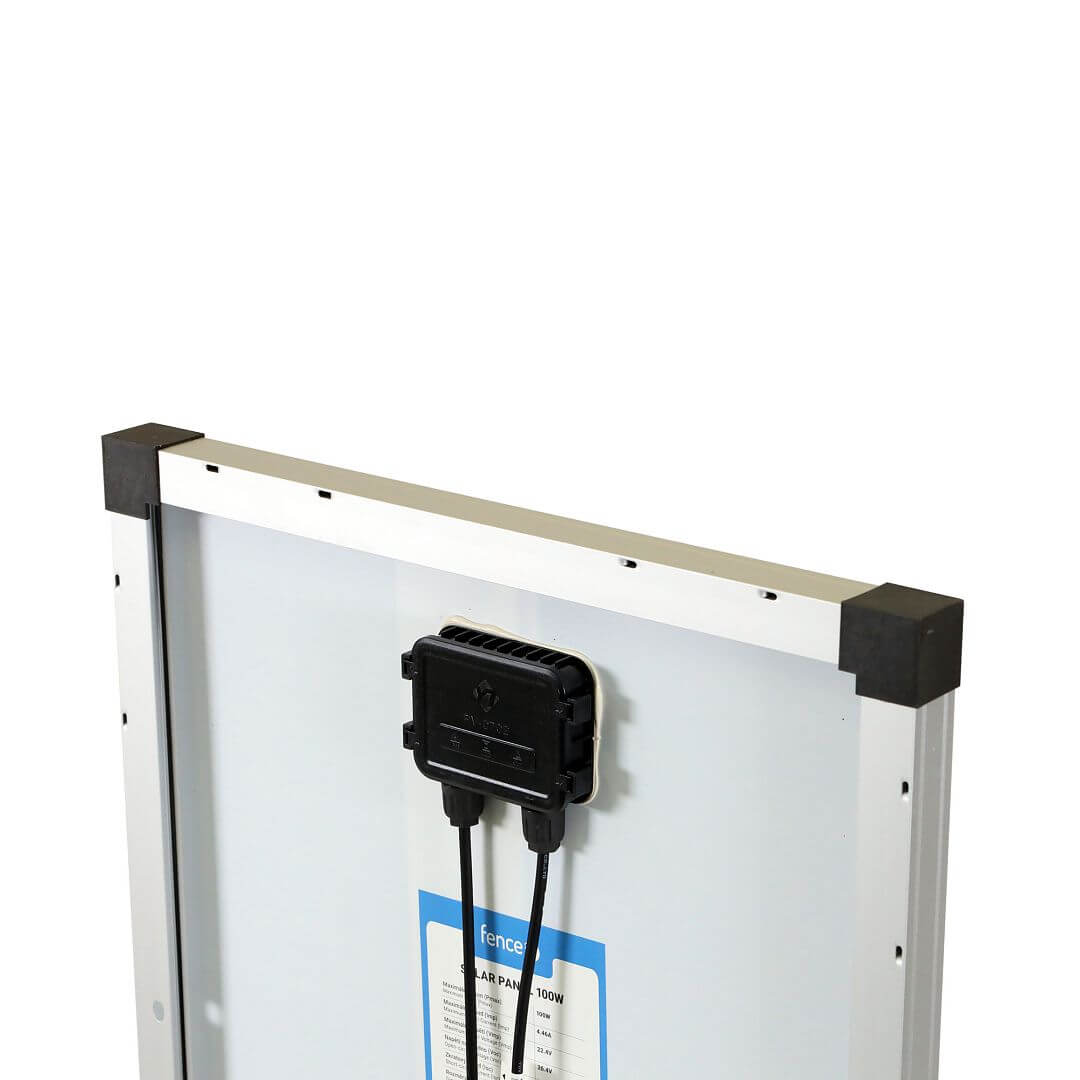

100 W solar panel for electric fence

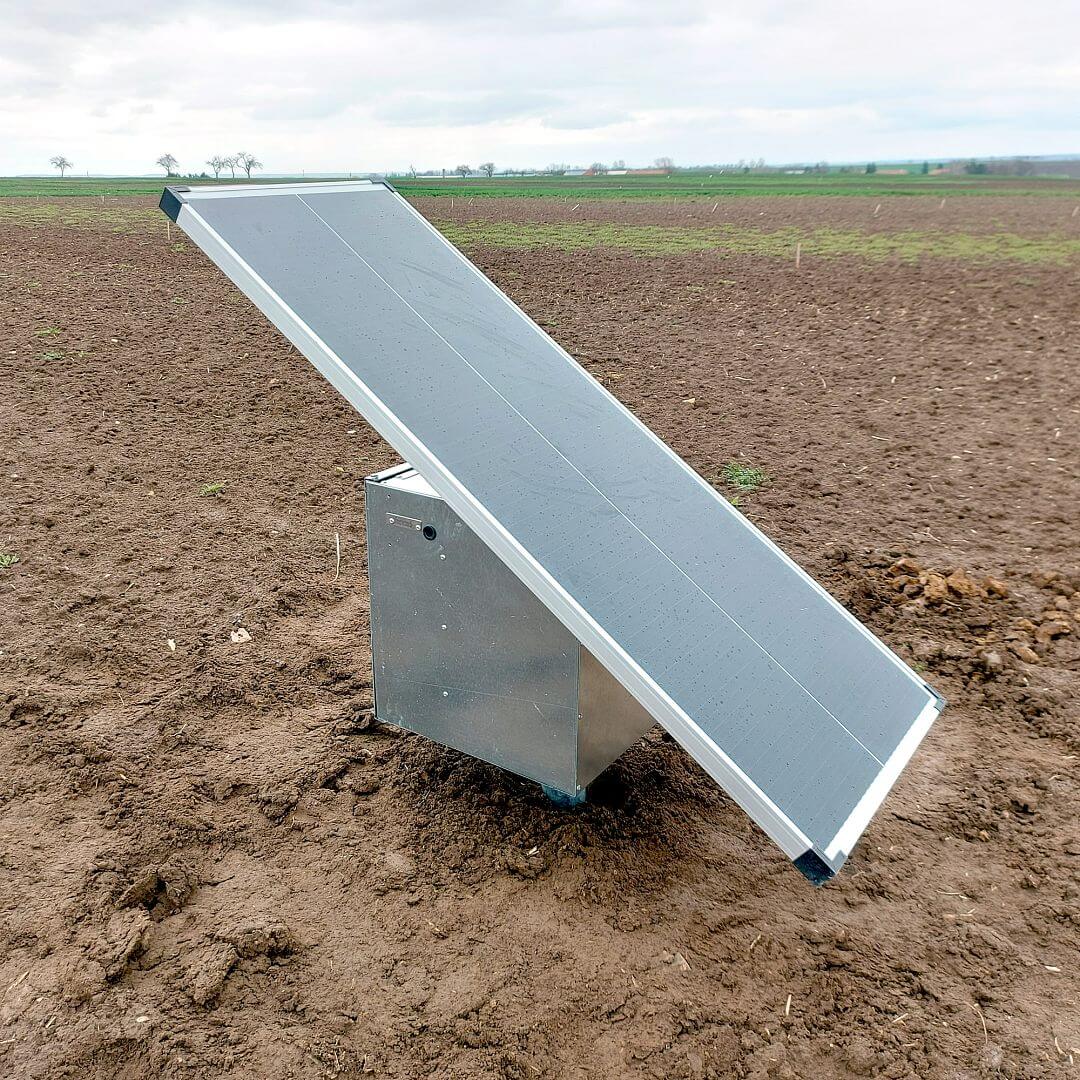

The location of the solar panel should be chosen to be south facing and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel. The fence power supply cannot be powered by the solar panel alone, the battery and controller must always be connected at the same time.

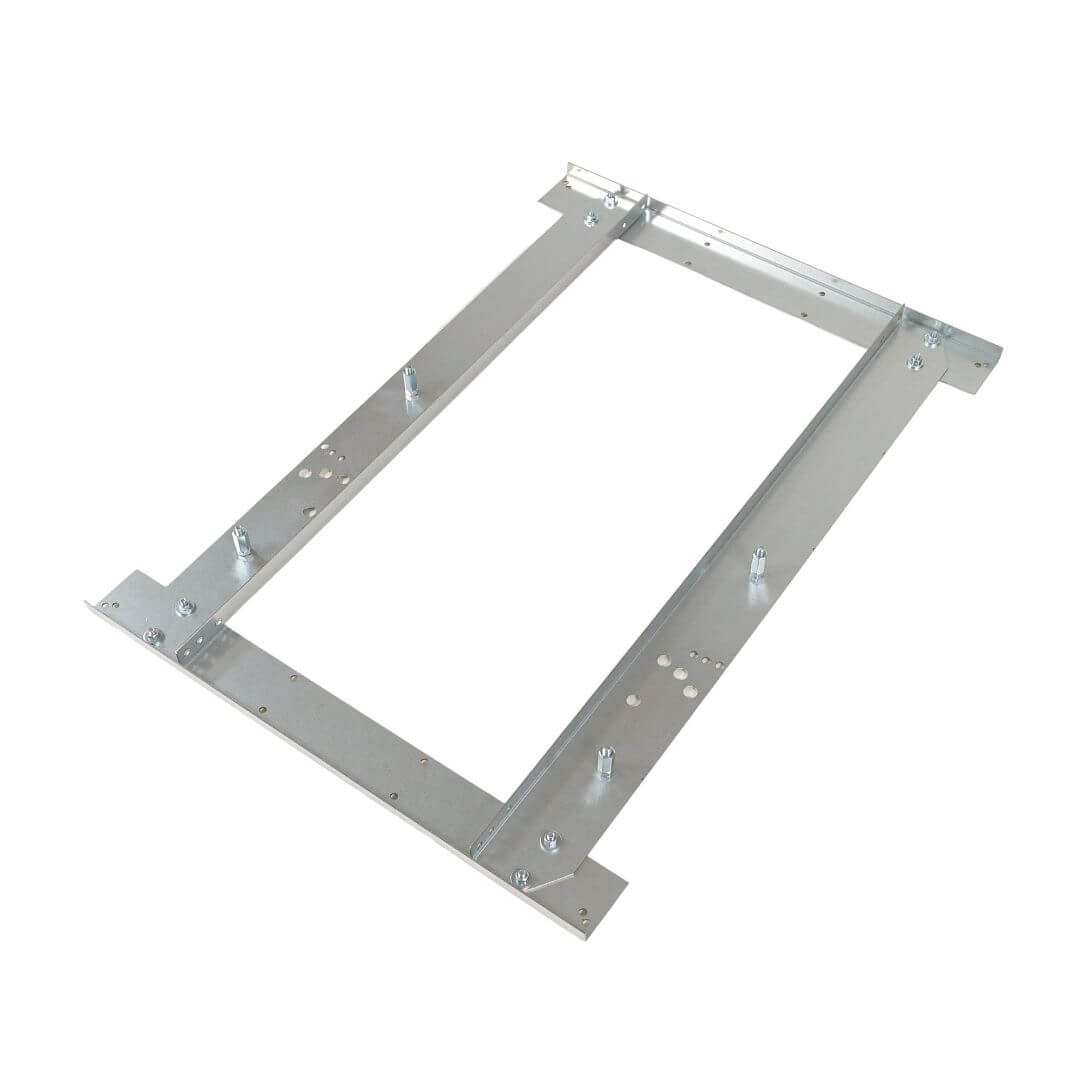

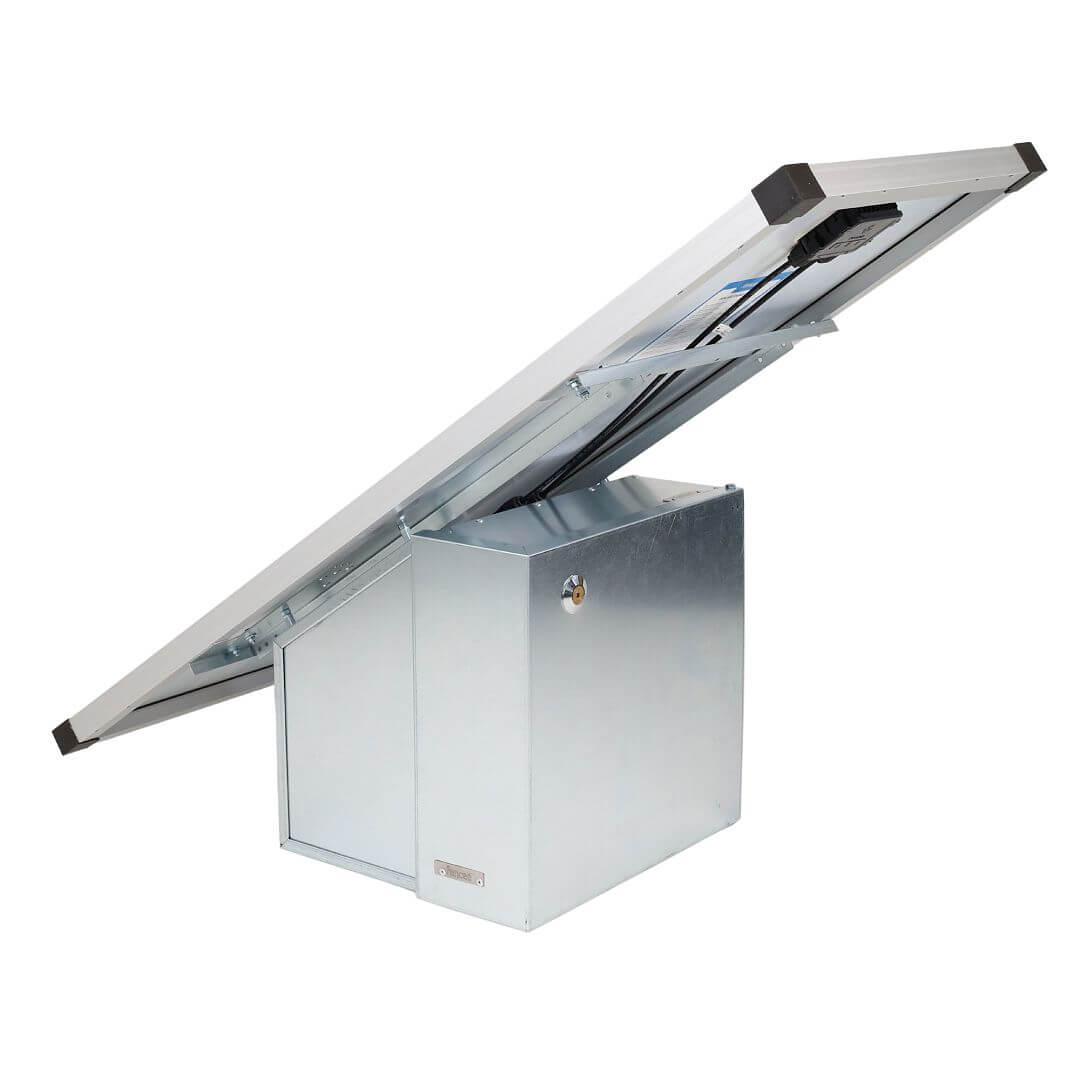

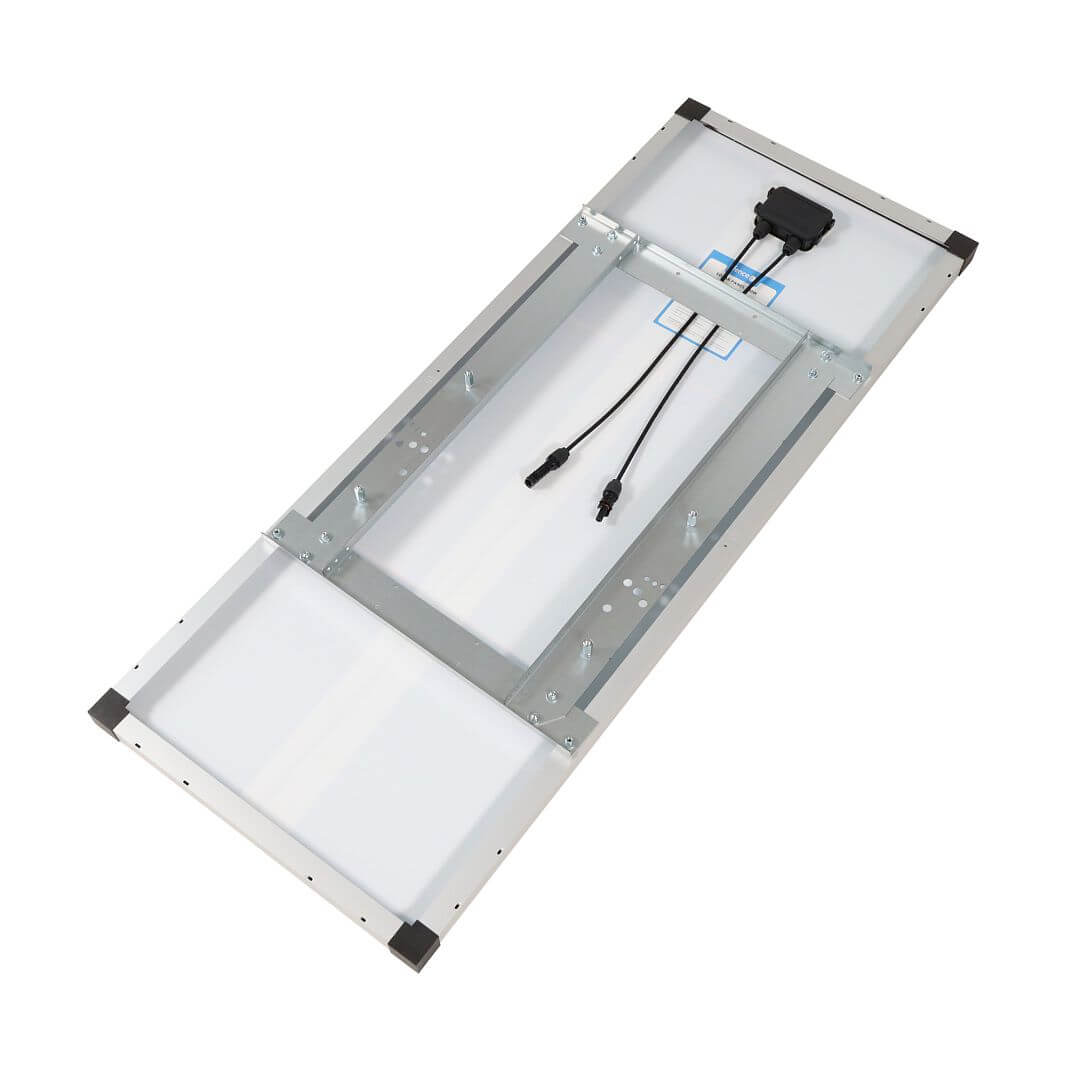

Mounting bracket for attaching the 100 W solar panel to the safety box
Mounting bracket for mounting the 100 W solar panel on the safety box. It consists of 4 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.

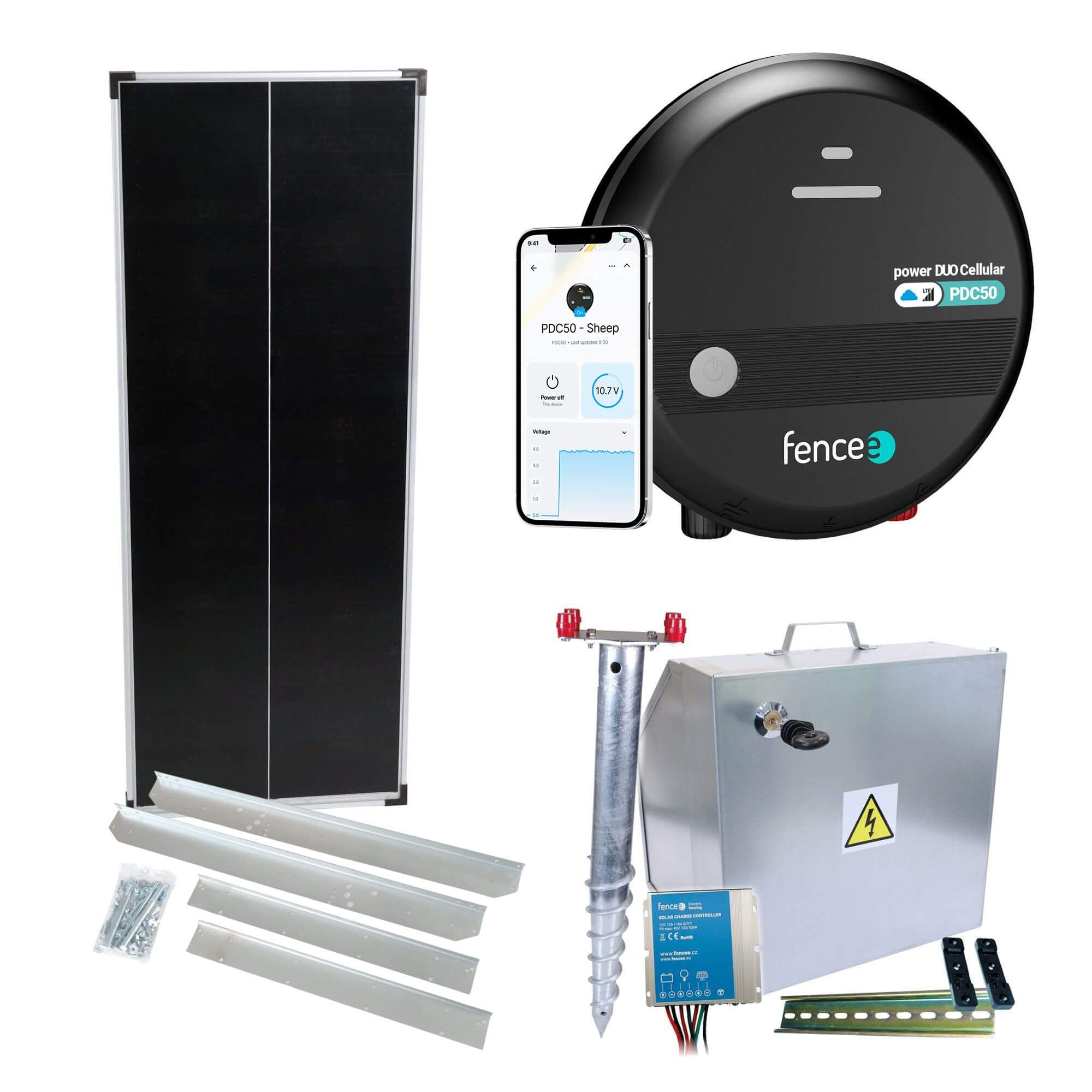

Package contents:
- Safety box with DIN rail, mounting mandrel and 10 A regulator
- LTE generator fencee power DUO Cellular PDC50
- 100 W solar panel
- Mounting bracket for attaching the 100 W solar panel to the safety box
Mounting in a metal box may degrade LTE network connectivity. Thiskit does not include a battery. A 12 V battery to power the generator must be purchased. Accessories in complete kits are warranted for 24 months only. A 36-month extended warranty applies to all fencee generators.
The following accessories can be purchased with the solar fence kit:
Battery for electric fence 12 V 44 Ah
High quality and reliable car battery, suitable for use with electric fence. Ergonomic…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 9 W |
| Energizer consumption 12 V | 100 - 480 mA |
| Output energy | 5 J |
| Input energy | 7,5 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 7000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |

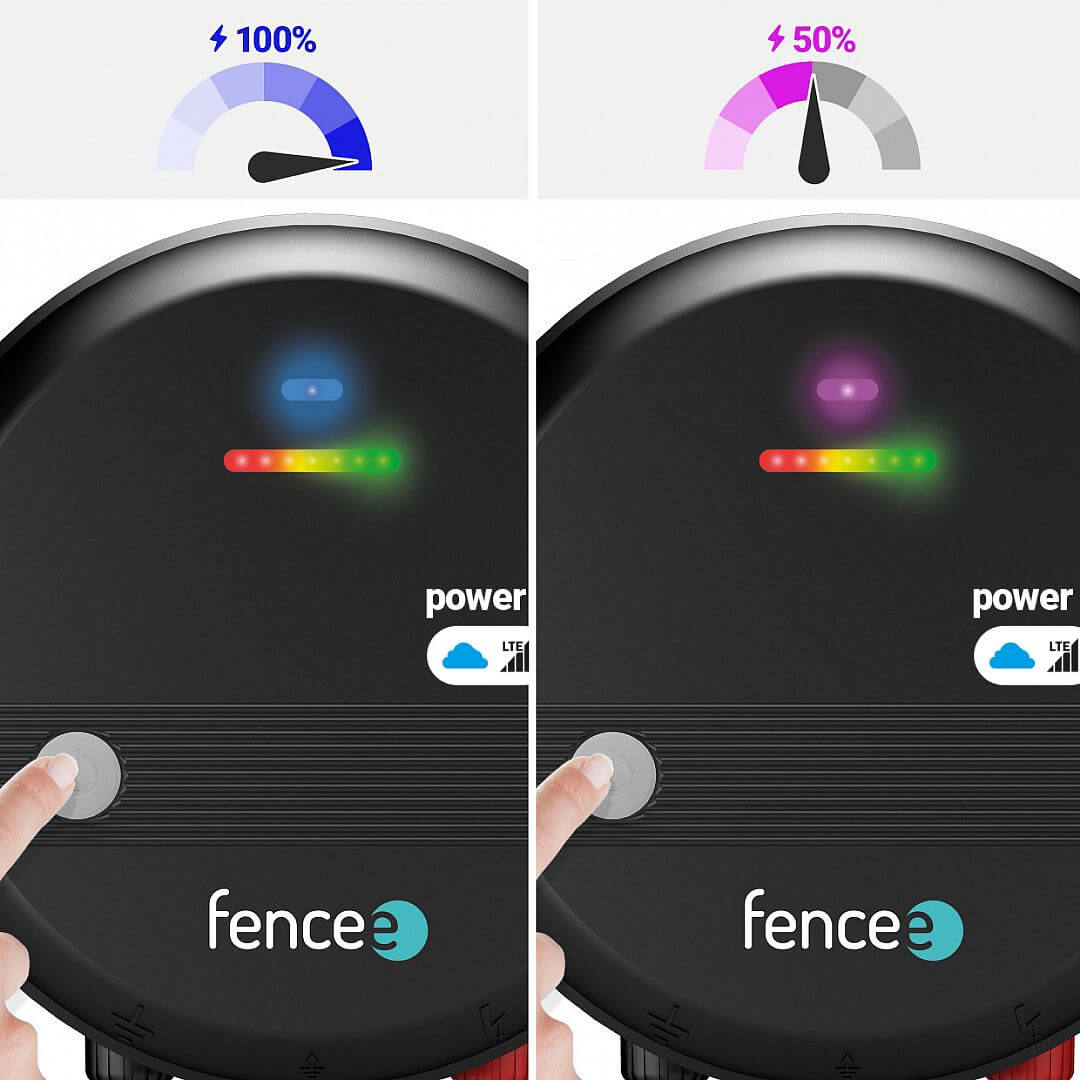

| LED lower power 50% | |
| LED error check | |
| LED impulse bargraph | |
| fencee Cloud connection | |
| Data encoding | |
| TEOR. max. CEE | 140 km |
| Low vegetation | 45 km |
| Medium vegetation | 13 km |
| High vegetation | 7 km |
| LTE | Cat M1 + NB1 |
| Earthing 1 m | 3 × |
| El. fence nets | 14 × |
| DIN rail | |
| Diameter | 210 mm |
| Depth | 66 mm |
| Weigth | 1445 g |
