Product´s description Set of electric fence for sheep, goats, cattle, protection against game - DUO energizer + polywire 400 m
The electric fence set is suitable for sheep, goats, cattle, domestic pigs and forest animals. With this complete set, you can define a safe space for your animals or, on the contrary, prevent animals from accessing forbidden areas.
The basis of the set is a powerful combined generator for the fencee energy DUO ED100 electric fence . Thanks to the combined power supply, it can be powered via an adapter from the 230 V mains or from a standard 12 V car battery. This is particularly suitable as a backup source in the event of a power failure. Due to the higher consumption, we do not recommend running the powerful energy DUO ED generators on a car battery for a long time.
The set includes a high-quality 3 mm diameter wire rope with copper conductors for maximum conductivity even in long installations. In a 400 m coil. The fencing height of up to 136 cm is ensured by mobile plastic posts with 11 eyelets for individual selection of wire pulling. The posts have a reinforced profile and are therefore very resistant to bending.
The fencee energy DUO ED100 generator with its large graphic LCD display, which is very easy to read even in direct sunlight, informs about all important values on the fence and is very easy to operate thanks to the control buttons. fencee generators with a power output of more than 5 J comply with the special requirements prescribed by the standard. In particular, a time delay of 50 seconds when increasing the power output and thus ensuring safety.
- In real operation, this means that if the fence is loaded and the resistance of the fence drops below 500 ohm (overgrown grass, fallen branch, etc.), the generator will deliver a maximum of 5 J for 50 s. If during this time the resistance of the fence does not increase (elimination of the cause), the generator will gradually increase the output energy.
Another function is warning in case of sudden loading of the enclosure.
- If the resistance of the fence drops suddenly during one pulse from more than 1000 ohm to less than 400 ohm (fallen branch, entangled animal or person,...), the alarm is triggered after six pulses - an acoustic signal sounds and the red LED flashes. At the same time, the pulse period is slowed down to 3 s. The alarm is switched off when the resistance of the fence increases to more than 600 ohm or after a period of 10 min. Both functions are independent and independent of each other.
How to use the yellow clamp with reduced output

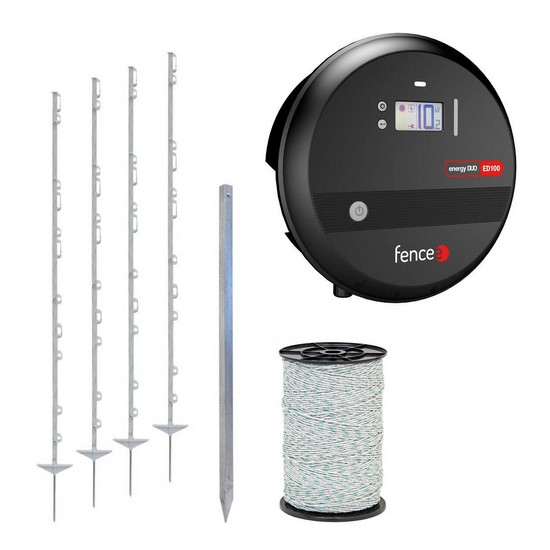

Package contents:
- fencee energy DUO ED100 generator
- 1× cable ø 3 mm, stainless steel 3 × 0.20 mm + copper 3 × 0.25 mm - length 400 m, white-green
- 15× post 156 cm (above ground 136 cm), 11× eyelet, white
- 2× ground rod 100 cm (galvanised)
Included in the generator package:
- 1× power adapter fencee DUO 14 V 2A, lead length 1.5 m
- 1× earthing cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eyelet-heart)
- 1× fencee DUO battery cable 1.7 m
- 1× fencee warning plate
- 1× operating instructions
Energizer consumption 230 V | 6 - 14 W |
Energizer consumption 12 V | 200 - 850 mA |
Output energy | 10 J |
Output voltage | 10500 V |
Output voltage 500 Ω | 7500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
LCD display | |
TEOR. max. CEE | 300 km |
Low vegetation | 90 km |
Medium vegetation | 22 km |
High vegetation | 10 km |
Earthing 1 m | 2 × |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3728 g |
