Product´s description Separate generator for electric fence fencee power DUO RF PDX30

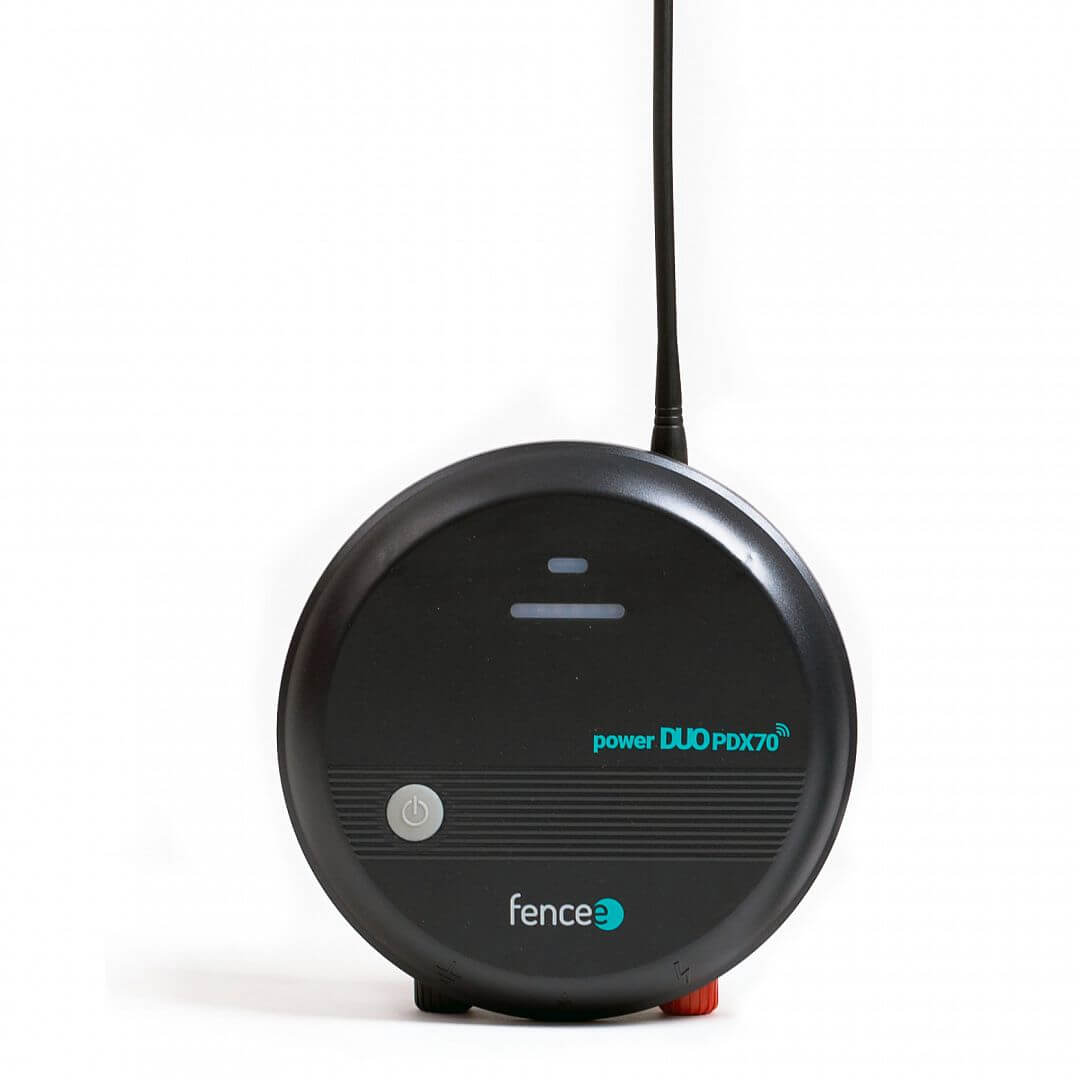

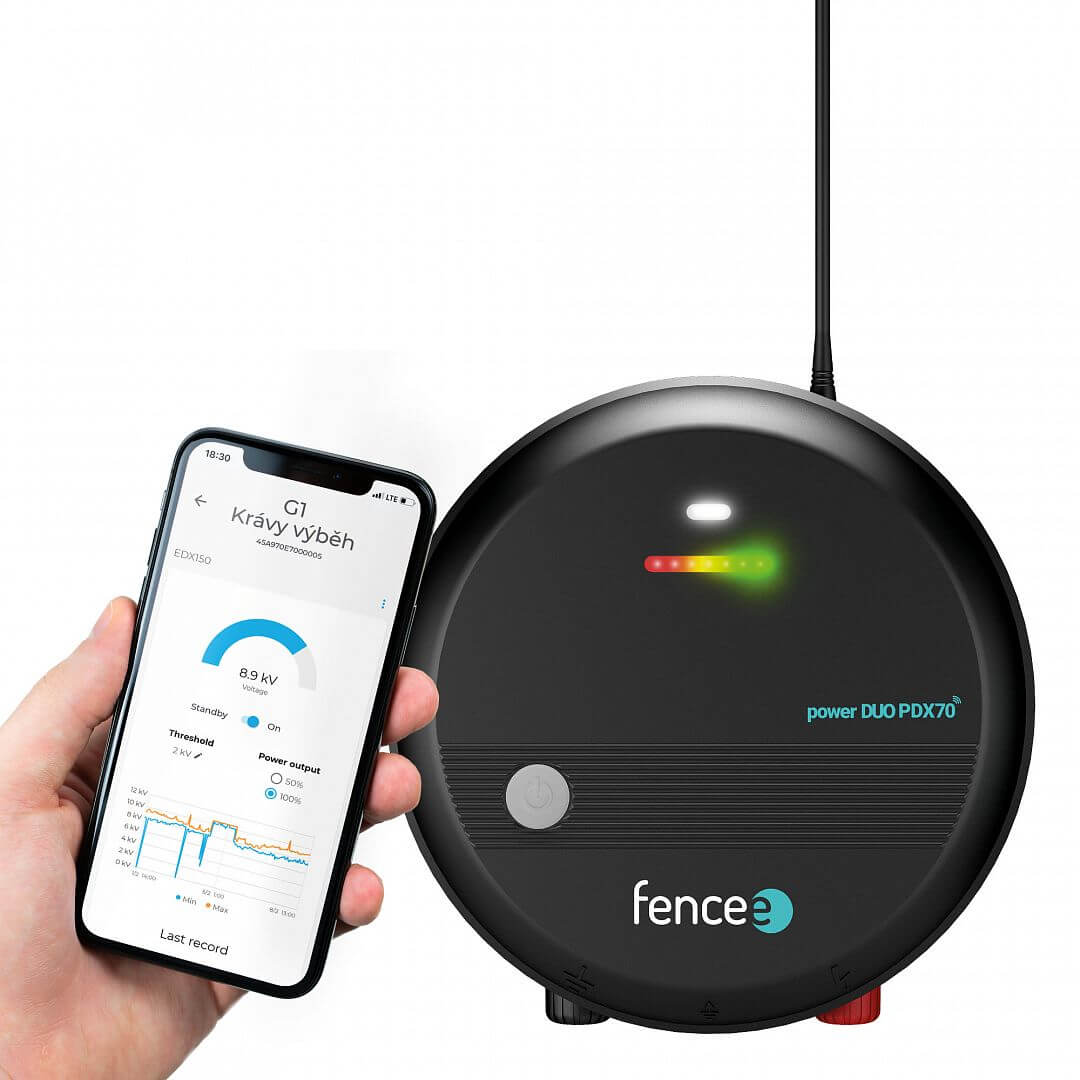

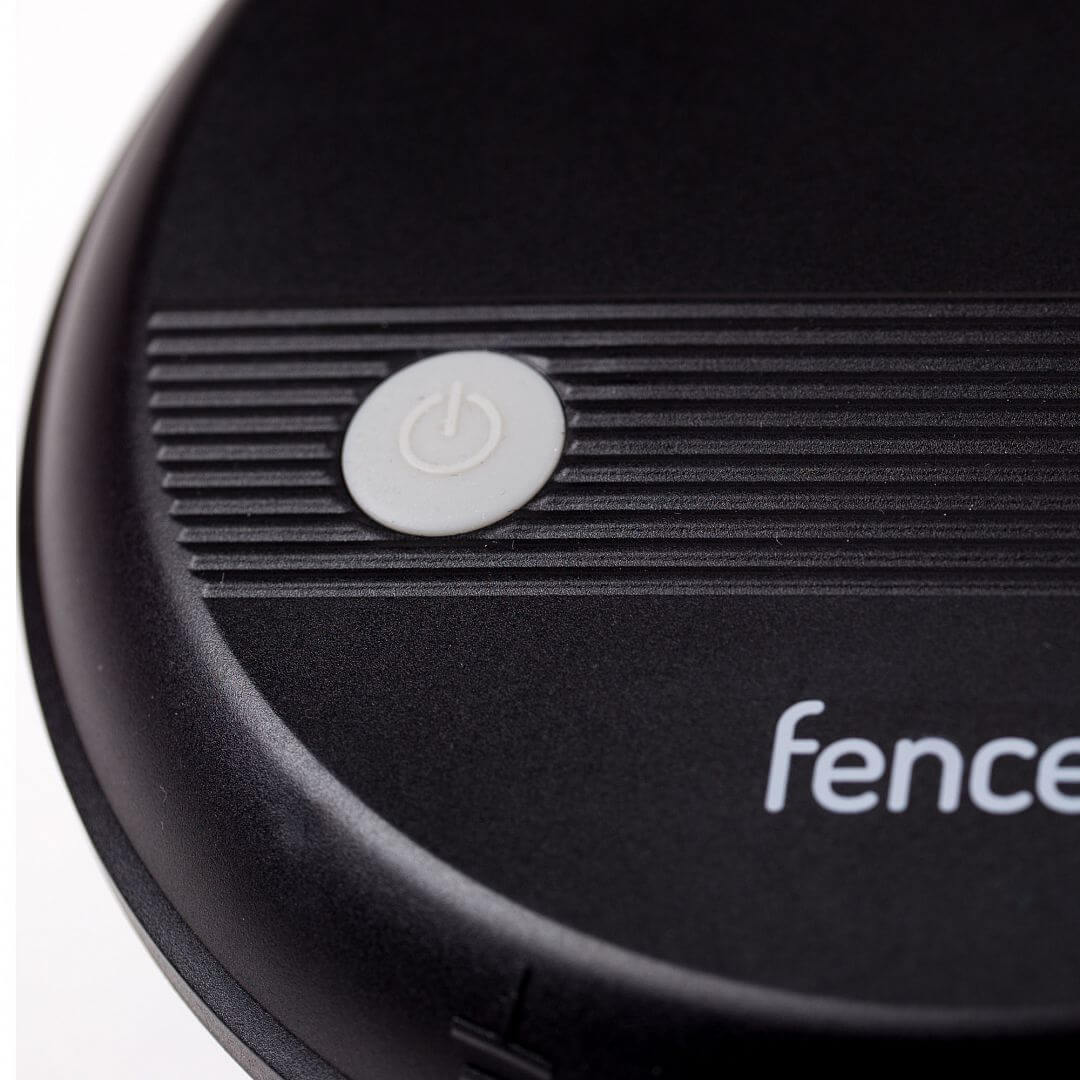

The compact and modern design of the fencee generator with a switch and the latest microprocessor technology inside offers a practical solution to keep the fence under control.The generators have the ability to reduce the output energy to 50%. LED lights and BARGRAF on the front of the generator show the operation of the power supply, measure the voltage on the fence and also indicate any faults on the fencee.
Universally usable for short, medium and long fences up to 23 km, for more and less sensitive animals such as horses, cattle, sheep, goats, poultry. It can also serve as protection against forest animals. For fencing enclosures for other animals, choose from the electric fence sources according to the animal.

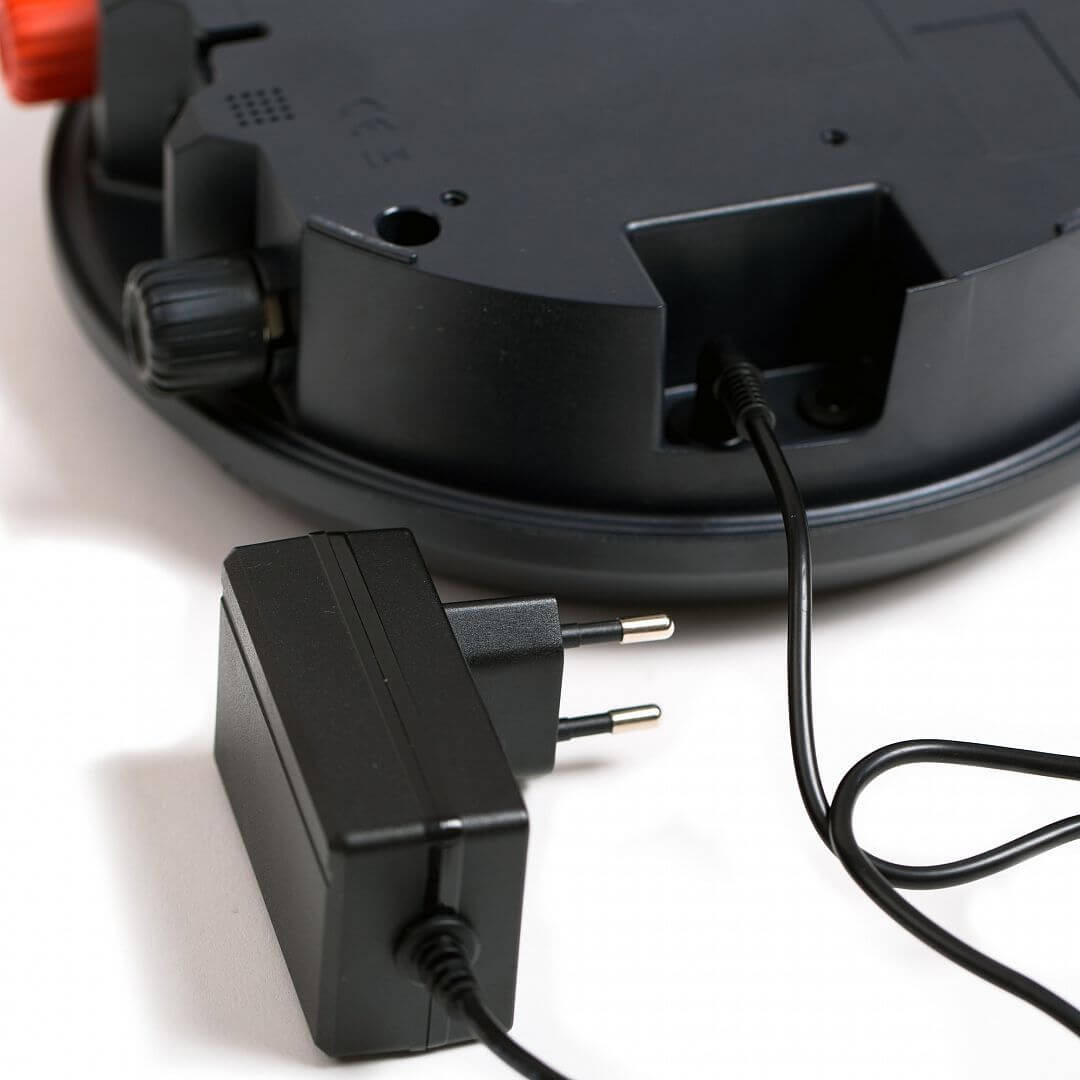

The power supply of the generator is combined, i.e. using an adapter from the mains (230 V) or from a regular battery (12 V). The battery (12 V) can be used in places where there is no electricity or as a backup source.
The remote control of the generator (not included in this package) is usable over a distance of up to 10 km in normal terrain and built-up areas. In difficult terrain, e.g. hilly terrain, the range is reduced, whereas in open areas it can be even

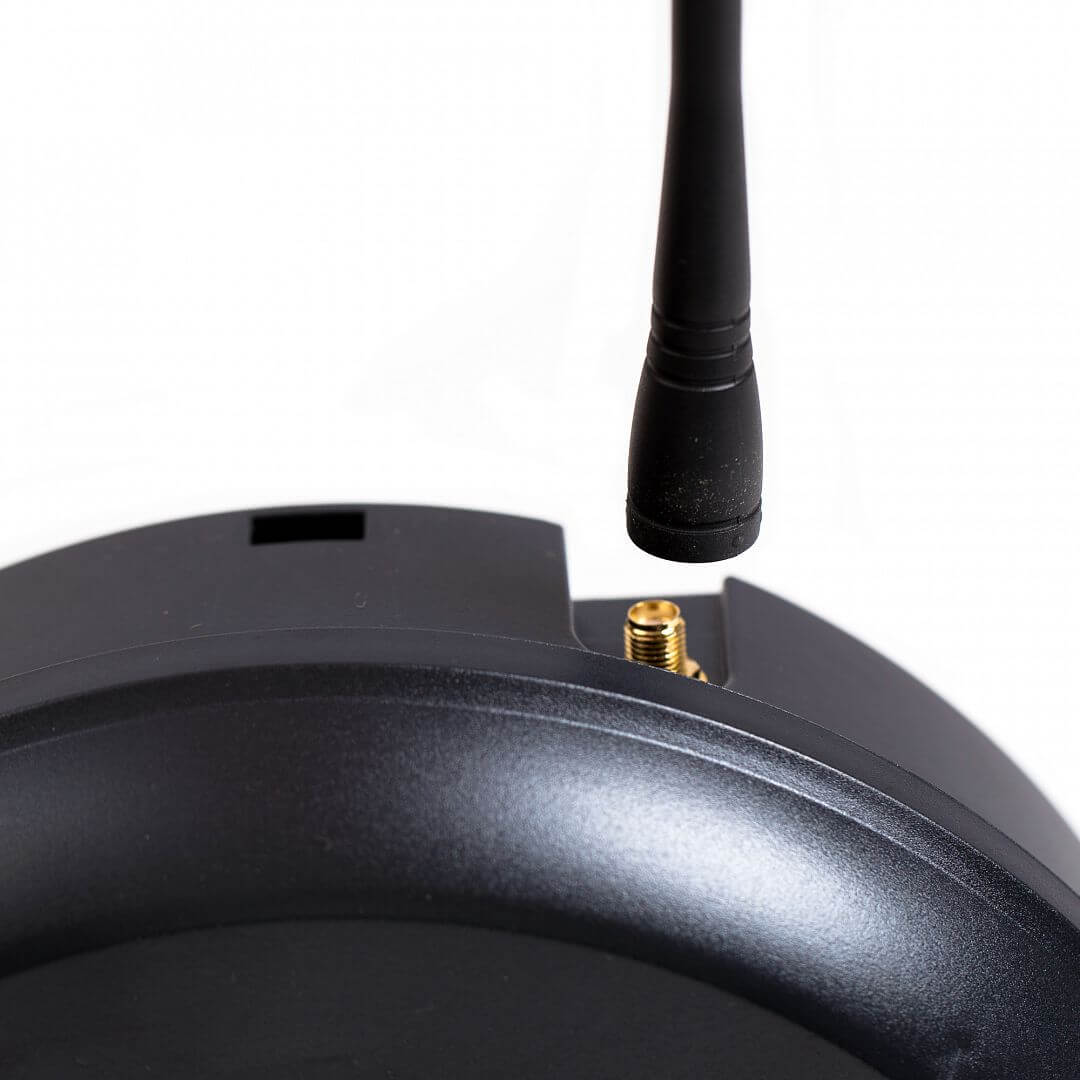

To improve the signal transmission between the generator and the controller, an external antenna can be used to increase the range up to 30 km.
- Up to six different generators can be controlledwith one remote control .
- One generator can be controlled by up to three controllers.

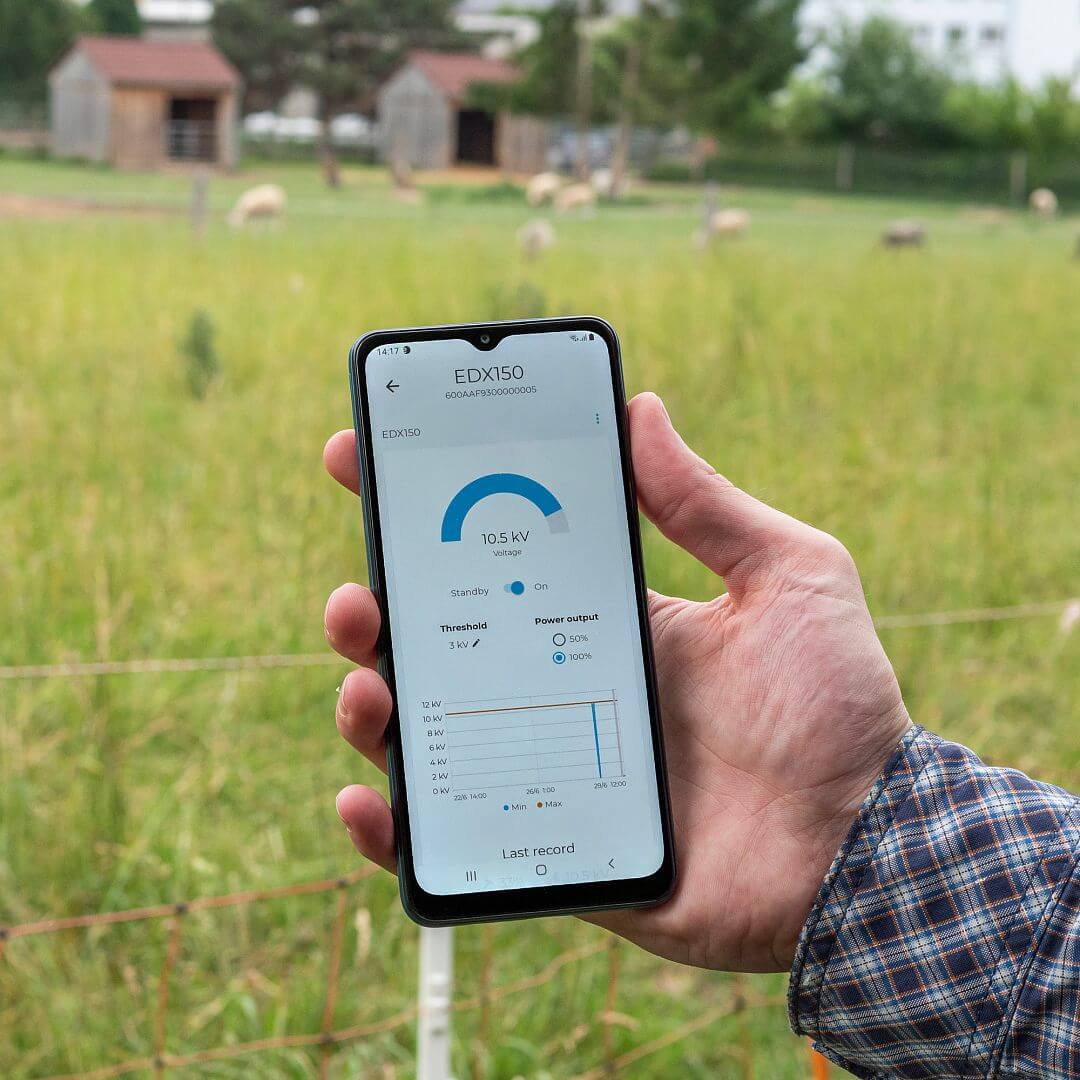

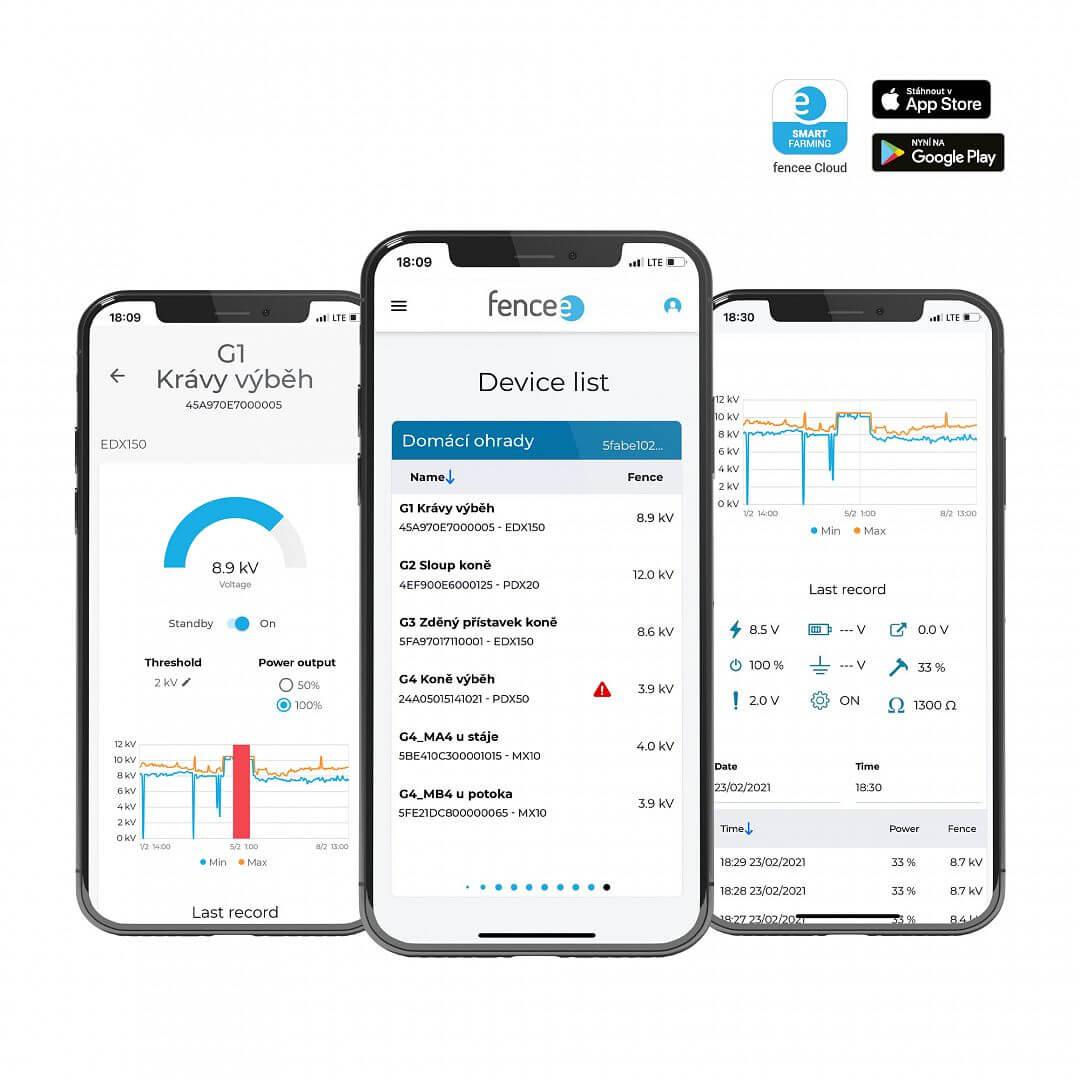

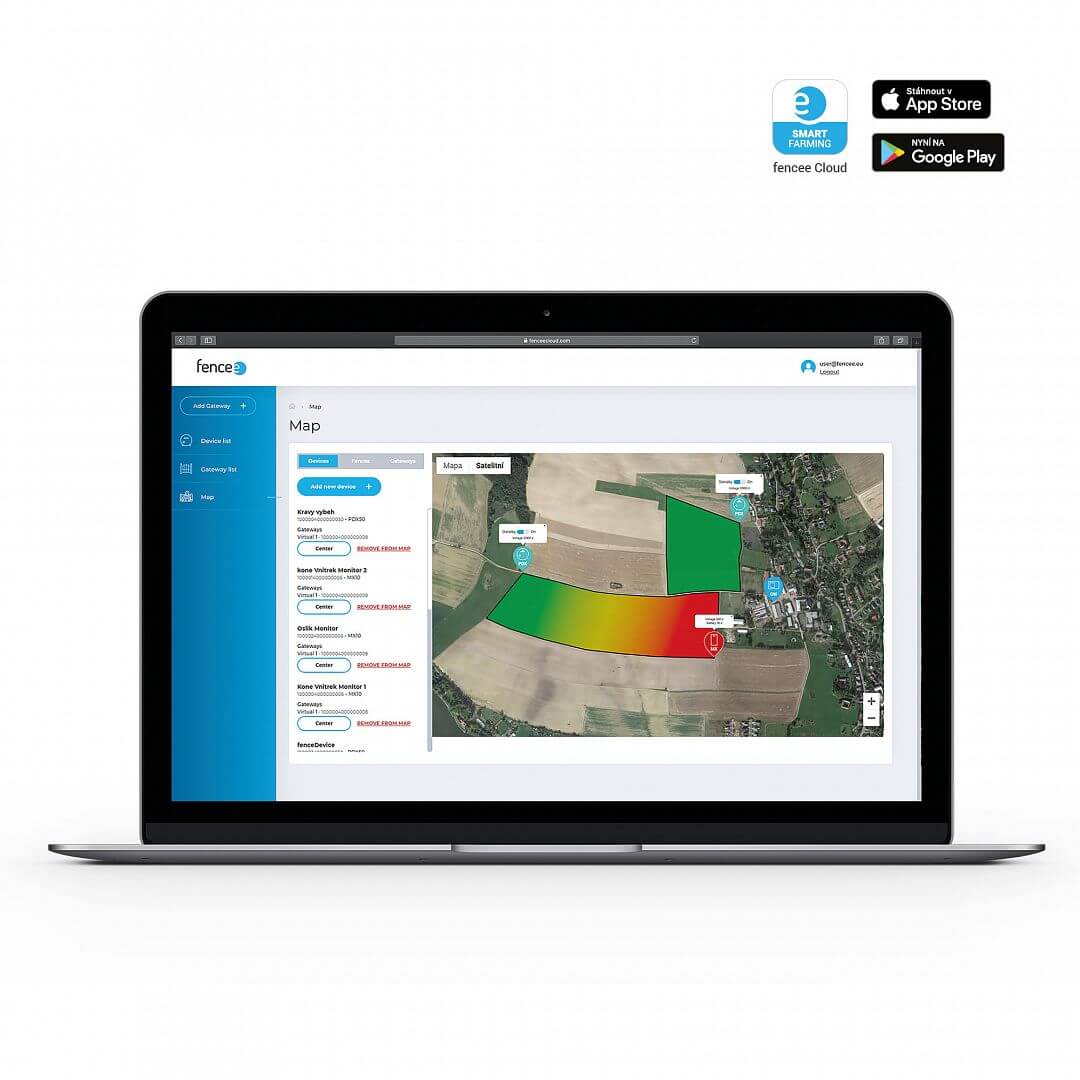

The generators can be controlled remotely from a mobile phone via the fencee Cloud app or from the web interface.
To connect to the Cloud, the central control device FENCE WiFi GATEWAY GW100 is required.
This means that you do not need a SIM card! No additional costs are incurred for operating the device. Once connected to the fencee Cloud, you can control the generators from virtually anywhere in the world where there is internet coverage.

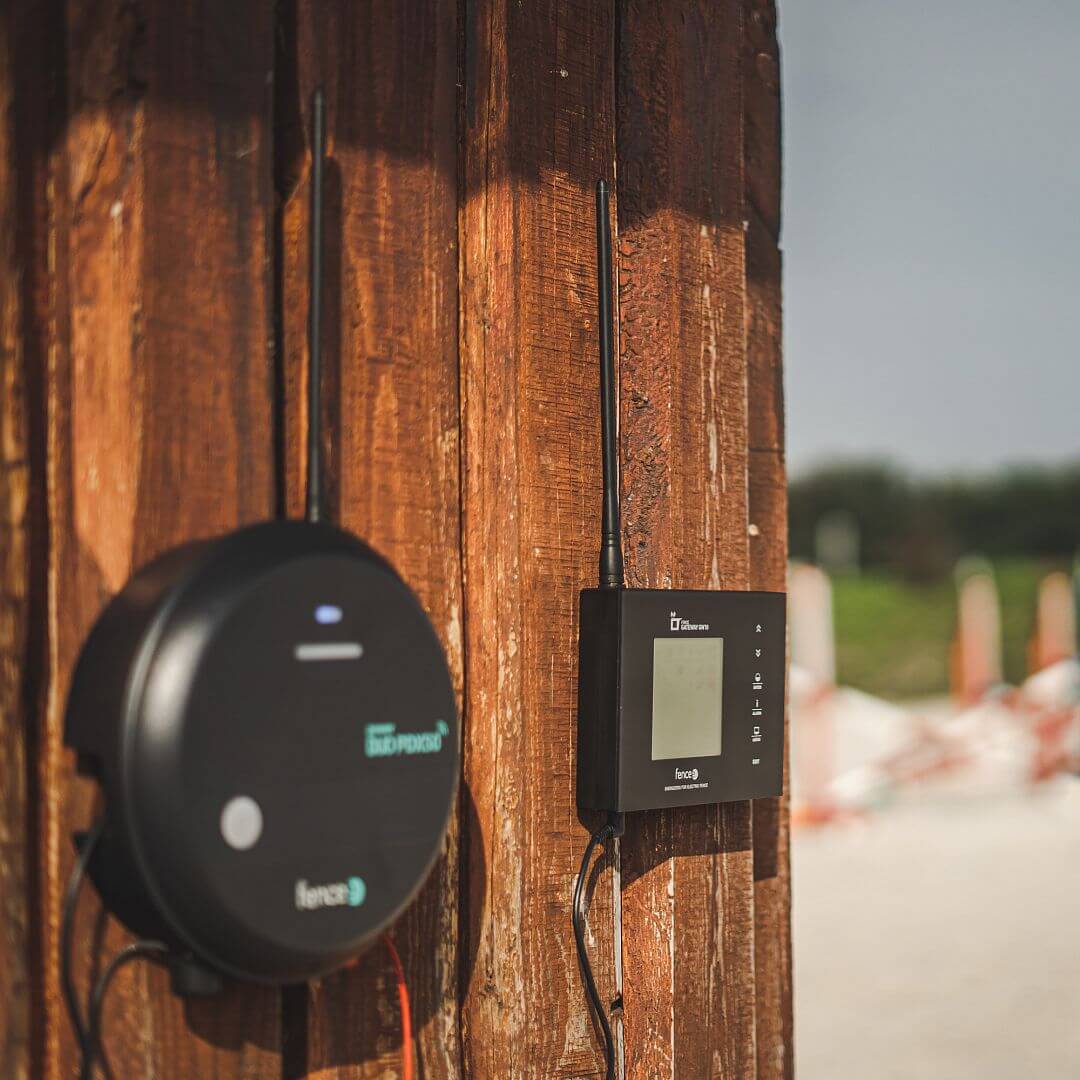

You can use the generators anywhere in the paddock. If you have a problem in the paddock, you don't have to go anywhere. Just use the remote control (not included) or your mobile phone if you control it via the mobile app. You can conveniently switch off the device, fix the fault and switch it on again. Even controlling very remote paddocks is no problem. You will see that immediately on the remote control or in the app:
- the voltage on the fence has fallen below the set value, e.g. the power line has broken, a branch has fallen on the wires or there is high grass,
- the battery voltage has dropped below 12 V,
- the signal has been lost, e.g. by disconnecting the generator, damaging the antenna or for other reasons.
Package contents:
- fencee generator
- Power adapter fencee DUO 14 V 1.5 m
- 150 cm ground cable (eye-to-eye)
- connection cable 100 cm (eyelet-heart)
- fencee DUO battery cable 1.7 m
- fencee warning plate
- base antenna to the generator
- operating instructions
- THE PACKAGE DOES NOT INCLUDE THE REMOTE CONTROL!
Together with the generator we recommend to purchase a DIN rail 200 mm for easy mounting of the fence.
Power source | 12 V / 230 |
Energizer consumption 230 V | 80 - 260 mA |
Output energy | 3 J |
Input energy | 4,5 J |
Output voltage | 11200 V |
Output voltage 500 Ω | 6400 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
External antenna SMA connector | |
Remote control | |
Data encoding | |
Controller batteries | 1x CR2 |
Transmission frequency | 869,525 MHz |
Transmitting power | +22 dBm |
TEOR. max. CEE | 100 km |
Low vegetation | 23 km |
Medium vegetation | 5 km |
High vegetation | 2 km |
Earthing 1 m | 2x |
El. fence nets | 6x |
DIN rail | |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1558 g |
