Product´s description Set of electric fence with net - preventive protection against wolf - DUO energizer 5 J + wolf net 50 m
Standby electric fence set with net for sheep and goats. The electric net also serves as protection for the herd against wolf and dog attacks. With the help of the net you can easily and quickly define a safe area for keeping your animals or prevent them from entering selected unwanted areas. The electric fence net for sheep and goats is a very simple and mobile solution. It can be installed up to 50 metres in circumference and 90 cm high.
Fencing sheep with dense wool, which insulates very well, requires a energizer with adequate power. The fencee power DUO PD50 combination energizer supplied in the set, with a pulse force of 5 J, is universally applicable for medium to long fences with installation lengths of up to 30 km. The combined energizer can be powered via an adapter from a 230 V socket or from a standard 12 V battery. This can also be used as a back-up power supply in case of power failure.
Energizer with modern waterproof construction. With a bargraph and LED lights on the front of the energizer to show the operation of the power supply, measure the voltage on the fence and indicate any malfunction.
The kit also includes a ground rod and all the necessary interconnecting cables to get the mobile sheep enclosure up and running in no time.
Package contents:
- fencee power DUO PD50 energizer

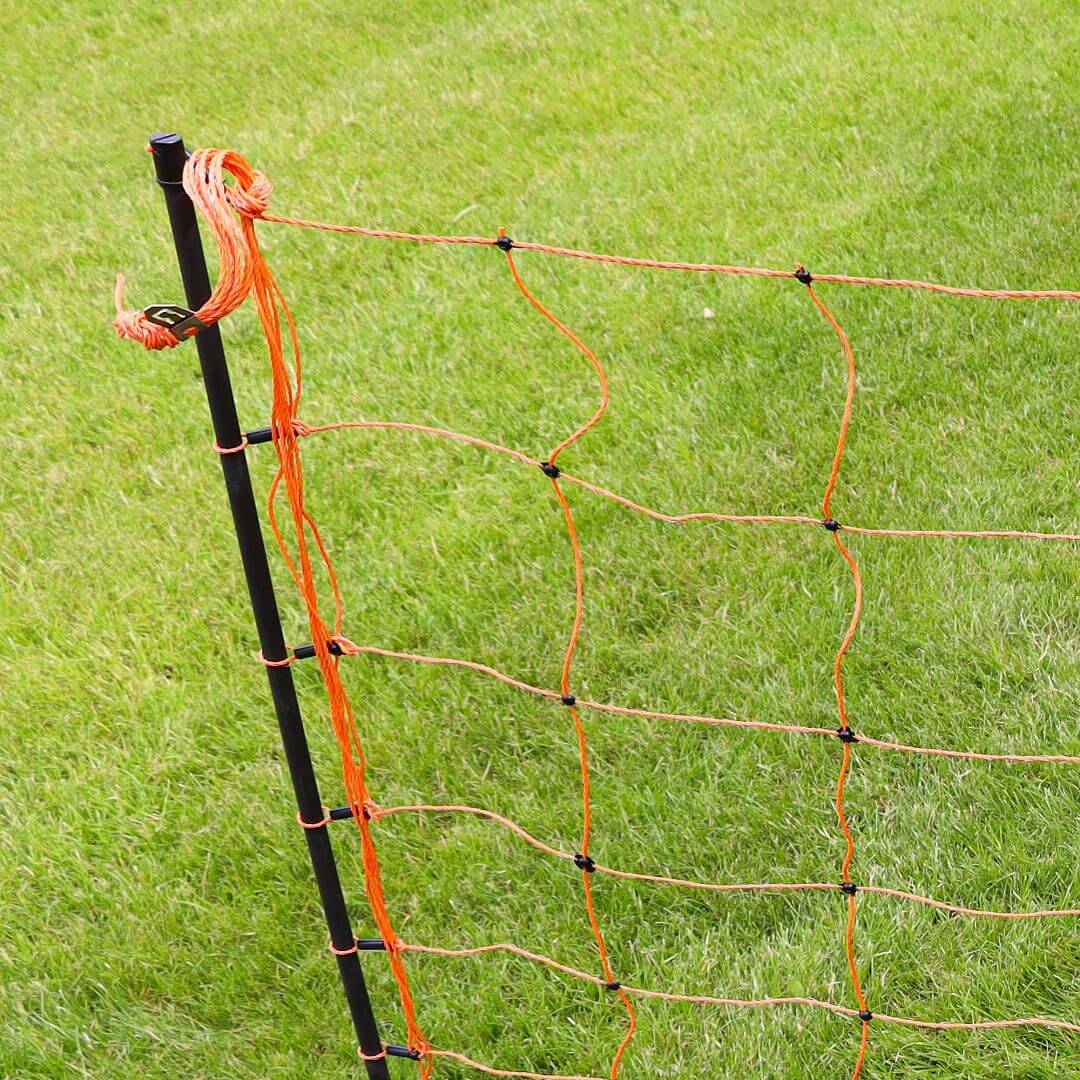

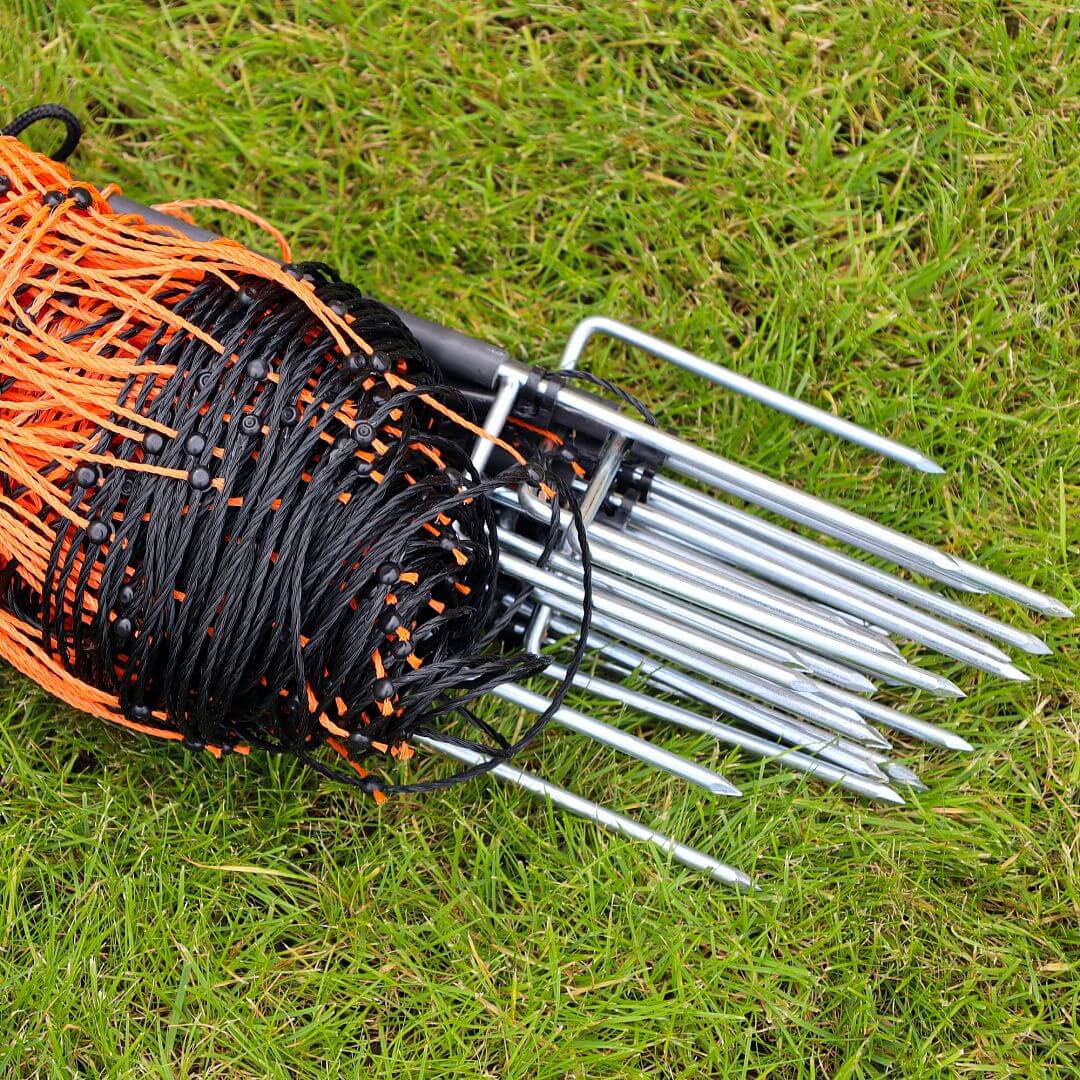

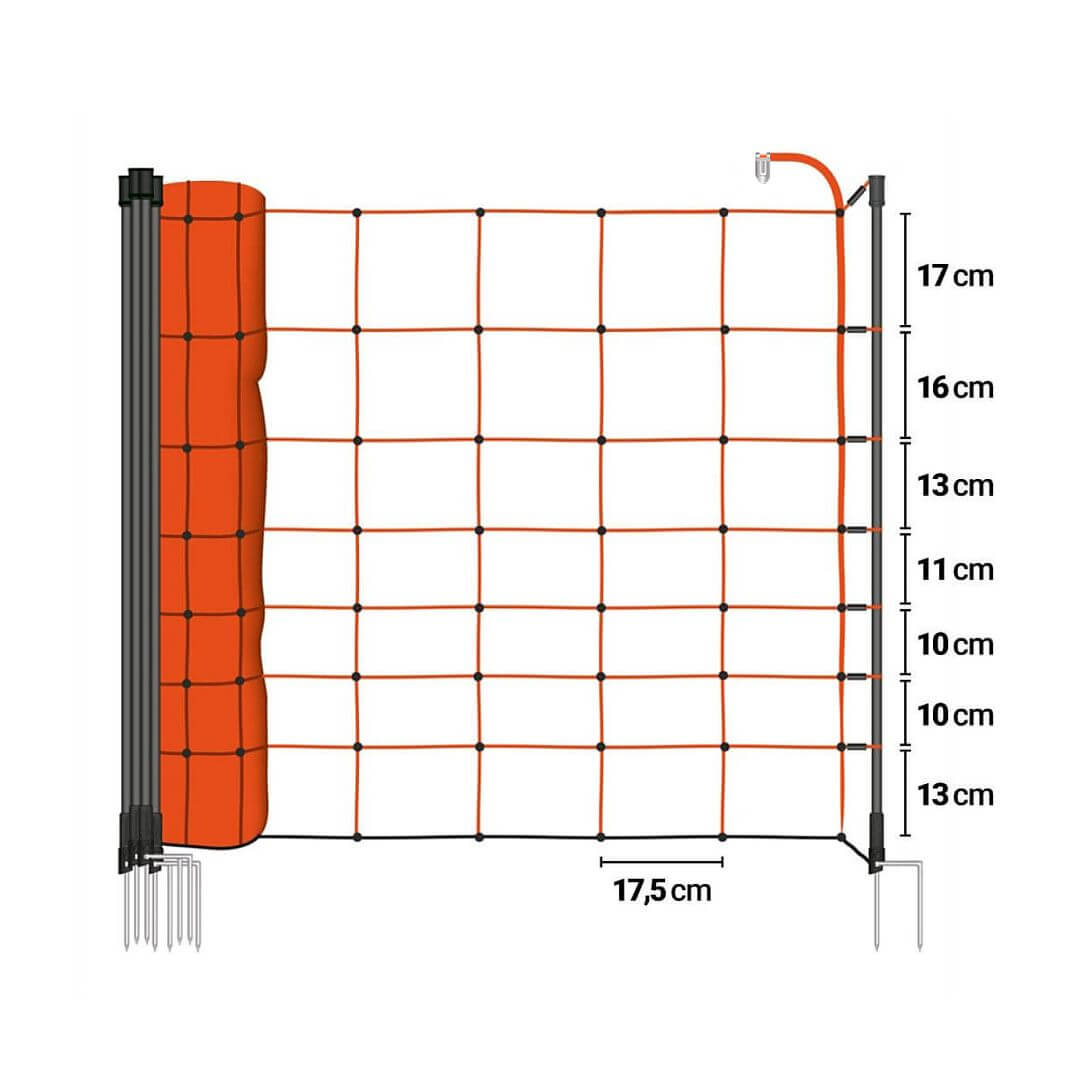

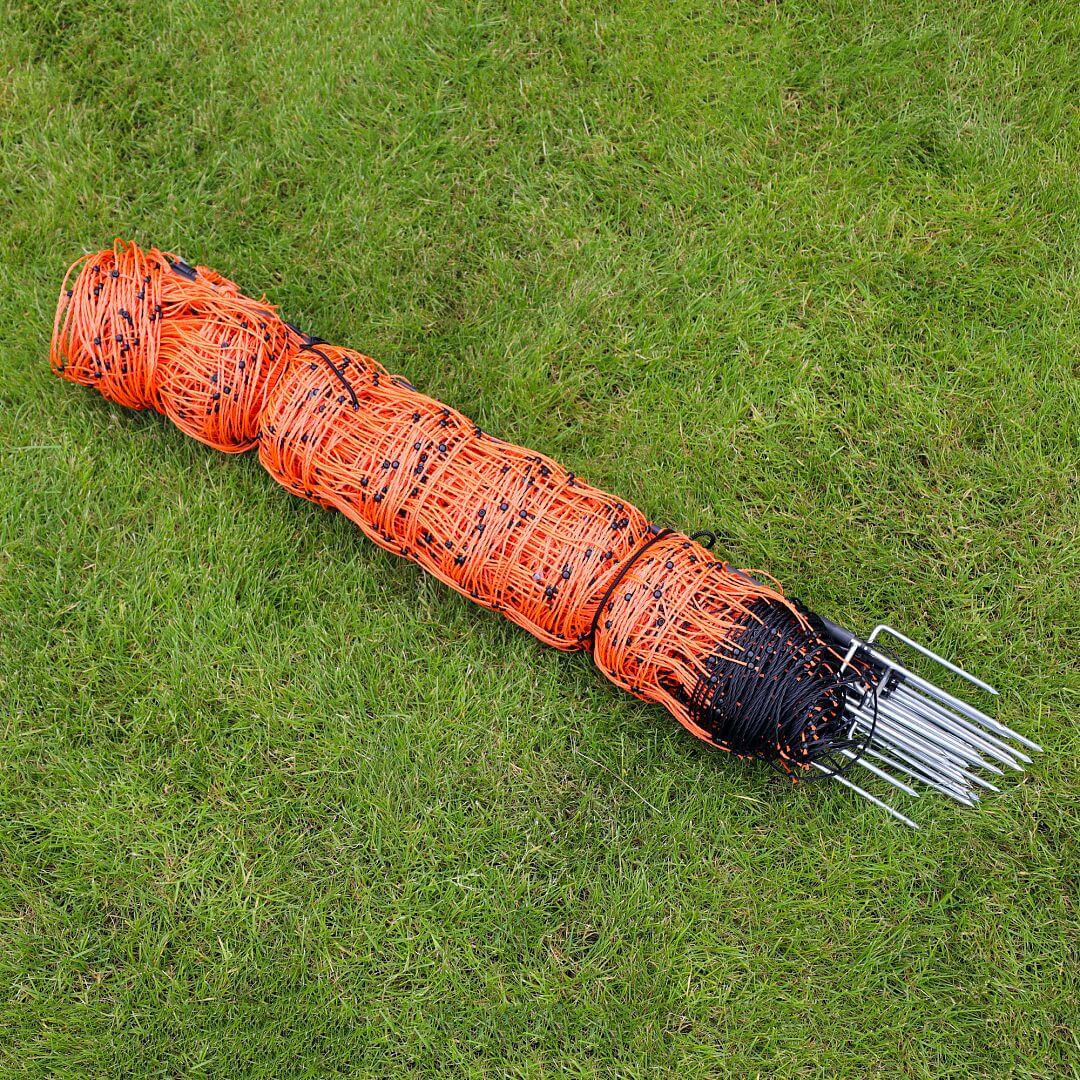

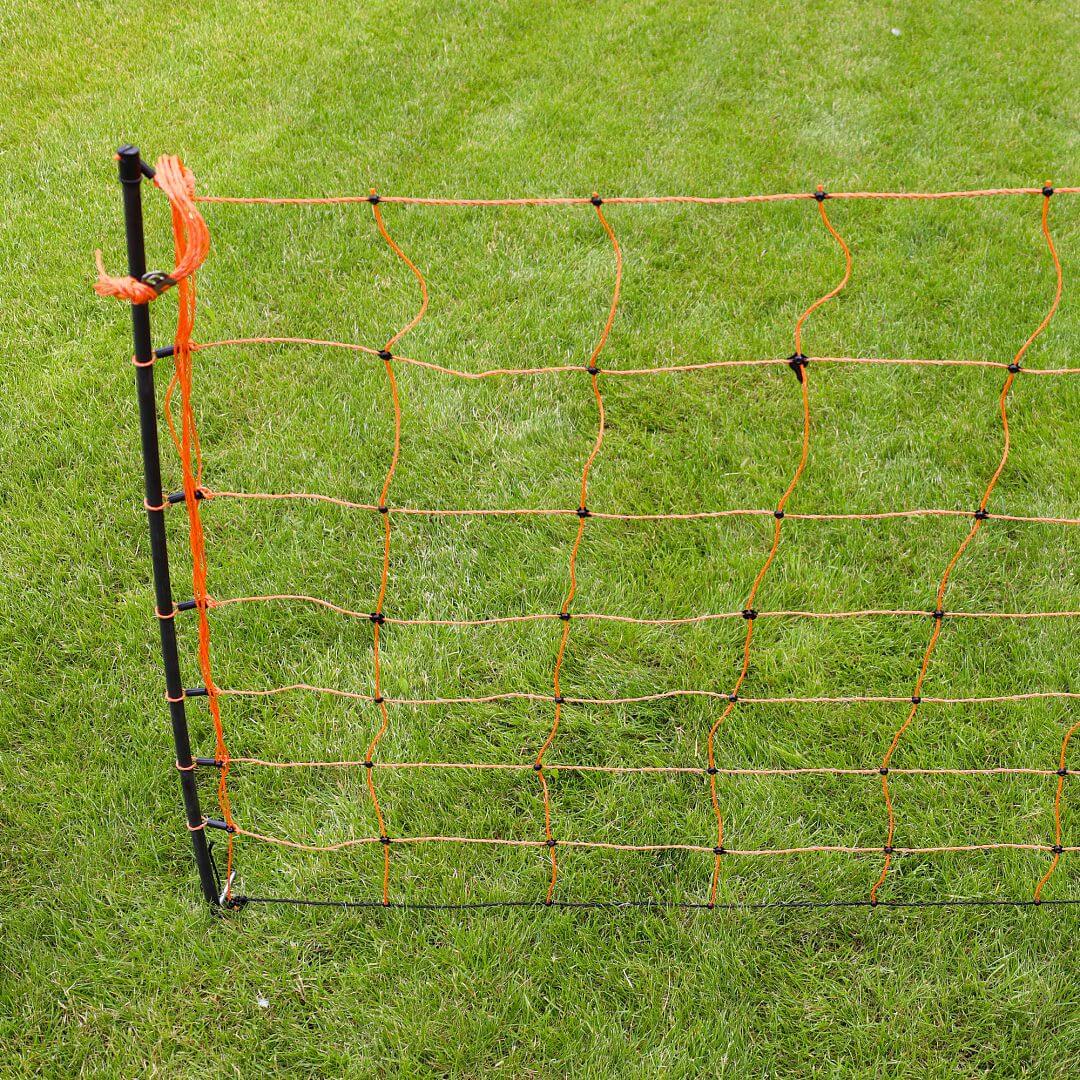

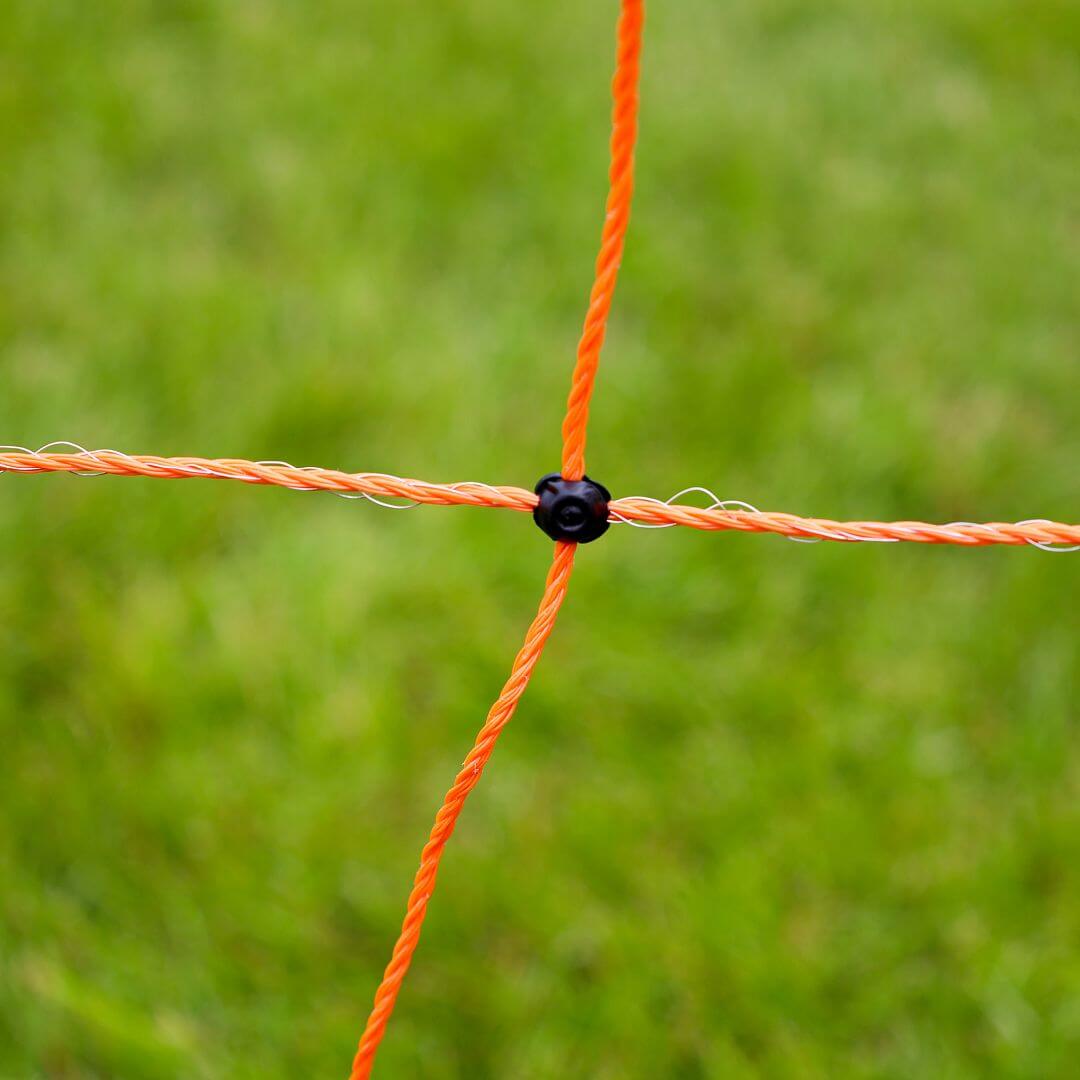

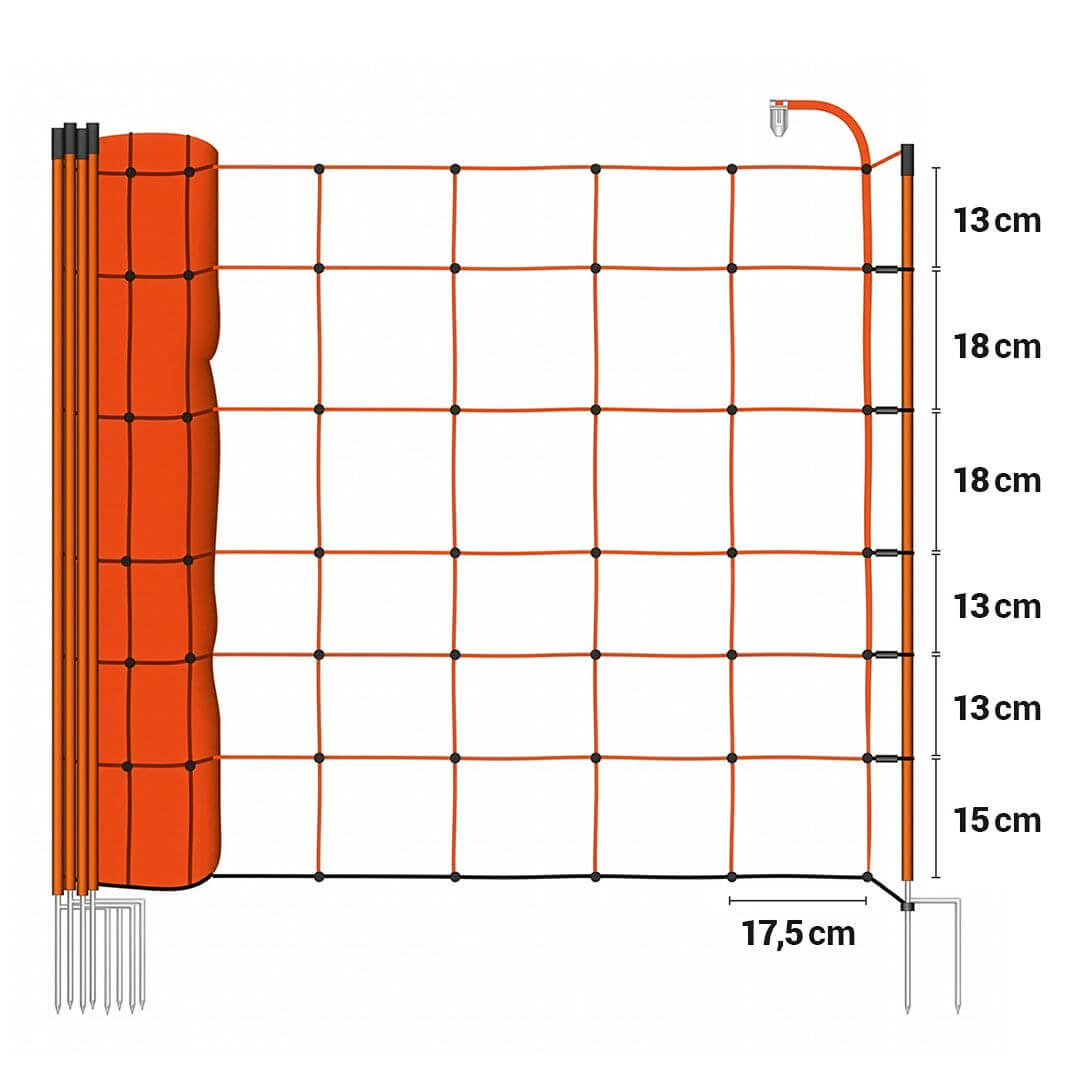

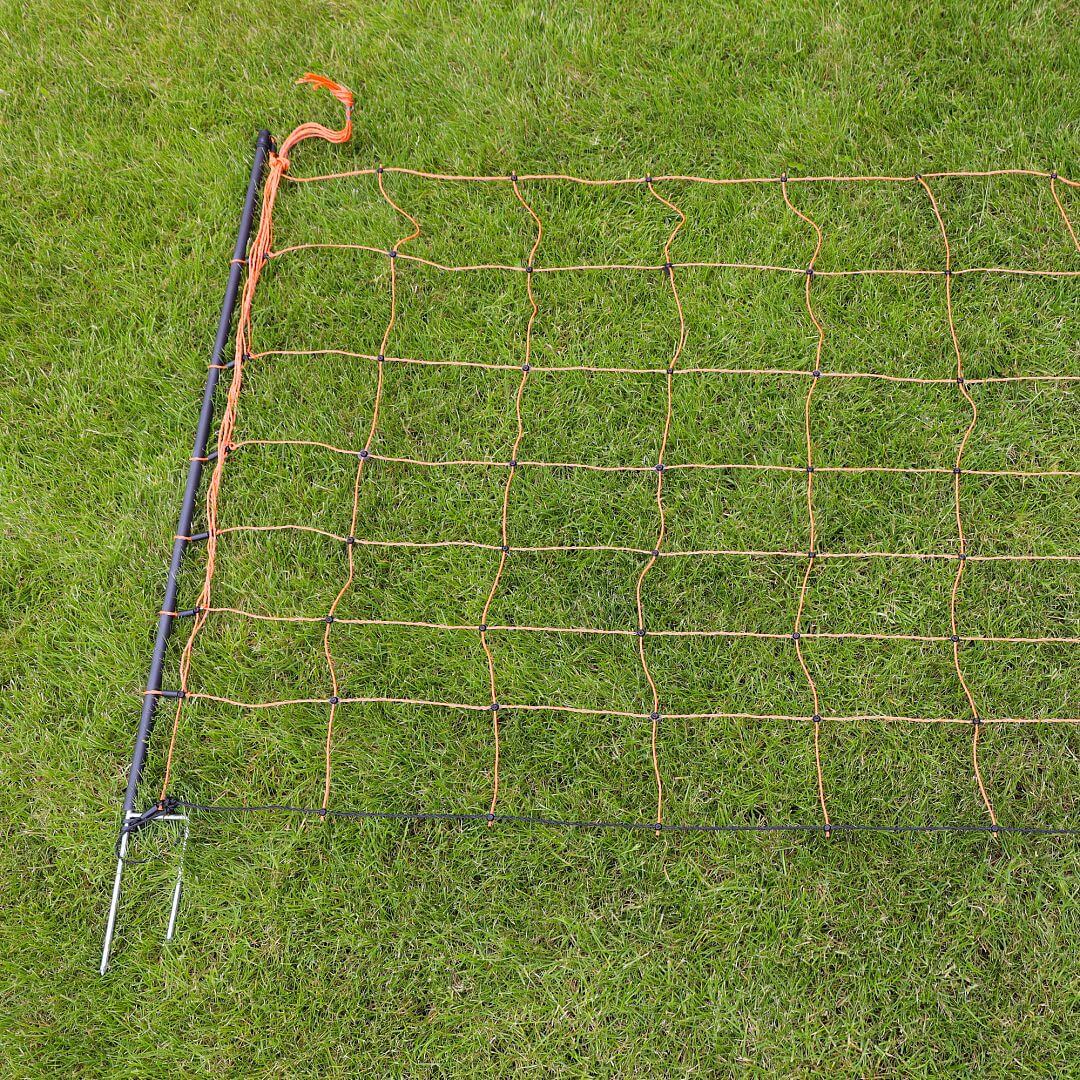

- 1× net, height 90 cm, length 50 m, 14 bars, orange
- 1× earthing rod 75 cm (galvanized)
Included in the energizer package:
- 1× power adapter fencee DUO 14 V 1A, lead length 1,5 m
- 1× earthing cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× battery cable fencee DUO 1,7 m
- 1× warning plate
- 1× operating instructions
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 100 - 420 mA |
Output energy | 5 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 6600 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
TEOR. max. CEE | 140 km |
Low vegetation | 40 km |
Medium vegetation | 10 km |
High vegetation | 4 km |
Earthing 1 m | 3 × |
El. fence nets | 8 × |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1557 g |
