Product´s description Electric fence kit protection against wolf atack - DUO RF energizer with remote controller - wolf net 50 m
The electric fence set with wolf net for sheep and goat farmers. It contains everything you need to secure your animal enclosures from attack by wolves, lynx or stray dogs.
More and more often in the Czech Republic there are cases when a hungry wolf attacks breeding animals, usually sheep. Prevent losses and protect your animals from wolf attack with this complete set with special electric wolf net.
Special anti-wolf net

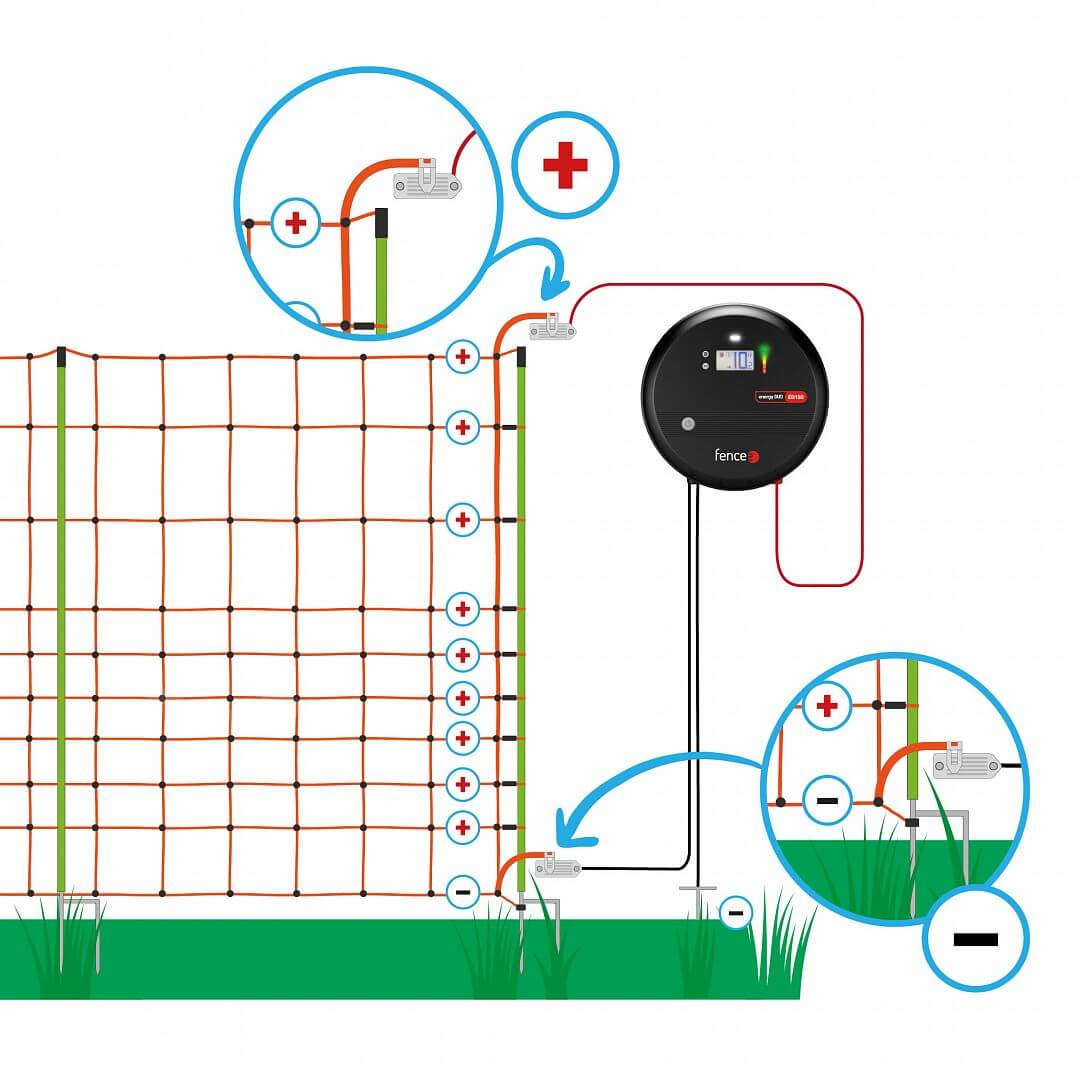

The electric net has 14 bars with two spikes for better stability. It is specially designed to protect animals from wolves, dogs. The standard length of the net is 50 m, the height of the net is 120 cm to prevent jumping. The bottom row is conductive unlike other nets and makes it difficult for wolves to burrow under the net. It can be connected to the ground clamp of the generator to increase the efficiency of the fence regardless of the conductivity of the ground. The orange colour acts as a deterrent.
Smart RF generator for mains power

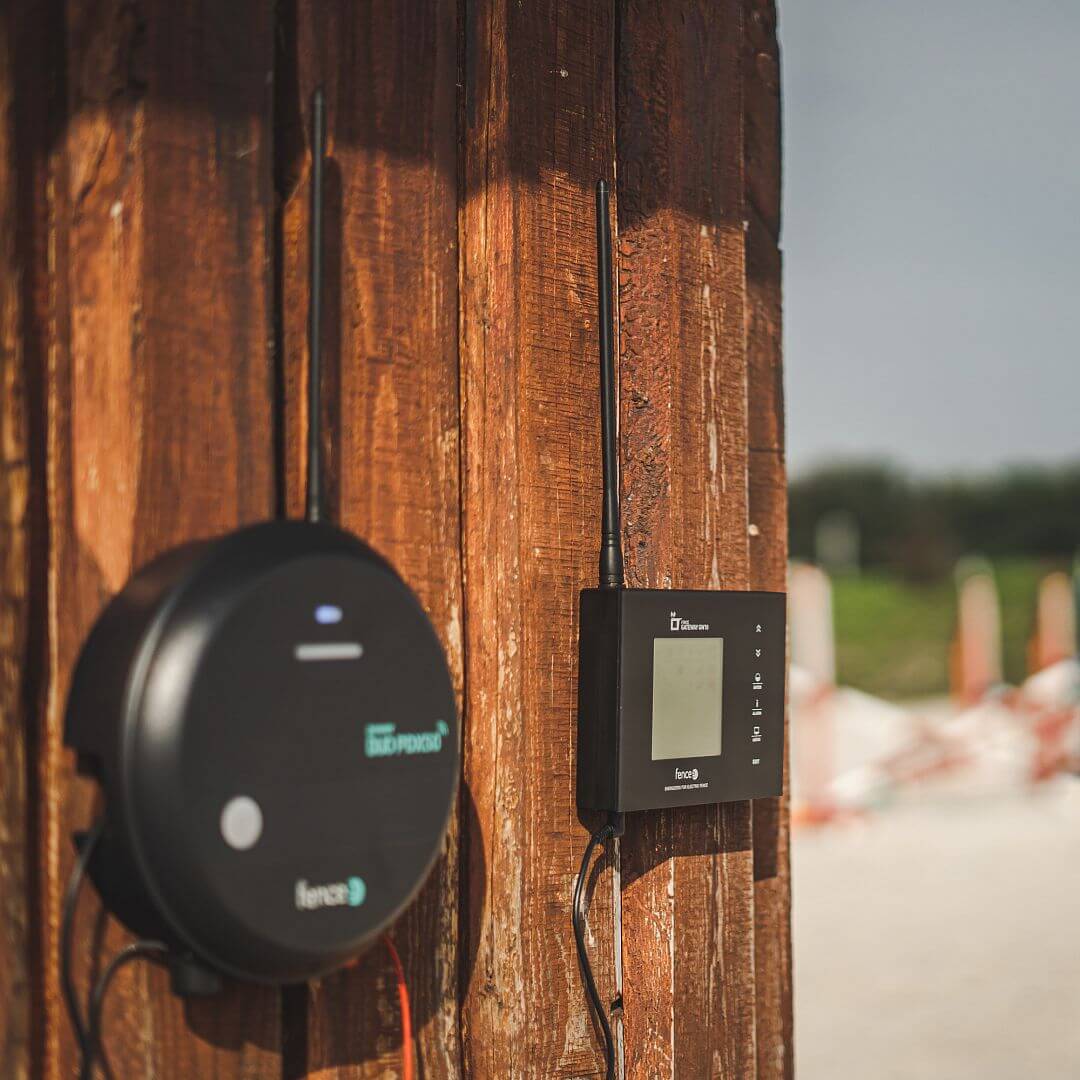

The set includes afencee power DUO RF PDX50 combination RF generator with remote control and a power output of 5 J. The power of the generator allows the connection of several mains and use on longer fences with a total installation length of up to 40 km. The combination generators can be powered via an adapter from the 230 V mains or from a standard 12 V battery. This can be used as a backup power supply in the event of a power failure. The modern high quality and waterproof design of the power supply with microprocessor technology inside, offers a reliable solution when building electric fences against wolf attack.

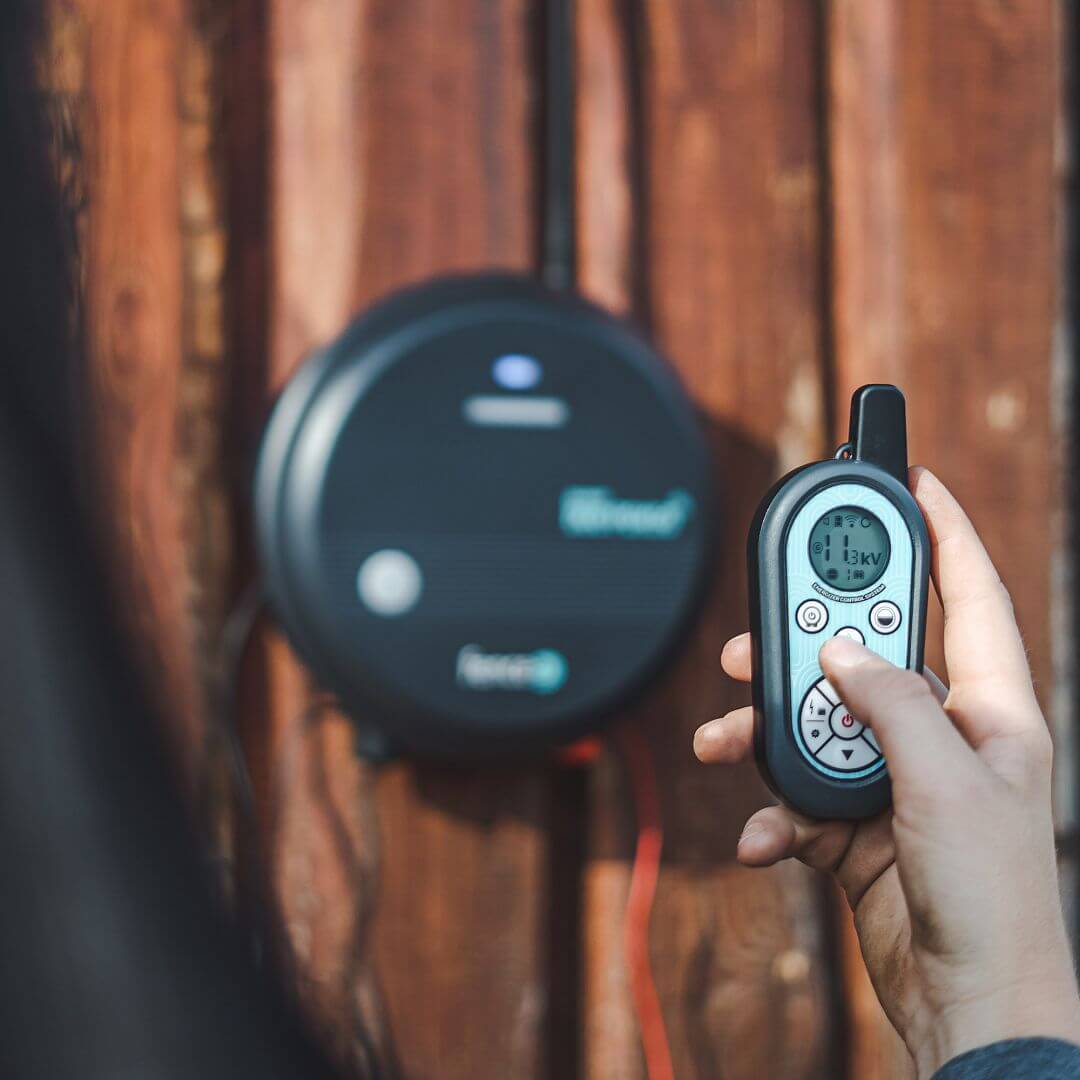

Control by remote control or telephone

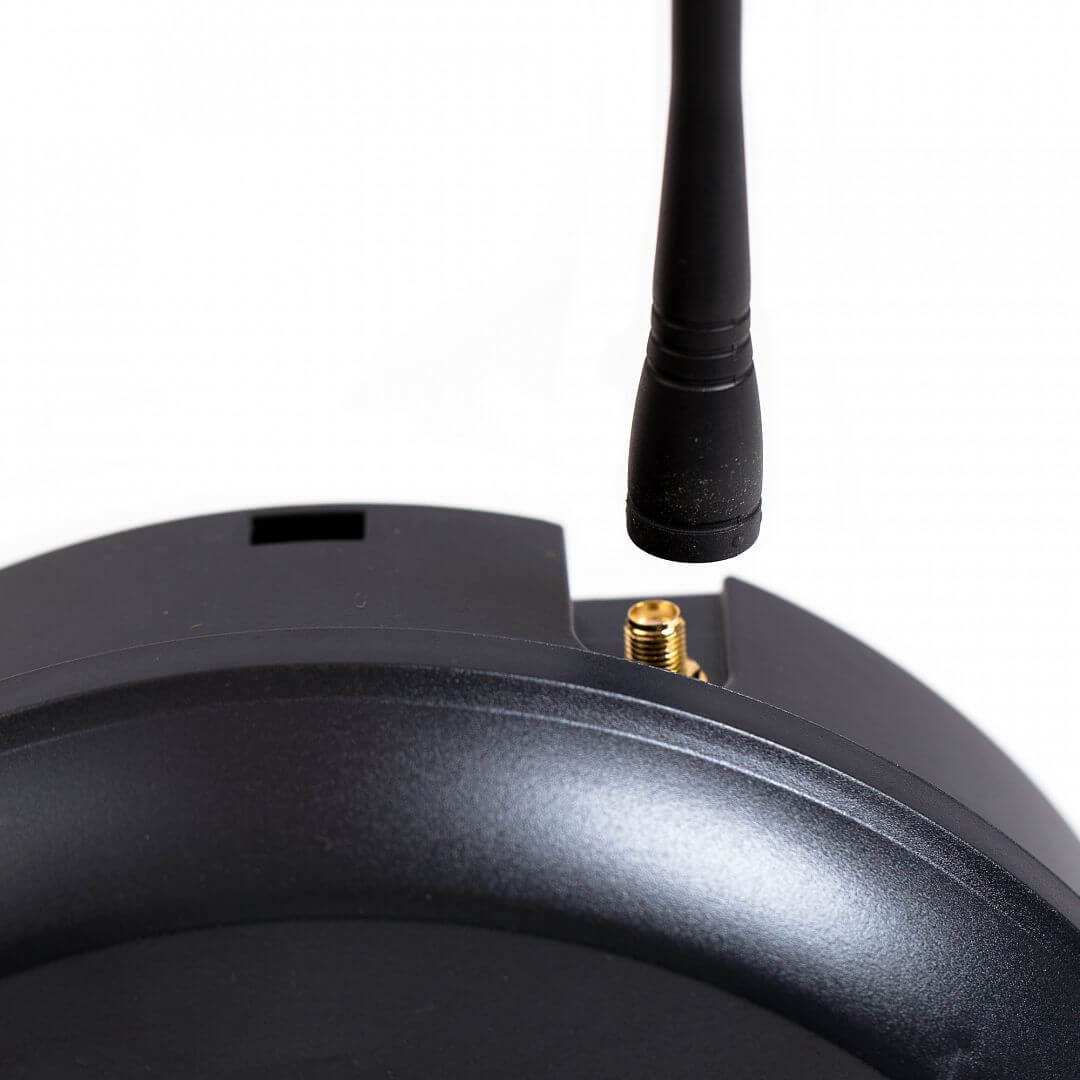

The remote control of the RF generator operates at a distance of 10 km in normal terrain and built-up areas. In difficult conditions such as hilly terrain, dense overgrown forest or draws, the range of control is reduced. In open areas, on the other hand, the range can be even longer. To increase the range of the remote control, we recommend installing an external antenna, which will increase the communication range to a distance of up to 30 km. See the article on the installation and operation of an external antenna.

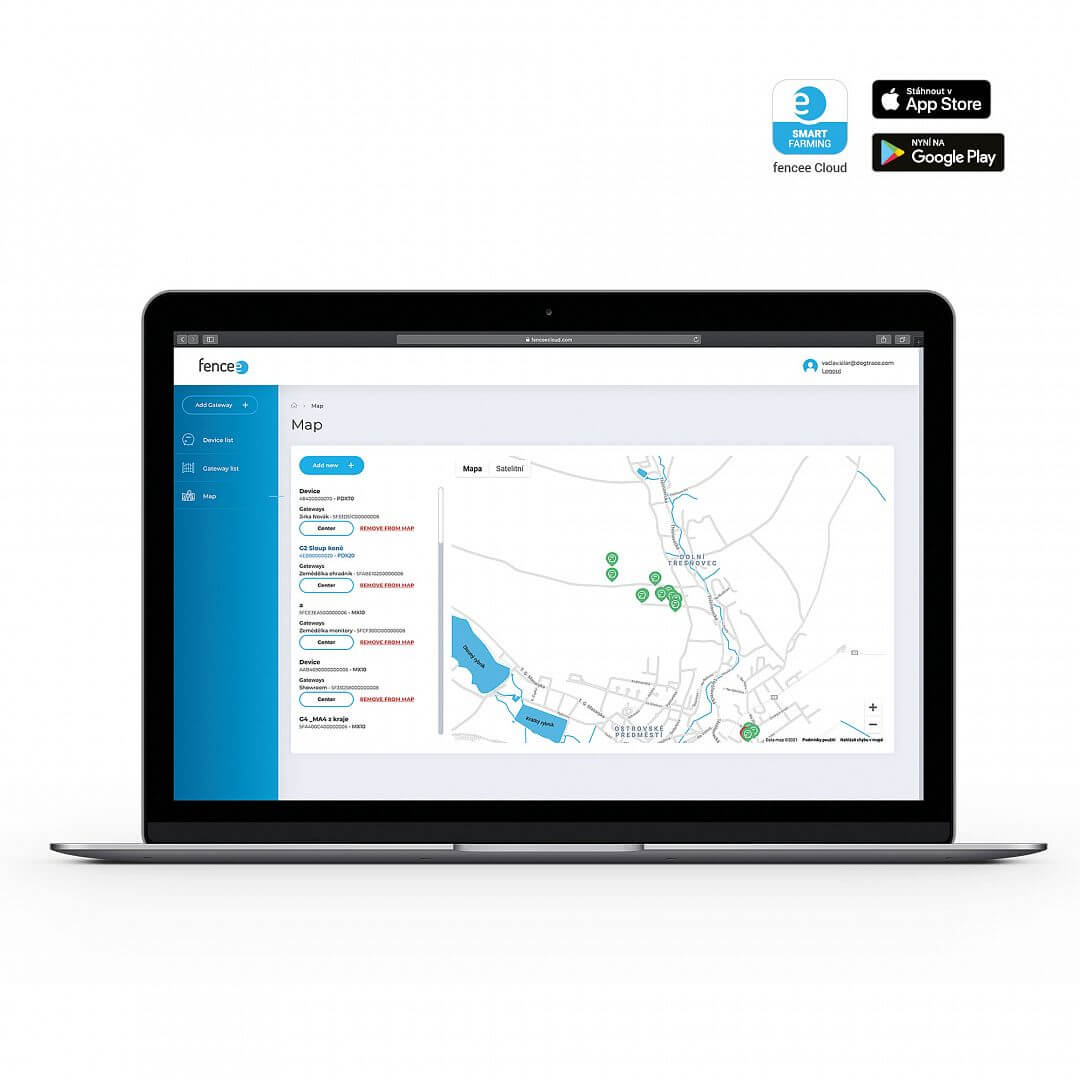

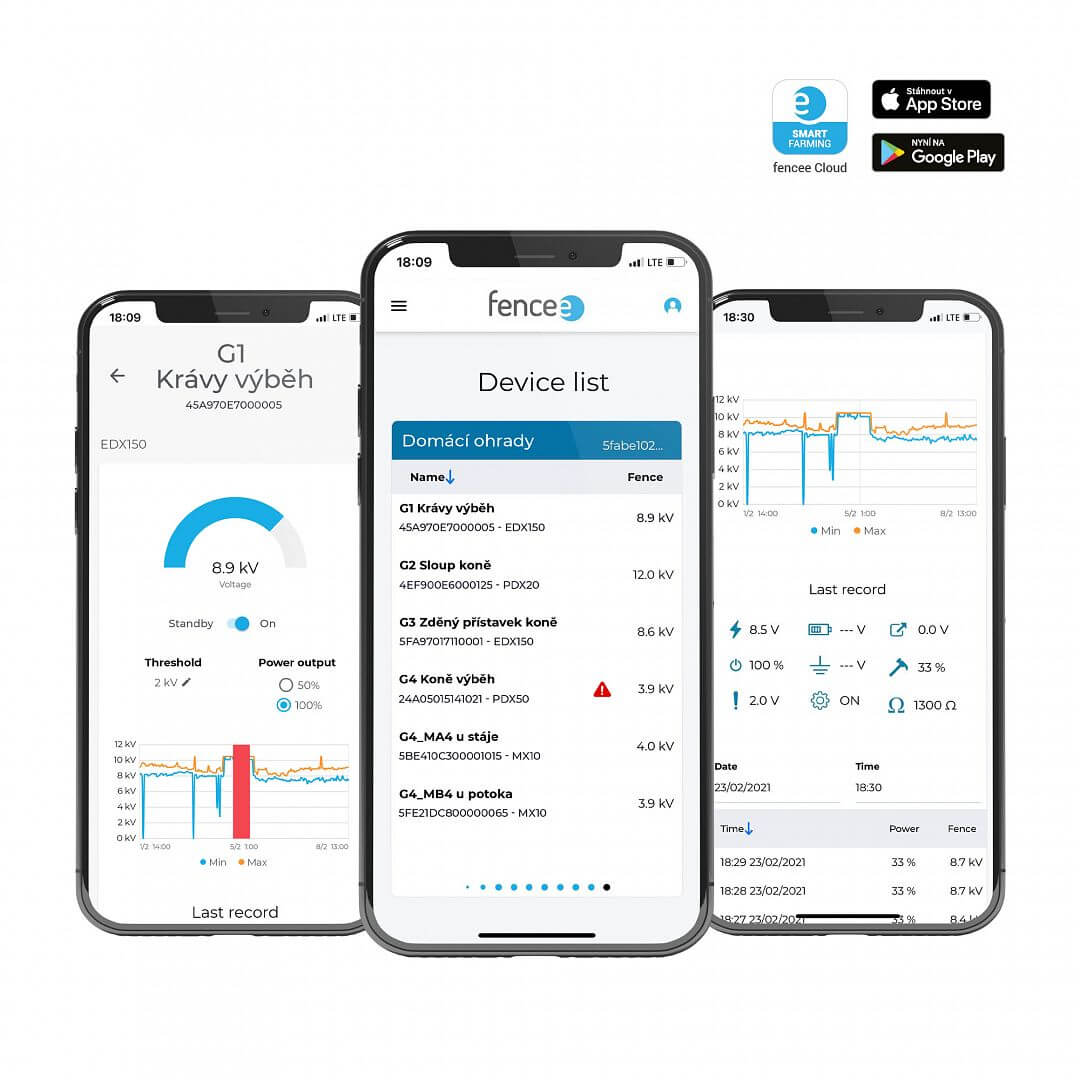

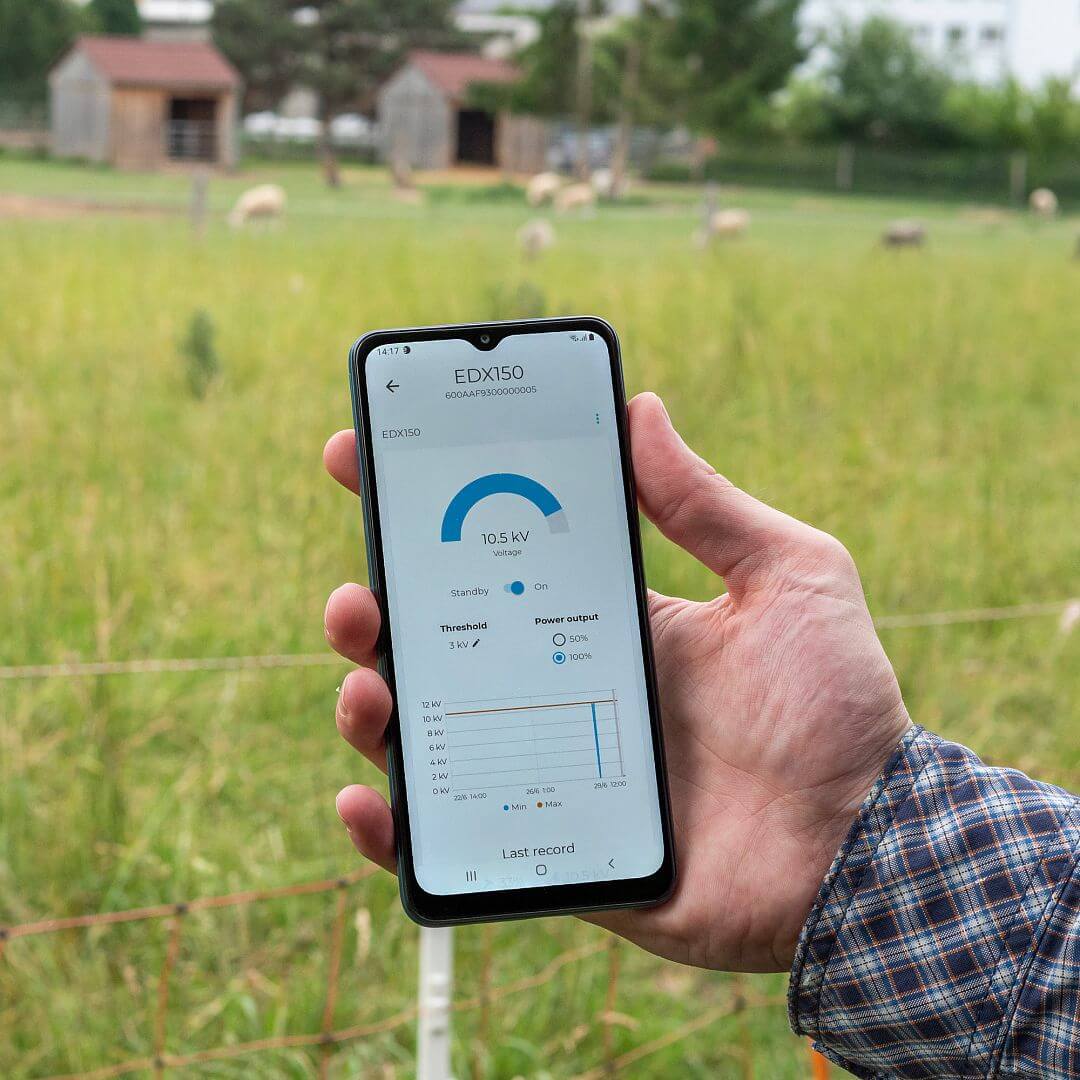

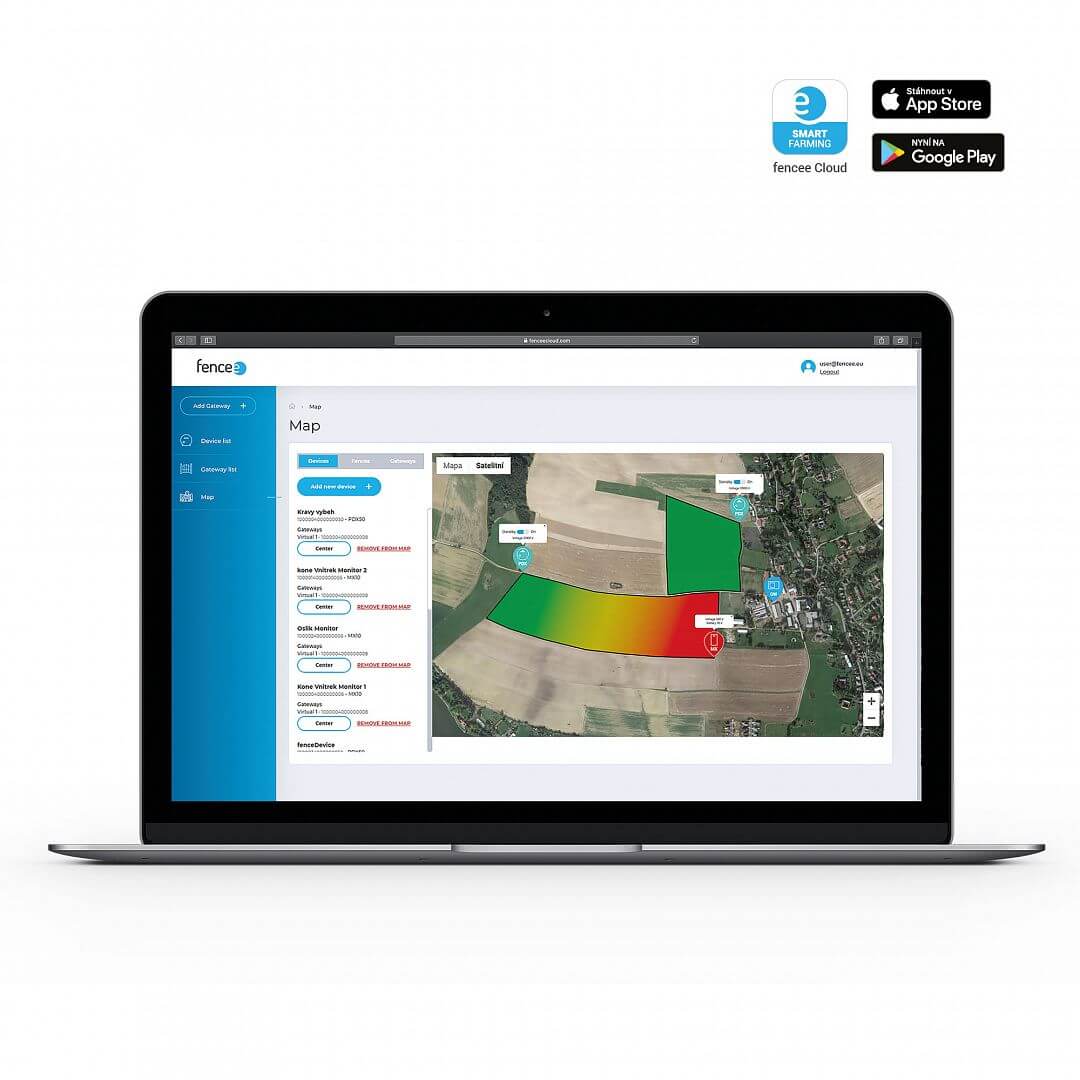

The fence can also be controlled and monitored by mobile phone via the fencee Cloud app. The app is free to download and, together with the central unit, allows you to conveniently control and monitor the fence anytime, anywhere.
Package contents:
- fencee power DUO RF PDX50 generator with remote control
- 1× wolf net, height 120 cm, length 50 m, 14 bars, orange colour

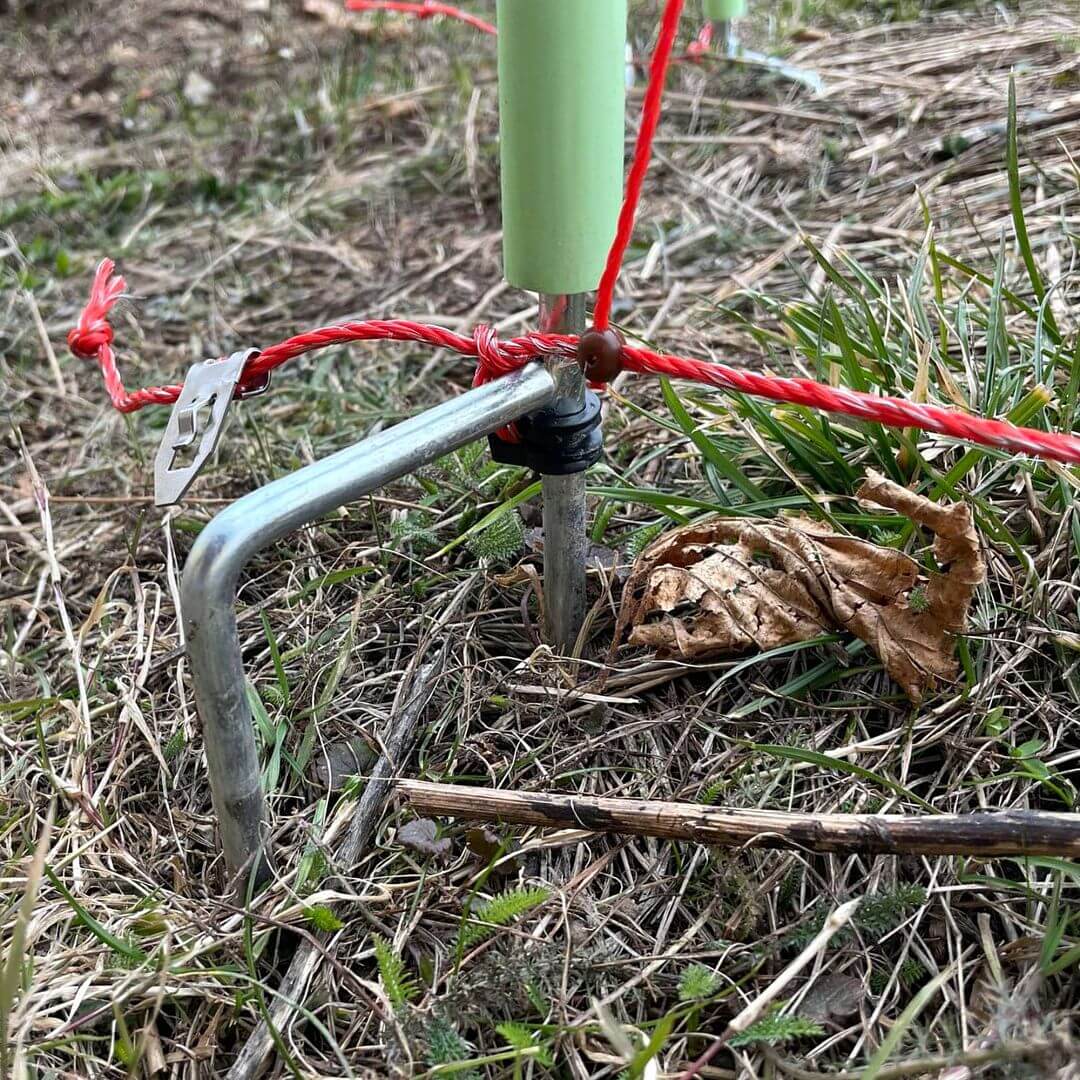

- 1× ground rod 75 cm (galvanized)

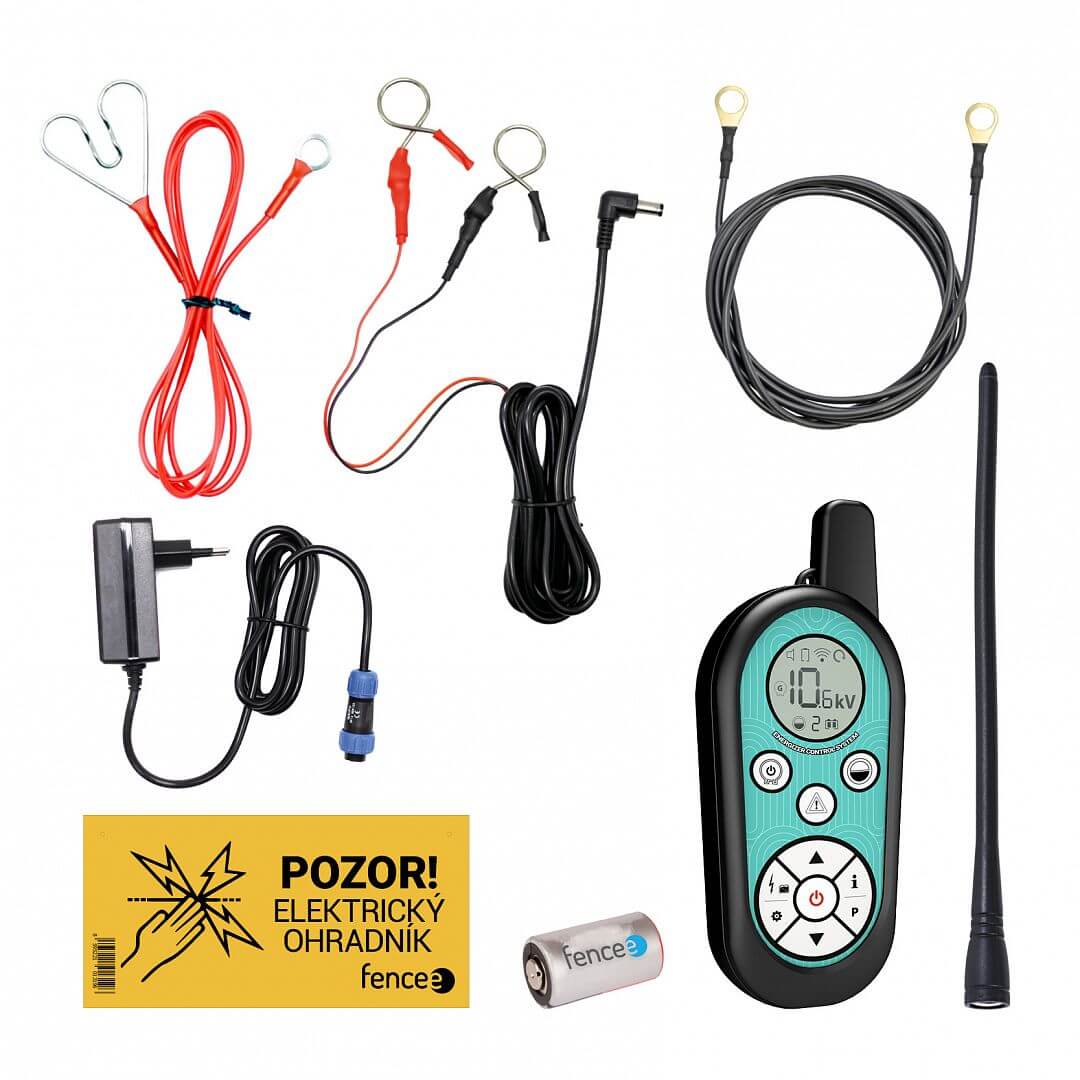

Included in the generator package:
- 1× warning sign

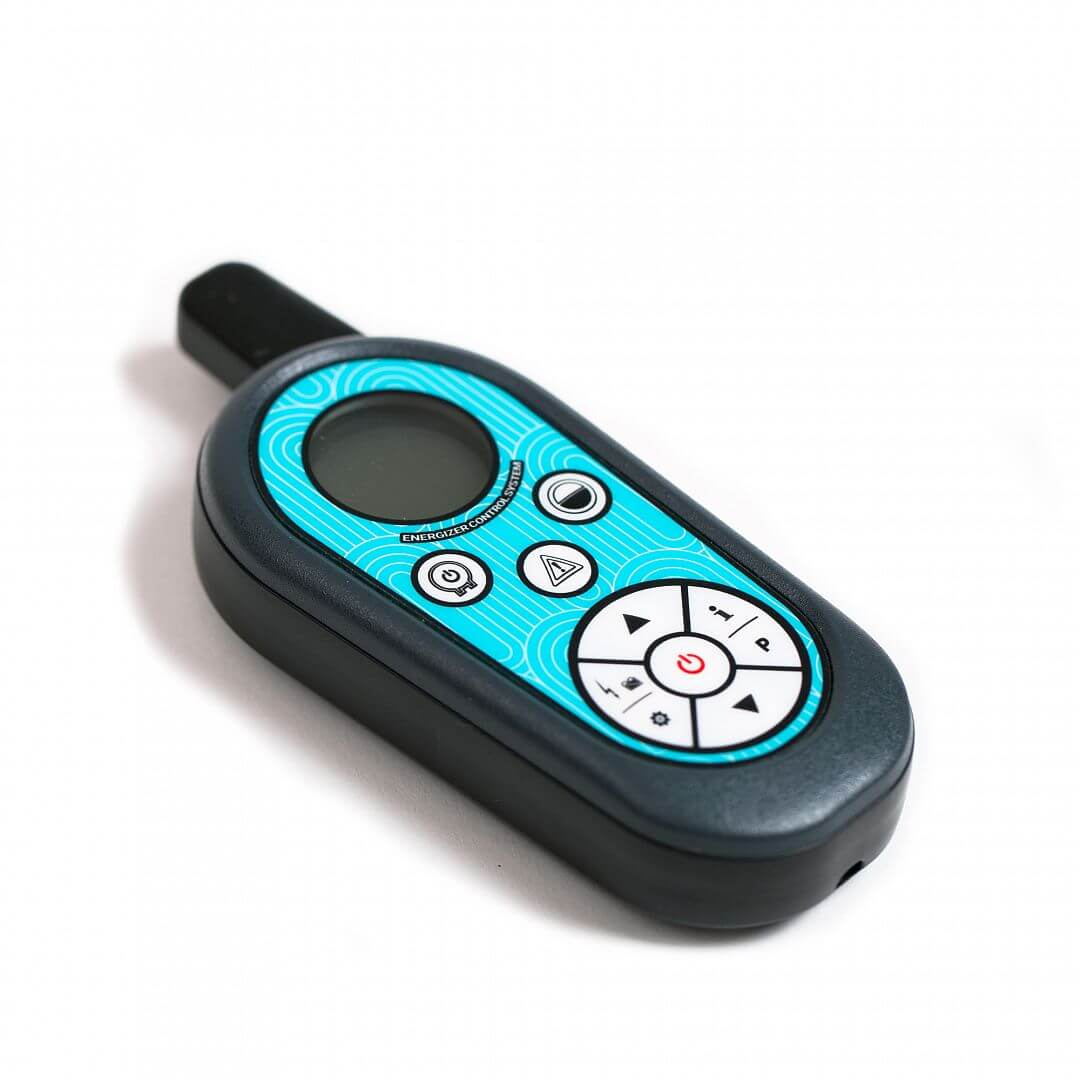

- 1× generator remote control

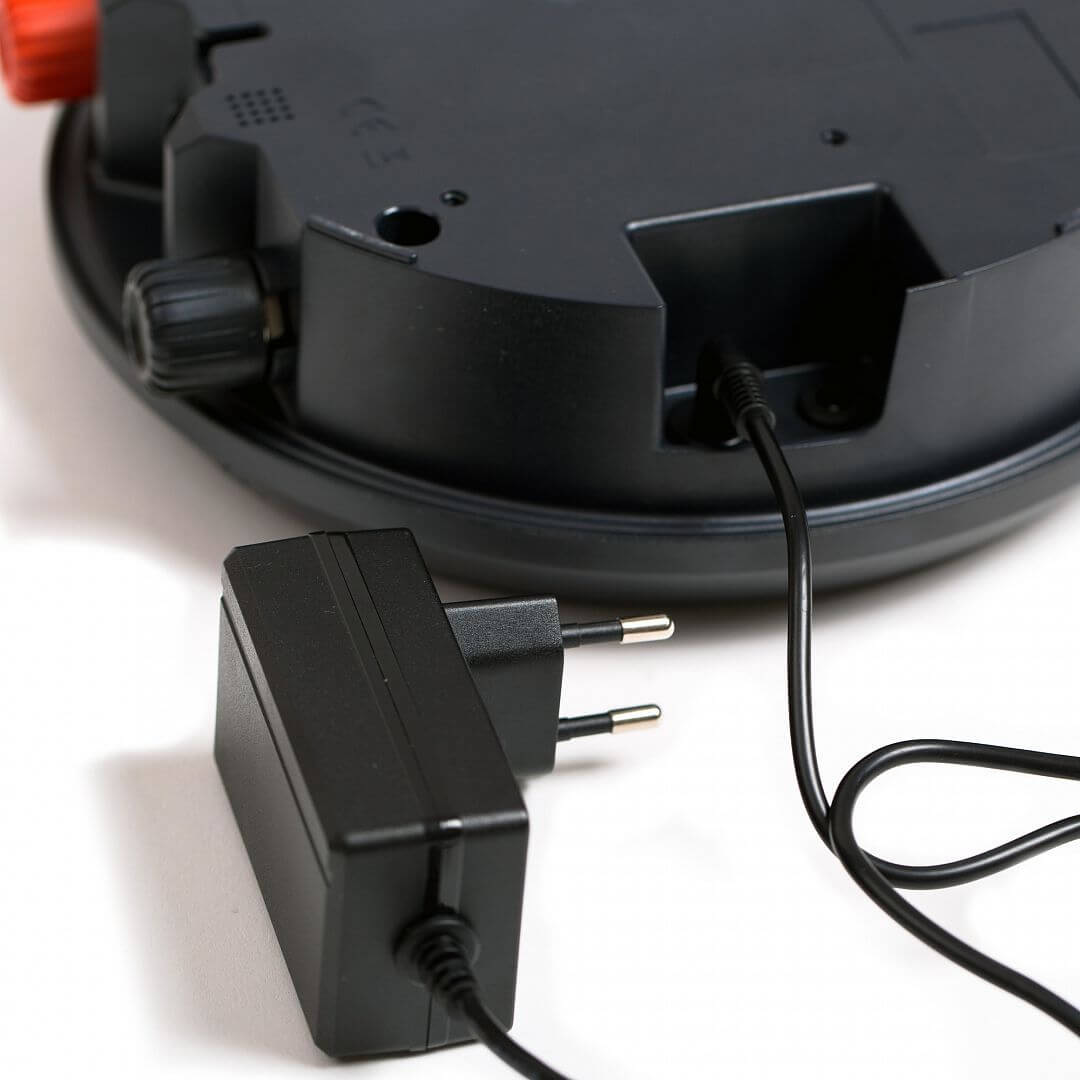

- 1× power adapter fencee DUO 14 V 1.5 m
- 1× ground cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eyelet-heart)
- 1× fencee DUO battery cable 1.7 m
- 1× operating instructions
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 100 - 440 mA |
Output energy | 5 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 6600 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
External antenna SMA connector | |
Remote control | |
Data encoding | |
Controller batteries | 1 × CR2 |
Transmission frequency | 869,525 MHz |
Transmitting power | +22 dBm |
Base antenna range | 10 km |
TEOR. max. CEE | 140 km |
Range with external antenna | 30 km |
Low vegetation | 40 km |
Medium vegetation | 10 km |
High vegetation | 4 km |
Earthing 1 m | 3 × |
El. fence nets | 8 × |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1618 g |
