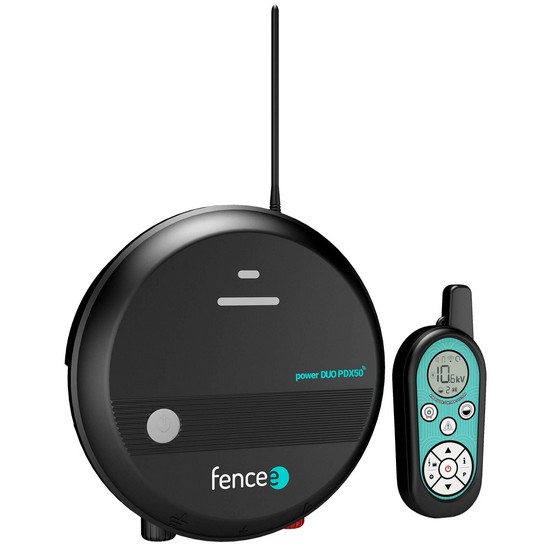

Product´s description Electric fence energizer fencee power DUO RF PDX50
The compact and modern construction of the combined energizer fencee with ON/OFF button, remote controller and the latest microprocessor technology inside offers a practical fence solution under control. Energizers have the option of reducing the output energy to 50%. The LEDs and BARGRAPH on the front panel show the status of the energizer, measure the voltage on the fence and also signal a possible fault on the fence.
The remote control of the energizer can be used for up to 10 km distance in ordinary terrain and buildings. In difficult, eg hilly terrain, the range is shortened, on the contrary, in open space it can be even longer. An external antenna can be used to improve the signal transmission between the energizer and the controller up to 30 km.
Remote signal transmission using RF technology (radio frequency). This means that you no longer need a SIM card! Just install energizer, plug it in and you're working.
- Up to six different energizers can be controlled by one controller
- One energizer can be controlled by up to three controllers
You can use fencee energizers anywhere on the pasture. If you have a problem on the fence, you don't have to go anywhere. Just press the button on the remote controller and you will turn off the energizer remotely, correct the fault and turn it on again. Even checking the further fence is not a problem. The remote control immediately informs you that:
- the voltage on the fence has dropped below the set value, e.g the line has been interrupted, the branch has fallen on the wires or there is tall grass,
- the battery voltage has dropped below 12 V,
- the signal is lost, e.g by disconnecting the energizer, damaging the antenna or for other reasons.
Package contents:
- energizer fencee
- energizer remote controller
- CR2 battery
- power adapter fencee DUO 14 V 1,5 m
- earthing cable 150 cm (eyelet-eyelet)
- connecting cable 100 cm (eye-heart)
- battery cable fencee DUO 1,7 m
- warning sign fencee
- basic antenna to the energizer
Case Studies Smart Farm fencee Cloud
See how Smart electric fencing fencee is helping several of our customers, including a zoo, a cattle cooperative, a sheep farms or a horse ranch.
Power source | 230 V ~ / 12 |
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 100 - 440 mA |
Output energy | 5 J |
Input energy | 7,5 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 6600 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
fencee Cloud connection | |
External antenna SMA connector | |
Remote control | |
Data encoding | |
Controller batteries | 1x CR2 |
Transmitting power | +22 dBm |
TEOR. max. CEE | 140 km |
Transmission frequency | 869,525 MHz |
Low vegetation | 40 km |
Medium vegetation | 10 km |
High vegetation | 4 km |
Earthing 1 m | 3x |
El. fence nets | 8x |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1618 g |
